Model Electrolux FPI11TLFW1 REFRIGERATOR – Common Parts & Diagrams

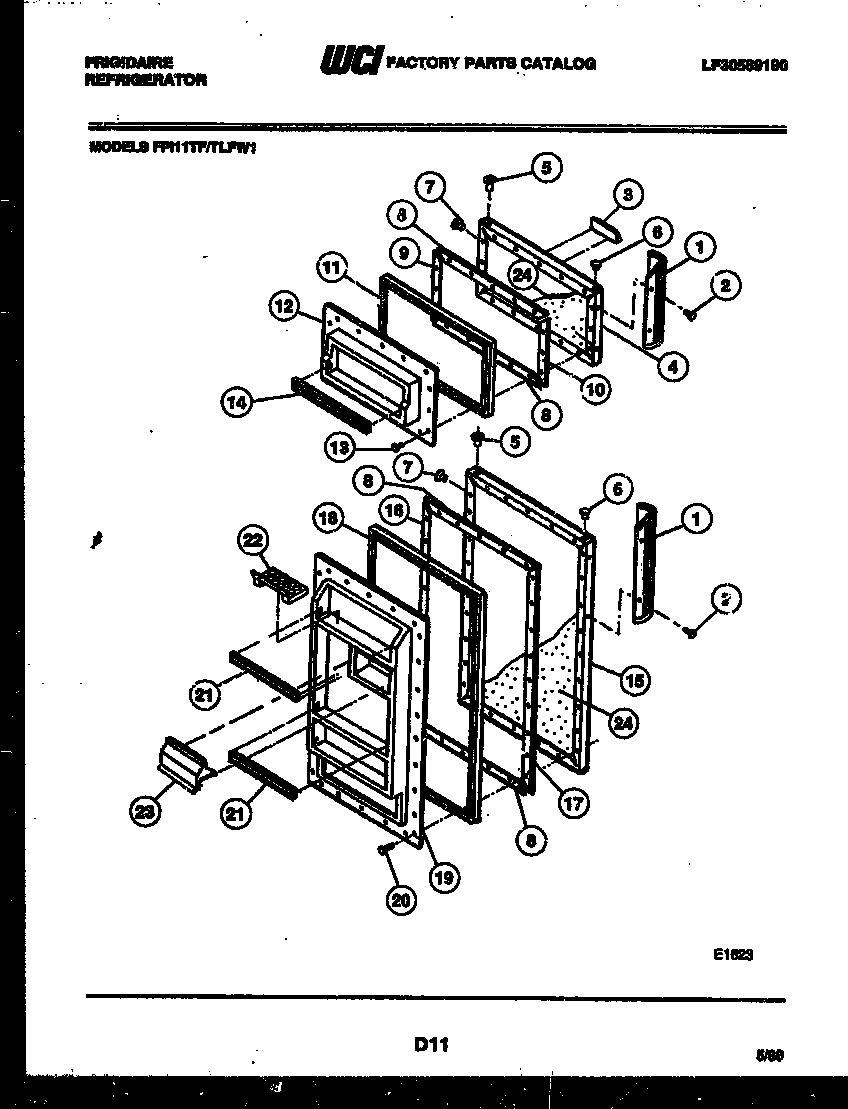

02 - DOOR PARTS

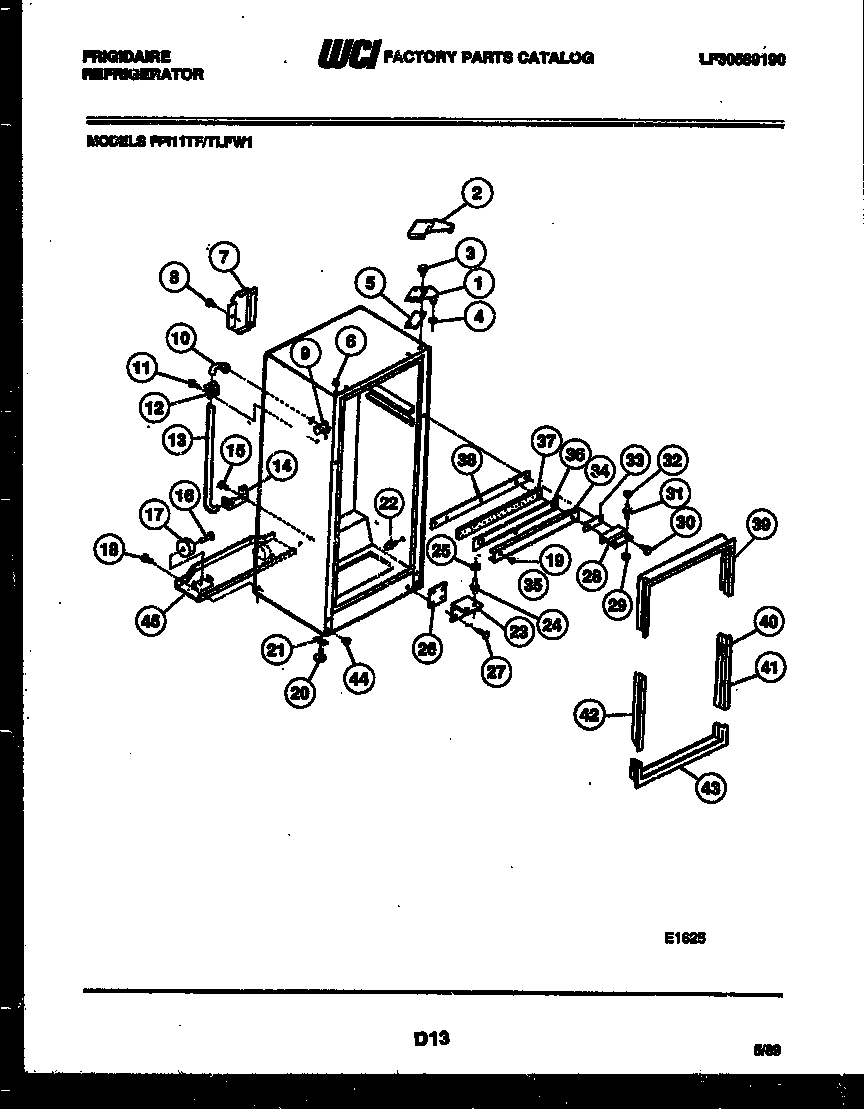

03 - CABINET PARTS

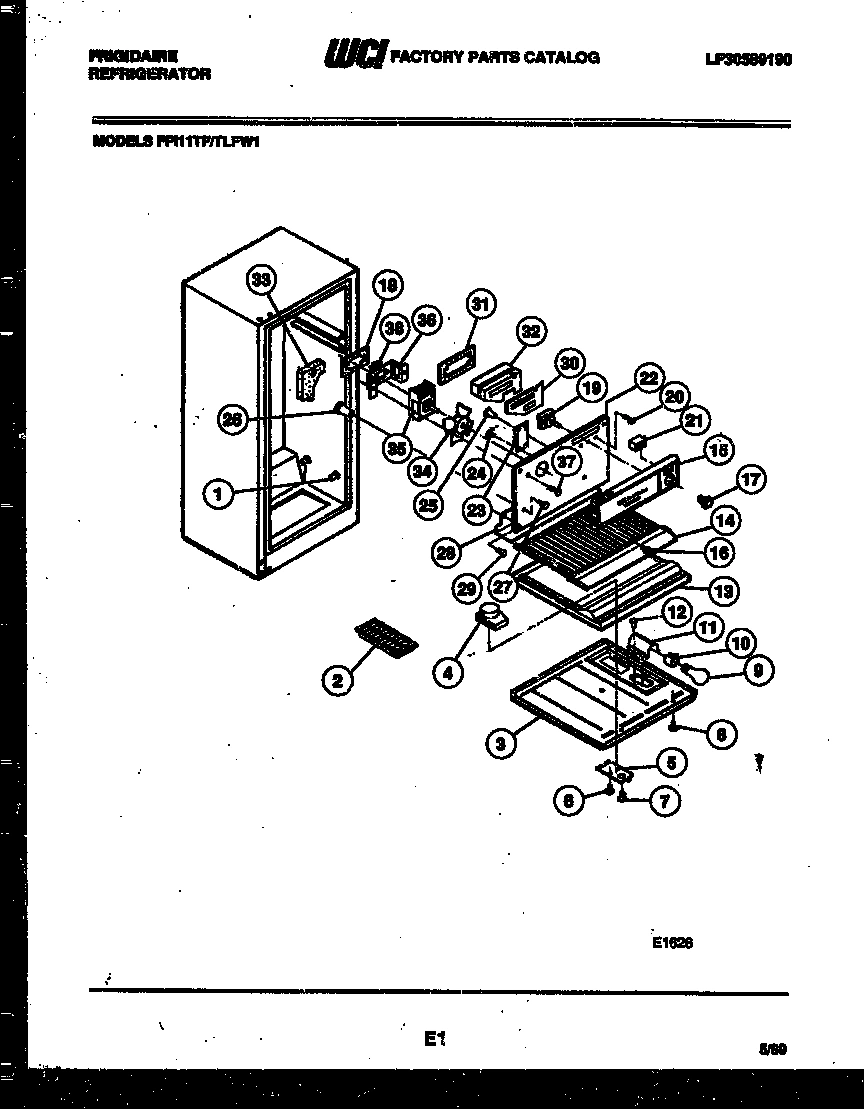

04 - SHELVES AND SUPPORTS

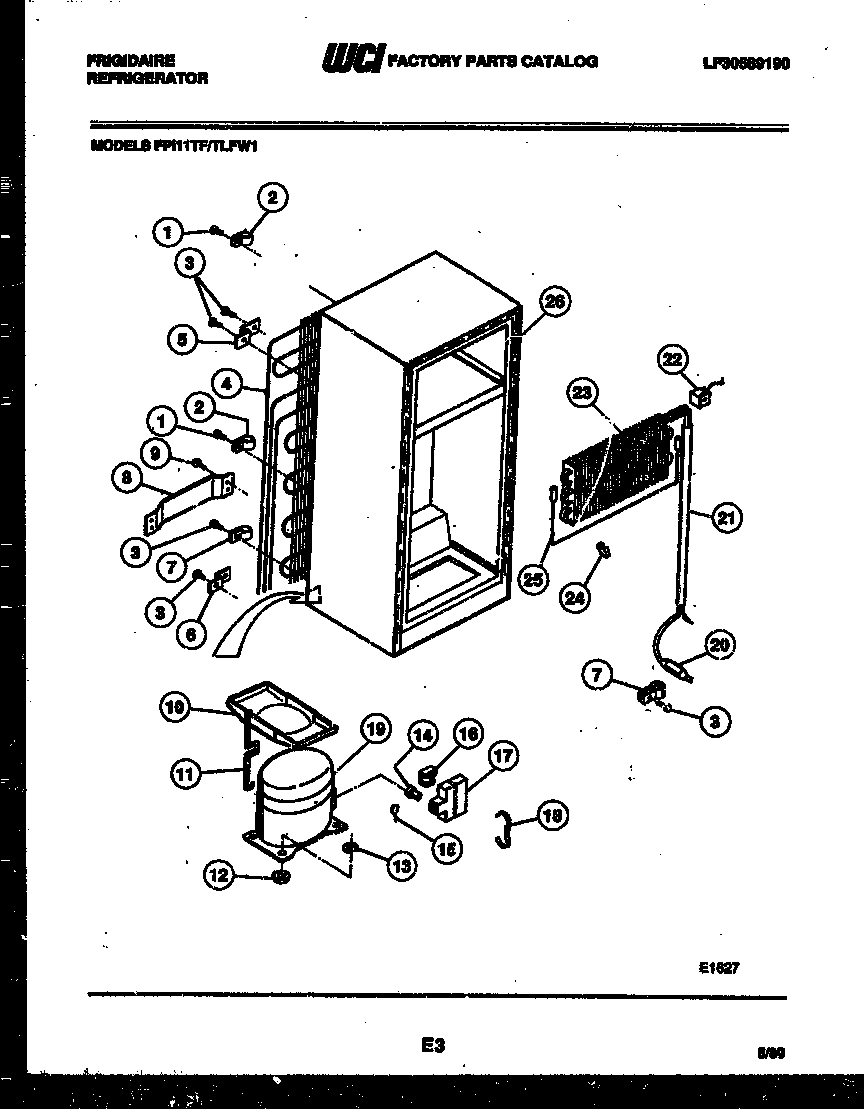

05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux FPI11TLFW1 REFRIGERATOR
*41762
WCI 08011215 WCI 08011215 Contact Us For Availability
1
WCI 3205047 WCI 3205047 Contact Us For Availability
1
HINGE BRKT-TOP WCI 08011172 Contact Us For Availability
1
SUPPORT SHELF (4) WCI 08011137 Contact Us For Availability
1
SCREW (2) WCI G185075 Contact Us For Availability
2
WCI 3205045 WCI 3205045 Contact Us For Availability
2
COVER-HINGE-WHITE WCI 08016531 Contact Us For Availability
2
WCI 3205075 WCI 3205075 Contact Us For Availability
2
WCI 08011625 WCI 08011625 Contact Us For Availability
3
WCI 3025048 WCI 3025048 Contact Us For Availability
3
SCREW (6) WCI 08011126 Contact Us For Availability
3
TOP-REFR WCI 08011195 Contact Us For Availability
4
WCI 3204693 WCI 3204693 Contact Us For Availability
4
WCI 3205092 WCI 3205092 Contact Us For Availability
4A
WCI 3205073 WCI 3205073 Contact Us For Availability
5
WCI 08012007 WCI 08012007 Contact Us For Availability
5
WCI 08011177 WCI 08011177 Contact Us For Availability
5
WCI 08011178 WCI 08011178 Contact Us For Availability
5
BRKT-COND UPPER (2) WCI 08011161 Contact Us For Availability
6
WCI 08011198 WCI 08011198 Contact Us For Availability
6
WCI 08011175 WCI 08011175 Contact Us For Availability
6
SCREW (2) WCI 08011119 Contact Us For Availability
6
BRKT-COND LOWER (2) WCI 08011160 Contact Us For Availability
7
COVER WCI 08011184 Contact Us For Availability
7
WCI G185166 WCI G185166 Contact Us For Availability
8
RETAINER-TOP/BOTTOM WCI 08011191 Contact Us For Availability
8
SCREW-TOP MTG (3) WCI 08011124 Contact Us For Availability
8
WCI 08013300 WCI 08013300 Contact Us For Availability
9
RETAINER-FRZR RS WCI 08011189 Contact Us For Availability
9
CUP DRAIN WCI 08011170 Contact Us For Availability
9
SCREW-COVER MTG (4) WCI 08011120 Contact Us For Availability
10
WCI 08011190 WCI 08011190 Contact Us For Availability
10
WCI 08011116 WCI 08011116 Contact Us For Availability
10
SOCKET-LIGHT WCI 08011171 Contact Us For Availability
10
WCI 3204968 WCI 3204968 Contact Us For Availability
11
WCI R000900798 WCI R000900798 Contact Us For Availability
11
SHIELD-LIGHT WCI 08011200 Contact Us For Availability
11
WCI 3205093 WCI 3205093 Contact Us For Availability
12
WCI 3205050 WCI 3205050 Contact Us For Availability
12
WCI 3001705 WCI 3001705 Contact Us For Availability
13
WCI 08011149 WCI 08011149 Contact Us For Availability
13
DIVIDER WCI 08011194 Contact Us For Availability
13
WCI 9950343 WCI 9950343 Contact Us For Availability
14
TRAP BRACKET WCI 08011157 Contact Us For Availability
14
BOTTOM-FRZR WCI 08011193 Contact Us For Availability
14
WCI 08011621 WCI 08011621 Contact Us For Availability
15
WCI 3201655 WCI 3201655 Contact Us For Availability
15
WCI 3205089 WCI 3205089 Contact Us For Availability
15
WCI 08007437 WCI 08007437 Contact Us For Availability
15A
WCI 3204911 WCI 3204911 Contact Us For Availability
16
RETAINER-REF RS WCI 08011187 Contact Us For Availability
16
PIN-ROLLER (2) WCI 08011131 Contact Us For Availability
16
WCI 3205095 WCI 3205095 Contact Us For Availability
17
RETAINER-REF LS WCI 08011188 Contact Us For Availability
17
ROLLER-REAR (2) WCI 08011155 Contact Us For Availability
17
WCI 08011208 WCI 08011208 Contact Us For Availability
17
WCI G185176 WCI G185176 Contact Us For Availability
18
WCI R000900734 WCI R000900734 Contact Us For Availability
18
WCI 08011169 WCI 08011169 Contact Us For Availability
18
WCI G185177 WCI G185177 Contact Us For Availability
19
PANEL-INNER REFR WCI 3205054 Contact Us For Availability
19
WCI 08016533 WCI 08016533 Contact Us For Availability
19
WCI 08011182 WCI 08011182 Contact Us For Availability
19
WCI 3202344 WCI 3202344 Contact Us For Availability
20
SCREW MTG (34) WCI 08011123 Contact Us For Availability
20
SCREW-LEVING (2) WCI 08011117 Contact Us For Availability
20
WCI G185144 WCI G185144 Contact Us For Availability
21
RACK-DOOR (3) WCI 3205051 Contact Us For Availability
21
TEE NUT (2) WCI 08013303 Contact Us For Availability
21
WCI 08011210 WCI 08011210 Contact Us For Availability
21
WCI 08011207 WCI 08011207 Contact Us For Availability
22
WCI 3205052 WCI 3205052 Contact Us For Availability
22
WCI 08011204 WCI 08011204 Contact Us For Availability
23
WCI 3205053 WCI 3205053 Contact Us For Availability
23
HINGE BRKT-BTM WCI 08011174 Contact Us For Availability
23
WCI 08011201 WCI 08011201 Contact Us For Availability
23
WCI 08011224 WCI 08011224 Contact Us For Availability
24
INSULATION WCI G89643 Contact Us For Availability
24
WCI 08011132 WCI 08011132 Contact Us For Availability
25
WASHER WCI 08011152 Contact Us For Availability
25
SUPPORT-COIL COVER (2) WCI 08011134 Contact Us For Availability
25
WCI 08011209 WCI 08011209 Contact Us For Availability
26
SHIM-BTM HINGE WCI 08011167 Contact Us For Availability
26
SUPPORT (5) WCI 08011136 Contact Us For Availability
26
HEATER-KIT WCI 08011624 Contact Us For Availability
27
SCREW-SEMS (3) WCI 08011142 Contact Us For Availability
27
SCREW-COVER MTG (5) WCI 08011122 Contact Us For Availability
28
HINGE-BRKT-CTR WCI 08011173 Contact Us For Availability
28
TROUGH-DRAIN WCI 08011216 Contact Us For Availability
29
WASHER WCI 08011151 Contact Us For Availability
30
SCREW (2) WCI 3205083 Contact Us For Availability
30
WCI 08011203 WCI 08011203 Contact Us For Availability
31
WCI 08000184 WCI 08000184 Contact Us For Availability
31
WCI 08011153 WCI 08011153 Contact Us For Availability
32
WCI G185082 WCI G185082 Contact Us For Availability
32
SPACER-RS WCI 08011220 Contact Us For Availability
33
SHIM-CTR HINGE WCI G185091 Contact Us For Availability
33
SPACER-LS WCI 08011205 Contact Us For Availability
34
WCI 08011212 WCI 08011212 Contact Us For Availability
34
WCI 08011156 WCI 08011156 Contact Us For Availability
35
SCREW (2) WCI 3205085 Contact Us For Availability
35
WCI 08012611 WCI 08012611 Contact Us For Availability
36
WCI 08011214 WCI 08011214 Contact Us For Availability
36
BRACKET WCI 08011158 Contact Us For Availability
37
INSULATION WCI 08011192 Contact Us For Availability
37
SCREW-BRACKET (2) WCI G185156 Contact Us For Availability
38
SUPPORT-MULLION MTG WCI 08011211 Contact Us For Availability
38
WCI 08011129 WCI 08011129 Contact Us For Availability
39
WCI 08011225 WCI 08011225 Contact Us For Availability
41
WCI 08017575 WCI 08017575 Contact Us For Availability
41A
WCI 08011128 WCI 08011128 Contact Us For Availability
42
MLDG W/O HOLE-LS WCI 08011227 Contact Us For Availability
42A
WCI 08017576 WCI 08017576 Contact Us For Availability
43
MOULDING-BTM WCI 08011226 Contact Us For Availability
44
PLUG-WHITE (3) WCI 3204939 Contact Us For Availability
45
COMPRESSOR BASE WCI 08012871 Contact Us For Availability
× ![]()
