Model Electrolux FPHI1888PF5 REFRIGERATOR – Common Parts & Diagrams
01 - COVER SHEET

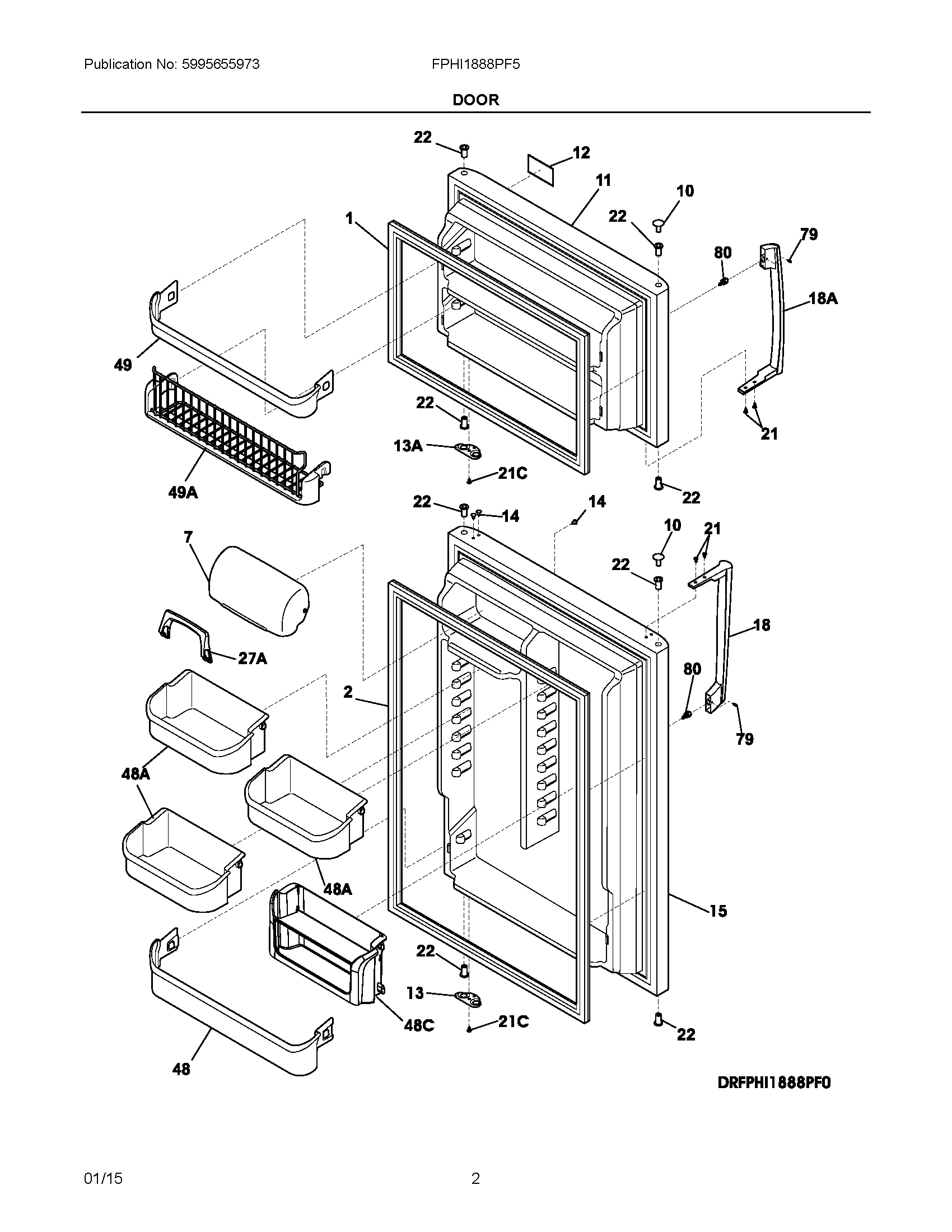

02 - DOOR
03 - CABINET
04 - SHELVES
05 - SYSTEM
06 - ICE MAKER
07 - WIRING SCHEMATIC
08 - WIRING DIAGRAM
Common parts from model Electrolux FPHI1888PF5 REFRIGERATOR
1
GASKET-FRZR DOOR, WHITE, MAGNETIC WCI 242193203 Contact Us For Availability
1A
DEFLECTOR, AIR WCI 242213901 Contact Us For Availability
2
GASKET-REFR DOOR, WHITE, MAGNETIC WCI 242193206 Contact Us For Availability
2
WCI 240367001 WCI 240367001 Contact Us For Availability
4
WCI 241523701 WCI 241523701 Contact Us For Availability
5
FAN BLADE, RED, EVAPORATOR FAN WCI 5308000010 Contact Us For Availability
7
DOOR, DAIRY, CLEAR WCI 240338313 Contact Us For Availability
9
BRACKET-MOTOR MTG, FRONT WCI 5303292396 Contact Us For Availability
10
WCI 240381307 WCI 240381307 Contact Us For Availability
11
DOOR-FRZR, STAINLESS, COMPLETE ASSY WCI 240410208 Contact Us For Availability
11
PLUG-HOLE, FACTORY TEST WCI 5303208309 Contact Us For Availability
11A
WCI 242087902 WCI 242087902 Contact Us For Availability
12
DIFFUSER, AIR, TOP WCI 241542001 Contact Us For Availability
12
WCI 242015101 WCI 242015101 Contact Us For Availability
13
DIFFUSER, AIR, BOTTOM WCI 240362601 Contact Us For Availability
13A
DOOR STOP, BLACK, FRZR WCI 240312415 Contact Us For Availability
14
WCI 240494007 WCI 240494007 Contact Us For Availability
16
STRAP-EVAP/HEATER, ALUMINUM, (2) WCI 5308000110 Contact Us For Availability
17
WCI 241801301 WCI 241801301 Contact Us For Availability
17
WCI 240352704 WCI 240352704 Contact Us For Availability
18
KNOB, TEMP CONTROL WCI 240360801 Contact Us For Availability
19
SHIELD, HEAT, EVAP BLOCK WCI 242320401 Contact Us For Availability
21
THERMOSTAT KIT, DEFROST, W/CONNECTOR WCI 5303918634 Contact Us For Availability
22
BASE-COMPRESSOR, W/ROLLERS WCI 241665606 Contact Us For Availability
23
GROMMET-COMPR MTG, (4) WCI 218513300 Contact Us For Availability
24
WCI 241812301 WCI 241812301 Contact Us For Availability
24A
SHELF-"SPILL-SAFE", CANTILEVER, HALF WIDTH, F WCI 241616607 Contact Us For Availability
25
WCI 242201802 WCI 242201802 Contact Us For Availability
25
WCI 242037701 WCI 242037701 Contact Us For Availability
26
WCI 241920605 WCI 241920605 Contact Us For Availability
27
WCI 242215901 WCI 242215901 Contact Us For Availability
27A
RETAINER, TALL BOTTLE WCI 241812702 Contact Us For Availability
29
WCI 242110902 WCI 242110902 Contact Us For Availability
30
BRACKET-LOWER HINGE, ZINC WCI 240314011 Contact Us For Availability
30
WCI 241707720 WCI 241707720 Contact Us For Availability
31
WCI 242322201 WCI 242322201 Contact Us For Availability
32
CLIP-SLIDE, PAN WCI 240349801 Contact Us For Availability
34
WASHER, HINGE, NYLON, (2) WCI 240311303 Contact Us For Availability
34
CONTAINER, ICE BIN WCI 240385201 Contact Us For Availability
34
GROMMET, RUBBER, BLACK, COND TUBE/WIRE WCI 240405201 Contact Us For Availability
35
BRACKET-CTR HINGE, ZINC WCI 240313806 Contact Us For Availability
35A
SPACER-HINGE, CENTER, WHITE WCI 240336802 Contact Us For Availability
37
WCI 242161206 WCI 242161206 Contact Us For Availability
38
WCI 240313703 WCI 240313703 Contact Us For Availability
40
WCI 240354408 WCI 240354408 Contact Us For Availability
42
SCREW, HEX HEAD, 1/4-20 X 5/8 WCI 240578902 Contact Us For Availability
42
WCI 218515401 WCI 218515401 Contact Us For Availability
45
SCREW, HEX WASHER HEAD, 8-15A X 0.625, LOW PR WCI 5304455650 Contact Us For Availability
47
INSERT-PAN COVER, 23.82" X 15.50", GLASS WCI 240350608 Contact Us For Availability
47
CHANNEL-SHELF MTG, SIDE, (2) WCI 218233302 Contact Us For Availability
48
BIN-DOOR WCI 240338101 Contact Us For Availability
48C
BIN-DOOR, LEFT OVER WCI 242088303 Contact Us For Availability
49
WCI 240495805 WCI 240495805 Contact Us For Availability
49A
WCI 242332201 WCI 242332201 Contact Us For Availability
51
TUBE-WATER FILL, EXTENSION WCI 241796405 Contact Us For Availability
55
WCI 297286803 WCI 297286803 Contact Us For Availability
55
VALVE-WATER, SOLENOID ASSY WCI 242252603 Contact Us For Availability
56
WCI 240516502 WCI 240516502 Contact Us For Availability
58
SCREW, 8-18 X .500 WCI 240569202 Contact Us For Availability
60
WCI 242018301 WCI 242018301 Contact Us For Availability
60
SCREW, HEX WASHER HEAD, 8-18AB X 1.250, SPACE WCI 218362501 Contact Us For Availability
64
CLAMP, .31 ID, STEEL, WATER TUBE WCI 5304455846 Contact Us For Availability
72
WCI 241839414 WCI 241839414 Contact Us For Availability
79
SCREW-SET, 10-32 X 0.375 WCI 218755401 Contact Us For Availability
80
SCREW, SHOULDER, #10-AB, HANDLE MOUNTING WCI 218755504 Contact Us For Availability
82
ROLLER, COMPRESSOR BASE, REAR, (2) WCI 5304418225 Contact Us For Availability
83
RIVET, FLAT HEAD, 1/4 OD X 1-3/4, ROLLER PIN WCI 5304455655 Contact Us For Availability
84
TUBE-DRAIN, RUBBER, LOWER WCI 240500801 Contact Us For Availability
92
SCREW, HEX WASHER HD, 1/4 X 7/8, HINGE MTG WCI 241710601 Contact Us For Availability
100
WCI 241768601 WCI 241768601 Contact Us For Availability
114
WCI 241554901 WCI 241554901 Contact Us For Availability
136
DISPENSER-CAN, WHITE WCI 241657701 Contact Us For Availability
NI
HEAT EXCHANGER KIT, SUCTION LINE WCI 5303918263 Contact Us For Availability
NI
HOT TUBE REPAIR KIT, SERVICE WCI 5303918222 Contact Us For Availability
NI
CLAMP, TUBE/WIRING, NYLON, BLACK/NATURAL WCI 240396801 Contact Us For Availability
NIA
SCREW, #8 TRUSS HD, 10-32CA X 0.500 WCI 218252201 Contact Us For Availability
NIA
SPACER, SHELF WCI 5303299664 Contact Us For Availability
NIA
TAPE-FOAM SEAL, SHROUD WCI 240346701 Contact Us For Availability
NIA
WASHER, "SLINGER", NYLON, EVAP FAN SHAFT WCI 215474201 Contact Us For Availability
NIA
WIRING HARNESS, CONTROL BOX WCI 240388701 Contact Us For Availability
NIB
SEAL-WATER INLET, INLET VALVE, TO ICE MAKER WCI 240561701 Contact Us For Availability
NIB
SCREW-FAN SHROUD, (2) WCI 240359403 Contact Us For Availability
× ![]()
