Model Electrolux FPGS18TAW4 REFRIGERATOR – Common Parts & Diagrams

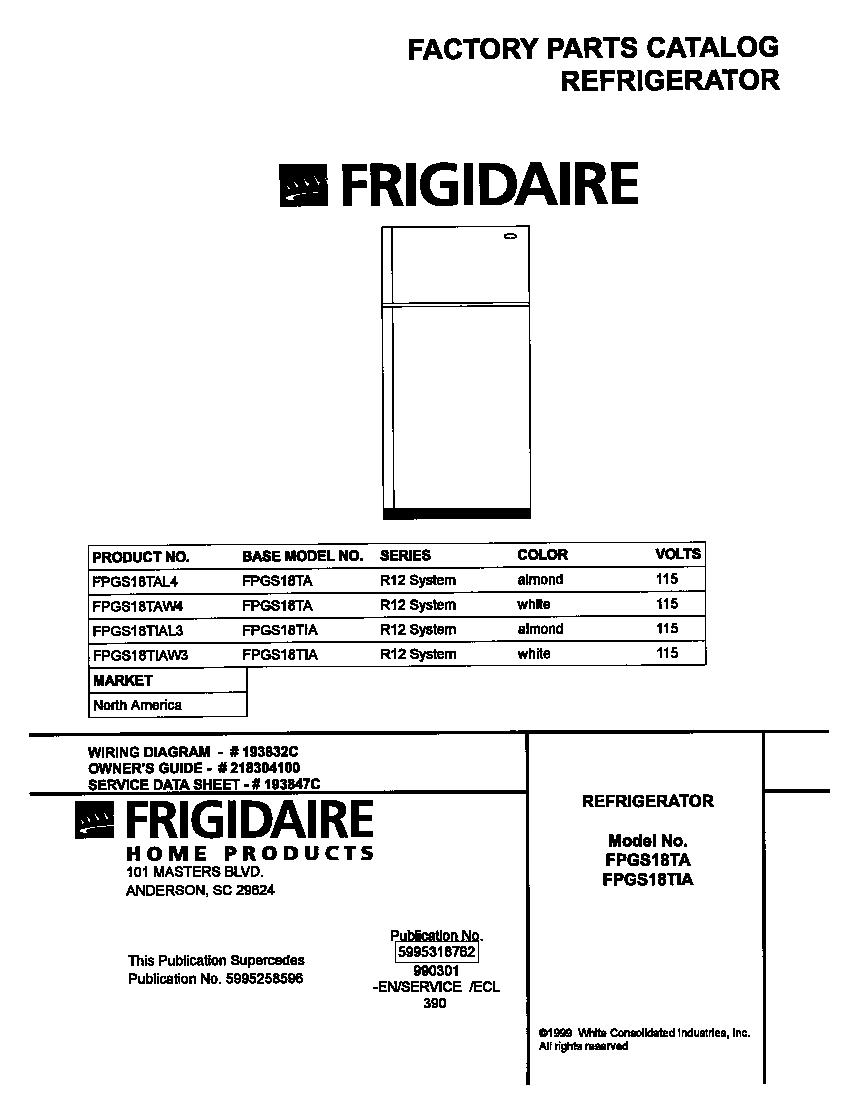

01 - COVER

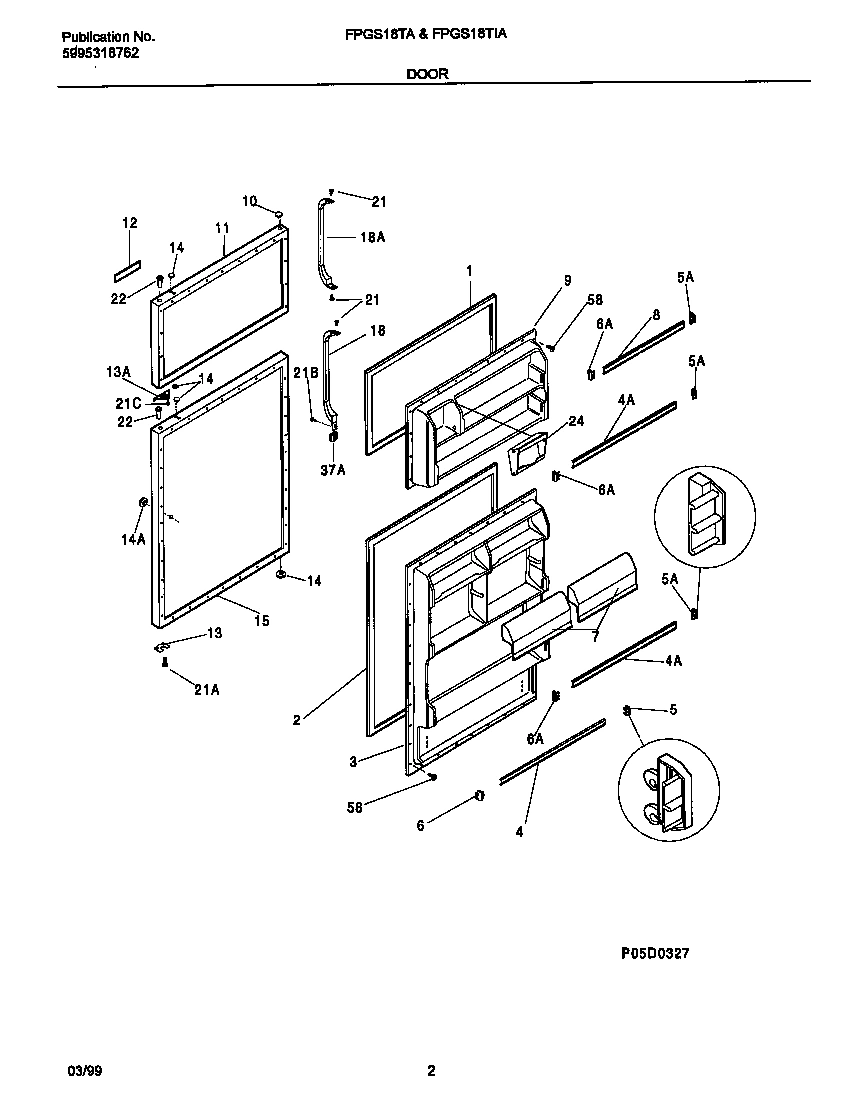

02 - DOORS

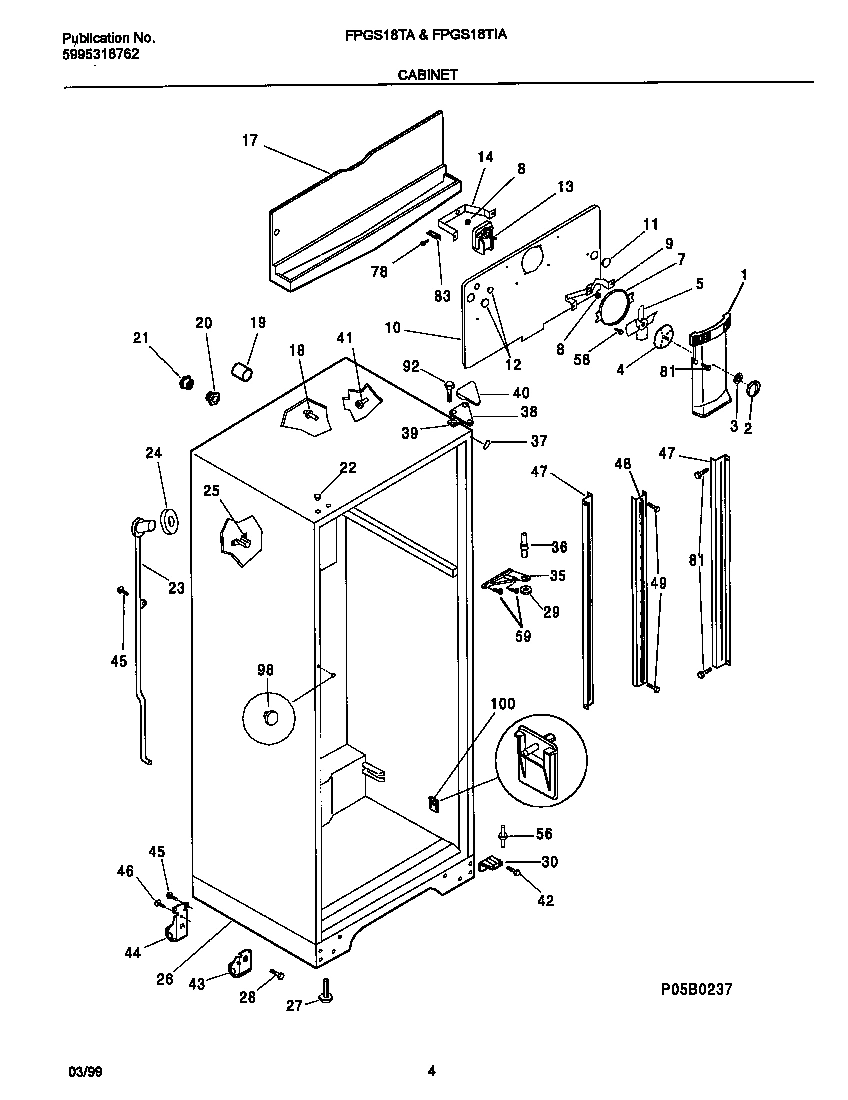

03 - CABINET

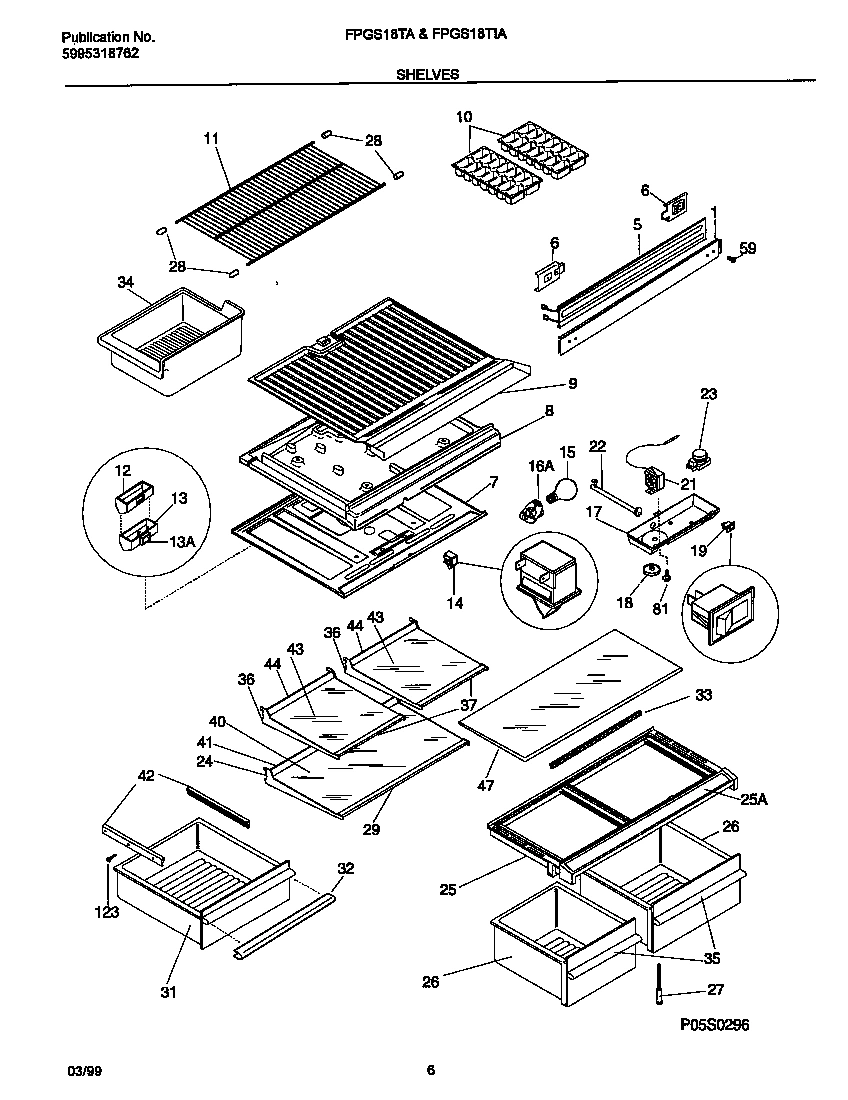

04 - SHELVES

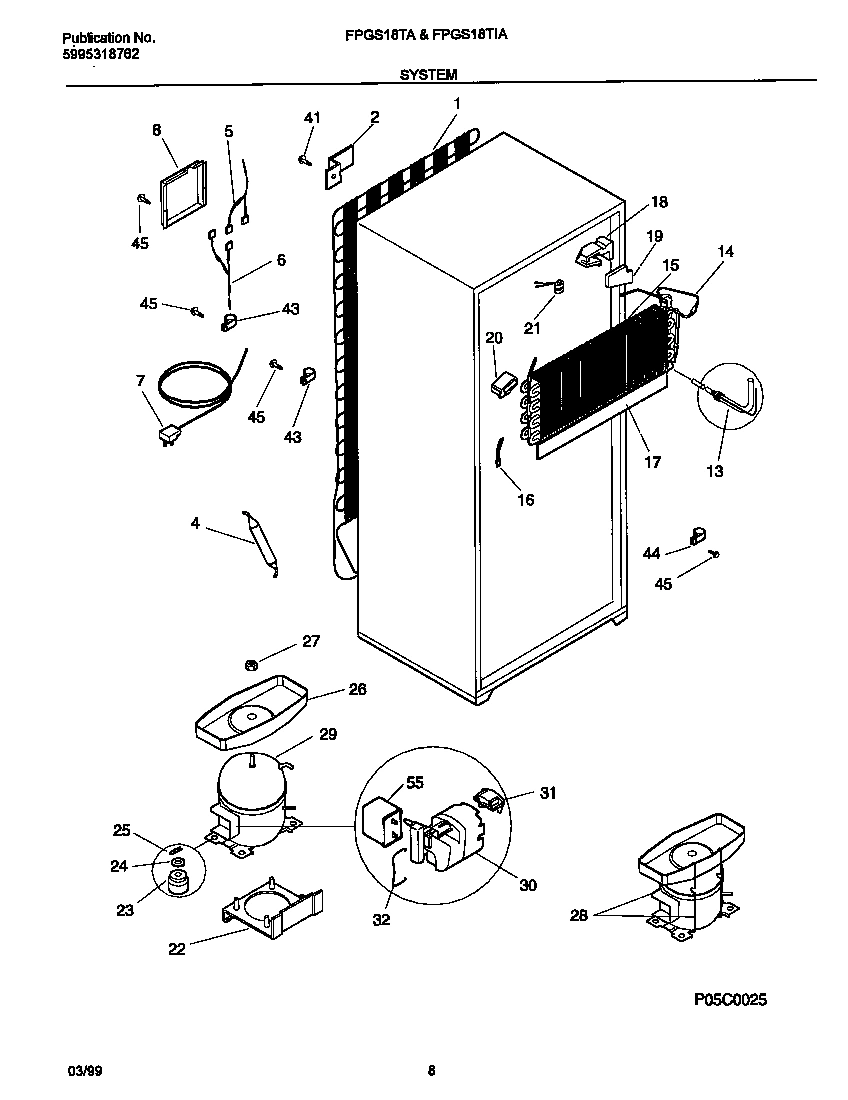

05 - SYSTEM

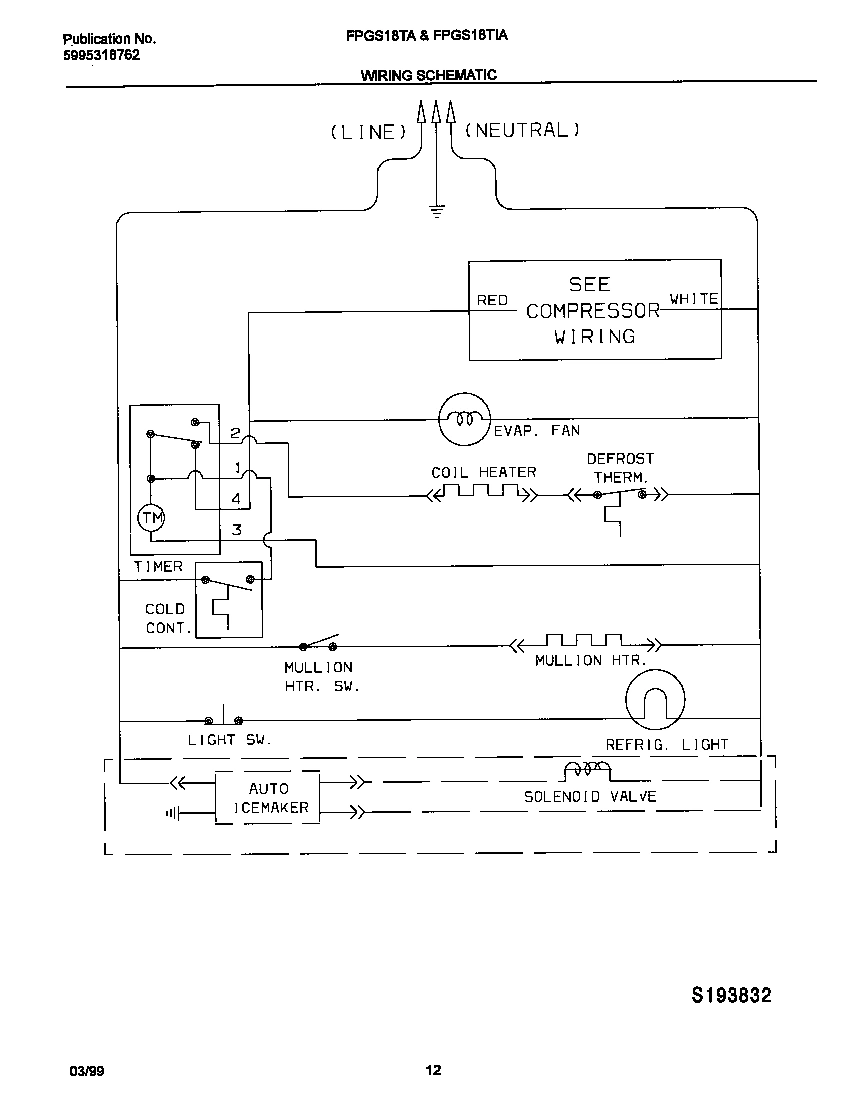

07 - WIRING DIAGRAM

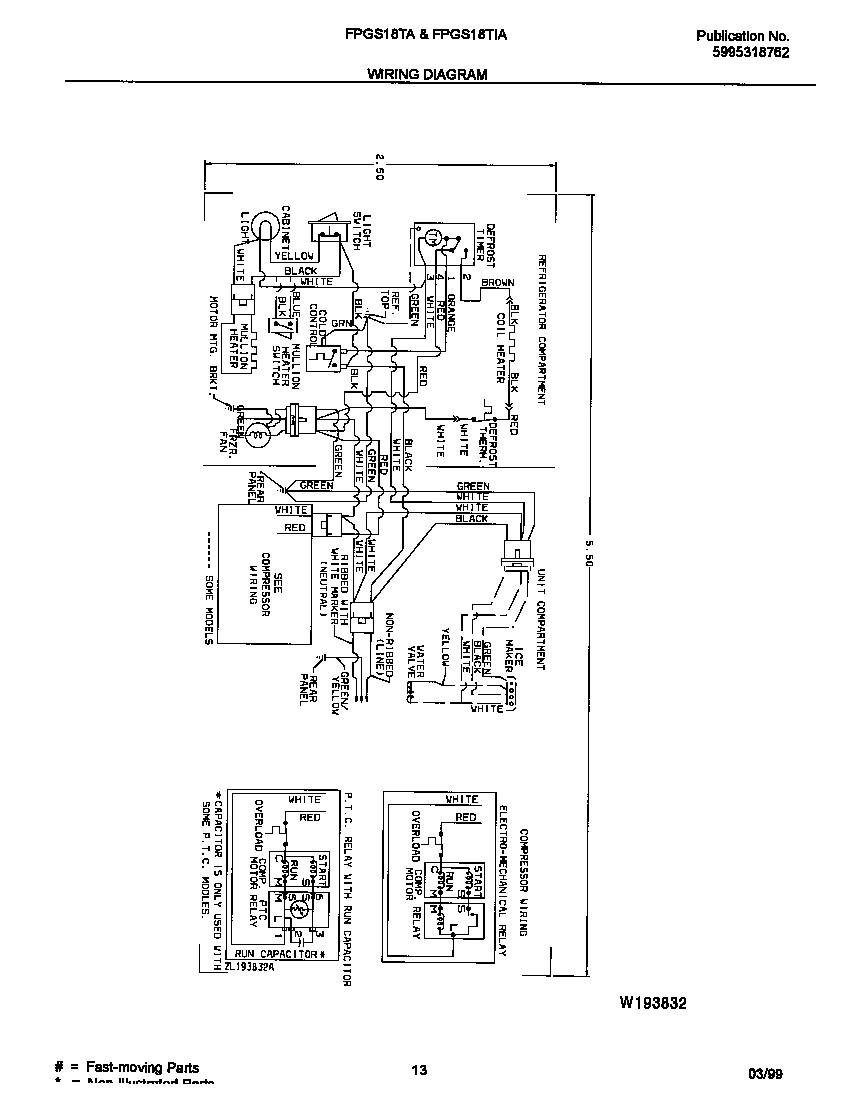

08 - WIRING DIAGRAM
Common parts from model Electrolux FPGS18TAW4 REFRIGERATOR
*56920
WCI 5303917276 WCI 5303917276 Contact Us For Availability
*56927
PLUG-BUTTON,CABINET LINER ,ICEMAKER HOLES WCI 5308016571 Contact Us For Availability
*56930
WCI 5303001380 WCI 5303001380 Contact Us For Availability
*56934
NUT-ANCHOR WCI 5308016567 Contact Us For Availability
*56935
WCI 5303001260 WCI 5303001260 Contact Us For Availability
*56938
WASHER, EXT TOOTH LOCK, NO. 10 WCI 5308009617 Contact Us For Availability
*56940
HOT TUBE REPAIR KIT-SERVICE WCI 5300189383 Contact Us For Availability
1
WCI 218252503 WCI 218252503 Contact Us For Availability
1
WCI 5300163133 WCI 5300163133 Contact Us For Availability
2
Bracket,condenser mtg ,(4) WCI 5308000296 Contact Us For Availability
5
SUPPORT-DOOR RACK, RH WCI 5317828701 Contact Us For Availability
5
WCI 3018900 WCI 3018900 Contact Us For Availability
5
WCI 218271402 WCI 218271402 Contact Us For Availability
6
SUPPORT-DOOR RACK, LH WCI 5317828401 Contact Us For Availability
6
WCI 218279800 WCI 218279800 Contact Us For Availability
6
WCI 215257001 WCI 215257001 Contact Us For Availability
7
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
7
WCI 3018993 WCI 3018993 Contact Us For Availability
7
CORD-ELECTRIC POWER WCI 5316254901 Contact Us For Availability
8
WCI 3018994 WCI 3018994 Contact Us For Availability
8
WCI 5303001197 WCI 5303001197 Contact Us For Availability
9
WCI 5303211427 WCI 5303211427 Contact Us For Availability
10
PLUG-BUTTON, WHITE, HINGE BRG HOLE WCI 5308000134 Contact Us For Availability
11
WCI 5303283031 WCI 5303283031 Contact Us For Availability
12
WCI 5308014667 WCI 5308014667 Contact Us For Availability
12A
WCI 215079000 WCI 215079000 Contact Us For Availability
12B
WCI 215079100 WCI 215079100 Contact Us For Availability
13
WCI 218249001 WCI 218249001 Contact Us For Availability
13
WCI 5303001448 WCI 5303001448 Contact Us For Availability
13
EXTENSION, AIR DEFLECTOR, FOR 2-PC COVER WCI 5303200590 Contact Us For Availability
13
WCI 5308000728 WCI 5308000728 Contact Us For Availability
14
BRACKET-MOTOR MTG, REAR WCI 5303205119 Contact Us For Availability
15
EVAPORATOR WCI 5303271578 Contact Us For Availability
17
INSULATOR-EVAP, PLASTIC WCI 5316651102 Contact Us For Availability
17
WCI 5303001470 WCI 5303001470 Contact Us For Availability
17
CONTROL BOX WCI 5303299980 Contact Us For Availability
18
SUPPORT - EVAP COVER, (2) WCI 215245000 Contact Us For Availability
18
WCI 5303299979 WCI 5303299979 Contact Us For Availability
18
INSULATION BLOCK, RH WCI 5308013648 Contact Us For Availability
19
SWITCH-ENERGY SAVER, ROCKER TYPE WCI 5303286905 Contact Us For Availability
19
TUBE-RUBBER WCI 5303001198 Contact Us For Availability
19
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
20
WCI 5303001286 WCI 5303001286 Contact Us For Availability
20
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
21
WCI 5303001287 WCI 5303001287 Contact Us For Availability
21
WCI 5303018894 WCI 5303018894 Contact Us For Availability
22
PLUG-BUTTON, WHITE WCI 5303001388 Contact Us For Availability
22
HOUSING-TEMP SENSOR, PLASTIC WCI 3018891 Contact Us For Availability
22
WCI 5308013663 WCI 5308013663 Contact Us For Availability
23
WCI 5303210377 WCI 5303210377 Contact Us For Availability
24
WCI 5303207353 WCI 5303207353 Contact Us For Availability
24
WCI 215919107 WCI 215919107 Contact Us For Availability
24
WASHER-COMPR MTG WCI 5308003633 Contact Us For Availability
25
WCI 5308000056 WCI 5308000056 Contact Us For Availability
25
WCI 5303206606 WCI 5303206606 Contact Us For Availability
25
WCI 5303280075 WCI 5303280075 Contact Us For Availability
25
CLIP - COMPRESSOR MTG WCI 5308003596 Contact Us For Availability
26
WCI 5303212487 WCI 5303212487 Contact Us For Availability
26
PAN-DEFROST DRAIN, ORIG/SVCE COMPR WCI 5300184715 Contact Us For Availability
26A
PAN-CRISPER, 11.34`` WIDE, LH WCI 5303299800 Contact Us For Availability
26B
PAN-CRISPER, 14.34`` WIDE, RH WCI 5303300424 Contact Us For Availability
27
SUPPORT-CRISPER CVR, ADJUSTABLE WCI 5303205987 Contact Us For Availability
27
SCREW-LEVELING WCI 5303212922 Contact Us For Availability
27
Nut,lock `1/4-20 ,drain pan mtg WCI 5303001348 Contact Us For Availability
28
END CAP-SHELF,PROTECTOR ,FRZR SHELF WCI 3201150 No Longer Available
28
PAN RETAINER KIT, SERVICE WCI 5303916001 Contact Us For Availability
28
BOLT-ROLLER ADJ,HEX HD SEMS ,1/4-28 X 2.75,(2 WCI 5303271412 Contact Us For Availability
29
WASHER, .34 X .62 X .05, NYLON WCI 5308000007 Contact Us For Availability
29
TRIM-GLASS SHELF,26.12`` ,FRONT WCI 215919438 Contact Us For Availability
29
COMPRESSOR, W/OVERLOAD WCI 5303925125 Contact Us For Availability
30
WCI 218220200 WCI 218220200 Contact Us For Availability
30
WCI 216008900 WCI 216008900 Contact Us For Availability
31
OVERLOAD PROTECTOR WCI 5303276514 Contact Us For Availability
31
WCI 5303293818 WCI 5303293818 Contact Us For Availability
32
WCI 5303279439 WCI 5303279439 Contact Us For Availability
32
WCI 215012000 WCI 215012000 Contact Us For Availability
33
GASKET-PAN COVER, 13.25``, RH WCI 5303200329 Contact Us For Availability
35
BRACKET-CTR HINGE, LIGHT GREY WCI 218220101 Contact Us For Availability
35A
TRIM-CRISPER PAN, 11.13``, LH WCI 5303275758 Contact Us For Availability
35B
TRIM-CRISPER PAN,14.13`` ,RH WCI 5303282659 Contact Us For Availability
36
WCI 215919106 WCI 215919106 Contact Us For Availability
37
TRIM-CABINET CORNER, WHITE WCI 5303202336 Contact Us For Availability
37
TRIM-GLASS SHELF, 12.59``, FRONT WCI 215919439 Contact Us For Availability
38
BRACKET-UPPER HINGE WCI 5308012843 Contact Us For Availability
39
SHIM - UPPER HINGE WCI 5303001037 Contact Us For Availability
40
COVER-UPPER HINGE, WHITE WCI 5308012820 Contact Us For Availability
40
GLASS-SHELF, 26.08`` X 15.57`` WCI 5303211964 Contact Us For Availability
41
TRIM-GLASS SHELF,26.12`` ,REAR WCI 215919804 Contact Us For Availability
42A
HANGER-PAN/BASKET, LH WCI 5303209272 Contact Us For Availability
42B
HANGER-PAN/BASKET, RH WCI 5303209273 Contact Us For Availability
43
WCI 5303212490 WCI 5303212490 Contact Us For Availability
43
GLASS-SHELF, 12.55`` X 15.57`` WCI 5303211967 Contact Us For Availability
44
WCI 5308009773 WCI 5308009773 Contact Us For Availability
44
TRIM-GLASS SHELF, 12.59``, REAR WCI 215919810 Contact Us For Availability
46
BOLT-ROLLER MTG,HEX WSHR HD ,1/4-28 X .5,(2) WCI 5308009762 Contact Us For Availability
47
WCI 215789000 WCI 215789000 Contact Us For Availability
47
WCI 5303209283 WCI 5303209283 Contact Us For Availability
48
WCI 5303292395 WCI 5303292395 Contact Us For Availability
49
SCREW, HEX WASHER HEAD, 8-18AB X 1-1/2 WCI 215507300 Contact Us For Availability
56
WCI 218220300 WCI 218220300 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
98
PLUG-BUTTON, WHITE, CTR HINGE HOLE WCI 215099701 Contact Us For Availability
100
SUPPORT-PAN COVER WCI 5303288973 No Longer Available
× ![]()
