Model Electrolux FPGS18TAW0 REFRIGERATOR – Common Parts & Diagrams
01 - COVER
02 - DOOR PARTS
03 - CABINET PARTS

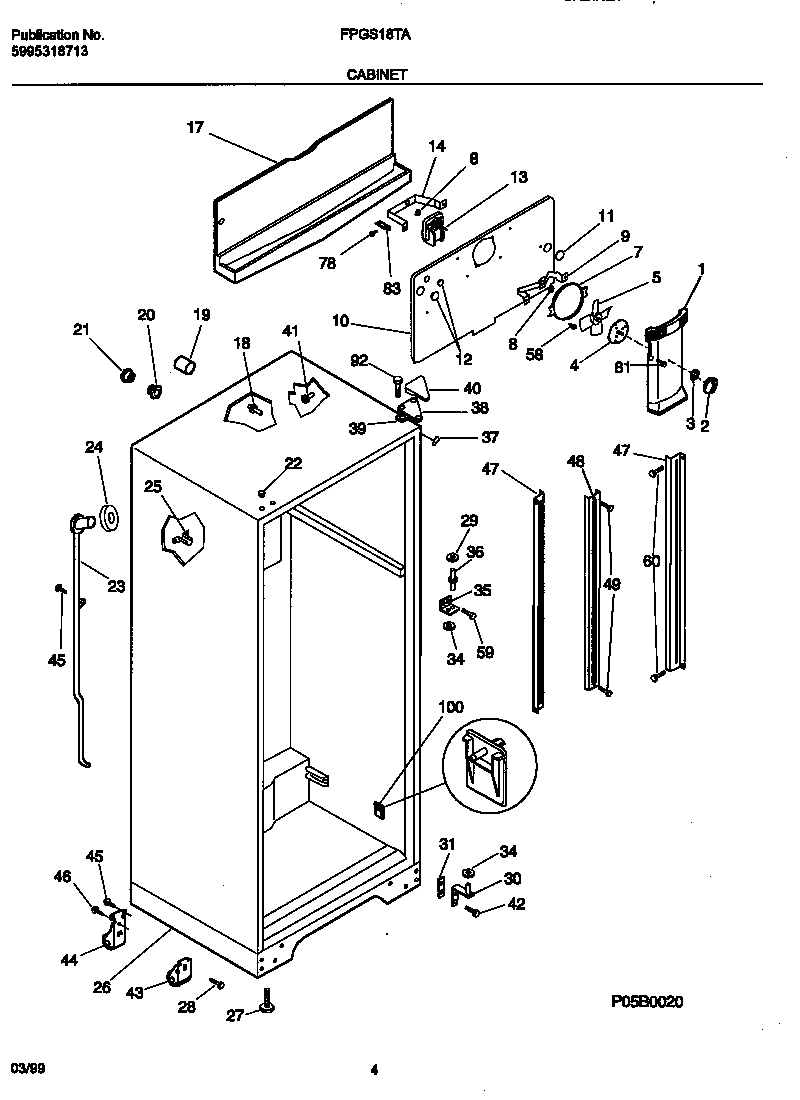

04 - CABINET PARTS

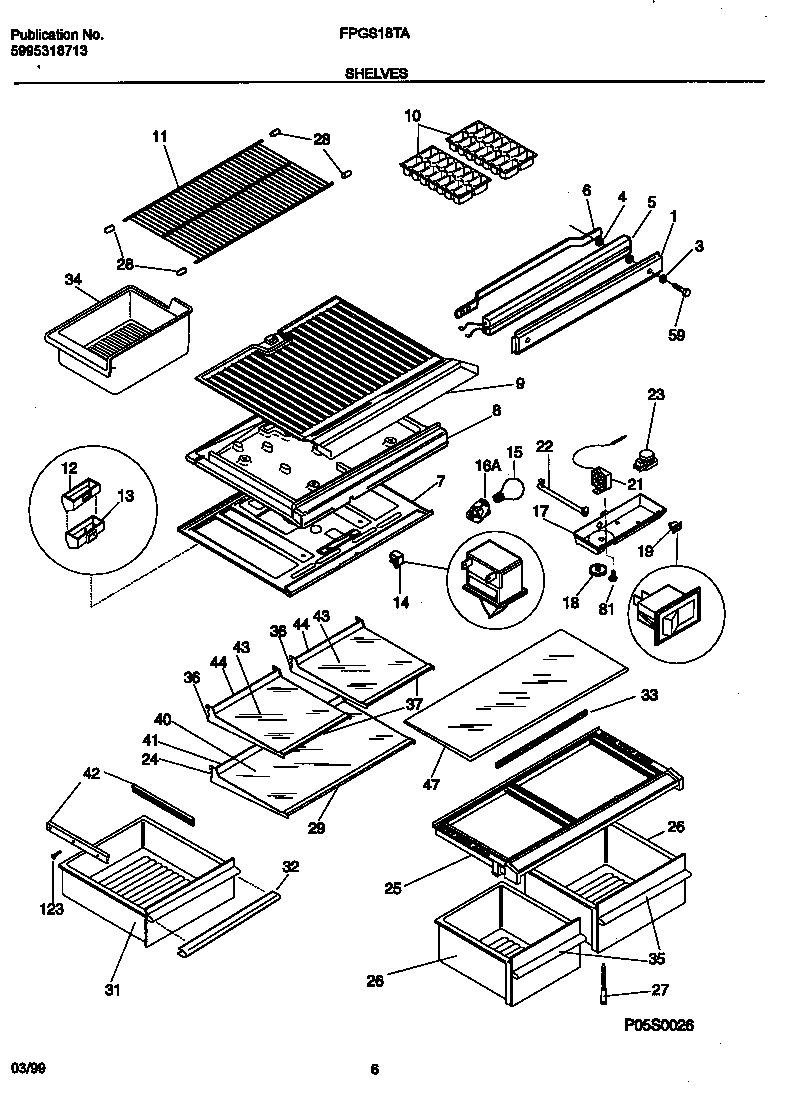

05 - SHELVES AND SUPPORTS
06 - SHELVES AND SUPPORTS

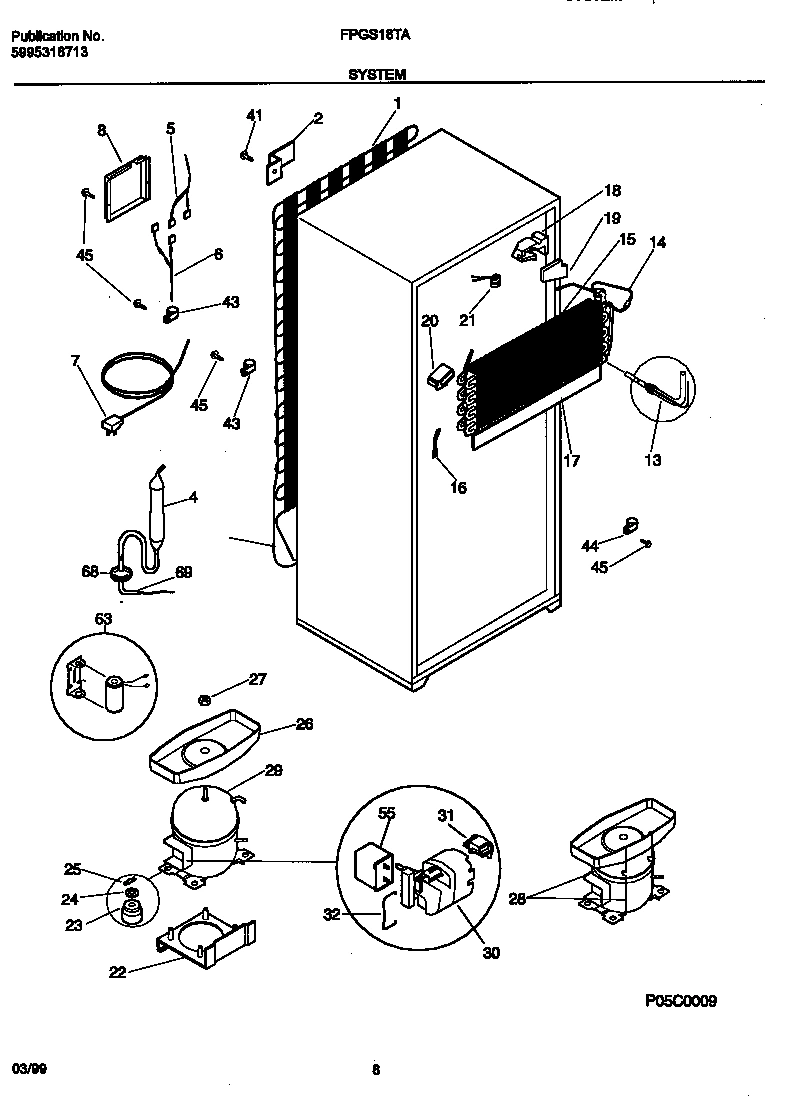

07 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux FPGS18TAW0 REFRIGERATOR
*86403
WCI 5303917276 WCI 5303917276 Contact Us For Availability
*86417
PLUG-BUTTON, LINER WCI 5308016571 Contact Us For Availability
*86427
WCI 215339900 WCI 215339900 Contact Us For Availability
*86427
LOCK-SHELF TRIM, REAR WCI 5303211351 Contact Us For Availability
*86437
HOT TUBE REPAIR KIT-SERVICE WCI 5300189383 Contact Us For Availability
1
WCI 5303018791 WCI 5303018791 Contact Us For Availability
1
WCI 5303200366 WCI 5303200366 Contact Us For Availability
1
WCI 5300163133 WCI 5300163133 Contact Us For Availability
2
WCI 5308000296 WCI 5308000296 Contact Us For Availability
2A
WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRAT WCI 5308009617 Contact Us For Availability
3
WCI 5303206754 WCI 5303206754 Contact Us For Availability
4
SPACER-MULLION MTG, STEEL WCI 5303200464 Contact Us For Availability
5
SUPPORT-DOOR RACK, RH WCI 5317828701 Contact Us For Availability
5
WCI 5303210351 WCI 5303210351 Contact Us For Availability
5
WCI 3018900 WCI 3018900 Contact Us For Availability
6
SUPPORT-DOOR RACK, LH WCI 5317828401 Contact Us For Availability
6
WCI 5308010008 WCI 5308010008 Contact Us For Availability
6
WCI 215257001 WCI 215257001 Contact Us For Availability
7
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
7
WCI 3018993 WCI 3018993 Contact Us For Availability
7
CORD-ELECTRIC POWER WCI 5316254901 Contact Us For Availability
7A
WCI 5303001380 WCI 5303001380 Contact Us For Availability
8
WCI 3018994 WCI 3018994 Contact Us For Availability
8
WCI 5303001197 WCI 5303001197 Contact Us For Availability
9
WCI 5303211427 WCI 5303211427 Contact Us For Availability
10
PLUG-BUTTON, WHITE, HINGE BRG HOLE WCI 5308000134 Contact Us For Availability
11
SHELF, FREEZER, STRAIGHT WCI 5303283031 Contact Us For Availability
12
WCI 215079000 WCI 215079000 Contact Us For Availability
12
WCI 215079100 WCI 215079100 Contact Us For Availability
12
DEFLECTOR-AIR, W/SEAL WCI 5308014667 Contact Us For Availability
13
WCI 5303001448 WCI 5303001448 Contact Us For Availability
13
WCI 215076400 WCI 215076400 Contact Us For Availability
13A
EXTENSION, AIR DEFLECTOR, WITH INSULATION (NO WCI 5303200590 Contact Us For Availability
15
WCI 5303271578 WCI 5303271578 Contact Us For Availability
17
INSULATOR-EVAP, PLASTIC WCI 5316651102 Contact Us For Availability
17
WCI 3206390 WCI 3206390 Contact Us For Availability
17A
WCI 5308016567 WCI 5308016567 Contact Us For Availability
18
WCI 215245000 WCI 215245000 Contact Us For Availability
18
KNOB-TEMP CONTROL WCI 3206391 Contact Us For Availability
18
INSULATION BLOCK, RH WCI 5308013648 Contact Us For Availability
19
TUBE-RUBBER WCI 5303001198 Contact Us For Availability
19
WCI 5303207249 WCI 5303207249 Contact Us For Availability
19
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
20
WCI 5303001286 WCI 5303001286 Contact Us For Availability
20
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
21
WCI 5303001287 WCI 5303001287 Contact Us For Availability
21
WCI 5303018894 WCI 5303018894 Contact Us For Availability
21A
WCI 5303001260 WCI 5303001260 Contact Us For Availability
22
PLUG-BUTTON, WHITE, UPR HINGE HOLES WCI 5303001388 Contact Us For Availability
22
WCI 3018891 WCI 3018891 Contact Us For Availability
22
WCI 5308013663 WCI 5308013663 Contact Us For Availability
23
WCI 5303210377 WCI 5303210377 Contact Us For Availability
24
WCI 5303207353 WCI 5303207353 Contact Us For Availability
24
WCI 215069002 WCI 215069002 Contact Us For Availability
24
WASHER-COMPR MTG WCI 5308003633 Contact Us For Availability
25
WCI 5308000056 WCI 5308000056 Contact Us For Availability
25
WCI 5303206606 WCI 5303206606 Contact Us For Availability
25
CLIP - COMPRESSOR MTG WCI 5308003596 Contact Us For Availability
25A
WCI 5303001361 WCI 5303001361 Contact Us For Availability
25A
TRIM, CRISPER COVER (NON-ILLUSTRATED) WCI 5303280075 Contact Us For Availability
26
WCI 5303212487 WCI 5303212487 Contact Us For Availability
26
WCI 5303300424 WCI 5303300424 Contact Us For Availability
26
PAN-DEFROST DRAIN, ORIG/SVCE COMPR WCI 5300184715 Contact Us For Availability
26A
WCI 5303299800 WCI 5303299800 Contact Us For Availability
27
SUPPORT-CRISPER CVR, ADJUSTABLE WCI 5303205987 Contact Us For Availability
27
SCREW-LEVELING WCI 5303212922 Contact Us For Availability
27
Nut,lock `1/4-20 ,drain pan mtg WCI 5303001348 Contact Us For Availability
28
WCI 3201150 No Longer Available
28
PAN RETAINER KIT, SERVICE WCI 5303916001 Contact Us For Availability
28
WCI 5303271412 WCI 5303271412 Contact Us For Availability
29
WASHER, .34 X .62 X .05, NYLON WCI 5308000007 Contact Us For Availability
29
WCI 5303275679 WCI 5303275679 Contact Us For Availability
29
WCI 5303917190 WCI 5303917190 Contact Us For Availability
29A
WCI 5303209274 WCI 5303209274 Contact Us For Availability
30
WCI 216008901 WCI 216008901 Contact Us For Availability
30
BRACKET-LOWER HINGE, W/ HINGE PIN WCI 5303212489 Contact Us For Availability
30A
WCI 5303212596 WCI 5303212596 Contact Us For Availability
30B
WCI 5303212597 WCI 5303212597 Contact Us For Availability
31
WCI 5303276514 WCI 5303276514 Contact Us For Availability
31
WCI 5303212488 WCI 5303212488 Contact Us For Availability
31
WCI 5303299811 WCI 5303299811 Contact Us For Availability
32
WCI 5303279439 WCI 5303279439 Contact Us For Availability
32
WCI 215012000 WCI 215012000 Contact Us For Availability
33
GASKET-CRISPER CVR, 13.25`` WCI 5303200329 Contact Us For Availability
34
WCI 5308000186 WCI 5308000186 Contact Us For Availability
35
BRACKET-CTR HINGE WCI 5303001369 Contact Us For Availability
35
WCI 5303275758 WCI 5303275758 Contact Us For Availability
35A
WCI 5303282659 WCI 5303282659 Contact Us For Availability
36
WCI 5308000184 WCI 5308000184 Contact Us For Availability
36
FRAME-HALF SHELF WCI 215069001 Contact Us For Availability
37
TRIM-CABINET CORNER, WHITE WCI 5303202336 Contact Us For Availability
37
TRIM-HALF SHELF, FRONT WCI 5303275678 Contact Us For Availability
37A
WCI 5303209263 WCI 5303209263 Contact Us For Availability
38
BRACKET-UPPER HINGE WCI 5308012843 Contact Us For Availability
38A
TAPPING PLATE, UPPER HINGE, (2) (NON-ILLUSTRA WCI 5308012296 Contact Us For Availability
39
SHIM - UPPER HINGE WCI 5303001037 Contact Us For Availability
40
COVER-UPPER HINGE, WHITE WCI 5308012820 Contact Us For Availability
40
GLASS-SHELF, FULL SHELF WCI 5303211964 Contact Us For Availability
41
TRIM-FULL SHELF, SNAP-ON, REAR WCI 5303211962 Contact Us For Availability
42
HANGER-PAN/TRAY, LH WCI 5303209272 Contact Us For Availability
42A
HANGER-PAN/TRAY, RH WCI 5303209273 Contact Us For Availability
43
WCI 5303212490 WCI 5303212490 Contact Us For Availability
43
GLASS-SHELF, HALF SHELF WCI 5303211967 Contact Us For Availability
44
WCI 5308009773 WCI 5308009773 Contact Us For Availability
44
TRIM-HALF SHELF, REAR WCI 5303211828 Contact Us For Availability
46
WCI 5308009762 WCI 5308009762 Contact Us For Availability
47
WCI 5303292394 WCI 5303292394 Contact Us For Availability
47
INSERT-PAN COVER, GLASS WCI 5303211968 Contact Us For Availability
48
CHANNEL-SHELF MTG, CENTER, REFR WCI 5303292395 Contact Us For Availability
49
SCREW-CTR CHANNEL,HEX HEAD,8(AB) X 1-1/2 WCI 215507300 Contact Us For Availability
59
WCI 5308012258 WCI 5308012258 Contact Us For Availability
63
WCI 215769200 WCI 215769200 Contact Us For Availability
69
WCI 215116300 WCI 215116300 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
100
WCI 5303288973 No Longer Available
123
WCI 08014528 WCI 08014528 Contact Us For Availability
× ![]()
