Model Electrolux FPGS18TAL2 REFRIGERATOR – Common Parts & Diagrams
01 - COVER
02 - DOOR PARTS

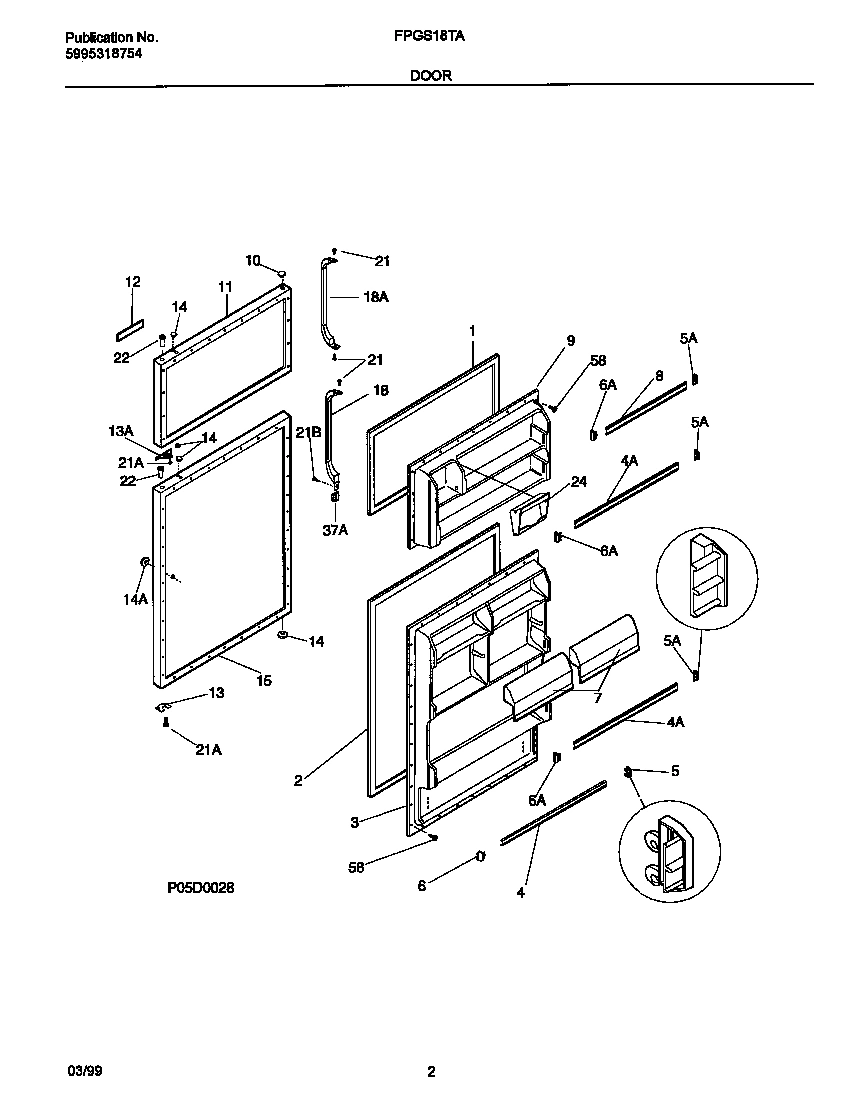

03 - DOOR PARTS

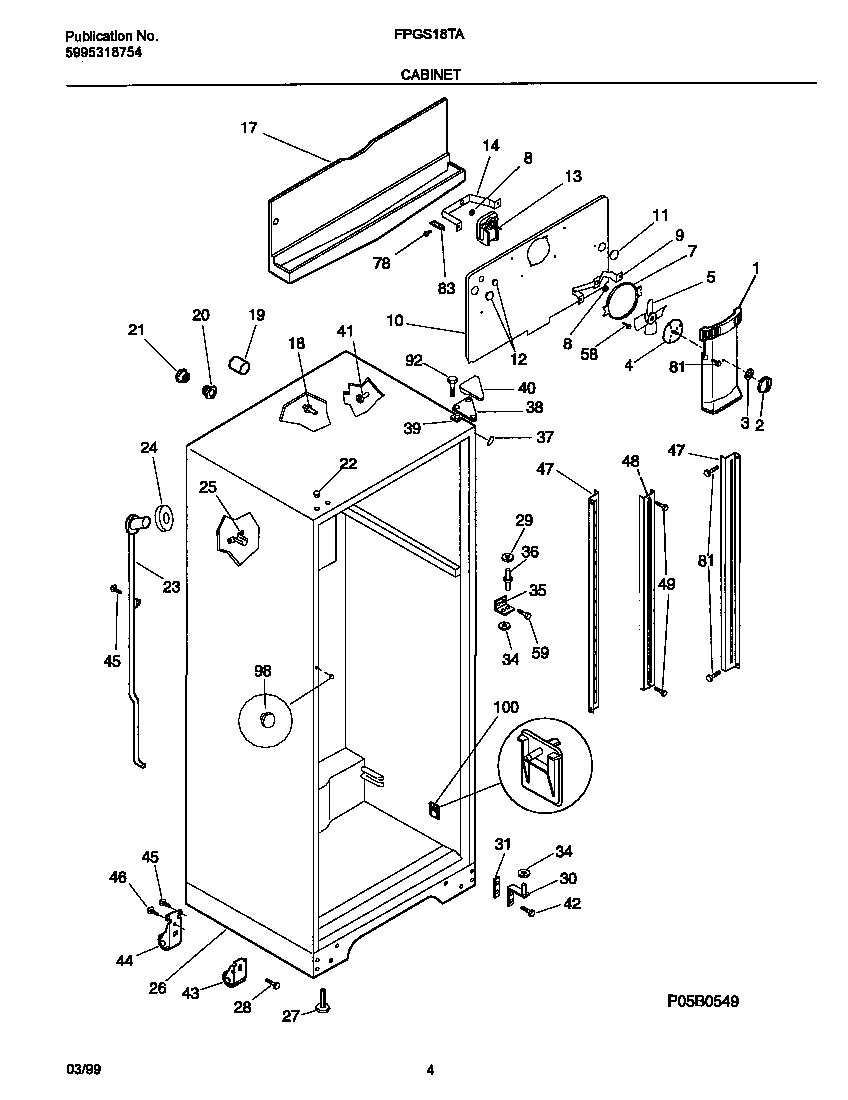

04 - CABINET PARTS
05 - CABINET PARTS

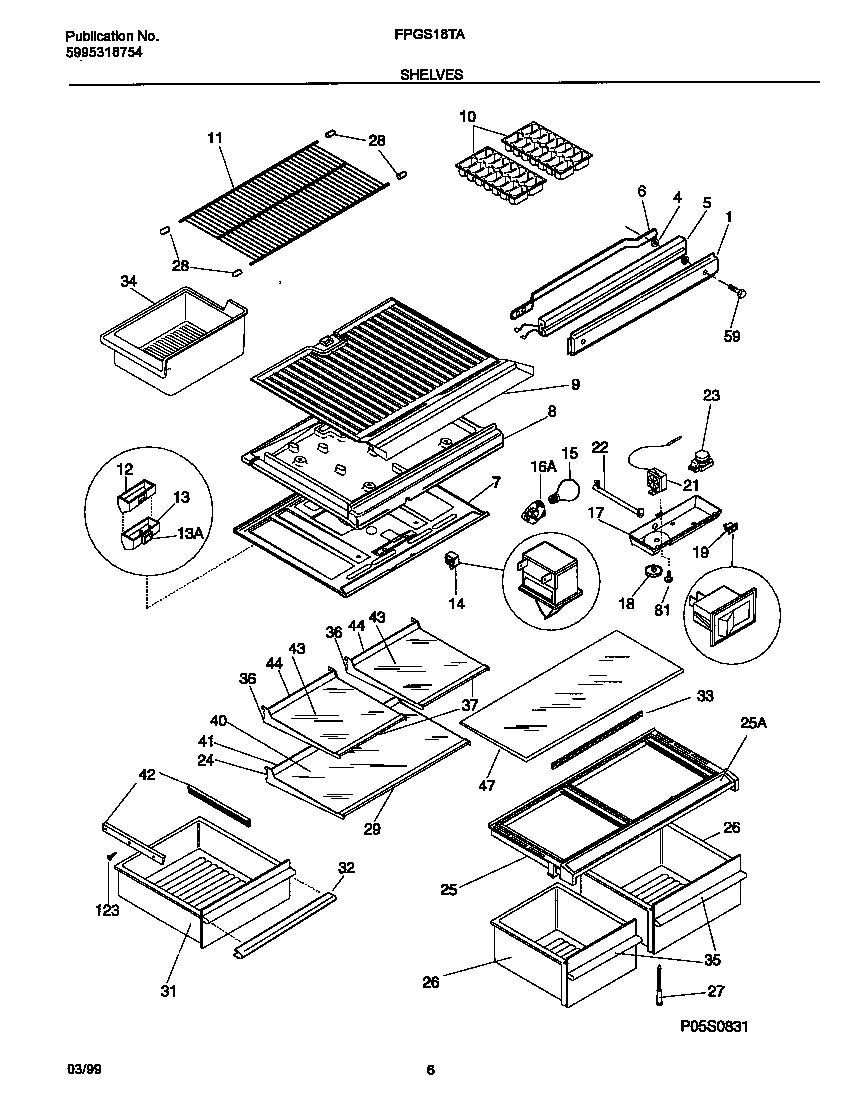

06 - SHELVES AND SUPPORTS
07 - SHELVES AND SUPPORTS

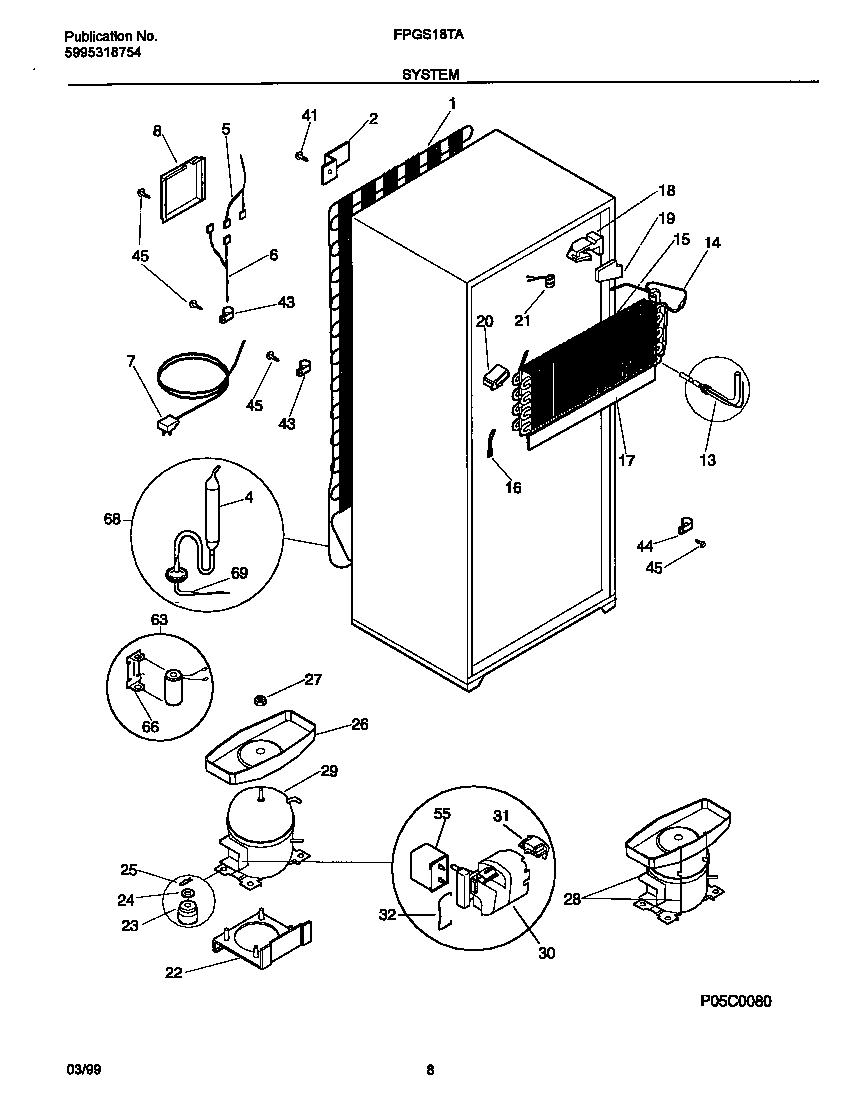

08 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux FPGS18TAL2 REFRIGERATOR
*10930
WCI 5303917276 WCI 5303917276 Contact Us For Availability
*10930
PLUG-BUTTON, CABINET LINER WCI 5308016571 Contact Us For Availability
*10930
WCI 5303305325 WCI 5303305325 Contact Us For Availability
*10932
HOT TUBE REPAIR KIT-SERVICE WCI 5300189383 Contact Us For Availability
1
GASKET-FRZR DOOR, ALMOND, MAGNETIC WCI 5303276826 Contact Us For Availability
1
WCI 5303200370 WCI 5303200370 Contact Us For Availability
1
WCI 5300163133 WCI 5300163133 Contact Us For Availability
2
BRACKET-MOUNTING, CONDENSER, (4) WCI 5308000296 Contact Us For Availability
2A
WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRAT WCI 5308009617 Contact Us For Availability
4
WCI 218188100 WCI 218188100 Contact Us For Availability
5
SUPPORT-DOOR RACK, RH WCI 5317828701 Contact Us For Availability
5
WCI 5303210351 WCI 5303210351 Contact Us For Availability
5
WCI 3018900 WCI 3018900 Contact Us For Availability
6
SUPPORT-DOOR RACK, LH WCI 5317828401 Contact Us For Availability
6
WCI 5308010008 WCI 5308010008 Contact Us For Availability
6
WCI 215257001 WCI 215257001 Contact Us For Availability
7
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
7
WCI 3018993 WCI 3018993 Contact Us For Availability
7
CORD-ELECTRIC POWER WCI 5316254901 Contact Us For Availability
7A
WCI 5303001380 WCI 5303001380 Contact Us For Availability
8
WCI 3018994 WCI 3018994 Contact Us For Availability
8
WCI 5303001197 WCI 5303001197 Contact Us For Availability
9
WCI 5303211427 WCI 5303211427 Contact Us For Availability
10
PLUG-BUTTON, ALMOND, HINGE BRG HOLE WCI 5303001308 Contact Us For Availability
11
WCI 5303283031 WCI 5303283031 Contact Us For Availability
12
WCI 215079000 WCI 215079000 Contact Us For Availability
12
WCI 215079100 WCI 215079100 Contact Us For Availability
12
DEFLECTOR-AIR, W/SEAL WCI 5308014667 Contact Us For Availability
13
WCI 5303001448 WCI 5303001448 Contact Us For Availability
13
WCI 215076400 WCI 215076400 Contact Us For Availability
13A
EXTENSION, AIR DEFLECTOR, WITH INSULATION WCI 5303200590 Contact Us For Availability
15
EVAPORATOR WCI 5303271578 Contact Us For Availability
17
INSULATOR-EVAP, PLASTIC WCI 5316651102 Contact Us For Availability
17
WCI 5303299980 WCI 5303299980 Contact Us For Availability
17A
WCI 5308016567 WCI 5308016567 Contact Us For Availability
18
WCI 5303299979 WCI 5303299979 Contact Us For Availability
18
INSULATION BLOCK, RH WCI 5308013648 Contact Us For Availability
19
WCI 5303286905 WCI 5303286905 Contact Us For Availability
19
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
20
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
21
WCI 5303018894 WCI 5303018894 Contact Us For Availability
21A
WCI 5303001260 WCI 5303001260 Contact Us For Availability
22
PLUG-BUTTON, ALMOND, UPR HINGE HOLES WCI 5303001389 Contact Us For Availability
22
WCI 3018891 WCI 3018891 Contact Us For Availability
22
WCI 5308013663 WCI 5308013663 Contact Us For Availability
23
WCI 5303210377 WCI 5303210377 Contact Us For Availability
24
WCI 5303207353 WCI 5303207353 Contact Us For Availability
24
WCI 215919107 WCI 215919107 Contact Us For Availability
24
WASHER-COMPR MTG WCI 5308003633 Contact Us For Availability
25
WCI 5308000056 WCI 5308000056 Contact Us For Availability
25
WCI 5303206606 WCI 5303206606 Contact Us For Availability
25
CLIP - COMPRESSOR MTG WCI 5308003596 Contact Us For Availability
25A
WCI 5303280075 WCI 5303280075 Contact Us For Availability
26
PAN-CRISPER, 11.34`` WIDE, LH WCI 5303299800 Contact Us For Availability
26
PAN-DEFROST DRAIN, ORIG/SVCE COMPR WCI 5300184715 Contact Us For Availability
26A
PAN-CRISPER, 14.34`` WIDE, RH WCI 5303300424 Contact Us For Availability
27
SUPPORT-CRISPER CVR, ADJUSTABLE WCI 5303205987 Contact Us For Availability
27
SCREW-LEVELING WCI 5303212922 Contact Us For Availability
27
Nut,lock `1/4-20 ,drain pan mtg WCI 5303001348 Contact Us For Availability
28
WCI 3201150 No Longer Available
28
PAN RETAINER KIT, SERVICE WCI 5303916001 Contact Us For Availability
28
BOLT-ROLLER ADJ, HEX HD, 1/4-28 X 2.750 WCI 5303271412 Contact Us For Availability
29
WASHER, .34 X .62 X .05, NYLON WCI 5308000007 Contact Us For Availability
29
WCI 215919438 WCI 215919438 Contact Us For Availability
29
WCI 5303917190 WCI 5303917190 Contact Us For Availability
30
WCI 216008901 WCI 216008901 Contact Us For Availability
30
BRACKET-LOWER HINGE, W/ HINGE PIN WCI 5303212489 Contact Us For Availability
30A
WCI 5303212596 WCI 5303212596 Contact Us For Availability
30B
WCI 5303212597 WCI 5303212597 Contact Us For Availability
31
WCI 5303276514 WCI 5303276514 Contact Us For Availability
31
WCI 5303212488 WCI 5303212488 Contact Us For Availability
31
WCI 5303293818 WCI 5303293818 Contact Us For Availability
32
WCI 5303279439 WCI 5303279439 Contact Us For Availability
32
WCI 215012000 WCI 215012000 Contact Us For Availability
33
GASKET-PAN COVER, 13.25``, RH WCI 5303200329 Contact Us For Availability
34
WCI 5308000186 WCI 5308000186 Contact Us For Availability
35
WCI 218085400 WCI 218085400 Contact Us For Availability
35
TRIM-CRISPER PAN, 11.13``, LH WCI 5303275758 Contact Us For Availability
36
WCI 5308000184 WCI 5308000184 Contact Us For Availability
36
WCI 215919106 WCI 215919106 Contact Us For Availability
37
TRIM-CABINET CORNER, ALMOND WCI 5303202340 Contact Us For Availability
37
WCI 215919439 WCI 215919439 Contact Us For Availability
38
BRACKET-UPPER HINGE WCI 5308012843 Contact Us For Availability
38A
TAPPING PLATE, UPPER HINGE, (2) (NON-ILLUSTRA WCI 5308012296 Contact Us For Availability
39
SHIM - UPPER HINGE WCI 5303001037 Contact Us For Availability
40
COVER-UPPER HINGE, ALMOND WCI 5308012933 Contact Us For Availability
40
GLASS-SHELF, 26.08`` X 15.57`` WCI 5303211964 Contact Us For Availability
41
WCI 215919804 WCI 215919804 Contact Us For Availability
42
HANGER-PAN/BASKET, LH WCI 5303209272 Contact Us For Availability
42A
HANGER-PAN/BASKET, RH WCI 5303209273 Contact Us For Availability
43
WCI 5303212490 WCI 5303212490 Contact Us For Availability
43
GLASS-SHELF, 12.55`` X 15.57`` WCI 5303211967 Contact Us For Availability
44
WCI 5308009773 WCI 5308009773 Contact Us For Availability
44
WCI 215919810 WCI 215919810 Contact Us For Availability
46
BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/ WCI 5308009762 Contact Us For Availability
47
WCI 215789000 WCI 215789000 Contact Us For Availability
47
WCI 5303209283 WCI 5303209283 Contact Us For Availability
48
CHANNEL-SHELF MTG, CENTER, REFR WCI 5303292395 Contact Us For Availability
49
WCI 215507300 WCI 215507300 Contact Us For Availability
63
CAPACITOR ASSY, START, W/BRACKET 66 WCI 215769201 Contact Us For Availability
66
BRACKET, START CAP MTG WCI 215886600 Contact Us For Availability
69
WCI 215116300 WCI 215116300 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
98
PLUG-BUTTON, ALMOND, CTR HINGE HOLE WCI 215099711 Contact Us For Availability
100
WCI 5303288973 No Longer Available
× ![]()
