Model Electrolux FPGH3077RFD RANGE/OVEN, GAS, FREESTANDING, 30&quot; – Common Parts &amp; Diagrams

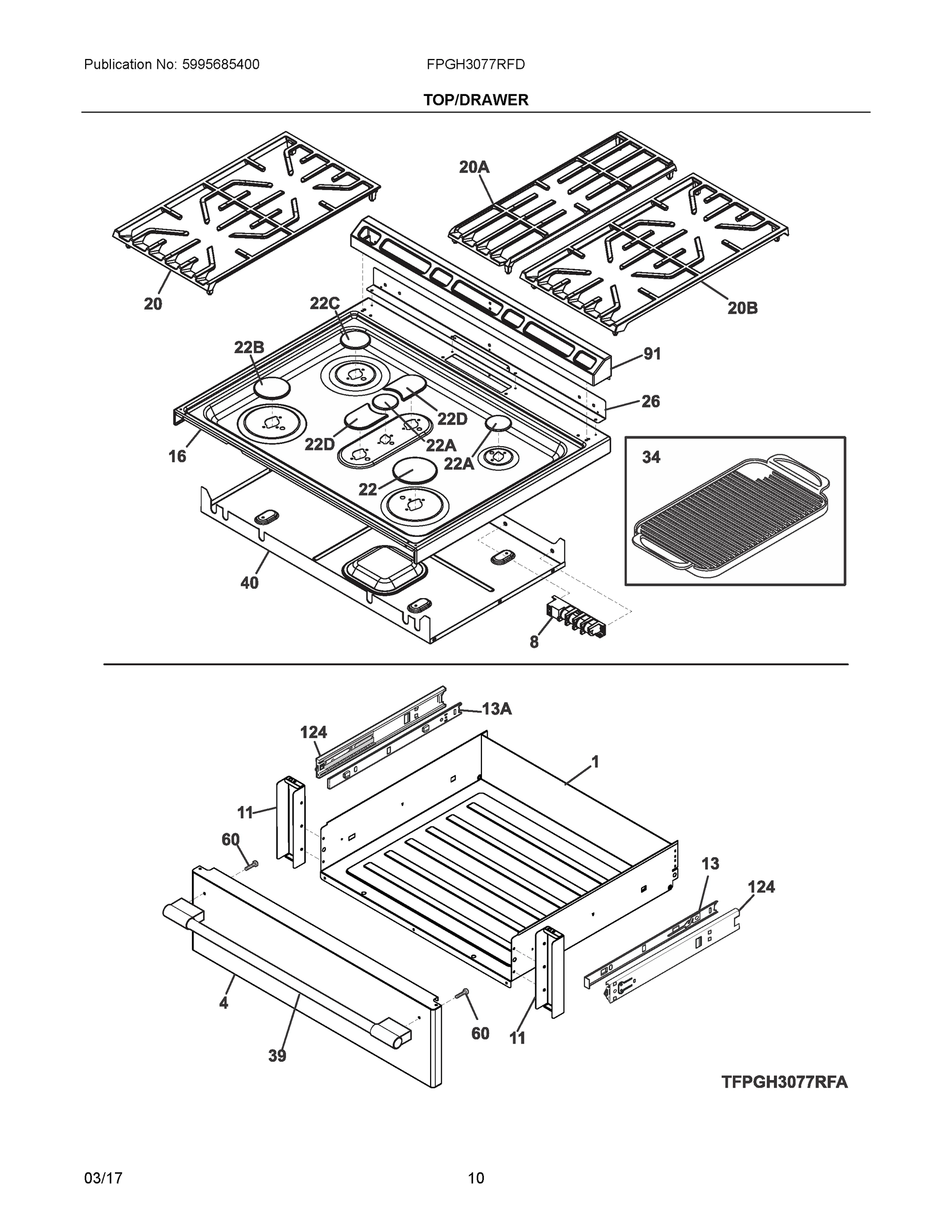

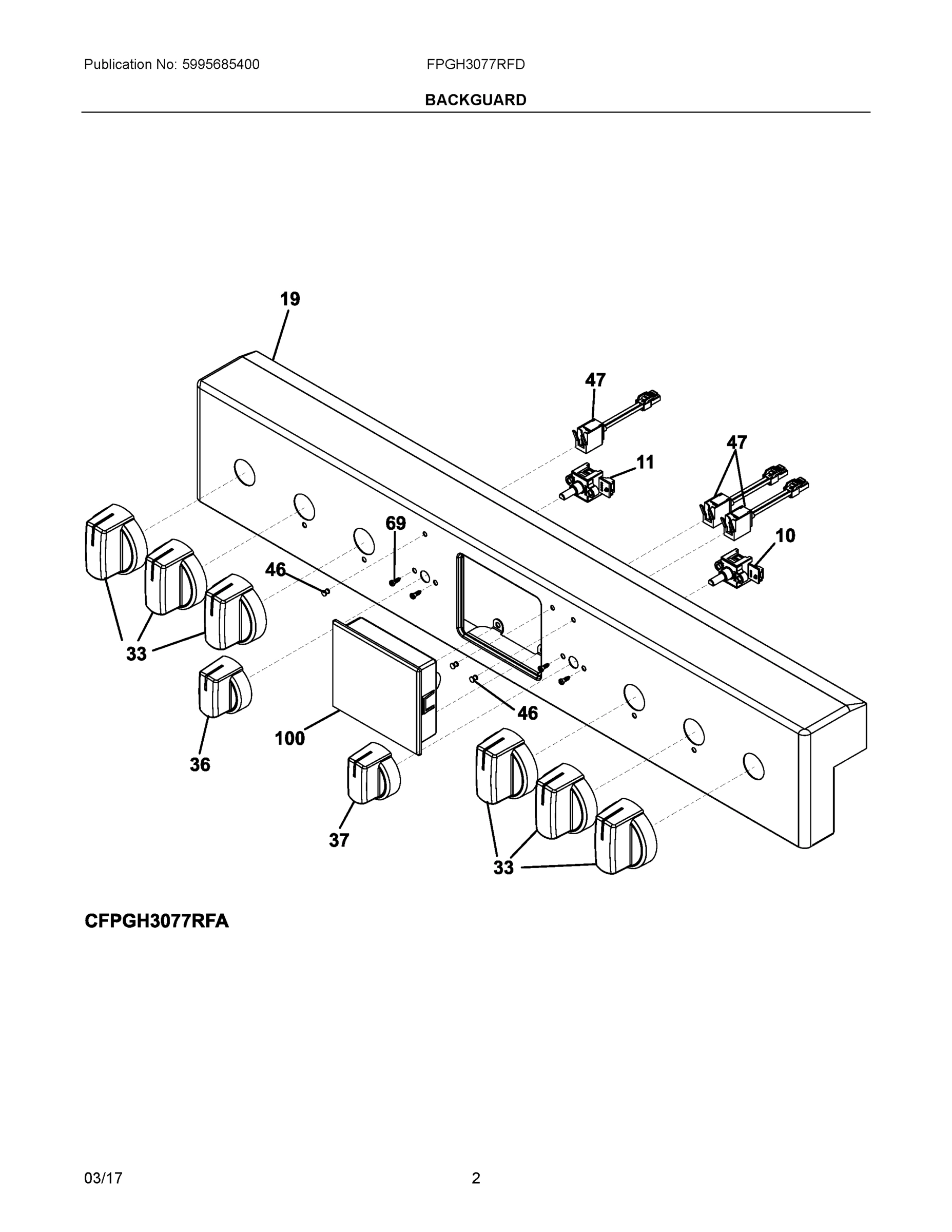

1

DRAWER, STARAGE, BLACK WCI 809145604 Contact Us For Availability

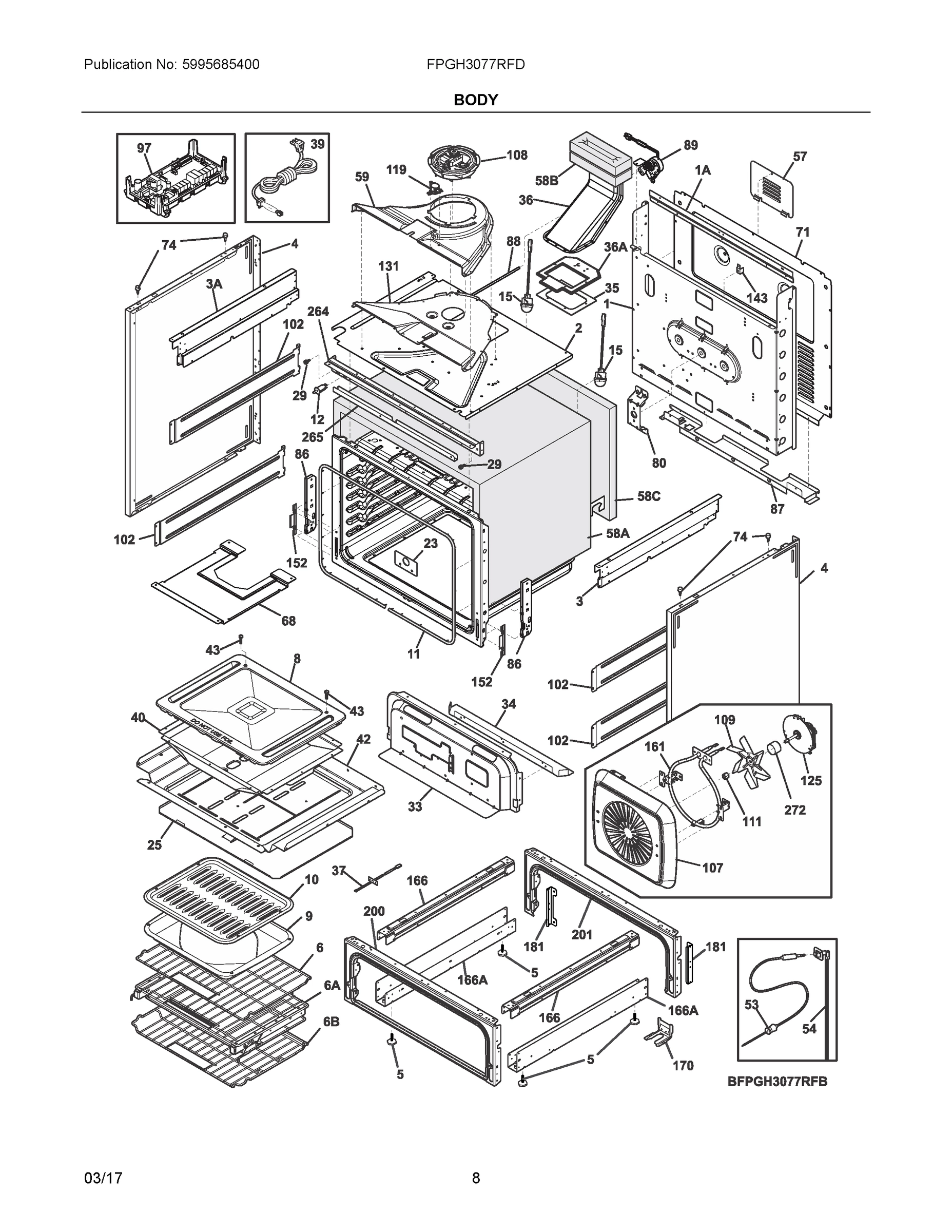

1

PANEL, MAIN BACK WCI 809146001 Contact Us For Availability

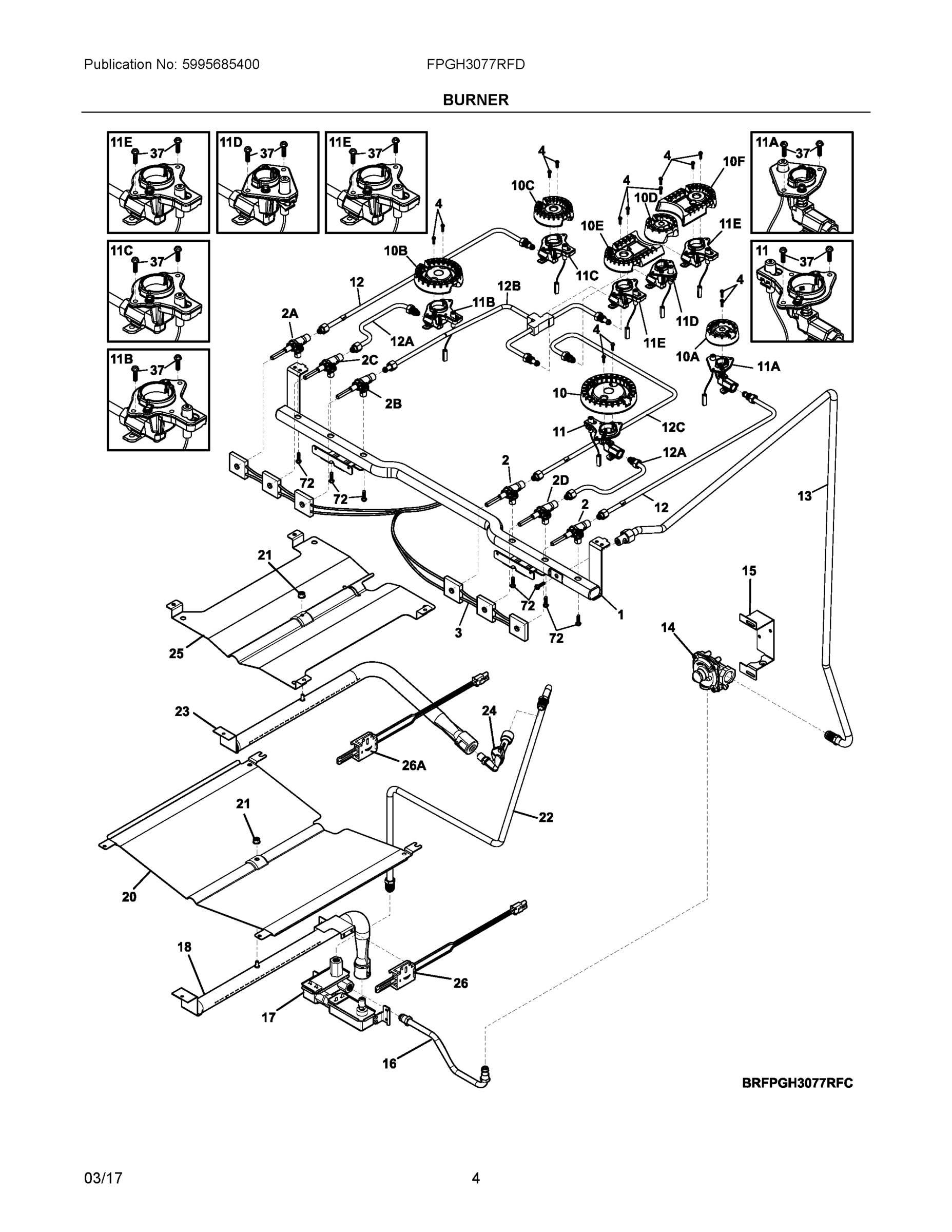

2

5304506548 Frigidaire Oven Valve In Stock WCI 5304506548 $48.06

2

SHIELD, INSULATION, TOP WCI 809145701 Contact Us For Availability

2A

5304506550 Frigidaire Oven Gas Range Valve (W Backorder WCI 5304506550 $31.63

2B

5304507283 Frigidaire Oven Valve Backorder WCI 5304507283 $31.61

2C

5304506551 Frigidaire Oven Valve Backorder WCI 5304506551 $36.09

2D

VALVE, TOP BURNER, PURPLE STEM, 3000BTU WCI 5304507284 Contact Us For Availability

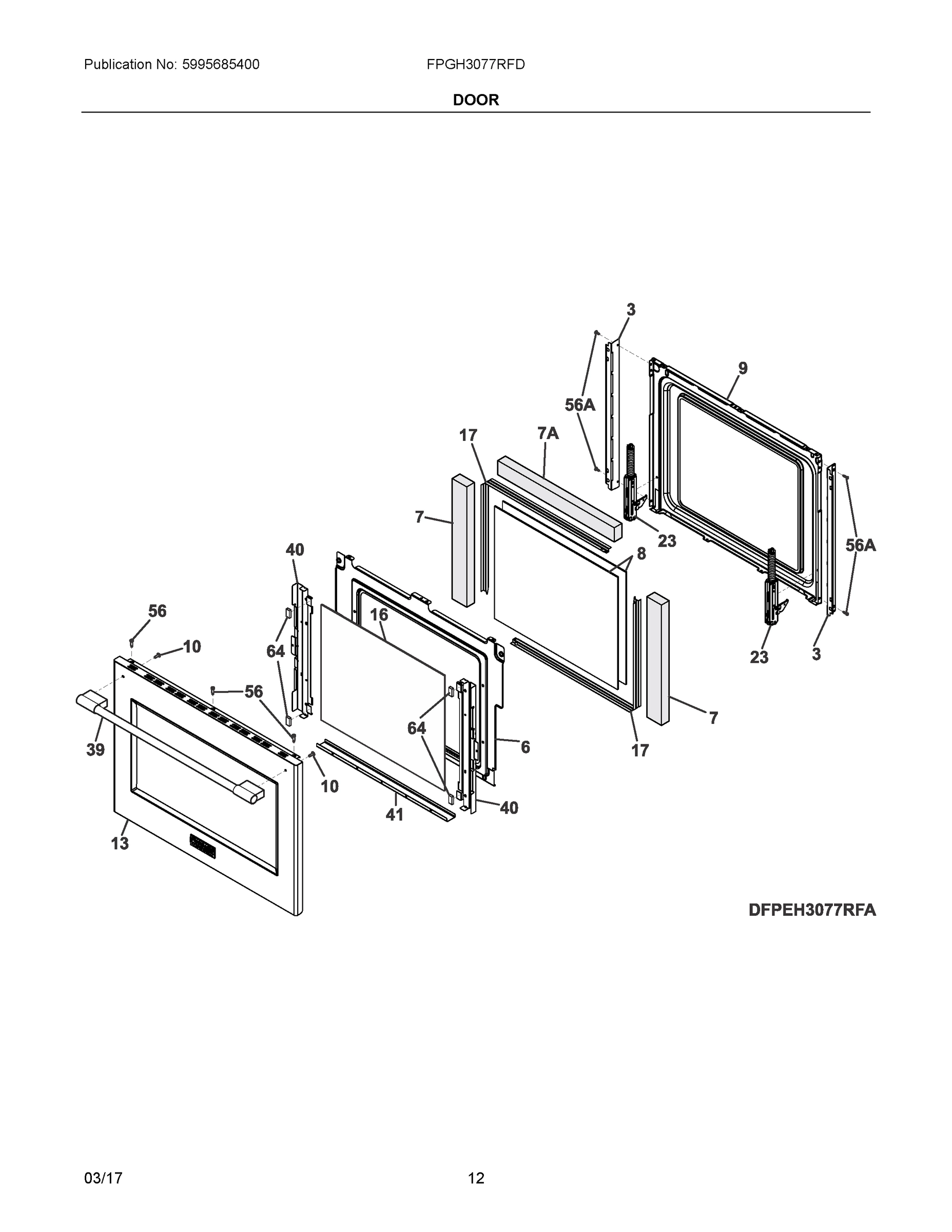

3

5304520787 Frigidaire Trim Backorder WCI 5304520787 $38.33

3

WCI 5304509697 WCI 5304509697 Contact Us For Availability

3A

PANEL, UPPER SIDE, LH WCI 809128201 Contact Us For Availability

4

316240600 Frigidaire Igniter Mounting Screw In Stock WCI 316240600 $7.11

4

5304514666 Frigidaire Oven Panel Backorder WCI 5304514666 $114.95

4

807226106 Frigidaire Range Black Side Body Pa Backorder WCI 807226106 $81.46

5

LEG, LEVELING WCI 5304501934 Contact Us For Availability

6

5304514983 Frigidaire Oven Rack Backorder WCI 5304514983 $89.16

6A

RACK ASSEMBLY, GLIDING, W/HANDLE WCI 139013314 Contact Us For Availability

6B

139012400 Frigidaire Oven Rack Backorder WCI 139012400 $102.04

8

139005003 Frigidaire Oven Panel Backorder WCI 139005003 $80.69

8

316502502 Frigidaire Oven Glass Backorder WCI 316502502 $92.59

8

808608806 Frigidaire Spark Module Backorder WCI 808608806 $34.31

9

318138801 Frigidaire Oven Pan Backorder WCI 318138801 $24.03

9

808474610 Frigidaire Oven Liner Backorder WCI 808474610 $75.38

10

316082001 Frigidaire Oven Insert Backorder WCI 316082001 $30.50

10

316438400 Frigidaire Range Sealed Burner, 16/ In Stock WCI 316438400 $48.50

10

POTENTIOMETER, OVEN TEMP WCI 808843105 Contact Us For Availability

10A

316438200 Frigidaire Range Sealed Burner, 5K In Stock WCI 316438200 $35.65

10B

316438600 Frigidaire Range Sealed Burner, 14K Backorder WCI 316438600 $49.38

10C

316558300 Frigidaire Oven 9.5L Sealed Burner In Stock WCI 316558300 $32.96

10D

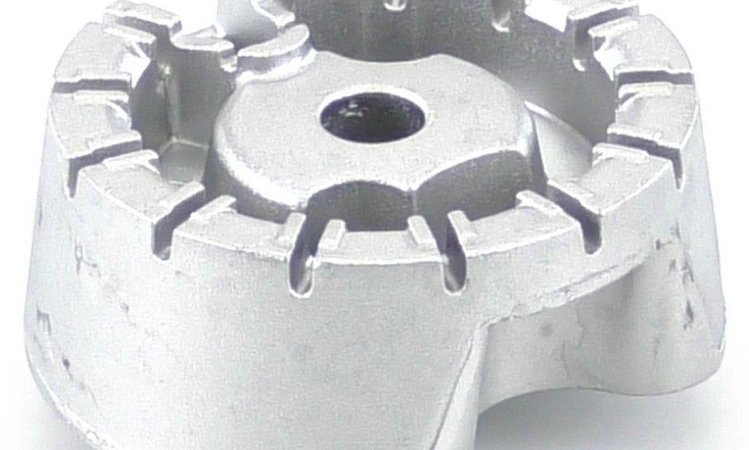

5304500134 Frigidaire Oven Burner Backorder WCI 5304500134 $22.74

10E

5304500135 Frigidaire Oven Burner Backorder WCI 5304500135 $30.30

10F

5304500136 Frigidaire Oven Burner Backorder WCI 5304500136 $29.83

139036701 Frigidaire Oven Seal Backorder WCI 139036701 $64.82

5304493649 Frigidaire Oven Range Wall Potenti Backorder WCI 5304493649 $44.52

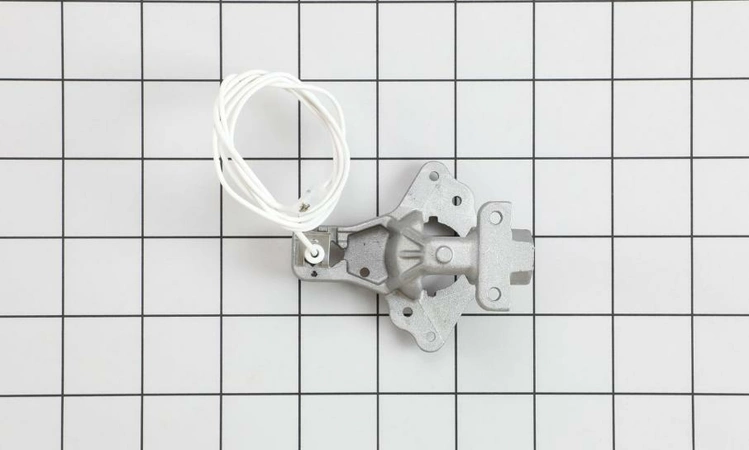

5304500189 Frigidaire Igniter/Orifice Assembl Backorder WCI 5304500189 $38.80

809089901 Frigidaire Oven Bracket Backorder WCI 809089901 $15.15

11A

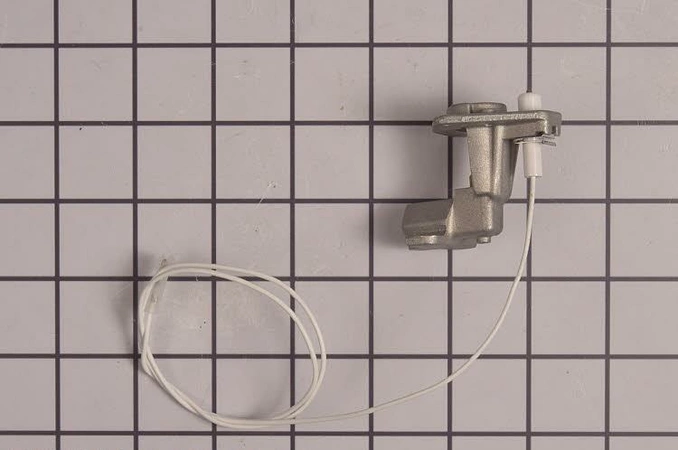

5304500184 Frigidaire Igniter/Orifice Assembl Backorder WCI 5304500184 $41.87

11B

IGNITOR/ORIFICE ASSY., TOP BURNER, 12K, W/HOL WCI 5304500188 Contact Us For Availability

11C

5304500186 Frigidaire Igniter Orifice Assembl Backorder WCI 5304500186 $43.21

11D

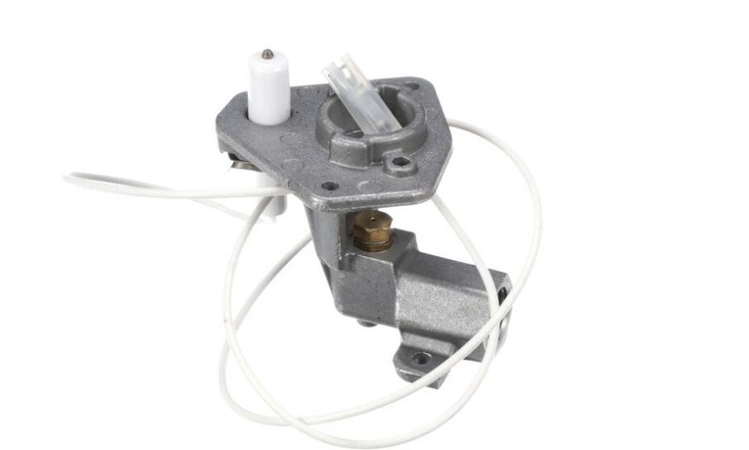

5304500185 Frigidaire Igniter and Orifice Ass Backorder WCI 5304500185 $37.47

11E

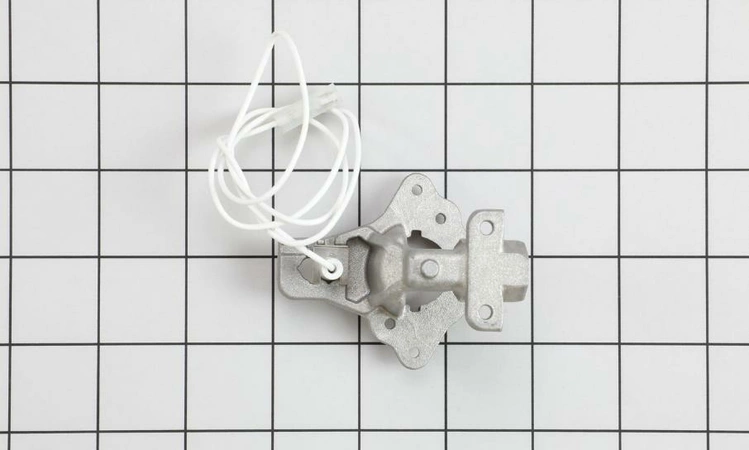

5304500187 Frigidaire Igniter/Orifice Assembl Backorder WCI 5304500187 $38.80

12

5304500110 Frigidaire Oven Tube Assembly Backorder WCI 5304500110 $30.29

12A

5304500111 Frigidaire Oven Tube Assembly Backorder WCI 5304500111 $33.42

12B

808868801 Frigidaire Oven Tube Backorder WCI 808868801 $79.34

13

318259513 Frigidaire Oven Glide Backorder WCI 318259513 $17.37

13

5304500113 Frigidaire Oven Tube Backorder WCI 5304500113 $80.69

13

5304515578 Frigidaire Range Stainless Outer D Backorder WCI 5304515578 $256.64

13A

318259512 Frigidaire Oven Glide Backorder WCI 318259512 $17.37

15

318262811 Frigidaire Oven Bracket Backorder WCI 318262811 $8.02

15

5304528790 Frigidaire Lamp Assembly Appliance In Stock WCI 5304528790 $13.35

16

316502601 Frigidaire Oven Glass Backorder WCI 316502601 $116.21

16

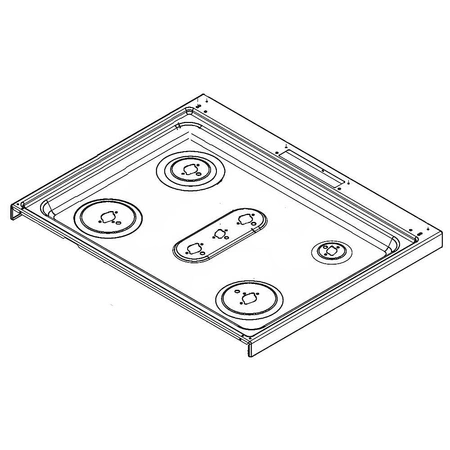

809020402 Frigidaire Oven Main Top Backorder WCI 809020402 $251.63

17

316031501 Frigidaire Oven Valve In Stock WCI 316031501 $168.94

18

5304502520 Frigidaire Oven Burner Backorder WCI 5304502520 $98.19

19

809103502 Frigidaire Oven Panel Backorder WCI 809103502 $192.23

20

139005100 Frigidaire Oven Baffle Backorder WCI 139005100 $59.51

20

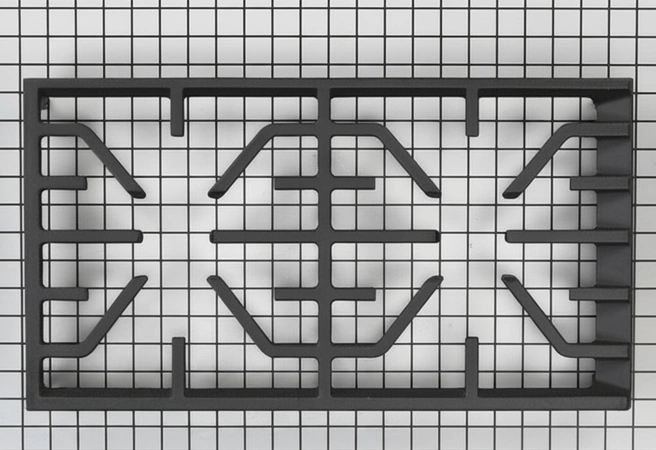

809144702 Frigidaire Oven Grate Backorder WCI 809144702 $118.30

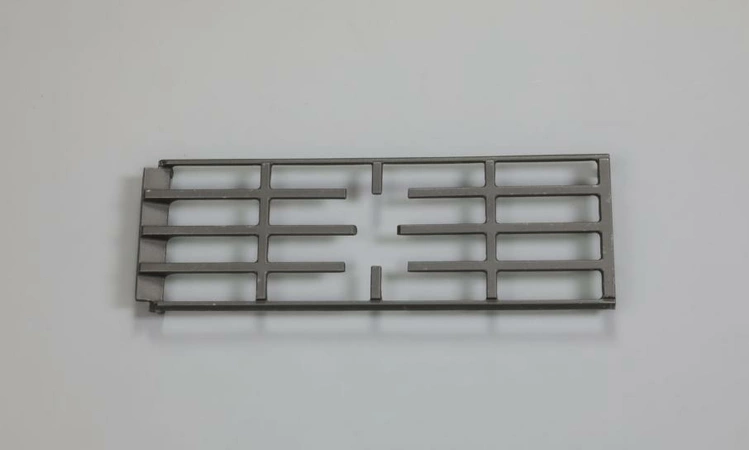

20A

809144801 Frigidaire Oven Grate Backorder WCI 809144801 $118.30

20B

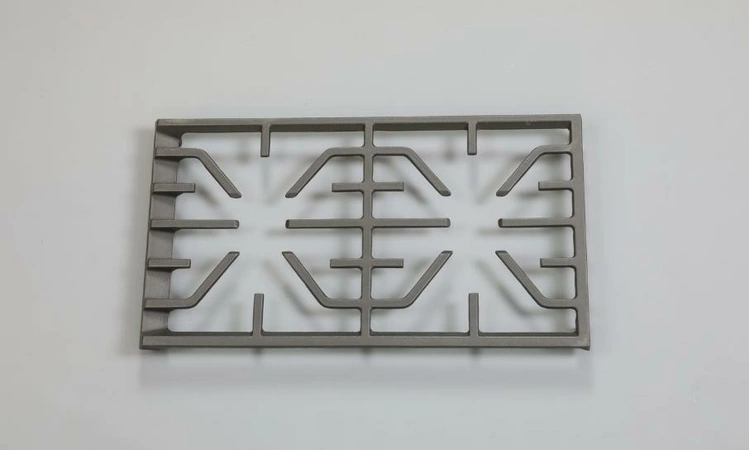

809144701 Frigidaire Oven Grate Backorder WCI 809144701 $118.30

21

5303013272 Frigidaire Oven Nut Backorder WCI 5303013272 $11.11

22

5304508468 Frigidaire Oven Cap Assembly In Stock WCI 5304508468 $28.07

22A

5304508441 Frigidaire Oven Surface Burner Cap In Stock WCI 5304508441 $20.05

22B

5304508443 Frigidaire Oven Surface Burner Cap In Stock WCI 5304508443 $26.28

22C

5304508442 Frigidaire Oven Surface Burner Cap In Stock WCI 5304508442 $20.95

22D

808851601 Frigidaire Oven Cap Backorder WCI 808851601 $55.55

23

139010306 Frigidaire Oven Hinge Backorder WCI 139010306 $81.03

24

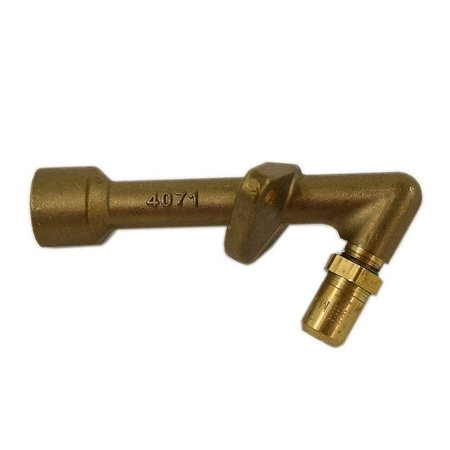

5304500107 Frigidaire Mixer Elbow Backorder WCI 5304500107 $67.45

25

WCI 316401301 WCI 316401301 Contact Us For Availability

26

139013700 Frigidaire Igniter In Stock WCI 139013700 $103.76

26

BRACKET, SUPPORT, REAR TRIM WCI 809209701 Contact Us For Availability

26A

139013701 Frigidaire Igniter Backorder WCI 139013701 $103.32

29

316517600 Frigidaire Oven Spacer Backorder WCI 316517600 $7.57

33

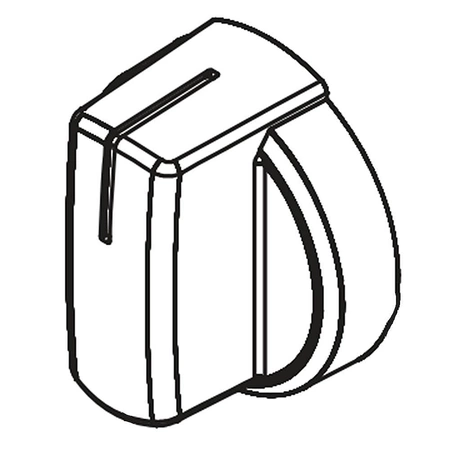

809137801 Frigidaire Oven Knob Backorder WCI 809137801 $83.60

34

5304495353 Frigidaire Oven Griddle Backorder WCI 5304495353 $112.18

36

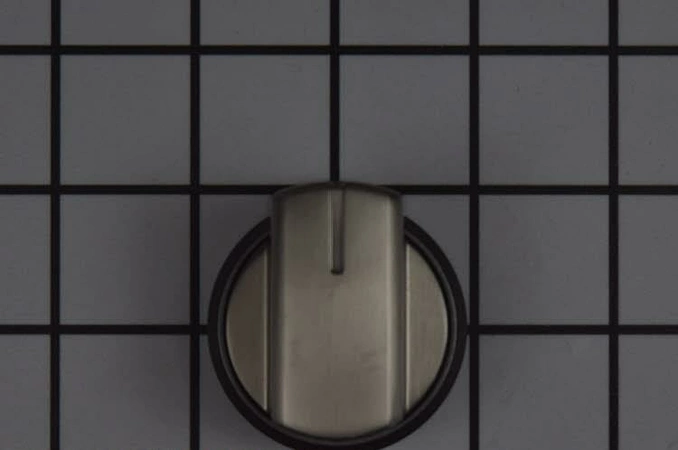

809137901 Frigidaire Oven Knob Backorder WCI 809137901 $71.40

37

316540900 Frigidaire Oven Screw In Stock WCI 316540900 $8.89

37

5304504897 Frigidaire Oven Temperature Sensor In Stock WCI 5304504897 $26.72

37

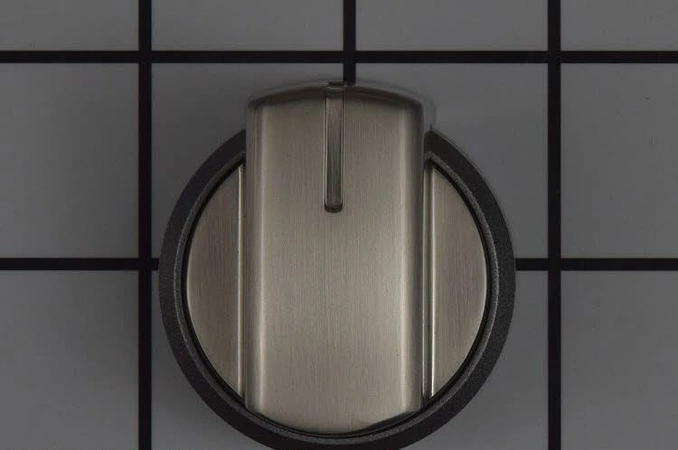

809137902 Frigidaire Oven Knob Assembly Backorder WCI 809137902 $80.24

39

5304534000 Frigidaire Cord Backorder WCI 5304534000 $19.59

39

808816703 Frigidaire Oven Handle Backorder WCI 808816703 $110.62

40

809145901 Frigidaire Oven Box Backorder WCI 809145901 $65.23

41

SUPPORT, GLASS WCI 5304500644 Contact Us For Availability

43

316282700 Frigidaire Oven Screw Backorder WCI 316282700 $6.22

46

316557300 Frigidaire Range Indicator Light Le In Stock WCI 316557300 $6.57

47

316022508 Frigidaire Light Assembly In Stock WCI 316022508 $16.04

53

5304504202 Frigidaire Red Meat Temperature Pr Backorder WCI 5304504202 $70.09

54

139017203 Frigidaire Assembly Receptacle Backorder WCI 139017203 $92.61

56A

5303324184 Frigidaire Wall Oven Range Screw Backorder WCI 5303324184 $8.91

57

316283600 Frigidaire Oven Cover Backorder WCI 316283600 $7.13

59

139078002 Frigidaire Oven Duct Backorder WCI 139078002 $48.93

60

5303310510 Frigidaire Oven Screw Backorder WCI 5303310510 $8.91

64

318165800 Frigidaire Oven Door Glass Spacer w Backorder WCI 318165800 $11.13

71

809123201 Frigidaire Oven Shield Backorder WCI 809123201 $39.23

72

316215600 Frigidaire Oven Screw Backorder WCI 316215600 $8.89

86

139026900 Frigidaire Receptacle Backorder WCI 139026900 $20.50

89

5304528925 Frigidaire Motor Assembly Backorder WCI 5304528925 $43.19

91

5304500158 Frigidaire Oven Trim Assembly Backorder WCI 5304500158 $193.79

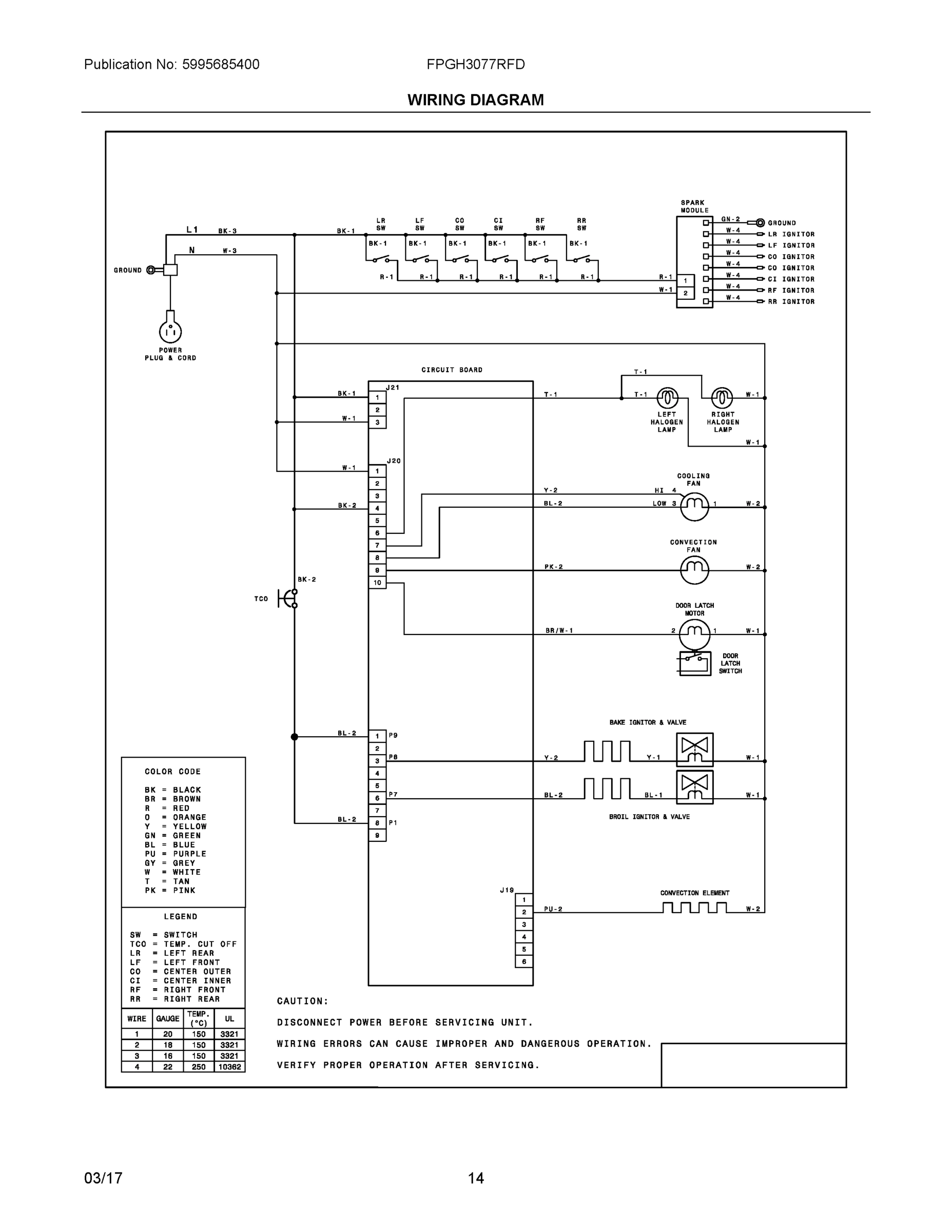

97

316472807 Frigidaire Range Circuit Board Asse In Stock WCI 316472807 $253.11

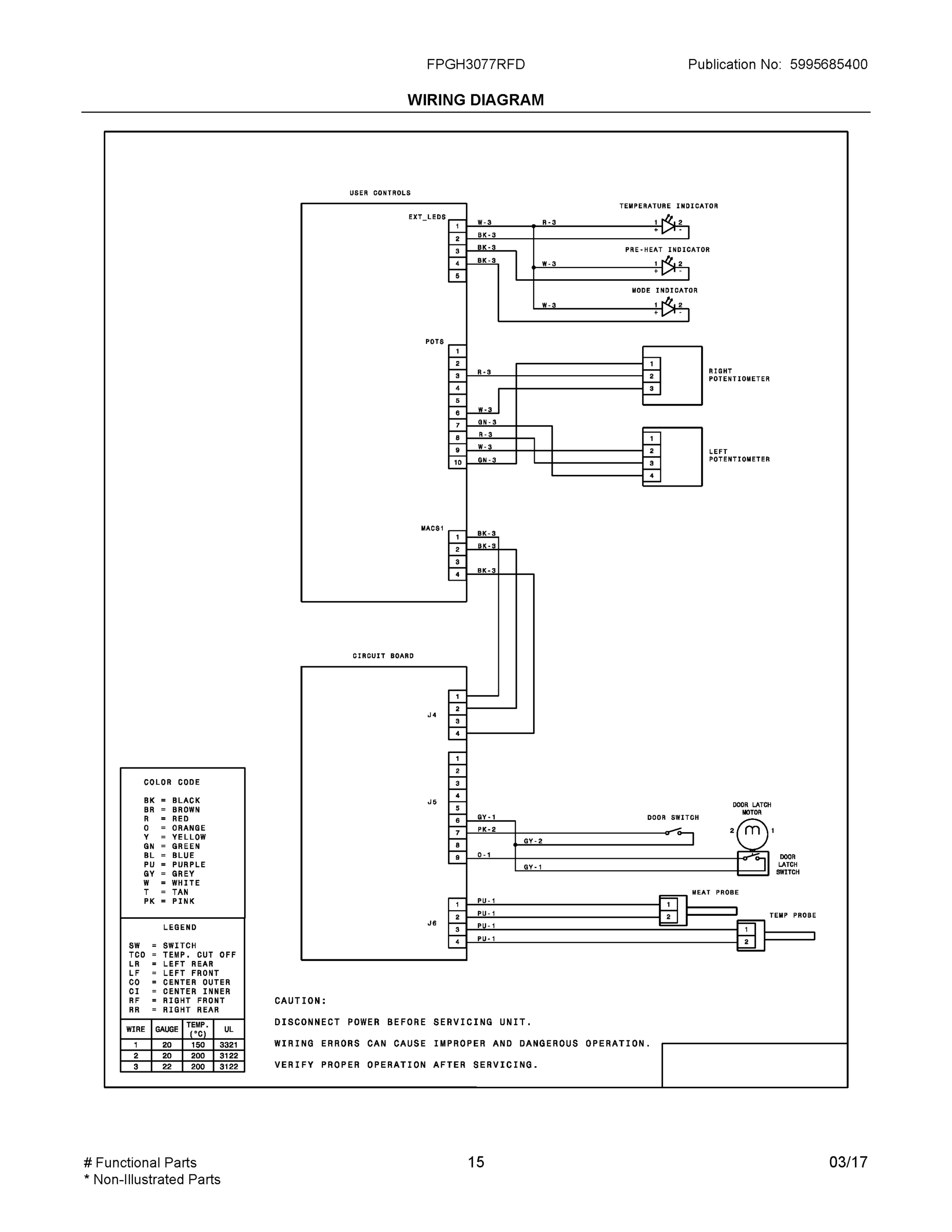

100

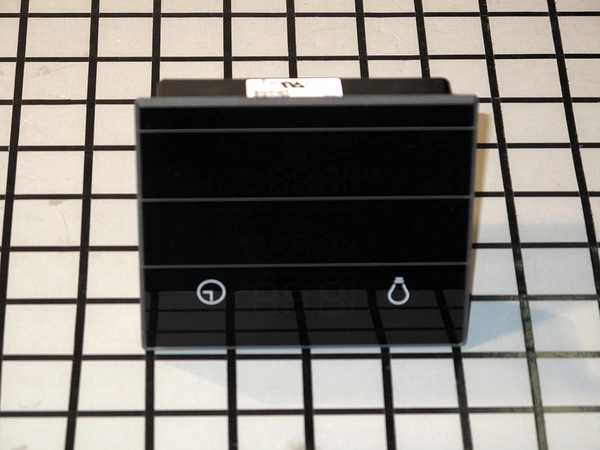

808751519 Frigidaire Control Assembly Backorder WCI 808751519 $204.32

107

139013903 Frigidaire Oven Vent Hood Cover Backorder WCI 139013903 $26.72

108

807123002 Frigidaire Oven Motor Assembly Rang Backorder WCI 807123002 $116.62

109

318398302 Frigidaire Stove Oven Range Convect In Stock WCI 318398302 $15.13

111

316136600 Frigidaire Oven Range Lock Nut Backorder WCI 316136600 $12.01

119

807144901 Frigidaire Thermostat Backorder WCI 807144901 $34.31

124

GLIDE, DRAWER, OUTER/RH & LH, (2) WCI 318330600 Contact Us For Availability

125

139008600 Frigidaire Oven Motor Backorder WCI 139008600 $109.76

131

139078102 Frigidaire Oven Duct Backorder WCI 139078102 $40.11

161

139013800 Frigidaire Oven Element Backorder WCI 139013800 $51.14

166

318298410 Frigidaire Oven Bracket Backorder WCI 318298410 $44.09

166A

5304511884 Frigidaire Oven Bracket Assembly Backorder WCI 5304511884 $38.35

170

5304486410 Frigidaire Oven Kit Backorder WCI 5304486410 $89.60

181

5304500125 Frigidaire Bracket Backorder WCI 5304500125 $8.89

200

808734602 Frigidaire Oven Frame Backorder WCI 808734602 $67.46

201

808734603 Frigidaire Frame Backorder WCI 808734603 $48.93

272

139021700 Frigidaire Oven Tube Backorder WCI 139021700 $11.13

316001017 Frigidaire Screw Backorder WCI 316001017 $1.80

316021109 Frigidaire Oven Screw In Stock WCI 316021109 $8.91

318147430 Frigidaire Oven Bumper Backorder WCI 318147430 $11.13

5303289910 Frigidaire Oven Screw Backorder WCI 5303289910 $3.55

5304517680 Frigidaire Harness Backorder WCI 5304517680 $26.74

808041201 Frigidaire Oven Harness Backorder WCI 808041201 $30.30

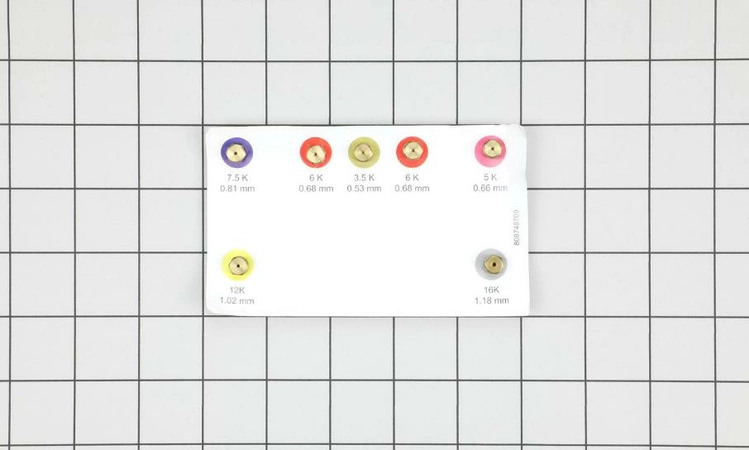

808695309 Frigidaire LP Conversion Kit Backorder WCI 808695309 $77.13

HARNESS, WIRING, COMMUNICATION, PCB WCI 5304500175 Contact Us For Availability

316021105 Frigidaire Oven Screw Backorder WCI 316021105 $7.11

316418900 Frigidaire Oven Screw In Stock WCI 316418900 $8.91

316418901 Frigidaire Oven Screw Backorder WCI 316418901 $8.91

318946500 Frigidaire Oven Light Bulb Range/Wa Backorder WCI 318946500 $33.42

5304507056 Frigidaire Oven Clip Backorder WCI 5304507056 $12.01

NIB

5303311164 Frigidaire Oven Spring Backorder WCI 5303311164 $11.13
