Model Electrolux FPGC3677RSF COOKTOP, GAS, 36 INCH – Common Parts & Diagrams

Common parts from model Electrolux FPGC3677RSF COOKTOP, GAS, 36 INCH

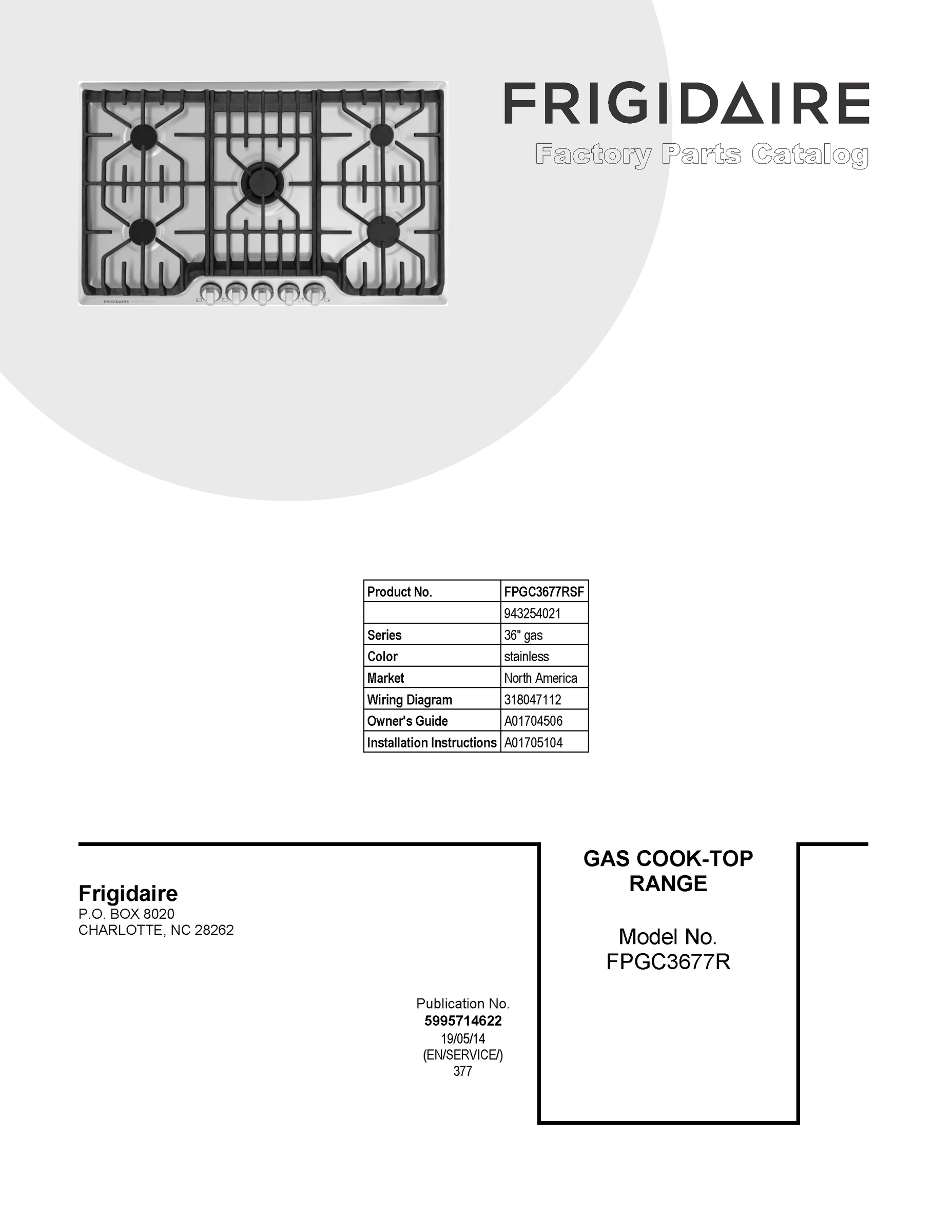

01 - COVER SHEET

Print

• This Diagram
• All Diagrams

2

VALVE, SADDLE, 680 BTU, ORANGE STEM WCI 5304505693 Contact Us For Availability

View on Model

2A

VALVE, SADDLE, 850 BTU, GREEN STEM WCI 5304505690 Contact Us For Availability

View on Model

2B

5304505691 Frigidaire Oven Valve In Stock WCI 5304505691 View Details $40.78

View on Model

2C

VALVE, SADDLE, 1500/2000 BTU, YELLOW STEM, DU WCI 5304508435 Contact Us For Availability

View on Model

3A

ADAPTER, SWITCH, DUAL VALVE WCI 5304508439 Contact Us For Availability

View on Model

7

IGNITOR, TOP BURNER, 380MM, W/WIRING WCI 5304516453 Contact Us For Availability

View on Model

9

IGNITOR, TOP BURNER, 520MM, W/WIRING WCI 5304516454 Contact Us For Availability

View on Model

10

316438200 Frigidaire Range Sealed Burner, 5K In Stock WCI 316438200 View Details $36.24

View on Model

10A

316558300 Frigidaire Oven 9.5L Sealed Burner In Stock WCI 316558300 View Details $33.50

View on Model

10B

316438600 Frigidaire Range Sealed Burner, 14K Backorder WCI 316438600 View Details $50.46

View on Model

10C

BURNER ASSEMBLY, G5 WCI 5304519952 Contact Us For Availability

View on Model

11

HOLDER, ORIFICE/IGNITOR, 5K, W/NAT ORIFICE WCI 5304516449 Contact Us For Availability

View on Model

11A

HOLDER, ORIFICE/IGNITOR, 9.5K, W/NAT ORIFICE WCI 5304516450 Contact Us For Availability

View on Model

11B

HOLDER, ORIFICE/IGNITOR, 14K, W/NAT ORIFICE WCI 5304516452 Contact Us For Availability

View on Model

11CB

IGNITOR/ORIFICE ASSY., TOP BURNER, TWIN, 18K, WCI 316440107 Contact Us For Availability

View on Model

14

REGULATOR, PRESSURE WCI 5304519943 Contact Us For Availability

View on Model

20

5304507041 Frigidaire Oven Grate Backorder WCI 5304507041 View Details $178.28

View on Model

20A

5304500252 Frigidaire Oven Grate In Stock WCI 5304500252 View Details $162.33

View on Model

20B

5304507042 Frigidaire Oven Grate Backorder WCI 5304507042 View Details $163.54

View on Model

22

CAP, 5K BURNER, MATTE, BLACK WCI 5304508441 Contact Us For Availability

View on Model

22A

CAP, 9.5K BURNER, MATTE, BLACK WCI 5304508442 Contact Us For Availability

View on Model

22B

CAP, 14K BURNER, MATTE, BLACK WCI 5304508443 Contact Us For Availability

View on Model

22C

CAP, BURNER, BLACK, G5 WCI 5304519953 Contact Us For Availability

View on Model

34

5304495353 Frigidaire Oven Griddle Backorder WCI 5304495353 View Details $114.16

View on Model

35

BUSHING, INSULATING WCI 5304508440 Contact Us For Availability

View on Model

36

KNOB, TOP VALVE, STAINLESS WCI 5304500250 Contact Us For Availability

View on Model

39

305574902 Frigidaire Power Cord Backorder WCI 305574902 View Details $43.93

View on Model

136

318264301 Frigidaire Oven Support In Stock WCI 318264301 View Details $27.46

View on Model

137

305452400 Frigidaire Oven Screw In Stock WCI 305452400 View Details $7.77

View on Model

NI

SCREW, PHIL, 4. WCI 305309701 Contact Us For Availability

View on Model

NIC

316566901 Frigidaire Oven Sleeve Backorder WCI 316566901 View Details $7.69

View on Model

×
