Model Electrolux FPGC21TAW3 REFRIGERATOR – Common Parts & Diagrams
01 - TOP MOUNT REFRIGERATOR
02 - DOOR SECTION

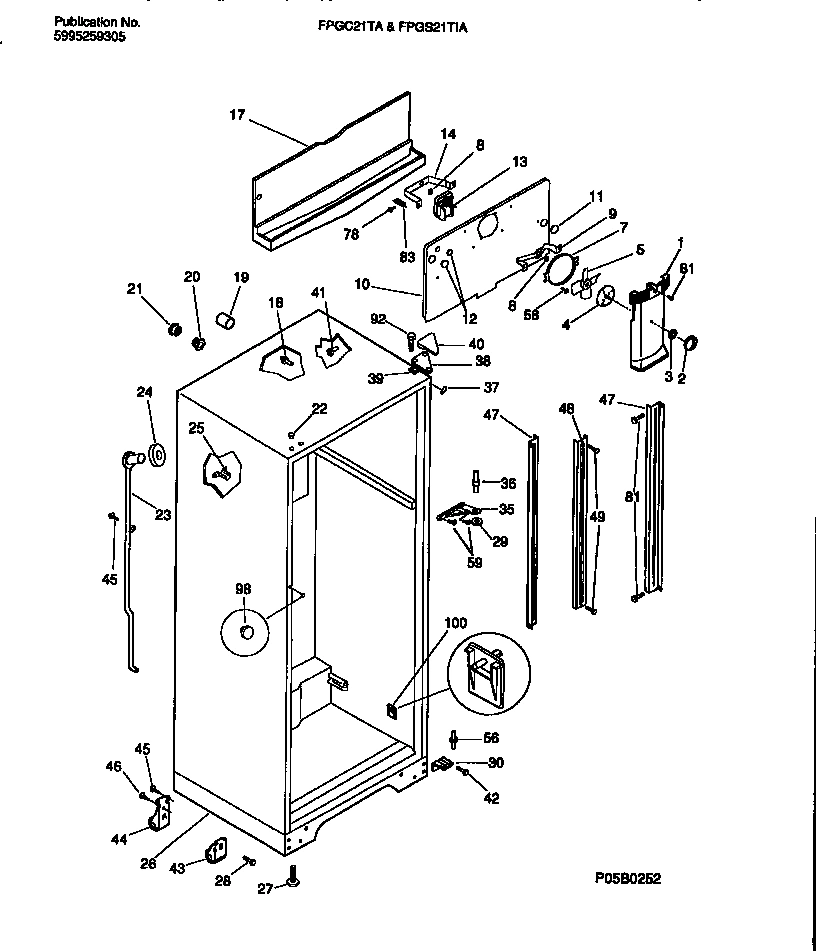

03 - CABINET W/FAN ASSEMBLY

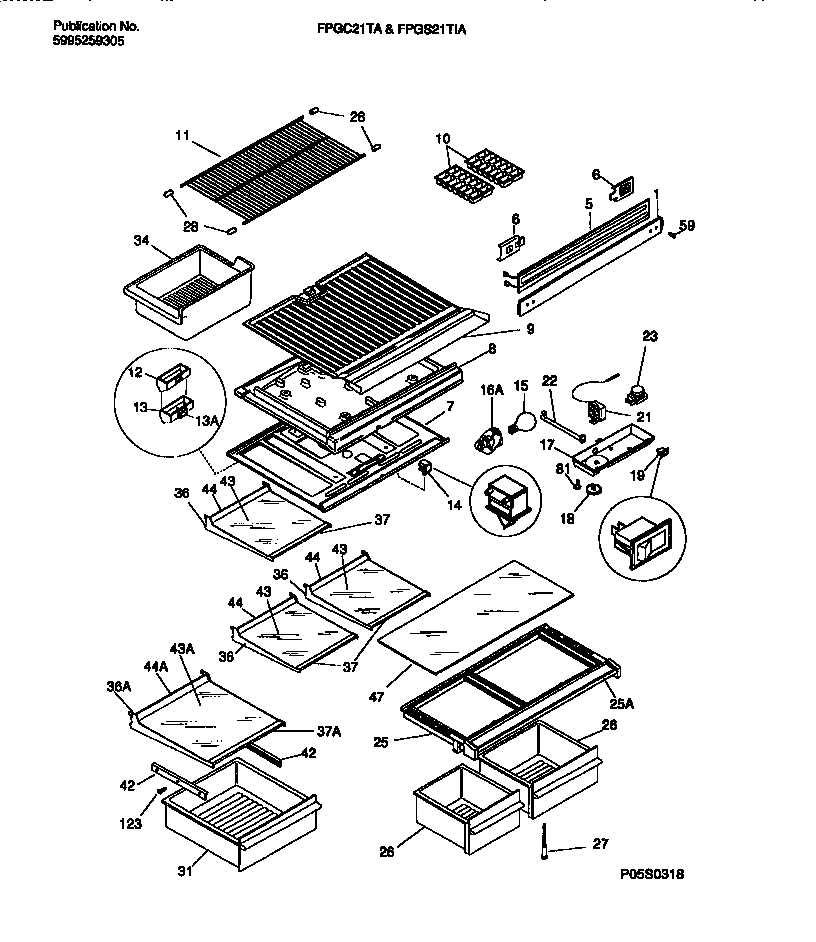

04 - SHELVES, CONTROLS, DIVIDER, MULLION

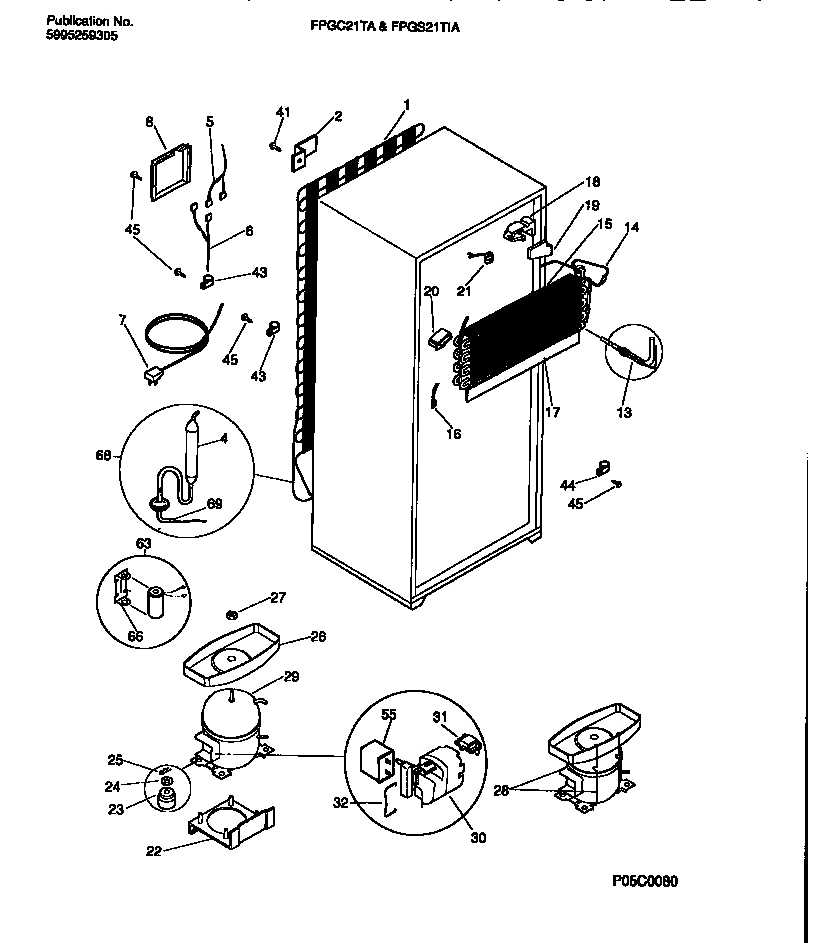

05 - COOLING SYSTEM

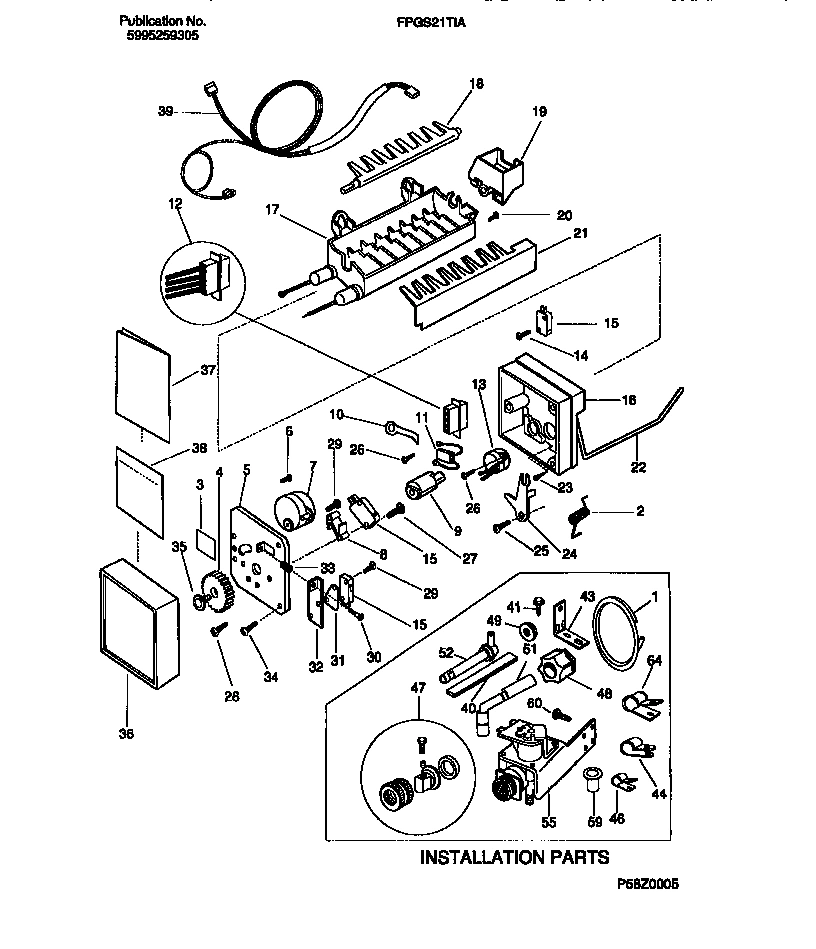

06 - ICE MAKER & INSTALLATION COMPONENTS

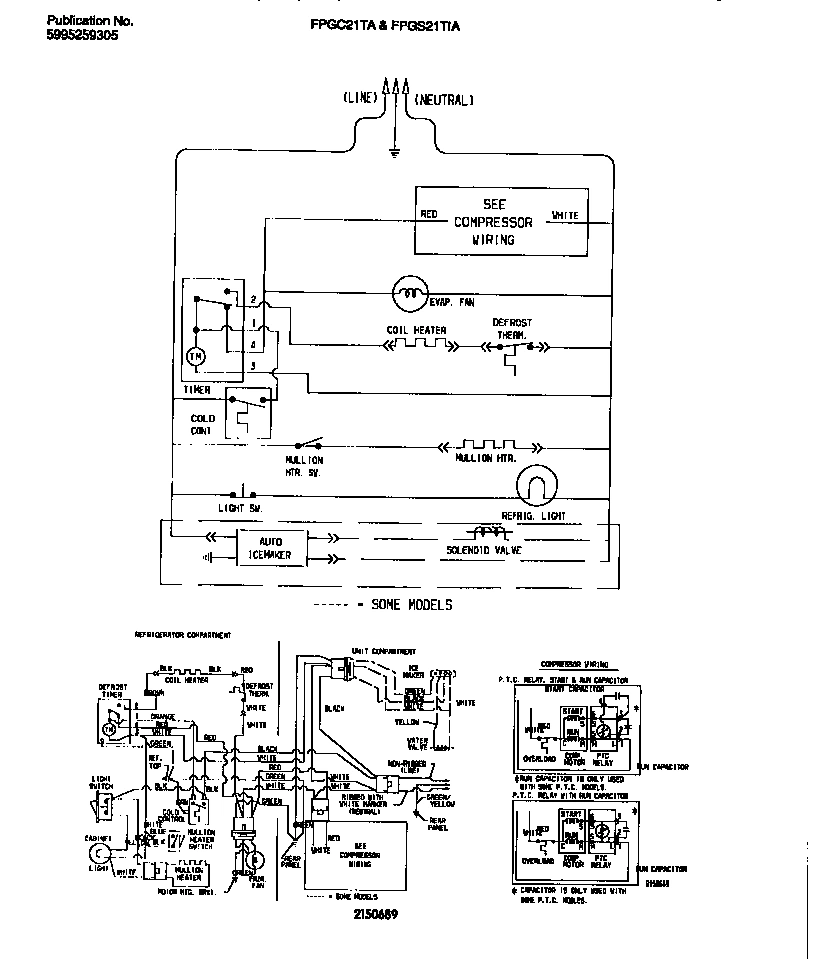

07 - WIRING DIAGRAM
Common parts from model Electrolux FPGC21TAW3 REFRIGERATOR
*97320
WCI 5303917276 WCI 5303917276 Contact Us For Availability
*97322
HOTE TUBE REPAIR KIT,SERVICE WCI 5300189383 Contact Us For Availability
*97324
PLUG-BUTTON, CABINET LINER WCI 5308016571 Contact Us For Availability
1
WCI 218252503 WCI 218252503 Contact Us For Availability
1
WCI 5300163133 WCI 5300163133 Contact Us For Availability
2
BRACKET - MTG, CONDENSER, (4) WCI 5308000296 Contact Us For Availability
2
WCI 3206348 WCI 3206348 Contact Us For Availability
2A
WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRAT WCI 5308009617 Contact Us For Availability
3
PLATE-I.D. WCI 3206299 Contact Us For Availability
5
WCI 218271402 WCI 218271402 Contact Us For Availability
5
HARNESS-WIRING, CONTROL/DIVIDER WCI 3019040 Contact Us For Availability
5
WCI 3206303 WCI 3206303 Contact Us For Availability
6
TPPING PLATE, MULLION MTG,(2) WCI 218279800 Contact Us For Availability
6
WCI 215257001 WCI 215257001 Contact Us For Availability
7
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
7
WCI 3019038 WCI 3019038 Contact Us For Availability
7A
WCI 5303001380 WCI 5303001380 Contact Us For Availability
8
WCI 5303019039 WCI 5303019039 Contact Us For Availability
8
WCI 5303001197 WCI 5303001197 Contact Us For Availability
8
SPACER-HOLDING SW WCI 3206312 Contact Us For Availability
9
WCI 5303210641 WCI 5303210641 Contact Us For Availability
9
WCI 3206313 WCI 3206313 Contact Us For Availability
10
PLUG-BUTTON, WHITE, HINGE BRG HOLE WCI 5308000134 Contact Us For Availability
10
WCI 3206315 WCI 3206315 Contact Us For Availability
11
WCI 5303288243 WCI 5303288243 Contact Us For Availability
11A
SPACER-FRZR SHELF WCI 218159700 Contact Us For Availability
12
WCI 215079000 WCI 215079000 Contact Us For Availability
12
PLUG,`` ONLY`` (INCLUDED IN ITEM ABOVE) WCI 3206321 Contact Us For Availability
12
HARNESS-WIRING, INTERNAL IM, W/PLUG WCI 3206349 Contact Us For Availability
12
WCI 530804667 WCI 530804667 Contact Us For Availability
12A
PLUG-WRT INLET TUBE, ROUND WCI 215079100 Contact Us For Availability
13
Thermostat Assy,ice maker WCI 3206322 Contact Us For Availability
13
WCI 5303001448 WCI 5303001448 Contact Us For Availability
13
WCI 215076400 WCI 215076400 Contact Us For Availability
13A
DOOR STOP, WHITE, FRZR WCI 218249001 Contact Us For Availability
13A
EDTENSION,AIR DEFLECTOR,W/INSULATION WCI 5303200590 Contact Us For Availability
14
SCREW - SWITCH MTG, 4-24 X 3/4, SW TO SUPPORT WCI 3206323 Contact Us For Availability
15
EVAPORATOR WCI 5303271578 Contact Us For Availability
16
WCI 3206326 WCI 3206326 Contact Us For Availability
17
INSULATOR-EVAP, PLASTIC WCI 5316651102 Contact Us For Availability
17
WCI 5303299980 WCI 5303299980 Contact Us For Availability
17A
WCI 5308016567 WCI 5308016567 Contact Us For Availability
18
WCI 5303299979 WCI 5303299979 Contact Us For Availability
18
INSULATION BLOCK, RH WCI 5308013648 Contact Us For Availability
18
WCI 3206328 WCI 3206328 Contact Us For Availability
19
WCI 5303286905 WCI 5303286905 Contact Us For Availability
19
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
19
WCI 3206330 WCI 3206330 Contact Us For Availability
20
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
20
WCI 3206331 WCI 3206331 Contact Us For Availability
21
WCI 5303018894 WCI 5303018894 Contact Us For Availability
21
ICE STRIPPER WCI 3206332 Contact Us For Availability
21A
WCI 5303001260 WCI 5303001260 Contact Us For Availability
22
WCI 3018891 WCI 3018891 Contact Us For Availability
22
WCI 5308013663 WCI 5308013663 Contact Us For Availability
22
WCI 3206333 WCI 3206333 Contact Us For Availability
23
WCI 5303210377 WCI 5303210377 Contact Us For Availability
23
SCREW,SUP/MOLD BODY,8-18 X 1/4,(4) WCI 3206334 Contact Us For Availability
24
SEAL RING. DRAIN TUBE (INCLUDED IN ABOVE ITEM WCI 5303207353 Contact Us For Availability
24
WASHER-COMPR MTG WCI 5308003633 Contact Us For Availability
25
WCI 5308000056 WCI 5308000056 Contact Us For Availability
25
WCI 5303206538 WCI 5303206538 Contact Us For Availability
25
CLIP - COMPRESSOR MTG WCI 5308003596 Contact Us For Availability
25
SCREW-ARM LEVR/SPRT, 8-18 X 9/16 WCI 3206336 Contact Us For Availability
25A
WCI 5303280075 WCI 5303280075 Contact Us For Availability
26
WCI 5303295929 WCI 5303295929 Contact Us For Availability
26
PAN-DEFROST DRAIN, ORIG/SVCE COMPR WCI 5300184715 Contact Us For Availability
26
SCREW-THERMO/SPRT, 4-24 X 3/8, (4) WCI 3206337 Contact Us For Availability
26A
WCI 5303295931 WCI 5303295931 Contact Us For Availability
27
SUPPORT-CRISPER CVR, ADJUSTABLE WCI 5303205987 Contact Us For Availability
27
SCREW-LEVELING WCI 5303212922 Contact Us For Availability
27
NUT-LOCK,1/4 - 2,DRAIN PAN MTG. WCI 5303001348 Contact Us For Availability
27
SCREW-SW & SPCR/PLATE, 4-40 X 1, (2) WCI 3206338 Contact Us For Availability
28
WCI 3201150 No Longer Available
28
PAN RETAINER KIT, SERVICE WCI 5303916001 Contact Us For Availability
28
SCREW-TIMING STOP, 4-40 X 3/8 WCI 3206339 Contact Us For Availability
29
WCI 5303917192 WCI 5303917192 Contact Us For Availability
29
SCREW-MTR&SW/PLATE,4-40 X 3/4 WCI 3206340 Contact Us For Availability
30
START-PTC WCI 216008901 Contact Us For Availability
30
SCREW-TIMING, 8-32 X 1 WCI 3206341 Contact Us For Availability
31
WCI 5303295941 WCI 5303295941 Contact Us For Availability
31
WCI 5303272819 WCI 5303272819 Contact Us For Availability
31
WCI 3206342 WCI 3206342 Contact Us For Availability
32
WCI 215012000 WCI 215012000 Contact Us For Availability
32
WCI 3206343 WCI 3206343 Contact Us For Availability
33
WCI 3206344 WCI 3206344 Contact Us For Availability
34
SCREW - MTG PLATE / SPRT, 8-18 X 7/16, (3) WCI 3206345 Contact Us For Availability
35
BRACKET-CTR HINGE, LIGHT GREY WCI 218220101 Contact Us For Availability
35
WCI 6306346 WCI 6306346 Contact Us For Availability
36
WCI 215919116 WCI 215919116 Contact Us For Availability
36
WCI 3206347 WCI 3206347 Contact Us For Availability
36A
WCI 215919114 WCI 215919114 Contact Us For Availability
37
TRIM-CABINET CORNER, WHITE WCI 5303202336 Contact Us For Availability
37
WCI 215919437 WCI 215919437 Contact Us For Availability
37
WCI 5303207442 WCI 5303207442 Contact Us For Availability
37A
WCI 215919439 WCI 215919439 Contact Us For Availability
38
BRACKET-UPPER HINGE WCI 5308012843 Contact Us For Availability
38
WCI 5303207445 WCI 5303207445 Contact Us For Availability
38A
TAPPING PLATE, UPPER HINGE, (2) (NON-ILLUSTRA WCI 5308012296 Contact Us For Availability
39
SHIM - UPPER HINGE WCI 5303001037 Contact Us For Availability
39
HARNESS-WIRING, ICE MAKER WCI 3206358 Contact Us For Availability
40
COVER-UPPER HINGE, WHITE WCI 5308012820 Contact Us For Availability
42
HANGER-PAN/BASKET, LH WCI 5303209272 Contact Us For Availability
42A
HANGER-PAN/BASKET, RH WCI 5303209273 Contact Us For Availability
43
ROLLER ASY,FRONT (2) WCI 5303212490 Contact Us For Availability
43
WCI 5303295999 WCI 5303295999 Contact Us For Availability
43A
WCI 5303296001 WCI 5303296001 Contact Us For Availability
44
WCI 5308009773 WCI 5308009773 Contact Us For Availability
44
WCI 215919811 WCI 215919811 Contact Us For Availability
44A
WCI 215919810 WCI 215919810 Contact Us For Availability
46
BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/ WCI 5308009762 Contact Us For Availability
47
ADAPTER-WATER SPLY WCI 3206360 Contact Us For Availability
47
WCI 215789000 WCI 215789000 Contact Us For Availability
47
WCI 5303209283 WCI 5303209283 Contact Us For Availability
48
NUT, 7/16 X 20, NYLON WCI 5308000200 Contact Us For Availability
49
WCI 215507300 WCI 215507300 Contact Us For Availability
55
VALVE-WATER WCI 3206356 Contact Us For Availability
59
WCI 5303001191 WCI 5303001191 Contact Us For Availability
63
CAPACITOR ASSY,START,W/BRACKET 68 WCI 215769201 Contact Us For Availability
66
BRACKET,START CAP MIG (INCLUDED WITH ITEM ABO WCI 215886600 Contact Us For Availability
69
TUBE CONNECTOR (INCLUDED WITH ITEM ABOVE) WCI 215116300 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
98
PLUG-BUTTON, WHITE, CTR HINGE HOLE WCI 215099701 Contact Us For Availability
100
WCI 5303288973 No Longer Available
× ![]()
