Model Electrolux FPES21TPL1 REFRIGERATOR – Common Parts & Diagrams
02 - DOOR PARTS
03 - CABINET PARTS

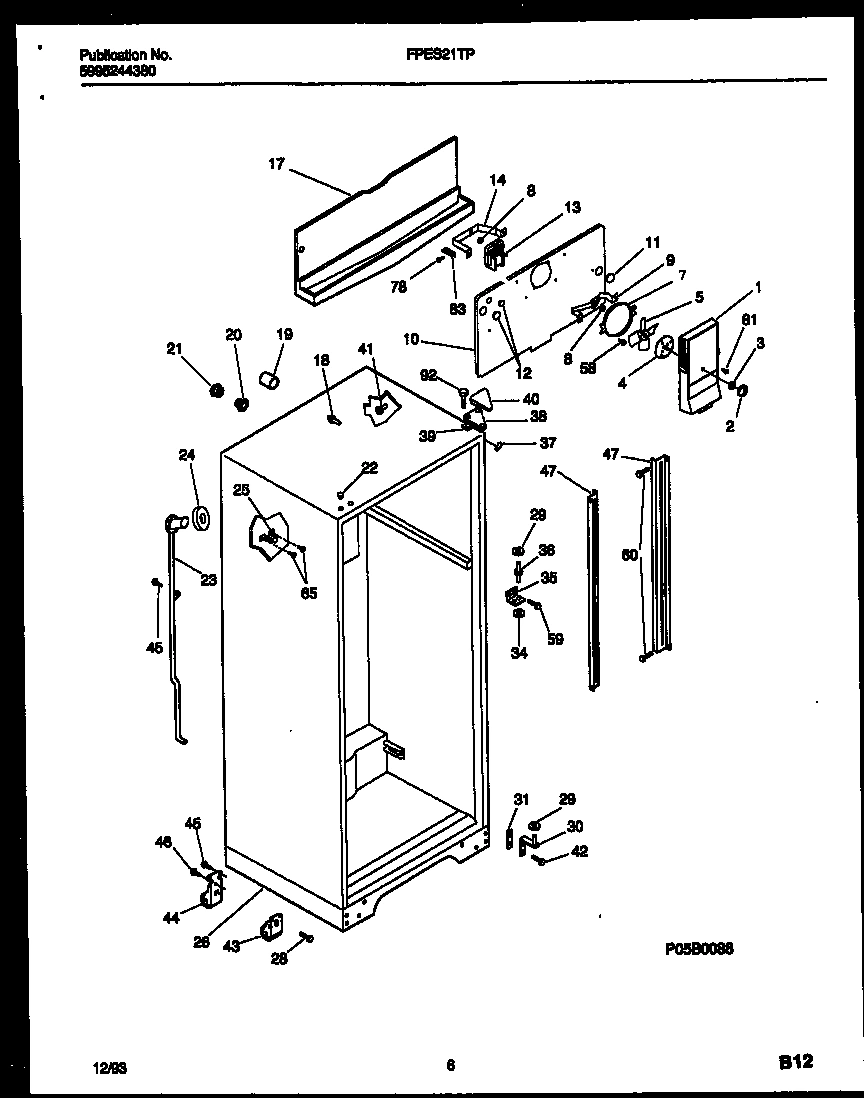

04 - CABINET PARTS

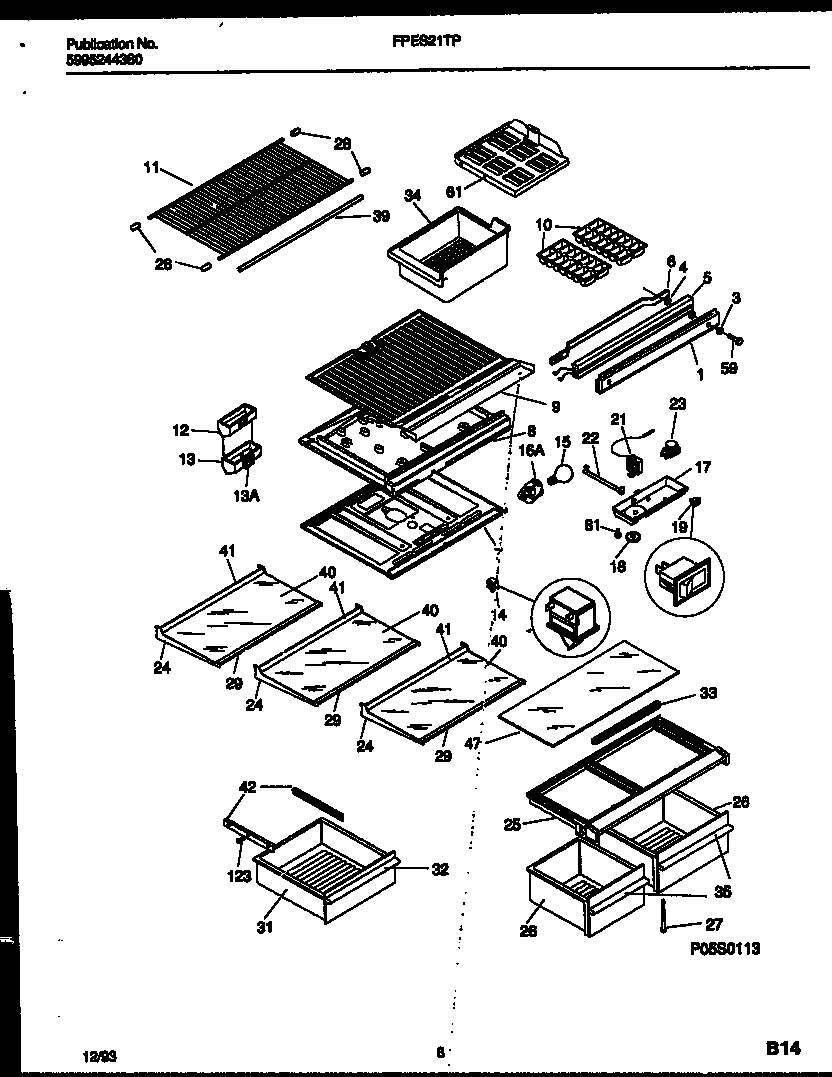

05 - SHELVES AND SUPPORTS

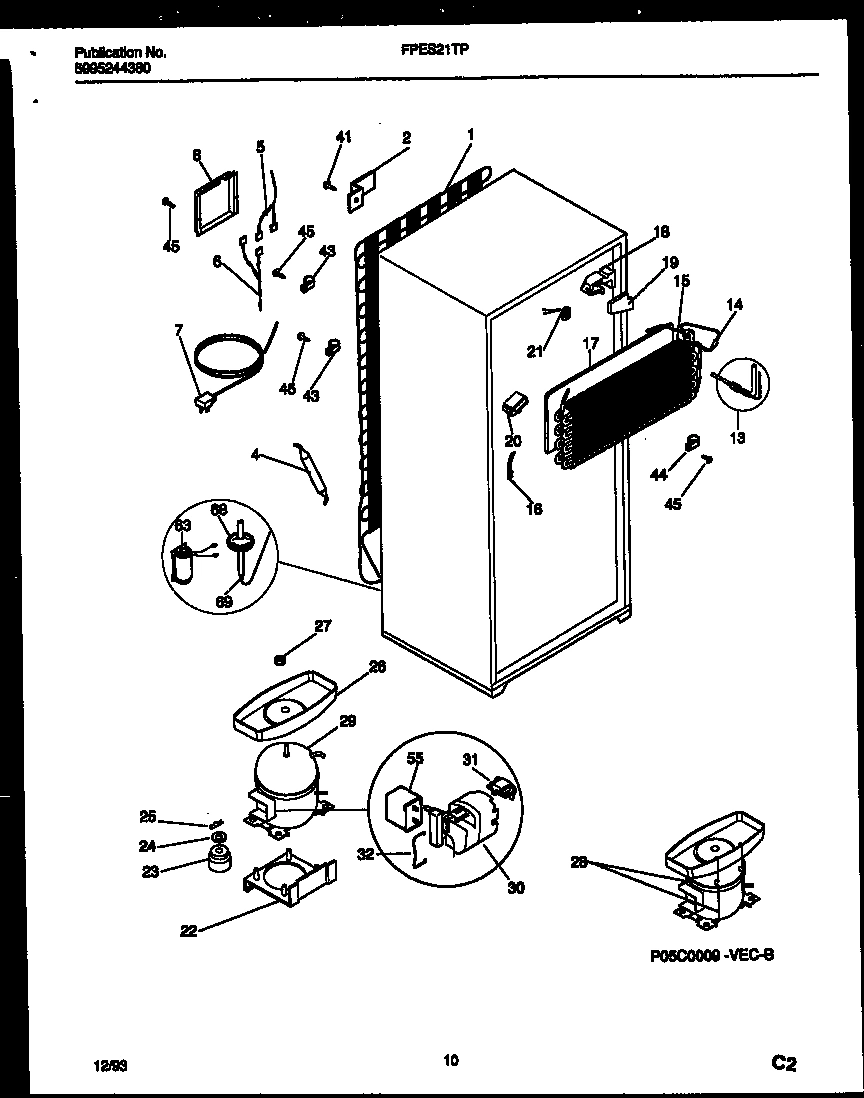

06 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux FPES21TPL1 REFRIGERATOR
*91938
WCI 5303917276 WCI 5303917276 Contact Us For Availability
*91943
PLUG-BUTTON, LINER WCI 5308016571 Contact Us For Availability
*91955
HOT TUBE REPAIR KIT-SERVICE WCI 5300189383 Contact Us For Availability
1
WCI 08009825 WCI 08009825 Contact Us For Availability
1
WCI 5303200370 WCI 5303200370 Contact Us For Availability
1
WCI 5300163133 WCI 5300163133 Contact Us For Availability
1A
LABEL, FAN COVER (NON ILLUSTRATED) WCI 08009937 Contact Us For Availability
2
WCI 5308009793 WCI 5308009793 Contact Us For Availability
2
WCI 5308000296 WCI 5308000296 Contact Us For Availability
2A
LABEL-DAMPER KNOB (NON-ILLUSTRATED) WCI 08009823 Contact Us For Availability
2A
WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRAT WCI 5308009617 Contact Us For Availability
3
Nut,push-on WCI 5303001028 Contact Us For Availability
3
WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (N WCI 5303206754 Contact Us For Availability
4
DAMPER-FAN COVER WCI 5303001331 Contact Us For Availability
4
SPACER-MULLION MTG, STEEL WCI 5303200464 Contact Us For Availability
5
WCI 5303210351 WCI 5303210351 Contact Us For Availability
5
HARNESS-WIRING, CONTROL/DIVIDER WCI 3019040 Contact Us For Availability
6
WCI 5308010008 WCI 5308010008 Contact Us For Availability
6
WCI 215257001 WCI 215257001 Contact Us For Availability
7
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
7
WCI 3019038 WCI 3019038 Contact Us For Availability
7
CORD-ELECTRIC POWER WCI 5316254901 Contact Us For Availability
7A
WCI 5303001380 WCI 5303001380 Contact Us For Availability
8
WCI 5300157666 WCI 5300157666 Contact Us For Availability
8
WCI 5303019039 WCI 5303019039 Contact Us For Availability
8
WCI 5303001197 WCI 5303001197 Contact Us For Availability
9
WCI 5303205118 WCI 5303205118 Contact Us For Availability
9
WCI 5303210641 WCI 5303210641 Contact Us For Availability
10
PLUG-BUTTON, ALMOND, HINGE BRG HOLE WCI 5303001308 Contact Us For Availability
10
WCI 5308013665 WCI 5308013665 Contact Us For Availability
10A
WCI 5303209636 WCI 5303209636 Contact Us For Availability
11
WCI 5303208517 WCI 5303208517 Contact Us For Availability
12
WCI 215079000 WCI 215079000 Contact Us For Availability
12
WCI 215079100 WCI 215079100 Contact Us For Availability
12
DEFLECTOR-AIR, W/SEAL WCI 5308014667 Contact Us For Availability
13
WCI 5303001448 WCI 5303001448 Contact Us For Availability
13
WCI 215076400 WCI 215076400 Contact Us For Availability
13A
EXTENSION, AIR DEFLECTOR, WITH INSULATION WCI 5303200590 Contact Us For Availability
14
BRACKET-MOTOR MTG, REAR WCI 5303205119 Contact Us For Availability
15
EVAPORATOR WCI 5303271578 Contact Us For Availability
17
INSULATOR-EVAP, PLASTIC WCI 5316651102 Contact Us For Availability
17
WCI 5303001470 WCI 5303001470 Contact Us For Availability
17
BOX, CONTROL WCI 3018895 Contact Us For Availability
17A
WCI 5308016567 WCI 5308016567 Contact Us For Availability
18
WCI 215245000 WCI 215245000 Contact Us For Availability
18
KNOB, TEMP CONTROL WCI 3018893 Contact Us For Availability
18
INSULATION BLOCK, RH WCI 5308013648 Contact Us For Availability
19
TUBE-RUBBER WCI 5303001198 Contact Us For Availability
19
SWITCH, ENERGY SAVER WCI 5303018896 Contact Us For Availability
19
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
20
WCI 5303001286 WCI 5303001286 Contact Us For Availability
20
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
21
WCI 5303001287 WCI 5303001287 Contact Us For Availability
21
WCI 5303018894 WCI 5303018894 Contact Us For Availability
21A
WCI 5303001260 WCI 5303001260 Contact Us For Availability
22
PLUG-BUTTON, ALMOND, UPR HINGE HOLES WCI 5303001389 Contact Us For Availability
22
WCI 3018891 WCI 3018891 Contact Us For Availability
22
WCI 5308013663 WCI 5308013663 Contact Us For Availability
23
WCI 5303210377 WCI 5303210377 Contact Us For Availability
24
WCI 5303207353 WCI 5303207353 Contact Us For Availability
24
FRAME, FULL SHELF, CANTILEVER WCI 5303209276 Contact Us For Availability
24
FRAME, MEAT KPR SHLF, CANTILEVER WCI 5303211349 Contact Us For Availability
24
WASHER-COMPR MTG WCI 5308003633 Contact Us For Availability
24A
CLIP-CANTILEVR SHLF (NON-ILLUSTRATED) WCI 215339900 Contact Us For Availability
25
WCI 5308000056 WCI 5308000056 Contact Us For Availability
25
COVER, CRISPER PAN WCI 5303019035 Contact Us For Availability
25
CLIP - COMPRESSOR MTG WCI 5308003596 Contact Us For Availability
25A
PIN-PUSH, PLASTIC (NON-ILLUSTRATED) WCI 5303001361 Contact Us For Availability
25A
WCI 3018984 WCI 3018984 Contact Us For Availability
26
WCI 5303212487 WCI 5303212487 Contact Us For Availability
26
WCI 5303299801 WCI 5303299801 Contact Us For Availability
26
WCI 5303301062 WCI 5303301062 Contact Us For Availability
26
PAN-DEFROST DRAIN, ORIG/SVCE COMPR WCI 5300184715 Contact Us For Availability
27
SUPPORT, CRISPER CVR, ADJUSTABLE WCI 5303206507 Contact Us For Availability
27
Nut,lock `1/4-20 ,drain pan mtg WCI 5303001348 Contact Us For Availability
28
WCI 3201150 No Longer Available
28
PAN RETAINER KIT, SERVICE WCI 5303916001 Contact Us For Availability
28
WCI 5303271412 WCI 5303271412 Contact Us For Availability
29
WASHER, .34 X .62 X .05, NYLON WCI 5308000007 Contact Us For Availability
29
TRIM, FULL SHELF, (3) WCI 5303272820 Contact Us For Availability
29
WCI 5303917192 WCI 5303917192 Contact Us For Availability
29A
WCI 5303209274 WCI 5303209274 Contact Us For Availability
30
WCI 216008901 WCI 216008901 Contact Us For Availability
30
BRACKET-LOWER HINGE, W/ HINGE PIN WCI 5303212489 Contact Us For Availability
30A
WCI 5303212596 WCI 5303212596 Contact Us For Availability
30B
WCI 5303212597 WCI 5303212597 Contact Us For Availability
31
WCI 5303212488 WCI 5303212488 Contact Us For Availability
31
WCI 5303299812 WCI 5303299812 Contact Us For Availability
31
WCI 5303272819 WCI 5303272819 Contact Us For Availability
32
WCI 5303272530 WCI 5303272530 Contact Us For Availability
32
WCI 215012000 WCI 215012000 Contact Us For Availability
33
GASKET-PAN COVER, 13.25`` WCI 5303200329 Contact Us For Availability
34
WCI 5308000186 No Longer Available
35
BRACKET-CTR HINGE WCI 5303001369 Contact Us For Availability
35
TRIM, CRISPER PAN, LH WCI 5303272523 Contact Us For Availability
35
TRIM, CRISPER PAN, RH WCI 5303272529 Contact Us For Availability
36
WCI 5308000184 WCI 5308000184 Contact Us For Availability
37
TRIM-CABINET CORNER, ALMOND WCI 5303202340 Contact Us For Availability
38
BRACKET-UPPER HINGE WCI 5308012843 Contact Us For Availability
38A
TAPPING PLATE, UPPER HINGE, (2) (NON-ILLUSTRA WCI 5308012296 Contact Us For Availability
39
SHIM - UPPER HINGE WCI 5303001037 Contact Us For Availability
39
TRIM-FRZR SHELF, FRONT WCI 5303273237 Contact Us For Availability
39A
LOCK-SHELF TRIM, REAR (NON-ILLUSTRATED) WCI 5303211351 Contact Us For Availability
40
COVER-UPPER HINGE, ALMOND WCI 5308012933 Contact Us For Availability
40
GLASS-SHELF, FULL SHELF, (3) WCI 5303272821 Contact Us For Availability
41
TRIM,FULL SHELF (SNAP,ON REAR) WCI 5303210045 Contact Us For Availability
42
HANGER, MEAT PAN, LH WCI 5303210016 Contact Us For Availability
42A
HANGER, MEAT PAN, RH (NON ILLUSTRATED) WCI 5303210017 Contact Us For Availability
43
WCI 5303212490 WCI 5303212490 Contact Us For Availability
44
WCI 5308009773 WCI 5308009773 Contact Us For Availability
46
BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/ WCI 5308009762 Contact Us For Availability
47
WCI 5303292394 WCI 5303292394 Contact Us For Availability
47
INSERT-PAN COVER, GLASS WCI 5303211968 Contact Us For Availability
59
WCI 5308012258 WCI 5308012258 Contact Us For Availability
61
SHELF-ICE TRAY WCI 5318609501 Contact Us For Availability
63
CAPACITOR ASSY, START WCI 215769201 Contact Us For Availability
69
WCI 215116300 WCI 215116300 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
123
WCI 08014528 WCI 08014528 Contact Us For Availability
× ![]()
