Model Electrolux FPES21TNW1 REFRIGERATOR – Common Parts & Diagrams

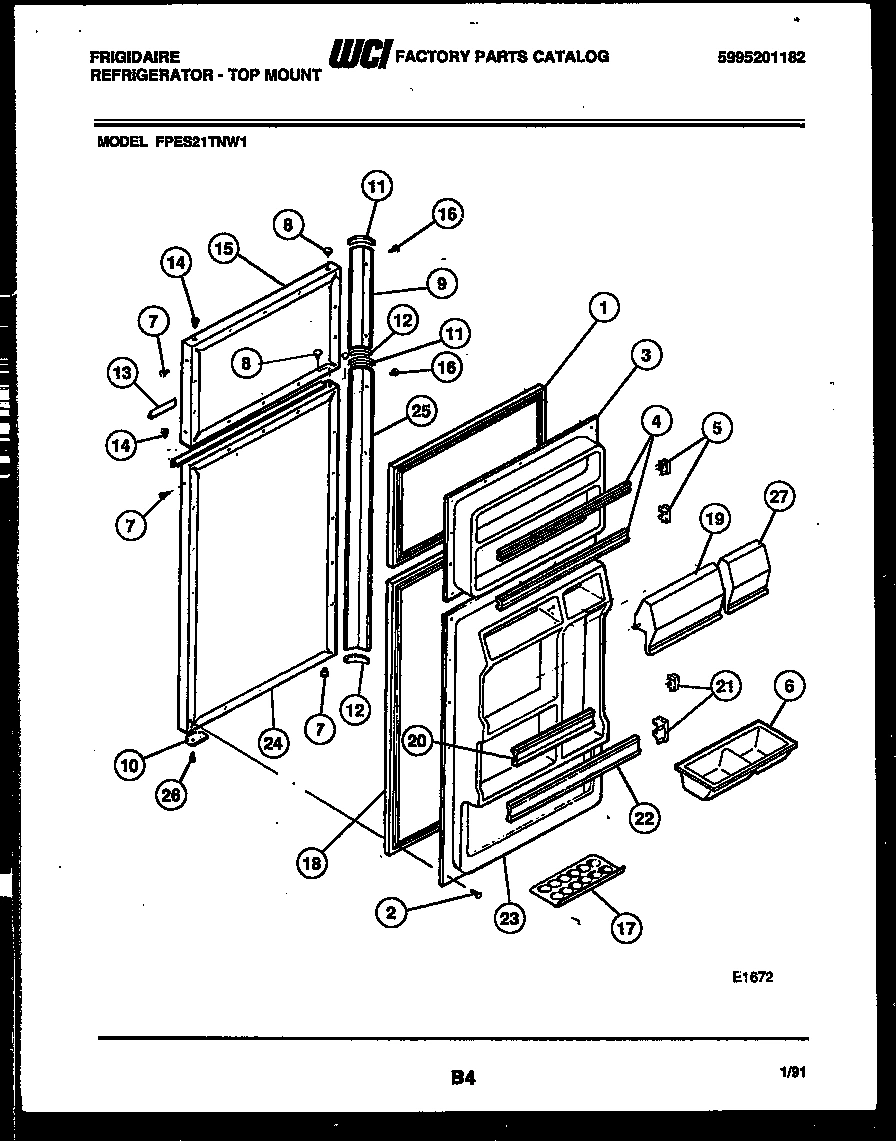

02 - DOOR PARTS

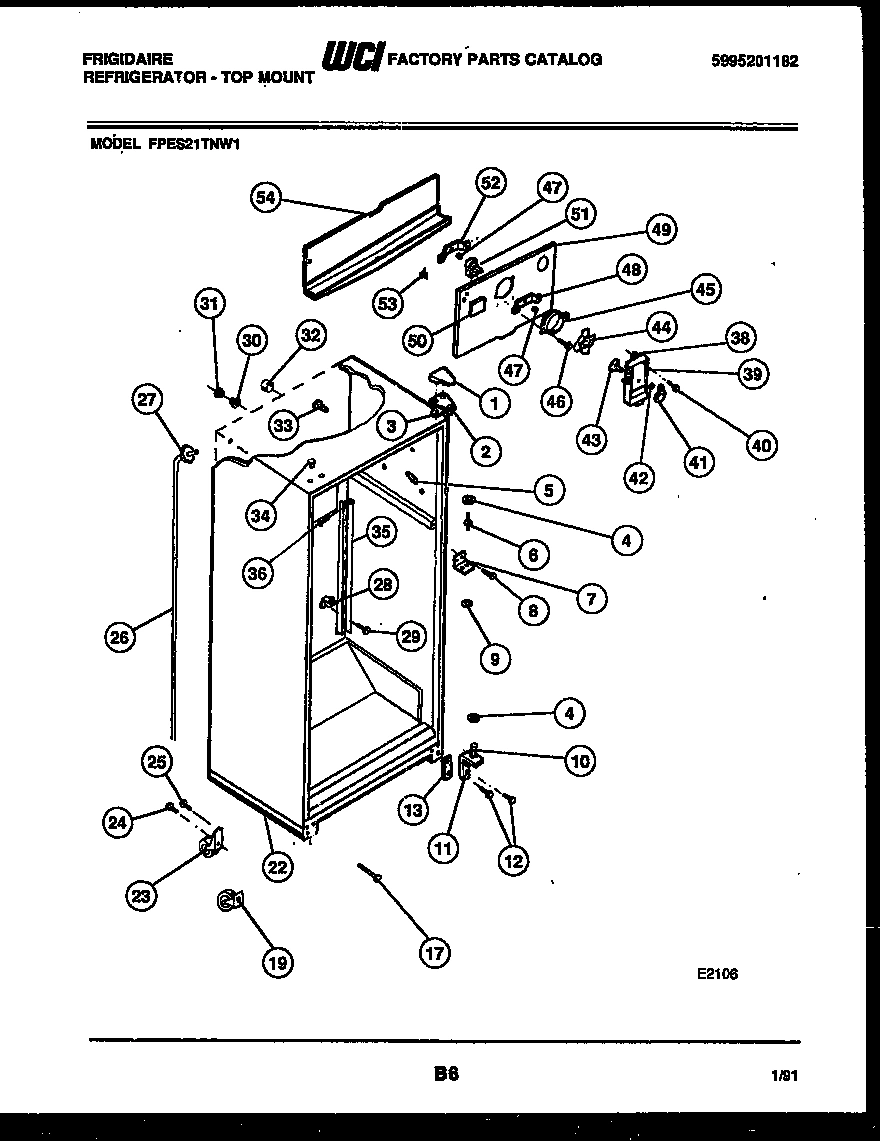

03 - CABINET PARTS

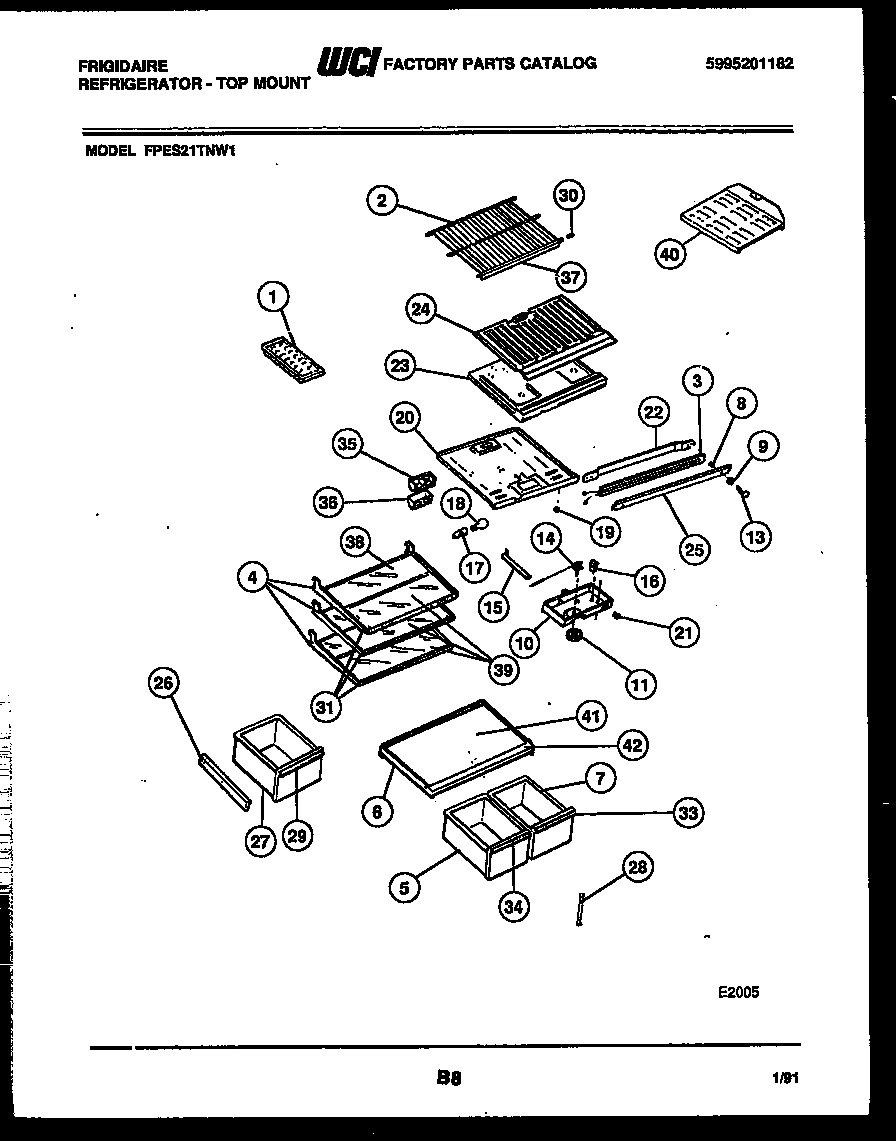

04 - SHELVES AND SUPPORTS

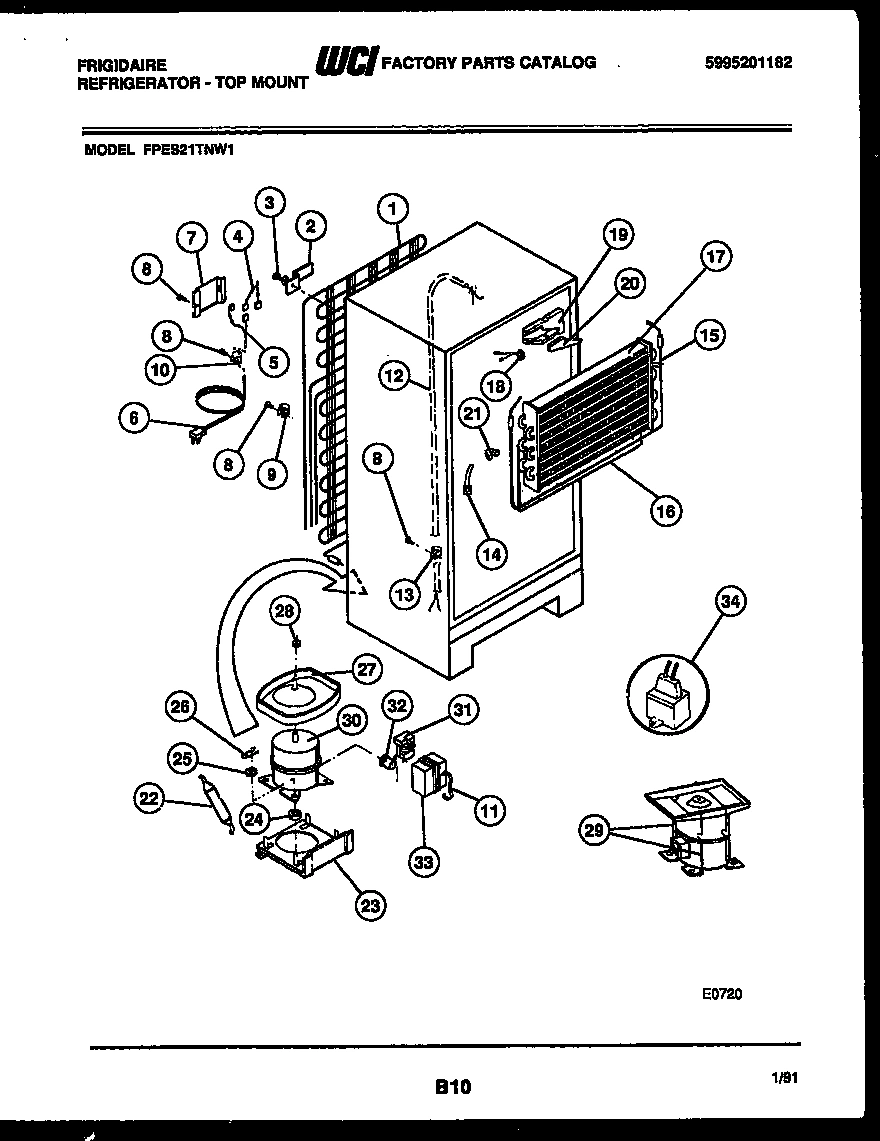

05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux FPES21TNW1 REFRIGERATOR
*41009
PLUG - LINER (3) WCI 5308016571 Contact Us For Availability
*41009
TAPPING-PLATE (2) WCI 5308012296 Contact Us For Availability
*41013
CLIP-CANTILEVER SHELF (6) WCI 5300170910 Contact Us For Availability
*41015
HOT TUBE REPAIR KIT-SVCE WCI 5300189383 Contact Us For Availability
1
WCI 5308012820 WCI 5308012820 Contact Us For Availability
1
WCI 5300163133 WCI 5300163133 Contact Us For Availability
2
HINGE-BRACKET UPPER WCI 5308012843 Contact Us For Availability
2
WCI 5303208517 WCI 5303208517 Contact Us For Availability
2
WCI 5303001342 WCI 5303001342 Contact Us For Availability
3
SHIM - UPPER HINGE WCI 5303001037 Contact Us For Availability
3
WCI 5303210351 WCI 5303210351 Contact Us For Availability
3A
WASHER, NO. 10 EXT TOOTH LOCK (NON-ILLUSTRAT WCI 5308009617 Contact Us For Availability
4
WASHER-1/4 X 5/8 OD-NYLON (2) WCI 5308000007 Contact Us For Availability
4
FRAME-CANTI SHELF (2) WCI 3200616 Contact Us For Availability
4
WIRING HARN-CONTROL WCI 3019040 Contact Us For Availability
4A
WCI 3203094 WCI 3203094 Contact Us For Availability
5
CORNER-TRIM (WHITE) WCI 5303202336 Contact Us For Availability
5
CRISPER PAN-LH WCI 3018873 Contact Us For Availability
5
WCI 5303001347 WCI 5303001347 Contact Us For Availability
6
WCI 5308000184 WCI 5308000184 Contact Us For Availability
6
WCI 5303019035 WCI 5303019035 Contact Us For Availability
6
WCI 5316254901 WCI 5316254901 Contact Us For Availability
6A
GASKET-CRISPER COVER (NON-ILLUSTRATED) WCI 5303200329 Contact Us For Availability
7
WCI 5303001369 WCI 5303001369 Contact Us For Availability
7
PAN, CRISPER, RH WCI 3018982 Contact Us For Availability
7
WCI 5303001197 WCI 5303001197 Contact Us For Availability
8
PLUG BUTTON-WHITE WCI 5308000134 Contact Us For Availability
8
SPACER, MULLION (2) WCI 5303200464 Contact Us For Availability
9
WASHER, NYLON WCI 5308000186 No Longer Available
9
WASHER-NO. 10 STEEL (2) WCI 5303206754 Contact Us For Availability
10
WCI 5303001321 WCI 5303001321 Contact Us For Availability
10
CONTROL BOX WCI 3018895 Contact Us For Availability
11
WCI 5303212489 WCI 5303212489 Contact Us For Availability
11
KNOB, TEMPERATURE CONTROL WCI 3018893 Contact Us For Availability
11A
WCI 5303212596 WCI 5303212596 Contact Us For Availability
11B
WCI 5303212597 WCI 5303212597 Contact Us For Availability
12
HEAT EXCHANGER WCI 5308000728 Contact Us For Availability
13
WCI 5308012258 WCI 5308012258 Contact Us For Availability
13
WCI 5303212488 WCI 5303212488 Contact Us For Availability
14
WCI 5303018894 WCI 5303018894 Contact Us For Availability
14A
WCI 5303001260 WCI 5303001260 Contact Us For Availability
15
WCI 3018891 WCI 3018891 Contact Us For Availability
16
WCI 5316651102 WCI 5316651102 Contact Us For Availability
17
WCI 5303212598 WCI 5303212598 Contact Us For Availability
17
EVAPORATOR COIL WCI 5300162506 Contact Us For Availability
19
ROLLER-FRONT ASSY (2) WCI 5303212490 Contact Us For Availability
19
INSULATION BLOCK, RH WCI 5308013648 Contact Us For Availability
20
TOP, REFRIGERATOR WCI 3019038 Contact Us For Availability
20
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
20A
WCI 5303001380 WCI 5303001380 Contact Us For Availability
21
WCI 5303018896 WCI 5303018896 Contact Us For Availability
21
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
22
CABINET BASE WCI 5303212487 Contact Us For Availability
22
WCI 5308010008 WCI 5308010008 Contact Us For Availability
23
WCI 5303200596 WCI 5303200596 Contact Us For Availability
23
ROLLER-REAR ASSY (2) WCI 5308009773 Contact Us For Availability
23
WCI 5303019039 WCI 5303019039 Contact Us For Availability
23
WCI 5308013663 WCI 5308013663 Contact Us For Availability
24
WCI 5308009928 WCI 5308009928 Contact Us For Availability
24
BOLT-1/4-28 X 1/2 (2) WCI 5308009762 Contact Us For Availability
24
BOTTOM, FREEZER WCI 5303210641 Contact Us For Availability
25
HANDLE-COMPLETE REFR (W/ TRIM & END CAPS) WCI 5308017497 Contact Us For Availability
25
WCI 5303200366 WCI 5303200366 Contact Us For Availability
25
WASHER-COMPRESSOR MTG (4) WCI 5308003633 Contact Us For Availability
26
DRAIN TUBE-DEFROST & SEAL RING ASSY WCI 5303210377 Contact Us For Availability
26
WCI 5308011745 WCI 5308011745 Contact Us For Availability
26
HANGER, MEAT PAN, LH WCI 5303210016 Contact Us For Availability
26
CLIP-COMPRESSOR MTG (4) WCI 5308003596 Contact Us For Availability
26A
HANGER, MEAT PAN, RH (NON ILLUSTRATED) WCI 5303210017 Contact Us For Availability
26B
SCREW-HANGER (2) (NON-ILLUSTRATED) WCI 08014528 Contact Us For Availability
27
SEAL RING WCI 5303207353 Contact Us For Availability
27
DOOR-DAIRY RH (SMALL) WCI 3018974 Contact Us For Availability
27
PAN, MEAT WCI 3018987 Contact Us For Availability
27
PAN-DEFROST WCI 5300184715 Contact Us For Availability
28
DRAIN SPOUT WCI 5308000056 Contact Us For Availability
28
SUPPORT-CRISPER CVR (ADJ) WCI 5303206507 Contact Us For Availability
28
WCI 5303001348 WCI 5303001348 Contact Us For Availability
29
PAN-RETAINER KIT-INCLUDED W/ SERVICE COMPR WCI 5303916001 Contact Us For Availability
29
PUSHPIN (2) WCI 5303001361 Contact Us For Availability
29
WCI 3018986 WCI 3018986 Contact Us For Availability
30
CAP PROTECTOR (2) WCI 3201150 No Longer Available
30
WCI 5303001286 WCI 5303001286 Contact Us For Availability
30
COMPRESSOR W/ELECTRICALS-SERVICE WCI 5303916012 Contact Us For Availability
31
WCI 5303007173 WCI 5303007173 Contact Us For Availability
31
WCI 5303001287 WCI 5303001287 Contact Us For Availability
31
TRIM-SHELF (3) WCI 3018732 Contact Us For Availability
31A
GLASS-RETAINER-CANTI SHELF (2) (NON-ILLUSTRAT WCI 3018724 Contact Us For Availability
31B
WCI 3203087 WCI 3203087 Contact Us For Availability
32
WCI 5303001198 WCI 5303001198 Contact Us For Availability
32
WCI 5308017532 WCI 5308017532 Contact Us For Availability
33
SUPPORT, COIL COVER (2) WCI 5308000097 Contact Us For Availability
33
TRIM-CRISPER PAN-RH WCI 3017422 Contact Us For Availability
34
PLUG, WHITE WCI 5303001388 Contact Us For Availability
34
TRIM-CRISPER PAN-LH WCI 3017423 Contact Us For Availability
34
CAPACITOR-RUN WCI 5303916391 Contact Us For Availability
35
CHANNEL, RH & LH WCI 5308000302 Contact Us For Availability
35
AIR DEFLECTOR WCI 5308014667 Contact Us For Availability
35B
EXTENSION & INSULATION AIR DEFLECTOR (NON-ILL WCI 5303200590 Contact Us For Availability
36
WCI 5303001448 WCI 5303001448 Contact Us For Availability
37
WCI 5303210636 WCI 5303210636 Contact Us For Availability
38
FAN COVER WCI 08009825 Contact Us For Availability
38
WCI 3203088 WCI 3203088 Contact Us For Availability
39
WCI 08009937 WCI 08009937 Contact Us For Availability
39
GLASS-SHELF (3) WCI 3200614 Contact Us For Availability
39A
RAIL-GLASS SUPPORT (6) (NON-ILLUSTRATED) WCI 3200901 Contact Us For Availability
40
WCI 5318609501 WCI 5318609501 Contact Us For Availability
41
WCI 5308009793 WCI 5308009793 Contact Us For Availability
41
GLASS, CRISPER COVER WCI 3200389 Contact Us For Availability
41A
LABEL, KNOB (NON-ILLUSTRATED) WCI 08009823 Contact Us For Availability
42
WCI 5303001028 WCI 5303001028 Contact Us For Availability
42
TRIM-CRISPER COVER WCI 3018984 Contact Us For Availability
43
DAMPER WCI 5303001331 Contact Us For Availability
45
WCI 5308000124 WCI 5308000124 Contact Us For Availability
47
WCI 5300157666 WCI 5300157666 Contact Us For Availability
48
WCI 5303001226 WCI 5303001226 Contact Us For Availability
49
WCI 5308013665 WCI 5308013665 Contact Us For Availability
49A
NUT U, TYPE (2) (NON-ILLUSTRATED) WCI 5303209814 Contact Us For Availability
50
PLUG, DECORATIVE WCI 5308013636 Contact Us For Availability
52
WCI 5303205119 WCI 5303205119 Contact Us For Availability
53
CONNECTOR BRACKET WCI 5308000107 Contact Us For Availability
54
DRAIN TROUGH WCI 5303001470 Contact Us For Availability
× ![]()
