Model Electrolux FPES21TEA0 REFRIGERATOR – Common Parts & Diagrams

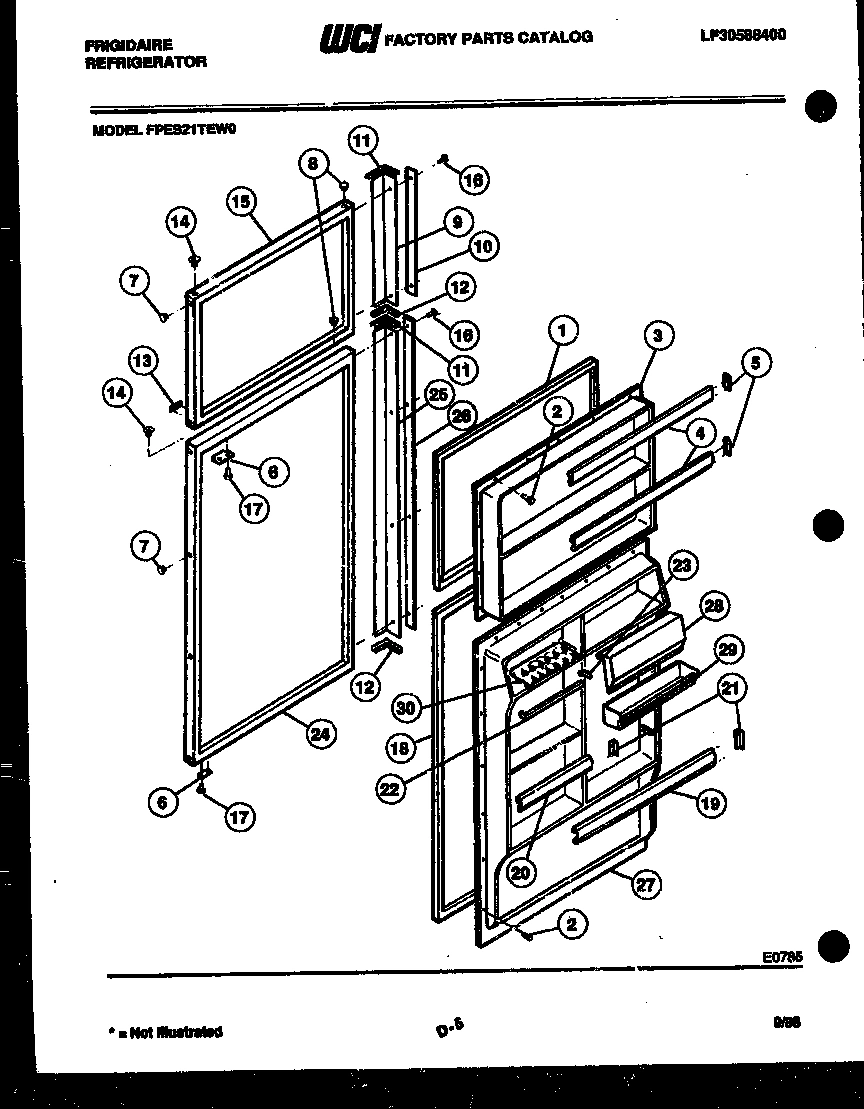

02 - DOOR PARTS

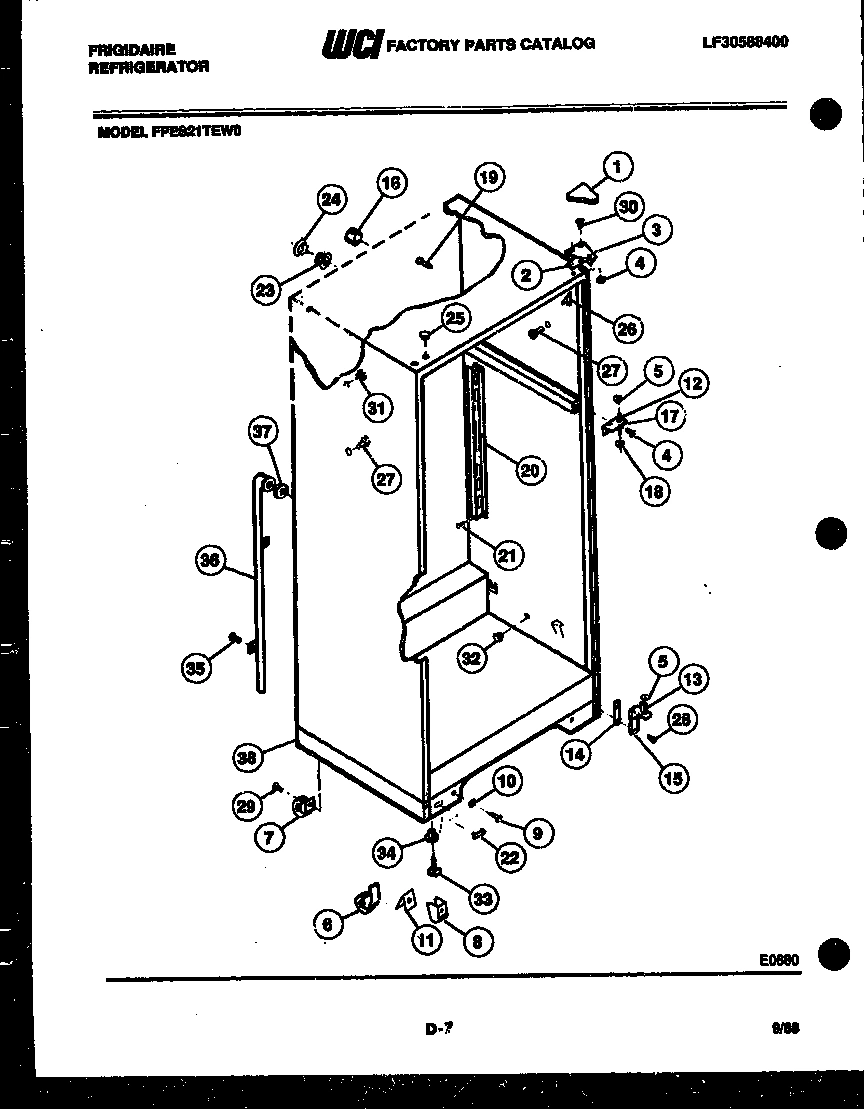

03 - CABINET PARTS
04 - SHELVES AND SUPPORTS
05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux FPES21TEA0 REFRIGERATOR
*21214
SOUND TAPE WCI 8017610 Contact Us For Availability
*21214
WCI 9960001 WCI 9960001 Contact Us For Availability
1
GASKET-FREEZER WCI 8016617 Contact Us For Availability
1
COVER-UPPER HINGE-AVOC WCI 8012930 Contact Us For Availability
1
WCI 8013638 WCI 8013638 Contact Us For Availability
2
SCREW (56) WCI 8002748 Contact Us For Availability
2
SHIM-UPPER HINGE WCI 8012829 Contact Us For Availability
2
TRIM, SHELF WCI 8009675 Contact Us For Availability
2
WCI 8000094 WCI 8000094 Contact Us For Availability
3
INNER PANEL-FREEZER WCI 8013672 Contact Us For Availability
3
BRACKET-UPPER HINGE WCI 8012843 Contact Us For Availability
3
WCI 8013653 WCI 8013653 Contact Us For Availability
3
BRACKET-MTG (4) WCI 8003600 Contact Us For Availability
4
DOOR RACK-FREEZER (2) WCI 8013640 Contact Us For Availability
4
WASHER-NYLON (3) WCI 8000007 Contact Us For Availability
4
SHELF-FREEZER WCI 8013661 Contact Us For Availability
4
STRAP-TERM COVER WCI 8000117 Contact Us For Availability
5
WCI 8000100 WCI 8000100 Contact Us For Availability
5
TRIM (3) WCI 8009669 Contact Us For Availability
5
COVER-TERMINAL WCI 8000116 Contact Us For Availability
6
DOOR STOP (2) WCI 8000255 Contact Us For Availability
6
ROLLER ASSY-FRONT (2) WCI 8009760 Contact Us For Availability
6
FRAME-SHELF (2) WCI 8013656 Contact Us For Availability
6
WCI 8013644 WCI 8013644 Contact Us For Availability
7
PLUG-AVOCADO WCI 8000179 Contact Us For Availability
7
WCI 8009773 WCI 8009773 Contact Us For Availability
7
WCI 8000391 WCI 8000391 Contact Us For Availability
7
WCI 8009628 WCI 8009628 Contact Us For Availability
8
PLUG-AVOCADO WCI 8000175 Contact Us For Availability
8
SUPPORT-BASE CAB (2) WCI 8013678 Contact Us For Availability
8
PAN LH WCI 8009827 Contact Us For Availability
8
WCI 8000064 WCI 8000064 Contact Us For Availability
9
HANDLE ASSY WCI 8009882 Contact Us For Availability
9
WCI 8009761 WCI 8009761 Contact Us For Availability
9
TRIM WCI 8009850 Contact Us For Availability
9
CLIP (4) WCI 8003596 Contact Us For Availability
10
TRIM-FREEZER HANDLE WCI 8010234 Contact Us For Availability
10
WASHER-NYLON (2) WCI 8011326 Contact Us For Availability
10
CONTAINER, ICE WCI 8009795 Contact Us For Availability
10
WASHER (4) WCI 8003597 Contact Us For Availability
11
END CAP-TOP (2) WCI 8010239 Contact Us For Availability
11
SPRING-ADJ ROLLER WCI 8009790 Contact Us For Availability
11
PAN RH WCI 8009839 Contact Us For Availability
11
WCI 8008778 WCI 8008778 Contact Us For Availability
12
END CAP-BOTTOM (2) WCI 8010238 Contact Us For Availability
12
PIN-HINGE-CENTER WCI 8000184 Contact Us For Availability
12
TRIM WCI 8009847 Contact Us For Availability
12
WCI 8012951 WCI 8012951 Contact Us For Availability
12A
LOCK NUT (NON-ILLUSTRATED) WCI 8003611 Contact Us For Availability
13
WCI 3916127 WCI 3916127 Contact Us For Availability
13
PIN-HINGE-LOWER WCI 8003578 Contact Us For Availability
13
COVER-CRISPER WCI 8013677 Contact Us For Availability
13
WCI 8017226 WCI 8017226 Contact Us For Availability
13A
WCI 3200521 WCI 3200521 Contact Us For Availability
14
BEARING-HINGE (8) WCI 8012007 Contact Us For Availability
14
SHIM-HINGE WCI 8000755 Contact Us For Availability
14
SUPPORT-CRISPER WCI 8013637 Contact Us For Availability
14
COMPRESSOR W/ ELEC WCI 8950230 Contact Us For Availability
15
FREEZER DOOR-AVOC WCI 8013667 Contact Us For Availability
15
BRACKET-HINGE WCI 8017609 Contact Us For Availability
15
TRIM WCI 8009848 Contact Us For Availability
15
WCI 8017532 WCI 8017532 Contact Us For Availability
16
SCREW-HANDLE MTG (6) WCI 8013645 Contact Us For Availability
16
TUBE-RUBBER (2) WCI 8000004 Contact Us For Availability
16
PAN, MEAT WCI 8009855 Contact Us For Availability
16
CLIP-OVERLOAD WCI 8017232 Contact Us For Availability
17
SCREW-DR STOP MTG (2) WCI 8011745 Contact Us For Availability
17
SCREW (2) WCI 8012258 Contact Us For Availability
17
HANGER-PAN LH WCI 8009727 Contact Us For Availability
17
WCI 8017535 WCI 8017535 Contact Us For Availability
17A
HANGER-PAN RH (NON-ILLUSTRATED) WCI 8009728 Contact Us For Availability
18
GASKET-REFR WCI 8015544 Contact Us For Availability
18
BRACKET-HINGE WCI 8000757 Contact Us For Availability
18
COVER-AIR DEFLECTOR WCI 8000055 Contact Us For Availability
18
WCI 8017231 WCI 8017231 Contact Us For Availability
19
DOOR RACK-BOTTOM WCI 8013657 Contact Us For Availability
19
WCI 8000097 WCI 8000097 Contact Us For Availability
19
DEFLECTOR - AIR WCI 8000071 Contact Us For Availability
19
PLATE-COMPR MTG WCI 8013663 Contact Us For Availability
20
CHANNEL-SHELF RS & LS WCI 8000302 Contact Us For Availability
20
SCREW (2) WCI 8014528 Contact Us For Availability
20
WCI 8017227 WCI 8017227 Contact Us For Availability
21
SUPPORT-RACK RS (2) WCI 8009805 Contact Us For Availability
21
SCREW-CHANNEL (6) WCI 8002728 Contact Us For Availability
21
WCI 8016613 WCI 8016613 Contact Us For Availability
21
WCI 8013648 WCI 8013648 Contact Us For Availability
21A
SUPPORT-RACK LS (2) (NON-ILLUSTRATED) WCI 8009804 Contact Us For Availability
22
WCI 3200524 WCI 3200524 Contact Us For Availability
22
BUTTON-PLUG WCI 8003585 Contact Us For Availability
22
DAMPER WCI 8000066 Contact Us For Availability
22
WCI 8013646 WCI 8013646 Contact Us For Availability
23
SUPPORT-RACK RS WCI 8009808 Contact Us For Availability
23
WCI 8006970 WCI 8006970 Contact Us For Availability
23
NUT, PUSH WCI 8000067 Contact Us For Availability
23
WCI 8000073 WCI 8000073 Contact Us For Availability
23A
SUPPORT-RACK LS (NON-ILLUSTRATED) WCI 8009806 Contact Us For Availability
24
REFR DOOR-AVOC WCI 8010019 Contact Us For Availability
24
WCI 8006971 WCI 8006971 Contact Us For Availability
24
KNOB WCI 8009793 Contact Us For Availability
24
EVAPORATOR WCI 8000062 Contact Us For Availability
25
HANDLE ASSY WCI 8009901 Contact Us For Availability
25
BUTTON-PLUG AVOC WCI 8007126 Contact Us For Availability
25
LABEL, KNOB WCI 8009823 Contact Us For Availability
25
STRAP-EVAPORATOR (2) WCI 8000110 Contact Us For Availability
26
TRIM-REFR HANDLE WCI 8010233 Contact Us For Availability
26
TRIM-CORNER, AVOC WCI 8010015 Contact Us For Availability
26
WCI 8009825 WCI 8009825 Contact Us For Availability
26
WCI 8000728 WCI 8000728 Contact Us For Availability
27
INNER PANEL-REFR WCI 8013673 Contact Us For Availability
27
GROMMET-FREEZER SHELF (2) WCI 8002747 Contact Us For Availability
27
GROMMET-FREEZER SHELF (2) (NON-ILLUSTRATED) WCI 8009759 Contact Us For Availability
27
WCI 8009934 WCI 8009934 Contact Us For Availability
27
WCI 8000061 WCI 8000061 Contact Us For Availability
28
DAIRY DOOR WCI 8009789 Contact Us For Availability
28
SCREW-HINGE (2) WCI 8010252 Contact Us For Availability
28
WCI 8000098 WCI 8000098 Contact Us For Availability
28
INSULATOR WCI 8009569 Contact Us For Availability
29
UTILITY BIN (2) WCI 8009838 Contact Us For Availability
29
BOLT (2) WCI 8009762 Contact Us For Availability
29
BULB-LIGHT WCI 8002735 Contact Us For Availability
29
WIRING HARNESS-DIVIDER WCI 8013675 Contact Us For Availability
30
EGG TRAY WCI 8009719 Contact Us For Availability
30
SCREW-HINGE (2) WCI 8000123 Contact Us For Availability
30
KNOB-COLD CONTROL WCI 8010011 Contact Us For Availability
30
CLAMP-CABLE WCI 8000187 Contact Us For Availability
31
BUTTON-PLUG (5) WCI 8016571 Contact Us For Availability
31
CONTROL-COLD WCI 8017218 Contact Us For Availability
31
SCREW-CLAMP MTG WCI 8016629 Contact Us For Availability
32
BUTTON-PLUG (2) WCI 8000087 Contact Us For Availability
32
SCREW (2) WCI 8000009 Contact Us For Availability
32
CLAMP-CABLE (3) WCI 8002756 Contact Us For Availability
33
LEG-LEVELING (2) WCI 8003583 Contact Us For Availability
33
SCREW (2) WCI 8000008 Contact Us For Availability
33
WCI 8000133 WCI 8000133 Contact Us For Availability
34
NUT-ANCHOR (2) WCI 8003584 Contact Us For Availability
34
WCI 8950024 WCI 8950024 Contact Us For Availability
35
SCREW WCI 8000039 Contact Us For Availability
35
SOCKET, LIGHT WCI 8000129 Contact Us For Availability
36
TUBE, DRAIN WCI 8010012 Contact Us For Availability
36
WCI 8009781 WCI 8009781 Contact Us For Availability
37
SEAL WCI 8009755 Contact Us For Availability
37
WCI 8016615 WCI 8016615 Contact Us For Availability
38
BASE-CABINET WCI 8010092 Contact Us For Availability
38
LABEL-CNTRL BOX WCI 8009816 Contact Us For Availability
40
WCI 8016614 WCI 8016614 Contact Us For Availability
41
SPOUT WCI 8000056 Contact Us For Availability
42
FAN WCI 8000010 Contact Us For Availability
43
PIN, PUSH (2) WCI 8013647 Contact Us For Availability
44
RING, ORIFICE WCI 8000124 Contact Us For Availability
45
BRACKET-CONNECTOR WCI 8000107 Contact Us For Availability
46
WCI 8000036 WCI 8000036 Contact Us For Availability
47
WCI 8000043 WCI 8000043 Contact Us For Availability
48
WCI 8000042 WCI 8000042 Contact Us For Availability
49
BUSHING (2) WCI 8000032 Contact Us For Availability
50
WCI 8000126 WCI 8000126 Contact Us For Availability
51
WCI 8013665 WCI 8013665 Contact Us For Availability
52
WCI 8010007 WCI 8010007 Contact Us For Availability
53
WASHER (4) WCI 8003607 Contact Us For Availability
54
HEATER-MULLION WCI 8000058 Contact Us For Availability
55
MULLION-AVOC WCI 8010026 Contact Us For Availability
56
STRAP-MULLION WCI 8010008 Contact Us For Availability
57
TROUGH, DRAIN WCI 8009772 Contact Us For Availability
58
SWITCH, LIGHT WCI 8000069 Contact Us For Availability
59
SCREW (3) WCI 8000070 Contact Us For Availability
60
WCI 8013664 WCI 8013664 Contact Us For Availability
61
TOP-REFRIGERATOR WCI 3001651 Contact Us For Availability
62
DIVIDER-STYROFOAM WCI 8013674 Contact Us For Availability
63
RETAINER-REAR (3) WCI 8000397 Contact Us For Availability
64
SCREW WCI 8000015 Contact Us For Availability
65
PAD WCI 8000185 Contact Us For Availability
66
RETAINER-FRONT (3) WCI 8000396 Contact Us For Availability
67
SEAL (3) WCI 8000409 Contact Us For Availability
× ![]()
