Model Electrolux FPES21TDW0 REFRIGERATOR – Common Parts & Diagrams

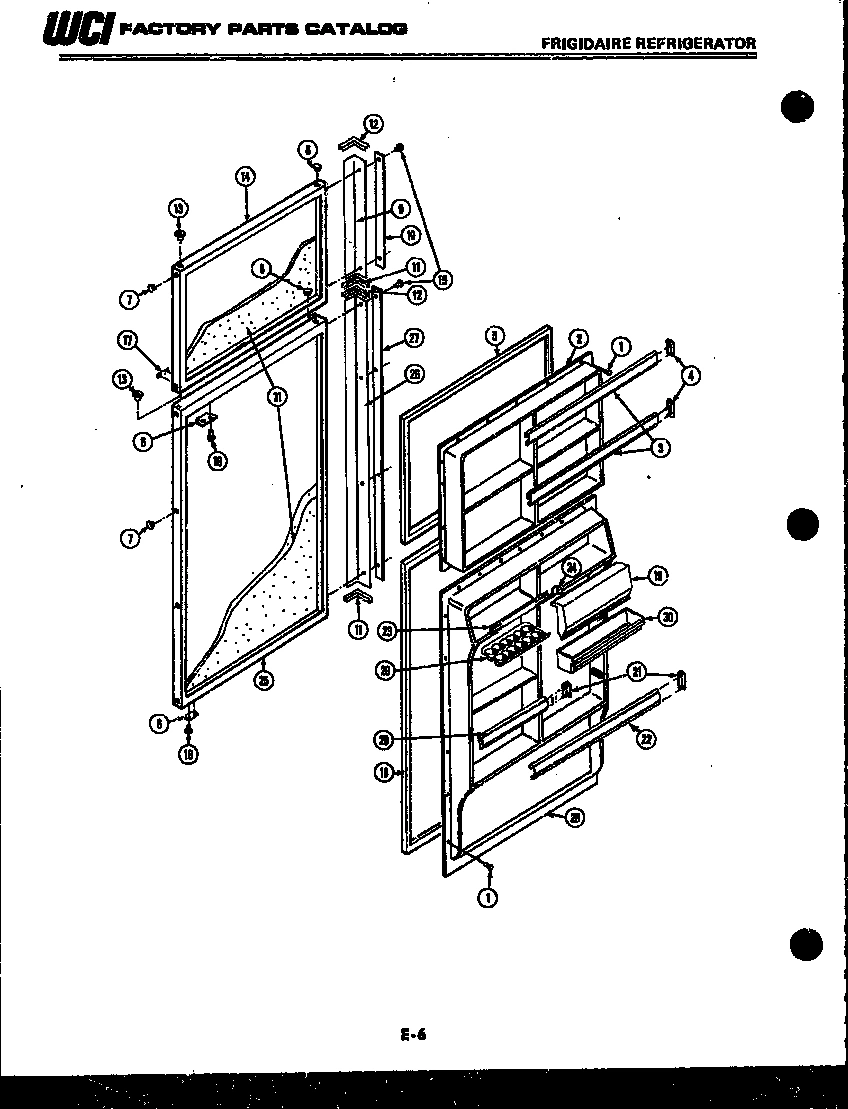

02 - DOOR PARTS

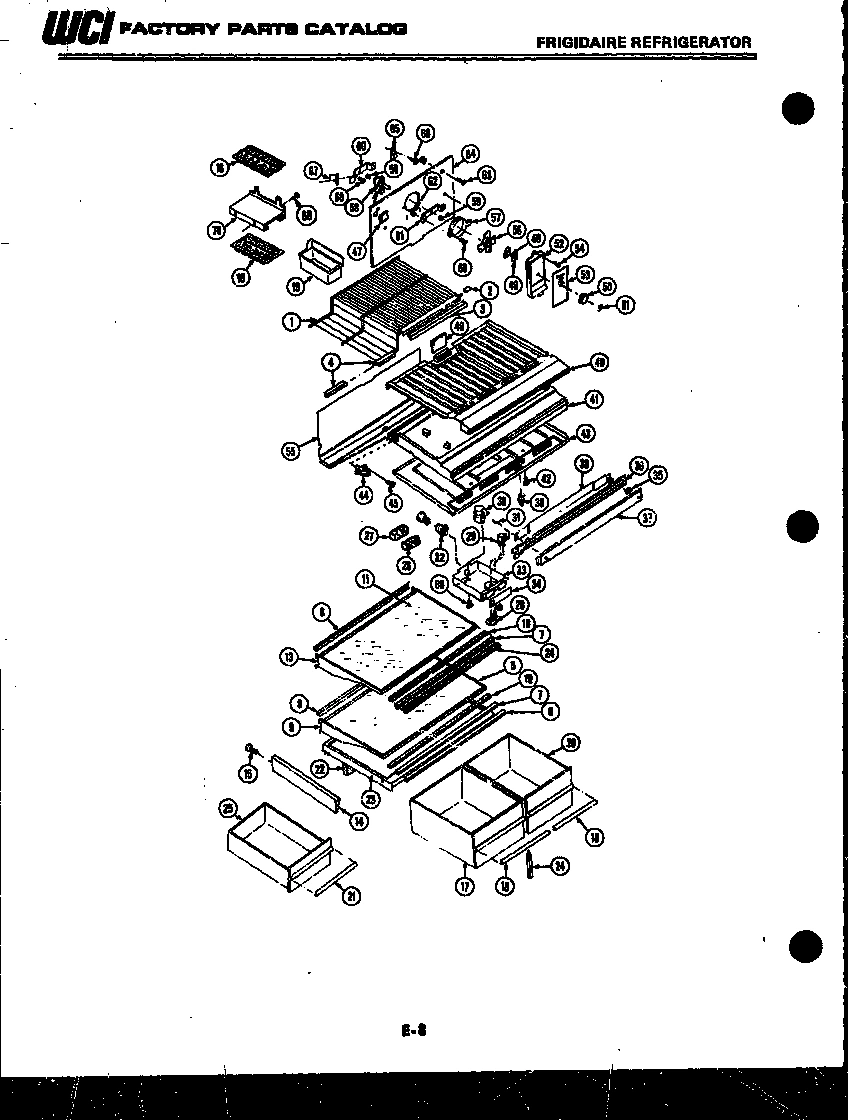

03 - SHELVES AND SUPPORTS

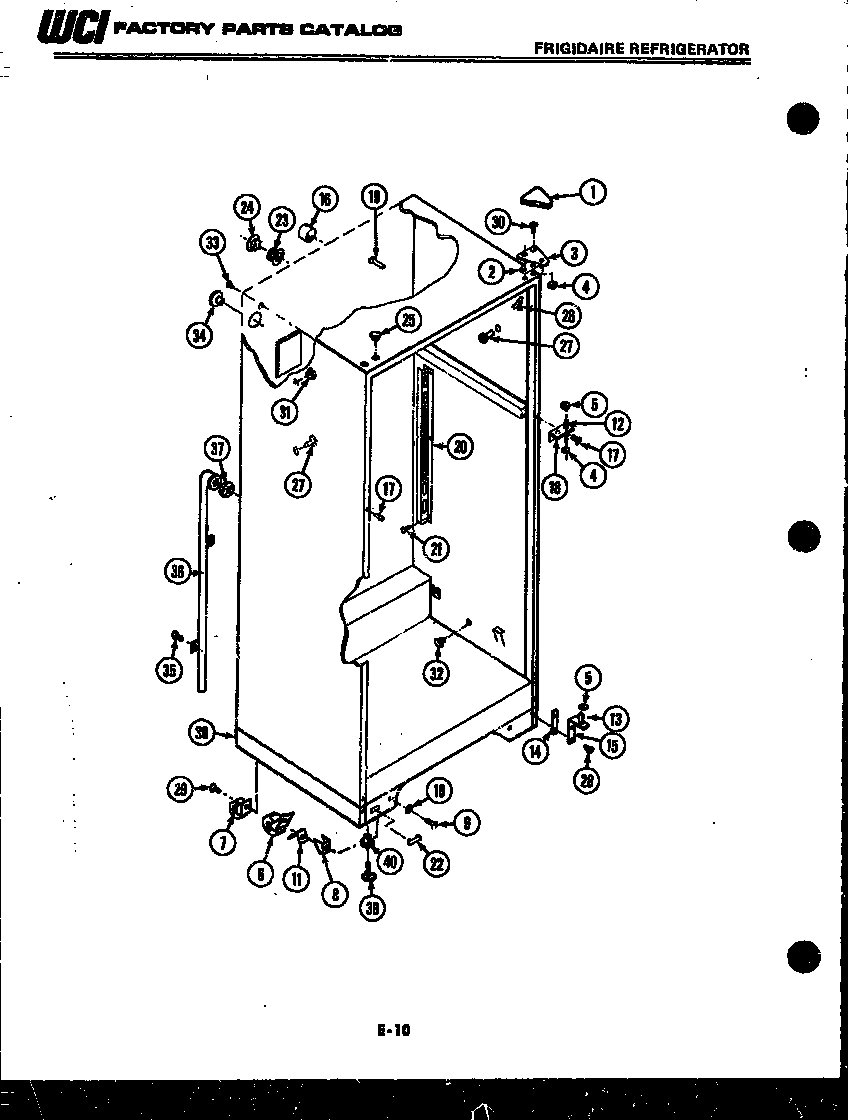

04 - CABINET PARTS

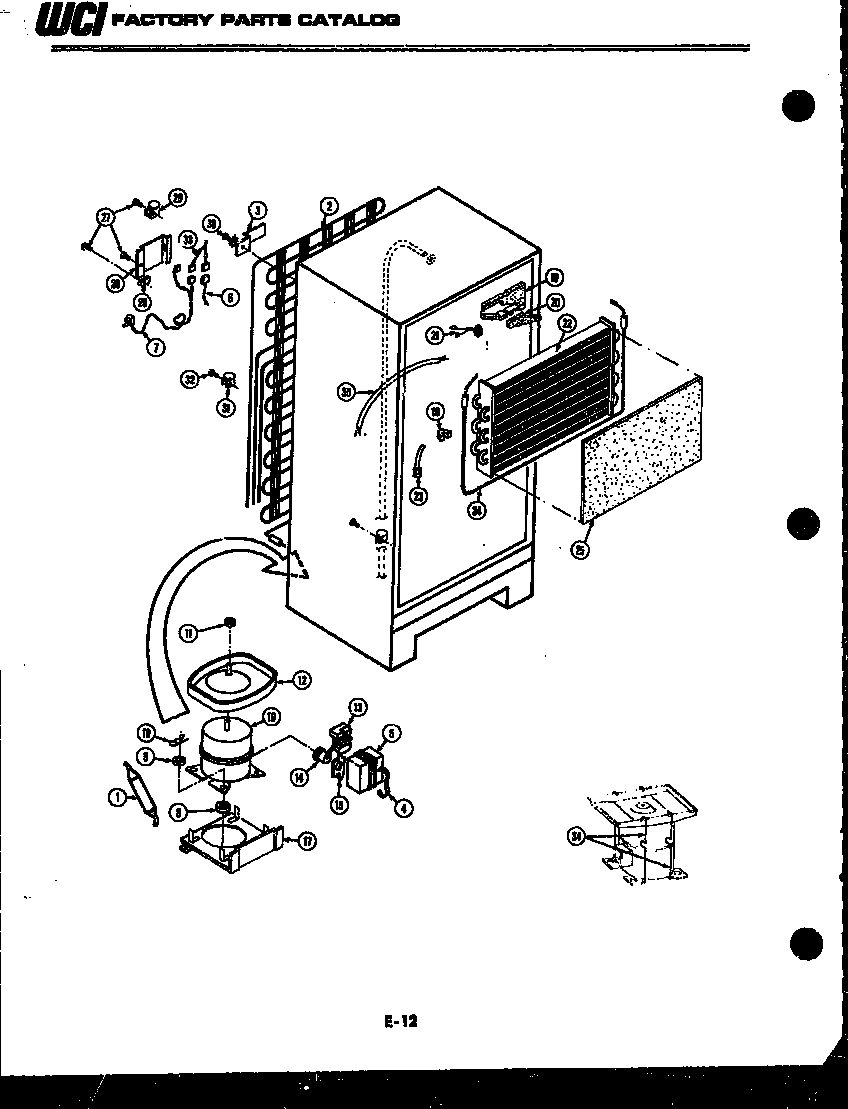

05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux FPES21TDW0 REFRIGERATOR
*12018
WCI 08009632 WCI 08009632 Contact Us For Availability
*12026
WCI 09956841 WCI 09956841 Contact Us For Availability
*12028
WCI 09960001 WCI 09960001 Contact Us For Availability
1
WCI 08013661 WCI 08013661 Contact Us For Availability
1
COVER-UPPER HINGE-WHTE. WCI 08012820 Contact Us For Availability
2
WCI 08013672 WCI 08013672 Contact Us For Availability
2
WCI 08013638 WCI 08013638 Contact Us For Availability
2
SHIM-UPPER HINGE WCI 08012829 Contact Us For Availability
2
WCI 08015859 WCI 08015859 Contact Us For Availability
3
WCI 08009675 WCI 08009675 Contact Us For Availability
3
BRACKET-UPPER HINGE WCI 08012843 Contact Us For Availability
3
BRACKET-COND WCI 08003600 Contact Us For Availability
4
WCI 08013653 WCI 08013653 Contact Us For Availability
4
WASHER-NYLON 1/4 X 5/8 WCI 08000007 Contact Us For Availability
5
WCI 08016617 WCI 08016617 Contact Us For Availability
5
WASHER-NYLON 5/16 X 5/8 WCI 08000100 Contact Us For Availability
5
WCI 08006982 WCI 08006982 Contact Us For Availability
6
STOP-DOOR WCI 08000255 Contact Us For Availability
6
ROLLER ASSY-FRONT WCI 08009760 Contact Us For Availability
6
WCI 08009565 WCI 08009565 Contact Us For Availability
7
WCI 08000396 WCI 08000396 Contact Us For Availability
7
ROLLER ASSY-REAR WCI 08009773 Contact Us For Availability
7
CORD-SERVICE WCI 08000064 Contact Us For Availability
8
WCI 08000134 WCI 08000134 Contact Us For Availability
8
WCI 08000397 WCI 08000397 Contact Us For Availability
8
SUPPORT-BASE-CAB WCI 08013678 Contact Us For Availability
9
WCI 08009882 WCI 08009882 Contact Us For Availability
9
WCI 08013656 WCI 08013656 Contact Us For Availability
9
BOLT-ROLLER ADJ. 1/4-20 WCI 08009761 Contact Us For Availability
9
WA-COMPR MTG (4) WCI 08003597 Contact Us For Availability
10
TRIM-HANDLE-FRONT WCI 08010234 Contact Us For Availability
10
WCI 08000409 WCI 08000409 Contact Us For Availability
10
WASHER-NYLON WCI 08011326 Contact Us For Availability
10
CLIP-COMPR MTG (4) WCI 08003596 Contact Us For Availability
11
END CAP-HANDLE WCI 08010238 Contact Us For Availability
11
SHELF-GLASS M.K. WCI 08016613 Contact Us For Availability
11
SPRING-ADJ. ROLLER WCI 08009790 Contact Us For Availability
11
NUT WCI 08003611 Contact Us For Availability
12
END CAP-HANDLE WCI 08010239 Contact Us For Availability
12
TRIM-SHELF M.K. WCI 08009669 Contact Us For Availability
12
WCI 08000184 WCI 08000184 Contact Us For Availability
12
PAN-DEFROST WCI 08012951 Contact Us For Availability
13
WCI 08012007 WCI 08012007 Contact Us For Availability
13
WCI 08016614 WCI 08016614 Contact Us For Availability
13
WCI 08000024 WCI 08000024 Contact Us For Availability
14
PANEL-O.D. FZR. WHITE WCI 08013666 Contact Us For Availability
14
WCI 08009727 WCI 08009727 Contact Us For Availability
14
SHIM-HINGE WCI 08000755 Contact Us For Availability
14
WCI 08000114 WCI 08000114 Contact Us For Availability
14A
WCI 08009728 WCI 08009728 Contact Us For Availability
15
SCREW WCI 08013645 Contact Us For Availability
15
BRACKET-HINGE WCI 08010251 Contact Us For Availability
15
WCI 08000115 WCI 08000115 Contact Us For Availability
16
SCREW WCI 08011745 Contact Us For Availability
16
TRAY-ICE CUBE WCI 08000391 Contact Us For Availability
16
WCI 08000004 WCI 08000004 Contact Us For Availability
16
WCI 08950100 WCI 08950100 Contact Us For Availability
17
WCI 08009843 WCI 08009843 Contact Us For Availability
17
PAN-HYDRATOR LS WCI 08009839 Contact Us For Availability
17
WCI 08012258 WCI 08012258 Contact Us For Availability
17
PLATE-COMPR WCI 08013663 Contact Us For Availability
18
GASKET-REF DOOR WCI 08015544 Contact Us For Availability
18
TRIM-PAN LS WCI 08009850 Contact Us For Availability
18
BRACKET-HINGE WCI 08000757 Contact Us For Availability
18
BLOCK LS WCI 08017227 Contact Us For Availability
18A
WASHER-STEEL (4) (NON-ILLUSTRATED) WCI 08003607 Contact Us For Availability
19
WCI 08009789 WCI 08009789 Contact Us For Availability
19
SUPPORT-COVER WCI 08000097 Contact Us For Availability
19
BLOCK RS WCI 08013648 Contact Us For Availability
20
PAN-HYDRATOR RS WCI 08009827 Contact Us For Availability
20
CHANNEL-SHELF RS & LS WCI 08000302 Contact Us For Availability
20
PLUG - BLOCK WCI 08013646 Contact Us For Availability
21
TRIM-PAN M.K. WCI 08009848 Contact Us For Availability
22
WCI 08009647 WCI 08009647 Contact Us For Availability
22
BUTTON-PLUG WCI 08003585 Contact Us For Availability
22
WCI 08000062 WCI 08000062 Contact Us For Availability
23
WCI 08013640 WCI 08013640 Contact Us For Availability
23
WCI 08013677 WCI 08013677 Contact Us For Availability
23
WCI 08006970 WCI 08006970 Contact Us For Availability
24
SUPPORT-COVER WCI 08013637 Contact Us For Availability
24
WCI 08006971 WCI 08006971 Contact Us For Availability
25
PANEL O.D. REFR. WHITE WCI 08009928 Contact Us For Availability
25
WCI 08009855 WCI 08009855 Contact Us For Availability
25
BUTTON-PLUG WHTE. WCI 08007099 Contact Us For Availability
25
INSULATOR-EVAP WCI 08009569 Contact Us For Availability
26
WCI 08009901 WCI 08009901 Contact Us For Availability
26
COVER-AIR DEFL. WCI 08000055 Contact Us For Availability
26
TRIM-CORNER-WHTE. WCI 08010014 Contact Us For Availability
26
WCI 08013644 WCI 08013644 Contact Us For Availability
27
TRIM-HANDLE FRONT WCI 08010233 Contact Us For Availability
27
DEFLECTOR - AIR WCI 08000071 Contact Us For Availability
28
WCI 08013673 WCI 08013673 Contact Us For Availability
28
KNOB-CONTROL WCI 08010011 Contact Us For Availability
29
WCI 08017218 WCI 08017218 Contact Us For Availability
29
WCI 08000221 WCI 08000221 Contact Us For Availability
29
BOLT WCI 08009762 Contact Us For Availability
29A
WCI 08000009 WCI 08000009 Contact Us For Availability
30
BIN- UTILITY WCI 08009838 Contact Us For Availability
31
WCI 05418397 WCI 05418397 Contact Us For Availability
31
BUTTON-PLUG (5) WCI 08016571 Contact Us For Availability
31A
WCI 05401987 WCI 05401987 Contact Us For Availability
31B
WCI 05401988 WCI 05401988 Contact Us For Availability
31C
WCI 05401984 WCI 05401984 Contact Us For Availability
32
SOCKET-LIGHT WCI 08000129 Contact Us For Availability
32
BUTTON-PLUG (2) WCI 08000087 Contact Us For Availability
33
HARN-WIRING-DIV WCI 08013675 Contact Us For Availability
33
WCI 08009781 WCI 08009781 Contact Us For Availability
33
WCI 08000040 WCI 08000040 Contact Us For Availability
34
LABEL-CONT. BOX WCI 08009816 Contact Us For Availability
34
WCI 08000014 WCI 08000014 Contact Us For Availability
34
RET-KIT DRAIN PAN WCI 08950024 Contact Us For Availability
35
SPACER-MULLION WCI 08010007 Contact Us For Availability
36
WCI 08000058 WCI 08000058 Contact Us For Availability
36
TUBE-DRAIN WCI 08010012 Contact Us For Availability
37
WCI 08010025 WCI 08010025 Contact Us For Availability
37
SEAL WCI 08009755 Contact Us For Availability
38
STRAP-MULLION WCI 08010008 Contact Us For Availability
38
BASE-CABINET WCI 08010092 Contact Us For Availability
39
WCI 08003583 WCI 08003583 Contact Us For Availability
40
WCI 08013664 WCI 08013664 Contact Us For Availability
40
NUT-ANCHOR WCI 08003584 Contact Us For Availability
41
WCI 08013674 WCI 08013674 Contact Us For Availability
42
WCI 08000070 WCI 08000070 Contact Us For Availability
43
WCI 08013671 WCI 08013671 Contact Us For Availability
44
SPOUT-DRAIN WCI 08000056 Contact Us For Availability
45
PIN-PUSH WCI 08013647 Contact Us For Availability
46
WCI 08000185 WCI 08000185 Contact Us For Availability
47
WCI 08000082 WCI 08000082 Contact Us For Availability
48
DAMPER - AIR WCI 08000066 Contact Us For Availability
49
NUT-PUSH WCI 08000067 Contact Us For Availability
50
KNOB-DAMPER WCI 08009793 Contact Us For Availability
51
LABEL, KNOB WCI 08009823 Contact Us For Availability
52
WCI 08009825 WCI 08009825 Contact Us For Availability
53
WCI 08009934 WCI 08009934 Contact Us For Availability
55
TROUGH-DRAIN WCI 08009772 Contact Us For Availability
57
RING WCI 08000124 Contact Us For Availability
60
BRACKET-MTR. REAR WCI 08000042 Contact Us For Availability
61
WCI 08000043 WCI 08000043 Contact Us For Availability
62
NUT-SPEED ``U`` -TYPE WCI 08000126 Contact Us For Availability
64
WCI 08013665 WCI 08013665 Contact Us For Availability
67
BRACKET WCI 08000107 Contact Us For Availability
70A
SHELF (NON-ILLUSTRATED) WCI 08009824 Contact Us For Availability
× ![]()
