Model Electrolux FPES19TPH0 REFRIGERATOR – Common Parts & Diagrams

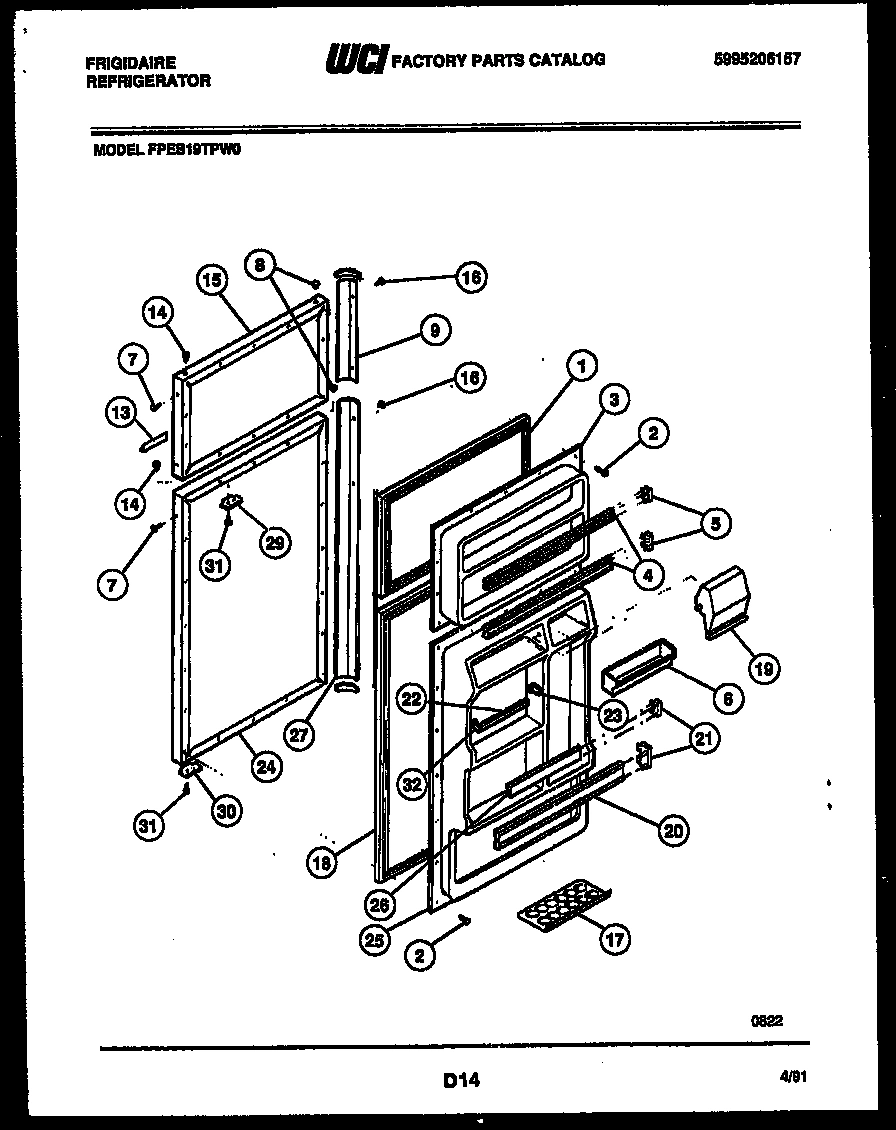

02 - DOOR PARTS

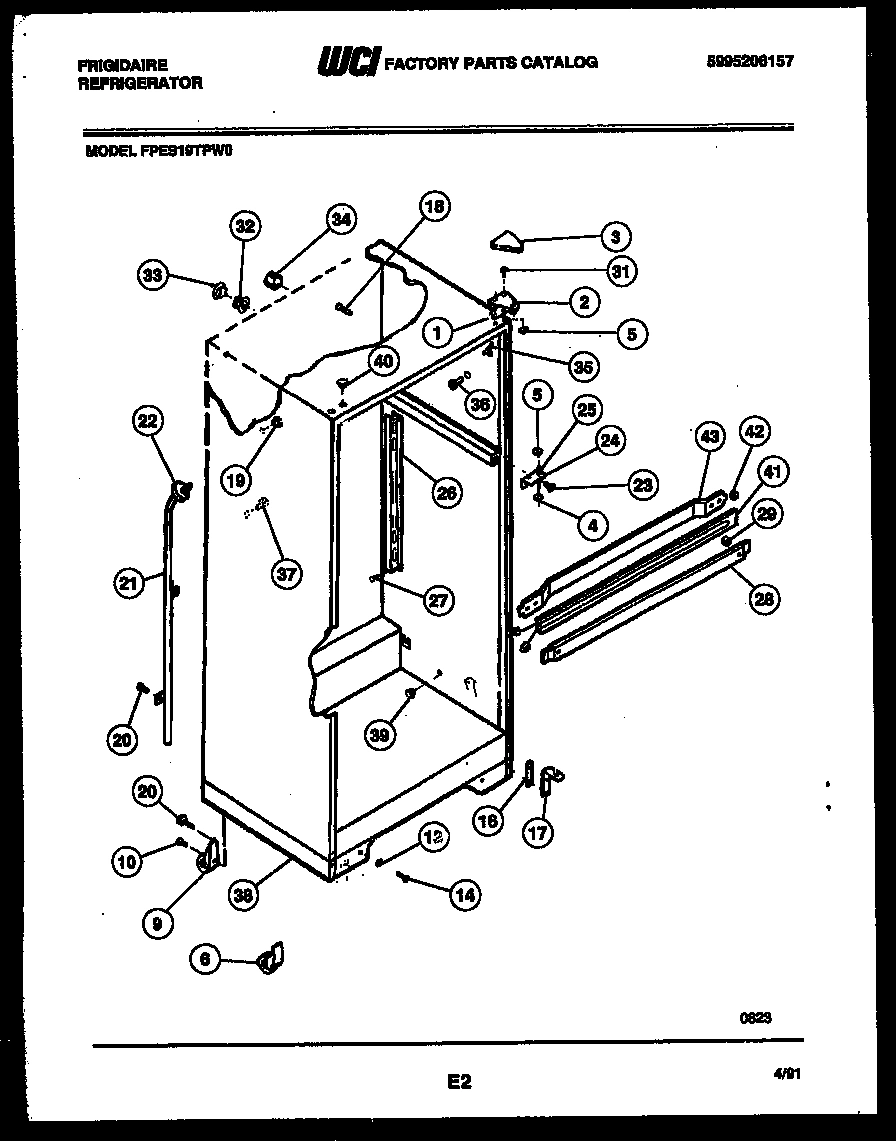

03 - CABINET PARTS
04 - SHELVES AND SUPPORTS
05 - SHELVES AND SUPPORTS
06 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux FPES19TPH0 REFRIGERATOR
*45921
LOCK - TRIM WCI 5303211351 Contact Us For Availability
*45923
HOT TUBE REPAIR KIT WCI 5300189383 Contact Us For Availability
1
PROTECTOR-CAP (2) WCI 3201150 No Longer Available
1
SHIM-TO HINGE WCI 5303001037 Contact Us For Availability
2
WCI 01121808 WCI 01121808 Contact Us For Availability
2
HINGE-BRACKET UPPER WCI 5308012843 Contact Us For Availability
2
TRIM-SHELF-FREEZER WCI 5303272521 Contact Us For Availability
2
WCI 5300163133 WCI 5300163133 Contact Us For Availability
2A
TAPPING PLATE (2)-UPPER (NON-ILLUSTRATED) WCI 5308012296 Contact Us For Availability
2B
WCI 5308009617 WCI 5308009617 Contact Us For Availability
3
WCI 5303001665 WCI 5303001665 Contact Us For Availability
3
TRIM-SHELF-FREEZER WCI 5303272524 Contact Us For Availability
3
GLASS-SHELF (3) WCI 5303211964 Contact Us For Availability
3
BRACKET-MTG (4) WCI 5303001342 Contact Us For Availability
4
WASHER, NYLON WCI 5308000186 Contact Us For Availability
4
SHELF-FREEZER STOP WCI 3018979 Contact Us For Availability
4
TRIM-FRONT (3) WCI 5303272550 Contact Us For Availability
5
WASHER, NYLON (2) WCI 5308000007 Contact Us For Availability
5
TOP - REFRIGERATOR WCI 3018993 Contact Us For Availability
5
WCI 5303018983 WCI 5303018983 Contact Us For Availability
5A
TRIM-COVER CRISPER (NON-ILLUSTRATED) WCI 3018984 Contact Us For Availability
6
WCI 5303212490 WCI 5303212490 Contact Us For Availability
6
GLASS-COVER CRISPER WCI 5303211968 Contact Us For Availability
6
WCI 5303001197 WCI 5303001197 Contact Us For Availability
6A
GASKET-CRISPER CVR (NON-ILLUSTRATED) WCI 5303200329 Contact Us For Availability
7
DAMPER WCI 5303001331 Contact Us For Availability
7
PAN, CRISPER, RH WCI 3018982 Contact Us For Availability
7
WIRING HARNESS, COMPRESSOR, WCI 5303001347 Contact Us For Availability
8
NUT, PUSH WCI 5303001028 Contact Us For Availability
8
PAN, CRISPER, LH WCI 3018873 Contact Us For Availability
8
WCI 5316254901 WCI 5316254901 Contact Us For Availability
9
WCI 5308009773 WCI 5308009773 Contact Us For Availability
9
WCI 5308009793 WCI 5308009793 Contact Us For Availability
9
WCI 5303272529 WCI 5303272529 Contact Us For Availability
9
CLIP (4) WCI 5308003596 Contact Us For Availability
10
BOLT, ROLLER MTG (2) WCI 5308009762 Contact Us For Availability
10
LABEL-KNOB-DAMPER WCI 08009823 Contact Us For Availability
10
WCI 5303272523 WCI 5303272523 Contact Us For Availability
10
WASHER (4) WCI 5308003633 Contact Us For Availability
11
FAN COVER WCI 08009817 Contact Us For Availability
11
ADJ SUPPORT-CRISPER COVER WCI 5303206507 Contact Us For Availability
12
WCI 08009924 WCI 08009924 Contact Us For Availability
12
FRAME-CANTILEVER MEAT KEEPER WCI 5303210990 Contact Us For Availability
12
DEFROST PAN WCI 5300184715 Contact Us For Availability
13
WCI 5303007173 WCI 5303007173 Contact Us For Availability
13
WASHER (2) WCI 5308011326 Contact Us For Availability
13
FRAME-CANTILEVER (2) WCI 5303210022 Contact Us For Availability
13A
RETAINER-GLASS, (3) (NON-ILLUSTRATED) WCI 5303209274 Contact Us For Availability
14
SPOUT DRAIN WCI 5308000056 Contact Us For Availability
14
BOLT-ROLLER ADJ (2) WCI 5303271412 Contact Us For Availability
14
TRIM-REAR RETAINER (3) WCI 5303211962 Contact Us For Availability
14
COMPRESSOR WCI 5303916004 Contact Us For Availability
14A
PIN-PUSH (2) (NON-ILLUSTRATED) WCI 5303001361 Contact Us For Availability
15
PAN, MEAT WCI 3018987 Contact Us For Availability
15
WCI 3201680 WCI 3201680 Contact Us For Availability
16
WCI 5303212488 WCI 5303212488 Contact Us For Availability
16
WCI 5303272530 WCI 5303272530 Contact Us For Availability
17
RING, ORIFICE WCI 5308000124 Contact Us For Availability
17
WCI 5303212489 WCI 5303212489 Contact Us For Availability
17
HANGER, MEAT PAN, LH WCI 5303210016 Contact Us For Availability
17
CAPACITOR WCI 5303916391 Contact Us For Availability
17A
HANGER, MEAT PAN, RH (NON ILLUSTRATED) WCI 5303210017 Contact Us For Availability
17B
TAPPING PLATE-GUSSET LH-LOWER (NON-ILLUSTRATE WCI 5303212596 Contact Us For Availability
17C
TAPPING PLATE-GUSSET RH-LOWER (NON-ILLUSTRATE WCI 5303212597 Contact Us For Availability
18
WCI 5308000107 WCI 5308000107 Contact Us For Availability
18
SUPPORT, COIL COVER (2) WCI 5308000097 Contact Us For Availability
18
SCREW, HANGER (2) WCI 08014528 Contact Us For Availability
19
WCI 5308013663 WCI 5308013663 Contact Us For Availability
20
BRACKET - FRONT WCI 5303205118 Contact Us For Availability
20
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
21
DRAIN TUBE & RING SEAL ASSY WCI 5303210377 Contact Us For Availability
21
WCI 5303205119 WCI 5303205119 Contact Us For Availability
21
INSULATION BLOCK, RH WCI 5308013648 Contact Us For Availability
22
RING SEAL, TUBE WCI 5303207353 Contact Us For Availability
22
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
23
WCI 5308012258 WCI 5308012258 Contact Us For Availability
23
WCI 3018994 WCI 3018994 Contact Us For Availability
24
BRACKET-CTR HINGE WCI 5303001369 Contact Us For Availability
24
COVER, COIL WCI 5308009771 Contact Us For Availability
24
EVAPORATOR WCI 5303271578 Contact Us For Availability
24B
NUT-NO. 8 (A) U-TYPE (NON-ILLUSTRATED) WCI 5303209814 Contact Us For Availability
25
PIN, CTR HINGE WCI 5308000184 Contact Us For Availability
25
WCI 5303001470 WCI 5303001470 Contact Us For Availability
26
CHANNEL, RH & LH WCI 5308000302 Contact Us For Availability
26
HEAT EXCHANGER WCI 5308000728 Contact Us For Availability
27
HANDLE-REFRIGERATOR-WHEAT WCI 5303272662 Contact Us For Availability
27
WCI 5303001380 WCI 5303001380 Contact Us For Availability
28
WCI 5316651102 WCI 5316651102 Contact Us For Availability
28
WCI 5303200368 WCI 5303200368 Contact Us For Availability
28
BOTTOM - FREEZER WCI 5303211427 Contact Us For Availability
29
DOOR STOP-FREEZER WCI 5308000255 Contact Us For Availability
29
WASHER, STEEL (2) WCI 5303206754 Contact Us For Availability
29
AIR DEFLECTOR WCI 5308014667 Contact Us For Availability
29
WIRING HARNESS, DIVIDER WCI 3018900 Contact Us For Availability
30
DOOR STOP, REFRIGERATOR WCI 5303212491 Contact Us For Availability
30
WCI 5303001448 WCI 5303001448 Contact Us For Availability
30B
EXTENSION & INSULATION AIR DEFLECTOR (NON-ILL WCI 5303200590 Contact Us For Availability
31
WCI 5308011745 WCI 5308011745 Contact Us For Availability
31
CONTROL, COLD WCI 5303018894 Contact Us For Availability
32
WCI 5303001286 WCI 5303001286 Contact Us For Availability
33
WCI 5303001287 WCI 5303001287 Contact Us For Availability
33
HOUSING, CAP TUBE WCI 3018891 Contact Us For Availability
34
PAN RETAINER KIT WCI 5303916001 Contact Us For Availability
34
WCI 5303001198 WCI 5303001198 Contact Us For Availability
35
CORNER TRIM, WHEAT WCI 5303202338 Contact Us For Availability
35
WCI 3018893 WCI 3018893 Contact Us For Availability
36
WCI 5303001260 WCI 5303001260 Contact Us For Availability
38
WCI 5303212487 WCI 5303212487 Contact Us For Availability
39
PLUG-REFR LINER (2) WCI 5308016571 Contact Us For Availability
39
WCI 5303018896 WCI 5303018896 Contact Us For Availability
40
PLUG, WHEAT WCI 5303001678 Contact Us For Availability
40
CONTROL BOX WCI 3018895 Contact Us For Availability
41
WCI 5303210351 WCI 5303210351 Contact Us For Availability
41
PLUG-DECORATIVE IM HOLE WCI 5308013636 Contact Us For Availability
42
SPACER, MULLION (2) WCI 5303200464 Contact Us For Availability
43
WCI 5308010008 WCI 5308010008 Contact Us For Availability
× ![]()
