Model Electrolux FPES19TFA0 REFRIGERATOR – Common Parts & Diagrams

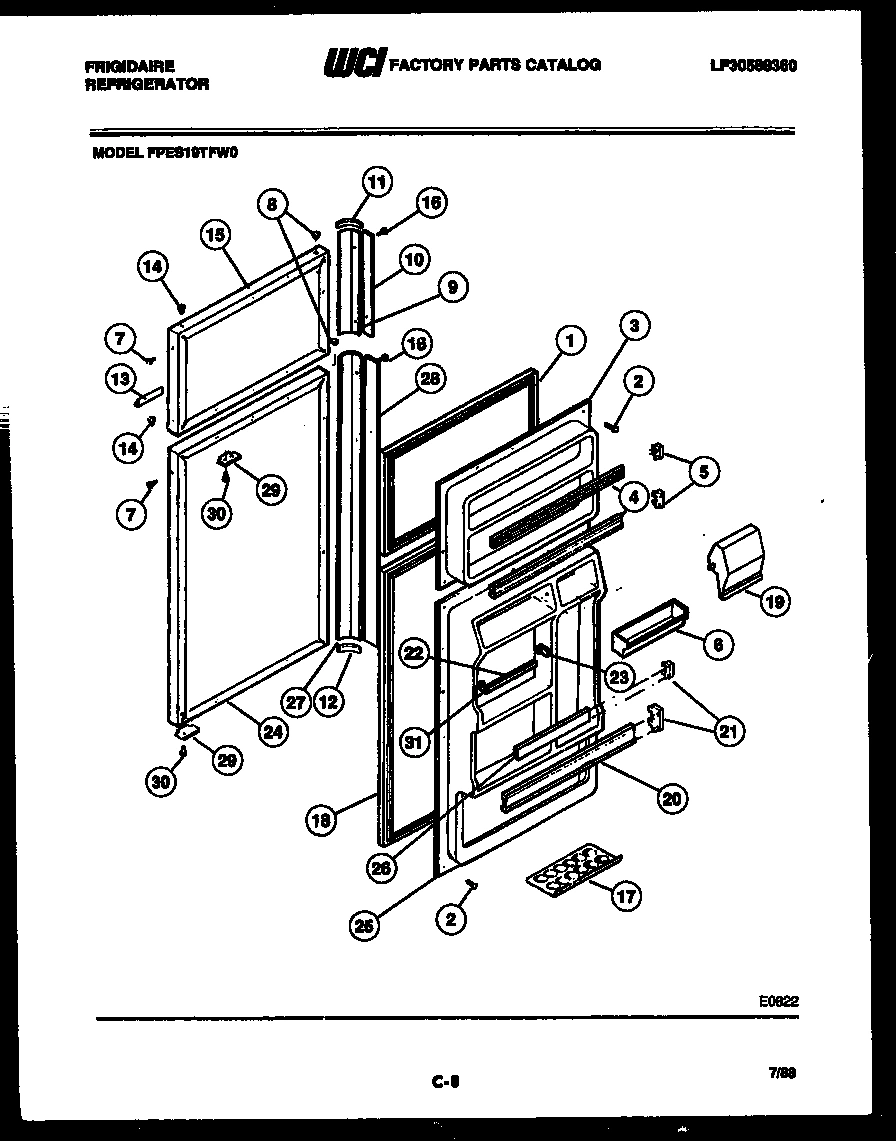

02 - DOOR PARTS

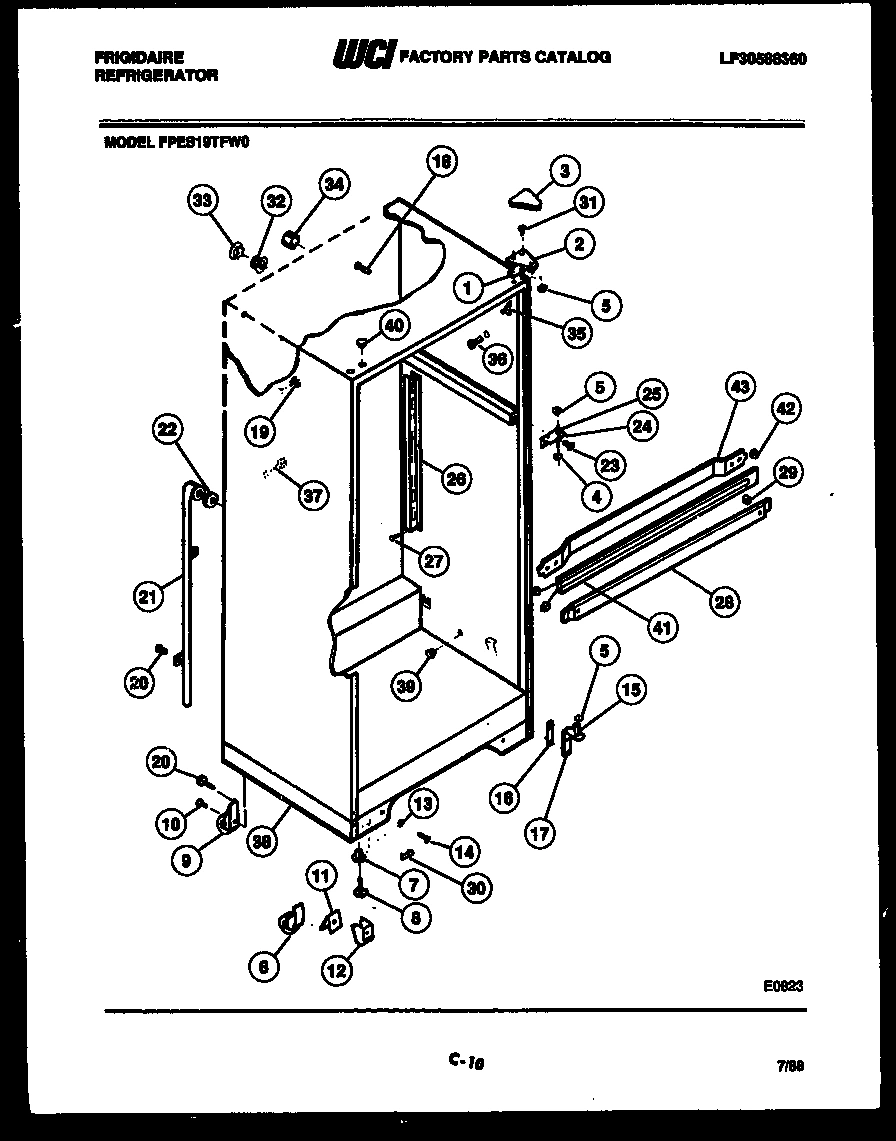

03 - CABINET PARTS
04 - SHELVES AND SUPPORTS
05 - SHELVES AND SUPPORTS
06 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux FPES19TFA0 REFRIGERATOR
*15230
INSULATION-BULK WCI 3007739 Contact Us For Availability
*15230
WCI 3018977 WCI 3018977 Contact Us For Availability
*15239
SOUND TAPE WCI 8017610 Contact Us For Availability
*15239
WCI 9960001 WCI 9960001 Contact Us For Availability
1
WCI 3017189 WCI 3017189 Contact Us For Availability
1
WCI 8012829 WCI 8012829 Contact Us For Availability
1
PROTECTOR-CAP (2) WCI 8013638 Contact Us For Availability
2
WCI 8012843 WCI 8012843 Contact Us For Availability
2
TRIM, SHELF WCI 3017427 Contact Us For Availability
2
WCI 1121808 WCI 1121808 Contact Us For Availability
2
WCI 3001497 WCI 3001497 Contact Us For Availability
3
PANEL-FREEZER, INNER WCI 3018971 Contact Us For Availability
3
HINGE COVER-AVOC WCI 8012930 Contact Us For Availability
3
TRIM, SHELF WCI 3018978 Contact Us For Availability
3
GLASS-SHELF (3) WCI 3200319 Contact Us For Availability
3
BRACKET-MTG (4) WCI 8003600 Contact Us For Availability
4
WCI 3018972 WCI 3018972 Contact Us For Availability
4
WCI 8000100 WCI 8000100 Contact Us For Availability
4
SHELF-FREEZER WCI 3018979 Contact Us For Availability
4
TRIM, FRONT (3) WCI 3018980 Contact Us For Availability
4
STRAP-TERM COVER WCI 8000117 Contact Us For Availability
5
WASHER-NYLON (3) WCI 8000007 Contact Us For Availability
5
TOP - REFRIGERATOR WCI 3018993 Contact Us For Availability
5
WCI 3018983 WCI 3018983 Contact Us For Availability
5
WCI 8006982 WCI 8006982 Contact Us For Availability
6
BIN-UTILITY (2) WCI 3018973 Contact Us For Availability
6
WCI 8009760 WCI 8009760 Contact Us For Availability
6
GLASS-COVER WCI 3200389 Contact Us For Availability
6
WCI 8013644 WCI 8013644 Contact Us For Availability
6A
GASKET-CRISPER CVR (NON-ILLUSTRATED) WCI 3200329 Contact Us For Availability
7
PLUG-BUTTON, AVOC WCI 8000179 Contact Us For Availability
7
NUT-ANCHOR (2) WCI 8003584 Contact Us For Availability
7
DAMPER WCI 8000066 Contact Us For Availability
7
PAN-CRISPER LH WCI 3018982 Contact Us For Availability
7
WCI 8009628 WCI 8009628 Contact Us For Availability
8
PLUG-BUTTON, AVOC WCI 8000175 Contact Us For Availability
8
SCREW-LEVELING (2) WCI 8003583 Contact Us For Availability
8
NUT, PUSH WCI 8000067 Contact Us For Availability
8
PAN-CRISPER RH WCI 3018873 Contact Us For Availability
8
WCI 8000064 WCI 8000064 Contact Us For Availability
9
HANDLE-FREEZER WCI 3017190 Contact Us For Availability
9
WCI 8009773 WCI 8009773 Contact Us For Availability
9
WCI 8009793 WCI 8009793 Contact Us For Availability
9
TRIM-PAN RH WCI 3017423 Contact Us For Availability
9
CLIP (4) WCI 8003596 Contact Us For Availability
10
WCI 8010232 WCI 8010232 Contact Us For Availability
10
WCI 8009762 WCI 8009762 Contact Us For Availability
10
LABEL, KNOB WCI 8009823 Contact Us For Availability
10
TRIM-PAN LH WCI 3017422 Contact Us For Availability
10
WASHER (4) WCI 8003597 Contact Us For Availability
11
CAP-TOP (2) WCI 8010239 Contact Us For Availability
11
WCI 8009790 WCI 8009790 Contact Us For Availability
11
FAN COVER WCI 8009817 Contact Us For Availability
11
SUPPORT-CRISPER COVER WCI 3016528 Contact Us For Availability
11
WCI 8008778 WCI 8008778 Contact Us For Availability
12
CAP-BOTTOM (2) WCI 8010238 Contact Us For Availability
12
WCI 8013678 WCI 8013678 Contact Us For Availability
12
WCI 8009924 WCI 8009924 Contact Us For Availability
12
FRAME-CANTILEVER MEAT KEEPER WCI 3200398 Contact Us For Availability
12
WCI 8012951 WCI 8012951 Contact Us For Availability
12A
LOCK NUT (NON-ILLUSTRATED) WCI 8003611 Contact Us For Availability
13
SCREW WCI 8002748 Contact Us For Availability
13
NAMEPLATE ASSY WCI 3018632 Contact Us For Availability
13
WCI 8011326 WCI 8011326 Contact Us For Availability
13
FRAME, CANTILEVER (2) WCI 3200327 Contact Us For Availability
13
WCI 8017226 WCI 8017226 Contact Us For Availability
13A
RETAINER-GLASS (2) (NON-ILLUSTRATED) WCI 3200321 Contact Us For Availability
13B
RETAINER-GLASS, MEAT KEEPER (NON-ILLUSTRATED) WCI 3200408 Contact Us For Availability
14
BEARING-HINGE (8) WCI 8012007 Contact Us For Availability
14
WCI 8009761 WCI 8009761 Contact Us For Availability
14
SPOUT, DRAIN WCI 8000056 Contact Us For Availability
14
TRIM, REAR (3) WCI 3200326 Contact Us For Availability
14
COMPRESSOR WCI 8950233 Contact Us For Availability
15
WCI 8010021 WCI 8010021 Contact Us For Availability
15
WCI 8003578 WCI 8003578 Contact Us For Availability
15
SCREW WCI 8012354 Contact Us For Availability
15
PAN, MEAT WCI 3018987 Contact Us For Availability
15
WCI 8017572 WCI 8017572 Contact Us For Availability
16
SCREW-HANDLE (6) WCI 8013645 Contact Us For Availability
16
WCI 8000755 WCI 8000755 Contact Us For Availability
16
WCI 8000010 WCI 8000010 Contact Us For Availability
16
WCI 3018986 WCI 3018986 Contact Us For Availability
16
CLIP-OVERLOAD WCI 8017232 Contact Us For Availability
17
BRACKET-BOTTOM HINGE WCI 8017609 Contact Us For Availability
17
RING, ORIFICE WCI 8000124 Contact Us For Availability
17
HANGER-MEAT PAN-LH WCI 3018889 Contact Us For Availability
17
WCI 8017230 WCI 8017230 Contact Us For Availability
17A
SCREW-HINGE MTG (2) (NON-ILLUSTRATED) WCI 8010252 Contact Us For Availability
17A
HANGER-MEAT PAN-RH (NON-ILLUSTRATED) WCI 3018890 Contact Us For Availability
18
WCI 8017487 WCI 8017487 Contact Us For Availability
18
WCI 8000097 WCI 8000097 Contact Us For Availability
18
BRACKET-CONNECTOR WCI 8000107 Contact Us For Availability
18
SCREW-HANGER (2) WCI 8014528 Contact Us For Availability
18
WCI 8017231 WCI 8017231 Contact Us For Availability
19
DOOR-DAIRY WCI 3018974 Contact Us For Availability
19
PLUG-FREEZER LINER (3) WCI 8016571 Contact Us For Availability
19
WCI 8000036 WCI 8000036 Contact Us For Availability
19
PLATE-COMPR MTG WCI 8013663 Contact Us For Availability
20
WCI 8000043 WCI 8000043 Contact Us For Availability
20
WCI 8017227 WCI 8017227 Contact Us For Availability
21
DRAIN TUBE WCI 8010012 Contact Us For Availability
21
WCI 8000042 WCI 8000042 Contact Us For Availability
21
WCI 8013648 WCI 8013648 Contact Us For Availability
22
RACK, REFR WCI 3018423 Contact Us For Availability
22
RING SEAL-TUBE WCI 8009755 Contact Us For Availability
22
BUSHING-MOTOR (2) WCI 8000032 Contact Us For Availability
22
WCI 8013646 WCI 8013646 Contact Us For Availability
23
SCREW-MTG (2) WCI 8012258 Contact Us For Availability
23
WCI 3018994 WCI 3018994 Contact Us For Availability
23
WCI 8000073 WCI 8000073 Contact Us For Availability
24
PANEL-REFR, AVOC WCI 8010019 Contact Us For Availability
24
BRACKET-CTR HINGE WCI 8000757 Contact Us For Availability
24
COVER-COIL WCI 8009771 Contact Us For Availability
24
EVAPORATOR WCI 8000062 Contact Us For Availability
25
PANEL-REFR, INNER WCI 3018976 Contact Us For Availability
25
PIN-CTR HINGE WCI 8000184 Contact Us For Availability
25
TROUGH, DRAIN WCI 8009772 Contact Us For Availability
25
STRAP-EVAPORATOR (2) WCI 8000110 Contact Us For Availability
26
CHANNEL-RS & LS WCI 8000302 Contact Us For Availability
26
SWITCH, LIGHT WCI 8000069 Contact Us For Availability
26
WCI 8010274 WCI 8010274 Contact Us For Availability
27
HANDLE-REFR WCI 8017497 Contact Us For Availability
27
SCREW-MTG (6) WCI 8002728 Contact Us For Availability
27
SCREW WCI 8000070 Contact Us For Availability
27
WCI 8000061 WCI 8000061 Contact Us For Availability
28
WCI 8010233 WCI 8010233 Contact Us For Availability
28
MULLION-AVOC WCI 3200367 Contact Us For Availability
28
BOTTOM-FREEZER WCI 8015543 Contact Us For Availability
28
INSULATOR WCI 8009569 Contact Us For Availability
29
DOOR STOP (2) WCI 8000255 Contact Us For Availability
29
WASHER-STEEL (4) WCI 8003607 Contact Us For Availability
29
WCI 8000071 WCI 8000071 Contact Us For Availability
29
WIRING HARNESS, DIVIDER WCI 3018900 Contact Us For Availability
30
SCREW (2) WCI 8011745 Contact Us For Availability
30
WCI 8003585 WCI 8003585 Contact Us For Availability
30
COVER-AIR DEFLECTOR WCI 8000055 Contact Us For Availability
30
CLAMP-CABLE WCI 8000187 Contact Us For Availability
31
SCREW-CLAMP MTG WCI 8016629 Contact Us For Availability
31
WCI 8000123 WCI 8000123 Contact Us For Availability
31
WCI 3018894 WCI 3018894 Contact Us For Availability
32
WCI 8006970 WCI 8006970 Contact Us For Availability
32
WCI 8000815 WCI 8000815 Contact Us For Availability
32
CLAMP-CABLE (3) WCI 8002756 Contact Us For Availability
33
WCI 8006971 WCI 8006971 Contact Us For Availability
33
HOUSING, CAP TUBE WCI 3018891 Contact Us For Availability
33
WCI 8000133 WCI 8000133 Contact Us For Availability
34
TUBE-RUBBER (2) WCI 8000004 Contact Us For Availability
34
BULB-LIGHT WCI 8002735 Contact Us For Availability
34
WCI 8950024 WCI 8950024 Contact Us For Availability
35
CORNER TRIM-AVOC WCI 8010015 Contact Us For Availability
35
WCI 3018893 WCI 3018893 Contact Us For Availability
36
GROMMET-SHELF (2) WCI 8002747 Contact Us For Availability
36
SCREW (2) WCI 8000008 Contact Us For Availability
37
GROMMET-SHELF (2) WCI 8009759 Contact Us For Availability
37
SCREW (2) WCI 8000009 Contact Us For Availability
38
BASE-CABINET WCI 8010092 Contact Us For Availability
38
WCI 8003637 WCI 8003637 Contact Us For Availability
39
PLUG-REFR LINER (2) WCI 8000087 Contact Us For Availability
39
WCI 3018896 WCI 3018896 Contact Us For Availability
40
PLUG-AVOC WCI 8007126 Contact Us For Availability
40
CONTROL BOX WCI 3018895 Contact Us For Availability
41
HEATER-MULLION WCI 8000058 Contact Us For Availability
42
WCI 8010007 WCI 8010007 Contact Us For Availability
43
STRAP-MULLION MTG WCI 8010008 Contact Us For Availability
× ![]()
