Model Electrolux FPES18TLL3 REFRIGERATOR – Common Parts & Diagrams
02 - DOOR PARTS
03 - CABINET PARTS

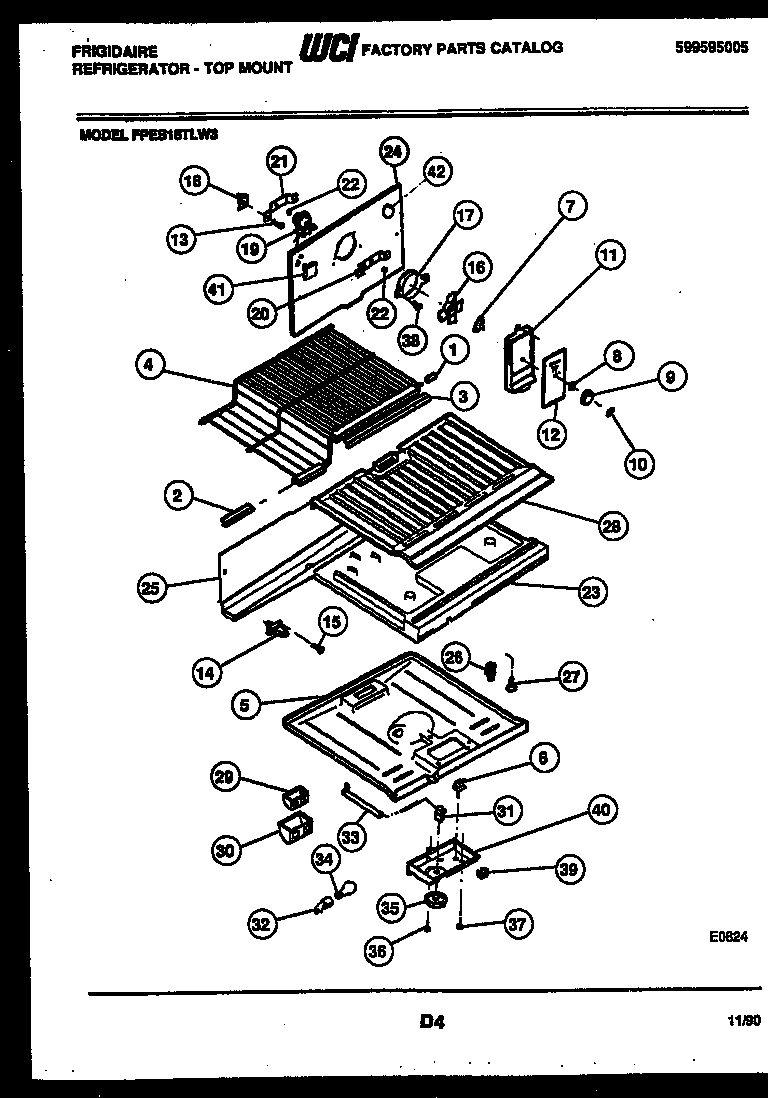

04 - SHELVES AND SUPPORTS

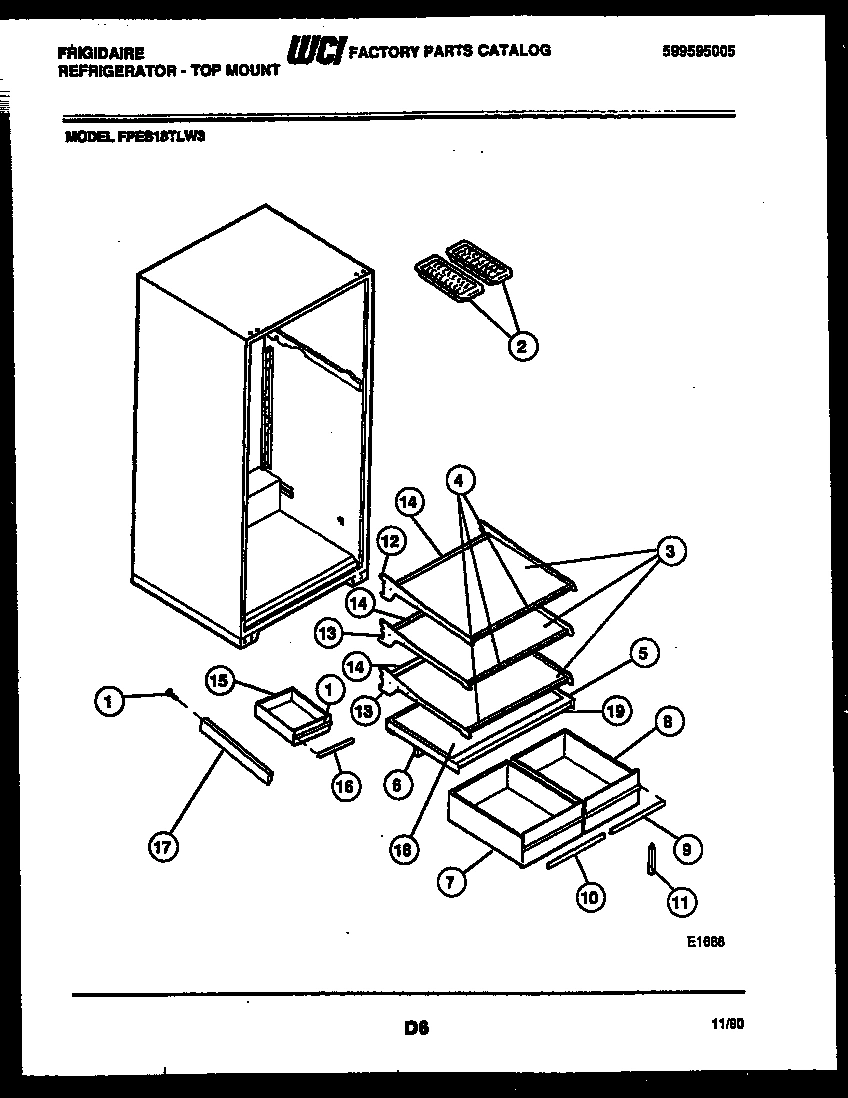

05 - SHELVES AND SUPPORTS

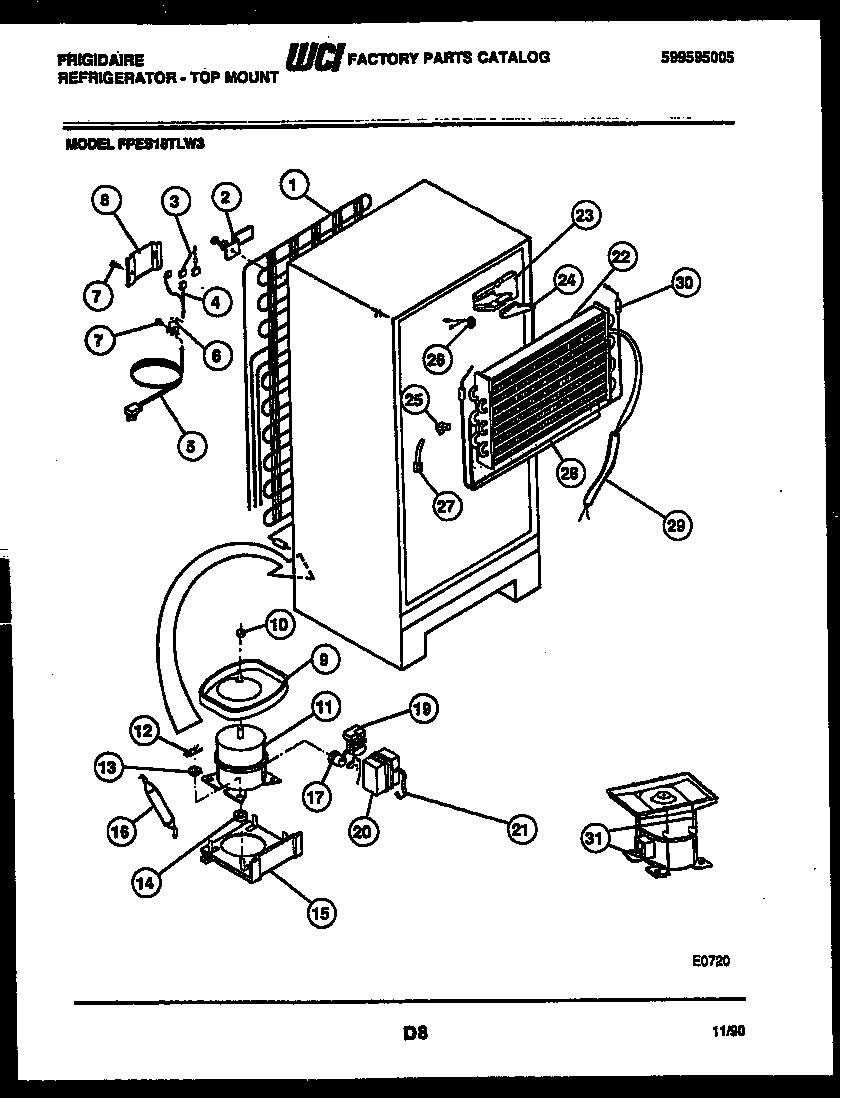

06 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux FPES18TLL3 REFRIGERATOR
*39260
TAPPING - PLATE - UPPER (2) WCI 5308012296 Contact Us For Availability
*39264
CLIP-CANTILEVER SHELF (6) WCI 5300170910 Contact Us For Availability
*39267
HOT TUBE REPAIR KIT WCI 5300189383 Contact Us For Availability
1
CAP PROTECTOR (2) WCI 3201150 No Longer Available
1
WCI 5303001037 WCI 5303001037 Contact Us For Availability
1
SCREW, HANGER (2) WCI 08014528 Contact Us For Availability
1
WCI 5300163133 WCI 5300163133 Contact Us For Availability
2
WCI 01121808 WCI 01121808 Contact Us For Availability
2
WCI 5308012843 WCI 5308012843 Contact Us For Availability
2
TRIM-SHELF-FREEZER WCI 3017427 Contact Us For Availability
2
BRACKET, COND MTG (4) WCI 5303001342 Contact Us For Availability
2B
WASHER, NO. 10 EXT TOOTH LOCK (NON-ILLUSTRAT WCI 5308009617 Contact Us For Availability
3
WCI 5308012933 WCI 5308012933 Contact Us For Availability
3
TRIM-SHELF-FREEZER WCI 3018978 Contact Us For Availability
3
WIRING HARNESS, DIVIDER WCI 3018900 Contact Us For Availability
3
GLASS, SHELF (3) WCI 5303200319 Contact Us For Availability
3A
RAIL-GLASS SPRT (6) (NON-ILLUSTRATED) WCI 3200901 Contact Us For Availability
4
WASHER, NYLON WCI 5308000186 No Longer Available
4
WCI 08009860 WCI 08009860 Contact Us For Availability
4
TRIM, FRONT (3) WCI 3018980 Contact Us For Availability
4
WIRING HARNESS, COMPRESSOR, WCI 5303001347 Contact Us For Availability
5
WASHER, NYLON (2) WCI 5308000007 Contact Us For Availability
5
TOP - REFRIGERATOR WCI 3018993 Contact Us For Availability
5
WCI 5303018983 WCI 5303018983 Contact Us For Availability
5
WCI 5316254901 WCI 5316254901 Contact Us For Availability
6
ROLLER, FRONT (2) WCI 5303212490 Contact Us For Availability
6
WCI 5303200329 WCI 5303200329 Contact Us For Availability
7
DAMPER WCI 5303001331 Contact Us For Availability
7
PAN, CRISPER, LH (SM) WCI 3018873 Contact Us For Availability
8
PLUG BUTTON-ALMOND (2) WCI 5303001308 Contact Us For Availability
8
NUT, PUSH WCI 5303001028 Contact Us For Availability
8
PAN, CRISPER, RH(LGE) WCI 3018982 Contact Us For Availability
8
WCI 5303001197 WCI 5303001197 Contact Us For Availability
9
WCI 5308009773 WCI 5308009773 Contact Us For Availability
9
WCI 5308009793 WCI 5308009793 Contact Us For Availability
9
WCI 3017422 WCI 3017422 Contact Us For Availability
9
DEFROST PAN WCI 5300184715 Contact Us For Availability
10
BOLT, ROLLER MTG (2) WCI 5308009762 Contact Us For Availability
10
LABEL, KNOB WCI 08009823 Contact Us For Availability
10
WCI 3017423 WCI 3017423 Contact Us For Availability
10
WCI 5303001348 WCI 5303001348 Contact Us For Availability
11
SPRING, ROLLER ADJ (2) WCI 5308009790 Contact Us For Availability
11
FAN COVER WCI 08009817 Contact Us For Availability
11
SUPPORT, CRISPER COVER, ADJ WCI 5303206507 Contact Us For Availability
11
COMPRESSOR WITH ELECTRICALS WCI 5303916411 Contact Us For Availability
12
WCI 08009924 WCI 08009924 Contact Us For Availability
12
FRAME, CANTILEVER, MEAT KEEPER SHELF WCI 3205329 Contact Us For Availability
12
CLIP (4) WCI 5308003596 Contact Us For Availability
12A
RETAINER-GLASS-MEAT KEEPER SHELF-FRONT (NON-I WCI 5303210634 Contact Us For Availability
13
WASHER (2) WCI 5308011326 Contact Us For Availability
13
FRAME, CANTILEVER (2) WCI 3200327 Contact Us For Availability
13
WASHER (4) WCI 5308003633 Contact Us For Availability
13A
RETAINER-GLASS-FRONT (2) (NON-ILLUSTRATED) WCI 3200321 Contact Us For Availability
14
SPOUT DRAIN WCI 5308000056 Contact Us For Availability
14
BOLT-ROLLER ADJ (2) WCI 5303212598 Contact Us For Availability
14
TRIM, REAR (3) WCI 3200326 Contact Us For Availability
15
PIN, PUSH, (2) WCI 5303001361 Contact Us For Availability
15
WCI 3018875 WCI 3018875 Contact Us For Availability
15
MOUNTING PLATE WCI 5308013663 Contact Us For Availability
16
WCI 5303212488 WCI 5303212488 Contact Us For Availability
16
TRIM, MEAT PAN WCI 3017424 Contact Us For Availability
17
RING, ORIFICE WCI 5308000124 Contact Us For Availability
17
WCI 5303212489 WCI 5303212489 Contact Us For Availability
17
HANGER, MEAT PAN, LH WCI 5303210016 Contact Us For Availability
17A
TAPPING PLATE GUSSET-LOWER LH (NON-ILLUSTRATE WCI 5303212596 Contact Us For Availability
17A
HANGER, MEAT PAN, RH (NON ILLUSTRATED) WCI 5303210017 Contact Us For Availability
17B
TAPPING PLATE GUSSET-LOWER RH (NON-ILLUSTRATE WCI 5303212597 Contact Us For Availability
18
WCI 5308000107 WCI 5308000107 Contact Us For Availability
18
SUPPORT, COIL COVER (2) WCI 5308000097 Contact Us For Availability
18
GLASS, CRISPER COVER WCI 3200389 Contact Us For Availability
19
PLUG-FREEZER LINER WCI 5308016571 Contact Us For Availability
19
TRIM, COVER WCI 3018984 Contact Us For Availability
20
WCI 5303001226 WCI 5303001226 Contact Us For Availability
20A
BRACKET-FRONT (NON-ILLUSTRATED) WCI 5303205118 Contact Us For Availability
21
DRAIN TUBE & SEAL RING WCI 5303210377 Contact Us For Availability
21
WCI 5303205119 WCI 5303205119 Contact Us For Availability
22
RING SEAL, TUBE WCI 5303207353 Contact Us For Availability
22
WCI 5300157666 WCI 5300157666 Contact Us For Availability
22
EVAPORATOR COIL WCI 5300162506 Contact Us For Availability
23
WCI 5308012258 WCI 5308012258 Contact Us For Availability
23
WCI 3018994 WCI 3018994 Contact Us For Availability
23
INSULATION BLOCK, RH WCI 5308013648 Contact Us For Availability
24
BRACKET-CTR HINGE WCI 5303001369 Contact Us For Availability
24
COVER, COIL WCI 5308009771 Contact Us For Availability
24
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
24A
NUT-``U`` TYPE (NON-ILLUSTRATED) WCI 5303209814 Contact Us For Availability
25
PIN, CTR HINGE WCI 5308000184 Contact Us For Availability
25
WCI 5303001470 WCI 5303001470 Contact Us For Availability
25
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
26
CHANNEL, RH & LH WCI 5308000302 Contact Us For Availability
27
WCI 5303001380 WCI 5303001380 Contact Us For Availability
28
INSULATOR, PLASTIC WCI 5316651102 Contact Us For Availability
28
WCI 5303200370 WCI 5303200370 Contact Us For Availability
28
BOTTOM - FREEZER WCI 5303211427 Contact Us For Availability
29
DOOR STOP-REFRIGERATOR (1) WCI 5308000255 Contact Us For Availability
29
WASHER, STEEL (2) WCI 5303206754 Contact Us For Availability
29
WCI 3204206 WCI 3204206 Contact Us For Availability
29
HEAT EXCHANGER WCI 5308000728 Contact Us For Availability
29A
DOOR STOP-FREEZER (1) (NON-ILLUSTRATED) WCI 5303212491 Contact Us For Availability
30
COVER - AIR DEFLECTOR WCI 5303001546 Contact Us For Availability
30
WCI 5308011745 WCI 5308011745 Contact Us For Availability
31
PAN RETAINER KIT WCI 5303916001 Contact Us For Availability
31
CONTROL, COLD WCI 5303018894 Contact Us For Availability
32
WCI 5303204775 WCI 5303204775 Contact Us For Availability
32
WCI 5393991286 WCI 5393991286 Contact Us For Availability
33
WCI 3205322 WCI 3205322 Contact Us For Availability
33
WCI 5303001287 WCI 5303001287 Contact Us For Availability
33
HOUSING, CAP TUBE WCI 3018891 Contact Us For Availability
34
LID, BVG CONTAINER WCI 3205292 Contact Us For Availability
34
WCI 5303001198 WCI 5303001198 Contact Us For Availability
35
CONTAINER WCI 3205291 Contact Us For Availability
35
CORNER TRIM-ALMOND WCI 5303202340 Contact Us For Availability
35
WCI 3018893 WCI 3018893 Contact Us For Availability
36
SPIGOT WCI 3205288 Contact Us For Availability
36
WCI 5303001260 WCI 5303001260 Contact Us For Availability
38
WCI 5303212487 WCI 5303212487 Contact Us For Availability
39
PLUG-ALMOND WCI 5303001389 Contact Us For Availability
39
WCI 5303018896 WCI 5303018896 Contact Us For Availability
40
WCI 5303210351 WCI 5303210351 Contact Us For Availability
40
CONTROL BOX WCI 3018895 Contact Us For Availability
41
SPACER, MULLION (2) WCI 5303200464 Contact Us For Availability
41
DECORATIVE PLUG WCI 5308013636 Contact Us For Availability
42
WCI 5308010008 WCI 5308010008 Contact Us For Availability
× ![]()
