Model Electrolux FPES18TEA1 REFRIGERATOR – Common Parts & Diagrams
02 - DOOR PARTS
03 - CABINET PARTS
04 - SHELVES AND SUPPORTS

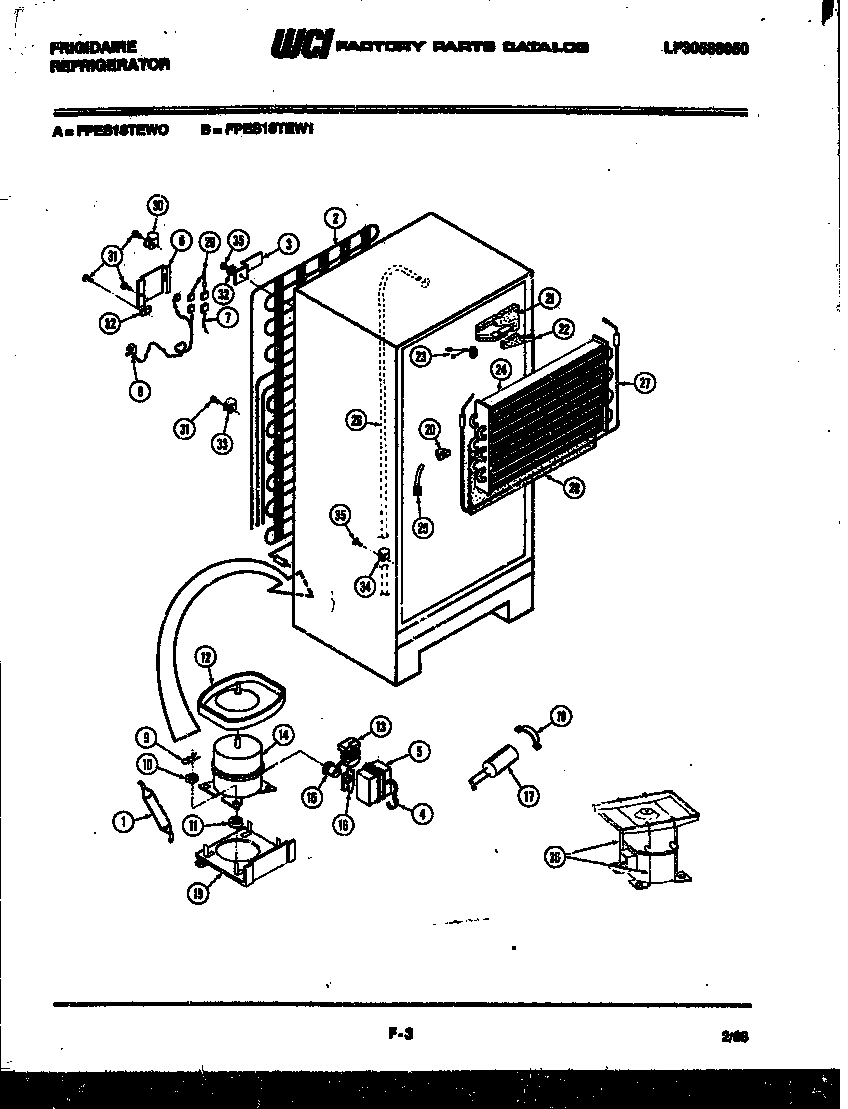

05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux FPES18TEA1 REFRIGERATOR
*71072
INSUL 2 1/2`` X 30`` X 42`` WCI 5401987 Contact Us For Availability
*71072
INSUL 1`` X 24`` X 48`` WCI 5418397 Contact Us For Availability
*71073
INSUL 4`` X 21 3/4`` X 34 5/8`` WCI 5401984 Contact Us For Availability
*71073
INSUL 3`` X 27 1/4`` X 39 5/8`` WCI 5401988 Contact Us For Availability
*71074
KIT-DR CVRSN AVOC WCI 8012803 Contact Us For Availability
1
GASKET-FREEZER WCI 8009734 Contact Us For Availability
1
SHIM WCI 8012829 Contact Us For Availability
1
WCI 8013638 WCI 8013638 Contact Us For Availability
2
SCREW (56) WCI 8002748 Contact Us For Availability
2
HINGE WCI 8012843 Contact Us For Availability
2
TRIM, SHELF WCI 8009675 Contact Us For Availability
2
WCI 8008779 WCI 8008779 Contact Us For Availability
3
PANEL-INNER WCI 8009835 Contact Us For Availability
3
COVER-HINGE AVOC WCI 8012930 Contact Us For Availability
3
TRIM-SHELF WCI 8009676 Contact Us For Availability
3
BRACKET-CONDENSER WCI 8003600 Contact Us For Availability
4
WASHER-NYLON (3) WCI 8000007 Contact Us For Availability
4
SHELF-FREEZER WCI 8009860 Contact Us For Availability
4
STRAP, BALE WCI 8000117 Contact Us For Availability
5
WCI 8000100 WCI 8000100 Contact Us For Availability
5
TRIM (3) WCI 8010652 Contact Us For Availability
5
COVER WCI 8006982 Contact Us For Availability
6
BIN-UTILITY (2) WCI 8009838 Contact Us For Availability
6
ROLLER ASSY-FRONT (2) WCI 8009760 Contact Us For Availability
6
FRAME-SHELF (2) WCI 8014793 Contact Us For Availability
6
WCI 8013644 WCI 8013644 Contact Us For Availability
7
BUTTON-PLUG AVOC WCI 8000179 Contact Us For Availability
7
NUT-ANCHOR (2) WCI 8003584 Contact Us For Availability
7
WCI 8000391 WCI 8000391 Contact Us For Availability
7
HARNESS-COMPRESSOR WCI 8009628 Contact Us For Availability
8
BUTTON-PLUG AVOC WCI 8000175 Contact Us For Availability
8
SCREW-LEVELING (2) WCI 8003583 Contact Us For Availability
8
PAN LH WCI 8009839 Contact Us For Availability
8
CORD, SERVICE WCI 8000064 Contact Us For Availability
9
HANDLE-COMPLETE WCI 8009803 Contact Us For Availability
9
WCI 8009773 WCI 8009773 Contact Us For Availability
9
TRIM WCI 8009847 Contact Us For Availability
9
CLIP WCI 8003596 Contact Us For Availability
9A
SCREW (2) (NON-ILLUSTRATED) WCI 8016629 Contact Us For Availability
10
WCI 8010232 WCI 8010232 Contact Us For Availability
10
BOLT (2) WCI 8009762 Contact Us For Availability
10
CONTAINER, ICE WCI 8009795 Contact Us For Availability
10
WASHER WCI 8003597 Contact Us For Availability
11
CAP (2) WCI 8010239 Contact Us For Availability
11
SPRING WCI 8009790 Contact Us For Availability
11
PAN RH WCI 8009827 Contact Us For Availability
11
GROMMET WCI 8008778 Contact Us For Availability
12
CAP (2) WCI 8010238 Contact Us For Availability
12
BOLT (2) WCI 8009761 Contact Us For Availability
12
TRIM WCI 8009850 Contact Us For Availability
12
PAN-DRAIN WCI 8012951 Contact Us For Availability
13
WCI 8009843 WCI 8009843 Contact Us For Availability
13
WASHER-NYLON (2) WCI 8011326 Contact Us For Availability
13
WCI 8013650 WCI 8013650 Contact Us For Availability
13
WCI 8017226 WCI 8017226 Contact Us For Availability
13A
SUPPORT-BASE-CAB (2) (NON-ILLUSTRATED) WCI 8013678 Contact Us For Availability
14
BEARING (8) WCI 8012007 Contact Us For Availability
14
SCREW (2) WCI 8010252 Contact Us For Availability
14
SUPPORT-CRISPER WCI 8013637 Contact Us For Availability
14
COMPRESSOR WCI 8950233 Contact Us For Availability
15
PANEL-FRZR AVOC WCI 8010021 Contact Us For Availability
15
PIN WCI 8003578 Contact Us For Availability
15
TRIM WCI 8009848 Contact Us For Availability
15
WCI 8017572 WCI 8017572 Contact Us For Availability
16
SCREW (6) WCI 8013645 Contact Us For Availability
16
SHIM WCI 8000755 Contact Us For Availability
16
PAN, MEAT WCI 8009855 Contact Us For Availability
17
WCI 8009719 WCI 8009719 Contact Us For Availability
17
BRACKET-HINGE WCI 8010251 Contact Us For Availability
17
HANGER-PAN LH WCI 8008650 Contact Us For Availability
17
WCI 8017535 WCI 8017535 Contact Us For Availability
17A
HANGER-PAN RH (NON-ILLUSTRATED) WCI 8008651 Contact Us For Availability
18
GASKET-REF WCI 8015544 Contact Us For Availability
18
PLUG-DECORATIVE WCI 8000082 Contact Us For Availability
18
COVER-AIR DEFLECTOR WCI 8000055 Contact Us For Availability
18
STRAP-CAPACITOR WCI 8017231 Contact Us For Availability
19
DOOR - DAIRY WCI 8009789 Contact Us For Availability
19
BUTTON-PLUG (3) WCI 8016571 Contact Us For Availability
19
DEFLECTOR - AIR WCI 8000071 Contact Us For Availability
19
PLATE-MOUNTING WCI 8013663 Contact Us For Availability
20
RACK-REF WCI 8009702 Contact Us For Availability
20
TUBE-RUBBER (2) WCI 8000004 Contact Us For Availability
20
SCREW (2) WCI 8014528 Contact Us For Availability
20
BLOCK LH WCI 8017227 Contact Us For Availability
21
SUPPORT LH (2) WCI 8009805 Contact Us For Availability
21
TUBE, DRAIN WCI 8010012 Contact Us For Availability
21
SHELF-GLASS (3) WCI 8014803 Contact Us For Availability
21
BLOCK RH WCI 8013648 Contact Us For Availability
21A
SUPPORT RH (2) (NON-ILLUSTRATED) WCI 8009804 Contact Us For Availability
22
RACK-DOOR WCI 8013640 Contact Us For Availability
22
RING, SEAL WCI 8009755 Contact Us For Availability
22
DAMPER WCI 8000066 Contact Us For Availability
22
PLUG, BLOCK WCI 8013646 Contact Us For Availability
23
SUPPORT LH WCI 8009806 Contact Us For Availability
23
SCREW WCI 8012258 Contact Us For Availability
23
NUT, PUSH WCI 8000067 Contact Us For Availability
23
THERMOSTAT WCI 8000073 Contact Us For Availability
23A
SUPPORT RH (NON-ILLUSTRATED) WCI 8009808 Contact Us For Availability
24
PANEL-REF AVOC WCI 8010019 Contact Us For Availability
24
BRACKET-HINGE WCI 8000757 Contact Us For Availability
24
KNOB WCI 8009793 Contact Us For Availability
24
EVAPORATOR WCI 8000062 Contact Us For Availability
25
HANDLE-COMPLETE WCI 8009901 Contact Us For Availability
25
SUPPORT-COVER (2) WCI 8000097 Contact Us For Availability
25
LABEL, KNOB WCI 8009823 Contact Us For Availability
25
STRAP-ALUM (2) WCI 8000110 Contact Us For Availability
26
TRIM WCI 8010233 Contact Us For Availability
26
CHANNEL (2) WCI 8000302 Contact Us For Availability
26
COVER-PAN WCI 8009817 Contact Us For Availability
26
HEAT-EXCHANGE WCI 8010274 Contact Us For Availability
27
PANEL-INNER WCI 8009796 Contact Us For Availability
27
LABEL WCI 8009822 Contact Us For Availability
27
WCI 8000061 WCI 8000061 Contact Us For Availability
28
RACK-DOOR WCI 8009701 Contact Us For Availability
28
PIN, HINGE WCI 8000184 Contact Us For Availability
28
INSULATOR WCI 8009569 Contact Us For Availability
29
BUTTON-PLUG (2) WCI 8000087 Contact Us For Availability
29
BULB WCI 8000801 Contact Us For Availability
29
HARNESS, DIVIDER WCI 8006993 Contact Us For Availability
30
BUTTON-PLUG WCI 8003585 Contact Us For Availability
30
KNOB WCI 8010011 Contact Us For Availability
30
WCI 8000187 WCI 8000187 Contact Us For Availability
31
SCREW WCI 8002728 Contact Us For Availability
31
SCREW (2) WCI 8000123 Contact Us For Availability
31
CONTROL WCI 8017218 Contact Us For Availability
32
WCI 8006970 WCI 8006970 Contact Us For Availability
32
SCREW (2) WCI 8000009 Contact Us For Availability
32
CLAMP WCI 8000109 Contact Us For Availability
33
WCI 8006971 WCI 8006971 Contact Us For Availability
33
SCREW (2) WCI 8000008 Contact Us For Availability
33
CLAMP WCI 8002756 Contact Us For Availability
34
BUTTON-PLUG AVOC WCI 8007126 Contact Us For Availability
34
WCI 8003643 WCI 8003643 Contact Us For Availability
35
TRIM, AVOC WCI 8010015 Contact Us For Availability
35
SCREW WCI 8000039 Contact Us For Availability
35
SOCKET WCI 8000129 Contact Us For Availability
36
GROMMET (2) WCI 8002747 Contact Us For Availability
36
WCI 8009781 WCI 8009781 Contact Us For Availability
36
KIT, RETAINER WCI 8950024 Contact Us For Availability
37
GROMMET (2) WCI 8009759 Contact Us For Availability
37
WCI 8016615 WCI 8016615 Contact Us For Availability
38
BASE-CABINET WCI 8010092 Contact Us For Availability
38
LABEL WCI 8009816 Contact Us For Availability
40
FRAME-MEAT SHELF WCI 8014804 Contact Us For Availability
41
SPOUT WCI 8000056 Contact Us For Availability
42
FAN WCI 8000010 Contact Us For Availability
43
PIN, PUSH (2) WCI 8013647 Contact Us For Availability
44
RING, ORIFICE WCI 8000124 Contact Us For Availability
45
BRACKET WCI 8000107 Contact Us For Availability
46
MOTOR WCI 8000036 Contact Us For Availability
47
WCI 8000043 WCI 8000043 Contact Us For Availability
48
WCI 8000042 WCI 8000042 Contact Us For Availability
49
BUSHING (2) WCI 8000032 Contact Us For Availability
50
WCI 8000126 WCI 8000126 Contact Us For Availability
51
COVER-COIL WCI 8009771 Contact Us For Availability
52
WCI 8010007 WCI 8010007 Contact Us For Availability
53
WASHER (4) WCI 8003607 Contact Us For Availability
54
HEATER-MULLION WCI 8000058 Contact Us For Availability
55
MULLION-AVOC WCI 8010026 Contact Us For Availability
56
STRAP-MULLION WCI 8010008 Contact Us For Availability
57
TROUGH, DRAIN WCI 8009772 Contact Us For Availability
58
SWITCH, LIGHT WCI 8000069 Contact Us For Availability
59
SCREW (3) WCI 8000070 Contact Us For Availability
60
BOTTOM-FREEZER WCI 8015543 Contact Us For Availability
61
TOP-REFRIGERATOR WCI 3016367 Contact Us For Availability
62
DIVIDER-STYROFOAM WCI 8009751 Contact Us For Availability
63
RETAINER-REAR (3) WCI 8009695 Contact Us For Availability
64
WCI 8000098 WCI 8000098 Contact Us For Availability
65
PAD WCI 8000185 Contact Us For Availability
66
RETAINER (3) WCI 8009692 Contact Us For Availability
67
SEAL (3) WCI 8009706 Contact Us For Availability
× ![]()
