Model Electrolux FPES18TCH0 REFRIGERATOR – Common Parts & Diagrams

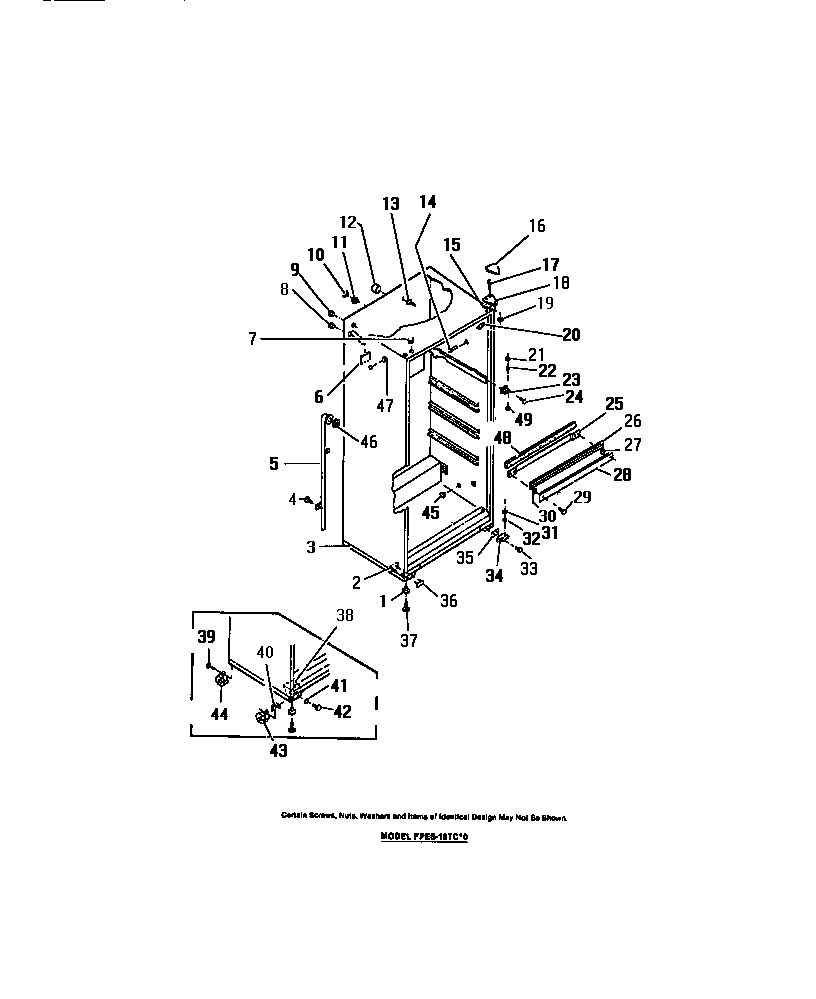

02 - CABINET

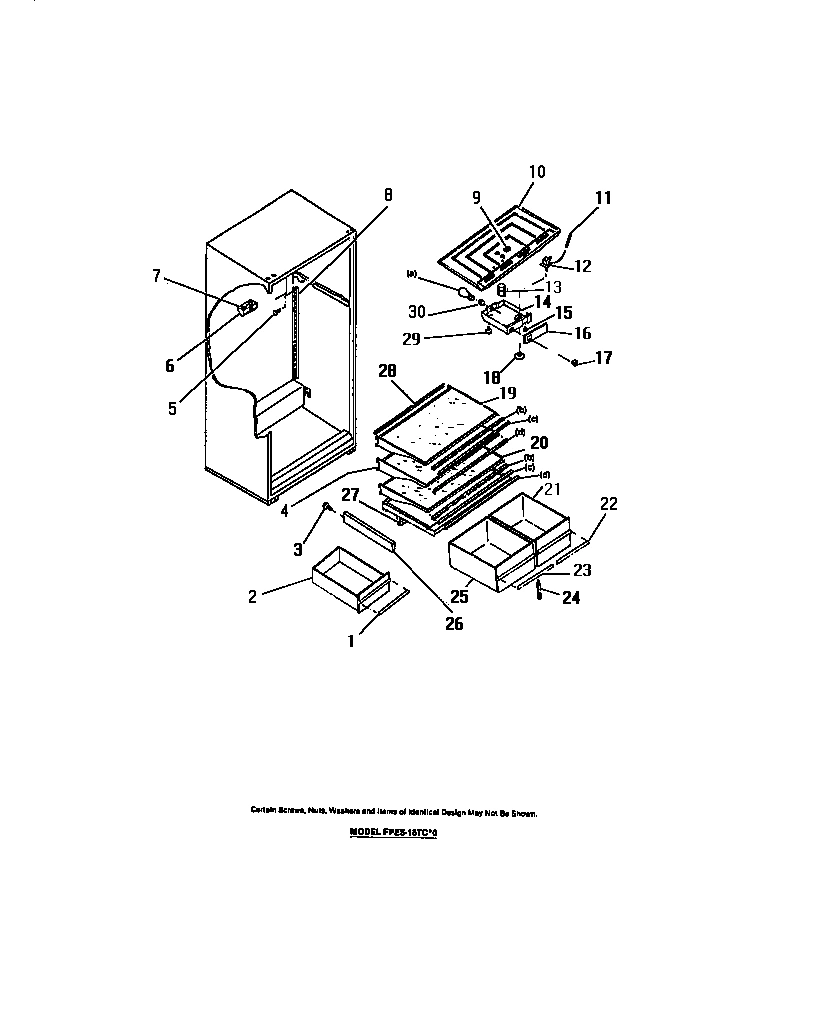

03 - INTERIOR FOOD COMPARTMENT

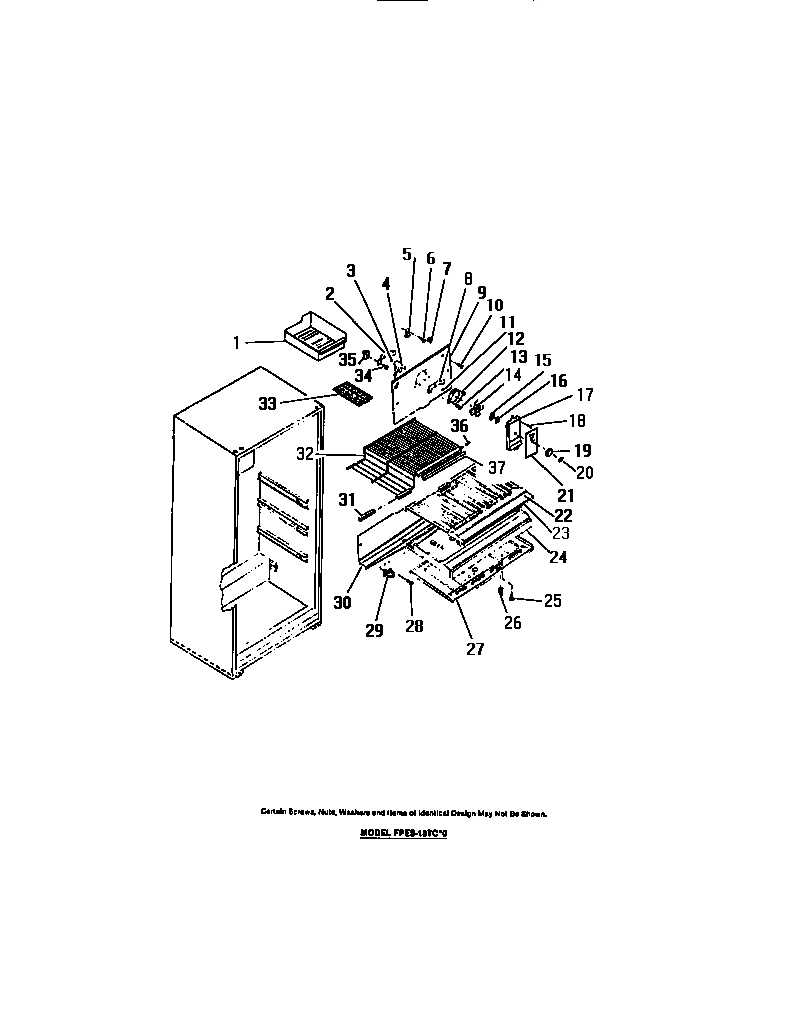

04 - INTERIOR FREEZER COMPARTMENT

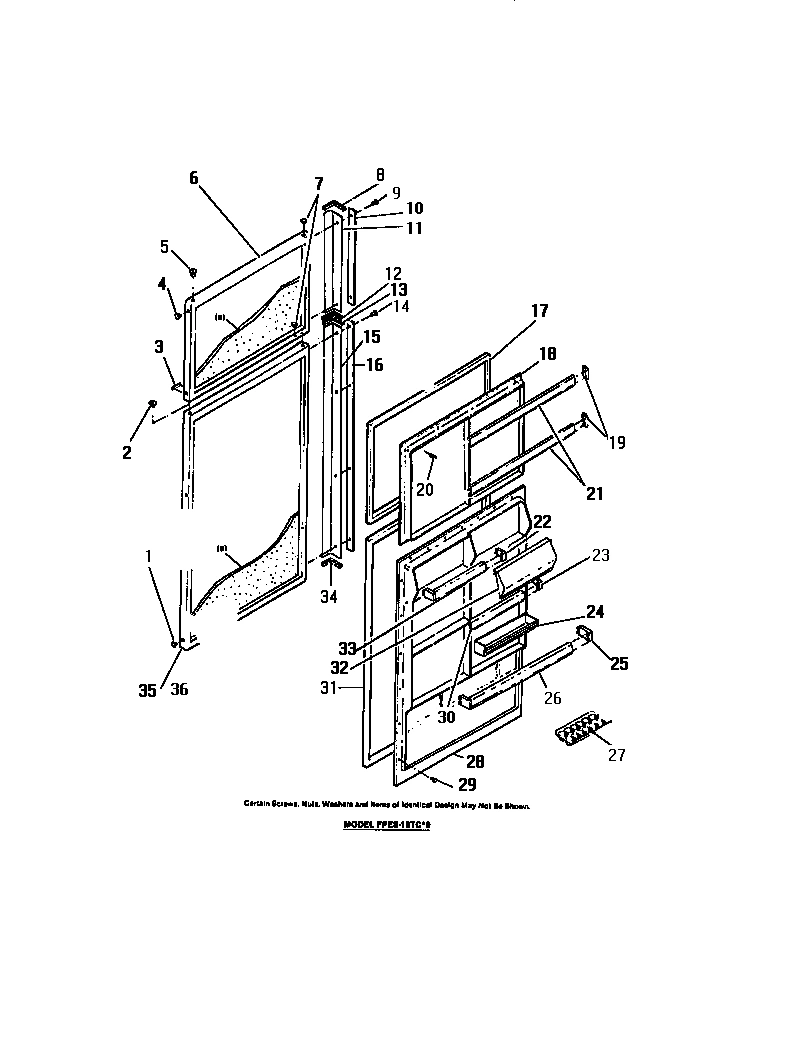

05 - FOOD & FREEZER DOORS

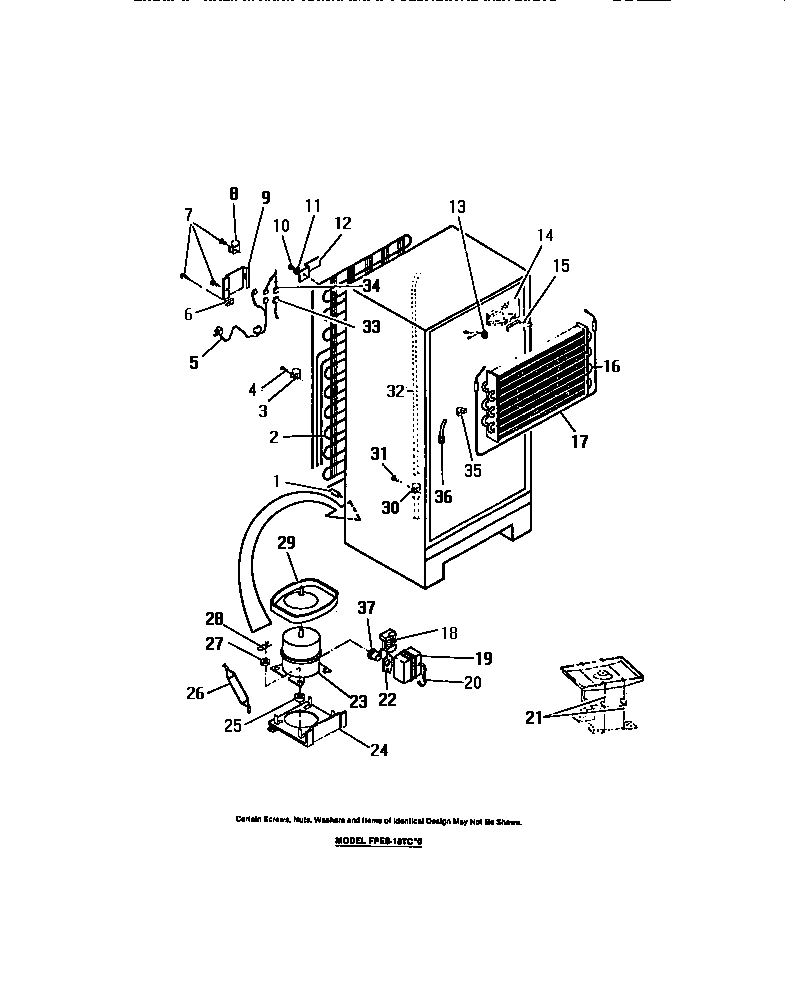

06 - COMPRESSOR, CONDENSER, EVAPORATOR

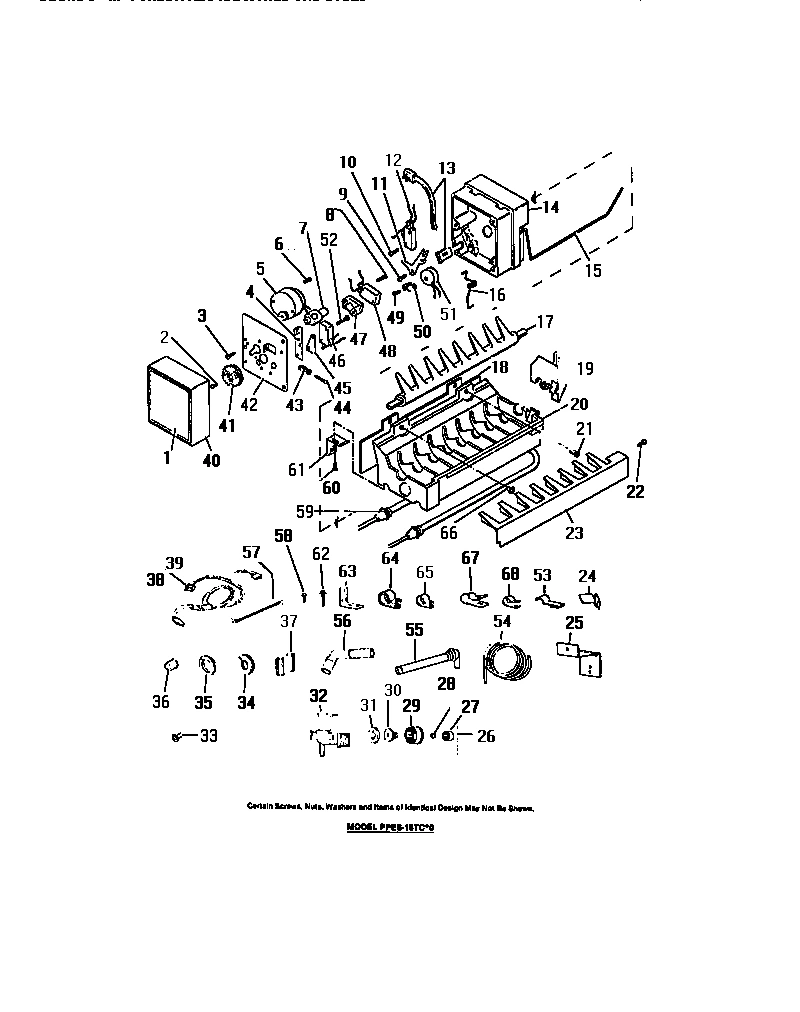

07 - IK-4 AUTOMATIC ICE MAKER
Common parts from model Electrolux FPES18TCH0 REFRIGERATOR
1
NUTS (2) WCI 8003584 Contact Us For Availability
1
WCI 8009848 WCI 8009848 Contact Us For Availability
1
WCI 8009795 WCI 8009795 Contact Us For Availability
1
SLEEVE, CONNECTOR WCI 8003645 Contact Us For Availability
1
WCI 8005251 WCI 8005251 Contact Us For Availability
2
PLATE (2) WCI 8000033 Contact Us For Availability
2
WCI 8009855 WCI 8009855 Contact Us For Availability
2
WCI 8000042 WCI 8000042 Contact Us For Availability
2
WCI 8008779 WCI 8008779 Contact Us For Availability
2
WCI 8001182 WCI 8001182 Contact Us For Availability
3
BASE WCI 8010092 Contact Us For Availability
3
WCI 8009843 WCI 8009843 Contact Us For Availability
3
WCI 8001136 WCI 8001136 Contact Us For Availability
4
FRAME-CANTILEVER-SHELF (2) WCI 8014793 Contact Us For Availability
4
MOTOR WCI 8004176 Contact Us For Availability
4
PLUG-BUTTONS (4), WHEAT WCI 8000180 Contact Us For Availability
4
WCI 8001242 WCI 8001242 Contact Us For Availability
4A
WCI 8014804 WCI 8014804 Contact Us For Availability
5
TUBE, DRAIN WCI 8010012 Contact Us For Availability
5
SCREWS (6) WCI 8010253 Contact Us For Availability
5
WCI 8012007 WCI 8012007 Contact Us For Availability
5
CORD, ELECTRICAL SERVICE WCI 8000064 Contact Us For Availability
5
WCI 8001244 WCI 8001244 Contact Us For Availability
6
PLUG, BUTTON DECORATOR WCI 8000082 Contact Us For Availability
6
DEFLECTOR WCI 8000071 Contact Us For Availability
6
PANEL-EXTERIOR FREEZER DOOR, WHEAT WCI 8009932 Contact Us For Availability
6
CLAMP WCI 8000109 Contact Us For Availability
6
WCI 8001156 WCI 8001156 Contact Us For Availability
7
PLUG BUTTONS (2), WHEAT WCI 8007127 Contact Us For Availability
7
COVER WCI 8000055 Contact Us For Availability
7
WCI 8000012 WCI 8000012 Contact Us For Availability
7
PLUG BUTTONS, WHEAT WCI 8000176 Contact Us For Availability
7
SCREWS WCI 8002748 Contact Us For Availability
7
WCI 8001247 WCI 8001247 Contact Us For Availability
8
PLUG, BUTTON WCI 8000014 Contact Us For Availability
8
BRACKET, CANTILEVER SHELVES (2) WCI 8000302 Contact Us For Availability
8
BRACKET WCI 8000043 Contact Us For Availability
8
WCI 8000187 WCI 8000187 Contact Us For Availability
8
WCI 8001148 WCI 8001148 Contact Us For Availability
9
PLUG, BUTTON WCI 8000040 Contact Us For Availability
9
WCI 8000034 WCI 8000034 Contact Us For Availability
9
COVER WCI 8009771 Contact Us For Availability
9
COVER WCI 8013644 Contact Us For Availability
9
WCI 8001255 WCI 8001255 Contact Us For Availability
10
WCI 8006971 WCI 8006971 Contact Us For Availability
10
WCI 8012354 WCI 8012354 Contact Us For Availability
10
TRIM WCI 8010232 Contact Us For Availability
10
WCI 8001147 WCI 8001147 Contact Us For Availability
11
WCI 8006970 WCI 8006970 Contact Us For Availability
11
INSULATOR TUBE WCI 8003637 Contact Us For Availability
11
BUSHING WCI 8000032 Contact Us For Availability
11
HANDLE-FREEZER DOOR INCLUDES TRIM AND END CAP WCI 8009803 Contact Us For Availability
11
WASHER WCI 8009617 Contact Us For Availability
11
WCI 8001237 WCI 8001237 Contact Us For Availability
12
TUBE WCI 8000004 Contact Us For Availability
12
THERMOSTAT WCI 8015763 Contact Us For Availability
12
ORIFICE WCI 8000124 Contact Us For Availability
12
BRACKETS (4) WCI 8003600 Contact Us For Availability
13
SUPPORTS (2) WCI 8000097 Contact Us For Availability
13
CAP WCI 8010239 Contact Us For Availability
13
THERMOSTAT, DEFROST LIMITER WCI 8000073 Contact Us For Availability
14
GROMMETS, SHELF, LH (2) WCI 8009759 Contact Us For Availability
14
WCI 8009781 WCI 8009781 Contact Us For Availability
14
FAN WCI 8000010 Contact Us For Availability
14
SCREWS (4) WCI 8013645 Contact Us For Availability
14
INSULATION, RH BLOCK WCI 8013646 Contact Us For Availability
14
WCI 8001235 WCI 8001235 Contact Us For Availability
14A
GROMMETS, SHELF, RH (2) WCI 8002747 Contact Us For Availability
15
SHIM WCI 8012829 Contact Us For Availability
15
SCREWS WCI 8000009 Contact Us For Availability
15
DAMPER WCI 8000066 Contact Us For Availability
15
INCLUDES TRIM AND END CAPS WCI 8009901 Contact Us For Availability
15
SEAL, AIR, R.H. WCI 8013648 Contact Us For Availability
15
WCI 8000503 WCI 8000503 Contact Us For Availability
16
COVER, HINGE, WHEAT WCI 8012931 Contact Us For Availability
16
LABEL WCI 8009816 Contact Us For Availability
16
NUT WCI 8000067 Contact Us For Availability
16
TRIM WCI 8010233 Contact Us For Availability
16
EVAPORATOR WCI 8000062 Contact Us For Availability
16
WCI 8001238 WCI 8001238 Contact Us For Availability
17
SCREWS (2) WCI 8000123 Contact Us For Availability
17
WCI 8012294 WCI 8012294 Contact Us For Availability
17
WCI 8009817 WCI 8009817 Contact Us For Availability
17
SEAL, FREEZER DOOR WCI 8009734 Contact Us For Availability
17
ELEMENT, DEFROST HEATER WCI 8000061 Contact Us For Availability
17
WCI 8001253 WCI 8001253 Contact Us For Availability
18
HINGE, UPPER WCI 8012843 Contact Us For Availability
18
KNOB WCI 8010011 Contact Us For Availability
18
WCI 8009835 WCI 8009835 Contact Us For Availability
18
RELAY, COMPRESSOR START WCI 8012949 Contact Us For Availability
18
WCI 8000236 WCI 8000236 Contact Us For Availability
19
WCI 8014803 WCI 8014803 Contact Us For Availability
19
KNOB WCI 8009793 Contact Us For Availability
19
WCI 8000116 WCI 8000116 Contact Us For Availability
19
WCI 8001234 WCI 8001234 Contact Us For Availability
20
TRIM-CORNER (4), WHEAT WCI 8010016 Contact Us For Availability
20
WCI 8010256 WCI 8010256 Contact Us For Availability
20
LABEL, KNOB WCI 8009823 Contact Us For Availability
20
RETAINER WCI 8000117 Contact Us For Availability
20
WCI 8001254 WCI 8001254 Contact Us For Availability
21
WCI 8009827 WCI 8009827 Contact Us For Availability
21
WCI 8009822 WCI 8009822 Contact Us For Availability
21
RETAINER, DRAIN PAN WCI 8950024 Contact Us For Availability
21
WCI 8005288 WCI 8005288 Contact Us For Availability
22
PIN, HINGE WCI 8000184 Contact Us For Availability
22
WCI 8009850 WCI 8009850 Contact Us For Availability
22
BOTTOM WCI 8015543 Contact Us For Availability
22
INSERT-FRONT-L.H. WCI 8009806 Contact Us For Availability
22
SPRING WCI 8000115 Contact Us For Availability
22A
INSERT-FRONT-R.H. WCI 8009808 Contact Us For Availability
23
HINGE, CENTER WCI 8000757 Contact Us For Availability
23
WCI 8009847 WCI 8009847 Contact Us For Availability
23
INSULATOR WCI 8009569 Contact Us For Availability
23
WCI 8950112 WCI 8950112 Contact Us For Availability
23
WCI 8001252 WCI 8001252 Contact Us For Availability
24
WCI 8006995 WCI 8006995 Contact Us For Availability
24
DIVIDER WCI 8009751 Contact Us For Availability
24
BIN (2) WCI 8009838 Contact Us For Availability
24
PLATE, COMPRESSOR MOUNTING WCI 9960000 Contact Us For Availability
24
WCI 8000201 WCI 8000201 Contact Us For Availability
25
CLAMP WCI 8010008 Contact Us For Availability
25
WCI 8009839 WCI 8009839 Contact Us For Availability
25
SCREWS (3) WCI 8000070 Contact Us For Availability
25
INSERT, FRONT RH WCI 8009805 Contact Us For Availability
25
GROMMETS (4) WCI 8008778 Contact Us For Availability
25
WCI 8000223 WCI 8000223 Contact Us For Availability
25A
INSERT, FRONT LH WCI 8009804 Contact Us For Availability
26
DRIER, CONDENSATE WCI 8000058 Contact Us For Availability
26
WCI 8008650 WCI 8008650 Contact Us For Availability
26
SWITCH, LIGHT WCI 9918806 Contact Us For Availability
26
CUT TO LENGTH REQUIRED WCI 8009701 Contact Us For Availability
26
WCI 8000027 WCI 8000027 Contact Us For Availability
26
ADAPTER KIT WCI 8000205 Contact Us For Availability
26A
WCI 8008651 WCI 8008651 Contact Us For Availability
27
WASHERS (4) WCI 8003607 Contact Us For Availability
27
TOP WCI 8010001 Contact Us For Availability
27
SEAL WCI 8009647 Contact Us For Availability
27
TRAY-EGGS WCI 8009719 Contact Us For Availability
27
WASHERS (4) WCI 8003597 Contact Us For Availability
27
WCI 114627 WCI 114627 Contact Us For Availability
28
PANEL-HORIZONTAL, WHEAT WCI 8010027 Contact Us For Availability
28
RETAINER (3) WCI 8009695 Contact Us For Availability
28
PINS (2) WCI 8013647 Contact Us For Availability
28
PANEL-INTERIOR FOOD DOOR WCI 8009796 Contact Us For Availability
28
CLIPS (4) WCI 8003596 Contact Us For Availability
28
WCI 114628 WCI 114628 Contact Us For Availability
29
SCREWS (2) WCI 8012258 Contact Us For Availability
29
SCREWS (2) WCI 8000008 Contact Us For Availability
29
SPOUT WCI 8000056 Contact Us For Availability
29
PAN (INCLUDES NUT) WCI 8012951 Contact Us For Availability
29
WCI 1121985 WCI 1121985 Contact Us For Availability
30
RECEPTACLE WCI 8000129 Contact Us For Availability
30
TROUGH, DRAIN WCI 8009772 Contact Us For Availability
30
WCI 8009702 WCI 8009702 Contact Us For Availability
30
WCI 8003643 WCI 8003643 Contact Us For Availability
30
WCI 1121980 WCI 1121980 Contact Us For Availability
31
WASHER WCI 8000007 Contact Us For Availability
31
WCI 8009676 WCI 8009676 Contact Us For Availability
31
WCI 8009735 WCI 8009735 Contact Us For Availability
31
WCI 8001143 WCI 8001143 Contact Us For Availability
32
PIN, HINGE WCI 8003578 Contact Us For Availability
32
WCI 8009860 WCI 8009860 Contact Us For Availability
32
WCI 8009789 WCI 8009789 Contact Us For Availability
32
LINE-SUCTION AND CAP TUBES WCI 8010274 Contact Us For Availability
32
WCI 8000219 WCI 8000219 Contact Us For Availability
33
SCREWS (2) WCI 8010252 Contact Us For Availability
33
WCI 8000391 WCI 8000391 Contact Us For Availability
33
FRONT WCI 8013640 Contact Us For Availability
33
HARNESS WCI 8009628 Contact Us For Availability
33
INSERT WCI 8010335 Contact Us For Availability
34
HINGE, LOWER WCI 8010251 Contact Us For Availability
34
WCI 8000098 WCI 8000098 Contact Us For Availability
34
CAP WCI 8010238 Contact Us For Availability
34
HARNESS WCI 8006993 Contact Us For Availability
34
PLUG WCI 8000241 Contact Us For Availability
35
SHIM WCI 8000755 Contact Us For Availability
35
BRACKET WCI 8000107 Contact Us For Availability
35
PANEL-EXTERIOR FOOD DOOR, WHEAT WCI 8009929 Contact Us For Availability
35
SEAL, RH WCI 8003647 Contact Us For Availability
35
WCI 8000240 WCI 8000240 Contact Us For Availability
36
PLUG BUTTON WCI 8003585 Contact Us For Availability
36
CAPS (2) WCI 8013638 Contact Us For Availability
36
WCI 8011779 WCI 8011779 Contact Us For Availability
36
RETAINERS (2) WCI 8000110 Contact Us For Availability
36
WCI 8000200 WCI 8000200 Contact Us For Availability
37
FOOT (2) WCI 8003583 Contact Us For Availability
37
WCI 8009675 WCI 8009675 Contact Us For Availability
37
PROTECTOR, OVERLOAD WCI 8007659 Contact Us For Availability
37
WCI 8000220 WCI 8000220 Contact Us For Availability
38
SUPPORT (2) WCI 8013678 Contact Us For Availability
38
WCI 8014553 WCI 8014553 Contact Us For Availability
39
SCREWS (2) WCI 8009762 Contact Us For Availability
39
HARNESS WCI 8950138 Contact Us For Availability
40
SPRINGS (2) WCI 8009790 Contact Us For Availability
40
WCI 8000214 WCI 8000214 Contact Us For Availability
41
WASHERS (2) WCI 8011326 Contact Us For Availability
41
WCI 8001248 WCI 8001248 Contact Us For Availability
42
SCREWS (2) WCI 8009761 Contact Us For Availability
42
WCI 8001239 WCI 8001239 Contact Us For Availability
43
ROLLERS, FRONT (2) WCI 8009760 Contact Us For Availability
43
WCI 8001251 WCI 8001251 Contact Us For Availability
44
ROLLERS, REAR (2) WCI 8009773 Contact Us For Availability
45
PLUGS (2) WCI 8000087 Contact Us For Availability
45
WCI 8001241 WCI 8001241 Contact Us For Availability
46
SEAL WCI 8009755 Contact Us For Availability
47
PLUG, BUTTONS WCI 8000065 Contact Us For Availability
47
WCI 8001240 WCI 8001240 Contact Us For Availability
48
WCI 8009638 WCI 8009638 Contact Us For Availability
48
WCI 8001245 WCI 8001245 Contact Us For Availability
49
WASHER WCI 8000100 Contact Us For Availability
49
WCI 8001150 WCI 8001150 Contact Us For Availability
50
WCI 8001236 WCI 8001236 Contact Us For Availability
51
WCI 8001250 WCI 8001250 Contact Us For Availability
52
WCI 8001149 WCI 8001149 Contact Us For Availability
53
WCI 8000230 WCI 8000230 Contact Us For Availability
54
WCI 8010366 WCI 8010366 Contact Us For Availability
55
WCI 8010269 WCI 8010269 Contact Us For Availability
56
WCI 8000239 WCI 8000239 Contact Us For Availability
57
PERMAGUM BULK SEAL WCI 5877995 Contact Us For Availability
58
SCREWS (10) WCI 8000039 Contact Us For Availability
59
WCI 8001243 WCI 8001243 Contact Us For Availability
60
WCI 8001175 WCI 8001175 Contact Us For Availability
61
WCI 8001246 WCI 8001246 Contact Us For Availability
62
SCREWS (3) WCI 8002728 Contact Us For Availability
63
CLAMP (2) WCI 8002756 Contact Us For Availability
64
CLAMP WCI 8000133 Contact Us For Availability
65
CLAMP (3) WCI 8000221 Contact Us For Availability
66
EYELET (2) WCI 8000233 Contact Us For Availability
67
CLAMP WCI 8009561 Contact Us For Availability
68
CLAMP WCI 8000250 Contact Us For Availability
× ![]()
