Model Electrolux FPES18TCA1 REFRIGERATOR – Common Parts & Diagrams

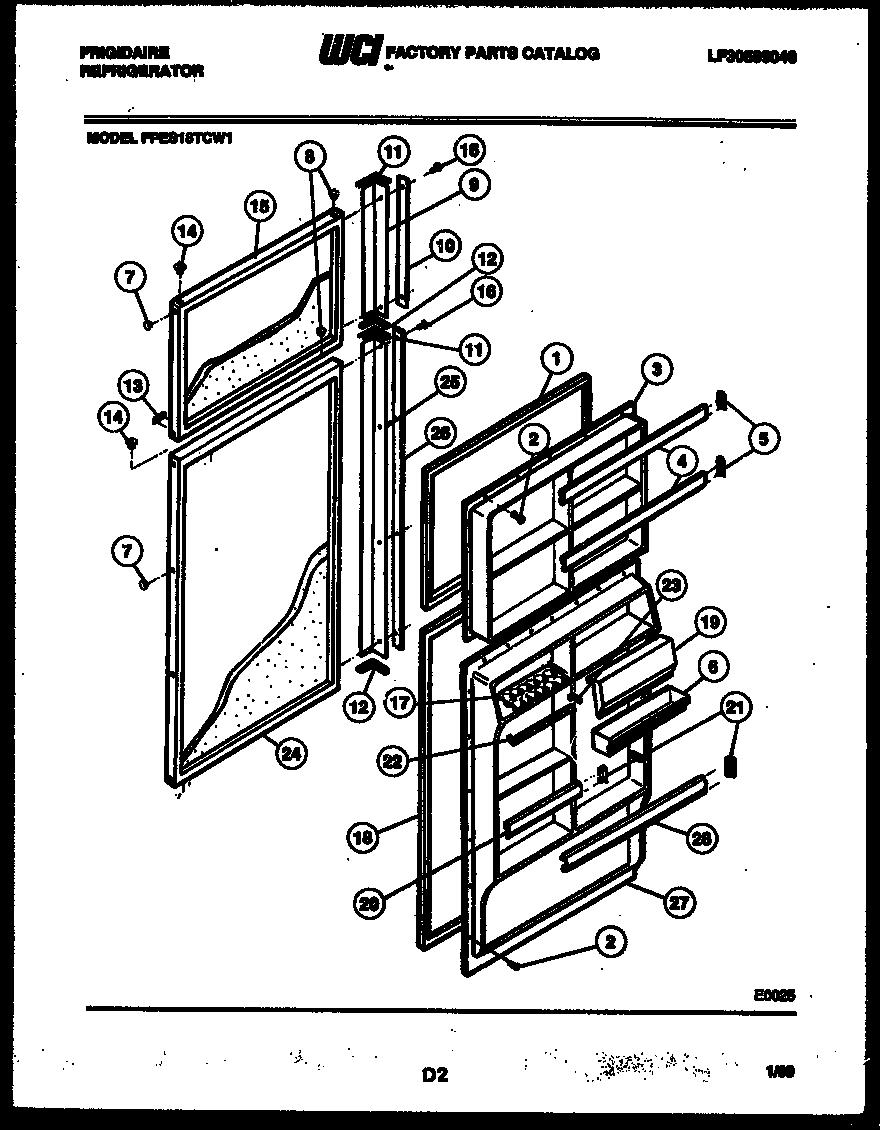

02 - DOOR PARTS

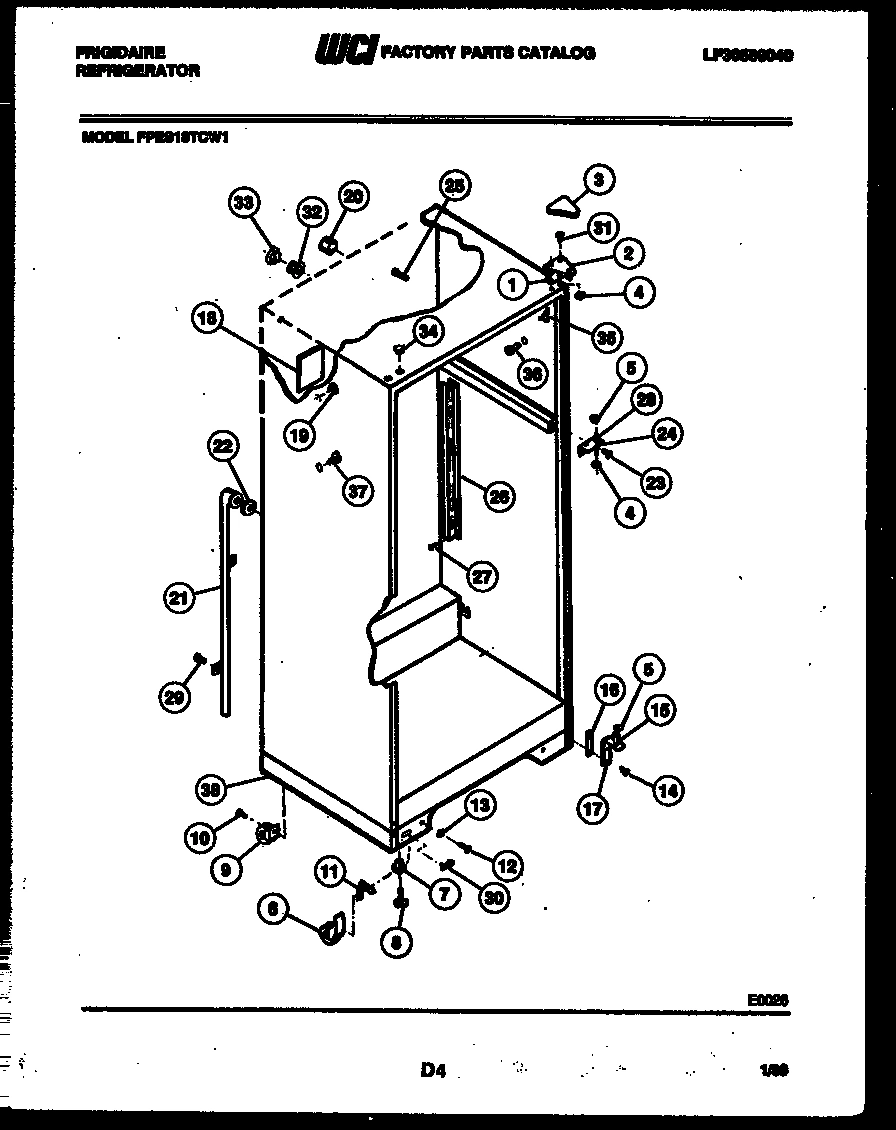

03 - CABINET PARTS

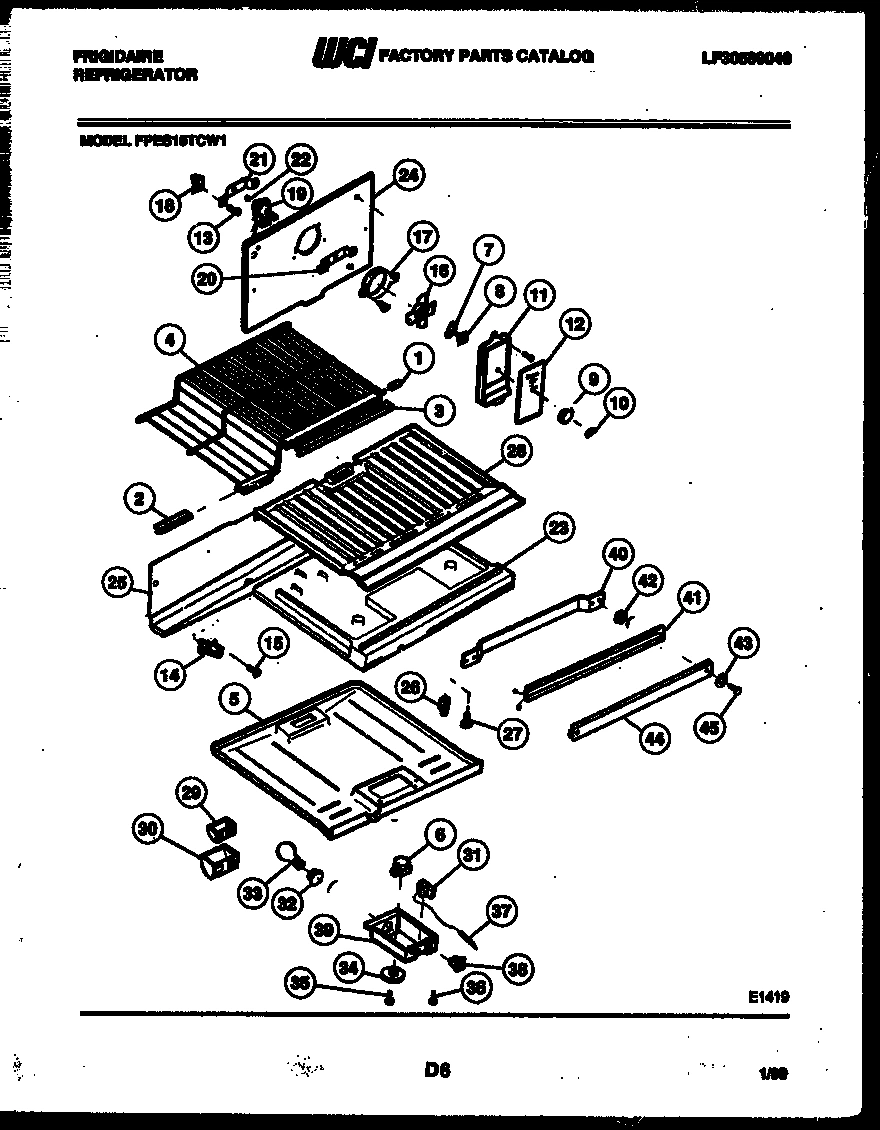

04 - SHELVES AND SUPPORTS

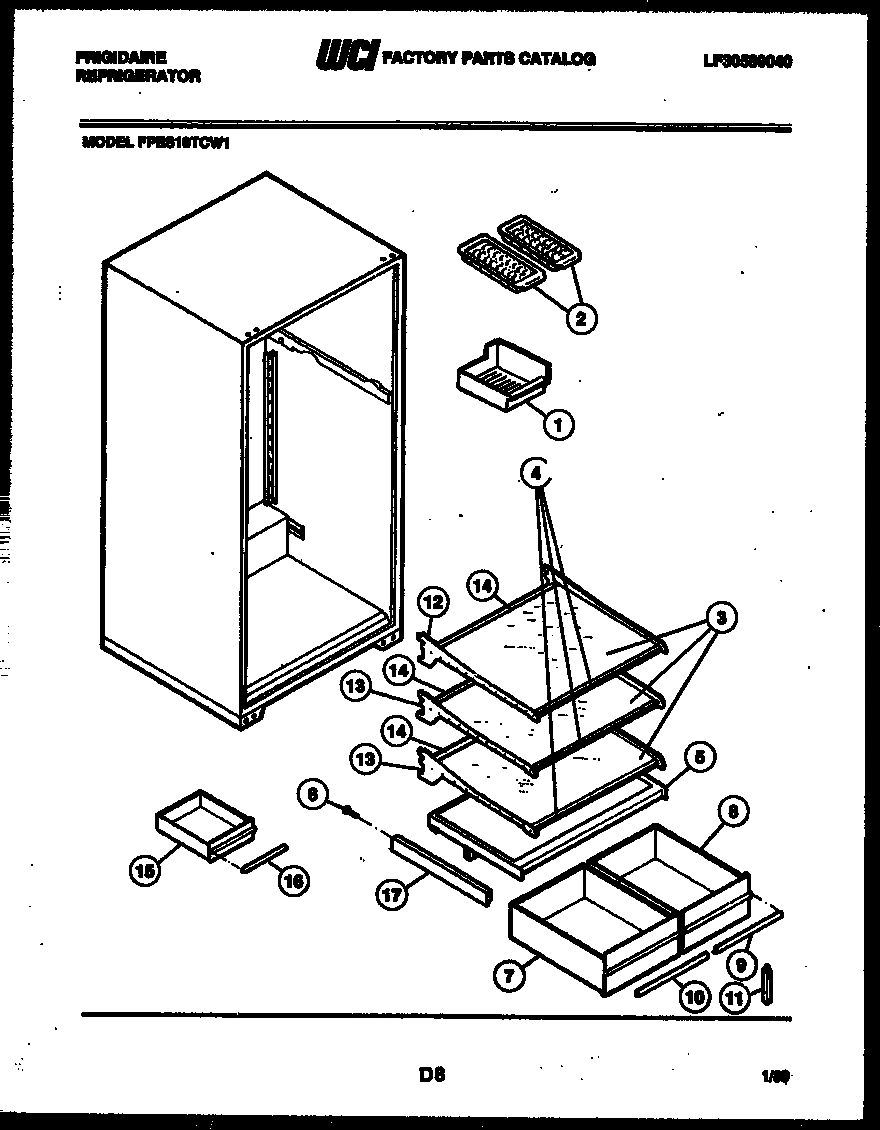

05 - SHELVES AND SUPPORTS

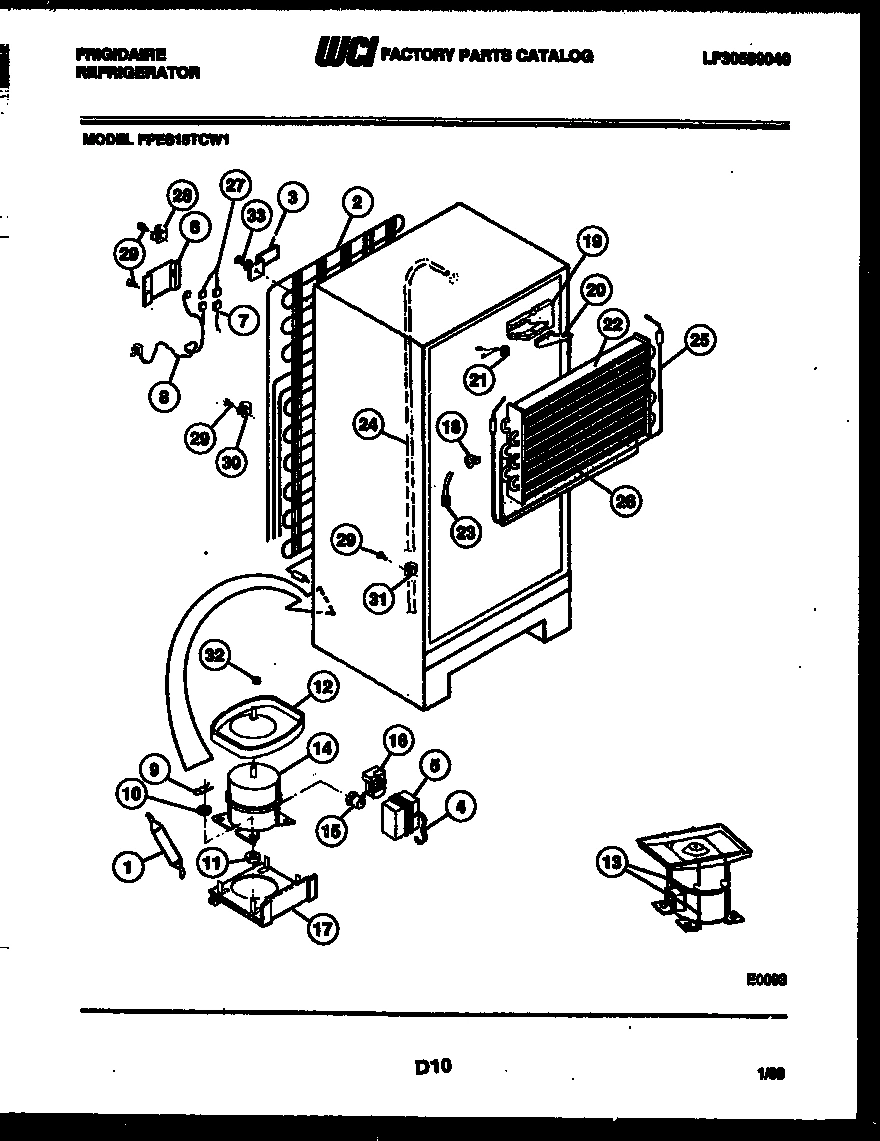

06 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux FPES18TCA1 REFRIGERATOR
*67930
INSULATION-BULK WCI 3007739 Contact Us For Availability
*67939
WCI 08012803 WCI 08012803 Contact Us For Availability
1
WCI 08009734 WCI 08009734 Contact Us For Availability
1
SHIM-UPPER WCI 08012829 Contact Us For Availability
1
PROTECTOR-CAP (2) WCI 08013638 Contact Us For Availability
2
HINGE-UPPER WCI 08012843 Contact Us For Availability
2
WCI 08009675 WCI 08009675 Contact Us For Availability
2
WCI 08000391 WCI 08000391 Contact Us For Availability
2
CONDENSER WCI 08008779 Contact Us For Availability
3
PANEL-INNER WCI 08009835 Contact Us For Availability
3
COVER-HINGE-AVOC WCI 08012930 Contact Us For Availability
3
WCI 08009676 WCI 08009676 Contact Us For Availability
3
WCI 08014803 WCI 08014803 Contact Us For Availability
3
BRACKET-CONDENSER WCI 08003600 Contact Us For Availability
4
WCI 3203127 WCI 3203127 Contact Us For Availability
4
WASHER-NYLON (3) WCI 08000007 Contact Us For Availability
4
WCI 08009860 WCI 08009860 Contact Us For Availability
4
WCI 08010652 WCI 08010652 Contact Us For Availability
4
STRAP-BALE WCI 08016584 Contact Us For Availability
5
WASHER-NYLON WCI 08000100 Contact Us For Availability
5
TOP-REFRIGERATOR WCI 3016367 Contact Us For Availability
5
WCI 08016583 WCI 08016583 Contact Us For Availability
6
WCI 08009838 WCI 08009838 Contact Us For Availability
6
ROLLER ASSY-FRONT (2) WCI 08009760 Contact Us For Availability
6
WCI 08013644 WCI 08013644 Contact Us For Availability
6A
GASKET-CRISPER COVER (NON-ILLUSTRATED) WCI 08013650 Contact Us For Availability
7
WCI 08000179 WCI 08000179 Contact Us For Availability
7
NUT-ANCHOR (2) WCI 08003584 Contact Us For Availability
7
DAMPER WCI 08000066 Contact Us For Availability
7
WCI 08009839 WCI 08009839 Contact Us For Availability
7
HARNESS-COMPRESSOR WCI 08009628 Contact Us For Availability
8
WCI 08000175 WCI 08000175 Contact Us For Availability
8
WCI 08003583 WCI 08003583 Contact Us For Availability
8
NUT-PUSH WCI 08000067 Contact Us For Availability
8
WCI 08009827 WCI 08009827 Contact Us For Availability
8
WCI 08000064 WCI 08000064 Contact Us For Availability
9
HANDLE-COMPLETE WCI 08009803 Contact Us For Availability
9
WCI 08009773 WCI 08009773 Contact Us For Availability
9
WCI 08009793 WCI 08009793 Contact Us For Availability
9
WCI 08009847 WCI 08009847 Contact Us For Availability
9
CLIP-COMPR MTG WCI 08003596 Contact Us For Availability
10
WCI 08010232 WCI 08010232 Contact Us For Availability
10
BOLT (2) WCI 08009762 Contact Us For Availability
10
LABEL, KNOB WCI 08009823 Contact Us For Availability
10
WCI 08009850 WCI 08009850 Contact Us For Availability
10
WASHER-COMPR MTG WCI 08003597 Contact Us For Availability
11
CAP (2) WCI 08010239 Contact Us For Availability
11
SPRING WCI 08009790 Contact Us For Availability
11
FAN COVER WCI 08009817 Contact Us For Availability
11
SUPPORT-CRISPER COVER WCI 3001326 Contact Us For Availability
12
CAP (2) WCI 08010238 Contact Us For Availability
12
BOLT (2) WCI 08009761 Contact Us For Availability
12
WCI 08009822 WCI 08009822 Contact Us For Availability
12
WCI 08014804 WCI 08014804 Contact Us For Availability
12
DEFROST PAN-ORIGINAL COMPR WCI 3001349 Contact Us For Availability
12A
DEFROST PAN-SERVICE COMPR WCI 08012951 Contact Us For Availability
13
WCI 3916127 WCI 3916127 Contact Us For Availability
13
WASHER-NYLON (2) WCI 08011326 Contact Us For Availability
13
WCI 08014793 WCI 08014793 Contact Us For Availability
13
DEFROST PAN RETAINER KIT-SERVICE COMPR WCI 3916001 Contact Us For Availability
13A
SUPPORT-BASE-CAB (2) (NON-ILLUSTRATED) WCI 08013678 Contact Us For Availability
13A
WCI 08009692 WCI 08009692 Contact Us For Availability
14
WCI 08012007 WCI 08012007 Contact Us For Availability
14
SPOUT-DRAIN WCI 08000056 Contact Us For Availability
14
WCI 08009695 WCI 08009695 Contact Us For Availability
14
COMPRESSOR WCI G175410 Contact Us For Availability
15
PANEL, FREEZER (AVOC) WCI 08010021 Contact Us For Availability
15
WCI 08009855 WCI 08009855 Contact Us For Availability
15
WCI 3201563 WCI 3201563 Contact Us For Availability
16
SCREW (6) WCI 08013645 Contact Us For Availability
16
SHIM WCI 08000755 Contact Us For Availability
16
WCI 08009848 WCI 08009848 Contact Us For Availability
16
WCI 3201562 WCI 3201562 Contact Us For Availability
17
WCI 08017609 WCI 08017609 Contact Us For Availability
17
RING-ORIFICE WCI 08000124 Contact Us For Availability
17
WCI 08008650 WCI 08008650 Contact Us For Availability
17
PLATE-MOUNTING WCI 08013663 Contact Us For Availability
17A
WCI 08008651 WCI 08008651 Contact Us For Availability
18
WCI 08015544 WCI 08015544 Contact Us For Availability
18
WCI 08000082 WCI 08000082 Contact Us For Availability
18
BRACKET-CONNECTOR WCI 08000107 Contact Us For Availability
18
SCREW, HANGER (2) WCI 08014528 Contact Us For Availability
18
BLOCK LS WCI 08017227 Contact Us For Availability
19
WCI 08009789 WCI 08009789 Contact Us For Availability
19
BUTTON-PLUG (3) WCI 08016571 Contact Us For Availability
19
BLOCK RS WCI 08013648 Contact Us For Availability
20
TUBE-RUBBER (2) WCI 08000004 Contact Us For Availability
20
WCI 08000043 WCI 08000043 Contact Us For Availability
20
PLUG-BLOCK RS WCI 08013646 Contact Us For Availability
21
TUBE-DRAIN WCI 08010012 Contact Us For Availability
21
WCI 08000042 WCI 08000042 Contact Us For Availability
22
RACK-DOOR WCI 3203128 Contact Us For Availability
22
RING-SEAL WCI 08009755 Contact Us For Availability
22
WCI 08000062 WCI 08000062 Contact Us For Availability
23
DIVIDER-STYROFOAM WCI 3001504 Contact Us For Availability
24
PANEL, REFR (AVOC) WCI 08010019 Contact Us For Availability
24
WCI 08000757 WCI 08000757 Contact Us For Availability
24
COVER-COIL WCI 08009771 Contact Us For Availability
24
WCI 08010274 WCI 08010274 Contact Us For Availability
25
WCI 08009901 WCI 08009901 Contact Us For Availability
25
WCI 08000097 WCI 08000097 Contact Us For Availability
25
TROUGH-DRAIN WCI 08009772 Contact Us For Availability
26
TRIM WCI 08010233 Contact Us For Availability
26
CHANNEL (2) WCI 08000302 Contact Us For Availability
26
INSULATOR WCI 08009569 Contact Us For Availability
27
PANEL-INNER WCI 08009796 Contact Us For Availability
27
WCI 08000070 WCI 08000070 Contact Us For Availability
27
HARNESS-DIVIDER WCI 08006993 Contact Us For Availability
28
WCI 08000184 WCI 08000184 Contact Us For Availability
28
WCI 08015543 WCI 08015543 Contact Us For Availability
28
WCI 08000187 WCI 08000187 Contact Us For Availability
29
WCI 08000071 WCI 08000071 Contact Us For Availability
30
BUTTON-PLUG WCI 08003585 Contact Us For Availability
30
COVER, AIR DEFLECTOR WCI 3001546 Contact Us For Availability
31
CONTROL-COLD WCI 3200810 Contact Us For Availability
32
WCI 08006970 WCI 08006970 Contact Us For Availability
32
SOCKET, LIGHT WCI 3001267 Contact Us For Availability
32
NUT-LOCK WCI 08003611 Contact Us For Availability
33
WCI 08006971 WCI 08006971 Contact Us For Availability
34
WCI 08007126 WCI 08007126 Contact Us For Availability
34
KNOB-COLD CONTROL WCI 08010011 Contact Us For Availability
35
CORNER TRIM-AVOC WCI 08010015 Contact Us For Availability
36
WCI 08000009 WCI 08000009 Contact Us For Availability
38
BASE-CABINET WCI 08010092 Contact Us For Availability
38
WCI 08006987 WCI 08006987 Contact Us For Availability
39
CONTROL BOX WCI 08009781 Contact Us For Availability
40
STRAP-MULLION WCI 08010008 Contact Us For Availability
41
WCI 08000058 WCI 08000058 Contact Us For Availability
42
WCI 3200464 WCI 3200464 Contact Us For Availability
43
WASHER (2) WCI 08003607 Contact Us For Availability
44
WCI 08010026 WCI 08010026 Contact Us For Availability
45
WCI 08012258 WCI 08012258 Contact Us For Availability
× ![]()
