Model Electrolux FPEM18PL0 REFRIGERATOR – Common Parts & Diagrams

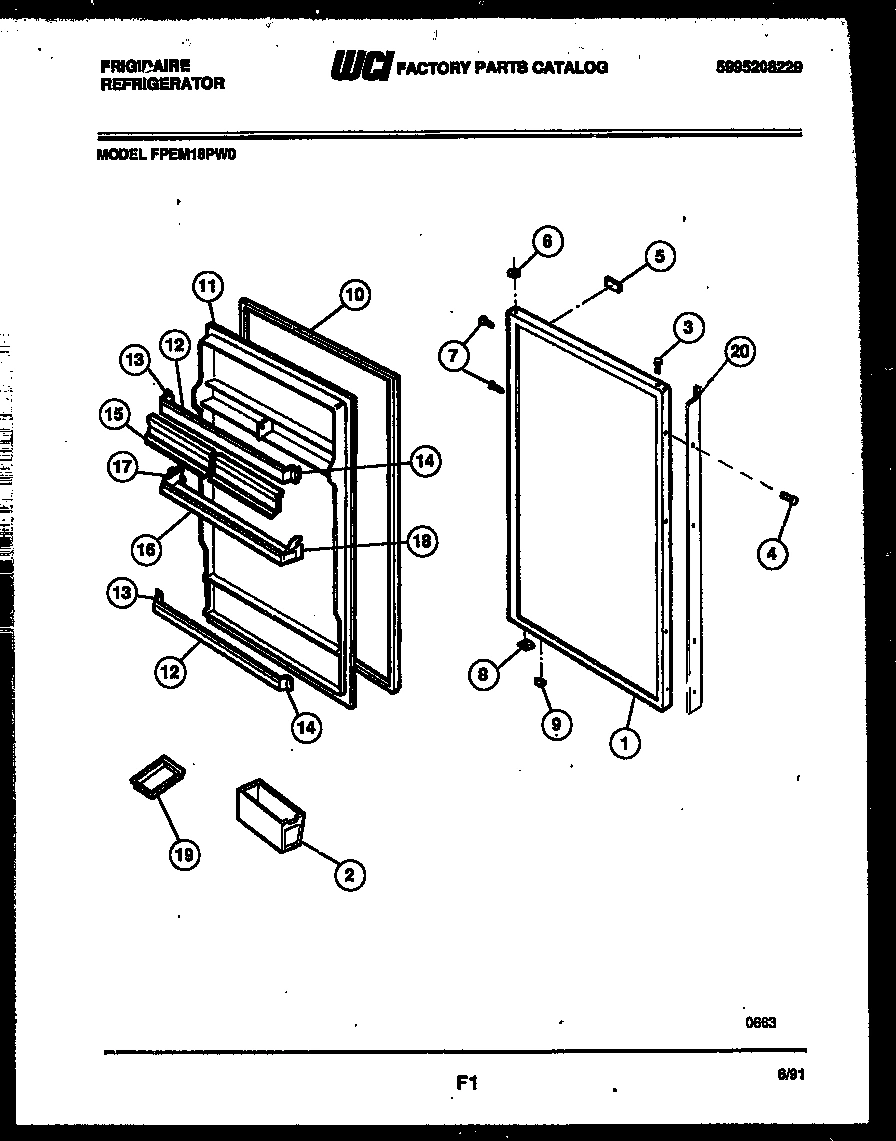

02 - DOOR PARTS

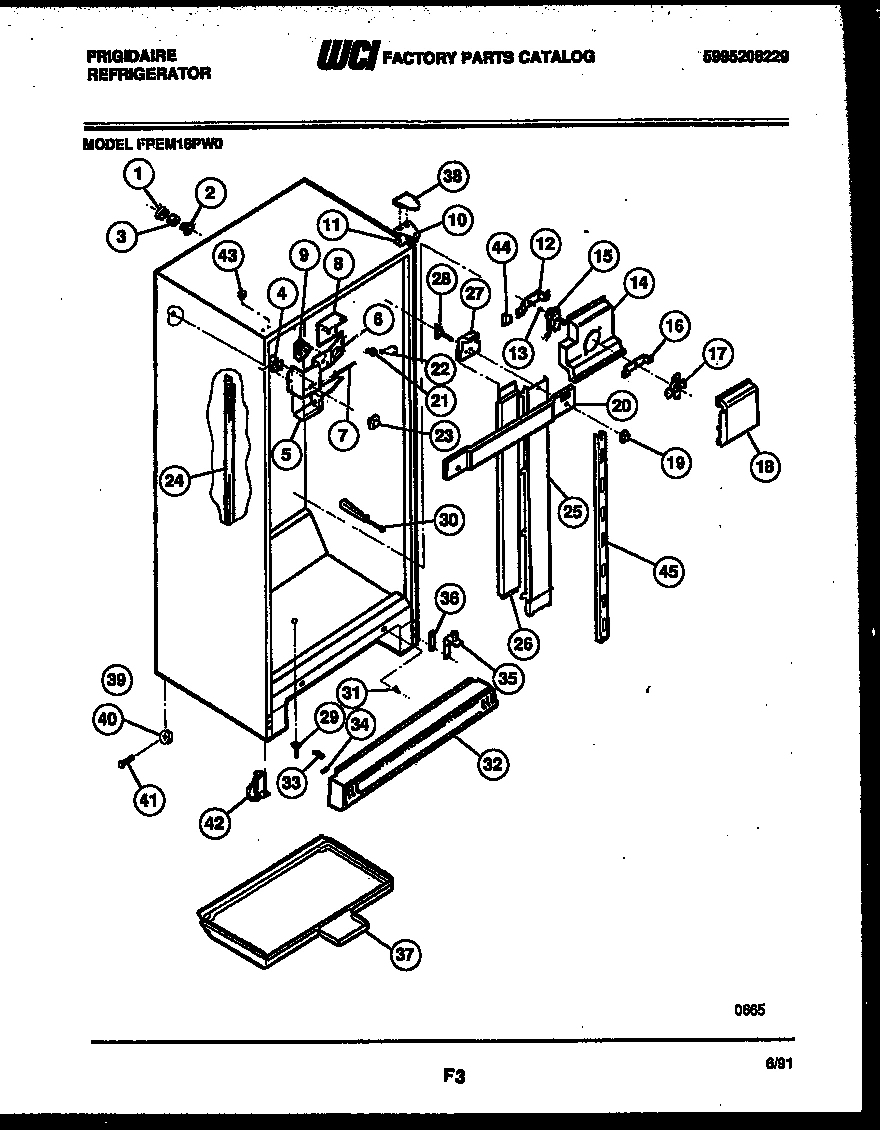

03 - CABINET PARTS
04 - SHELVES AND SUPPORTS
05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux FPEM18PL0 REFRIGERATOR
*42053
PLUG, FREEZER LINER (3) WCI 5308016571 Contact Us For Availability
*42053
TAPPING PLATE-HINGE (2) WCI 5308012296 Contact Us For Availability
*42053
SCREW-MTG (3) WCI 5308016568 Contact Us For Availability
*42055
GASKET-CRISPER WCI 3018752 Contact Us For Availability
*42058
WIRING HARNESS-COMPRESSOR & LIGHTS WCI 08008781 Contact Us For Availability
*42059
CLAMP-TUBE (4) WCI 530800133 Contact Us For Availability
*42059
INSULATOR-HARNESS EVAPORATOR WCI 5308009645 Contact Us For Availability
1
FERRULE-INNER (2) WCI 5303001286 Contact Us For Availability
1
WCI 5303210056 WCI 5303210056 Contact Us For Availability
1
WCI G000189439 WCI G000189439 Contact Us For Availability
1A
RETAINER-GLASS (3) (NON-ILLUSTRATED) WCI 5303209742 Contact Us For Availability
2
FERRULE-OUTER (2) WCI 5303001287 Contact Us For Availability
2
WCI 5303210052 WCI 5303210052 Contact Us For Availability
2
BRACKET-MOUNTING (4) WCI 5303001342 Contact Us For Availability
2A
WCI 5303209274 WCI 5303209274 Contact Us For Availability
2A
WASHER-EXT TOOTHLOCK (2) (NON-ILLUSTRATED) WCI 5308009617 Contact Us For Availability
3
PLUG, HINGE, ALMOND WCI 5303001308 Contact Us For Availability
3
TUBE-RUBBER (4) WCI 5303001198 Contact Us For Availability
3
WCI 5303210061 WCI 5303210061 Contact Us For Availability
3A
RETAINER-GLASS (2) (NON-ILLUSTRATED) WCI 5303209263 Contact Us For Availability
4
WCI 5308000068 WCI 5308000068 Contact Us For Availability
4
WCI 5303210058 WCI 5303210058 Contact Us For Availability
4
WCI 5308000021 WCI 5308000021 Contact Us For Availability
4A
HARNESS-WIRING (NON-ILLUSTRATED) WCI 5300169478 Contact Us For Availability
4B
WCI 5303001260 WCI 5303001260 Contact Us For Availability
5
COVER-CONTROL WCI 5308008706 Contact Us For Availability
5
WCI 5303210062 WCI 5303210062 Contact Us For Availability
5
WCI 5316254901 WCI 5316254901 Contact Us For Availability
6
BRACKET-MOUNTING WCI 08008707 Contact Us For Availability
6
WCI 5303210053 WCI 5303210053 Contact Us For Availability
6A
INSULATOR-CONTROL BOX (NON-ILLUSTRATED) WCI 08009649 Contact Us For Availability
7
HOUSING-TUBE WCI 5300170287 Contact Us For Availability
7
WCI 3018730 WCI 3018730 Contact Us For Availability
7
WCI 3201680 WCI 3201680 Contact Us For Availability
8
WCI 5303007173 WCI 5303007173 Contact Us For Availability
8
WCI 01121808 WCI 01121808 Contact Us For Availability
8
DEFLECTOR-LIGHT WCI 5308008709 Contact Us For Availability
9
WCI 5303275276 WCI 5303275276 Contact Us For Availability
9A
WCI 08003581 WCI 08003581 Contact Us For Availability
10
WCI 5308012843 WCI 5308012843 Contact Us For Availability
10
TRIM-FRONT (2) WCI 5303273189 Contact Us For Availability
11
WCI 5303001037 WCI 5303001037 Contact Us For Availability
11
TRIM-FRONT WCI 5303272820 Contact Us For Availability
11
COMPRESSOR WITH ELECTRICALS WCI 5303916007 Contact Us For Availability
12
WCI 3018736 WCI 3018736 Contact Us For Availability
12
BRACKET-REAR MOTOR WCI 5303205119 Contact Us For Availability
12
WCI 5303210054 WCI 5303210054 Contact Us For Availability
12
CLIP-MOUNTING (3) WCI 5308003596 Contact Us For Availability
13
WCI 5303204690 WCI 5303204690 Contact Us For Availability
13
WCI 5300157666 WCI 5300157666 Contact Us For Availability
13
WCI 5303210060 WCI 5303210060 Contact Us For Availability
13
WASHER-MOUNTING (3) WCI 5308003633 Contact Us For Availability
14
WCI 5303204689 WCI 5303204689 Contact Us For Availability
14
HOUSING-MOTOR WCI 08008710 Contact Us For Availability
14
TRIM-REAR WCI 5303210045 Contact Us For Availability
15
DAIRY DOOR LH WCI 3018739 Contact Us For Availability
15
COVER-PAN UPPER WCI 3018647 Contact Us For Availability
15
CAPACITOR-RUN WCI 5303916391 Contact Us For Availability
15A
DAIRY DOOR RH (NON-ILLUSTRATED) WCI 3018740 Contact Us For Availability
16
WCI 5303206687 WCI 5303206687 Contact Us For Availability
16
BRACKET-FRONT MOTOR WCI 5303205118 Contact Us For Availability
16
WCI 3018750 WCI 3018750 Contact Us For Availability
17
CAP-RACK LH WCI 5303206685 Contact Us For Availability
17
PAN-UPPER WCI 3018648 Contact Us For Availability
18
CAP-RACK RH WCI 5303206684 Contact Us For Availability
18
COVER-FAN WCI 5308008711 Contact Us For Availability
18
COVER-PAN LOWER WCI 3018649 Contact Us For Availability
18
WCI 5308000144 WCI 5308000144 Contact Us For Availability
19
WCI 08008712 WCI 08008712 Contact Us For Availability
19
WCI 3018751 WCI 3018751 Contact Us For Availability
19
WCI 5300187141 WCI 5300187141 Contact Us For Availability
20
WCI 5303275564 WCI 5303275564 Contact Us For Availability
20
WCI 08008713 WCI 08008713 Contact Us For Availability
20
WCI 3007378 WCI 3007378 Contact Us For Availability
20A
WCI 3018745 WCI 3018745 Contact Us For Availability
20B
WCI 3018746 WCI 3018746 Contact Us For Availability
21
WCI 5303015180 WCI 5303015180 Contact Us For Availability
21A
INSULATION-MOISTURE BARRIER (NON-ILLUSTRATED) WCI 3006636 Contact Us For Availability
22
WCI 08008749 WCI 08008749 Contact Us For Availability
22A
WCI 5308008750 WCI 5308008750 Contact Us For Availability
23
WCI 5308008716 WCI 5308008716 Contact Us For Availability
23
WCI 5300170779 WCI 5300170779 Contact Us For Availability
24
CHANNEL, RH AND LH WCI 5308002744 Contact Us For Availability
25
WCI 08008718 WCI 08008718 Contact Us For Availability
25
HOUSING OUTER LINER-TOP WCI 3017661 Contact Us For Availability
26
INSULATION-AIR DUCT WCI 3015056 Contact Us For Availability
26
INSULATION FREEZER-UPPER WCI 5308008753 Contact Us For Availability
27
INSULATION-UPPER DUCT WCI 3015057 Contact Us For Availability
27
INSULATION FREEZER-MID WCI 5308008754 Contact Us For Availability
28
WCI 08008721 WCI 08008721 Contact Us For Availability
28
INSULATION FREEZER-LOWER WCI 5308008755 Contact Us For Availability
28A
PUSH NUT (NON-ILLUSTRATED) WCI 5300171508 Contact Us For Availability
28A
INSULATION-FRONT (NON-ILLUSTRATED) WCI 5300169964 Contact Us For Availability
29
WCI 5300164843 WCI 5300164843 Contact Us For Availability
29
WCI 08008756 WCI 08008756 Contact Us For Availability
30
DAMPER-MEAT KEEPER WCI 5317000101 Contact Us For Availability
30
WCI 08008766 WCI 08008766 Contact Us For Availability
31
WCI 08008762 WCI 08008762 Contact Us For Availability
31A
WCI 5300171694 WCI 5300171694 Contact Us For Availability
32
GRILLE WCI 5303016726 Contact Us For Availability
32
WCI 5308008765 WCI 5308008765 Contact Us For Availability
33
WCI 5308000091 WCI 5308000091 Contact Us For Availability
33
WCI 5308008767 WCI 5308008767 Contact Us For Availability
34
WCI 5300154397 WCI 5300154397 Contact Us For Availability
34
WCI 08008769 WCI 08008769 Contact Us For Availability
35
HINGE-BOTTOM WCI 5303001271 Contact Us For Availability
35
WCI 5308008771 WCI 5308008771 Contact Us For Availability
35A
WASHER-BOTTOM HINGE (NON-ILLUSTRATED) WCI 5308000007 Contact Us For Availability
35B
SCREW-MOUNTING (2) (NON-ILLUSTRATED) WCI 5303001041 Contact Us For Availability
35C
NUT-MOUNTING TWIN (4) (NON-ILLUSTRATED) WCI 5303001273 Contact Us For Availability
36
SHIM-BOTTOM HINGE WCI 5303001272 Contact Us For Availability
36
WCI 08008770 WCI 08008770 Contact Us For Availability
36A
PIN-SHOULDER (2) (NON-ILLUSTRATED) WCI 5308000013 Contact Us For Availability
36B
SPEED NUT J (2) (NON-ILLUSTRATED) WCI 5300077210 Contact Us For Availability
37
PAN-DEFROST WCI 5300174360 Contact Us For Availability
37
WCI 3018753 WCI 3018753 Contact Us For Availability
38
COVER-HINGE-ALMOND WCI 5308012933 Contact Us For Availability
38
WCI 3018754 WCI 3018754 Contact Us For Availability
39
PUSH NUT (2) WCI 5303001028 Contact Us For Availability
39
GASKET-FRZR 32 X 3/8 WCI 5317053302 Contact Us For Availability
39A
BUTTON PLUG 1-1/64 (NON-ILLUSTRATED) WCI 08002769 Contact Us For Availability
39B
BUTTON PLUG 1-1/2 (NON-ILLUSTRATED) WCI 5300172384 Contact Us For Availability
40
WCI 5303001030 WCI 5303001030 Contact Us For Availability
40
WCI 5303001197 WCI 5303001197 Contact Us For Availability
41
WCI 5308000266 WCI 5308000266 Contact Us For Availability
42
ROLLER-FRONT (2) WCI 5308000118 Contact Us For Availability
42A
BOLT (2) (NON-ILLUSTRATED) WCI 5308009568 Contact Us For Availability
43
PLUG - HINGE - ALMOND WCI 5303001389 Contact Us For Availability
44
WCI 5308000107 WCI 5308000107 Contact Us For Availability
45
WCI 3018720 WCI 3018720 Contact Us For Availability
× ![]()
