Model Electrolux FPEM18FA0 REFRIGERATOR – Common Parts & Diagrams
02 - DOOR PARTS

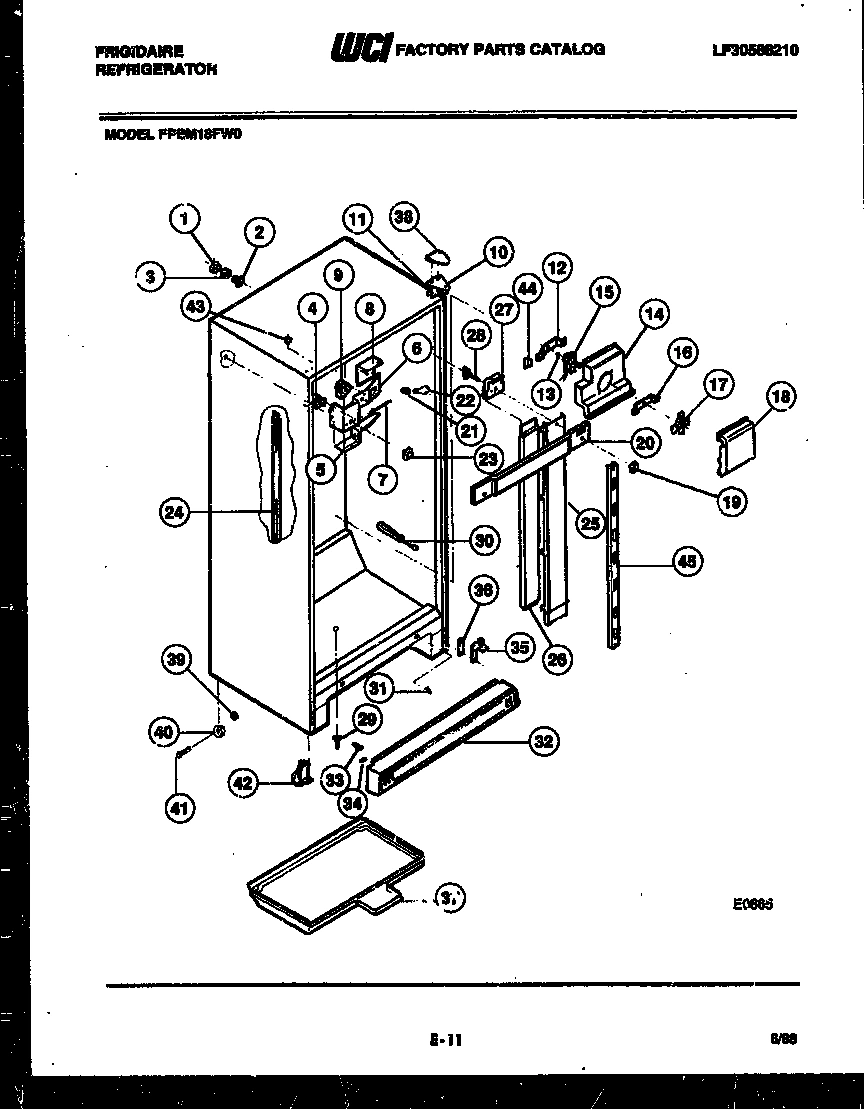

03 - CABINET PARTS

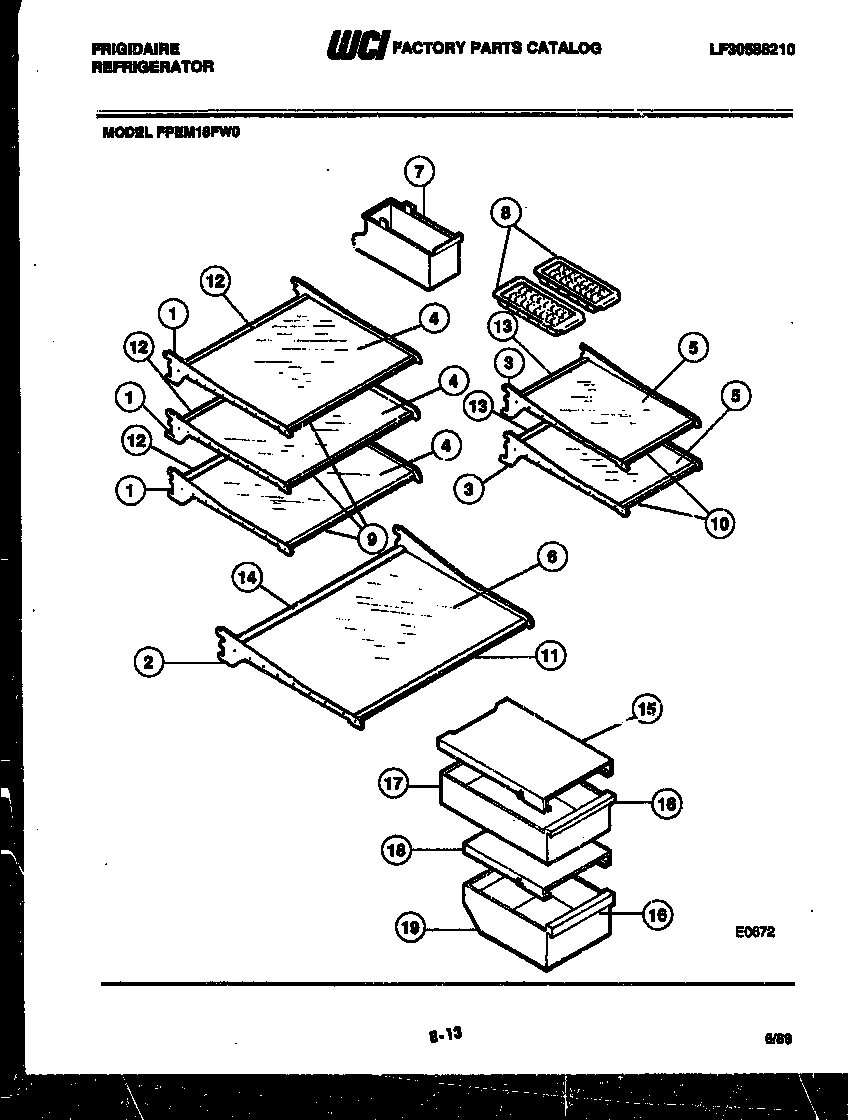

04 - SHELVES AND SUPPORTS

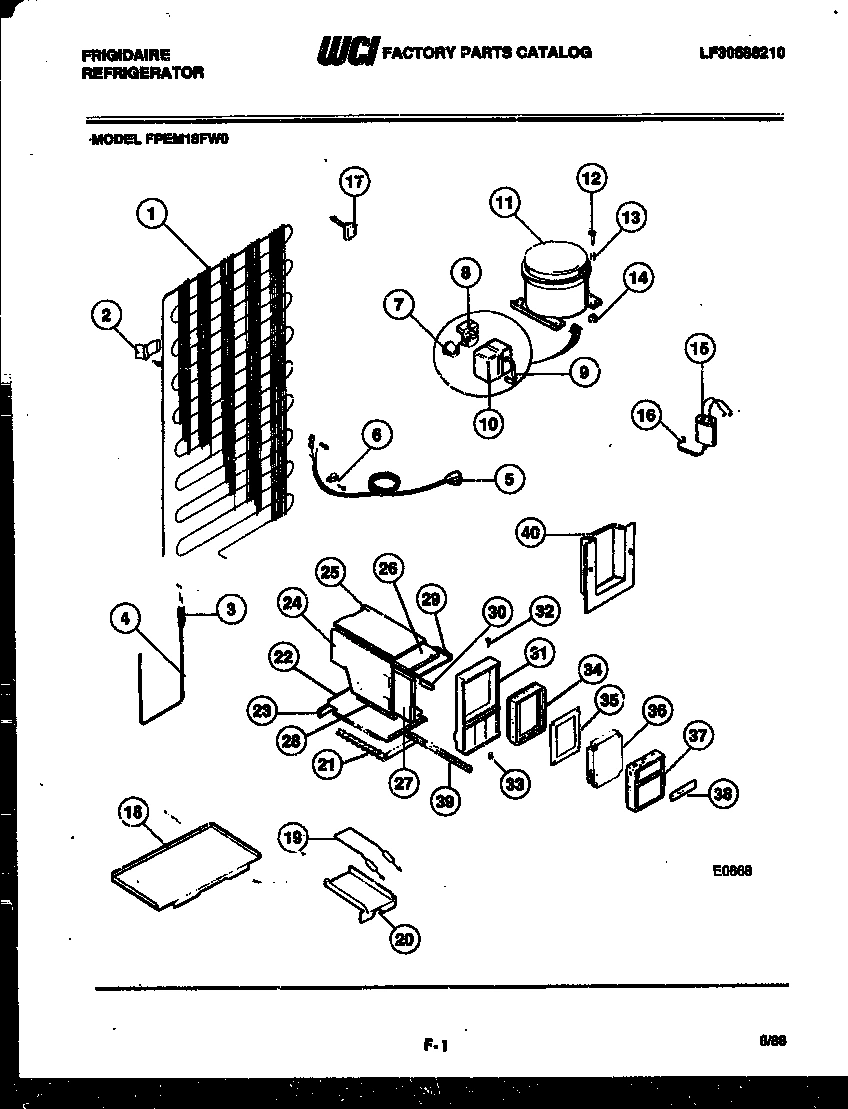

05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux FPEM18FA0 REFRIGERATOR
*24144
TAPPING PLATE-HINGE (2) WCI 8000033 Contact Us For Availability
*24144
PLUG-FREEZER LINER (3) WCI 8016571 Contact Us For Availability
*24145
GASKET-CRISPER WCI 3018752 Contact Us For Availability
*24148
WCI 8008781 WCI 8008781 Contact Us For Availability
*24148
WCI 8009645 WCI 8009645 Contact Us For Availability
1
WCI 8017627 WCI 8017627 Contact Us For Availability
1
FERRULE-INNER (2) WCI 8006970 Contact Us For Availability
1
WCI 3018721 WCI 3018721 Contact Us For Availability
1
WCI 3007561 WCI 3007561 Contact Us For Availability
1A
WCI 3018722 WCI 3018722 Contact Us For Availability
2
WCI 3018733 WCI 3018733 Contact Us For Availability
2
FERRULE-OUTER (2) WCI 8006971 Contact Us For Availability
2
WCI 3018723 WCI 3018723 Contact Us For Availability
2
WCI 8002600 WCI 8002600 Contact Us For Availability
2A
RETAINER-GLASS (NON-ILLUSTRATED) WCI 3018724 Contact Us For Availability
2A
SCREW-MOUNTING (4) (NON-ILLUSTRATED) WCI 8000039 Contact Us For Availability
3
PLUG-HINGE-AVOCADO WCI 8000175 Contact Us For Availability
3
TUBE-RUBBER (4) WCI 8000004 Contact Us For Availability
3
WCI 3018725 WCI 3018725 Contact Us For Availability
3
DRIER WCI 8000027 Contact Us For Availability
3A
WCI 3018726 WCI 3018726 Contact Us For Availability
4
SCREW (4) WCI 8013645 Contact Us For Availability
4
WCI 8000068 WCI 8000068 Contact Us For Availability
4
WCI 3018727 WCI 3018727 Contact Us For Availability
4
WCI 8008774 WCI 8008774 Contact Us For Availability
4A
WCI 8008729 WCI 8008729 Contact Us For Availability
4B
SCREW-CONTROL MOUNTING (2) (NON-ILLUSTRATED) WCI 8000009 Contact Us For Availability
5
NAMEPLATE ASSEMBLY WCI 3018632 Contact Us For Availability
5
WCI 8008706 WCI 8008706 Contact Us For Availability
5
WCI 3018728 WCI 3018728 Contact Us For Availability
5
WCI 8000064 WCI 8000064 Contact Us For Availability
6
WCI 8012007 WCI 8012007 Contact Us For Availability
6
WCI 8008707 WCI 8008707 Contact Us For Availability
6
WCI 3018729 WCI 3018729 Contact Us For Availability
6
CLAMP-CORD WCI 8002756 Contact Us For Availability
6A
WCI 8009649 WCI 8009649 Contact Us For Availability
7
PLUG-HANDLE-AVOCADO WCI 8000179 Contact Us For Availability
7
WCI 8008708 WCI 8008708 Contact Us For Availability
7
WCI 3018730 WCI 3018730 Contact Us For Availability
7
WCI 8017572 WCI 8017572 Contact Us For Availability
7A
CLIP-OVERLOAD (NON-ILLUSTRATED) WCI 8017232 Contact Us For Availability
8
WCI 8000255 WCI 8000255 Contact Us For Availability
8
WCI 8008709 WCI 8008709 Contact Us For Availability
8
ICE TRAY-PLASTIC (2) WCI 1121808 Contact Us For Availability
8
WCI 8017226 WCI 8017226 Contact Us For Availability
8A
SCREW-MOUNTING (NON-ILLUSTRATED) WCI 8011745 Contact Us For Availability
9
WCI 8000790 WCI 8000790 Contact Us For Availability
9
WCI 3018731 WCI 3018731 Contact Us For Availability
9
CLAMP-COVER WCI 8000117 Contact Us For Availability
9A
SCREW-GROUND (2) (NON-ILLUSTRATED) WCI 8003581 Contact Us For Availability
9B
SCREW MOUNTING (2) (NON-ILLUSTRATED) WCI 8000008 Contact Us For Availability
10
WCI 3018734 WCI 3018734 Contact Us For Availability
10
WCI 8012843 WCI 8012843 Contact Us For Availability
10
TRIM-FRONT (2) WCI 3018646 Contact Us For Availability
10
WCI 8006982 WCI 8006982 Contact Us For Availability
10A
SCREW-MOUNTING (NON-ILLUSTRATED) WCI 8000123 Contact Us For Availability
10B
WASHER-TOP HINGE (NON-ILLUSTRATED) WCI 8002738 Contact Us For Availability
11
WCI 3018735 WCI 3018735 Contact Us For Availability
11
WCI 8012829 WCI 8012829 Contact Us For Availability
11
TRIM-FRONT WCI 3018732 Contact Us For Availability
11
COMPRESSOR WITH ELECTRICALS WCI 3916007 Contact Us For Availability
12
WCI 3018736 WCI 3018736 Contact Us For Availability
12
BRACKET-REAR MOTOR WCI 8000042 Contact Us For Availability
12
WCI 3018747 WCI 3018747 Contact Us For Availability
12
SCREW-MOUNTING (3) WCI 8000029 Contact Us For Availability
12A
SCREW MOUNTING (NON-ILLUSTRATED) WCI 8002748 Contact Us For Availability
13
WCI 3018737 WCI 3018737 Contact Us For Availability
13
BUSHING (2) WCI 8000032 Contact Us For Availability
13
WCI 3018748 WCI 3018748 Contact Us For Availability
13
SLEEVE-MOUNTING (3) WCI 8002758 Contact Us For Availability
14
WCI 3018738 WCI 3018738 Contact Us For Availability
14
WCI 8008710 WCI 8008710 Contact Us For Availability
14
TRIM-REAR WCI 3018749 Contact Us For Availability
14
GROMMET-MTG (4) WCI 8008778 Contact Us For Availability
15
WCI 3018739 WCI 3018739 Contact Us For Availability
15
WCI 8000036 WCI 8000036 Contact Us For Availability
15
COVER-PAN UPPER WCI 3018647 Contact Us For Availability
15
CAPACITOR-RUN WCI 3001650 Contact Us For Availability
15A
WCI 3018740 WCI 3018740 Contact Us For Availability
16
WCI 8008734 WCI 8008734 Contact Us For Availability
16
BRACKET-FRONT MOTOR WCI 8000043 Contact Us For Availability
16
WCI 3018750 WCI 3018750 Contact Us For Availability
16
WCI 8017231 WCI 8017231 Contact Us For Availability
17
CAP-RACK LS WCI 3018741 Contact Us For Availability
17
WCI 8000010 WCI 8000010 Contact Us For Availability
17
PAN-UPPER WCI 3018648 Contact Us For Availability
17
WCI 8000073 WCI 8000073 Contact Us For Availability
18
CAP-RACK RS WCI 3018742 Contact Us For Availability
18
WCI 8008711 WCI 8008711 Contact Us For Availability
18
COVER-PAN LOWER WCI 3018649 Contact Us For Availability
18
WCI 8007120 WCI 8007120 Contact Us For Availability
18A
SCREW-MOUNTING (4) (NON-ILLUSTRATED) WCI 8000812 Contact Us For Availability
18B
RIVET-MOUNTING (4) (NON-ILLUSTRATED) WCI 8002773 Contact Us For Availability
19
WCI 8008712 WCI 8008712 Contact Us For Availability
19
WCI 3018751 WCI 3018751 Contact Us For Availability
19
WCI 3007377 WCI 3007377 Contact Us For Availability
19A
STRAP-HEATER (NON-ILLUSTRATED) WCI 8000110 Contact Us For Availability
20
HANDLE ASSEMBLY WCI 3018744 Contact Us For Availability
20
WCI 8008713 WCI 8008713 Contact Us For Availability
20
WCI 3007378 WCI 3007378 Contact Us For Availability
20A
WCI 3018745 WCI 3018745 Contact Us For Availability
20B
WCI 3018746 WCI 3018746 Contact Us For Availability
21
WCI 8010237 WCI 8010237 Contact Us For Availability
21
LIGHT SOCKET WCI 8000815 Contact Us For Availability
21
WCI 3015180 WCI 3015180 Contact Us For Availability
21A
WCI 8009646 WCI 8009646 Contact Us For Availability
22
END CAP-TOP WCI 8010238 Contact Us For Availability
22
WCI 8000801 WCI 8000801 Contact Us For Availability
22
WCI 8008749 WCI 8008749 Contact Us For Availability
22A
WCI 8008750 WCI 8008750 Contact Us For Availability
23
END CAP-BOTTOM WCI 8010239 Contact Us For Availability
23
WCI 8008716 WCI 8008716 Contact Us For Availability
23
WCI 8008751 WCI 8008751 Contact Us For Availability
24
CHANNEL RS AND LS WCI 8002744 Contact Us For Availability
24
WCI 8008752 WCI 8008752 Contact Us For Availability
25
WCI 8008718 WCI 8008718 Contact Us For Availability
25
WCI 8008777 WCI 8008777 Contact Us For Availability
26
INSULATION-LOWER DUCT WCI 3015056 Contact Us For Availability
26
WCI 8008753 WCI 8008753 Contact Us For Availability
27
INSULATION-UPPER DUCT WCI 3015057 Contact Us For Availability
27
WCI 8008754 WCI 8008754 Contact Us For Availability
28
WCI 8008721 WCI 8008721 Contact Us For Availability
28
WCI 8008755 WCI 8008755 Contact Us For Availability
28A
WCI 8008722 WCI 8008722 Contact Us For Availability
28A
WCI 8008764 WCI 8008764 Contact Us For Availability
29
WCI 8002739 WCI 8002739 Contact Us For Availability
29
WCI 8008756 WCI 8008756 Contact Us For Availability
30
WCI 8008723 WCI 8008723 Contact Us For Availability
30
WCI 8008766 WCI 8008766 Contact Us For Availability
30A
SCREW-MOUNTING (NON-ILLUSTRATED) WCI 8002728 Contact Us For Availability
31
WCI 8000729 WCI 8000729 Contact Us For Availability
31
WCI 8008762 WCI 8008762 Contact Us For Availability
31A
WCI 8008763 WCI 8008763 Contact Us For Availability
32
GRILLE WCI 3016726 Contact Us For Availability
32
WCI 8008765 WCI 8008765 Contact Us For Availability
33
WCI 8000091 WCI 8000091 Contact Us For Availability
33
WCI 8008767 WCI 8008767 Contact Us For Availability
34
PLUG-GRILLE WCI 8000168 Contact Us For Availability
34
WCI 8008769 WCI 8008769 Contact Us For Availability
35
HINGE-BOTTOM WCI 8000059 Contact Us For Availability
35
WCI 8008771 WCI 8008771 Contact Us For Availability
35A
WASHER-BOTTOM HINGE (NON-ILLUSTRATED) WCI 8000007 Contact Us For Availability
35B
WCI 8002737 WCI 8002737 Contact Us For Availability
35C
NUT-MOUNTING TWIN (4) (NON-ILLUSTRATED) WCI 8000011 Contact Us For Availability
36
SHIM-BOTTOM HINGE WCI 8000088 Contact Us For Availability
36
WCI 8008770 WCI 8008770 Contact Us For Availability
36A
PIN-SHOULDER (2) (NON-ILLUSTRATED) WCI 8000013 Contact Us For Availability
36B
SPEED NUT (2) (NON-ILLUSTRATED) WCI 8000001 Contact Us For Availability
37
WCI 8008724 WCI 8008724 Contact Us For Availability
37
WCI 3018753 WCI 3018753 Contact Us For Availability
38
COVER, HINGE, AVOCADO WCI 8012930 Contact Us For Availability
38
WCI 3018754 WCI 3018754 Contact Us For Availability
39
PUSH NUT (2) WCI 8000067 Contact Us For Availability
39
WCI 8008759 WCI 8008759 Contact Us For Availability
39A
WCI 8002769 WCI 8002769 Contact Us For Availability
39B
WCI 8008730 WCI 8008730 Contact Us For Availability
40
ROLLER-REAR (2) WCI 8000265 Contact Us For Availability
40
WCI 8013644 WCI 8013644 Contact Us For Availability
41
PIN-ROLLER (2) WCI 8000266 Contact Us For Availability
42
ROLLER-FRONT (2) WCI 8000118 Contact Us For Availability
42A
BOLT (2) (NON-ILLUSTRATED) WCI 8009568 Contact Us For Availability
43
PLUG-HINGE AVOCADO WCI 8007126 Contact Us For Availability
44
BRACKET-CONNECTOR WCI 8000107 Contact Us For Availability
45
WCI 3018720 WCI 3018720 Contact Us For Availability
× ![]()
