Model Electrolux FPEH3077RFE RANGE/OVEN, ELECTRIC, FREESTANDING, 30 INCH – Common Parts & Diagrams

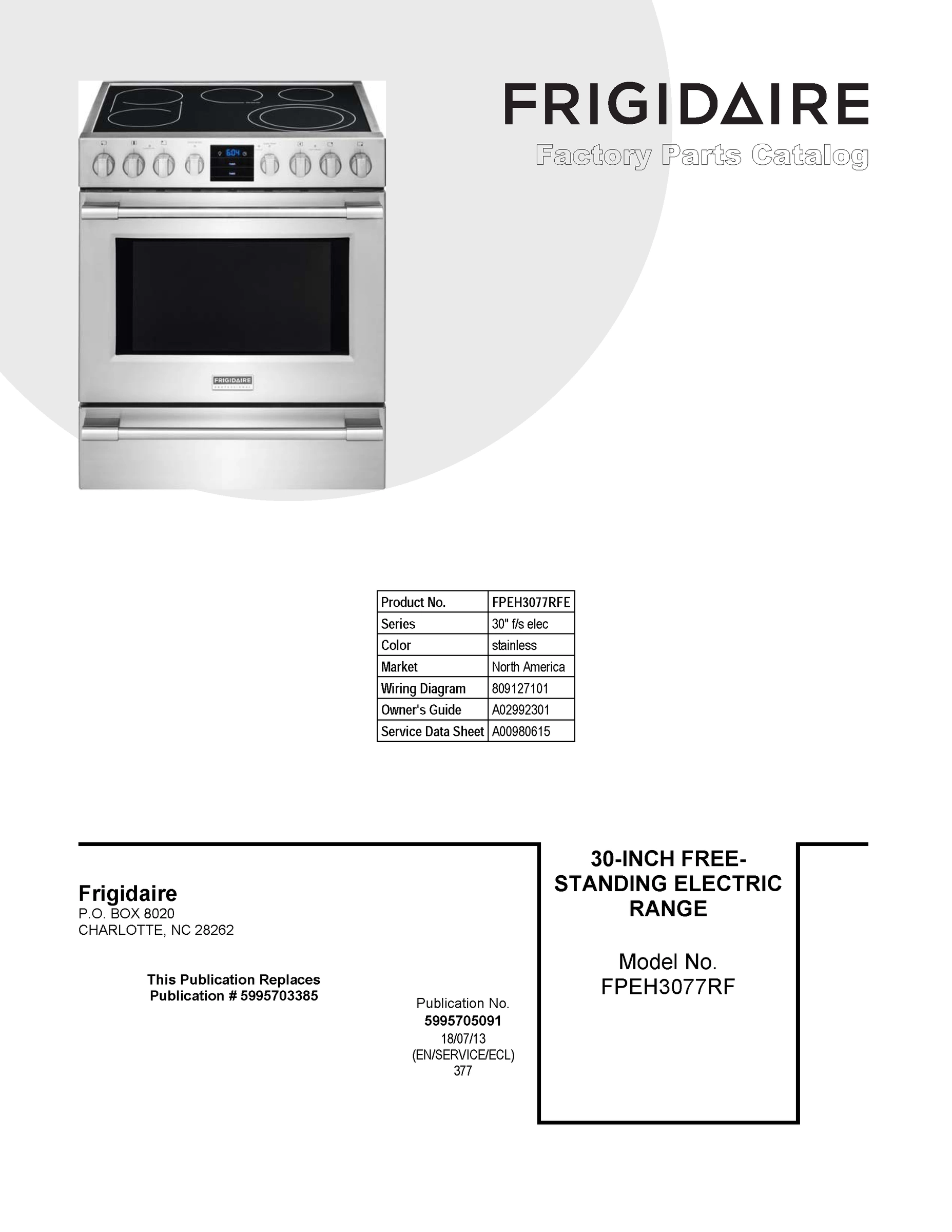

01 - COVER SHEET

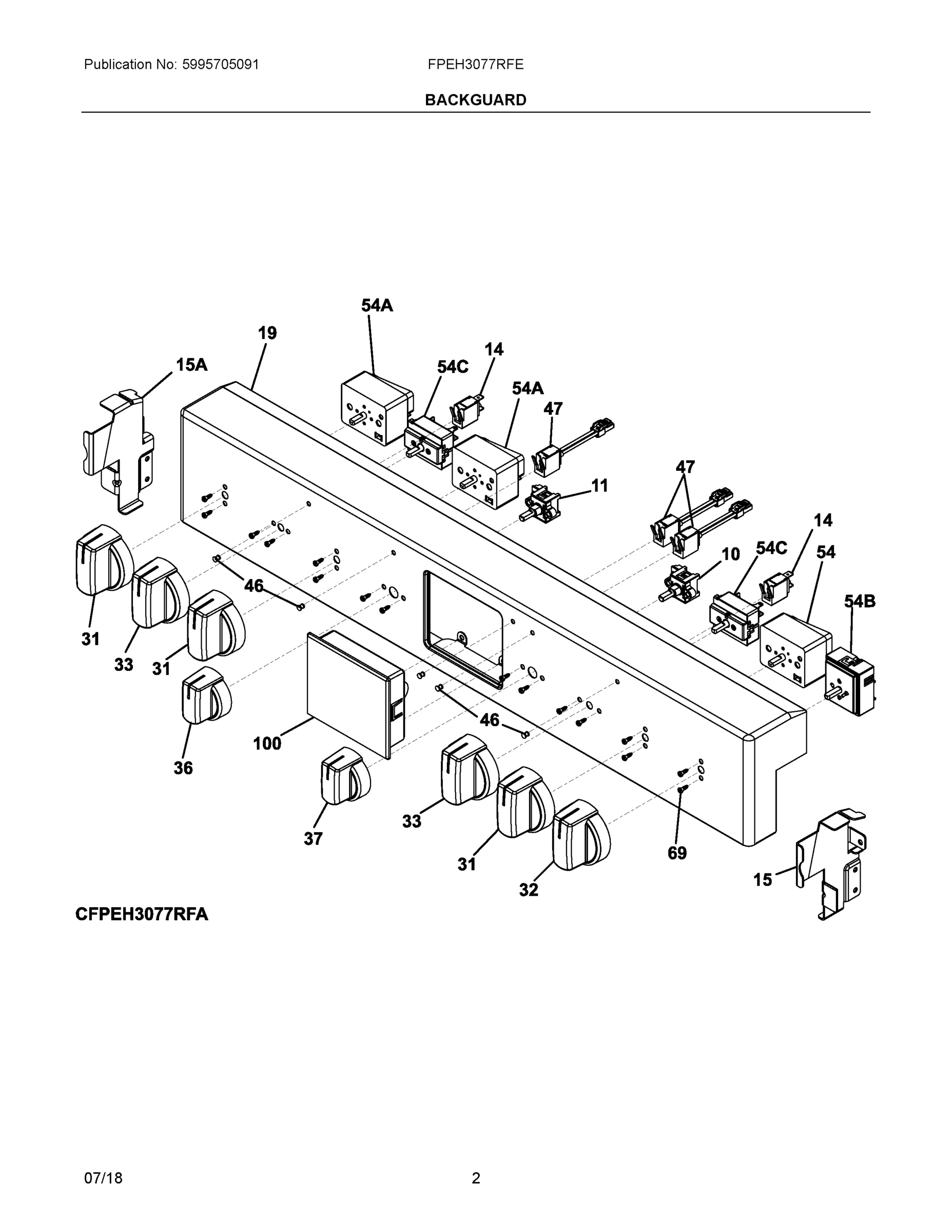

02 - BACKGUARD

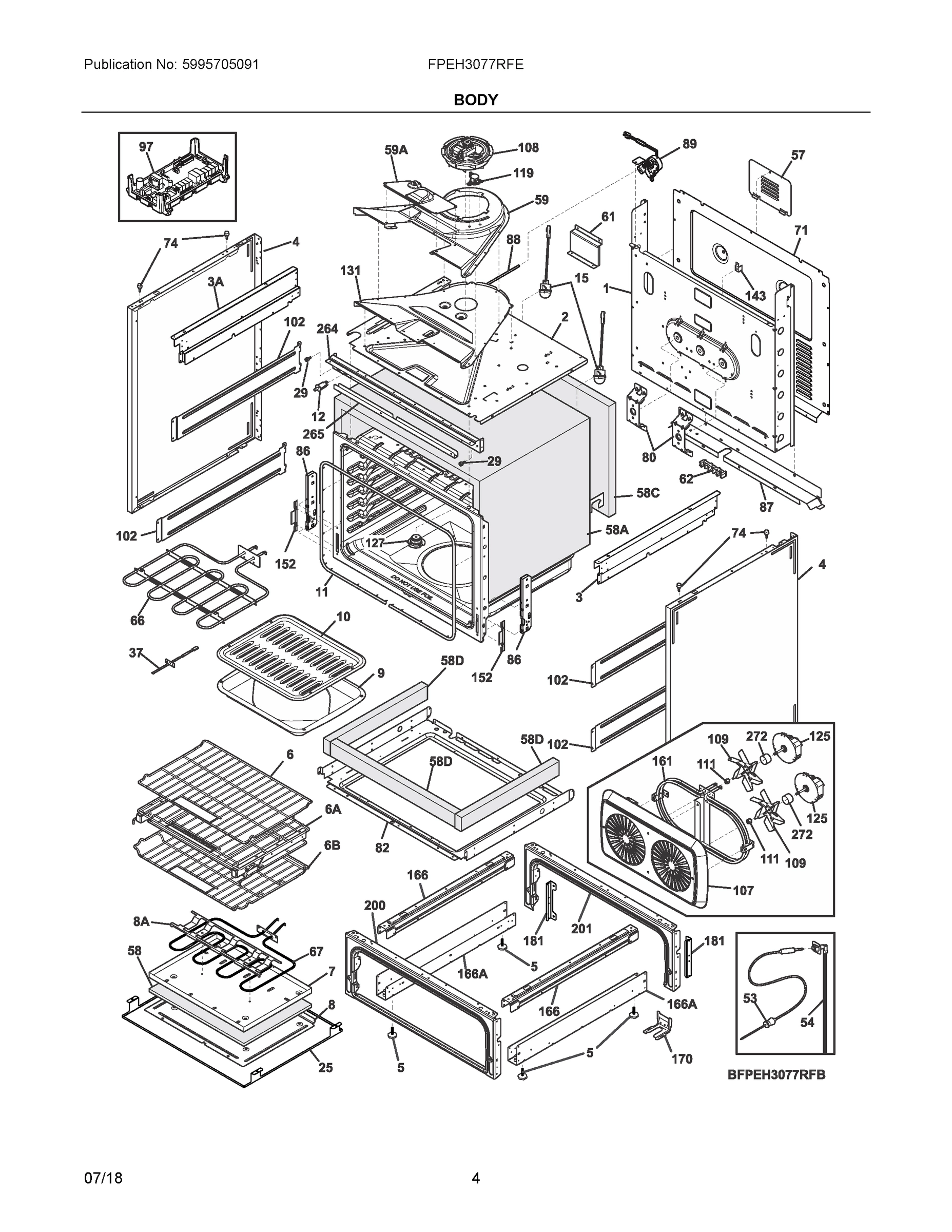

03 - BODY

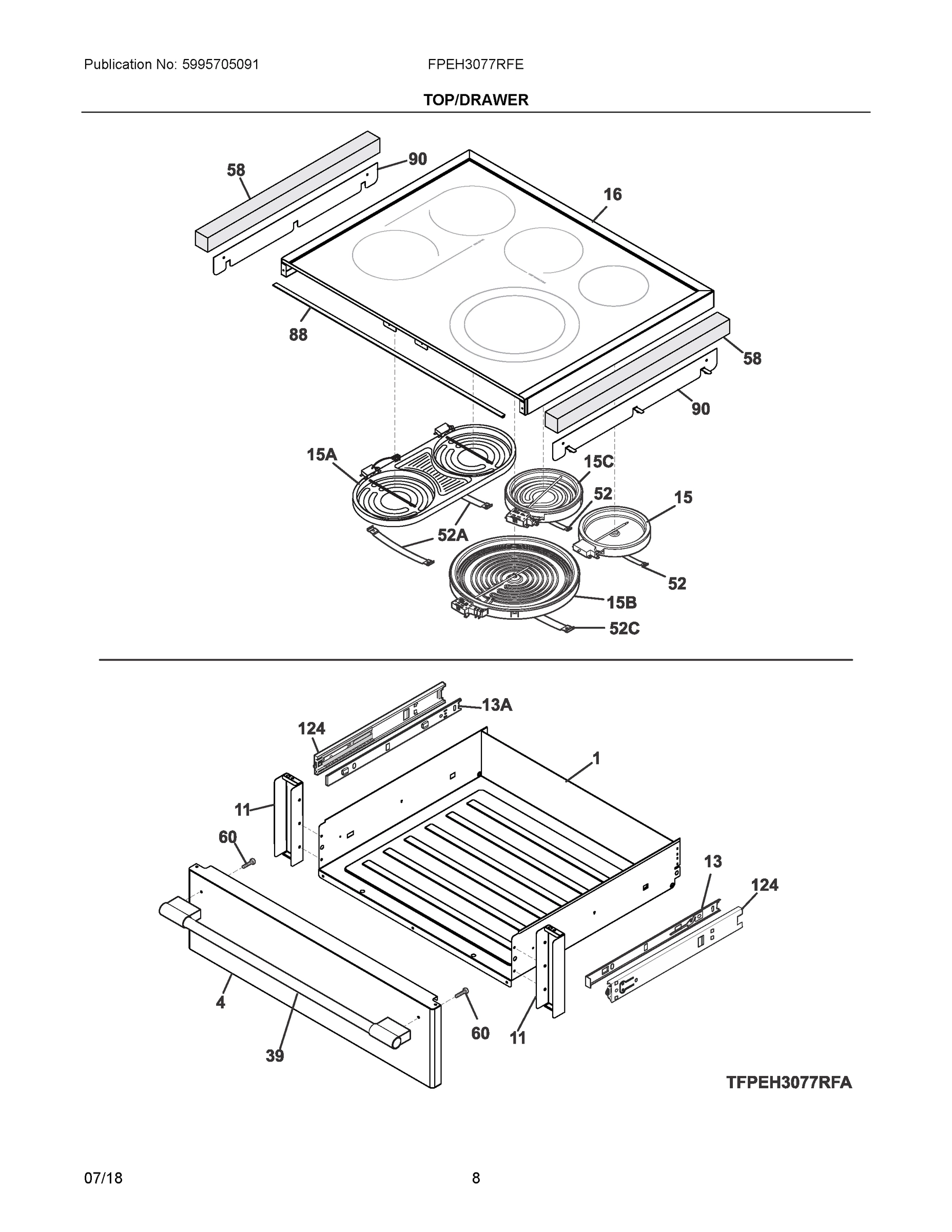

04 - TOP/DRAWER

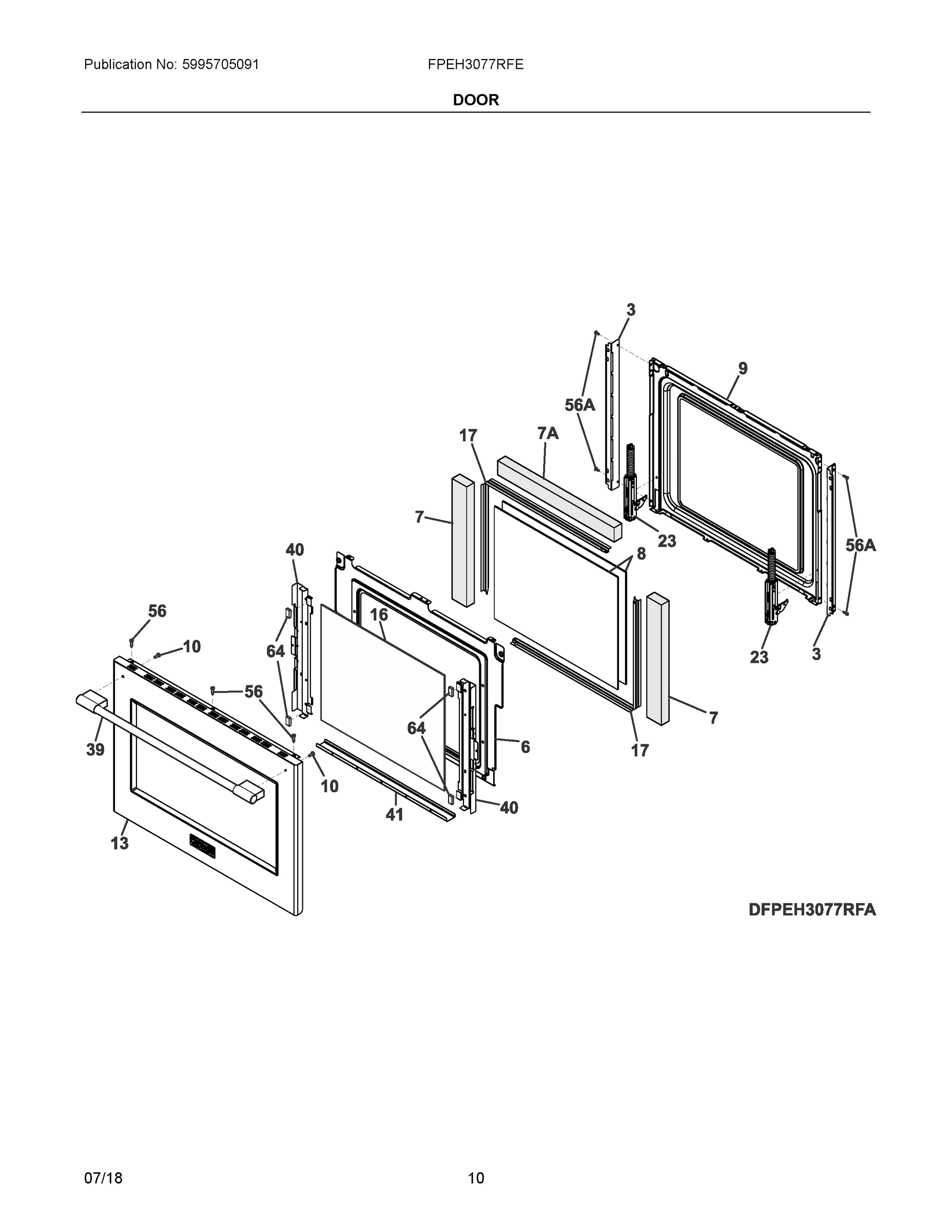

05 - DOOR

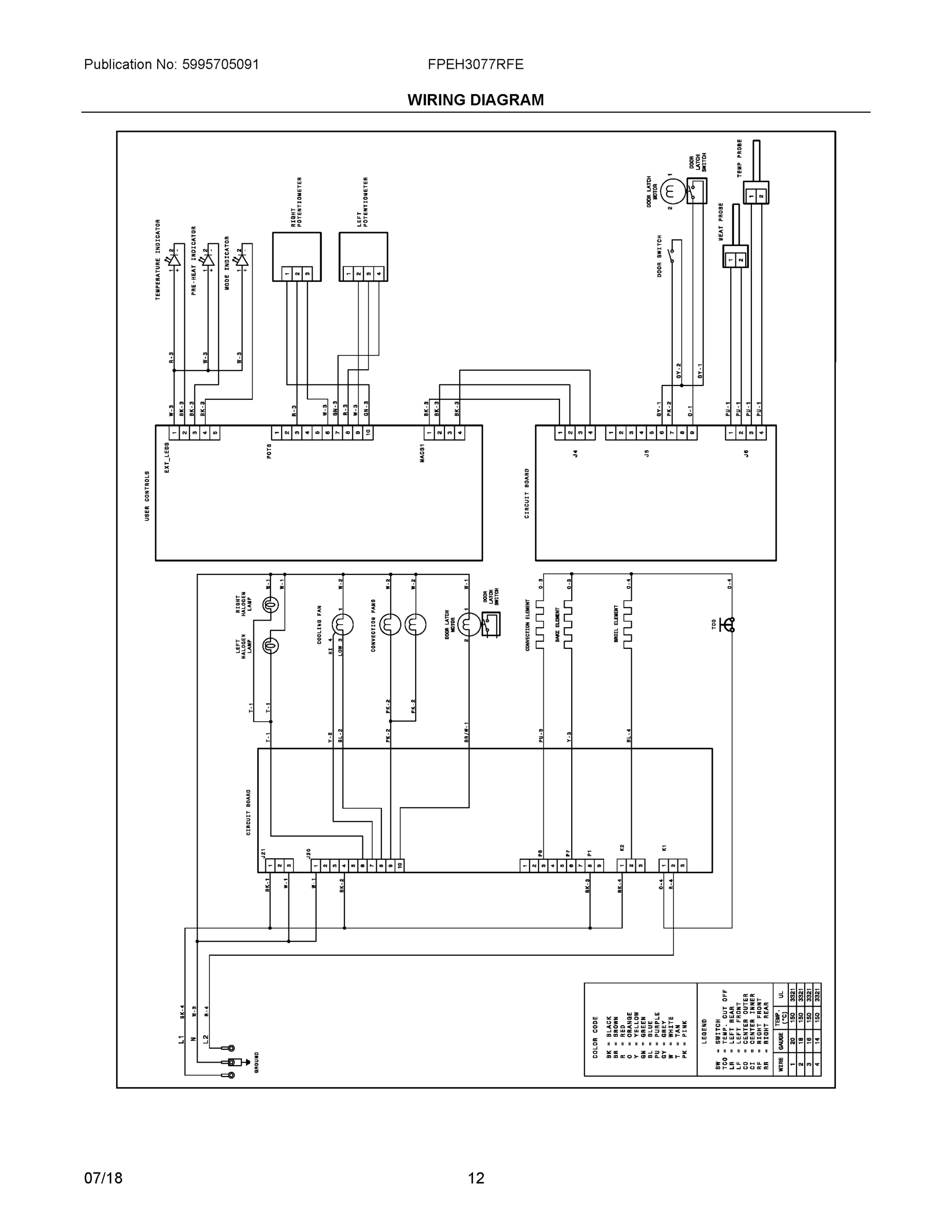

06 - WIRING DIAGRAM

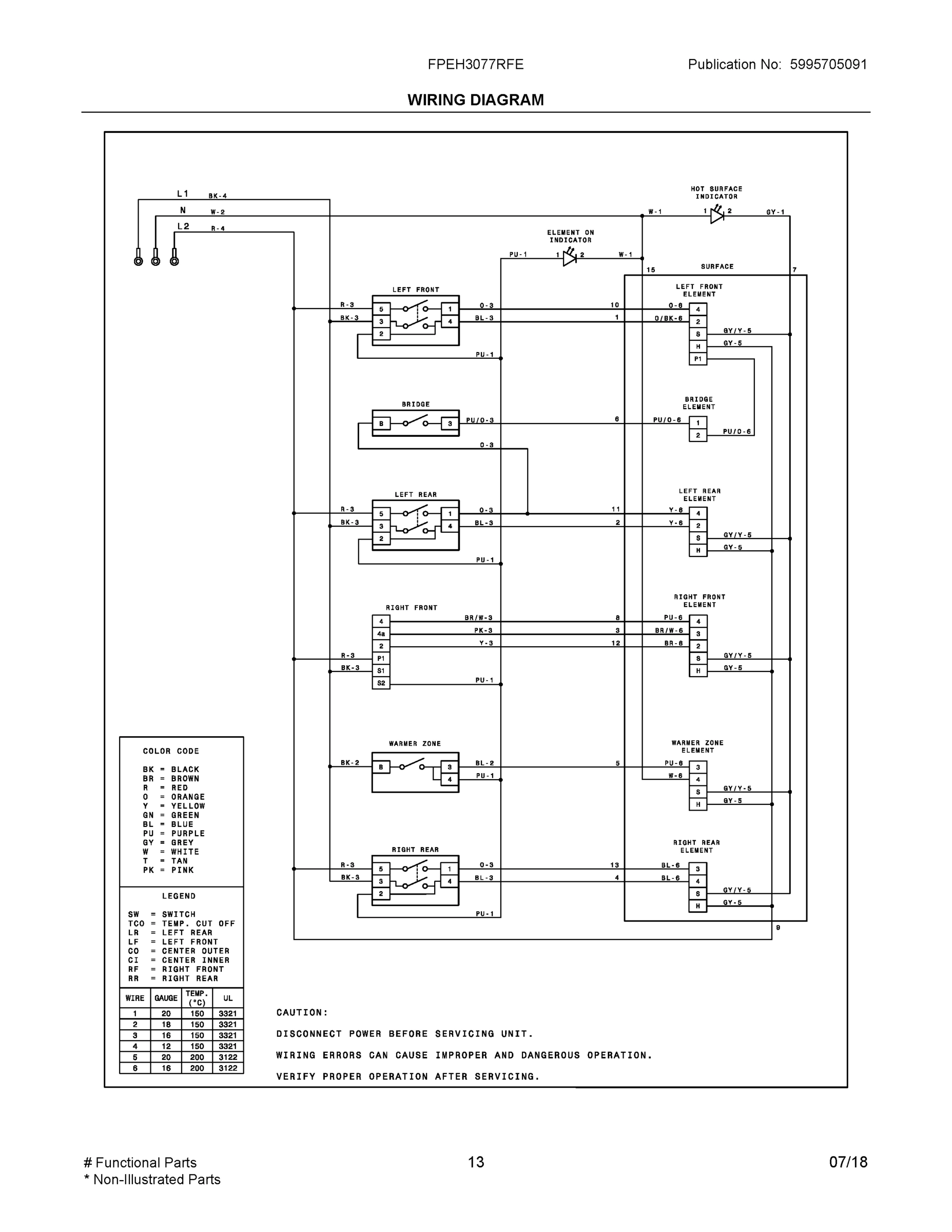

07 - WIRING DIAGRAM
Common parts from model Electrolux FPEH3077RFE RANGE/OVEN, ELECTRIC, FREESTANDING, 30 INCH
1
DRAWER, STARAGE, BLACK WCI 809145604 Contact Us For Availability
1
PANEL, MAIN BACK WCI 809146002 Contact Us For Availability
3A
PANEL, UPPER SIDE, LH WCI 809128201 Contact Us For Availability
4
PANEL, BODYSIDE, BLACK, (2) WCI 807226106 Contact Us For Availability
5
LEVELING LEG, REAR, (2) WCI 316498903 Contact Us For Availability
6A
RACK ASSEMBLY, GLIDING, W/HANDLE WCI 139013314 Contact Us For Availability
6B
RACK, OVEN, OFFSET, W/HANDLE WCI 139012400 Contact Us For Availability
7
BOX, BAKE ELEMENT WCI 318297303 Contact Us For Availability
8
GLASS, DOOR, INNER, (2) WCI 316502502 Contact Us For Availability
8
PANEL, SERVICE WCI 318359500 Contact Us For Availability
8A
BRACKET, BAKE ELEMENT WCI 318313601 Contact Us For Availability
9
LINER, OVEN DOOR, BLACK WCI 808474610 Contact Us For Availability
9
PAN, BROILER, OPTIONAL ACCESSORY WCI 318138801 Contact Us For Availability
10
POTENTIOMETER, OVEN TEMP WCI 808843105 Contact Us For Availability
10
SCREW, 10-24 X 0.625 WCI 5303310510 Contact Us For Availability
11
POTENTIOMETER, OVEN MODE WCI 5304493649 Contact Us For Availability
11
BRACKET, PANEL, DRAWER, (2) WCI 809089901 Contact Us For Availability
11
SEAL, OVEN DOOR WCI 139036701 Contact Us For Availability
13
DOOR ASSEMBLY, OUTER, STAINLESS/BLACK, W/TRIM WCI 5304515578 Contact Us For Availability
13
GLIDE, WARMER, INNER RH WCI 318259513 Contact Us For Availability
13A
GLIDE, WARMER, INNER LH WCI 318259512 Contact Us For Availability
14
LIGHT/LAMP, INDICATOR, BLACK, 125 V WCI 316022500 Contact Us For Availability
15
ELEMENT, SURFACE, 6", 1200, (2), RADIANT WCI 318178110 Contact Us For Availability
15A
ELEMENT, BRIDGE, 1800/2600W WCI 807219901 Contact Us For Availability
15A
BRACKET, CONTROL PANEL, LH WCI 5304500133 Contact Us For Availability
15B
ELEMENT, DUAL, 9/12", SURFACE, 1700/2700W, DU WCI 316282101 Contact Us For Availability
16
GLASS, DOOR, AIRWASH, HBII WCI 316502601 Contact Us For Availability
16
SMOOTHTOP ASSEMBLY, GLASS/STEEL, BLACK/STAINL WCI 5304511172 Contact Us For Availability
19
PANEL, CONTROL, STAINLESS WCI 809103501 Contact Us For Availability
23
HINGE, DOOR, GOLD, DUAL SPRING WCI 139010306 Contact Us For Availability
29
BUMPER, FRONT, MAIN WCI 316517600 Contact Us For Availability
31
KNOB, SWITCH, STAINLESS, SINGLE WCI 5304502427 Contact Us For Availability
32
KNOB, SWITCH, STAINLESS, DUAL WCI 5304502428 Contact Us For Availability
33
KNOB, SWITCH, STAINLESS, WARM ZONE WCI 5304502429 Contact Us For Availability
36
KNOB, SELECTOR, OVEN WCI 809137901 Contact Us For Availability
37
SENSOR, OVEN TEMP PROBE WCI 5304504897 Contact Us For Availability
37
KNOB, TEMPERATURE, OVEN WCI 809137902 Contact Us For Availability
39
HANDLE, DOOR/DRAWER, STAINLESS WCI 808816703 Contact Us For Availability
41
SUPPORT, GLASS WCI 5304500644 Contact Us For Availability
46
LENS-LIGHT/LAMP, INDICATOR, CLEAR WCI 316557300 Contact Us For Availability
47
LIGHT/LAMP, INDICATOR, BLUE, OVEN WCI 316022508 Contact Us For Availability
52
SPRING, ELEMENT MTG, SMALL WCI 318122006 Contact Us For Availability
52C
SPRING, ELEMENT MTG, 1200W/1800W WCI 318122011 Contact Us For Availability
53
PROBE, MEAT TEMP, RED WCI 5304504202 Contact Us For Availability
54
SWITCH, INFINITE, SMALL ELEMENT WCI 316436000 Contact Us For Availability
54
RECEPTACLE ASSY, MEAT PROBE WCI 139017203 Contact Us For Availability
54B
SWITCH, INFINITE RADIAN, DUAL WCI 316238201 Contact Us For Availability
54C
SWITCH-INFINITE, WARMER DRW/ZONE WCI 316471601 Contact Us For Availability
57
COVER, ACCESS WCI 316283600 Contact Us For Availability
58
INSUALTION, COOKTOP, SIDE, (2) WCI 5304497192 Contact Us For Availability
59
DUCT, COOLING FAN, UPPER WCI 139027600 Contact Us For Availability
64
SPACER, GLASS, FOAM WCI 318165800 Contact Us For Availability
71
SHIELD, REAR, LOWER WCI 809123201 Contact Us For Availability
86
RECEPTACLE, HINGE, DUAL SPRING WCI 139026900 Contact Us For Availability
88
GASKET, COOKTOP WCI 5304500150 Contact Us For Availability
107
WCI 139001503 WCI 139001503 Contact Us For Availability
108
WCI 807123002 WCI 807123002 Contact Us For Availability
111
WCI 316136600 WCI 316136600 Contact Us For Availability
119
WCI 807144901 WCI 807144901 Contact Us For Availability
124
GLIDE, DRAWER, OUTER/RH & LH, (2) WCI 318330600 Contact Us For Availability
125
WCI 139008500 WCI 139008500 Contact Us For Availability
127
WCI 139042600 WCI 139042600 Contact Us For Availability
131
WCI 139027700 WCI 139027700 Contact Us For Availability
166
WCI 318298410 WCI 318298410 Contact Us For Availability
170
WCI 5304486410 WCI 5304486410 Contact Us For Availability
181
WCI 5304500125 WCI 5304500125 Contact Us For Availability
200
WCI 808734602 WCI 808734602 Contact Us For Availability
201
WCI 808734603 WCI 808734603 Contact Us For Availability
272
WCI 139021700 WCI 139021700 Contact Us For Availability
NI
SCREW, 8-18 X 0.5, CHROME WCI 316021109 Contact Us For Availability
NI
BUMPER, (2) WCI 318147430 Contact Us For Availability
NI
SCREW, HEX HEAD CUP PT, 8-18 X 0.375, BLACK WCI 316021105 Contact Us For Availability
NI
HARNESS, WIRING, COMMUNICATION, PCB WCI 5304500175 Contact Us For Availability
NI
SCREW, 8-18 X 5/16, BLACK WCI 5303324184 Contact Us For Availability
NI
HARNESS, WIRING, INF. SWITCHES WCI 5304500179 Contact Us For Availability
NI
WCI 5303289910 WCI 5303289910 Contact Us For Availability
NIA
BULB, HALOGEN, G9, 25W, 120V WCI 318946500 Contact Us For Availability
NIA
SCREW, SIMS LP, #8-32 X 5/16", BLACK WCI 316418900 Contact Us For Availability
NIB
WCI 316205500 WCI 316205500 Contact Us For Availability
NIB
WCI 5303311164 WCI 5303311164 Contact Us For Availability
NIC
WCI 318264200 WCI 318264200 Contact Us For Availability
× ![]()
