Model Electrolux FPEA19TFW0 REFRIGERATOR – Common Parts & Diagrams
02 - DOOR PARTS
03 - CABINET PARTS

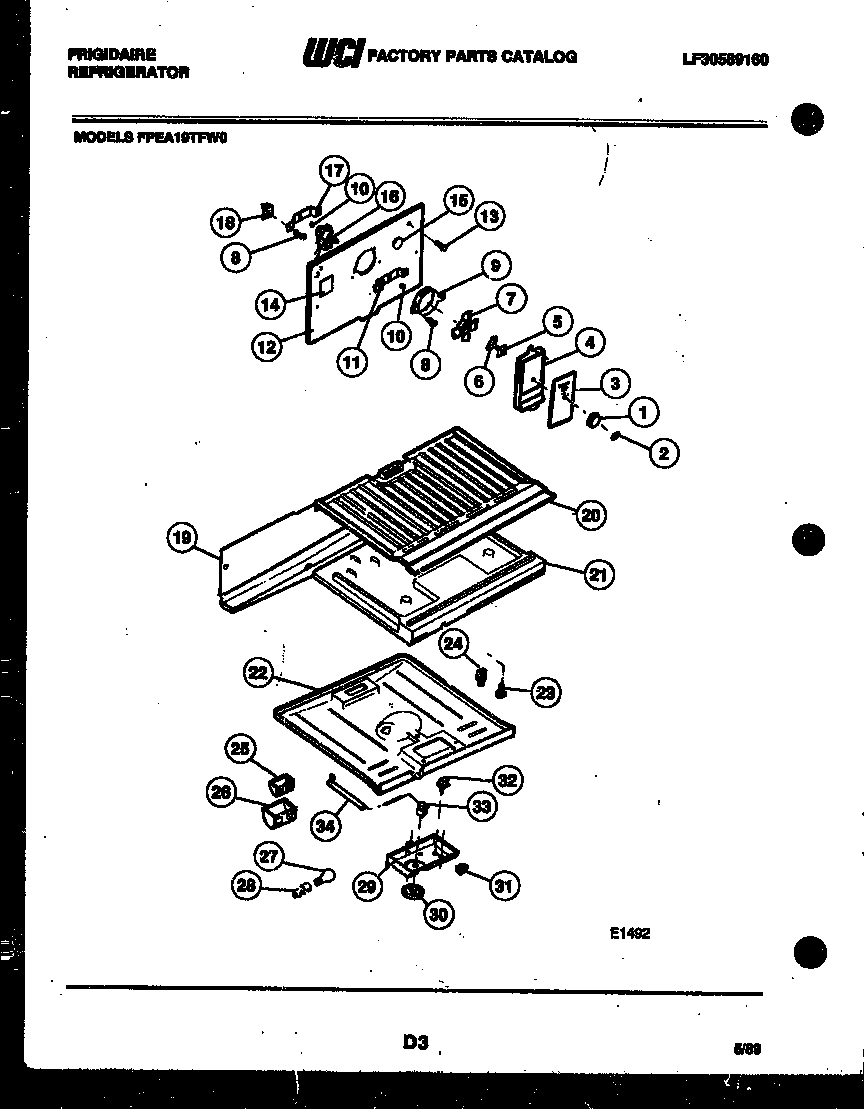

04 - REFRIGERATOR AND DAMPER CONTROL ASS

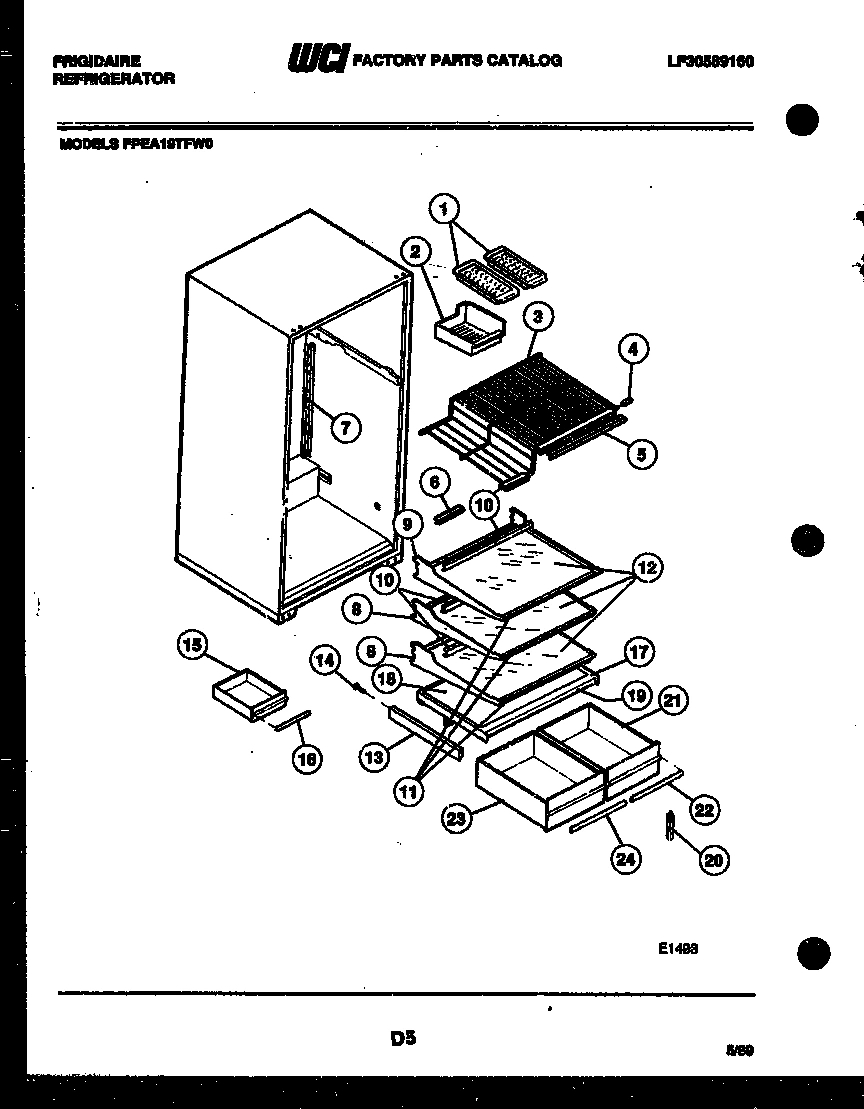

05 - SHELVES AND SUPPORTS

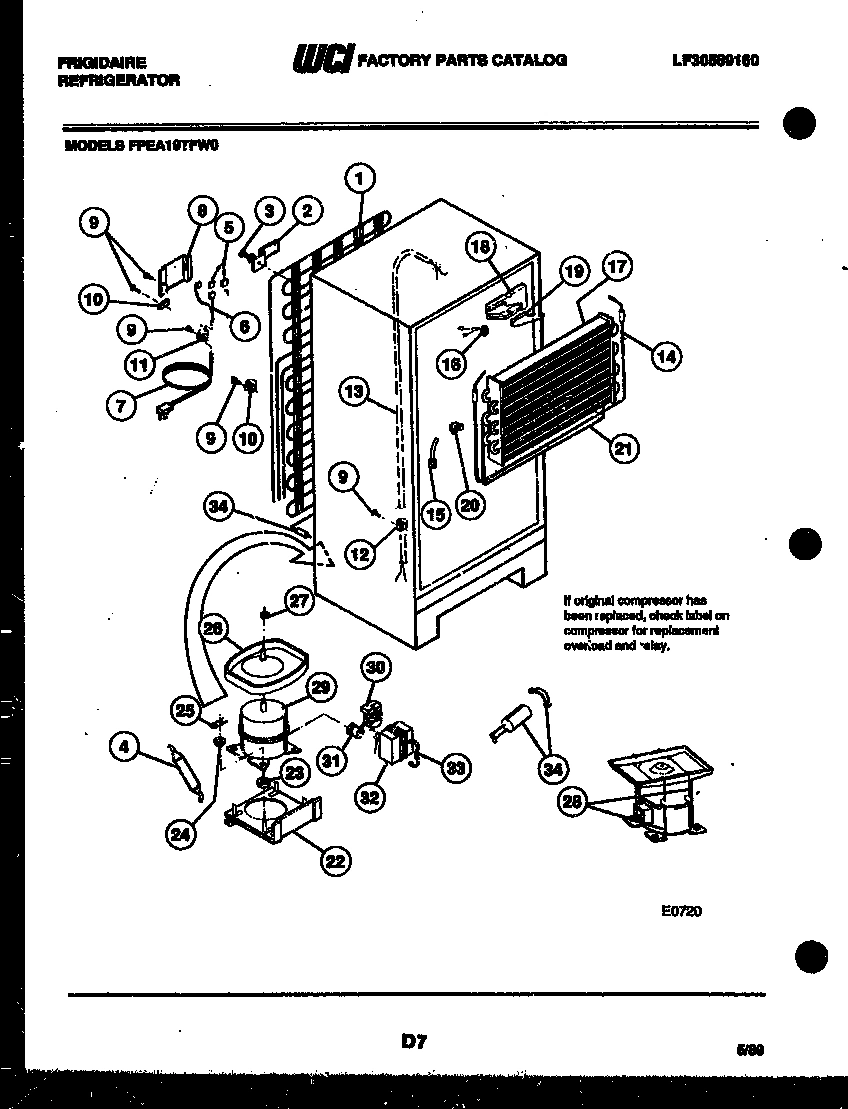

06 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux FPEA19TFW0 REFRIGERATOR
*41084
WCI 09960001 WCI 09960001 Contact Us For Availability
1
WCI 01121808 WCI 01121808 Contact Us For Availability
1
WCI 08012843 WCI 08012843 Contact Us For Availability
1
WCI 08009793 WCI 08009793 Contact Us For Availability
1
CONDENSER WCI 08008779 Contact Us For Availability
2
FREEZER DOOR-WHITE WCI 08009931 Contact Us For Availability
2
LABEL, KNOB WCI 08009823 Contact Us For Availability
2
BRACKET-COND MTG (4) WCI 08003600 Contact Us For Availability
3
WCI 08012007 WCI 08012007 Contact Us For Availability
3
HINGE COVER-WHITE WCI 08012820 Contact Us For Availability
3
WCI 08009924 WCI 08009924 Contact Us For Availability
3
SHELF-FREEZER WCI 3018979 Contact Us For Availability
3A
WCI 08009617 WCI 08009617 Contact Us For Availability
4
END CAP (2) WCI 3201150 No Longer Available
4
WCI 08012829 WCI 08012829 Contact Us For Availability
4
WCI 08009817 WCI 08009817 Contact Us For Availability
5
WCI 3201581 WCI 3201581 Contact Us For Availability
5
WCI 3202336 WCI 3202336 Contact Us For Availability
5
WCI 08000067 WCI 08000067 Contact Us For Availability
5
WIRING HARNESS-CNTRL WCI 3018900 Contact Us For Availability
5
TRIM-LONG WCI 3018978 Contact Us For Availability
6
REFR DOOR-WHITE WCI 08009928 Contact Us For Availability
6
PLUG-WHITE (2) WCI 08007099 Contact Us For Availability
6
DAMPER WCI 08000066 Contact Us For Availability
6
TRIM-SHORT WCI 3017427 Contact Us For Availability
6
WIRING HARNESS-COMPR WCI 08009628 Contact Us For Availability
7
DOOR STOP (2) WCI 08000255 Contact Us For Availability
7
RUBBER TUBE-FERRULE (2) WCI 08000004 Contact Us For Availability
7
CHANNEL-SHELF MTG (2) WCI 08000302 Contact Us For Availability
7
WCI 08000064 WCI 08000064 Contact Us For Availability
8
SCREW-10-24 X 5/8 (2) WCI 08011745 Contact Us For Availability
8
WCI 08006970 WCI 08006970 Contact Us For Availability
8
FRAME-SHELF (2) WCI 3200327 Contact Us For Availability
8
WCI 08013644 WCI 08013644 Contact Us For Availability
9
WCI 08017487 WCI 08017487 Contact Us For Availability
9
WCI 08006971 WCI 08006971 Contact Us For Availability
9
ORIFICE RING-PLASTIC WCI 08000124 Contact Us For Availability
9
WCI 3200398 WCI 3200398 Contact Us For Availability
10
INNER PANEL-REFR WCI 3018976 Contact Us For Availability
10
SEAL RING-TUBE WCI 08009755 Contact Us For Availability
10
TRIM/RETAINER-REAR (3) WCI 3200326 Contact Us For Availability
11
DRAIN TUBE WCI 08010012 Contact Us For Availability
11
WCI 08000043 WCI 08000043 Contact Us For Availability
11
TRIM, FRONT (3) WCI 3018980 Contact Us For Availability
11A
RETAINER-SHELF FRONT (2) (NON-ILLUSTRATED) WCI 3200321 Contact Us For Availability
11B
WCI 3200408 WCI 3200408 Contact Us For Availability
12
COVER-EVAP COIL WCI 08009771 Contact Us For Availability
12
GLASS-SHELF (3) WCI 3200319 Contact Us For Availability
12A
NUT-U TYPE (2) (NON-ILLUSTRATED) WCI 08000126 Contact Us For Availability
12A
SIDE RAIL-GLASS SPRT (6) (NON-ILLUSTRATED) WCI 3200901 Contact Us For Availability
13
BOLT-1/4-28 X 1/2 (2) WCI 08009762 Contact Us For Availability
13
HANGER-MEAT PAN LS WCI 3018889 Contact Us For Availability
13
WCI 08010274 WCI 08010274 Contact Us For Availability
13A
HANGER-MEAT PAN RS (NON-ILLUSTRATED) WCI 3018890 Contact Us For Availability
14
ROLLER-REAR (2) WCI 08009773 Contact Us For Availability
14
PLUG-DECORATIVE WCI 08013636 Contact Us For Availability
14
SCREW-HANGER MTG (2) WCI 08014528 Contact Us For Availability
14A
BOTTLE RETAINER-SNUGGER (NON-ILLUSTRATED) WCI 3205117 Contact Us For Availability
15
BASE-CABINET WCI 08010092 Contact Us For Availability
15
WCI 3203044 WCI 3203044 Contact Us For Availability
15
PAN, MEAT WCI 3018987 Contact Us For Availability
16
RACK-UPPER WCI 3018423 Contact Us For Availability
16
WCI 08009760 WCI 08009760 Contact Us For Availability
16
WCI 3018986 WCI 3018986 Contact Us For Availability
17
WCI 08009790 WCI 08009790 Contact Us For Availability
17
WCI 08000042 WCI 08000042 Contact Us For Availability
17
COVER-STORAGE PAN WCI 3018983 Contact Us For Availability
17
WCI 08000062 WCI 08000062 Contact Us For Availability
17A
GASKET-COVER RS (NON-ILLUSTRATED) WCI 3200329 Contact Us For Availability
18
BIN-ADJUSTABLE WCI 3018973 Contact Us For Availability
18
WCI 08013678 WCI 08013678 Contact Us For Availability
18
CONNECTOR BRACKET WCI 08000107 Contact Us For Availability
18
GLASS-COVER WCI 3200389 Contact Us For Availability
18
WCI 08013648 WCI 08013648 Contact Us For Availability
19
DOOR-SPREADS WCI 3018974 Contact Us For Availability
19
WCI 08003583 WCI 08003583 Contact Us For Availability
19
WCI 08009772 WCI 08009772 Contact Us For Availability
19
TRIM, COVER WCI 3018984 Contact Us For Availability
19
WCI 08013646 WCI 08013646 Contact Us For Availability
20
RACK-FREEZER DOOR (2) WCI 3018972 Contact Us For Availability
20
WCI 08003584 WCI 08003584 Contact Us For Availability
20
BOTTOM PANEL-FREEZER WCI 08015543 Contact Us For Availability
20
WCI 3016528 WCI 3016528 Contact Us For Availability
20
WCI 08017227 WCI 08017227 Contact Us For Availability
20A
WCI 08000185 WCI 08000185 Contact Us For Availability
21
INNER PANEL-FREEZER WCI 3018971 Contact Us For Availability
21
WCI 08003585 WCI 08003585 Contact Us For Availability
21
DIVIDER WCI 3018994 Contact Us For Availability
21
PAN-LARGE RS WCI 3018873 Contact Us For Availability
21
INSULATOR-COIL/COVER WCI G169024-04 Contact Us For Availability
22
GASKET-FREEZER DOOR WCI 3017189 Contact Us For Availability
22
WCI 08009761 WCI 08009761 Contact Us For Availability
22
WCI 3018993 WCI 3018993 Contact Us For Availability
22
TRIM-PAN RS WCI 3017423 Contact Us For Availability
22
PLATE-COMPR MTG WCI 08013663 Contact Us For Availability
23
HANDLE ASSY W/ CAPS & TRIM-REFR WCI 08017497 Contact Us For Availability
23
WASHER-NYLON (2) WCI 08011326 Contact Us For Availability
23
WCI 08000070 WCI 08000070 Contact Us For Availability
23
PAN-SMALL LS WCI 3018982 Contact Us For Availability
24
END CAP-HANDLE (2) WCI 08010238 Contact Us For Availability
24
SHIM-BOTTOM HINGE WCI 08000755 Contact Us For Availability
24
TRIM-PAN LS WCI 3017422 Contact Us For Availability
24
WCI 08003597 WCI 08003597 Contact Us For Availability
24A
TAPPING PLATE (NON-ILLUSTRATED) WCI 08012296 Contact Us For Availability
25
SCREW-HANDLE MTG (6) WCI 08013645 Contact Us For Availability
25
WCI 3202834 WCI 3202834 Contact Us For Availability
25
WCI 3204206 WCI 3204206 Contact Us For Availability
25
CLIP (4) WCI 08003596 Contact Us For Availability
26
HANDLE ASSY W/ CAPS & TRIM-FRZR WCI 3017190 Contact Us For Availability
26
WCI 08000055 WCI 08000055 Contact Us For Availability
26
DRAIN PAN-ORIGINAL WCI 08003634 Contact Us For Availability
26A
DRAIN PAN-SVCE COMPR WCI 08012951 Contact Us For Availability
27
END CAP-HANDLE (2) WCI 08010239 Contact Us For Availability
27
LOCK NUT-PAN MTG WCI 08003611 Contact Us For Availability
28
WCI 08000007 WCI 08000007 Contact Us For Availability
28
PAN RETAINER KIT-SERVICE COMPR WCI 3916001 Contact Us For Availability
29
WCI 08000100 WCI 08000100 Contact Us For Availability
29
CONTROL BOX WCI 3018895 Contact Us For Availability
29
WCI 3916020 WCI 3916020 Contact Us For Availability
30
WCI 08000757 WCI 08000757 Contact Us For Availability
30
KNOB, TEMP CONTROL WCI 3018893 Contact Us For Availability
30
WCI 3201562 WCI 3201562 Contact Us For Availability
31
WCI 08000184 WCI 08000184 Contact Us For Availability
31
SWITCH-ENERGY SAVER WCI 3018896 Contact Us For Availability
31
WCI 3201563 WCI 3201563 Contact Us For Availability
32
WCI 08012258 WCI 08012258 Contact Us For Availability
32
WCI 3200714 WCI 3200714 Contact Us For Availability
33
WASHER-NO. 10 STEEL (2) WCI 08003607 Contact Us For Availability
33
CONTROL-TEMPERATURE WCI 3018894 Contact Us For Availability
33
WCI 3200713 WCI 3200713 Contact Us For Availability
33A
WCI 08000009 WCI 08000009 Contact Us For Availability
34
WCI 3200366 WCI 3200366 Contact Us For Availability
34
HOUSING-CNTRL CAP TUBE WCI 3018891 Contact Us For Availability
35
WCI 3200464 WCI 3200464 Contact Us For Availability
36
WCI 3018916 WCI 3018916 Contact Us For Availability
37
STRAP-MULLION MTG WCI 08010008 Contact Us For Availability
40
WCI 08000097 WCI 08000097 Contact Us For Availability
43
DRAIN SPOUT WCI 08000056 Contact Us For Availability
44
PUSH PIN (2) WCI 08013647 Contact Us For Availability
45
WCI 08016571 WCI 08016571 Contact Us For Availability
× ![]()
