Model Electrolux FPE22VWCW0 REFRIGERATOR – Common Parts & Diagrams

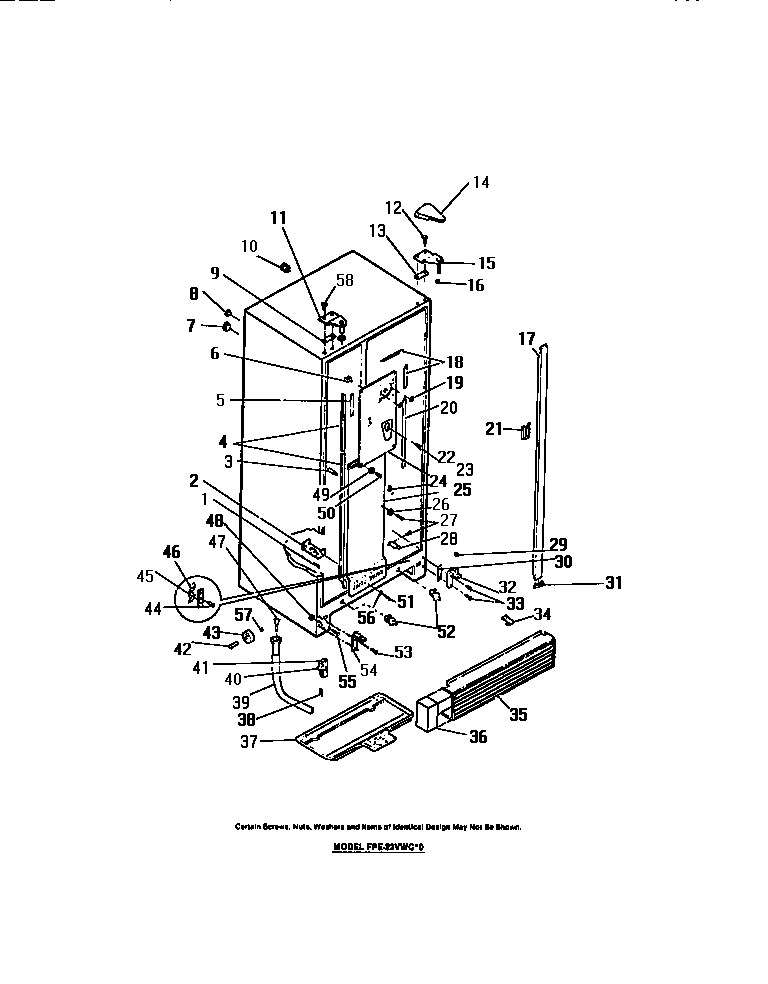

02 - CABINET

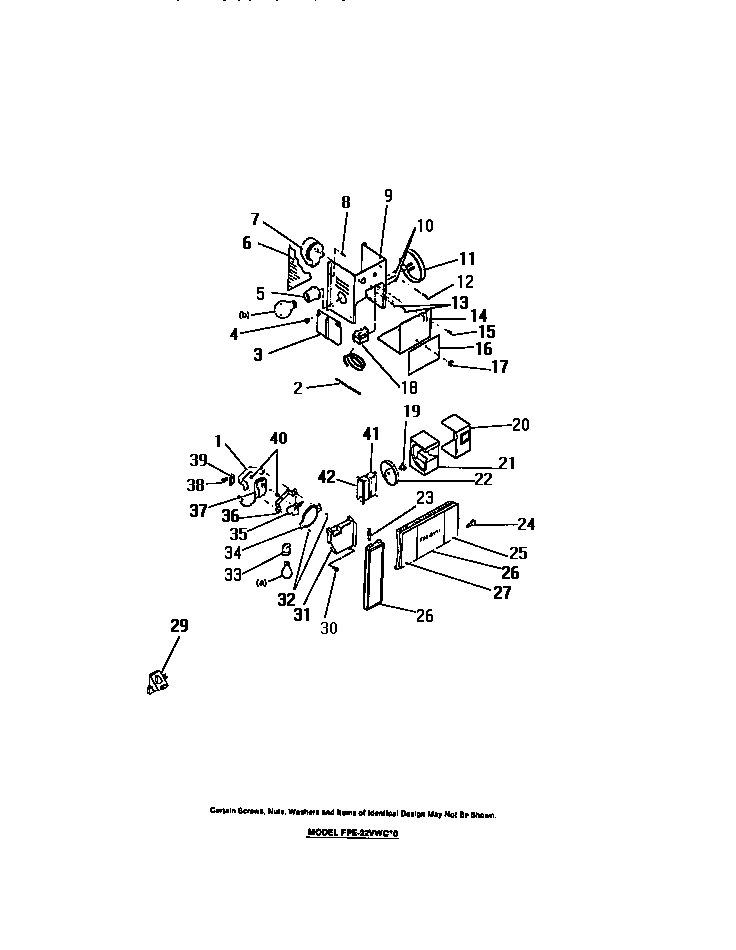

03 - THERMOSTAT, AIR FLOW CONTROLS

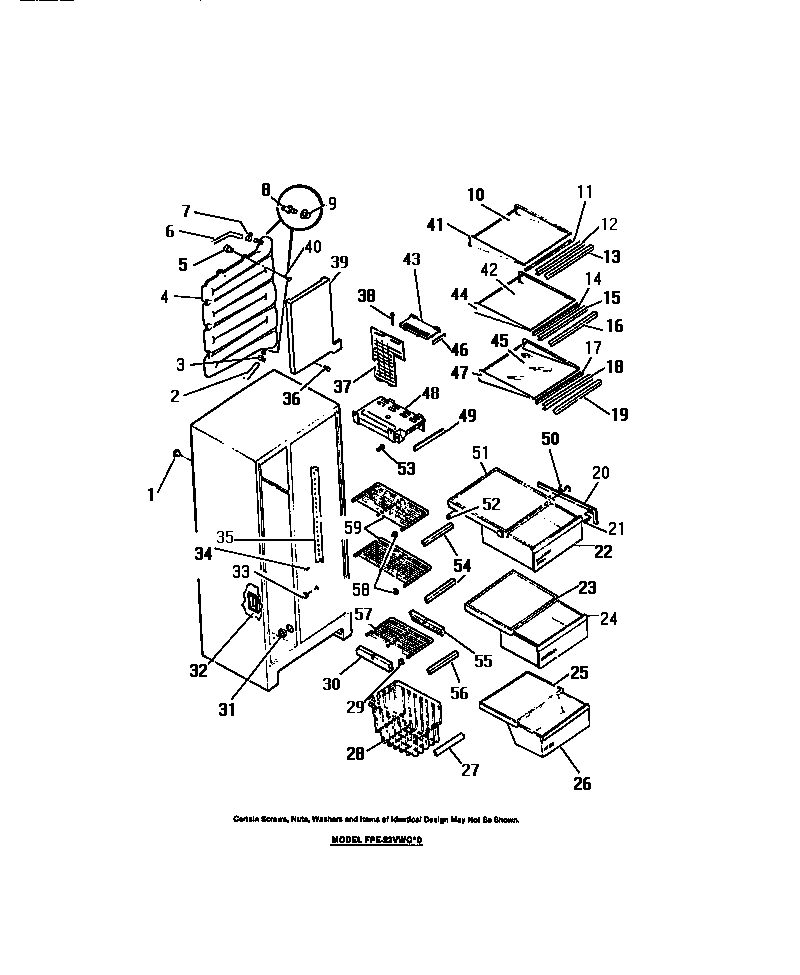

04 - INTERIOR FOOD & FREEZER SHELVES

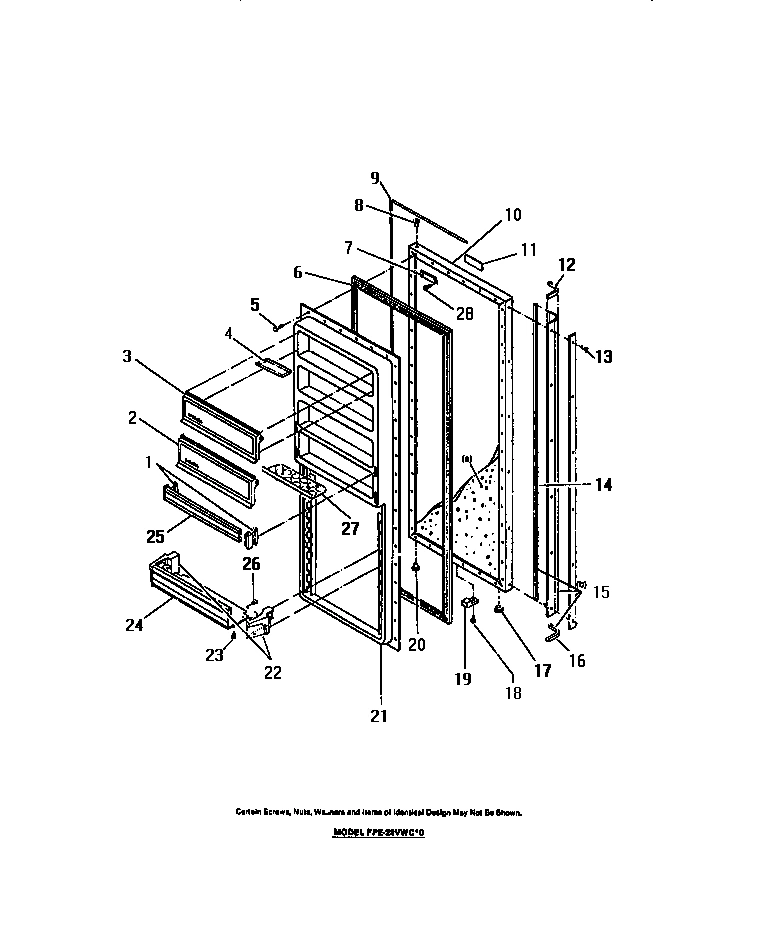

05 - FOOD COMPARTMENT DOORS

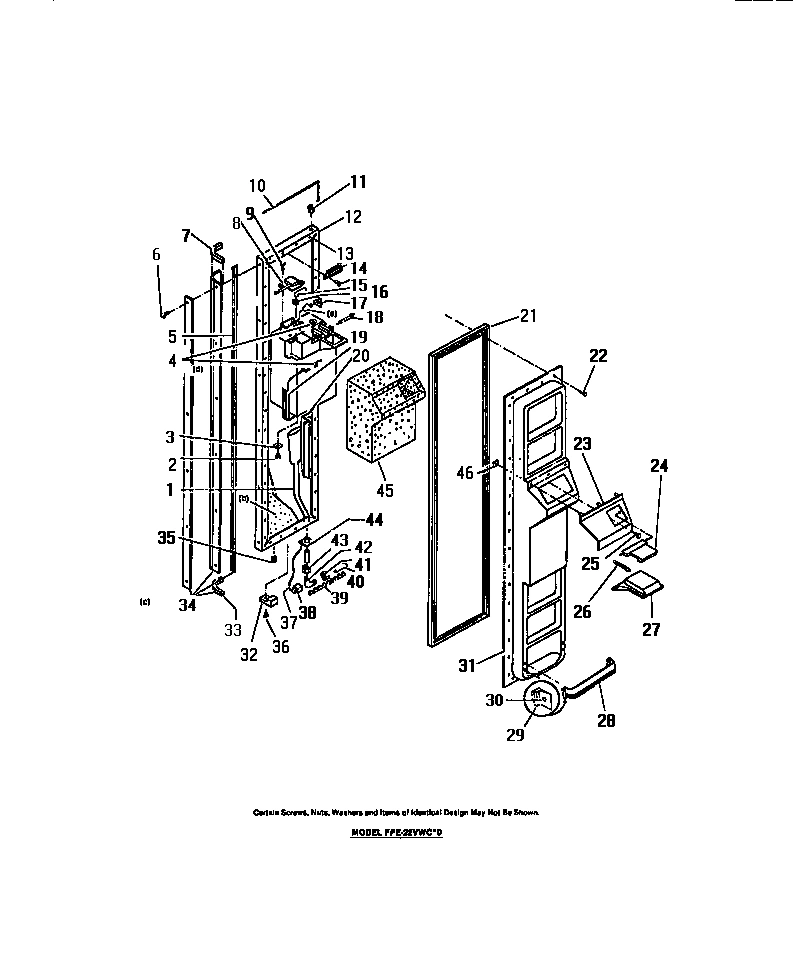

06 - FREEZER COMPARTMENT DOORS

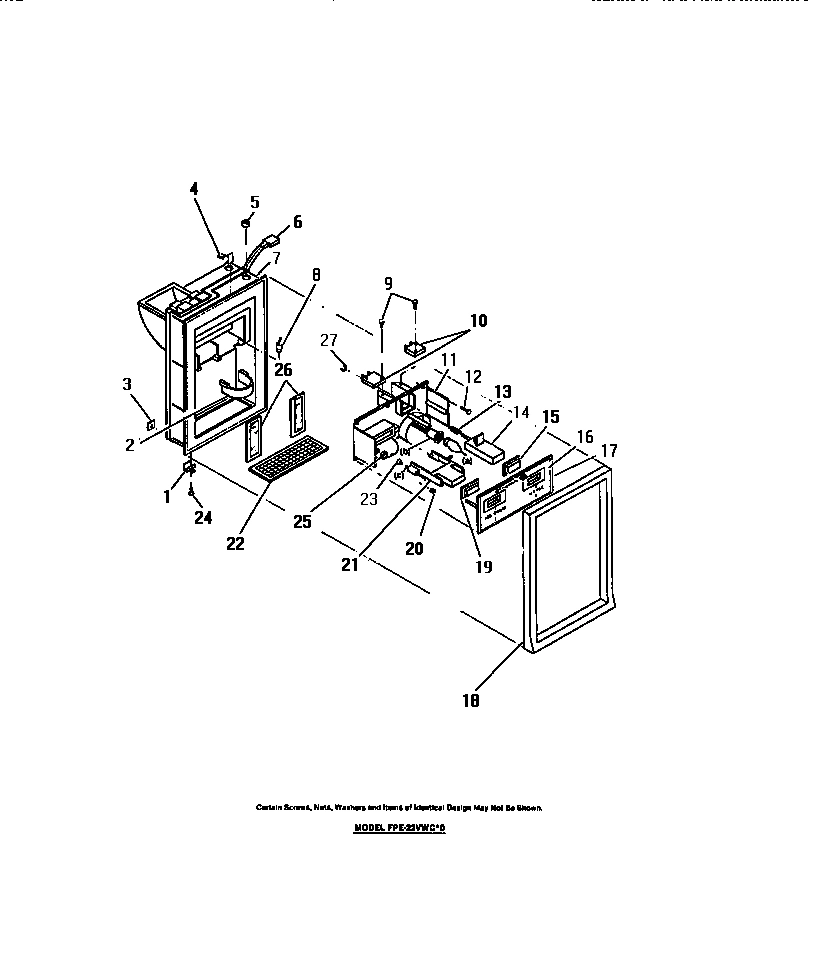

07 - DISPENSER HOUSING

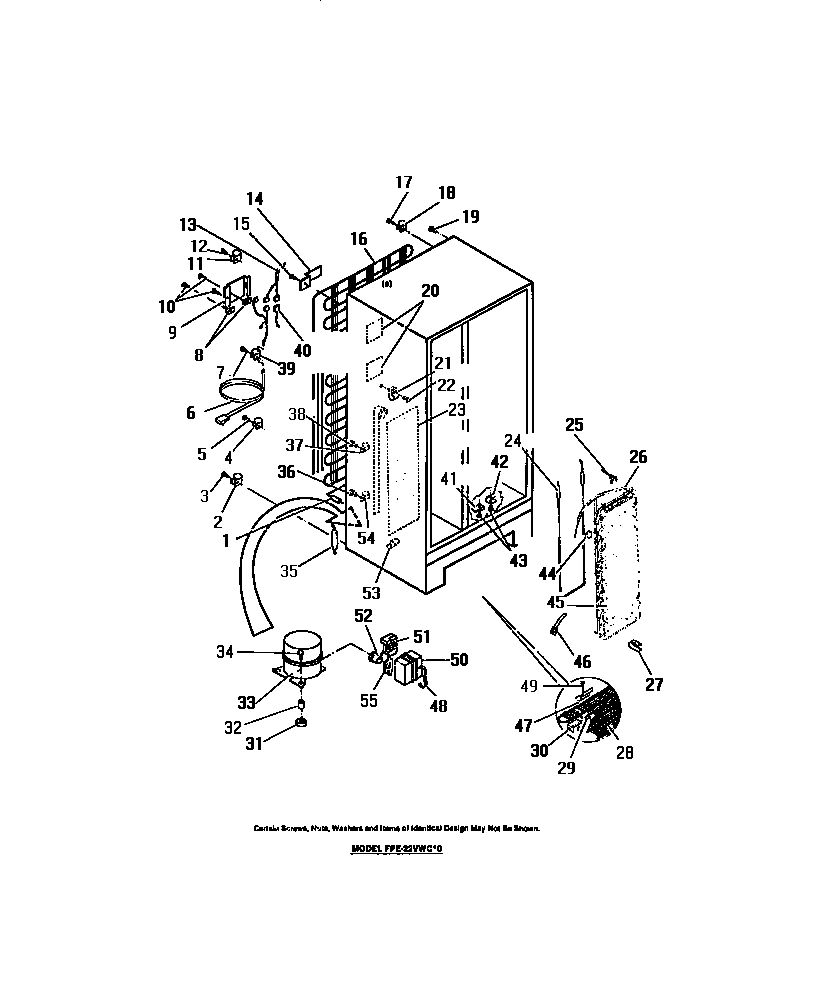

08 - COMPRESSOR, CONDENSER, EVAPORATOR

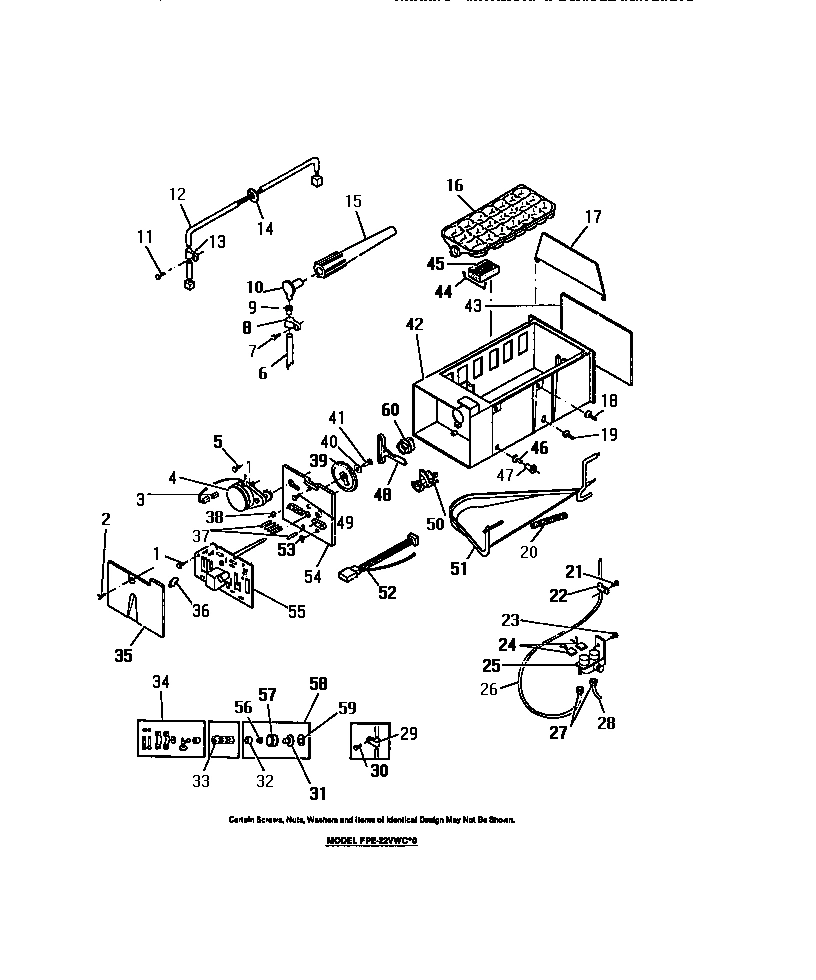

09 - AUTOMATIC ICE MAKER
11 - ICE DISPENSER, DRIVE MOTOR, CONTAIN
Common parts from model Electrolux FPE22VWCW0 REFRIGERATOR
1
BRACKET WCI 8000042 Contact Us For Availability
1
INSERT-SHELF FRONT LH WCI 8009806 Contact Us For Availability
1
WCI 8010299 WCI 8010299 Contact Us For Availability
1
CLIPS (2) WCI 8010325 Contact Us For Availability
1
WCI 8003645 WCI 8003645 Contact Us For Availability
1
BELT-CONVEYOR RETURN WCI 8015593 Contact Us For Availability
1A
INSERT-SHELF FRONT RH WCI 8009808 Contact Us For Availability
2
BRACKET WCI 8000738 Contact Us For Availability
2
INSULATOR WCI 8003637 Contact Us For Availability
2
DOOR CHEESE WCI 8009721 Contact Us For Availability
2
GUARD-SPLASH WCI 8010327 Contact Us For Availability
2
WCI 8015568 WCI 8015568 Contact Us For Availability
3
SUPPORTS (4) WCI 8000822 Contact Us For Availability
3
BRACKET WCI 8002730 Contact Us For Availability
3
DOOR SPREADS WCI 8009720 Contact Us For Availability
3
NUTS (8) WCI 8000001 Contact Us For Availability
3
WCI 9950369 WCI 9950369 Contact Us For Availability
3
CONVEYOR-L.H. WCI 8015567 Contact Us For Availability
4
TANK WCI 8950104 Contact Us For Availability
4
WCI 8009664 WCI 8009664 Contact Us For Availability
4
WCI 8010297 WCI 8010297 Contact Us For Availability
4
MOTOR WCI 1124982 Contact Us For Availability
4
LABEL WCI 8015781 Contact Us For Availability
5
WCI 8004143 WCI 8004143 Contact Us For Availability
5
RECEPTACLE WCI 8000129 Contact Us For Availability
5
SUPPORT-WATER TANK (3) WCI 8010339 Contact Us For Availability
5
TRIM WCI 8010229 Contact Us For Availability
5
WCI 2832218 WCI 2832218 Contact Us For Availability
5
SCREWS (2) WCI 8015609 Contact Us For Availability
5
COVER-ICE CONTAINER WCI 8015563 Contact Us For Availability
6
SUPPORT WCI 8000097 Contact Us For Availability
6
INSULATOR WCI 8009620 Contact Us For Availability
6
SEAL-FOOD DOOR WCI 8010259 Contact Us For Availability
6
SCREWS (6) WCI 8013645 Contact Us For Availability
6
ELEMENT-HEATER WCI 8015588 Contact Us For Availability
6
ELECTRICAL WCI 8000064 Contact Us For Availability
6
CONTAINER-ICE WCI 8015566 Contact Us For Availability
7
WCI 8006970 WCI 8006970 Contact Us For Availability
7
CLAMP WCI 8000703 Contact Us For Availability
7
END CAP WCI 8010238 Contact Us For Availability
7
WCI 8015553 WCI 8015553 Contact Us For Availability
7
SPRING AND PIN ASSEMBLY-ICE CONVEYOR WCI 8015594 Contact Us For Availability
8
WCI 8006971 WCI 8006971 Contact Us For Availability
8
SCREWS (8) WCI 8010253 Contact Us For Availability
8
CONNECTORS (2) WCI 8015614 Contact Us For Availability
8
WCI 8010315 WCI 8010315 Contact Us For Availability
8
CLAMP-GROMMET WCI 8010326 Contact Us For Availability
8
CLAMP WCI 8000250 Contact Us For Availability
8
WCI 8015597 WCI 8015597 Contact Us For Availability
9
BRACKET WCI 8002727 Contact Us For Availability
9
GROMMETS (2) WCI 8015613 Contact Us For Availability
9
TRIM WCI 8012824 Contact Us For Availability
9
SCREWS (2) WCI 8014528 Contact Us For Availability
9
SCREWS (4) WCI 1123574 Contact Us For Availability
9
COVER WCI 8013644 Contact Us For Availability
9
SLEEVE WCI 8010335 Contact Us For Availability
9
WCI 8015558 WCI 8015558 Contact Us For Availability
10
TUBE (5) WCI 8000004 Contact Us For Availability
10
SCREWS (2) WCI 8000009 Contact Us For Availability
10
PANEL-EXTERIOR FOOD DOOR WCI 8009950 Contact Us For Availability
10
WCI 8015600 WCI 8015600 Contact Us For Availability
10
SWITCHES (2) WCI 8014530 Contact Us For Availability
10
TUBE WCI 8000222 Contact Us For Availability
10
WCI 8015584 WCI 8015584 Contact Us For Availability
11
HINGE WCI 8012828 Contact Us For Availability
11
KNOB WCI 8010380 Contact Us For Availability
11
BEARING WCI 8012008 Contact Us For Availability
11
WCI 8009926 WCI 8009926 Contact Us For Availability
11
PLATE WCI 8015612 Contact Us For Availability
11
WCI 8015596 WCI 8015596 Contact Us For Availability
12
WCI 8015601 WCI 8015601 Contact Us For Availability
12
WCI 8015611 WCI 8015611 Contact Us For Availability
12
HOUSING-ICE DISPENSER MOTOR WCI 8015580 Contact Us For Availability
13
SHIM WCI 8012829 Contact Us For Availability
13
SCREWS (2) WCI 8000008 Contact Us For Availability
13
CLOSER WCI 8000743 Contact Us For Availability
13
SPRING WCI 2832212 Contact Us For Availability
13
WCI 8015564 WCI 8015564 Contact Us For Availability
13
CLAMP WCI 8000221 Contact Us For Availability
13
GASKET-MOTOR HOUSING WCI 8015605 Contact Us For Availability
14
COVER HINGE (2) WCI 8012820 Contact Us For Availability
14
COVER WCI 8002731 Contact Us For Availability
14
PLUG WCI 8000241 Contact Us For Availability
14
ACTUATOR-WATER WCI 8010320 Contact Us For Availability
14
BRACKETS (4) WCI 8000296 Contact Us For Availability
14
SPOOL-ICE CONVEYOR WCI 8015559 Contact Us For Availability
15
HINGE WCI 8012934 Contact Us For Availability
15
WCI 8012815 WCI 8012815 Contact Us For Availability
15
TUBE-FILLER WCI 8015765 Contact Us For Availability
15
WCI 8006647 WCI 8006647 Contact Us For Availability
16
WASHER WCI 8000100 Contact Us For Availability
16
SHIELD WCI 8002733 Contact Us For Availability
16
LABEL WCI 8015599 Contact Us For Availability
16
WCI 8000845 WCI 8000845 Contact Us For Availability
16
TRAY-ICE WCI 8015579 Contact Us For Availability
16
WCI 8015858 WCI 8015858 Contact Us For Availability
17
PANEL-VERTICAL MULLION WCI 8000772 Contact Us For Availability
17
RIVET WCI 8002729 Contact Us For Availability
17
SEAL WCI 8001029 Contact Us For Availability
17
RECEPTACLE WCI 8010324 Contact Us For Availability
17
PANEL WCI 8015587 Contact Us For Availability
17
WCI 8015590 WCI 8015590 Contact Us For Availability
17
SUPPORT-STOOL WCI 8015560 Contact Us For Availability
18
SCREWS (2) WCI 8000098 Contact Us For Availability
18
GASKET WCI 8000785 Contact Us For Availability
18
WCI 8002726 WCI 8002726 Contact Us For Availability
18
WCI 8015617 WCI 8015617 Contact Us For Availability
18
PIN WCI 8010660 Contact Us For Availability
18
WCI 8015581 WCI 8015581 Contact Us For Availability
19
NUT (2) WCI 8000126 Contact Us For Availability
19
CLIP WCI 8013429 Contact Us For Availability
19
TRIM WCI 8009685 Contact Us For Availability
19
WCI 8012816 WCI 8012816 Contact Us For Availability
19
WCI 8015578 WCI 8015578 Contact Us For Availability
20
GASKET-CUT TO SIZE REQUIRED WCI 8950175 Contact Us For Availability
20
BOX WCI 8000770 Contact Us For Availability
20
WCI 8001045 WCI 8001045 Contact Us For Availability
20
BEARING WCI 8012007 Contact Us For Availability
20
SHIELD WCI 8010301 Contact Us For Availability
20
WCI 2832213 WCI 2832213 Contact Us For Availability
20
WCI 6595973 WCI 6595973 Contact Us For Availability
20
WCI 8015615 WCI 8015615 Contact Us For Availability
20A
SUPPORT-COVER LH WCI 8001044 Contact Us For Availability
21
CLIP-MULLION WCI 8000820 Contact Us For Availability
21
DEFLECTOR WCI 8000771 Contact Us For Availability
21
SCREW WCI 8002748 Contact Us For Availability
21
SCREWS WCI 8000305 Contact Us For Availability
21
PANEL-INTERIOR FOOD DOOR WCI 8009949 Contact Us For Availability
21
SEAL FREEZER DOOR WCI 8010248 Contact Us For Availability
21
WCI 8010322 WCI 8010322 Contact Us For Availability
21
CLAMP WCI 8000807 Contact Us For Availability
21A
CLIP-MULLION WCI 8000821 Contact Us For Availability
22
KNOB WCI 8010379 Contact Us For Availability
22
HYDRATOR WCI 8009652 Contact Us For Availability
22
INSERT-SHELF FRONT RH (3) WCI 8000753 Contact Us For Availability
22
WCI 8015586 WCI 8015586 Contact Us For Availability
22
CLAMP WCI 8008782 Contact Us For Availability
22A
INSERT-SHELF FRONT LH (3) WCI 8000754 Contact Us For Availability
23
WCI 8015574 WCI 8015574 Contact Us For Availability
23
WCI 8000837 WCI 8000837 Contact Us For Availability
23
RIVETS (12) WCI 8002773 Contact Us For Availability
23
WCI 8015555 WCI 8015555 Contact Us For Availability
23
WCI 2832215 WCI 2832215 Contact Us For Availability
23
INSULATION WCI 8009640 Contact Us For Availability
23
WCI 8009562 WCI 8009562 Contact Us For Availability
24
WCI 8002732 WCI 8002732 Contact Us For Availability
24
HYDRATOR WCI 8009653 Contact Us For Availability
24
FRONT-SHELF (3) WCI 8010023 Contact Us For Availability
24
SCREWS WCI 8010330 Contact Us For Availability
24
SCRAPER WCI 8010295 Contact Us For Availability
24
WCI 8010373 WCI 8010373 Contact Us For Availability
24
WCI 8015565 WCI 8015565 Contact Us For Availability
25
COVER WCI 8000823 Contact Us For Availability
25
LABEL WCI 8009987 Contact Us For Availability
25
COVER AND GUIDE WCI 8017040 Contact Us For Availability
25
FRONT-SHELF (2) WCI 8009666 Contact Us For Availability
25
STUD-ANCHOR (2) WCI 2832216 Contact Us For Availability
25
THERMOSTAT DEFROST LIMITER WCI 8000805 Contact Us For Availability
25
WCI 8950105 WCI 8950105 Contact Us For Availability
26
TRAY-MEATS WCI 8010024 Contact Us For Availability
26
WCI 8000812 WCI 8000812 Contact Us For Availability
26
SPRING WCI 8010300 Contact Us For Availability
26
PADS (2) WCI 8015598 Contact Us For Availability
26
WCI 8002778 WCI 8002778 Contact Us For Availability
27
LABEL WCI 8009988 Contact Us For Availability
27
TRIM WCI 8009622 Contact Us For Availability
27
WCI 8009719 WCI 8009719 Contact Us For Availability
27
DOOR-ICE WCI 8010659 Contact Us For Availability
27
NUTS (2) WCI 8000200 Contact Us For Availability
27
CLIP WCI 2832214 Contact Us For Availability
27
SUPPORT WCI 8002777 Contact Us For Availability
28
DAMPER WCI 8000779 Contact Us For Availability
28
SHIELD WCI 8009995 Contact Us For Availability
28
WCI 8010366 WCI 8010366 Contact Us For Availability
28
BASKET WCI 8000802 Contact Us For Availability
28
WCI 8015552 WCI 8015552 Contact Us For Availability
28
WCI 8000851 WCI 8000851 Contact Us For Availability
29
WASHER WCI 8000186 Contact Us For Availability
29
WCI 8015577 WCI 8015577 Contact Us For Availability
29
INSERT-SHELF FRONT LH (5) WCI 8009970 Contact Us For Availability
29
CLAMP WCI 8009561 Contact Us For Availability
29A
INSERT-SHELF FRONT RH (5) WCI 8009971 Contact Us For Availability
30
SHIM WCI 8000088 Contact Us For Availability
30
SCREW WCI 8000039 Contact Us For Availability
30
RAIL L.H. WCI 8000819 Contact Us For Availability
30
RIVET WCI 8002750 Contact Us For Availability
30
BRACKETS (4) WCI 8002782 Contact Us For Availability
31
TRIM WCI 8000840 Contact Us For Availability
31
COVER WCI 8015557 Contact Us For Availability
31
WCI 8000782 WCI 8000782 Contact Us For Availability
31
WCI 8015575 WCI 8015575 Contact Us For Availability
31
GROMMETS (3) WCI 8008778 Contact Us For Availability
31
WCI 1121980 WCI 1121980 Contact Us For Availability
31A
WCI 8000783 WCI 8000783 Contact Us For Availability
32
HINGE WCI 8000059 Contact Us For Availability
32
WCI 8000808 WCI 8000808 Contact Us For Availability
32
BUMPER WCI 8000790 Contact Us For Availability
32
SLEEVE (3) WCI 8002758 Contact Us For Availability
32
WCI 114627 WCI 114627 Contact Us For Availability
32A
WCI 8000809 WCI 8000809 Contact Us For Availability
33
RECEPTACLE WCI 8000815 Contact Us For Availability
33
PLUG BUTTONS (4) WCI 8000087 Contact Us For Availability
33
END CAP WCI 8010239 Contact Us For Availability
33
WCI 8011424 WCI 8011424 Contact Us For Availability
33
WCI 8001463 WCI 8001463 Contact Us For Availability
34
CLIP WCI 8000847 Contact Us For Availability
34
SCREWS WCI 8000005 Contact Us For Availability
34
ORIFICE WCI 8000124 Contact Us For Availability
34
HANDLE FREEZER DOOR WCI 8009947 Contact Us For Availability
34
SCREWS (3) WCI 8000029 Contact Us For Availability
34
WCI 8000247 WCI 8000247 Contact Us For Availability
35
WCI 8015549 WCI 8015549 Contact Us For Availability
35
FAN WCI 8000010 Contact Us For Availability
35
BRACKETS (2) WCI 8002744 Contact Us For Availability
35
WCI 8002751 WCI 8002751 Contact Us For Availability
35
WCI 8000027 WCI 8000027 Contact Us For Availability
35
WCI 8015572 WCI 8015572 Contact Us For Availability
36
WCI 8010291 WCI 8010291 Contact Us For Availability
36
BRACKET WCI 8000043 Contact Us For Availability
36
SCREWS (2) WCI 6588927 Contact Us For Availability
36
WCI 8015570 WCI 8015570 Contact Us For Availability
37
PAN WCI 8000850 Contact Us For Availability
37
MOTOR WCI 8000036 Contact Us For Availability
37
WCI 8015561 WCI 8015561 Contact Us For Availability
37
HARNESS WCI 8015604 Contact Us For Availability
37
CLAMP WCI 8000133 Contact Us For Availability
37
PINS (5) WCI 8015569 Contact Us For Availability
38
SCREWS WCI 8000016 Contact Us For Availability
38
PEG (2) WCI 8010367 Contact Us For Availability
38
PLUG-CONNECTOR WCI 8010302 Contact Us For Availability
38
WCI 619375 WCI 619375 Contact Us For Availability
39
TUBE-DRAIN TO PAN WCI 8002767 Contact Us For Availability
39
BRACKET WCI 8000107 Contact Us For Availability
39
COVER WCI 8010332 Contact Us For Availability
39
WCI 8010374 WCI 8010374 Contact Us For Availability
39
CLAMP WCI 8002756 Contact Us For Availability
39
GEAR WCI 1124984 Contact Us For Availability
40
ROLLER ADJUSTABLE WCI 8000118 Contact Us For Availability
40
SCREWS (3) WCI 8007097 Contact Us For Availability
40
BUSHINGS (2) WCI 8000032 Contact Us For Availability
40
HARNESS WCI 8009616 Contact Us For Availability
40
WASHER WCI 8010349 Contact Us For Availability
41
SCREWS WCI 8009568 Contact Us For Availability
41
WCI 8000810 WCI 8000810 Contact Us For Availability
41
SHAFT WCI 1124985 Contact Us For Availability
42
PINS WCI 8000266 Contact Us For Availability
42
WCI 8000811 WCI 8000811 Contact Us For Availability
42
WCI 8010289 WCI 8010289 Contact Us For Availability
42
CLAMP WCI 8000109 Contact Us For Availability
42
HOUSING WCI 8015618 Contact Us For Availability
43
ROLLERS WCI 8000265 Contact Us For Availability
43
WCI 8015554 WCI 8015554 Contact Us For Availability
43
WCI 8015589 WCI 8015589 Contact Us For Availability
44
PIN WCI 8000013 Contact Us For Availability
44
BUSHING WCI 8010308 Contact Us For Availability
44
BLOCKS (4) WCI 8000828 Contact Us For Availability
44
WCI 1138379 WCI 1138379 Contact Us For Availability
45
NUT WCI 8000011 Contact Us For Availability
45
WCI 8010361 WCI 8010361 Contact Us For Availability
45
INSULATION WCI 8015556 Contact Us For Availability
45
WCI 8010372 WCI 8010372 Contact Us For Availability
45
INSULATOR WCI 1138378 Contact Us For Availability
46
NUT WCI 8000091 Contact Us For Availability
46
TRIM WCI 8015551 Contact Us For Availability
46
STRAP WCI 8000110 Contact Us For Availability
46
WCI 8015616 WCI 8015616 Contact Us For Availability
47
CONDUCTOR WCI 8000853 Contact Us For Availability
47
WCI 8010362 WCI 8010362 Contact Us For Availability
47
BRACKET WCI 8002780 Contact Us For Availability
47
WCI 8015606 WCI 8015606 Contact Us For Availability
48
WCI 8010293 WCI 8010293 Contact Us For Availability
48
SHELF WCI 8015608 Contact Us For Availability
48
WCI 8000020 WCI 8000020 Contact Us For Availability
48
WCI 8015571 WCI 8015571 Contact Us For Availability
49
WASHER WCI 8009650 Contact Us For Availability
49
TRIM WCI 8015550 Contact Us For Availability
49
SCREWS (2) WCI 8015610 Contact Us For Availability
49
SCREWS WCI 8000015 Contact Us For Availability
50
SCREWS WCI 8012354 Contact Us For Availability
50
RETAINER RH WCI 8008250 Contact Us For Availability
50
WCI 8000019 WCI 8000019 Contact Us For Availability
50
WCI 8015573 WCI 8015573 Contact Us For Availability
50A
RETAINER LH WCI 8008251 Contact Us For Availability
51
WCI 8014529 WCI 8014529 Contact Us For Availability
51
COVER AND GUIDE WCI 8000971 Contact Us For Availability
51
WCI 8000730 WCI 8000730 Contact Us For Availability
51
WCI 8015607 WCI 8015607 Contact Us For Availability
52
SWITCH WCI 9918810 Contact Us For Availability
52
GASKET WCI 8009648 Contact Us For Availability
52
WCI 8000733 WCI 8000733 Contact Us For Availability
52
HARNESS-P.C. BOARD WCI 8015592 Contact Us For Availability
53
WCI 8009775 WCI 8009775 Contact Us For Availability
53
RETAINER WCI 8010348 Contact Us For Availability
54
HINGE WCI 8010296 Contact Us For Availability
54
WCI 8015562 WCI 8015562 Contact Us For Availability
55
WCI 8010292 WCI 8010292 Contact Us For Availability
55
RAIL RH WCI 8000818 Contact Us For Availability
55
WCI 8000018 WCI 8000018 Contact Us For Availability
55
P.C. BOARD WCI 8011238 Contact Us For Availability
56
WASHER WCI 8009617 Contact Us For Availability
56
TRIM WCI 8009679 Contact Us For Availability
56
WCI 114628 WCI 114628 Contact Us For Availability
57
NUTS WCI 8000067 Contact Us For Availability
57
SHELF WCI 8000908 Contact Us For Availability
57
WCI 1121985 WCI 1121985 Contact Us For Availability
58
SCREWS WCI 8000123 Contact Us For Availability
58
GROMMETS WCI 8002747 Contact Us For Availability
58
ADAPTER KIT WCI 8000205 Contact Us For Availability
59
SHELF WCI 8000907 Contact Us For Availability
59
WCI 8001143 WCI 8001143 Contact Us For Availability
60
GEAR-SLIDING WCI 8015576 Contact Us For Availability
× ![]()
