Model Electrolux FPE22VWCL5 REFRIGERATOR – Common Parts & Diagrams

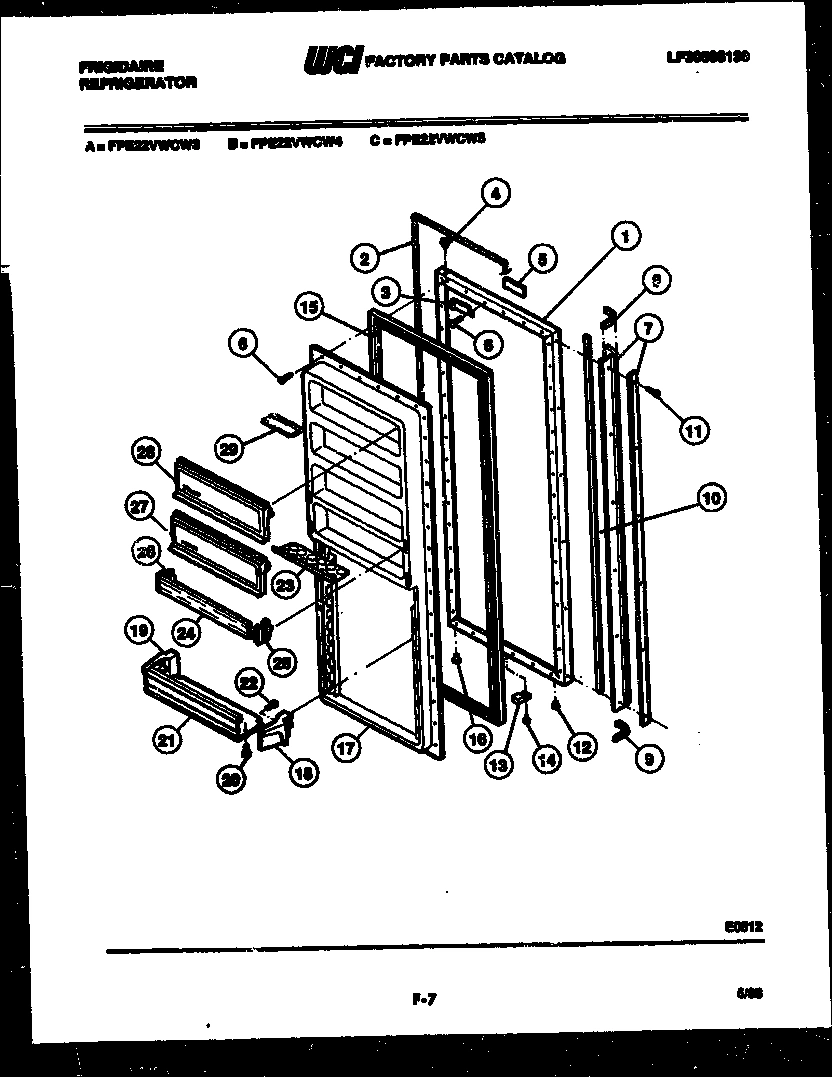

02 - FREEZER DOOR PARTS

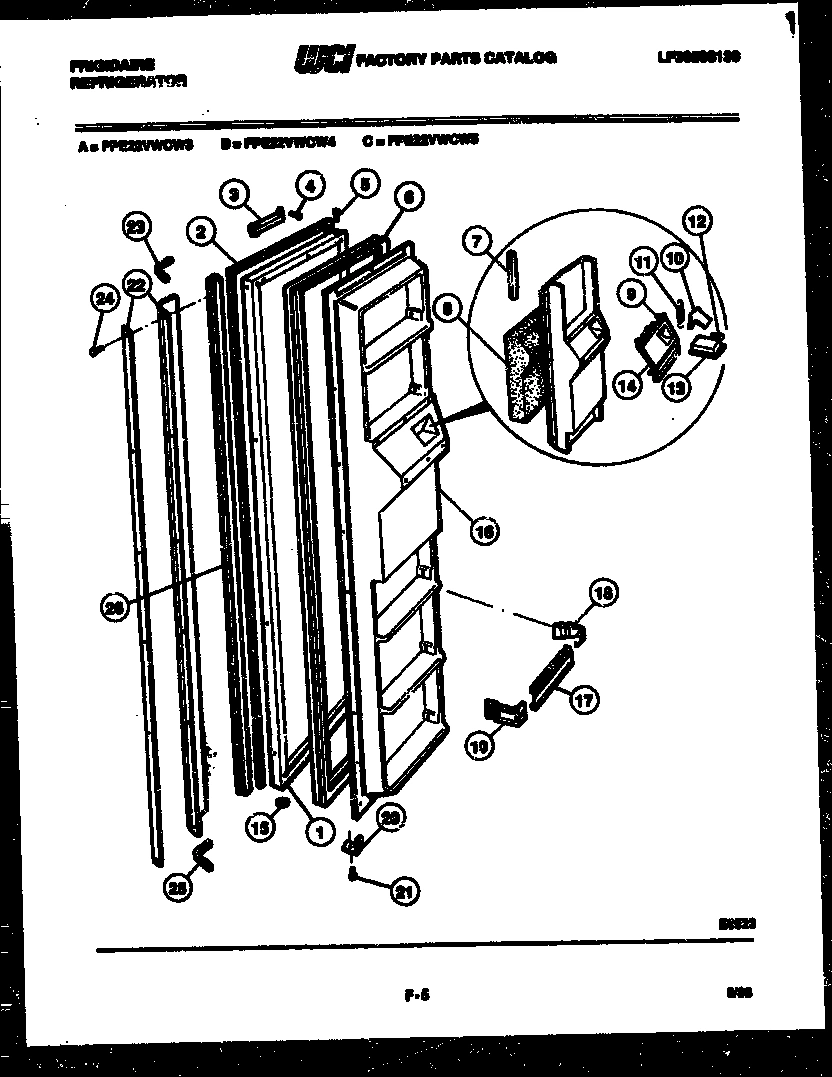

03 - REFRIGERATOR DOOR PARTS
04 - CABINET PARTS
05 - SHELVES AND SUPPORTS
06 - REFRIGERATOR CONTROL ASSEMBLY, DAMP
07 - ICE DOOR, DISPENSER AND WATER TANKS
08 - ICE DISPENSER
09 - ICE MAKER AND INSTALLATION PARTS
10 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux FPE22VWCL5 REFRIGERATOR
*11155
SUPPORT-COVER LH WCI 8001044 Contact Us For Availability
*11165
HOT TUBE REPAIR KIT WCI 9960005 Contact Us For Availability
1
WCI 8017105 WCI 8017105 Contact Us For Availability
1
PANEL-EXT REFR ALMD WCI 8009954 Contact Us For Availability
1
COVER-TOP HINGE ALMD (2) WCI 8012933 Contact Us For Availability
1
CHANNEL-SHELF R & LS WCI 8002744 Contact Us For Availability
1
WCI 8017048 WCI 8017048 Contact Us For Availability
1
WCI 8015563 WCI 8015563 Contact Us For Availability
1
WIRING HARNESS-ICE MAKER WCI 3017210 Contact Us For Availability
1
WCI 8017566 WCI 8017566 Contact Us For Availability
2
TRIM-FREEZER DOOR WCI 8015600 Contact Us For Availability
2
WCI 8012824 WCI 8012824 Contact Us For Availability
2
SCREW 1/4-20 (4) WCI 8000123 Contact Us For Availability
2
FRAME-SHELF (3) WCI 8010362 Contact Us For Availability
2
WCI 2832218 WCI 2832218 Contact Us For Availability
2
WCI 8015781 WCI 8015781 Contact Us For Availability
2
COIL BLOCK WCI 8000828 Contact Us For Availability
2A
WCI 8017561 WCI 8017561 Contact Us For Availability
3
WCI 8000743 WCI 8000743 Contact Us For Availability
3
WCI 8012934 WCI 8012934 Contact Us For Availability
3
GLASS-SHELF (3) WCI 8010361 Contact Us For Availability
3
SOCKET, LIGHT WCI 8000129 Contact Us For Availability
3
WCI 8015588 WCI 8015588 Contact Us For Availability
3
WCI 8015566 WCI 8015566 Contact Us For Availability
3
CLAMP-TUBE (3) WCI 8000221 Contact Us For Availability
3
WCI 8017562 WCI 8017562 Contact Us For Availability
4
WCI 8012008 WCI 8012008 Contact Us For Availability
4
WASHER-NYLON (2) WCI 8000100 Contact Us For Availability
4
TRIM-SHELF FRONT (3) WCI 8009685 Contact Us For Availability
4
BULB, LIGHT WCI 8000801 Contact Us For Availability
4
WCI 8017053 WCI 8017053 Contact Us For Availability
4
WCI 8015582 WCI 8015582 Contact Us For Availability
4
HEAT EXCHANGER WCI 8017565 Contact Us For Availability
5
NAMEPLATE ASSY WCI 8009926 Contact Us For Availability
5
RETAINER-GLASS (3) WCI 8001026 Contact Us For Availability
5
WCI 8010326 WCI 8010326 Contact Us For Availability
5
SPRING-CONTAINER CLR WCI 8015583 Contact Us For Availability
5
WCI 8015765 WCI 8015765 Contact Us For Availability
5
WCI 8017563 WCI 8017563 Contact Us For Availability
6
GASKET-FREEZER DOOR WCI 8010248 Contact Us For Availability
6
WCI 8000785 WCI 8000785 Contact Us For Availability
6
SEAL-POLY WCI 8001029 Contact Us For Availability
6
SCREW (4) WCI 8002728 Contact Us For Availability
6
WCI 1123574 WCI 1123574 Contact Us For Availability
6
WCI 8015594 WCI 8015594 Contact Us For Availability
6
WCI 8015579 WCI 8015579 Contact Us For Availability
6
SUPPORT-HEATER WCI 8002777 Contact Us For Availability
7
WCI 8010301 WCI 8010301 Contact Us For Availability
7
HANDLE ASSY-DOOR WCI 8009947 Contact Us For Availability
7
COVER-COIL UPPER WCI 8015574 Contact Us For Availability
7
TRIM-SHELF REAR (3) WCI 8010240 Contact Us For Availability
7
SCREW (2) WCI 8000009 Contact Us For Availability
7
WCI 8014530 WCI 8014530 Contact Us For Availability
7
WCI 8017101 WCI 8017101 Contact Us For Availability
7
TUBE-FILTER WCI 8000222 Contact Us For Availability
7
SUPPORT-EVAPORATOR WCI 8000110 Contact Us For Availability
8
WCI 8015556 WCI 8015556 Contact Us For Availability
8
END CAP-TOP WCI 8010239 Contact Us For Availability
8
WCI 8000776 WCI 8000776 Contact Us For Availability
8
COVER-CRISPER UPPER WCI 8000971 Contact Us For Availability
8
WCI 8010380 WCI 8010380 Contact Us For Availability
8
WCI 8015612 WCI 8015612 Contact Us For Availability
8
WCI 8015558 WCI 8015558 Contact Us For Availability
8
SLEEVE-TUBER INSERT WCI 8010335 Contact Us For Availability
8
WCI 8017113 WCI 8017113 Contact Us For Availability
9
WCI 8010660 WCI 8010660 Contact Us For Availability
9
END CAP-BOTTOM WCI 8010238 Contact Us For Availability
9
WCI 8000820 WCI 8000820 Contact Us For Availability
9
PAN-CRISPER UPPER WCI 8009652 Contact Us For Availability
9
SCREW (2) WCI 8000008 Contact Us For Availability
9
WCI 8015584 WCI 8015584 Contact Us For Availability
9
WCI 8000250 WCI 8000250 Contact Us For Availability
9
WCI 8000296 WCI 8000296 Contact Us For Availability
10
WCI 8010295 WCI 8010295 Contact Us For Availability
10
WCI 8010229 WCI 8010229 Contact Us For Availability
10
WCI 8000821 WCI 8000821 Contact Us For Availability
10
COVER-CRISPER UPPER WCI 8017039 Contact Us For Availability
10
WCI 8017445 WCI 8017445 Contact Us For Availability
10
SPRING-WTR ACTUATOR WCI 2832212 Contact Us For Availability
10
WCI 8015596 WCI 8015596 Contact Us For Availability
10
INSULATOR WCI 1138378 Contact Us For Availability
10
WCI 8000039 WCI 8000039 Contact Us For Availability
11
WCI 8010300 WCI 8010300 Contact Us For Availability
11
WCI 8000287 WCI 8000287 Contact Us For Availability
11
TRIM-MULLION ALMD WCI 8000844 Contact Us For Availability
11
PAN-CRISPER UPPER WCI 8009653 Contact Us For Availability
11
WCI 8003637 WCI 8003637 Contact Us For Availability
11
ACTUATOR-WATER WCI 8010320 Contact Us For Availability
11
WCI 8017100 WCI 8017100 Contact Us For Availability
11
WCI 1138379 WCI 1138379 Contact Us For Availability
11
DRIER WCI 8000027 Contact Us For Availability
12
WCI 8002751 WCI 8002751 Contact Us For Availability
12
GASKET (3) WCI 8950175 Contact Us For Availability
12
BASKET-FREEZER WCI 8017594 Contact Us For Availability
12
FERRULE-INNER WCI 8000811 Contact Us For Availability
12
WCI 8012815 WCI 8012815 Contact Us For Availability
12
WCI 8015580 WCI 8015580 Contact Us For Availability
12
WCI 8000064 WCI 8000064 Contact Us For Availability
13
WCI 8010659 WCI 8010659 Contact Us For Availability
13
WCI 8000790 WCI 8000790 Contact Us For Availability
13
WCI 8009650 WCI 8009650 Contact Us For Availability
13
WCI 8009622 WCI 8009622 Contact Us For Availability
13
FERRULE-OUTER WCI 8000810 Contact Us For Availability
13
WCI 2832214 WCI 2832214 Contact Us For Availability
13
WCI 8015605 WCI 8015605 Contact Us For Availability
13
WCI 3017977 WCI 3017977 Contact Us For Availability
13A
VELCRO PAD-COVER (NON-ILLUSTRATED) WCI 3017383 Contact Us For Availability
13B
LABEL-FRONT COVER (NON-ILLUSTRATED) WCI 3017976 Contact Us For Availability
14
TRIM COVER-DOOR PNL WCI 8015555 Contact Us For Availability
14
SCREW WCI 8002748 Contact Us For Availability
14
WCI 8000818 WCI 8000818 Contact Us For Availability
14
WCI 800070 WCI 800070 Contact Us For Availability
14
WCI 8015599 WCI 8015599 Contact Us For Availability
14
WCI 8015559 WCI 8015559 Contact Us For Availability
14
WCI 8015618 WCI 8015618 Contact Us For Availability
14
CLAMP-CORD WCI 8002756 Contact Us For Availability
14A
VELCRO PAD-HOUSING (NON-ILLUSTRATED) WCI 3017382 Contact Us For Availability
15
BUSHING-LWR HINGE WCI 8010308 Contact Us For Availability
15
GASKET-REFR WCI 8010259 Contact Us For Availability
15
WCI 8000823 WCI 8000823 Contact Us For Availability
15
WCI 8000819 WCI 8000819 Contact Us For Availability
15
WCI 8000771 WCI 8000771 Contact Us For Availability
15
WCI 8015587 WCI 8015587 Contact Us For Availability
15
WCI 8015560 WCI 8015560 Contact Us For Availability
15
WCI 8015576 WCI 8015576 Contact Us For Availability
15
SCREW WCI 8016629 Contact Us For Availability
16
PANEL-INNER DOOR WCI 8015575 Contact Us For Availability
16
BEARING-HINGE WCI 8012007 Contact Us For Availability
16
WCI 8002734 WCI 8002734 Contact Us For Availability
16
SHELF-FREEZER WCI 8000908 Contact Us For Availability
16
RIVET-EXPANSION WCI 8013429 Contact Us For Availability
16
WCI 8015581 WCI 8015581 Contact Us For Availability
16
WCI 0815858 WCI 0815858 Contact Us For Availability
16
WCI 3017391 WCI 3017391 Contact Us For Availability
16
WCI 8017226 WCI 8017226 Contact Us For Availability
17
DOOR RACK (5) WCI 8015552 Contact Us For Availability
17
WCI 8009949 WCI 8009949 Contact Us For Availability
17
SCREW (3) WCI 8000098 Contact Us For Availability
17
TRIM-FREEZER SHELF (3) WCI 8009679 Contact Us For Availability
17
WCI 8010379 WCI 8010379 Contact Us For Availability
17
WCI 2832213 WCI 2832213 Contact Us For Availability
17
WCI 8015593 WCI 8015593 Contact Us For Availability
17
WCI 8015578 WCI 8015578 Contact Us For Availability
17
WCI 8017526 WCI 8017526 Contact Us For Availability
18
SUPPORT RS (5) WCI 8009971 Contact Us For Availability
18
WCI 8000753 WCI 8000753 Contact Us For Availability
18
WCI 8000779 WCI 8000779 Contact Us For Availability
18
WCI 8000097 WCI 8000097 Contact Us For Availability
18
WCI 8000907 WCI 8000907 Contact Us For Availability
18
ACTUATOR AND CUP ASSY-ICE WCI 3001075 Contact Us For Availability
18
SCREW-BELT MTG (2) WCI 8016566 Contact Us For Availability
18
WCI 3017717 WCI 3017717 Contact Us For Availability
18
WCI 3001650 WCI 3001650 Contact Us For Availability
18
STRAP-CAPACITOR WCI 8017231 Contact Us For Availability
19
SUPPORT LS (5) WCI 8009970 Contact Us For Availability
19
WCI 8000754 WCI 8000754 Contact Us For Availability
19
WASHER-NYLON (2) WCI 8000186 Contact Us For Availability
19
WCI 8000305 WCI 8000305 Contact Us For Availability
19
LABEL-REF SHIELD RH WCI 8009987 Contact Us For Availability
19
WCI 8017448 WCI 8017448 Contact Us For Availability
19
WCI 8015606 WCI 8015606 Contact Us For Availability
19
COVER-TERMINAL WCI 8000116 Contact Us For Availability
20
RIVET (12) WCI 8002773 Contact Us For Availability
20
WCI 8000088 WCI 8000088 Contact Us For Availability
20
WCI 8015608 WCI 8015608 Contact Us For Availability
20
SHIELD-LIGHT REFR WCI 8017596 Contact Us For Availability
20
WCI 8010324 WCI 8010324 Contact Us For Availability
20
WCI 8015567 WCI 8015567 Contact Us For Availability
20
WCI 8015571 WCI 8015571 Contact Us For Availability
20
STRAP-TERMINAL CVR WCI 8000117 Contact Us For Availability
20A
WCI 8015550 WCI 8015550 Contact Us For Availability
21
WCI 8010023 WCI 8010023 Contact Us For Availability
21
WCI 8010296 WCI 8010296 Contact Us For Availability
21
SHELF-FREEZER UPPER WCI 3017212 Contact Us For Availability
21
LABEL-REFR SHIELD LH WCI 8009988 Contact Us For Availability
21
WCI 2832216 WCI 2832216 Contact Us For Availability
21
WCI 3016895 WCI 3016895 Contact Us For Availability
21
WCI 1124985 WCI 1124985 Contact Us For Availability
21
WCI 3916009 WCI 3916009 Contact Us For Availability
21A
WCI 8015551 WCI 8015551 Contact Us For Availability
22
WCI 8000812 WCI 8000812 Contact Us For Availability
22
SCREW (3) WCI 8000005 Contact Us For Availability
22
WCI 8950104 WCI 8950104 Contact Us For Availability
22
WCI 8015585 WCI 8015585 Contact Us For Availability
22
WCI 8015598 WCI 8015598 Contact Us For Availability
22
WCI 8010349 WCI 8010349 Contact Us For Availability
22
CLIP-COMPRESSOR (4) WCI 8003596 Contact Us For Availability
23
WCI 8009719 WCI 8009719 Contact Us For Availability
23
WCI 9918810 WCI 9918810 Contact Us For Availability
23
WCI 8010339 WCI 8010339 Contact Us For Availability
23
WCI 8015557 WCI 8015557 Contact Us For Availability
23
WCI 8015586 WCI 8015586 Contact Us For Availability
23
WCI 1124984 WCI 1124984 Contact Us For Availability
23
WASHER-COMPR (4) WCI 8003597 Contact Us For Availability
24
SCREW-HANDLE (6) WCI 8013645 Contact Us For Availability
24
SHELF-DOOR (2) WCI 8009666 Contact Us For Availability
24
WCI 8009617 WCI 8009617 Contact Us For Availability
24
WCI 8017042 WCI 8017042 Contact Us For Availability
24
BULB-LIGHT WCI 8002735 Contact Us For Availability
24
WCI 8010327 WCI 8010327 Contact Us For Availability
24
WCI 3017390 WCI 3017390 Contact Us For Availability
24
GROMMET-COMPR (4) WCI 8008778 Contact Us For Availability
25
NUT-SELF THD (12) WCI 8017047 Contact Us For Availability
25
SUPPORT-SHELF RH (2) WCI 8009808 Contact Us For Availability
25
WCI 8014529 WCI 8014529 Contact Us For Availability
25
WCI 8000703 WCI 8000703 Contact Us For Availability
25
WCI 8000815 WCI 8000815 Contact Us For Availability
25
WCI 8015610 WCI 8015610 Contact Us For Availability
25
WCI 8017112 WCI 8017112 Contact Us For Availability
25A
WCI 8002780 WCI 8002780 Contact Us For Availability
25A
BRACKET-PLATE (4) (NON-ILLUSTRATED) WCI 8002782 Contact Us For Availability
25C
SCREW-PAN BRKT (2) (NON-ILLUSTRATED) WCI 8000015 Contact Us For Availability
26
SUPPORT-SHELF LH (2) WCI 8009806 Contact Us For Availability
26
WCI 800847 WCI 800847 Contact Us For Availability
26
WCI 8015614 WCI 8015614 Contact Us For Availability
26
RING-FAN ORIFICE WCI 8000124 Contact Us For Availability
26
WCI 8015604 WCI 8015604 Contact Us For Availability
26
WCI 3017392 WCI 3017392 Contact Us For Availability
26
WCI 8013644 WCI 8013644 Contact Us For Availability
27
SCREW (3) WCI 8012354 Contact Us For Availability
27
WCI 8009721 WCI 8009721 Contact Us For Availability
27
GRILLE-LOWER FRONT WCI 8015549 Contact Us For Availability
27
WCI 8015613 WCI 8015613 Contact Us For Availability
27
WCI 8010302 WCI 8010302 Contact Us For Availability
27
WCI 3015044 WCI 3015044 Contact Us For Availability
27
WCI 8009640 WCI 8009640 Contact Us For Availability
27A
WCI 8014569 WCI 8014569 Contact Us For Availability
28
WCI 8009720 WCI 8009720 Contact Us For Availability
28
FAN-DEFROST WCI 8000850 Contact Us For Availability
28
WCI 8007097 WCI 8007097 Contact Us For Availability
28
FAN WCI 8000010 Contact Us For Availability
28
WCI 8012816 WCI 8012816 Contact Us For Availability
28
WIRING HARNESS-COMPRESSOR & LIGHTS WCI 8009616 Contact Us For Availability
29
WCI 8009664 WCI 8009664 Contact Us For Availability
29
WCI 8012274 WCI 8012274 Contact Us For Availability
29
WCI 8010332 WCI 8010332 Contact Us For Availability
29
MOTOR-BLOWER WCI 8000036 Contact Us For Availability
29
WCI 8008782 WCI 8008782 Contact Us For Availability
29
WIRING HARNESS-CTRL WCI 3015135 Contact Us For Availability
30
ROLLER ASSY-ADJ (2) WCI 8000118 Contact Us For Availability
30
COVER-CRISPER LOWER WCI 8017040 Contact Us For Availability
30
BRACKET-CONNECTOR WCI 8000107 Contact Us For Availability
30
CLIP-OVERLOAD WCI 8017232 Contact Us For Availability
31
WCI 8000016 WCI 8000016 Contact Us For Availability
31
PAN-CRISPER LOWER WCI 8010024 Contact Us For Availability
31
BRACKET-MOTOR MTG REAR WCI 8000042 Contact Us For Availability
32
WCI 8009568 WCI 8009568 Contact Us For Availability
32
GASKET-COVER WCI 8009648 Contact Us For Availability
32
BRACKET-MOTOR MTG FRONT WCI 8000043 Contact Us For Availability
32
WATER VALVE-SOL WCI 3001189 Contact Us For Availability
33
TUBE-RUBBER (4) WCI 8000004 Contact Us For Availability
33
WCI 8001045 WCI 8001045 Contact Us For Availability
33
BUSHING-MOTOR MTG (2) WCI 8000032 Contact Us For Availability
34
PIN (2) WCI 8000001 Contact Us For Availability
35
WCI 8000266 WCI 8000266 Contact Us For Availability
35
WCI 8015609 WCI 8015609 Contact Us For Availability
36
ROLLER (2) WCI 8000255 Contact Us For Availability
36
WCI 1124982 WCI 1124982 Contact Us For Availability
37
NUT-PUSH (2) WCI 8000067 Contact Us For Availability
37
WCI 0619375 WCI 0619375 Contact Us For Availability
38
WCI 8000853 WCI 8000853 Contact Us For Availability
38
WCI 8015569 WCI 8015569 Contact Us For Availability
39
NUT-SPEC. TWIN (4) WCI 8000011 Contact Us For Availability
39
WCI 8015562 WCI 8015562 Contact Us For Availability
40
WCI 8000013 WCI 8000013 Contact Us For Availability
40
WCI 8015592 WCI 8015592 Contact Us For Availability
41
BRACKET-CVR MTG WCI 8000738 Contact Us For Availability
41
P.C. BOARD WCI 8011238 Contact Us For Availability
42
SUPPORT-COIL COVER (4) WCI 8000822 Contact Us For Availability
42
WCI 8950226 WCI 8950226 Contact Us For Availability
43
DIVIDER-ICEMAKER WCI 3017208 Contact Us For Availability
43
RETAINER RING WCI 8010348 Contact Us For Availability
44
HINGE-LOWER RH WCI 8000059 Contact Us For Availability
44
WCI 8950117 WCI 8950117 Contact Us For Availability
45
COVER-HINGE WCI 8010291 Contact Us For Availability
45
WATER SUPPLY ADAPTER KIT WCI 8000205 Contact Us For Availability
46
WCI 8009561 WCI 8009561 Contact Us For Availability
47
SHIM-UPPER HINGE WCI 8012829 Contact Us For Availability
48
FERRULE-INNER (2) WCI 8006970 Contact Us For Availability
49
FERRULE-OUTER (2) WCI 8006971 Contact Us For Availability
50
WCI 8012828 WCI 8012828 Contact Us For Availability
× ![]()
