Model Electrolux FPE22V3AW1 REFRIGERATOR – Common Parts & Diagrams

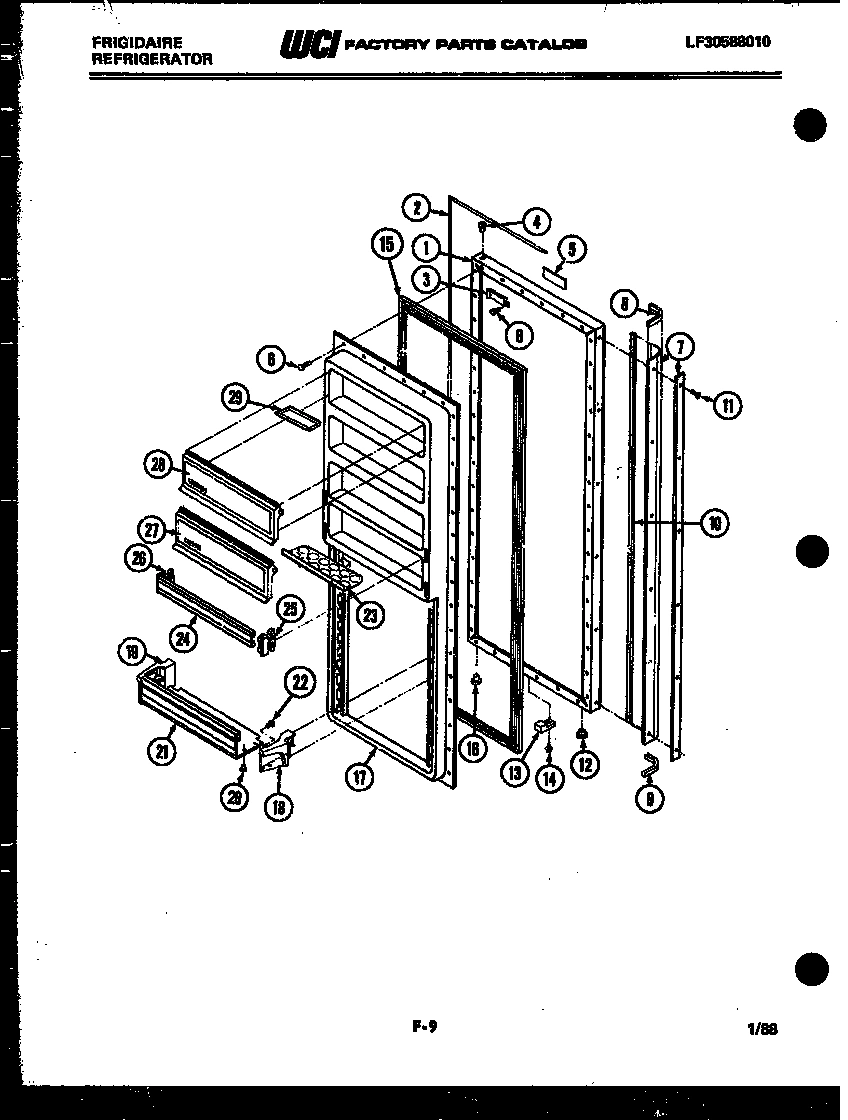

02 - REFRIGERATOR DOOR PARTS

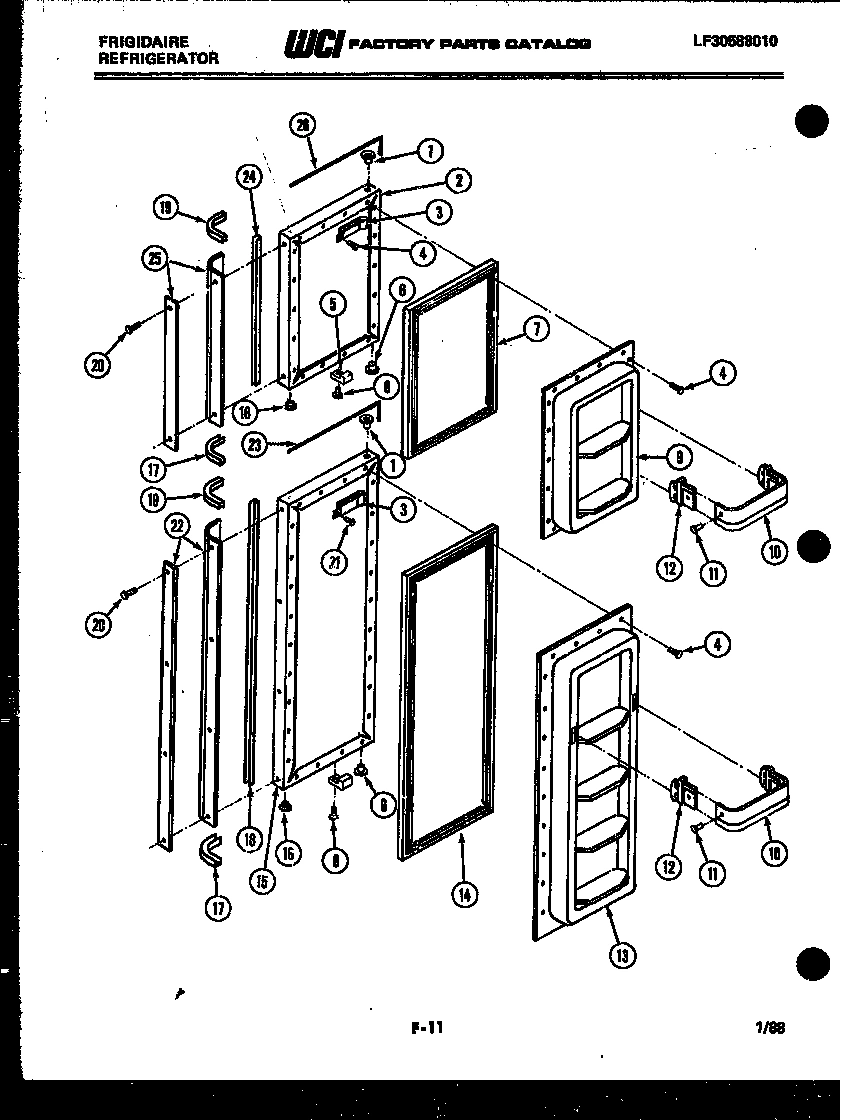

03 - FREEZER DOOR PARTS

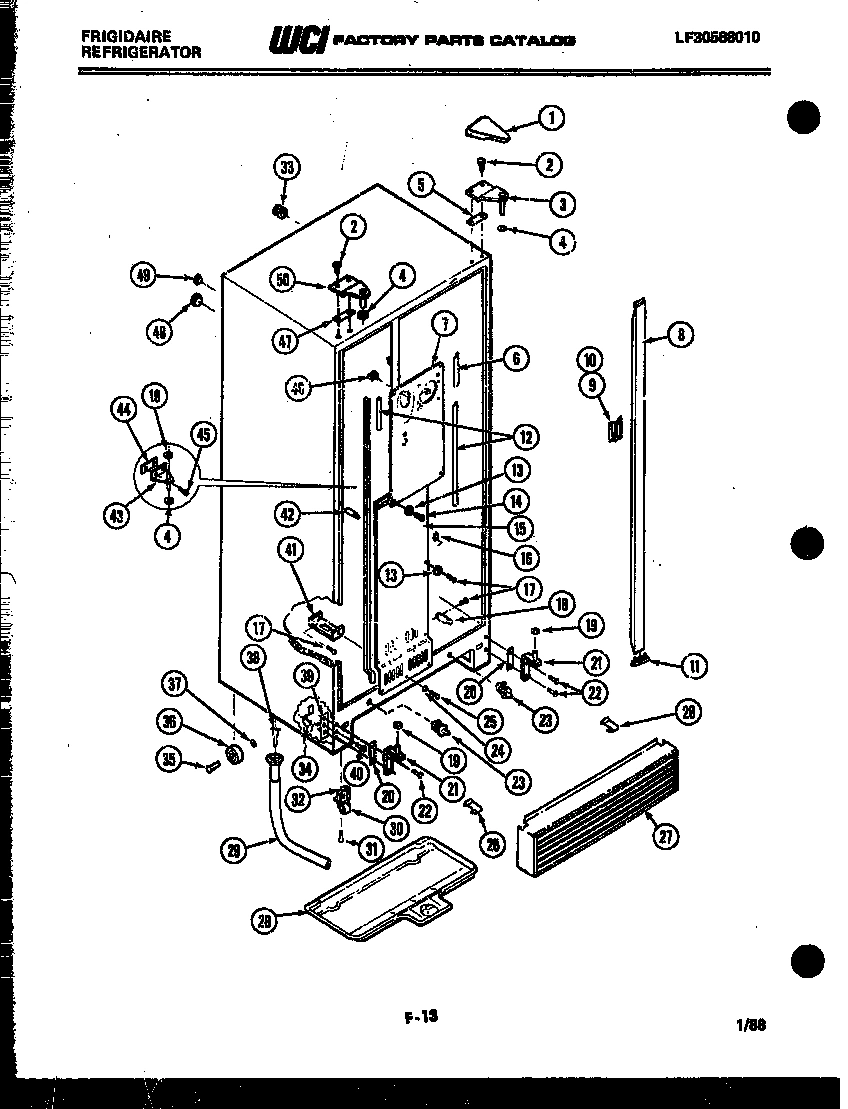

04 - CABINET PARTS

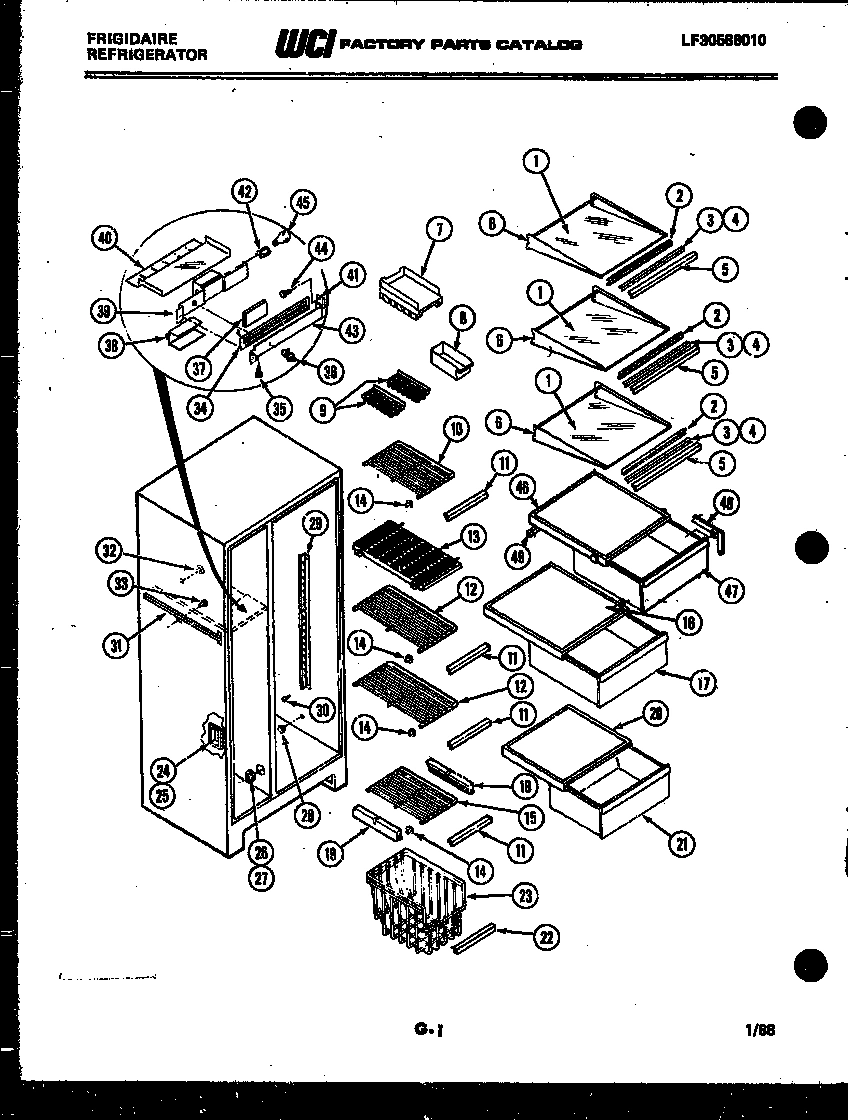

05 - SHELVES AND SUPPORTS

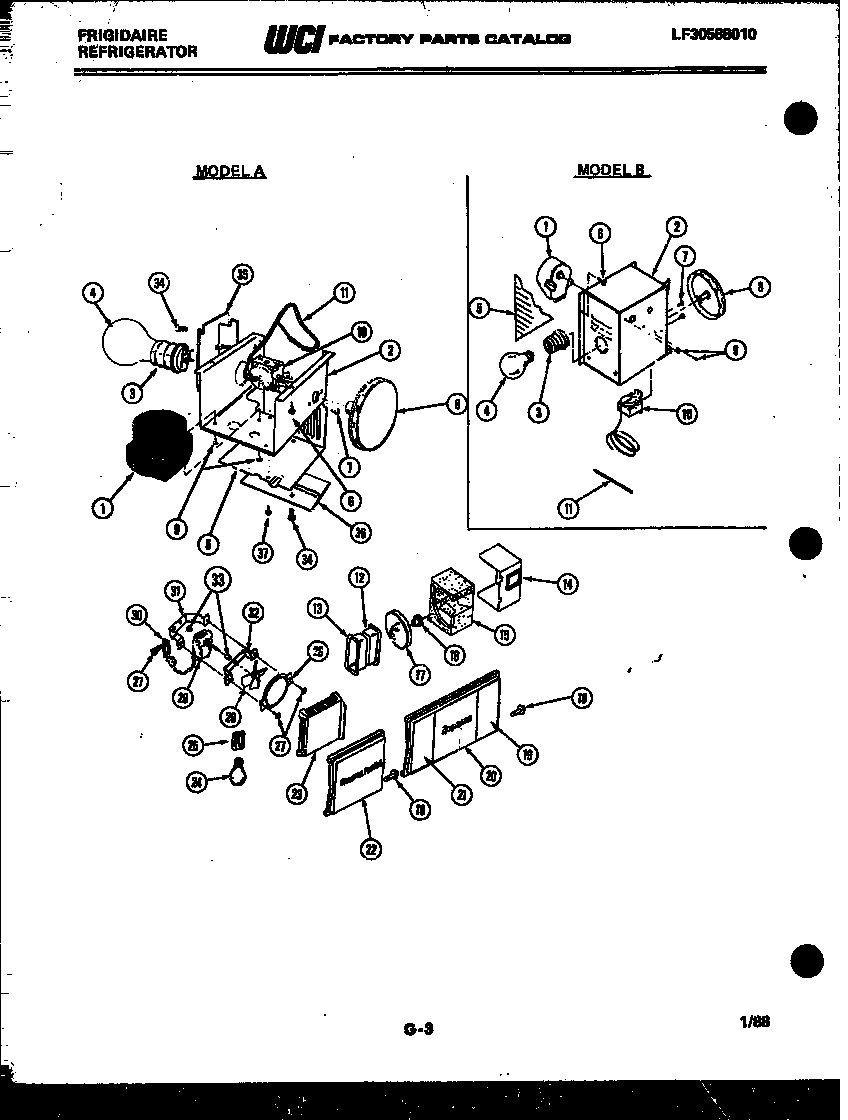

06 - REFRIGERATOR CONTROL ASSEMBLY, DAMP

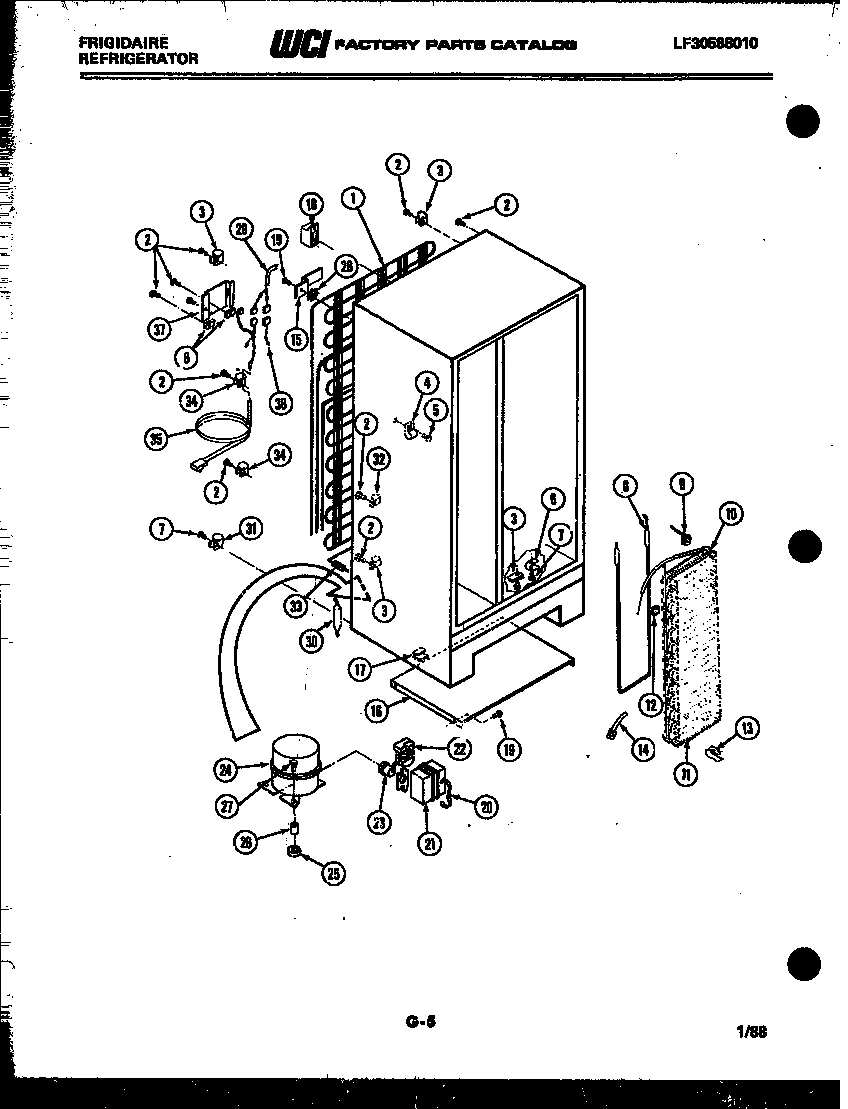

07 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux FPE22V3AW1 REFRIGERATOR
1
PANEL-EXT REF WHTE WCI 8009950 Contact Us For Availability
1
BEARING-HNG UPR (2) WCI 8012008 Contact Us For Availability
1
CVR-TOP HNG (2) - WHTE WCI 8012820 Contact Us For Availability
1
WCI 8009660 WCI 8009660 Contact Us For Availability
1
WCI 8017113 WCI 8017113 Contact Us For Availability
2
WCI 8012824 WCI 8012824 Contact Us For Availability
2
SCREW 8 X 1/2 (10) WCI 8002748 Contact Us For Availability
2
PNL-EXT. WHTE WCI 8009962 Contact Us For Availability
2
SCREW-1/4-20 (2) WCI 8000123 Contact Us For Availability
2
WCI 8001029 WCI 8001029 Contact Us For Availability
2
WCI 8002727 WCI 8002727 Contact Us For Availability
3
CLOSER (2) WCI 8000743 Contact Us For Availability
3
HINGE-UPR RH WCI 8012934 Contact Us For Availability
3
WCI 8001026 WCI 8001026 Contact Us For Availability
3
SOCKET, LIGHT WCI 8000129 Contact Us For Availability
3
WCI 8000221 WCI 8000221 Contact Us For Availability
4
WASHER-NYLON (3) WCI 8000100 Contact Us For Availability
4
WCI 8010240 WCI 8010240 Contact Us For Availability
4
BULB, LIGHT WCI 8000801 Contact Us For Availability
4
CLAMP WCI 8000807 Contact Us For Availability
5
NAMEPLATE ASSY WCI 8009926 Contact Us For Availability
5
BUMPER-LIGHT SW. WCI 8002802 Contact Us For Availability
5
SCREW 8 X 5/8 WCI 8012354 Contact Us For Availability
5
WCI 8009685 WCI 8009685 Contact Us For Availability
5
COVER-CONTRL BRKT WCI 8002731 Contact Us For Availability
6
BEARING-HNG LWR (2) WCI 8012007 Contact Us For Availability
6
GASKET-COIL CVR (2) WCI 8000785 Contact Us For Availability
6
WCI 8001028 WCI 8001028 Contact Us For Availability
6
SCREW (4) WCI 8002728 Contact Us For Availability
6
CLAMP-STRAIN RELIEF (3) WCI 8000109 Contact Us For Availability
7
HANDLE ASSY-DOOR WCI 8009947 Contact Us For Availability
7
WCI 8010249 WCI 8010249 Contact Us For Availability
7
COVER-UPR COIL WCI 8000825 Contact Us For Availability
7
ICE TRAY-COMP. WCI 8009824 Contact Us For Availability
7
SCREW (2) WCI 8000009 Contact Us For Availability
7
SCREW (3) WCI 8000015 Contact Us For Availability
8
SCREW 8 X 32 X 1/2 (2) WCI 8000839 Contact Us For Availability
8
MULLION-WHTE WCI 8000772 Contact Us For Availability
8
CONTAINER, ICE WCI 8009795 Contact Us For Availability
8
KNOB-COLD CONTRL WCI 8010380 Contact Us For Availability
8
WCI 8000737 WCI 8000737 Contact Us For Availability
9
WCI 8009967 WCI 8009967 Contact Us For Availability
9
WCI 8000820 WCI 8000820 Contact Us For Availability
9
ICE TRAY-PLAS. (2) WCI 8000153 Contact Us For Availability
9
SCREW (2) WCI 8000008 Contact Us For Availability
9
THERMOSTAT-DEF WCI 8000805 Contact Us For Availability
10
WCI 8010229 WCI 8010229 Contact Us For Availability
10
WCI 8009716 WCI 8009716 Contact Us For Availability
10
WCI 8000821 WCI 8000821 Contact Us For Availability
10
WCI 8017445 WCI 8017445 Contact Us For Availability
10
WCI 8017564 WCI 8017564 Contact Us For Availability
11
WCI 8000287 WCI 8000287 Contact Us For Availability
11
WCI 8002750 WCI 8002750 Contact Us For Availability
11
TRIM-MULLION WHT WCI 8000840 Contact Us For Availability
11
WCI 8009679 WCI 8009679 Contact Us For Availability
11
WCI 8003637 WCI 8003637 Contact Us For Availability
11
WCI 8017536 WCI 8017536 Contact Us For Availability
12
SUPT-DR RK LH (12) WCI 8009970 Contact Us For Availability
12
GASKET (3) WCI 8950175 Contact Us For Availability
12
WCI 8000907 WCI 8000907 Contact Us For Availability
12
FERRULE-INNER WCI 8000811 Contact Us For Availability
12
WCI 8000828 WCI 8000828 Contact Us For Availability
12A
SUPT - DR RK RH (12) (NON-ILLUSTRATED) WCI 8009971 Contact Us For Availability
13
BUMPER-LITE SWITCH WCI 8000790 Contact Us For Availability
13
WCI 8009968 WCI 8009968 Contact Us For Availability
13
WASHER-NYLN (8) WCI 8009650 Contact Us For Availability
13
SHELF-FREEZER PLAS WCI 8001016 Contact Us For Availability
13
FERRULE-OUTER WCI 8000810 Contact Us For Availability
13
SUPT-DEF HTR WCI 8002777 Contact Us For Availability
14
WCI 8010250 WCI 8010250 Contact Us For Availability
14
GROMMET-SHELF (10) WCI 8002747 Contact Us For Availability
14
BOX-DAMPR CONTRL WCI 8000770 Contact Us For Availability
14
STRAP-ALUM (2) WCI 8000110 Contact Us For Availability
15
WCI 8010259 WCI 8010259 Contact Us For Availability
15
PNL-EXT. WHTE WCI 8009957 Contact Us For Availability
15
COVER-LWR COIL WCI 8000824 Contact Us For Availability
15
SHELF-FREEZER WCI 8000908 Contact Us For Availability
15
WCI 8000771 WCI 8000771 Contact Us For Availability
15
BRKT-COND MTG (4) WCI 8003600 Contact Us For Availability
16
BUTTON-PLUG (2) WCI 8002751 Contact Us For Availability
16
WCI 8002734 WCI 8002734 Contact Us For Availability
16
WCI 8017039 WCI 8017039 Contact Us For Availability
16
RIVET-EXPANSION WCI 8013429 Contact Us For Availability
16
WCI 8017112 WCI 8017112 Contact Us For Availability
17
END CAP (2) WCI 8010239 Contact Us For Availability
17
WCI 8009949 WCI 8009949 Contact Us For Availability
17
WCI 8009653 WCI 8009653 Contact Us For Availability
17
KNOB-DAMPR CONT WCI 8010379 Contact Us For Availability
17
WCI 8000099 WCI 8000099 Contact Us For Availability
18
WCI 8000753 WCI 8000753 Contact Us For Availability
18
TRIM-HANDLE FRZR WCI 8010231 Contact Us For Availability
18
DAMPR-MEAT KEEP WCI 8000779 Contact Us For Availability
18
SUPPORT-COIL CVR (2) WCI 8000097 Contact Us For Availability
18
HANGER-BSKT RH WCI 8000818 Contact Us For Availability
18
BRACKET (4) WCI 8002782 Contact Us For Availability
19
END CAP (2) WCI 8010238 Contact Us For Availability
19
WCI 8000754 WCI 8000754 Contact Us For Availability
19
WCI 8000186 WCI 8000186 Contact Us For Availability
19
HANGER-BSKT LH WCI 8000819 Contact Us For Availability
19
LABEL-REF SHIELD RH WCI 8009987 Contact Us For Availability
19
SCREW 8-32 (11) WCI 8000039 Contact Us For Availability
20
RIVET (12) WCI 8002773 Contact Us For Availability
20
SCREW (6) WCI 8013645 Contact Us For Availability
20
SHIM-LWR HNG (2) WCI 8000088 Contact Us For Availability
20
WCI 8017040 WCI 8017040 Contact Us For Availability
20
WCI 8009995 WCI 8009995 Contact Us For Availability
20
STRAP, BALE WCI 8000117 Contact Us For Availability
21
WCI 8010023 WCI 8010023 Contact Us For Availability
21
HINGE-LWR (2) WCI 8000059 Contact Us For Availability
21
WCI 8010024 WCI 8010024 Contact Us For Availability
21
LABEL-REF SHIELD LH WCI 8009988 Contact Us For Availability
21
COVER-TERMINAL WCI 8000116 Contact Us For Availability
22
SCREW (16) WCI 8000812 Contact Us For Availability
22
WCI 8009955 WCI 8009955 Contact Us For Availability
22
WCI 8009622 WCI 8009622 Contact Us For Availability
22
SHIELD-LIGHT FRZR WCI 8009615 Contact Us For Availability
22
WCI 8000023 WCI 8000023 Contact Us For Availability
23
WCI 8009719 WCI 8009719 Contact Us For Availability
23
WCI 8012827 WCI 8012827 Contact Us For Availability
23
WCI 8000802 WCI 8000802 Contact Us For Availability
23
WCI 8000777 WCI 8000777 Contact Us For Availability
23
WCI 8017229 WCI 8017229 Contact Us For Availability
24
SHELF-DOOR (2) WCI 8009666 Contact Us For Availability
24
TRIM-HNDL FRZR WCI 8010230 Contact Us For Availability
24
WCI 8000808 WCI 8000808 Contact Us For Availability
24
BULB-LIGHT WCI 8002735 Contact Us For Availability
24
WCI 8950186 WCI 8950186 Contact Us For Availability
25
SUPPORT-SHELF RH (2) WCI 8009808 Contact Us For Availability
25
WCI 8009956 WCI 8009956 Contact Us For Availability
25
WCI 8009585 WCI 8009585 Contact Us For Availability
25
WCI 8000809 WCI 8000809 Contact Us For Availability
25
WCI 8000815 WCI 8000815 Contact Us For Availability
25
GROMMET-COMP MTG (4) WCI 8008778 Contact Us For Availability
26
SUPPORT-SHELF LH (2) WCI 8009806 Contact Us For Availability
26
WCI 8012826 WCI 8012826 Contact Us For Availability
26
WCI 8000847 WCI 8000847 Contact Us For Availability
26
RING-FAN ORIFICE WCI 8000124 Contact Us For Availability
26
SLEEVE-COMP MTG (3) WCI 8002758 Contact Us For Availability
27
WCI 8009721 WCI 8009721 Contact Us For Availability
27
WCI 8000856 WCI 8000856 Contact Us For Availability
27
SCREW 1/4-20 (3) WCI 8000029 Contact Us For Availability
28
WCI 8009720 WCI 8009720 Contact Us For Availability
28
WASHER-LOCK (2) WCI 8009617 Contact Us For Availability
28
WCI 8000850 WCI 8000850 Contact Us For Availability
28
BUTTON-PLUG (4) WCI 8000087 Contact Us For Availability
28
FAN WCI 8000010 Contact Us For Availability
29
WCI 8009664 WCI 8009664 Contact Us For Availability
29
WCI 8002767 WCI 8002767 Contact Us For Availability
29
CHANL-SHELF (2) WCI 8002744 Contact Us For Availability
29
MOTOR-BLOWER WCI 8000036 Contact Us For Availability
29
HARNESS-WIRE WCI 8002786 Contact Us For Availability
30
SCREW 1/4 X 1 (4) WCI 8000005 Contact Us For Availability
30
WCI 8000118 WCI 8000118 Contact Us For Availability
30
BRACKET-CONNECTOR WCI 8000107 Contact Us For Availability
30
DRIER WCI 8000027 Contact Us For Availability
31
SCREW 5/16 (2) WCI 8000016 Contact Us For Availability
31
WCI 8009641 WCI 8009641 Contact Us For Availability
31
BRACKET-MOTOR MTG REAR WCI 8000042 Contact Us For Availability
31
WCI 8008782 WCI 8008782 Contact Us For Availability
32
WCI 8009568 WCI 8009568 Contact Us For Availability
32
BUTTON-PLUG WCI 8016571 Contact Us For Availability
32
BRACKET-MOTOR MTG FRONT WCI 8000043 Contact Us For Availability
32
CLAMP (2) WCI 8000133 Contact Us For Availability
33
WCI 8000098 WCI 8000098 Contact Us For Availability
33
WCI 8000004 WCI 8000004 Contact Us For Availability
33
BUSHING-MTR MTG (2) WCI 8000032 Contact Us For Availability
33
WCI 8003645 WCI 8003645 Contact Us For Availability
34
WCI 8000001 WCI 8000001 Contact Us For Availability
34
HEATER WCI 8000846 Contact Us For Availability
34
WCI 8002729 WCI 8002729 Contact Us For Availability
34
CLAMP-CABLE (3) WCI 8002756 Contact Us For Availability
35
WCI 8000266 WCI 8000266 Contact Us For Availability
35
SCREW 8-18 X 3/8 WCI 8002794 Contact Us For Availability
35
WCI 8002730 WCI 8002730 Contact Us For Availability
35
CORD, SERVICE WCI 8000064 Contact Us For Availability
36
SWITCH WCI 9918810 Contact Us For Availability
36
WCI 8000265 WCI 8000265 Contact Us For Availability
36
WCI 8002733 WCI 8002733 Contact Us For Availability
36
WCI 8009616 WCI 8009616 Contact Us For Availability
37
NUT-PUSH (2) WCI 8000067 Contact Us For Availability
37
WCI 8009732 WCI 8009732 Contact Us For Availability
37
WCI 8013644 WCI 8013644 Contact Us For Availability
37A
KIT-HOT TUBE REPAIR (NON-ILLUSTRATED) WCI 9960005 Contact Us For Availability
38
WCI 8000853 WCI 8000853 Contact Us For Availability
38
WCI 8002795 WCI 8002795 Contact Us For Availability
39
NUT-SPEC. TWIN (4) WCI 8000011 Contact Us For Availability
39
STRAP-LIGHT MTG. WCI 8002793 Contact Us For Availability
40
WCI 8000013 WCI 8000013 Contact Us For Availability
40
WCI 8000836 WCI 8000836 Contact Us For Availability
41
BRKT-CVR MTG. WCI 8000738 Contact Us For Availability
41
TRIM-MULLION WHTE WCI 8000829 Contact Us For Availability
42
SUPT-COIL CVR (5) WCI 8000822 Contact Us For Availability
42
WCI 8002657 WCI 8002657 Contact Us For Availability
43
BRKT-CTR HNG. WCI 8000834 Contact Us For Availability
43
MULLION-WHTE WCI 8000826 Contact Us For Availability
44
SHIM-CTR HINGE WCI 8002788 Contact Us For Availability
44
SCREW (2) WCI 8012258 Contact Us For Availability
46
WCI 8000971 WCI 8000971 Contact Us For Availability
47
SHIM-UPR HNG WCI 8012829 Contact Us For Availability
47
WCI 8009652 WCI 8009652 Contact Us For Availability
48
FERRULE-INNER (2) WCI 8006970 Contact Us For Availability
48
WCI 8001045 WCI 8001045 Contact Us For Availability
48A
WCI 8001044 WCI 8001044 Contact Us For Availability
49
FERRULE-OUTER (2) WCI 8006971 Contact Us For Availability
49
GASKET WCI 8009648 Contact Us For Availability
50
HINGE-UPR LH WCI 8012828 Contact Us For Availability
× ![]()
