Model Electrolux FPE21TIEH0 REFRIGERATOR – Common Parts & Diagrams

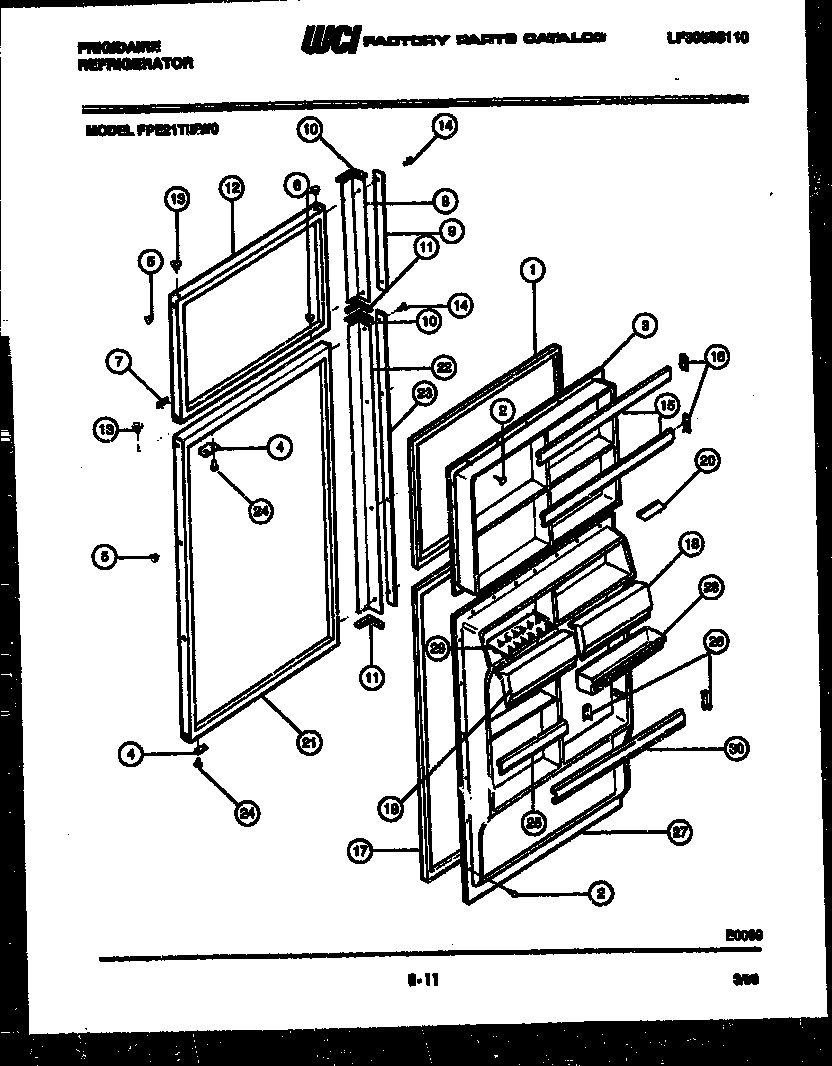

02 - DOOR PARTS

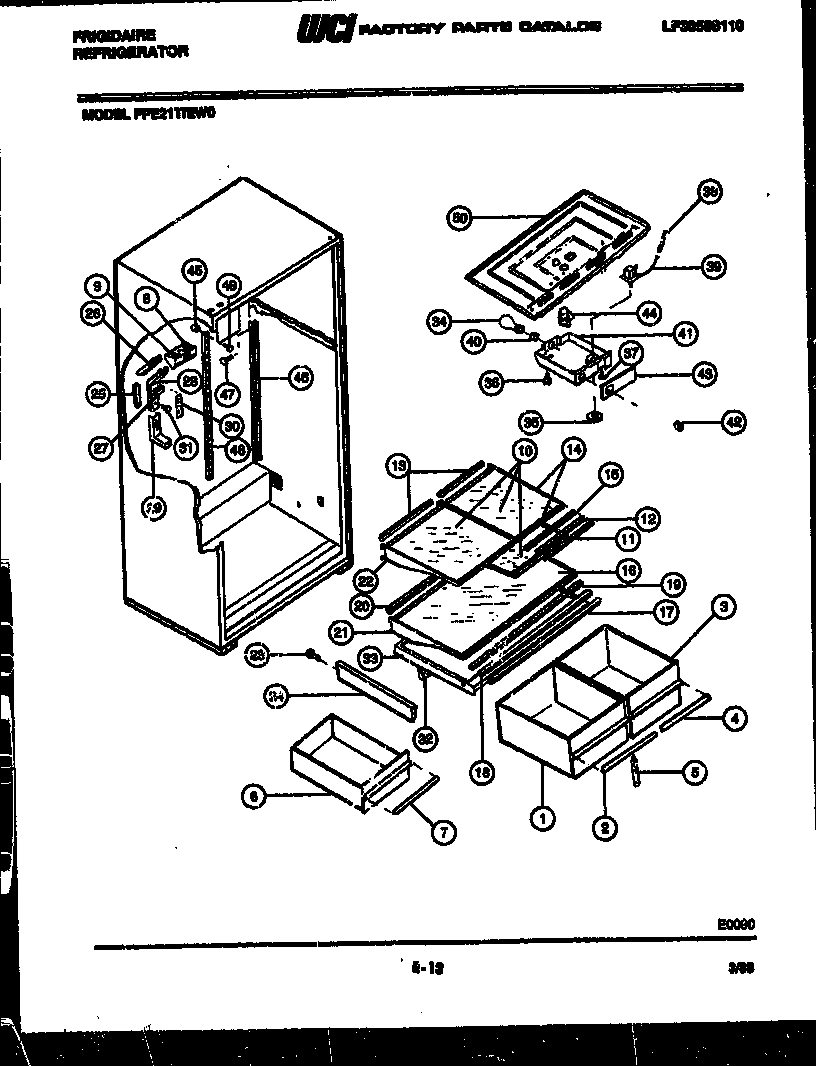

03 - CABINET PARTS
04 - SHELVES AND SUPPORTS
05 - EXTERIOR PARTS
06 - SYSTEM AND AUTOMATIC DEFROST PARTS
07 - ICE MAKER AND INSTALLATION PARTS
Common parts from model Electrolux FPE21TIEH0 REFRIGERATOR
*79465
DOOR CONV KIT-WHEAT WCI 8009634 Contact Us For Availability
*79466
INSULATION 1`` X 24`` X 48`` WCI 5418397 Contact Us For Availability
*79466
BUTTON-PLUG-BTM DOOR WCI 8009601 Contact Us For Availability
*79467
INSULATION 2 1/2`` X 30`` X 42`` WCI 5401987 Contact Us For Availability
*79467
INSULATION 3`` X 27 1/4`` X 39 5/8`` WCI 5401988 Contact Us For Availability
*79468
INSULATION 4`` X 21 3/4`` X 34 5/8`` WCI 5401984 Contact Us For Availability
*79562
WCI 9960001 WCI 9960001 Contact Us For Availability
1
GASKET-FREEZER WCI 8016617 Contact Us For Availability
1
PAN-CRISPER LH WCI 8009827 Contact Us For Availability
1
WCI 8013638 WCI 8013638 Contact Us For Availability
1
SHIM WCI 8012829 Contact Us For Availability
1
DRIER WCI 8000027 Contact Us For Availability
1
WCI 8000214 WCI 8000214 Contact Us For Availability
2
TRIM-LH WCI 3017422 Contact Us For Availability
2
WCI 3017427 WCI 3017427 Contact Us For Availability
2
BRACKET-HINGE UPPER WCI 8012843 Contact Us For Availability
2
WCI 8000094 WCI 8000094 Contact Us For Availability
2
WCI 8001182 WCI 8001182 Contact Us For Availability
3
PANEL-INNER DOOR WCI 8013672 Contact Us For Availability
3
PAN-CRISPER RH WCI 8009839 Contact Us For Availability
3
WCI 3017428 WCI 3017428 Contact Us For Availability
3
COVER, HINGE, WHEAT WCI 8012931 Contact Us For Availability
3
BRKT-CONDENSER (4) WCI 8000296 Contact Us For Availability
3
WCI 8001248 WCI 8001248 Contact Us For Availability
4
STOP-DOOR (2) WCI 8000255 Contact Us For Availability
4
TRIM-RH WCI 3017423 Contact Us For Availability
4
WCI 8013661 WCI 8013661 Contact Us For Availability
4
WASHER-NYLON (3) WCI 8000007 Contact Us For Availability
4
STRAP, BALE WCI 8000117 Contact Us For Availability
4
SCREW (3) WCI 8001136 Contact Us For Availability
5
BUTTON-PLUG WHEAT WCI 8000180 Contact Us For Availability
5
SUPPORT-CRISPER WCI 8013637 Contact Us For Availability
5
SCREW (5) WCI 8012354 Contact Us For Availability
5
WCI 8000100 WCI 8000100 Contact Us For Availability
5
PLATE-MOUNTING WCI 8017559 Contact Us For Availability
6
BUTTON-PLUG WHEAT WCI 8000176 Contact Us For Availability
6
PAN-MEAT WCI 8009858 Contact Us For Availability
6
ROLLER ASSY-FRONT (2) WCI 8009760 Contact Us For Availability
6
WCI 8013644 WCI 8013644 Contact Us For Availability
6
WCI 8001251 WCI 8001251 Contact Us For Availability
7
WCI 8009926 WCI 8009926 Contact Us For Availability
7
WCI 3017424 WCI 3017424 Contact Us For Availability
7
DAMPER WCI 8000066 Contact Us For Availability
7
WCI 8009773 WCI 8009773 Contact Us For Availability
7
HARNESS-COMPRESSOR WCI 8009628 Contact Us For Availability
7
PLATE-VALVE SWITCH WCI 8001242 Contact Us For Availability
8
HANDLE-COMPLETE WCI 8017493 Contact Us For Availability
8
COVER DEFLECT KIT WCI 8950143 Contact Us For Availability
8
NUT, PUSH WCI 8000067 Contact Us For Availability
8
WCI 8000064 WCI 8000064 Contact Us For Availability
9
WCI 8010234 WCI 8010234 Contact Us For Availability
9
SEAL-DEFLECT WCI 8009910 Contact Us For Availability
9
KNOB-DAMPER WCI 8009793 Contact Us For Availability
9
BUTTON-PLUG (2) WCI 8000087 Contact Us For Availability
9
CLIP-MOUNTING (4) WCI 8003596 Contact Us For Availability
9
WCI 8001241 WCI 8001241 Contact Us For Availability
10
CAP-TOP (2) WCI 8010239 Contact Us For Availability
10
SHELF-GLASS (3) WCI 8013651 Contact Us For Availability
10
LABEL-DAMPER WCI 8009823 Contact Us For Availability
10
SCREW (2) WCI 8009762 Contact Us For Availability
10
WASHER-MOUNTING (4) WCI 8003597 Contact Us For Availability
11
CAP-BOTTOM (2) WCI 8010238 Contact Us For Availability
11
WCI 3017425 WCI 3017425 Contact Us For Availability
11
WCI 8009825 WCI 8009825 Contact Us For Availability
11
SPRING (2) WCI 8009790 Contact Us For Availability
11
GROMMET-MTG (4) WCI 8008778 Contact Us For Availability
11
WCI 8001244 WCI 8001244 Contact Us For Availability
12
WCI 8017645 WCI 8017645 Contact Us For Availability
12
RETAINER (3) WCI 8009693 Contact Us For Availability
12
WCI 8009937 WCI 8009937 Contact Us For Availability
12
BOLT 1/4-20 (2) WCI 8009761 Contact Us For Availability
12
PAN-DRAIN WCI 8012951 Contact Us For Availability
13
BEARING-HINGE (8) WCI 8012007 Contact Us For Availability
13
RETAINER-REAR (3) WCI 8009696 Contact Us For Availability
13
WCI 8000098 WCI 8000098 Contact Us For Availability
13
WASHER-NYLON (2) WCI 8011326 Contact Us For Availability
13
WCI 8017226 WCI 8017226 Contact Us For Availability
13
WCI 8001247 WCI 8001247 Contact Us For Availability
14
SCREW (6) WCI 8013645 Contact Us For Availability
14
FRAME SHELF (2) WCI 8013655 Contact Us For Availability
14
SPOUT WCI 8000056 Contact Us For Availability
14
SUPPORT (2) WCI 8013678 Contact Us For Availability
14
COMPRESSOR WCI 8950230 Contact Us For Availability
14
WCI 8001148 WCI 8001148 Contact Us For Availability
15
FRONT-RACK (2) WCI 3017419 Contact Us For Availability
15
SEAL (3) WCI 8009707 Contact Us For Availability
15
PIN, PUSH (2) WCI 8013647 Contact Us For Availability
15
SCREW (2) WCI 8010252 Contact Us For Availability
15
WCI 8017532 WCI 8017532 Contact Us For Availability
15
WCI 8001255 WCI 8001255 Contact Us For Availability
16
END CAP LH (2) WCI 8009806 Contact Us For Availability
16
SHELF-GLASS WCI 8013652 Contact Us For Availability
16
FAN WCI 8000010 Contact Us For Availability
16
PIN, HINGE WCI 8003578 Contact Us For Availability
16
RETAINER OVERLOAD WCI 3007535 Contact Us For Availability
16
SCREW 4-40 X 3/4 (2) WCI 8001149 Contact Us For Availability
16A
END CAP RH (2) (NON-ILLUSTRATED) WCI 8009808 Contact Us For Availability
17
GASKET-REFRIGERATOR WCI 8015544 Contact Us For Availability
17
WCI 3017426 WCI 3017426 Contact Us For Availability
17
RING, ORIFICE WCI 8000124 Contact Us For Availability
17
SHIM-HINGE WCI 8000755 Contact Us For Availability
17
CAPACITOR-RUN WCI 8017535 Contact Us For Availability
17
SPACER-HOLD SWITCH WCI 8001240 Contact Us For Availability
18
DOOR - DAIRY WCI 8009789 Contact Us For Availability
18
RETAINER WCI 8000396 Contact Us For Availability
18
BRACKET-CONNECTOR WCI 8000107 Contact Us For Availability
18
HINGE, LOWER WCI 8010251 Contact Us For Availability
18
STRAP-CAPACITOR WCI 8017231 Contact Us For Availability
19
DOOR-DAIRY WCI 8009911 Contact Us For Availability
19
SEAL WCI 8000409 Contact Us For Availability
19
WCI 8000036 WCI 8000036 Contact Us For Availability
19
TUBE, DRAIN WCI 8010012 Contact Us For Availability
19
PLATE-COMP MTG WCI 8013663 Contact Us For Availability
19
SCREW 8-32 X 1 WCI 8001150 Contact Us For Availability
20
WCI 8009664 WCI 8009664 Contact Us For Availability
20
WCI 8000397 WCI 8000397 Contact Us For Availability
20
WCI 8000043 WCI 8000043 Contact Us For Availability
20
RING, SEAL WCI 8009755 Contact Us For Availability
20
BLOCK LH WCI 8017227 Contact Us For Availability
20
WCI 8001236 WCI 8001236 Contact Us For Availability
21
WCI 8017640 WCI 8017640 Contact Us For Availability
21
FRAME-SHELF WCI 8013656 Contact Us For Availability
21
WCI 8000042 WCI 8000042 Contact Us For Availability
21
BRACKET-HINGE WCI 8000757 Contact Us For Availability
21
BLOCK RH WCI 8013648 Contact Us For Availability
21
WCI 8001250 WCI 8001250 Contact Us For Availability
22
HANDLE-COMPLETE WCI 8017497 Contact Us For Availability
22
FRAME-MEAT KEEPER SHELF WCI 8013660 Contact Us For Availability
22
BUSHING-MOTOR (2) WCI 8000032 Contact Us For Availability
22
SCREW (4) WCI 8012258 Contact Us For Availability
22
PLUG, BLOCK WCI 8013646 Contact Us For Availability
22
SCREW 4-24 X 3/4 WCI 8001147 Contact Us For Availability
23
WCI 8010233 WCI 8010233 Contact Us For Availability
23
SCREW (2) WCI 8014528 Contact Us For Availability
23
WCI 8000126 WCI 8000126 Contact Us For Availability
23
HEATER-MULLION WCI 8000058 Contact Us For Availability
23
WCI 8000073 WCI 8000073 Contact Us For Availability
23
ARM-LEVER WCI 8001237 Contact Us For Availability
24
SCREW (2) WCI 8011745 Contact Us For Availability
24
HANGER LH WCI 8009727 Contact Us For Availability
24
WCI 8013665 WCI 8013665 Contact Us For Availability
24
WCI 8010027 WCI 8010027 Contact Us For Availability
24
EVAPORATOR WCI 8000062 Contact Us For Availability
24
SWITCH-SHUT OFF WCI 8001245 Contact Us For Availability
24A
HANGER RH (NON-ILLUSTRATED) WCI 8009728 Contact Us For Availability
25
WCI 8009764 WCI 8009764 Contact Us For Availability
25
TROUGH, DRAIN WCI 8009772 Contact Us For Availability
25
WASHER (4) WCI 8003607 Contact Us For Availability
25
STRAP-ALUMINUM (2) WCI 8000110 Contact Us For Availability
25
WCI 8014553 WCI 8014553 Contact Us For Availability
26
END CAP RH (2) WCI 8009805 Contact Us For Availability
26
WCI 8009765 WCI 8009765 Contact Us For Availability
26
SWITCH, LIGHT WCI 9918806 Contact Us For Availability
26
SPACER (2) WCI 8010007 Contact Us For Availability
26
WCI 8010274 WCI 8010274 Contact Us For Availability
26
SPRING-SHUT OFF WCI 8001238 Contact Us For Availability
26A
END CAP LH (2) (NON-ILLUSTRATED) WCI 8009804 Contact Us For Availability
27
PANEL INNER DOOR WCI 8013676 Contact Us For Availability
27
DAMPER, AIR WCI 8009766 Contact Us For Availability
27
SCREW (3) WCI 8000070 Contact Us For Availability
27
STRAP-MULLION WCI 8010008 Contact Us For Availability
27
WCI 8000061 WCI 8000061 Contact Us For Availability
27
WCI 8001235 WCI 8001235 Contact Us For Availability
28
BIN-UTILITY (2) WCI 8009838 Contact Us For Availability
28
WCI 8009767 WCI 8009767 Contact Us For Availability
28
WCI 8013664 WCI 8013664 Contact Us For Availability
28
WCI 8009638 WCI 8009638 Contact Us For Availability
28
INSULATOR-PLASTIC WCI 8009569 Contact Us For Availability
28
ARM-SHUT OFF WCI 8000503 Contact Us For Availability
29
WCI 8009667 WCI 8009667 Contact Us For Availability
29
WCI 8009768 WCI 8009768 Contact Us For Availability
29
DIVIDER-STYROFOAM WCI 8013674 Contact Us For Availability
29
SUPPORT (2) WCI 8000097 Contact Us For Availability
29
WCI 8013675 WCI 8013675 Contact Us For Availability
29
WCI 8001253 WCI 8001253 Contact Us For Availability
30
WCI 8009925 WCI 8009925 Contact Us For Availability
30
TUBE-RUBBER (2) WCI 8000004 Contact Us For Availability
30
RETAINER, DRAIN PAN WCI 8950024 Contact Us For Availability
30
WCI 8000236 WCI 8000236 Contact Us For Availability
31
WCI 8006970 WCI 8006970 Contact Us For Availability
31
BEARING AND INLET WCI 8001234 Contact Us For Availability
32
GASKET WCI 8009647 Contact Us For Availability
32
WCI 8006971 WCI 8006971 Contact Us For Availability
32
WASHER WCI 8009617 Contact Us For Availability
32
WCI 8001254 WCI 8001254 Contact Us For Availability
33
COVER-CRISPER WCI 8013677 Contact Us For Availability
33
BUTTON-PLUG WCI 8000040 Contact Us For Availability
33
WCI 8003643 WCI 8003643 Contact Us For Availability
34
SCREW WCI 8002748 Contact Us For Availability
34
BULB, LIGHT WCI 8000801 Contact Us For Availability
34
CONTAINER, ICE WCI 8009795 Contact Us For Availability
34
BUTTON-PLUG WCI 8000014 Contact Us For Availability
35
KNOB, CONTROL WCI 8010011 Contact Us For Availability
35
BUTTON-PLUG WHEAT WCI 8007127 Contact Us For Availability
35
CLAMP (4) WCI 8002756 Contact Us For Availability
35
STRIPPER-ICE WCI 8001252 Contact Us For Availability
36
SCREW (2) WCI 8000008 Contact Us For Availability
36
BUTTON-PLUG WCI 8003585 Contact Us For Availability
36
WCI 8000187 WCI 8000187 Contact Us For Availability
36
EYELET (2) WCI 8000233 Contact Us For Availability
37
SCREW (2) WCI 8000009 Contact Us For Availability
37
SCREW (2) WCI 8000123 Contact Us For Availability
37
WCI 8001243 WCI 8001243 Contact Us For Availability
38
WCI 8003637 WCI 8003637 Contact Us For Availability
38
TRIM-CORNER-WHEAT WCI 8010016 Contact Us For Availability
38
SCREW (2) WCI 8017022 Contact Us For Availability
39
CONTROL-COLD WCI 8003635 Contact Us For Availability
39
GROMMET, SHELF, L.H. (2) WCI 8009759 Contact Us For Availability
39
WCI 8001246 WCI 8001246 Contact Us For Availability
39A
GRMT-SHELF RH (2) (NON-ILLUSTRATED) WCI 8002747 Contact Us For Availability
40
SOCKET, LIGHT WCI 8000129 Contact Us For Availability
40
BASE-CABINET WCI 8010092 Contact Us For Availability
40
WIRING HARNESS KIT-INCL ITEM 25 WCI 8950138 Contact Us For Availability
41
WCI 8009781 WCI 8009781 Contact Us For Availability
41
PIN, HINGE WCI 8000184 Contact Us For Availability
41
ADAPTER ASSEMBLY WCI 8000205 Contact Us For Availability
42
WCI 8016615 WCI 8016615 Contact Us For Availability
42
SCREW 8-32 X 1/2 (10) WCI 8000039 Contact Us For Availability
43
LABEL-CONTROL BOX WCI 8009816 Contact Us For Availability
43
SCREW 8-15 X 7/8 (4) WCI 8002728 Contact Us For Availability
44
CLAMP-HARNESS MTG WCI 8000109 Contact Us For Availability
45
SPACER (2) WCI 8003590 Contact Us For Availability
45
CLAMP-WIRE HARNESS WCI 8008782 Contact Us For Availability
46
CHANNEL (2) WCI 8000302 Contact Us For Availability
46
CLAMP-INLET TUBE WCI 8000221 Contact Us For Availability
47
CLAMP-STEEL WCI 8009561 Contact Us For Availability
48
CHANNEL-CENTER WCI 3015409 Contact Us For Availability
48
CLAMP-TUBE TO PANEL WCI 8000250 Contact Us For Availability
49
SCREW (3) WCI 8016568 Contact Us For Availability
49
CLIP-TUBE WCI 8000230 Contact Us For Availability
50
TOP-REFRIGERATOR WCI 3001651 Contact Us For Availability
50
VALVE-WATER WCI 8000219 Contact Us For Availability
51
NUT 7/16-20 NYLON WCI 8000200 Contact Us For Availability
52
BRACKET-WATER VALVE WCI 8000223 Contact Us For Availability
53
PLUG-REAR PANEL WCI 8000241 Contact Us For Availability
54
PLUG-ADAPTER WCI 8000220 Contact Us For Availability
55
TUBE-FILLER WCI 8000239 Contact Us For Availability
56
TUBE-INLET WCI 8010269 Contact Us For Availability
57
WCI 8000199 WCI 8000199 Contact Us For Availability
58
SEALING STRIP-BULK WCI 5877995 Contact Us For Availability
× ![]()
