Model Electrolux FPE21TFW0 REFRIGERATOR – Common Parts & Diagrams
02 - DOOR PARTS
03 - CABINET PARTS

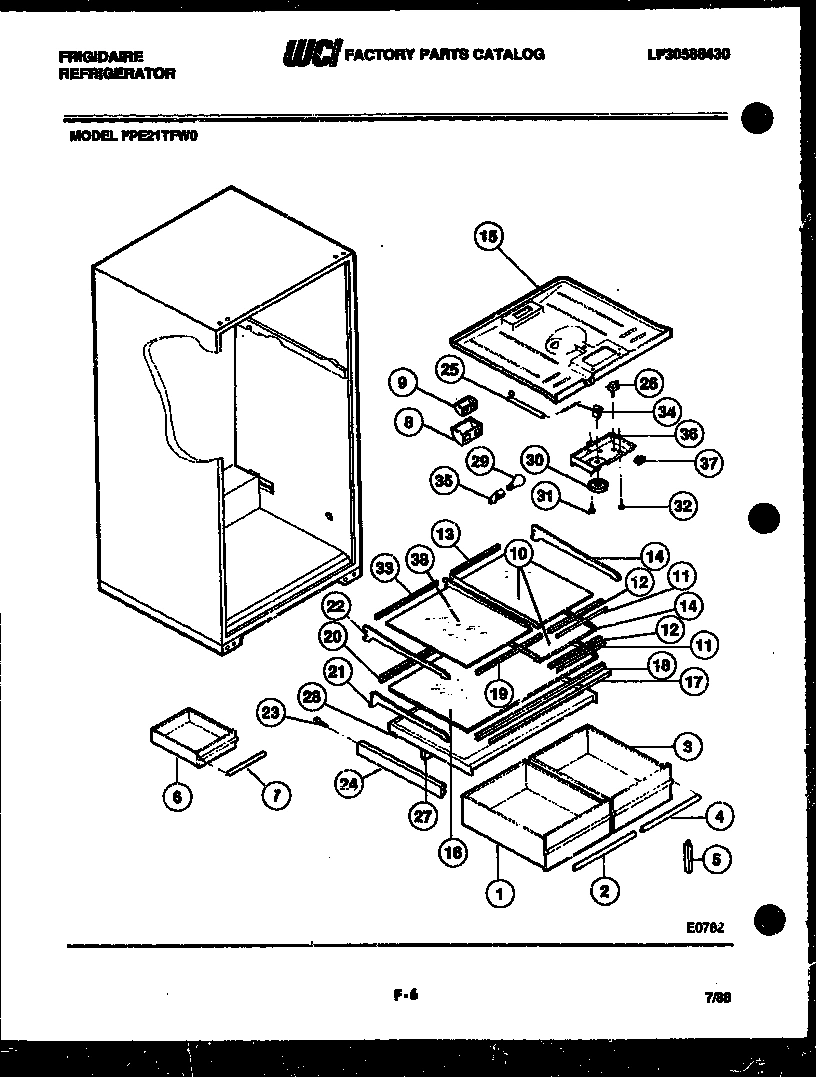

04 - SHELVES AND SUPPORTS

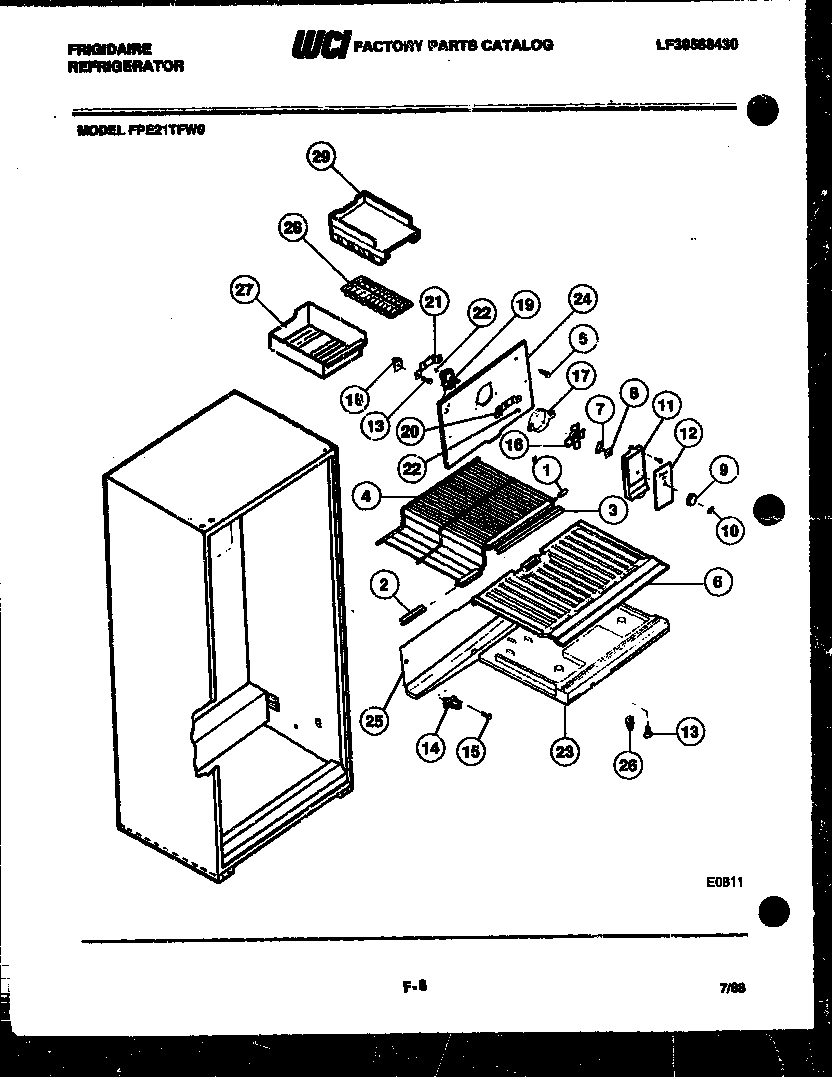

05 - SHELVES AND SUPPORTS

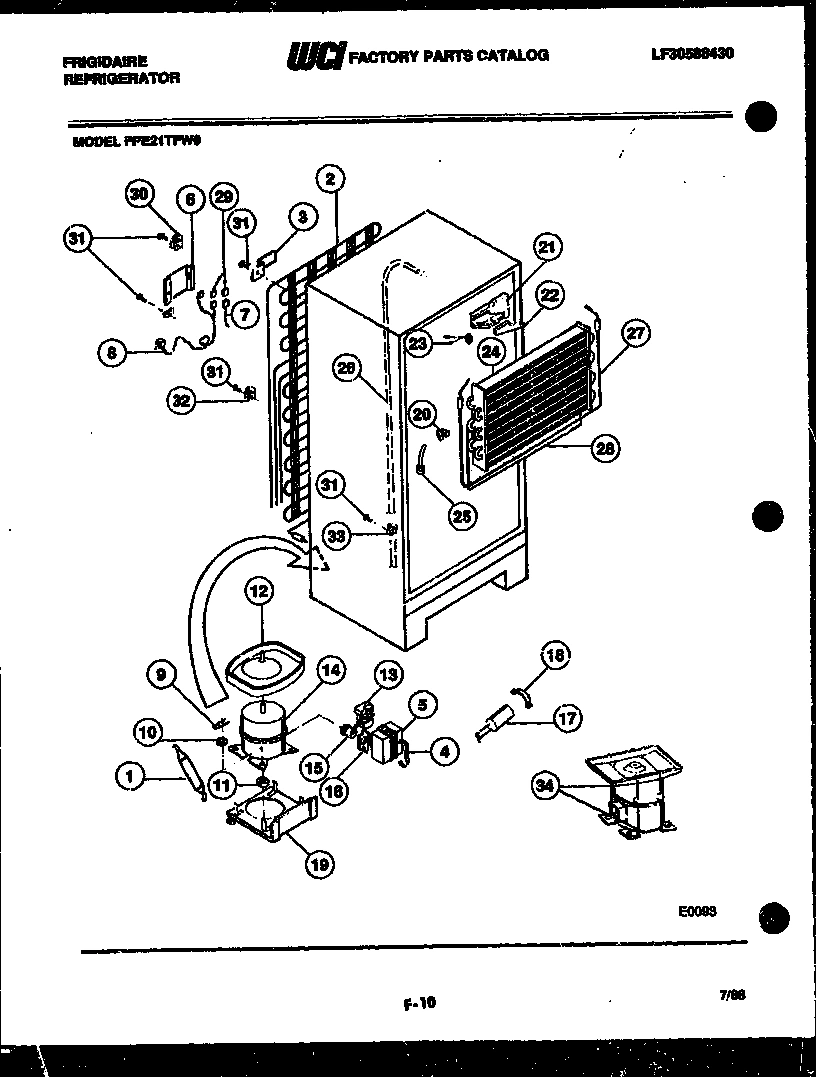

06 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux FPE21TFW0 REFRIGERATOR
*16122
WCI 3018977 WCI 3018977 Contact Us For Availability
*16130
PLUG-DECORATIVE WCI 8013636 Contact Us For Availability
*16132
SOUND TAPE WCI 8017610 Contact Us For Availability
*16132
WCI 9960001 WCI 9960001 Contact Us For Availability
1
WCI 3018239 WCI 3018239 Contact Us For Availability
1
WCI 8012829 WCI 8012829 Contact Us For Availability
1
WCI 3018873 WCI 3018873 Contact Us For Availability
1
WCI 8013638 WCI 8013638 Contact Us For Availability
2
SCREW (56) WCI 8002748 Contact Us For Availability
2
WCI 8012843 WCI 8012843 Contact Us For Availability
2
WCI 3017423 WCI 3017423 Contact Us For Availability
2
WCI 3017427 WCI 3017427 Contact Us For Availability
2
WCI 8000094 WCI 8000094 Contact Us For Availability
3
WCI 3019030 WCI 3019030 Contact Us For Availability
3
WCI 8012820 WCI 8012820 Contact Us For Availability
3
PAN-STORAGE RH WCI 3018982 Contact Us For Availability
3
WCI 3017428 WCI 3017428 Contact Us For Availability
3
BRACKET-MOUNTING (4) WCI 8003600 Contact Us For Availability
4
WCI 3017419 WCI 3017419 Contact Us For Availability
4
WCI 8000100 WCI 8000100 Contact Us For Availability
4
WCI 3017422 WCI 3017422 Contact Us For Availability
4
WCI 3019033 WCI 3019033 Contact Us For Availability
4
WCI 8000117 WCI 8000117 Contact Us For Availability
5
WASHER-NYLON (3) WCI 8000007 Contact Us For Availability
5
WCI 3016528 WCI 3016528 Contact Us For Availability
5
SCREW (5) WCI 8012354 Contact Us For Availability
5
COVER-TERMINAL WCI 8000116 Contact Us For Availability
6
BIN-UTILITY (2) WCI 3018973 Contact Us For Availability
6
WCI 8009760 WCI 8009760 Contact Us For Availability
6
PAN, MEAT WCI 3018987 Contact Us For Availability
6
WCI 8013664 WCI 8013664 Contact Us For Availability
6
WCI 8013644 WCI 8013644 Contact Us For Availability
7
BUTTON-PLUG WHITE WCI 8000090 Contact Us For Availability
7
NUT-ANCHOR (2) WCI 8003584 Contact Us For Availability
7
WCI 3018986 WCI 3018986 Contact Us For Availability
7
DAMPER WCI 8000066 Contact Us For Availability
7
WCI 8009628 WCI 8009628 Contact Us For Availability
8
BUTTON-PLUG WHITE WCI 8000134 Contact Us For Availability
8
SCREW-LEVELING (2) WCI 8003583 Contact Us For Availability
8
COVER-AIR DEFLECTOR WCI 8000055 Contact Us For Availability
8
NUT, PUSH WCI 8000067 Contact Us For Availability
8
WCI 8000064 WCI 8000064 Contact Us For Availability
9
HANDLE-COMPLETE FREEZER WCI 8017493 Contact Us For Availability
9
WCI 8009773 WCI 8009773 Contact Us For Availability
9
WCI 8000071 WCI 8000071 Contact Us For Availability
9
KNOB-DAMPER WCI 8009793 Contact Us For Availability
9
CLIP (4) WCI 8003596 Contact Us For Availability
10
WCI 8010234 WCI 8010234 Contact Us For Availability
10
WCI 8009762 WCI 8009762 Contact Us For Availability
10
WCI 3200609 WCI 3200609 Contact Us For Availability
10
LABEL-DAMPER WCI 8009823 Contact Us For Availability
10
WASHER (4) WCI 8003597 Contact Us For Availability
11
CAP (2) WCI 8010239 Contact Us For Availability
11
WCI 8009790 WCI 8009790 Contact Us For Availability
11
WCI 3019036 WCI 3019036 Contact Us For Availability
11
WCI 8009825 WCI 8009825 Contact Us For Availability
11
WCI 8008778 WCI 8008778 Contact Us For Availability
12
CAP (2) WCI 8010238 Contact Us For Availability
12
WCI 8013678 WCI 8013678 Contact Us For Availability
12
WCI 3200610 WCI 3200610 Contact Us For Availability
12
WCI 8009937 WCI 8009937 Contact Us For Availability
12
WCI 8012951 WCI 8012951 Contact Us For Availability
12A
LOCK NUT (NON-ILLUSTRATED) WCI 8003611 Contact Us For Availability
13
WCI 3018632 WCI 3018632 Contact Us For Availability
13
WCI 8011326 WCI 8011326 Contact Us For Availability
13
WCI 3200611 WCI 3200611 Contact Us For Availability
13
SCREW (3) WCI 8000070 Contact Us For Availability
13
WCI 8017226 WCI 8017226 Contact Us For Availability
14
BEARING (8) WCI 8012007 Contact Us For Availability
14
WCI 8009761 WCI 8009761 Contact Us For Availability
14
WCI 3200613 WCI 3200613 Contact Us For Availability
14
SPOUT WCI 8000056 Contact Us For Availability
14
WCI 8950230 WCI 8950230 Contact Us For Availability
15
WCI 8013666 WCI 8013666 Contact Us For Availability
15
WCI 8003578 WCI 8003578 Contact Us For Availability
15
TOP, REFRIGERATOR WCI 3019038 Contact Us For Availability
15
PIN, PUSH (2) WCI 8013647 Contact Us For Availability
15
WCI 8017532 WCI 8017532 Contact Us For Availability
16
SCREW (6) WCI 8013645 Contact Us For Availability
16
WCI 8000755 WCI 8000755 Contact Us For Availability
16
WCI 3200614 WCI 3200614 Contact Us For Availability
16
FAN WCI 800010 Contact Us For Availability
16
CLIP-OVERLOAD WCI 8017232 Contact Us For Availability
17
BRACKET-BOTTOM HINGE WCI 8017609 Contact Us For Availability
17
TRIM WCI 3018732 Contact Us For Availability
17
RING, ORIFICE WCI 8000124 Contact Us For Availability
17
WCI 8017230 WCI 8017230 Contact Us For Availability
17A
SCREW-HINGE MTG (2) (NON-ILLUSTRATED) WCI 8010252 Contact Us For Availability
18
WCI 3018238 WCI 3018238 Contact Us For Availability
18
WCI 8000097 WCI 8000097 Contact Us For Availability
18
WCI 3200615 WCI 3200615 Contact Us For Availability
18
BRACKET-CONNECTOR WCI 8000107 Contact Us For Availability
18
WCI 8017231 WCI 8017231 Contact Us For Availability
19
WCI 3018868 WCI 3018868 Contact Us For Availability
19
PLUG-FREEZER LINER (3) WCI 8016571 Contact Us For Availability
19
RETAINER-MEAT SHELF WCI 3200316 Contact Us For Availability
19
WCI 8000036 WCI 8000036 Contact Us For Availability
19
WCI 8013663 WCI 8013663 Contact Us For Availability
19A
WCI 3200322 WCI 3200322 Contact Us For Availability
20
WCI 3018749 WCI 3018749 Contact Us For Availability
20
WCI 8000043 WCI 8000043 Contact Us For Availability
20
WCI 8017227 WCI 8017227 Contact Us For Availability
21
DRAIN TUBE WCI 8010012 Contact Us For Availability
21
WCI 3200616 WCI 3200616 Contact Us For Availability
21
WCI 8000042 WCI 8000042 Contact Us For Availability
21
WCI 8013648 WCI 8013648 Contact Us For Availability
22
BUSHING-MOTOR (2) WCI 8000032 Contact Us For Availability
22
RING SEAL-TUBE WCI 8009755 Contact Us For Availability
22
WCI 3200617 WCI 3200617 Contact Us For Availability
22
WCI 8013646 WCI 8013646 Contact Us For Availability
23
WCI 3200596 WCI 3200596 Contact Us For Availability
23
WCI 3019039 WCI 3019039 Contact Us For Availability
23
SCREW-MOUNTING (4) WCI 8012258 Contact Us For Availability
23
WCI 8014528 WCI 8014528 Contact Us For Availability
23
WCI 8000073 WCI 8000073 Contact Us For Availability
23A
INSULATION-BULK (NON-ILLUSTRATED) WCI 3007739 Contact Us For Availability
24
WCI 8009928 WCI 8009928 Contact Us For Availability
24
WCI 8000757 WCI 8000757 Contact Us For Availability
24
WCI 3018889 WCI 3018889 Contact Us For Availability
24
WCI 8013665 WCI 8013665 Contact Us For Availability
24
EVAPORATOR WCI 8000062 Contact Us For Availability
24A
WCI 3018890 WCI 3018890 Contact Us For Availability
25
HANDLE-COMPLETE REFR WCI 8017497 Contact Us For Availability
25
WCI 8000184 WCI 8000184 Contact Us For Availability
25
HOUSING, CAP TUBE WCI 3018891 Contact Us For Availability
25
TROUGH, DRAIN WCI 8009772 Contact Us For Availability
25
STRAP-EVAPORATOR (2) WCI 8000110 Contact Us For Availability
26
WCI 8010233 WCI 8010233 Contact Us For Availability
26
WCI 8000302 WCI 8000302 Contact Us For Availability
26
SWITCH, LIGHT WCI 8000069 Contact Us For Availability
26
WCI 8000728 WCI 8000728 Contact Us For Availability
27
WCI 3018974 WCI 3018974 Contact Us For Availability
27
WCI 8002728 WCI 8002728 Contact Us For Availability
27
WCI 3200329 WCI 3200329 Contact Us For Availability
27
WCI 8000061 WCI 8000061 Contact Us For Availability
28
CHANNEL-CENTER WCI 3015409 Contact Us For Availability
28
WCI 3019035 WCI 3019035 Contact Us For Availability
28
PLASTIC ICE TRAY (2) WCI 1121808 Contact Us For Availability
28
INSULATOR WCI 8009569 Contact Us For Availability
28A
WCI 3018984 WCI 3018984 Contact Us For Availability
28B
GLASS-CRISPER COVER (NON-ILLUSTRATED) WCI 3200389 Contact Us For Availability
29
WCI 8016568 WCI 8016568 Contact Us For Availability
29
BULB-LIGHT WCI 8002735 Contact Us For Availability
29
ICE TRAY COMPARTMENT WCI 8009824 Contact Us For Availability
29
WIRING HARNESS-DIVIDER WCI 3019040 Contact Us For Availability
30
WCI 8003585 WCI 8003585 Contact Us For Availability
30
WCI 3018893 WCI 3018893 Contact Us For Availability
30
CLAMP-CABLE WCI 8000187 Contact Us For Availability
31
SCREW-CLAMP MTG WCI 8016629 Contact Us For Availability
31
WCI 8000123 WCI 8000123 Contact Us For Availability
31
SCREW (2) WCI 8000008 Contact Us For Availability
32
WCI 8006970 WCI 8006970 Contact Us For Availability
32
SCREW (2) WCI 8000009 Contact Us For Availability
32
CLAMP-CABLE (3) WCI 8002756 Contact Us For Availability
33
WCI 8006971 WCI 8006971 Contact Us For Availability
33
WCI 3200331 WCI 3200331 Contact Us For Availability
33
WCI 8000133 WCI 8000133 Contact Us For Availability
34
TUBE-RUBBER (2) WCI 8000004 Contact Us For Availability
34
WCI 3018894 WCI 3018894 Contact Us For Availability
34
WCI 8950024 WCI 8950024 Contact Us For Availability
35
WCI 8010014 WCI 8010014 Contact Us For Availability
35
WCI 8000815 WCI 8000815 Contact Us For Availability
36
GROMMET-SHELF (2) WCI 8002747 Contact Us For Availability
36
BOX, CONTROL WCI 3018895 Contact Us For Availability
37
GROMMET-SHELF (2) WCI 8009759 Contact Us For Availability
37
WCI 3018896 WCI 3018896 Contact Us For Availability
38
BASE-CABINET WCI 8010092 Contact Us For Availability
38
WCI 3200330 WCI 3200330 Contact Us For Availability
39
PLUG-REFR LINER (2) WCI 8000087 Contact Us For Availability
40
PLUG-WHITE WCI 8007099 Contact Us For Availability
41
WCI 8010025 WCI 8010025 Contact Us For Availability
42
WASHER-STEEL (4) WCI 8003607 Contact Us For Availability
43
WCI 3018916 WCI 3018916 Contact Us For Availability
44
WCI 8010007 WCI 8010007 Contact Us For Availability
45
STRAP-MULLION MTG WCI 8010008 Contact Us For Availability
× ![]()
