Model Electrolux FPE21TCA1 REFRIGERATOR – Common Parts & Diagrams

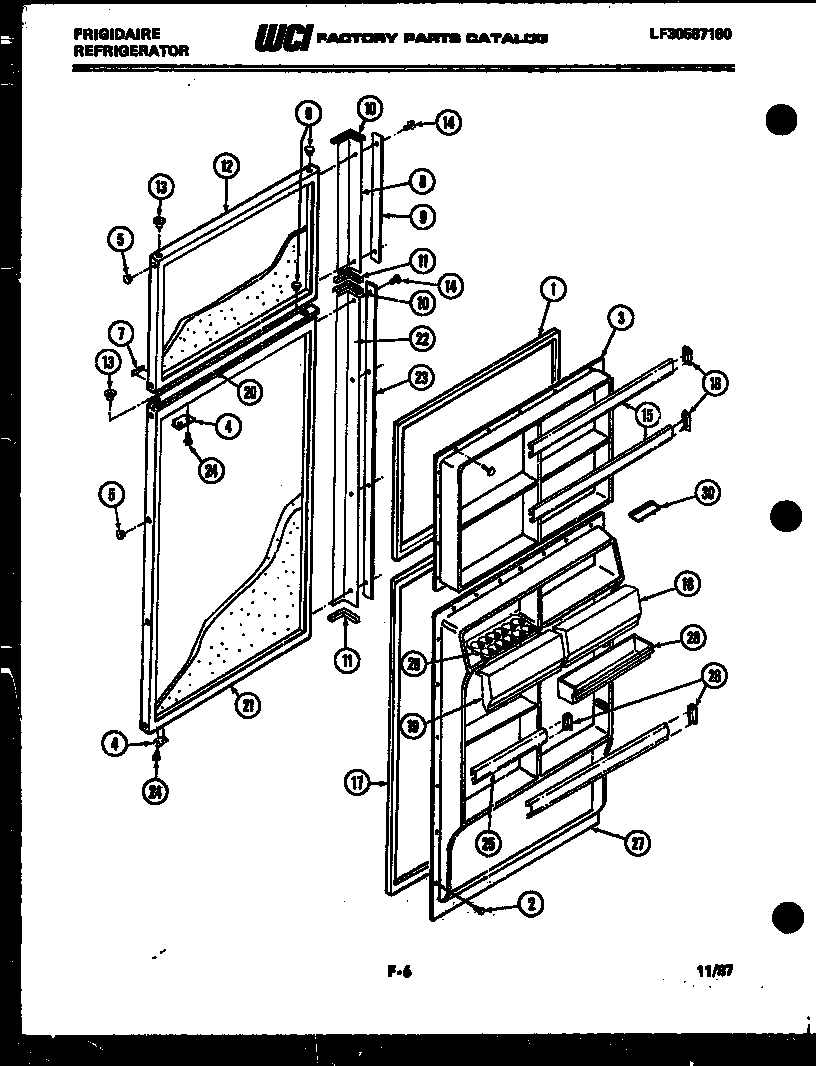

02 - DOOR PARTS

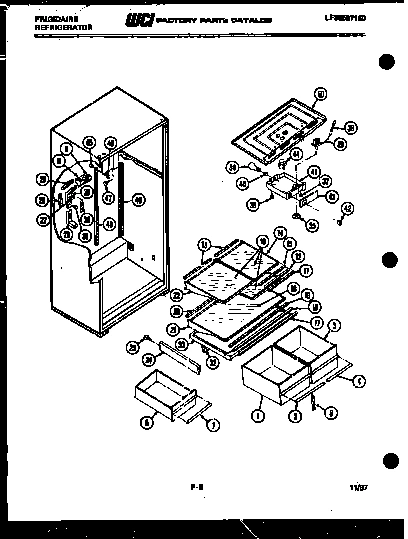

03 - CABINET PARTS

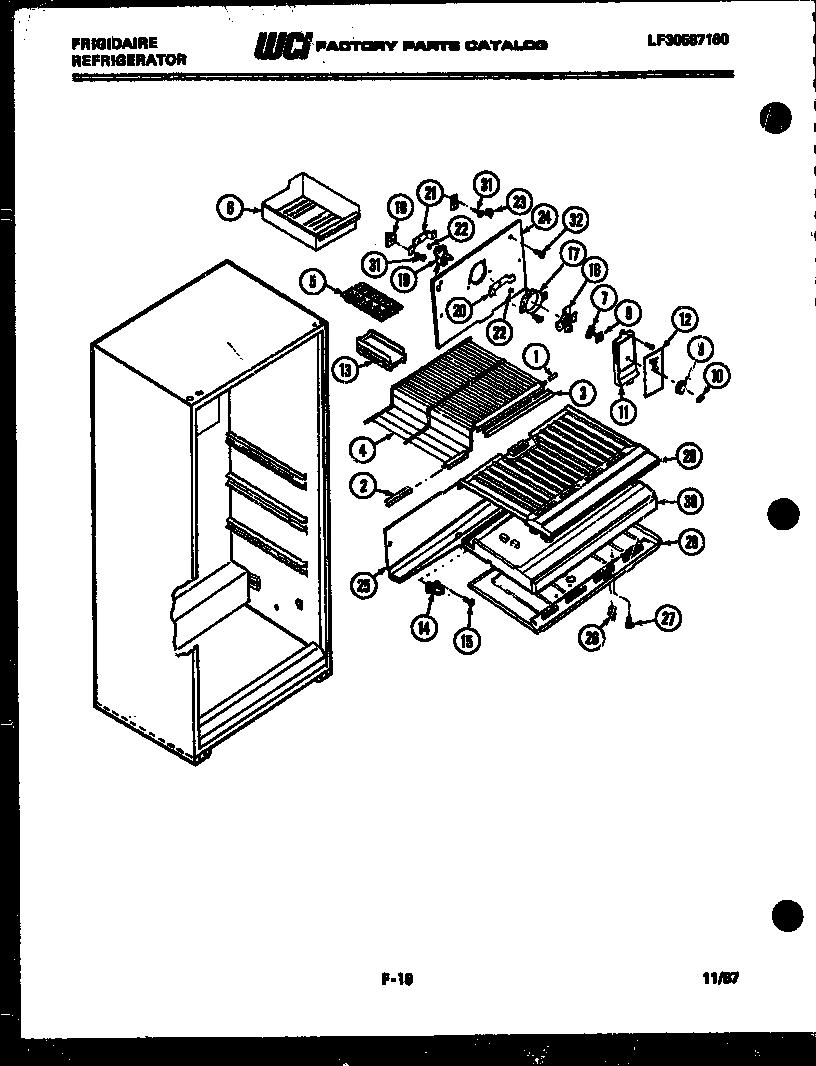

04 - SHELVES AND SUPPORTS

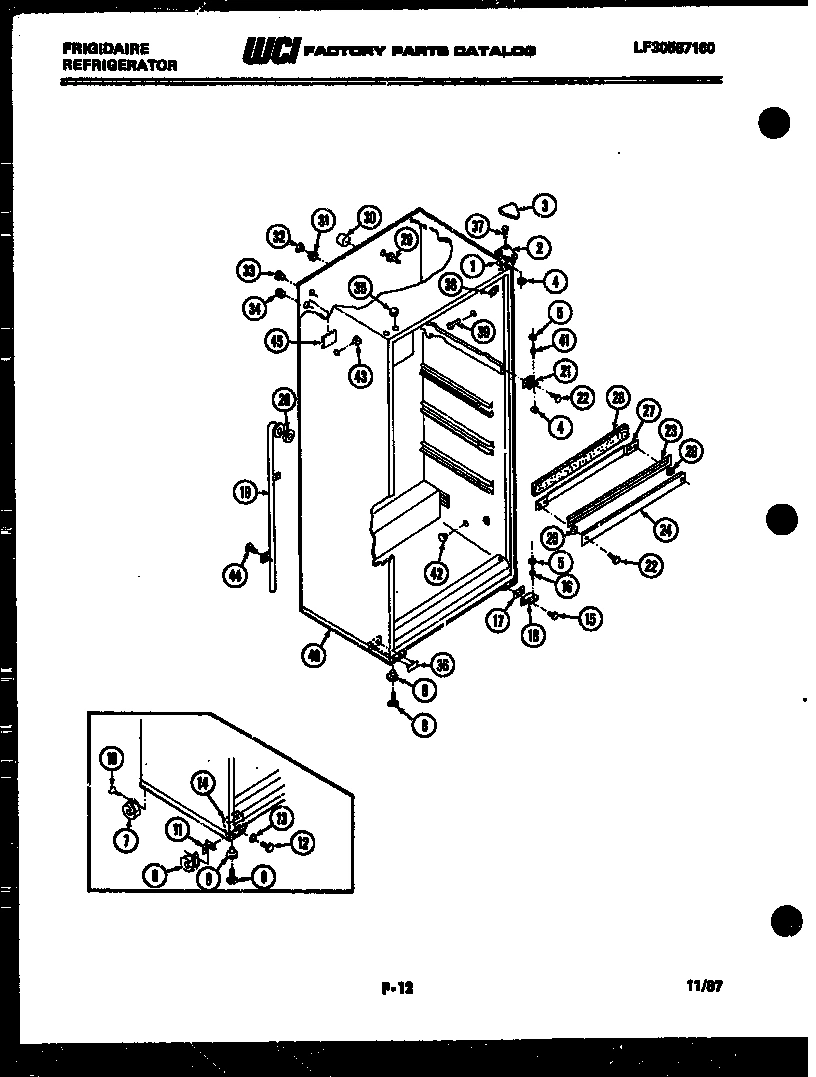

05 - CABINET PARTS
06 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux FPE21TCA1 REFRIGERATOR
*11552
INSUT. 1`` X 24`` X 48`` WCI 5418397 Contact Us For Availability
*11552
BTN-PLUG-BTM DR. WCI 8009601 Contact Us For Availability
*11552
DR. CONV. KIT-AVOC WCI 8009633 Contact Us For Availability
*11553
INSUT. 4`` X 21 3/4`` X 34 5/8`` WCI 5401984 Contact Us For Availability
*11553
INSUT. 2 1/2`` X 30`` X 42`` WCI 5401987 Contact Us For Availability
*11553
INSUT. 3`` X 27 1/4`` X 39 5/8`` WCI 5401988 Contact Us For Availability
1
WCI 8016617 WCI 8016617 Contact Us For Availability
1
PAN-CRSPR WCI 8009839 Contact Us For Availability
1
CAP-PROT WCI 8013638 Contact Us For Availability
1
SHIM WCI 8012829 Contact Us For Availability
1
DRIER WCI 8000027 Contact Us For Availability
2
TRIM WCI 8009851 Contact Us For Availability
2
WCI 8009686 WCI 8009686 Contact Us For Availability
2
BRACKET-HNG WCI 8012843 Contact Us For Availability
2
WCI 8000094 WCI 8000094 Contact Us For Availability
3
PANEL-INNER DR. WCI 8013672 Contact Us For Availability
3
PAN CRSPR WCI 8009827 Contact Us For Availability
3
WCI 8013654 WCI 8013654 Contact Us For Availability
3
COVER, HNG, AVOC WCI 8012930 Contact Us For Availability
3
BRACKET, COND. WCI 8003600 Contact Us For Availability
4
STOP, DOOR WCI 8000255 Contact Us For Availability
4
TRIM WCI 8009854 Contact Us For Availability
4
WCI 8013661 WCI 8013661 Contact Us For Availability
4
WASHER-NYLON 1/4 X 5/8 WCI 8000007 Contact Us For Availability
4
STRAP, BALE WCI 8000117 Contact Us For Availability
5
BTN, PLUG, AVOC WCI 8000179 Contact Us For Availability
5
SUPT-CRSPR WCI 8013637 Contact Us For Availability
5
TRAY-ICE WCI 1121808 Contact Us For Availability
5
WASHER-NYLON 5/16 X 5/8 WCI 8000100 Contact Us For Availability
5
COVER WCI 8006982 Contact Us For Availability
6
BTN, PLUG, AVOC WCI 8000175 Contact Us For Availability
6
PAN-MEAT WCI 8009858 Contact Us For Availability
6
CONTAINER, ICE WCI 8009795 Contact Us For Availability
6
ROLLER ASSY, FRNT. WCI 8009760 Contact Us For Availability
6
WCI 8013644 WCI 8013644 Contact Us For Availability
7
WCI 8009926 WCI 8009926 Contact Us For Availability
7
TRIM WCI 8009852 Contact Us For Availability
7
DAMPER WCI 8000066 Contact Us For Availability
7
ROLLER ASSY., REAR WCI 8009773 Contact Us For Availability
7
HARNESS-COMPRSR WCI 8009628 Contact Us For Availability
8
HANDLE-COMPLETE WCI 8009985 Contact Us For Availability
8
COVER/DEFL. KIT WCI 8950143 Contact Us For Availability
8
NUT, PUSH WCI 8000067 Contact Us For Availability
8
SCREW, LEVELING WCI 8003583 Contact Us For Availability
8
WCI 8000064 WCI 8000064 Contact Us For Availability
9
TRIM WCI 8010234 Contact Us For Availability
9
SEAL-DEFL. WCI 8009910 Contact Us For Availability
9
KNOB-DAMPER WCI 8009793 Contact Us For Availability
9
NUT, ANCHOR WCI 8003584 Contact Us For Availability
9
CLIP WCI 8003596 Contact Us For Availability
10
CAP WCI 8010239 Contact Us For Availability
10
SHELF-GLASS (3) WCI 8013651 Contact Us For Availability
10
LABEL WCI 8009823 Contact Us For Availability
10
SCREW NO. 8-32 X 1/2 WCI 8009762 Contact Us For Availability
11
CAP WCI 8010238 Contact Us For Availability
11
TRIM (3) WCI 8009690 Contact Us For Availability
11
WCI 8009825 WCI 8009825 Contact Us For Availability
11
SPRING WCI 8009790 Contact Us For Availability
11
GROMMET WCI 8008778 Contact Us For Availability
12
PANEL-EXT-AVOC WCI 8013667 Contact Us For Availability
12
RETAINER WCI 8009693 Contact Us For Availability
12
LABEL WCI 8009937 Contact Us For Availability
12
BOLT 1/4-20 WCI 8009761 Contact Us For Availability
12
PAN-DEFR WCI 8012951 Contact Us For Availability
13
BEARING-HNG WCI 8012007 Contact Us For Availability
13
RETAINER-REAR WCI 8009696 Contact Us For Availability
13
COMPT-TRAY WCI 8009824 Contact Us For Availability
13
WASHER, NYLON WCI 8011326 Contact Us For Availability
13
WCI 8017226 WCI 8017226 Contact Us For Availability
14
SCREW WCI 8013645 Contact Us For Availability
14
FRAME SHELF (2) WCI 8013655 Contact Us For Availability
14
SPOUT WCI 8000056 Contact Us For Availability
14
SUPPORT WCI 8013678 Contact Us For Availability
14
CMPRSSR W/ ELECT. WCI 9960012 Contact Us For Availability
15
FRONT-RACK WCI 8013641 Contact Us For Availability
15
SEAL WCI 8009707 Contact Us For Availability
15
PIN-PUSH WCI 8013647 Contact Us For Availability
15
SCREW WCI 8010252 Contact Us For Availability
15
WCI 8017532 WCI 8017532 Contact Us For Availability
16
END CAP L.H. WCI 8009806 Contact Us For Availability
16
SHELF-GLASS WCI 8013652 Contact Us For Availability
16
FAN WCI 8000010 Contact Us For Availability
16
PIN-HNG WCI 8003578 Contact Us For Availability
16
RETAINER-O.L. WCI 8000115 Contact Us For Availability
16A
END CAP R.H. WCI 8009808 Contact Us For Availability
17
WCI 8015544 WCI 8015544 Contact Us For Availability
17
WCI 8009689 WCI 8009689 Contact Us For Availability
17
RING-ORFICE WCI 8000124 Contact Us For Availability
17
SHIM-HNG WCI 8000755 Contact Us For Availability
17
CAPACITOR-RUN WCI 8017535 Contact Us For Availability
18
DOOR - DAIRY WCI 8009789 Contact Us For Availability
18
RETAINER WCI 8000396 Contact Us For Availability
18
BRACKET WCI 8000107 Contact Us For Availability
18
HINGE WCI 8010251 Contact Us For Availability
18
STRAP-CAPACITOR WCI 8017231 Contact Us For Availability
19
DOOR-DAIRY WCI 8009911 Contact Us For Availability
19
SEAL WCI 8000409 Contact Us For Availability
19
MOTOR WCI 8004176 Contact Us For Availability
19
TUBE, DRAIN WCI 8010012 Contact Us For Availability
19
WASHER WCI 8003597 Contact Us For Availability
19
PLATE WCI 8013663 Contact Us For Availability
20
WCI 8009857 WCI 8009857 Contact Us For Availability
20
WCI 8000397 WCI 8000397 Contact Us For Availability
20
BRACKET-FRONG WCI 8000043 Contact Us For Availability
20
RING, SEAL WCI 8009755 Contact Us For Availability
20
BLOCK LH WCI 8017227 Contact Us For Availability
21
PANEL-EXT-AVOC WCI 8010019 Contact Us For Availability
21
FRAME-SHELF WCI 8013656 Contact Us For Availability
21
WCI 8000042 WCI 8000042 Contact Us For Availability
21
BRACKET, HNG WCI 8000757 Contact Us For Availability
21
BLOCK RH WCI 8013648 Contact Us For Availability
22
HANDLE-COMPLETE WCI 8009979 Contact Us For Availability
22
FRAME-M.K. SHELF WCI 8013660 Contact Us For Availability
22
GROMMET WCI 8016571 Contact Us For Availability
22
SCREW (4) WCI 8012258 Contact Us For Availability
22
PLUG, BLOCK WCI 8013646 Contact Us For Availability
23
TRIM WCI 8010233 Contact Us For Availability
23
WCI 8000119 WCI 8000119 Contact Us For Availability
23
NUT ``U`` TYPE WCI 8000126 Contact Us For Availability
23
HEATER-MULLION WCI 8000058 Contact Us For Availability
23
THERMO-DEFR WCI 8000073 Contact Us For Availability
24
SCREW WCI 8011745 Contact Us For Availability
24
HANGER LH WCI 8009727 Contact Us For Availability
24
COVER WCI 8013665 Contact Us For Availability
24
MULLION-AVOC WCI 8010027 Contact Us For Availability
24A
HANGER R.H. WCI 8009728 Contact Us For Availability
25
WCI 8009764 WCI 8009764 Contact Us For Availability
25
TROUGH, DRAIN WCI 8009772 Contact Us For Availability
25
WASHER (4) WCI 8003607 Contact Us For Availability
25
STRAP, ALUM. WCI 8000110 Contact Us For Availability
26
END CAP R.H. WCI 8009805 Contact Us For Availability
26
WCI 8009765 WCI 8009765 Contact Us For Availability
26
SWITCH, LIGHT WCI 9918806 Contact Us For Availability
26
SPACER (2) WCI 8010007 Contact Us For Availability
26
WCI 8010274 WCI 8010274 Contact Us For Availability
26A
END CAP L.H. WCI 8009804 Contact Us For Availability
27
PANEL INNER DR. WCI 8013676 Contact Us For Availability
27
DAMPER, AIR WCI 8009766 Contact Us For Availability
27
SCREW (3) WCI 8000070 Contact Us For Availability
27
STRAP-MULLION WCI 8010008 Contact Us For Availability
27
WCI 8000061 WCI 8000061 Contact Us For Availability
28
BIN-UTILITY WCI 8009838 Contact Us For Availability
28
DUCT UPR. WCI 8009767 Contact Us For Availability
28
BTM-FRZR. WCI 8013664 Contact Us For Availability
28
WCI 8009638 WCI 8009638 Contact Us For Availability
28
INSULATOR-PLASTIC WCI 8009569 Contact Us For Availability
29
WCI 8009667 WCI 8009667 Contact Us For Availability
29
DUCT LWR. WCI 8009768 Contact Us For Availability
29
WCI 8013671 WCI 8013671 Contact Us For Availability
29
SUPPORT (2) WCI 8000097 Contact Us For Availability
29
WCI 8013675 WCI 8013675 Contact Us For Availability
30
WCI 8009664 WCI 8009664 Contact Us For Availability
30
WCI 8009925 WCI 8009925 Contact Us For Availability
30
WCI 8013674 WCI 8013674 Contact Us For Availability
30
WCI 8000004 WCI 8000004 Contact Us For Availability
30
RETAINR-DRAIN PAN WCI 8950024 Contact Us For Availability
31
WCI 8000098 WCI 8000098 Contact Us For Availability
31
WCI 8006970 WCI 8006970 Contact Us For Availability
31
SCREW WCI 8000039 Contact Us For Availability
32
GASKET WCI 8009647 Contact Us For Availability
32
SCREW WCI 8012354 Contact Us For Availability
32
WCI 8006971 WCI 8006971 Contact Us For Availability
32
WASHER WCI 8009617 Contact Us For Availability
33
CVR.-CRSPR WCI 8013677 Contact Us For Availability
33
BTN-PLUG WCI 8000040 Contact Us For Availability
33
WCI 8003643 WCI 8003643 Contact Us For Availability
34
SCREW WCI 8002748 Contact Us For Availability
34
BULB WCI 8000801 Contact Us For Availability
34
BTN-PLUG WCI 8000014 Contact Us For Availability
34
EVAPORATOR WCI 8000062 Contact Us For Availability
35
KNOB WCI 8010011 Contact Us For Availability
35
BTN-PLUG-AVOC WCI 8007127 Contact Us For Availability
35
CLAMP WCI 8002756 Contact Us For Availability
36
SCREW (2) WCI 8000008 Contact Us For Availability
36
BTN., PLUG WCI 8003585 Contact Us For Availability
36
WCI 8000187 WCI 8000187 Contact Us For Availability
37
SCREW (2) WCI 8000009 Contact Us For Availability
37
SCREW (2) WCI 8000123 Contact Us For Availability
37
CLAMP WCI 8000109 Contact Us For Availability
38
WCI 8003637 WCI 8003637 Contact Us For Availability
38
TRIM-CRNR-AVOC WCI 8010016 Contact Us For Availability
39
WCI 8003635 WCI 8003635 Contact Us For Availability
39
GRMT-SHLF L.H. (2) WCI 8009759 Contact Us For Availability
39A
GRMT-SHLF R.H. (2) WCI 8002747 Contact Us For Availability
40
SOCKET WCI 8000129 Contact Us For Availability
40
BASE-CABINET WCI 8010092 Contact Us For Availability
41
BOX WCI 8009781 Contact Us For Availability
41
PIN, HINGE WCI 8000184 Contact Us For Availability
42
WCI 8016615 WCI 8016615 Contact Us For Availability
42
BTN. PLUG (2) WCI 8000087 Contact Us For Availability
43
LABEL WCI 8009816 Contact Us For Availability
43
BTN-PLUG (3) WCI 8000065 Contact Us For Availability
45
SPACER (2) WCI 8003590 Contact Us For Availability
45
BTN-DECOR. WCI 8013636 Contact Us For Availability
46
CHANNEL (2) WCI 8000302 Contact Us For Availability
47
SCREW (6) WCI 8002728 Contact Us For Availability
48
CHANNEL-CTR. WCI 8007658 Contact Us For Availability
49
SCREW (3) WCI 8013643 Contact Us For Availability
× ![]()
