Model Electrolux FPE19V3FF0 REFRIGERATOR – Common Parts & Diagrams

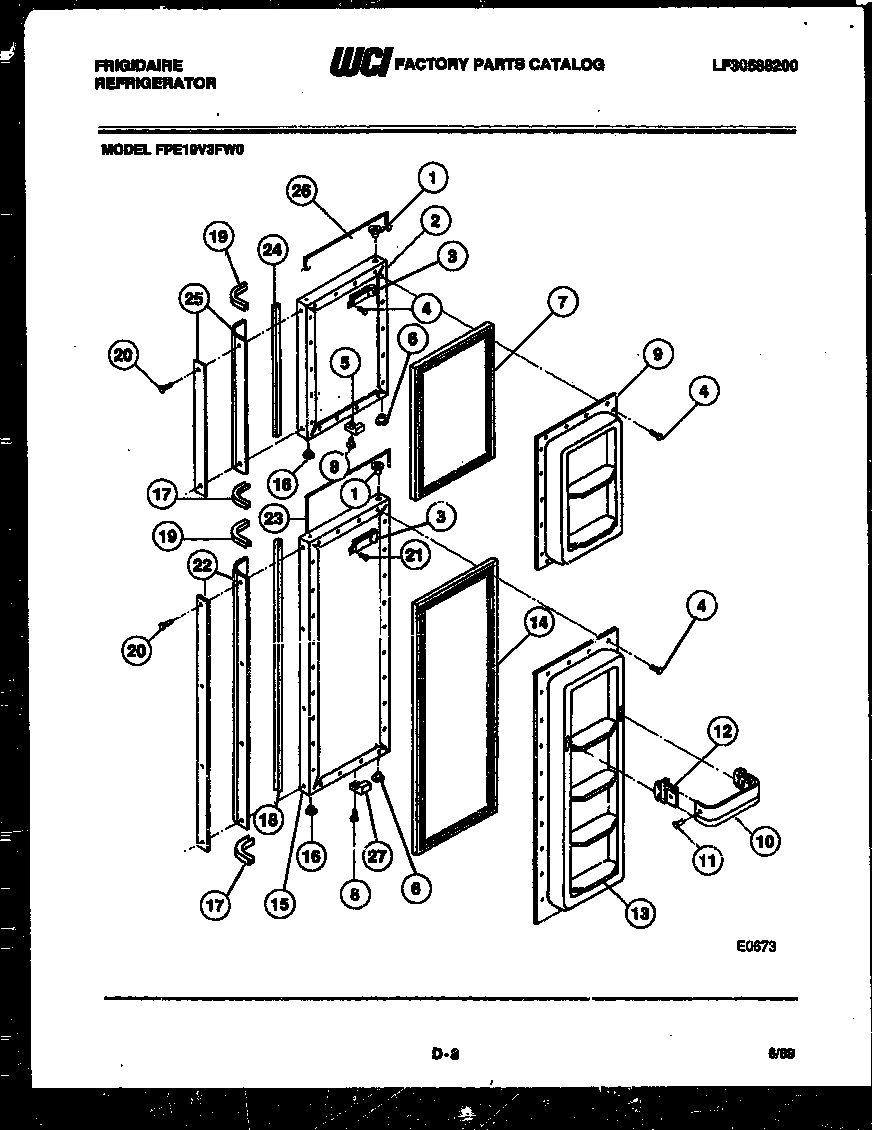

02 - FREEZER DOOR PARTS

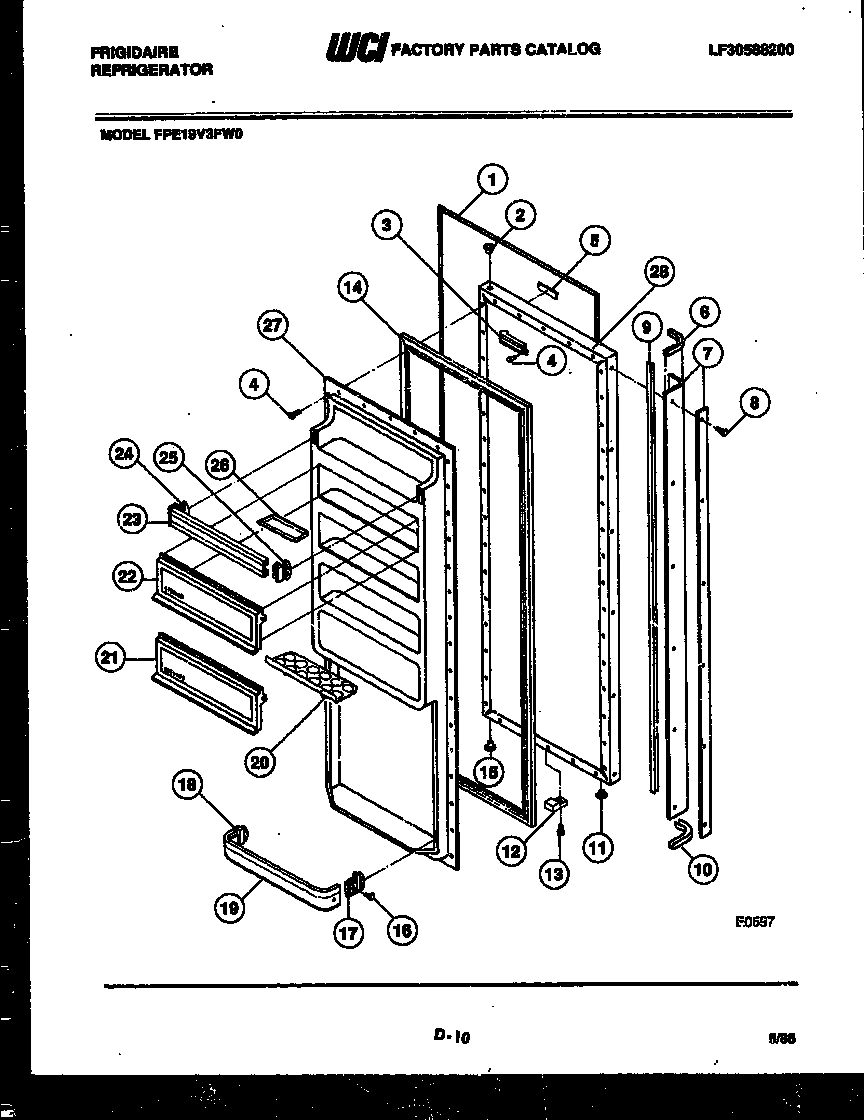

03 - REFRIGERATOR DOOR PARTS

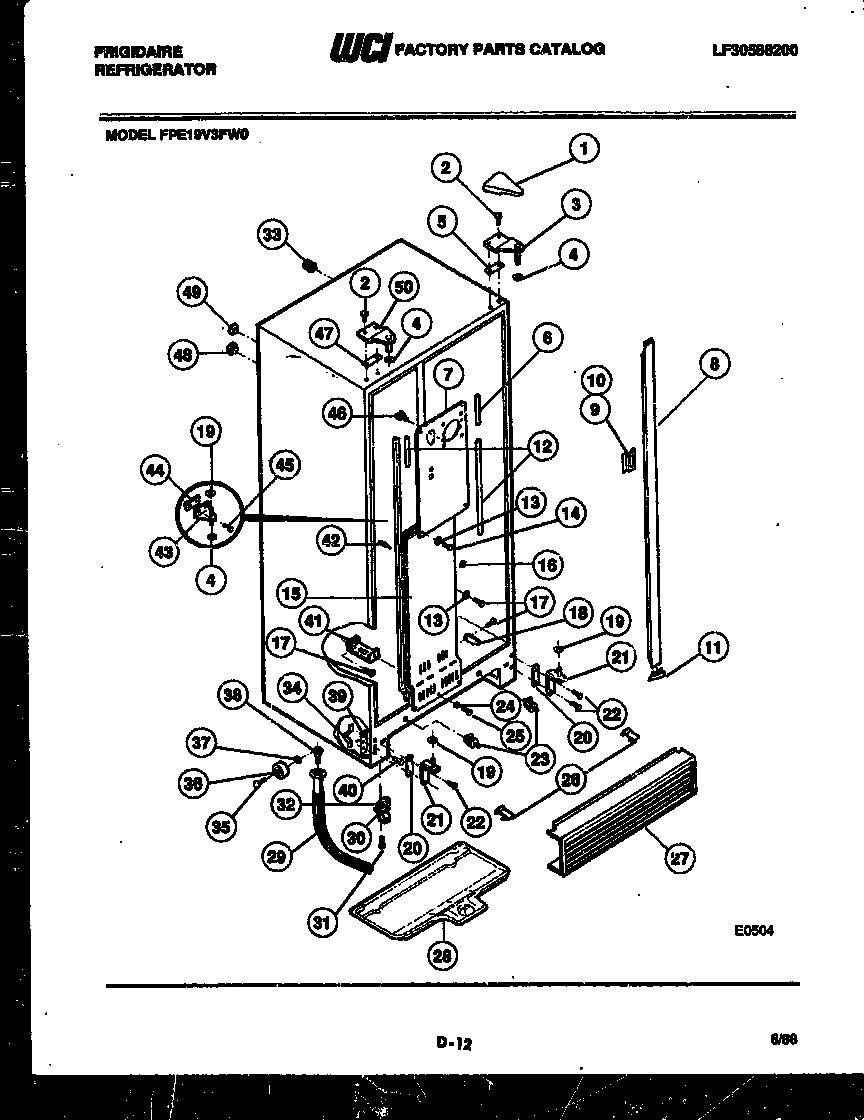

04 - CABINET PARTS

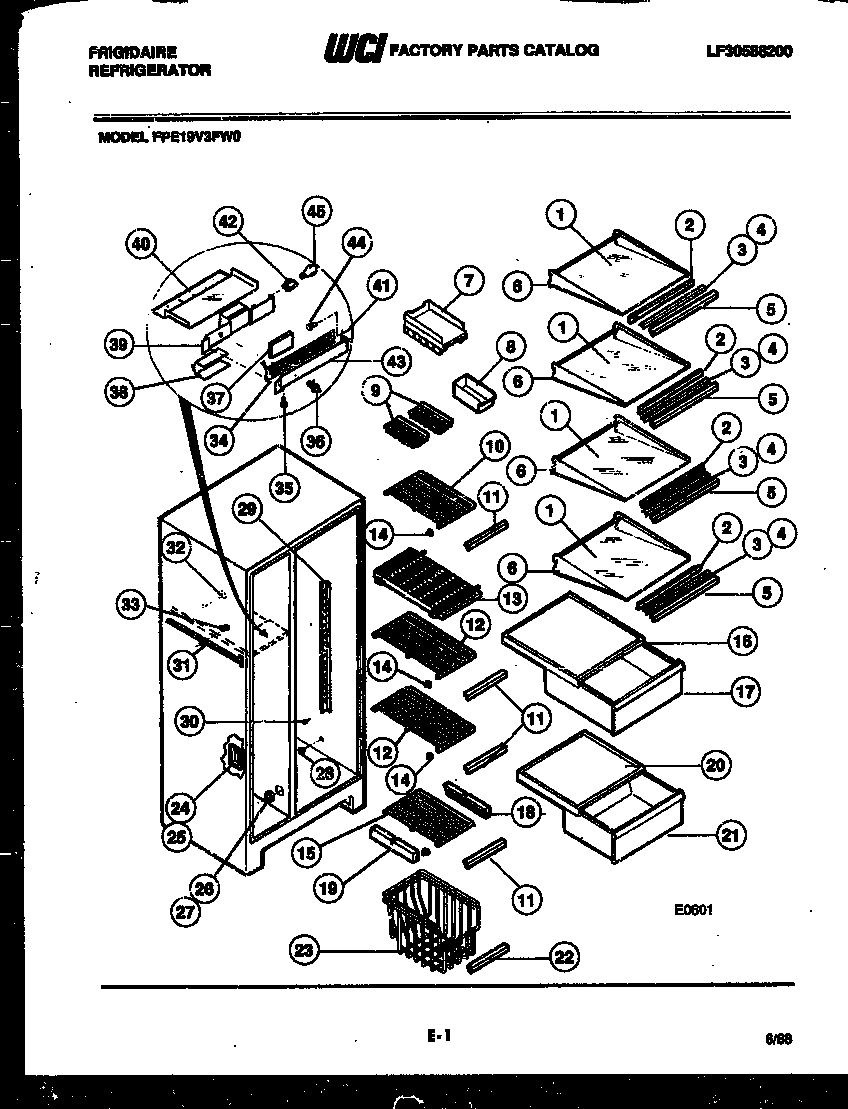

05 - SHELVES AND SUPPORTS

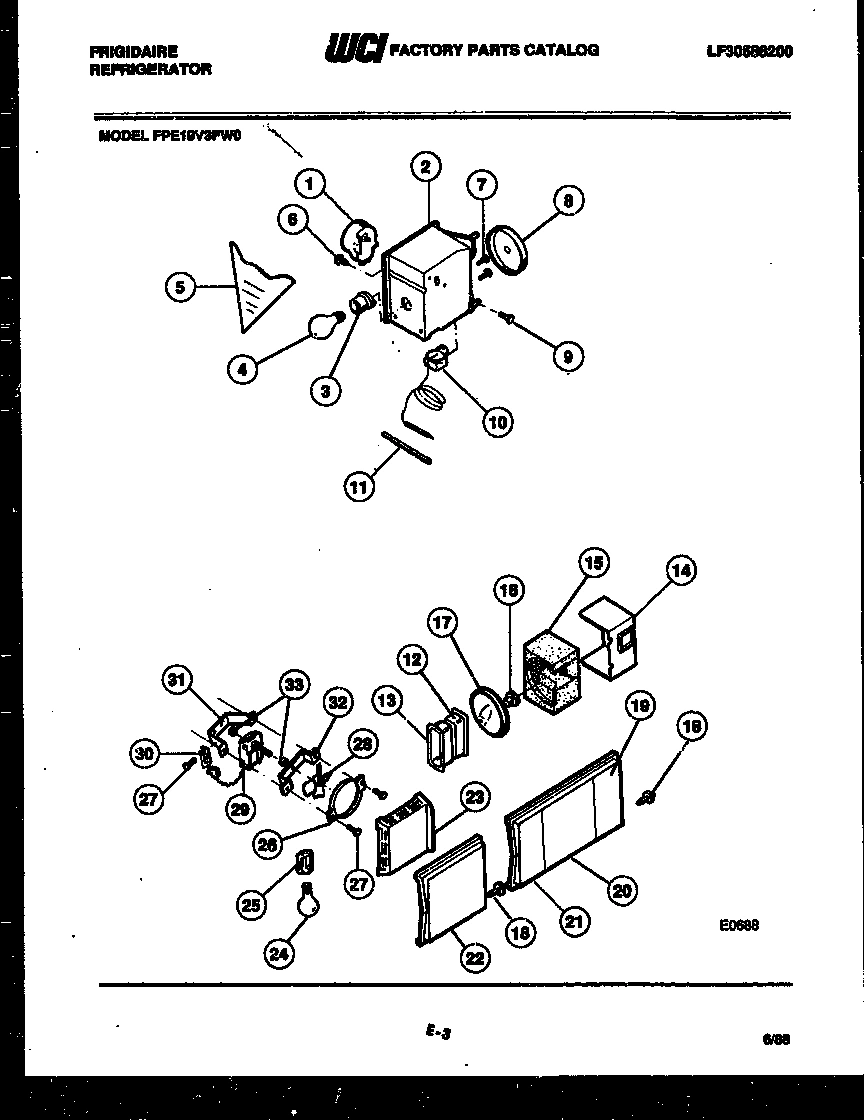

06 - REFRIGERATOR CONTROL ASSEMBLY, DAMP

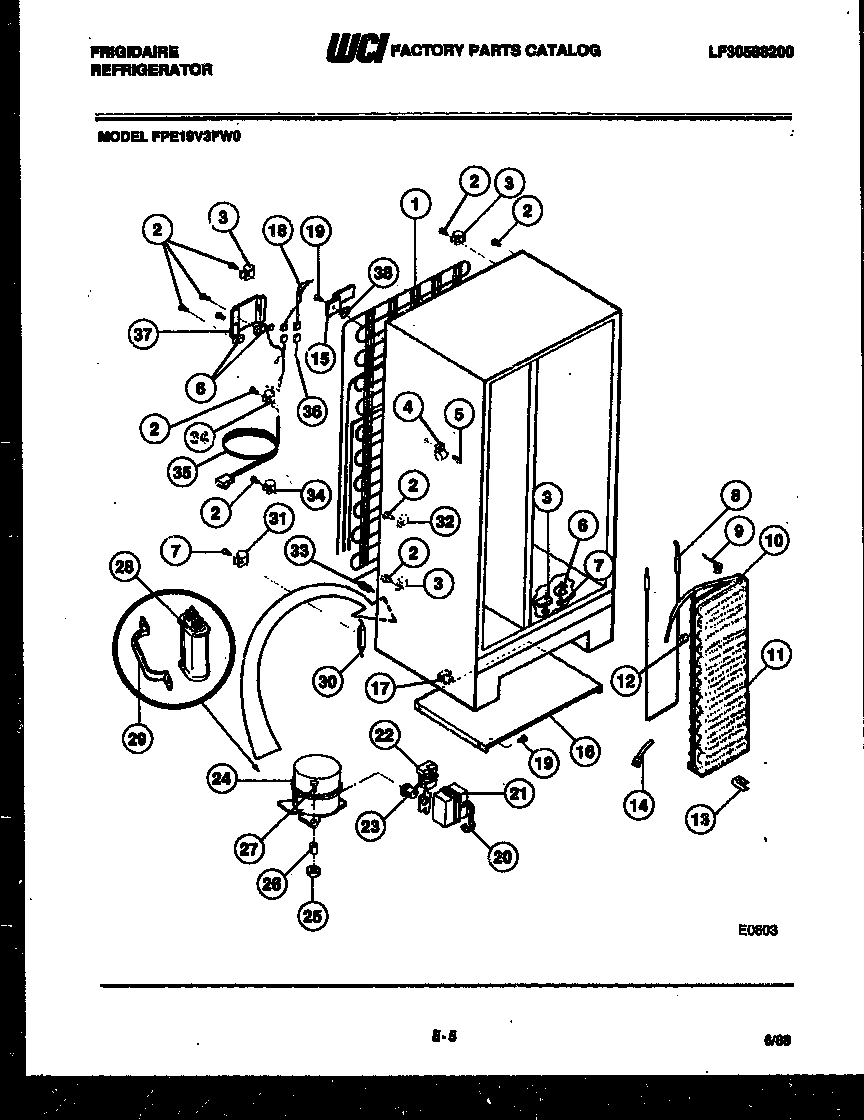

07 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux FPE19V3FF0 REFRIGERATOR
*24055
HOT TUBE REPAIR KIT WCI 9960005 Contact Us For Availability
1
WCI 3018631 WCI 3018631 Contact Us For Availability
1
COVER-TOP HINGE COFFEE (2) WCI 8012932 Contact Us For Availability
1
SHELF-GLASS (4) WCI 3018641 Contact Us For Availability
1
WCI 8017228 WCI 8017228 Contact Us For Availability
2
BEARING-HINGE UPPER WCI 8012008 Contact Us For Availability
2
PANEL-FREEZER COFFEE UPPER WCI 8009965 Contact Us For Availability
2
SCREW 8 X 1/2 WCI 8002748 Contact Us For Availability
2
SCREW 1/4-20 (4) WCI 8000123 Contact Us For Availability
2
WCI 8000883 WCI 8000883 Contact Us For Availability
2
WCI 8017561 WCI 8017561 Contact Us For Availability
3
WCI 8000743 WCI 8000743 Contact Us For Availability
3
WCI 8012934 WCI 8012934 Contact Us For Availability
3
WCI 3018643 WCI 3018643 Contact Us For Availability
3
SOCKET, LIGHT WCI 8000129 Contact Us For Availability
3
WCI 8000221 WCI 8000221 Contact Us For Availability
4
WASHER-NYLON (3) WCI 8000100 Contact Us For Availability
4
WCI 8010241 WCI 8010241 Contact Us For Availability
4
BULB, LIGHT WCI 8000801 Contact Us For Availability
4
CLAMP WCI 8000807 Contact Us For Availability
5
WCI 8002802 WCI 8002802 Contact Us For Availability
5
WCI 3018632 WCI 3018632 Contact Us For Availability
5
SCREW 8 X 5/8 WCI 8012354 Contact Us For Availability
5
WCI 3018642 WCI 3018642 Contact Us For Availability
5
INSULATION CONTROL BOX WCI 8009620 Contact Us For Availability
6
END CAP-UPPER WCI 8010239 Contact Us For Availability
6
WCI 8000785 WCI 8000785 Contact Us For Availability
6
WCI 3018644 WCI 3018644 Contact Us For Availability
6
WCI 8010253 WCI 8010253 Contact Us For Availability
6
CLAMP-STRAIN RELIEF (3) WCI 8000109 Contact Us For Availability
7
WCI 8017430 WCI 8017430 Contact Us For Availability
7
HANDLE-DOOR WCI 8017423 Contact Us For Availability
7
WCI 8000825 WCI 8000825 Contact Us For Availability
7
ICE TRAY COMPARTMENT WCI 8009824 Contact Us For Availability
7
SCREW 6 X 32 (2) WCI 8000009 Contact Us For Availability
7
SCREW (3) WCI 8000015 Contact Us For Availability
8
SCREW NO. 10 X 1/2 (6) WCI 8013645 Contact Us For Availability
8
WCI 8000775 WCI 8000775 Contact Us For Availability
8
WCI 8010380 WCI 8010380 Contact Us For Availability
8
WCI 8017562 WCI 8017562 Contact Us For Availability
9
WCI 3018625 WCI 3018625 Contact Us For Availability
9
WCI 8010229 WCI 8010229 Contact Us For Availability
9
WCI 8000820 WCI 8000820 Contact Us For Availability
9
ICE TRAY-PLASTIC (2) WCI 8000153 Contact Us For Availability
9
SCREW-6-20 X 7/16 (2) WCI 8000008 Contact Us For Availability
9
WCI 8017563 WCI 8017563 Contact Us For Availability
10
WCI 3018626 WCI 3018626 Contact Us For Availability
10
END CAP-LOWER WCI 8010238 Contact Us For Availability
10
WCI 8000821 WCI 8000821 Contact Us For Availability
10
WCI 8017217 WCI 8017217 Contact Us For Availability
10
WCI 8017565 WCI 8017565 Contact Us For Availability
11
BUTTON-PLUG WCI 8002751 Contact Us For Availability
11
WCI 8000843 WCI 8000843 Contact Us For Availability
11
WCI 3018646 WCI 3018646 Contact Us For Availability
11
WCI 8003637 WCI 8003637 Contact Us For Availability
11
WCI 3017362 WCI 3017362 Contact Us For Availability
12
WCI 8000790 WCI 8000790 Contact Us For Availability
12
GASKET (3) WCI 8950175 Contact Us For Availability
12
SHELF-FREEZER (2) WCI 8000906 Contact Us For Availability
12
WCI 8000811 WCI 8000811 Contact Us For Availability
12
WCI 8000828 WCI 8000828 Contact Us For Availability
13
SCREW NO. 8-32 X 1/2 WCI 8000839 Contact Us For Availability
13
PANEL-INTERIOR LOWER WCI 8009968 Contact Us For Availability
13
WASHER-NYLON (7) WCI 8009650 Contact Us For Availability
13
SHELF-FREEZER PLASTIC WCI 8000827 Contact Us For Availability
13
WCI 8000810 WCI 8000810 Contact Us For Availability
13
WCI 8002777 WCI 8002777 Contact Us For Availability
14
WCI 8017426 WCI 8017426 Contact Us For Availability
14
WCI 3018633 WCI 3018633 Contact Us For Availability
14
GROMMET-SHELF (10) WCI 8002747 Contact Us For Availability
14
WCI 8000770 WCI 8000770 Contact Us For Availability
14
STRAP-ALUMINUM WCI 8000110 Contact Us For Availability
15
BEARING-HINGE WCI 8012007 Contact Us For Availability
15
PANEL-FREEZER COFFEE LOWER WCI 8009960 Contact Us For Availability
15
WCI 8000824 WCI 8000824 Contact Us For Availability
15
SHELF-FREEZER WCI 8000905 Contact Us For Availability
15
WCI 8000771 WCI 8000771 Contact Us For Availability
15
BRACKET-CONDENSER MOUNTING (4) WCI 8003600 Contact Us For Availability
16
RIVET 3/32 X 3/16 (4) WCI 8002750 Contact Us For Availability
16
WCI 8002734 WCI 8002734 Contact Us For Availability
16
WCI 3018647 WCI 3018647 Contact Us For Availability
16
RIVET-EXPANSION WCI 8013429 Contact Us For Availability
16
WCI 8017567 WCI 8017567 Contact Us For Availability
17
WCI 3018628 WCI 3018628 Contact Us For Availability
17
WCI 3018648 WCI 3018648 Contact Us For Availability
17
WCI 8010379 WCI 8010379 Contact Us For Availability
17
WCI 8000099 WCI 8000099 Contact Us For Availability
18
WCI 3018627 WCI 3018627 Contact Us For Availability
18
WCI 8010231 WCI 8010231 Contact Us For Availability
18
WCI 8000779 WCI 8000779 Contact Us For Availability
18
SUPPORT-COIL CVR (2) WCI 8000097 Contact Us For Availability
18
WCI 8000818 WCI 8000818 Contact Us For Availability
18
WCI 8017568 WCI 8017568 Contact Us For Availability
19
WCI 3018634 WCI 3018634 Contact Us For Availability
19
WCI 8000186 WCI 8000186 Contact Us For Availability
19
WCI 8000819 WCI 8000819 Contact Us For Availability
19
LABEL-REFRIGERATOR R WCI 8009977 Contact Us For Availability
19
SCREW 8-32 WCI 8000039 Contact Us For Availability
20
WCI 8000088 WCI 8000088 Contact Us For Availability
20
WCI 3018649 WCI 3018649 Contact Us For Availability
20
LIGHT SHIELD-REFR WCI 8009993 Contact Us For Availability
20
STRAP, BALE WCI 8000117 Contact Us For Availability
21
WCI 3018636 WCI 3018636 Contact Us For Availability
21
WCI 8000059 WCI 8000059 Contact Us For Availability
21
WCI 3018650 WCI 3018650 Contact Us For Availability
21
LABEL-REFRIGERATOR L WCI 8009976 Contact Us For Availability
21
COVER-TERMINAL WCI 8000116 Contact Us For Availability
22
WCI 8017428 WCI 8017428 Contact Us For Availability
22
WCI 3018637 WCI 3018637 Contact Us For Availability
22
WCI 3018651 WCI 3018651 Contact Us For Availability
22
WCI 8009615 WCI 8009615 Contact Us For Availability
22
WCI 8017226 WCI 8017226 Contact Us For Availability
23
WCI 3018629 WCI 3018629 Contact Us For Availability
23
WCI 3018638 WCI 3018638 Contact Us For Availability
23
BASKET WCI 8017594 Contact Us For Availability
23
WCI 8000777 WCI 8000777 Contact Us For Availability
23
WCI 8017555 WCI 8017555 Contact Us For Availability
24
WCI 8010230 WCI 8010230 Contact Us For Availability
24
WCI 8000808 WCI 8000808 Contact Us For Availability
24
BULB-LIGHT WCI 8002735 Contact Us For Availability
24
WCI 8950223 WCI 8950223 Contact Us For Availability
25
WCI 8017432 WCI 8017432 Contact Us For Availability
25
WCI 8014529 WCI 8014529 Contact Us For Availability
25
WCI 8000809 WCI 8000809 Contact Us For Availability
25
WCI 8000815 WCI 8000815 Contact Us For Availability
25
GROMMET-COMPR MOUNTING (4) WCI 8008778 Contact Us For Availability
26
WCI 3018630 WCI 3018630 Contact Us For Availability
26
WCI 8009664 WCI 8009664 Contact Us For Availability
26
WCI 8000091 WCI 8000091 Contact Us For Availability
26
RING-FAN ORIFICE WCI 8000124 Contact Us For Availability
26
CLIP-COMPRESSOR MOUNTING (3) WCI 8003596 Contact Us For Availability
27
WCI 3018639 WCI 3018639 Contact Us For Availability
27
GRILLE-LOWER FRONT WCI 3016726 Contact Us For Availability
27
SCREW 1/4-20 (3) WCI 8000029 Contact Us For Availability
28
PANEL-REFRIGERATOR COFFEE WCI 8009945 Contact Us For Availability
28
WCI 8000086 WCI 8000086 Contact Us For Availability
28
BUTTON-PLUG (4) WCI 8000087 Contact Us For Availability
28
FAN WCI 8000010 Contact Us For Availability
28
CAPACITOR-RUN WCI 8017230 Contact Us For Availability
29
WCI 8002744 WCI 8002744 Contact Us For Availability
29
MOTOR-BLOWER WCI 8000036 Contact Us For Availability
29
WCI 8017231 WCI 8017231 Contact Us For Availability
30
SCREW 1/4 X 1 (4) WCI 8000005 Contact Us For Availability
30
ASSEMBLY ROLLER ADJUSTABLE (2) WCI 8000118 Contact Us For Availability
30
BRACKET-CONNECTOR WCI 8000107 Contact Us For Availability
30
DRIER WCI 8000027 Contact Us For Availability
31
SCREW 5/16 (2) WCI 8000016 Contact Us For Availability
31
WCI 8009641 WCI 8009641 Contact Us For Availability
31
BRACKET-MOTOR MOUNTING R WCI 8000042 Contact Us For Availability
31
WCI 8008782 WCI 8008782 Contact Us For Availability
32
WCI 8009568 WCI 8009568 Contact Us For Availability
32
BUTTON-PLUG WCI 8016571 Contact Us For Availability
32
BRACKET-MOTOR MOUNTING F WCI 8000043 Contact Us For Availability
32
CLAMP (2) WCI 8000133 Contact Us For Availability
33
WCI 8000098 WCI 8000098 Contact Us For Availability
33
TUBE-RUBBER (3) WCI 8000004 Contact Us For Availability
33
BUSHING-MOTOR MOUNTING (2) WCI 8000032 Contact Us For Availability
33
WCI 8003645 WCI 8003645 Contact Us For Availability
34
WCI 8000001 WCI 8000001 Contact Us For Availability
34
WCI 8000846 WCI 8000846 Contact Us For Availability
34
CLAMP-CABLE (3) WCI 8002756 Contact Us For Availability
35
WCI 8000266 WCI 8000266 Contact Us For Availability
35
SCREW 8-18 X 3/8 WCI 8002794 Contact Us For Availability
35
CORD, SERVICE WCI 8000064 Contact Us For Availability
36
SWITCH WCI 9918810 Contact Us For Availability
36
WCI 8000265 WCI 8000265 Contact Us For Availability
36
HARNESS-WIRING COMPRESSOR WCI 8009616 Contact Us For Availability
37
NUT-PUSH (2) WCI 8000067 Contact Us For Availability
37
INSULATION-MULLION WCI 8009732 Contact Us For Availability
37
WCI 8013644 WCI 8013644 Contact Us For Availability
38
WASHER-TOOTH LOCK (2) WCI 8009617 Contact Us For Availability
38
WCI 8000853 WCI 8000853 Contact Us For Availability
38
COVER-LIGHT SOCKET WCI 8002795 Contact Us For Availability
39
NUT-SPEC. TWIN (4) WCI 8000011 Contact Us For Availability
39
STRAP-LIGHT MOUNTING WCI 8002793 Contact Us For Availability
40
WCI 8000013 WCI 8000013 Contact Us For Availability
40
WCI 8000836 WCI 8000836 Contact Us For Availability
41
WCI 8000738 WCI 8000738 Contact Us For Availability
41
WCI 8000832 WCI 8000832 Contact Us For Availability
42
WCI 8000822 WCI 8000822 Contact Us For Availability
42
WCI 8002657 WCI 8002657 Contact Us For Availability
43
WCI 8000834 WCI 8000834 Contact Us For Availability
43
WCI 8002797 WCI 8002797 Contact Us For Availability
44
WCI 8002788 WCI 8002788 Contact Us For Availability
44
SCREW (2) WCI 8012258 Contact Us For Availability
47
SHIM-UPPER HINGE WCI 8012829 Contact Us For Availability
48
FERRULE-INNER (2) WCI 8006970 Contact Us For Availability
49
FERRULE-OUTER (2) WCI 8006971 Contact Us For Availability
50
WCI 8012828 WCI 8012828 Contact Us For Availability
× ![]()
