Model Electrolux FPE19V3AW1 REFRIGERATOR – Common Parts & Diagrams

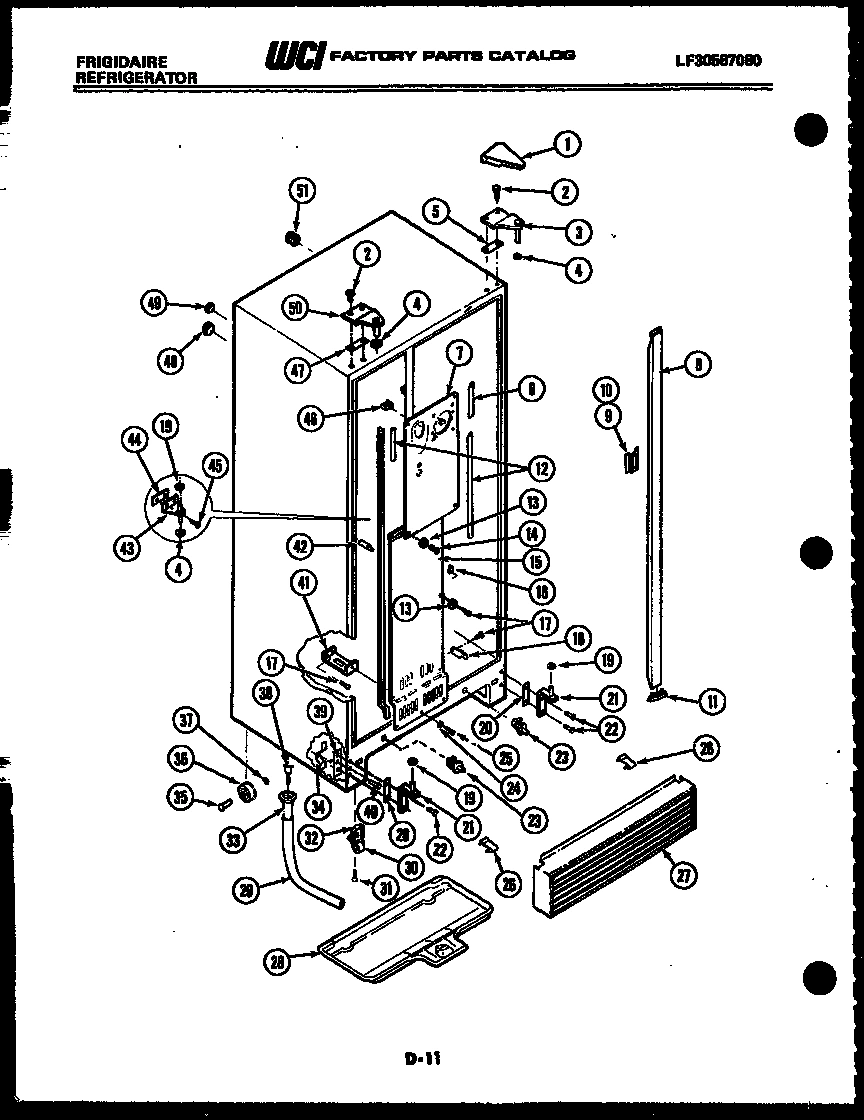

02 - CABINET PARTS

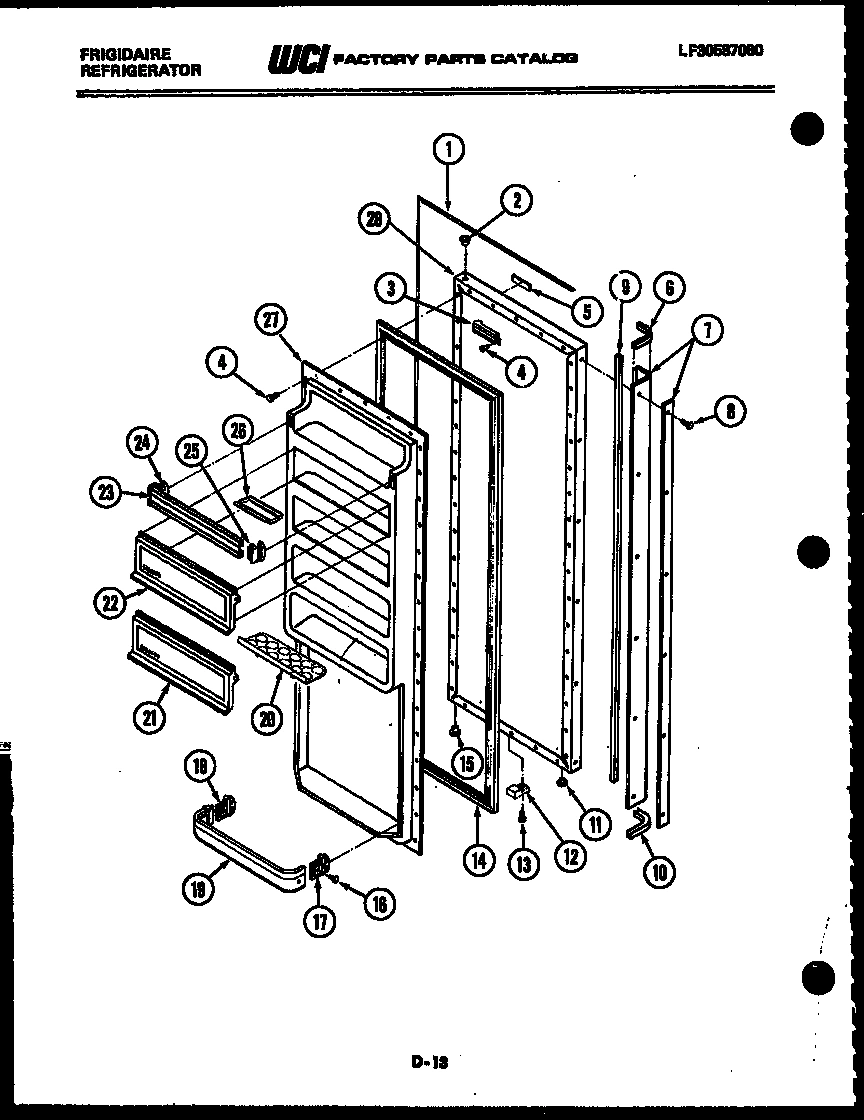

03 - REFRIGERATOR DOOR PARTS

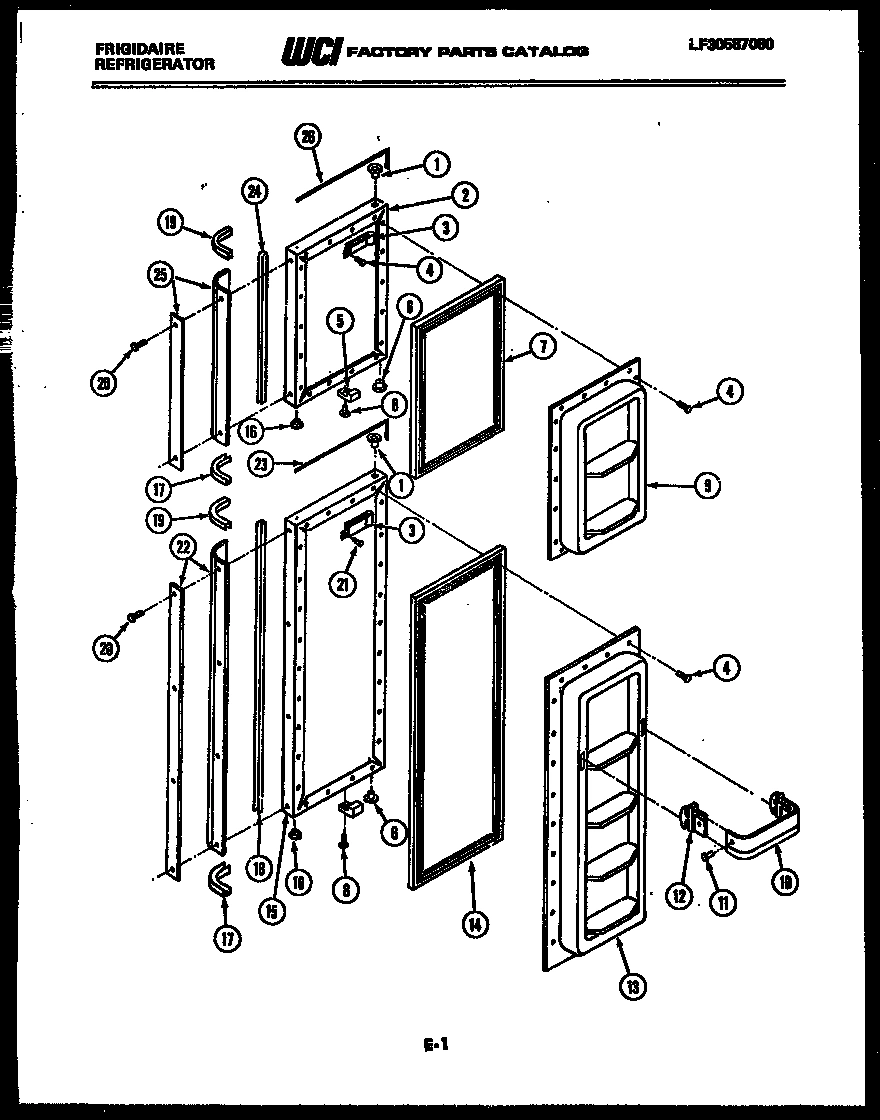

04 - FREEZER DOOR PARTS

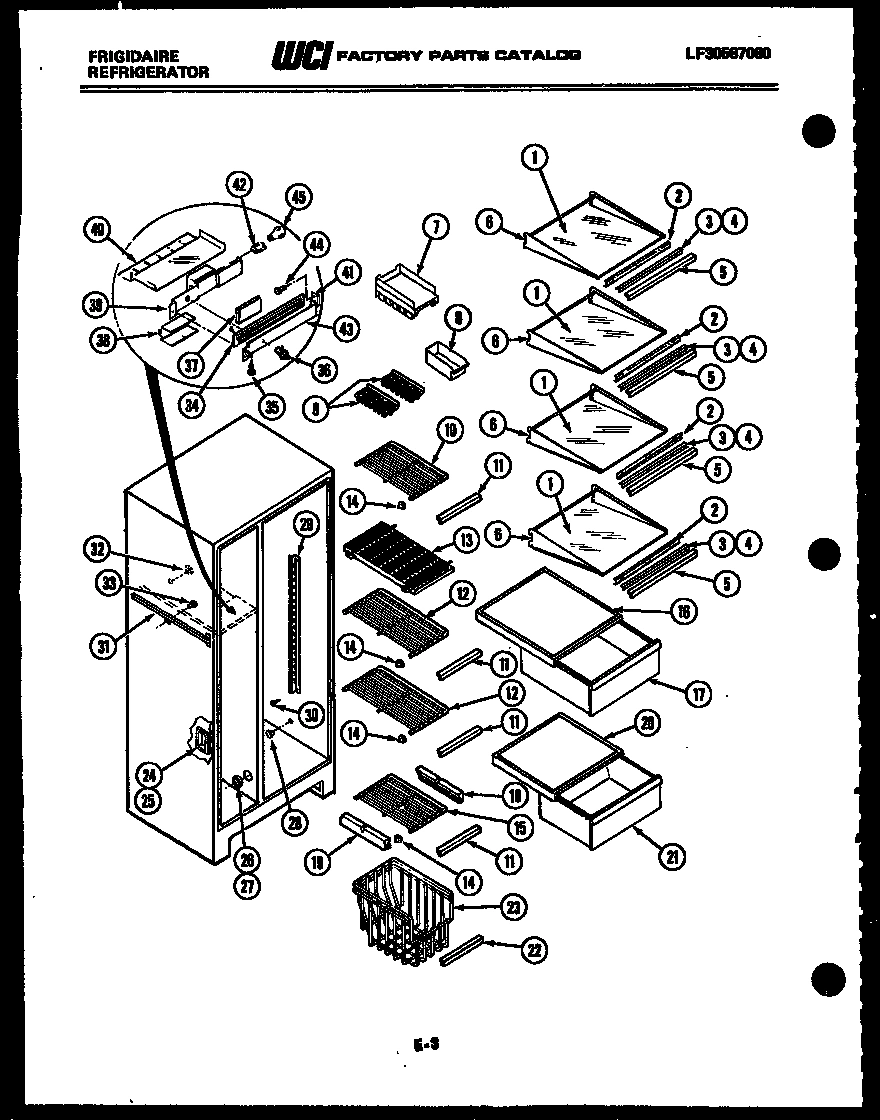

05 - SHELVES AND SUPPORTS

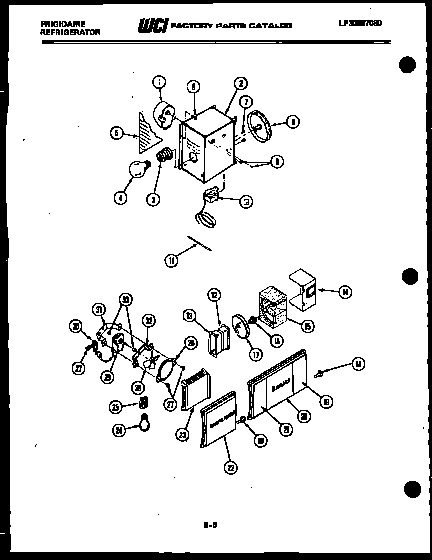

06 - REFRIGERATOR CONTROL ASSEMBLY, DAMP

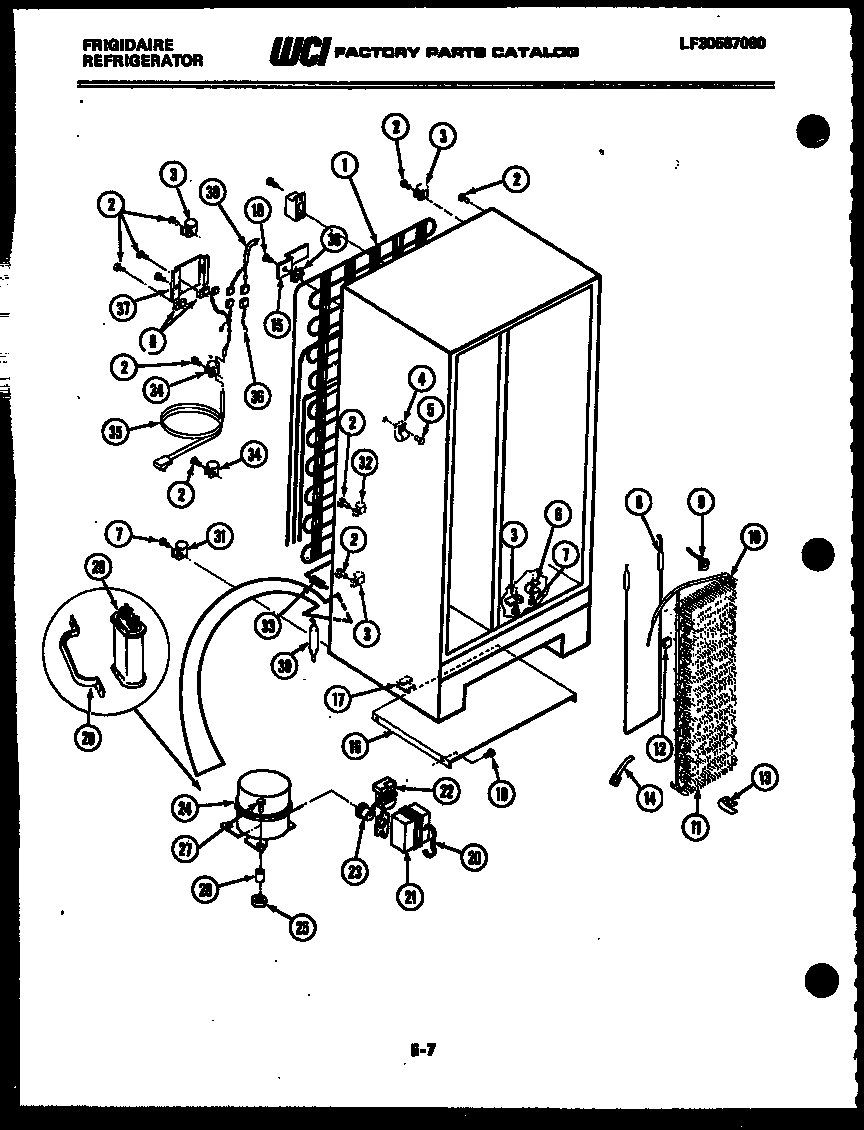

07 - SYSTEM AND AUTOMATIC DEFROST PARTS

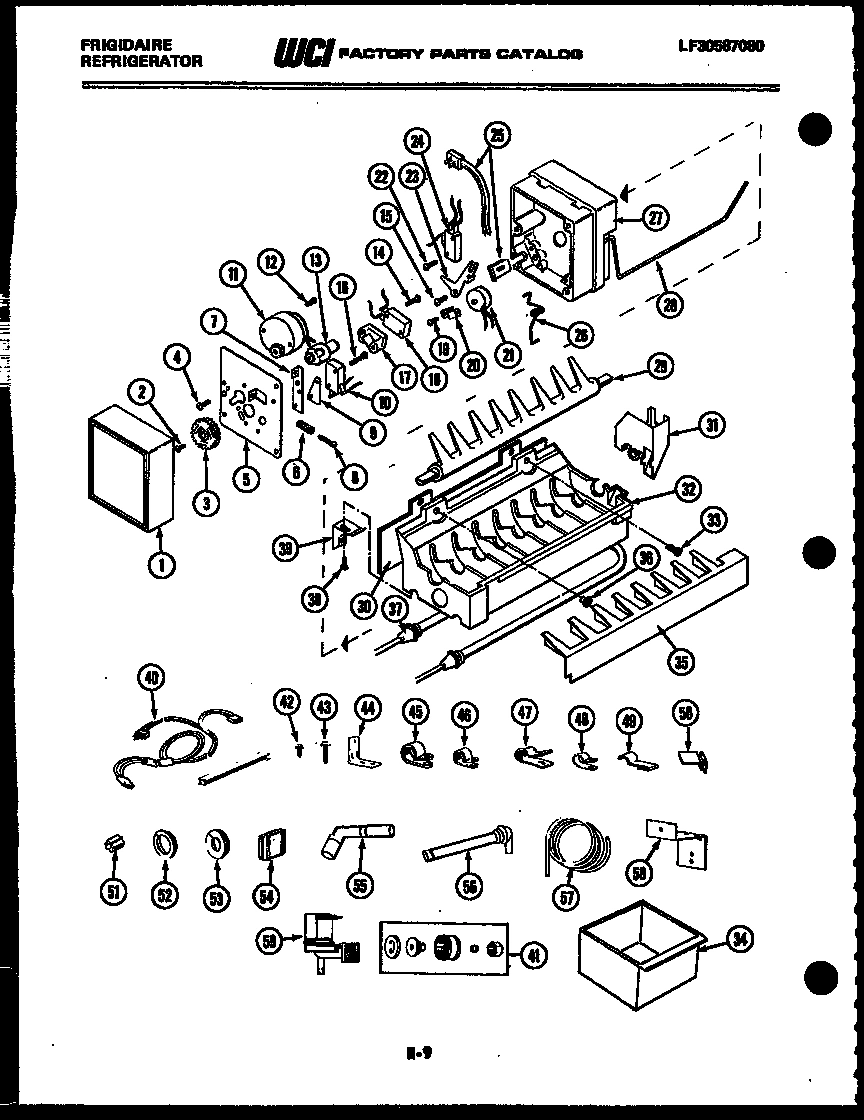

08 - ICE MAKER AND INSTALLATION PARTS
Common parts from model Electrolux FPE19V3AW1 REFRIGERATOR
1
CVR-TOP HNG (2) WCI 8012820 Contact Us For Availability
1
WCI 8012824 WCI 8012824 Contact Us For Availability
1
BEARING-HNG UPR (2) WCI 8012008 Contact Us For Availability
1
WCI 8009659 WCI 8009659 Contact Us For Availability
1
WCI 8017228 WCI 8017228 Contact Us For Availability
1
WCI 8000214 WCI 8000214 Contact Us For Availability
2
SCREW-1/4-20 (2) WCI 8000123 Contact Us For Availability
2
SCREW 8 X 1/2 (10) WCI 8002748 Contact Us For Availability
2
PNL-EXT. WHTE WCI 8009962 Contact Us For Availability
2
WCI 8000883 WCI 8000883 Contact Us For Availability
2
WCI 8017561 WCI 8017561 Contact Us For Availability
2
WCI 8001182 WCI 8001182 Contact Us For Availability
3
HINGE-UPR RH WCI 8012934 Contact Us For Availability
3
CLOSER (2) WCI 8000743 Contact Us For Availability
3
WCI 8000880 WCI 8000880 Contact Us For Availability
3
SOCKET, LIGHT WCI 8000129 Contact Us For Availability
3
WCI 8001248 WCI 8001248 Contact Us For Availability
4
WASHER-NYLON (3) WCI 8000100 Contact Us For Availability
4
WCI 8010241 WCI 8010241 Contact Us For Availability
4
CLAMP WCI 8000807 Contact Us For Availability
4
SCREW (3) WCI 8001136 Contact Us For Availability
5
WCI 8012877 WCI 8012877 Contact Us For Availability
5
BUMPER-LIGHT SW. WCI 8002802 Contact Us For Availability
5
WCI 8009678 WCI 8009678 Contact Us For Availability
5
INSUL. CONT. BOX WCI 8009620 Contact Us For Availability
5
SCREW 8 X 5/8 WCI 8012354 Contact Us For Availability
5
WCI 8017559 WCI 8017559 Contact Us For Availability
5A
WCI 8012879 WCI 8012879 Contact Us For Availability
6
GASKET-COIL COVR WCI 8000785 Contact Us For Availability
6
BEAR.-HNG LWR (2) WCI 8012007 Contact Us For Availability
6
WCI 8000882 WCI 8000882 Contact Us For Availability
6
WCI 8010253 WCI 8010253 Contact Us For Availability
6
WCI 8001251 WCI 8001251 Contact Us For Availability
7
COVER-UPR COIL WCI 8000825 Contact Us For Availability
7
WCI 8009947 WCI 8009947 Contact Us For Availability
7
WCI 8010249 WCI 8010249 Contact Us For Availability
7
ICE TRAY-COMP. WCI 8009824 Contact Us For Availability
7
SCREW 6 X 32 (2) WCI 8000009 Contact Us For Availability
7
SCREW (3) WCI 8000015 Contact Us For Availability
7
PLATE-VALVE SW. WCI 8001242 Contact Us For Availability
8
MULLION-WHTE WCI 8000772 Contact Us For Availability
8
SCREW 8 X 32 X 1/2 (2) WCI 8000839 Contact Us For Availability
8
CONTAINER, ICE WCI 8009795 Contact Us For Availability
8
WCI 8017562 WCI 8017562 Contact Us For Availability
9
WCI 8000820 WCI 8000820 Contact Us For Availability
9
WCI 8010229 WCI 8010229 Contact Us For Availability
9
WCI 8009967 WCI 8009967 Contact Us For Availability
9
ICE TRAY-PLAS. (2) WCI 8000153 Contact Us For Availability
9
SCREW-6-20 X 7/16 (2) WCI 8000008 Contact Us For Availability
9
THERMOSTAT-DEF WCI 8017563 Contact Us For Availability
9
WCI 8001241 WCI 8001241 Contact Us For Availability
10
WCI 8000821 WCI 8000821 Contact Us For Availability
10
WCI 8009716 WCI 8009716 Contact Us For Availability
10
WCI 8000903 WCI 8000903 Contact Us For Availability
10
WCI 8017217 WCI 8017217 Contact Us For Availability
10
WCI 8017564 WCI 8017564 Contact Us For Availability
11
TRIM-MULLION WHTE WCI 8000840 Contact Us For Availability
11
RIVET-OVAL HD (16) WCI 8002750 Contact Us For Availability
11
WCI 8009679 WCI 8009679 Contact Us For Availability
11
WCI 8003637 WCI 8003637 Contact Us For Availability
11
WCI 8017536 WCI 8017536 Contact Us For Availability
11
WCI 8001244 WCI 8001244 Contact Us For Availability
12
GASKET (3) WCI 8950175 Contact Us For Availability
12
BUMPER-LITE SW. WCI 8000790 Contact Us For Availability
12
SUPT-DR RK LH (12) WCI 8009970 Contact Us For Availability
12
SHELF-FRZR (2) WCI 8000906 Contact Us For Availability
12
WCI 8000811 WCI 8000811 Contact Us For Availability
12
WCI 8000828 WCI 8000828 Contact Us For Availability
12A
SUPT - DR RK RH (12) (NON-ILLUSTRATED) WCI 8009971 Contact Us For Availability
13
WASHER-NYLN (7) WCI 8009650 Contact Us For Availability
13
WCI 8009968 WCI 8009968 Contact Us For Availability
13
WCI 8000827 WCI 8000827 Contact Us For Availability
13
WCI 8000810 WCI 8000810 Contact Us For Availability
13
SUPT-DEF HTR WCI 8002777 Contact Us For Availability
13
WCI 8001247 WCI 8001247 Contact Us For Availability
14
SCREW (4) WCI 7536987 Contact Us For Availability
14
WCI 8010247 WCI 8010247 Contact Us For Availability
14
WCI 8010250 WCI 8010250 Contact Us For Availability
14
GROMMET-SHELF (10) WCI 8002747 Contact Us For Availability
14
BOX-DAMP. CONT. WCI 8000770 Contact Us For Availability
14
STRAP, ALUM. WCI 8000110 Contact Us For Availability
14
WCI 8001148 WCI 8001148 Contact Us For Availability
15
COVER-LWR COIL WCI 8000824 Contact Us For Availability
15
PNL-EXT. WHTE WCI 8009957 Contact Us For Availability
15
SHELF-FRZR WCI 8000905 Contact Us For Availability
15
WCI 8000771 WCI 8000771 Contact Us For Availability
15
BRKT-COND MTG (4) WCI 8003600 Contact Us For Availability
15
WCI 8001255 WCI 8001255 Contact Us For Availability
16
WCI 8002734 WCI 8002734 Contact Us For Availability
16
BUTTON-PLUG (2) WCI 8002751 Contact Us For Availability
16
COVER-CRISPER WCI 8017220 Contact Us For Availability
16
CLIP WCI 8013429 Contact Us For Availability
16
WCI 8017567 WCI 8017567 Contact Us For Availability
16
SCREW 4-40 X 3/4 (2) WCI 8001149 Contact Us For Availability
17
END CAP (2) WCI 8010239 Contact Us For Availability
17
WCI 8009627 WCI 8009627 Contact Us For Availability
17
KNOB-DAMPR CONT WCI 8010379 Contact Us For Availability
17
WCI 8000099 WCI 8000099 Contact Us For Availability
17
SPACER-HOLD. SW. WCI 8001240 Contact Us For Availability
18
DAMPR-MEAT KEEP WCI 8000779 Contact Us For Availability
18
TRIM-HANDLE FRZR WCI 8010231 Contact Us For Availability
18
HANGER-BASKT RH WCI 8000818 Contact Us For Availability
18
SUPT-COIL CUR (2) WCI 5303001213 Contact Us For Availability
18
BRACKET (4) WCI 8002782 Contact Us For Availability
19
WCI 8000186 WCI 8000186 Contact Us For Availability
19
END CAP (2) WCI 8010238 Contact Us For Availability
19
WCI 8009715 WCI 8009715 Contact Us For Availability
19
HANGER-BASKT LH WCI 8000819 Contact Us For Availability
19
LABEL-REF. R WCI 8009977 Contact Us For Availability
19
SCREW 8-32 X 1 WCI 8001150 Contact Us For Availability
20
SHIM-LWR HNG (2) WCI 8000088 Contact Us For Availability
20
SCRW (6) WCI 8013645 Contact Us For Availability
20
WCI 8009667 WCI 8009667 Contact Us For Availability
20
COVER-CRISPER WCI 8017221 Contact Us For Availability
20
WCI 8009993 WCI 8009993 Contact Us For Availability
20
STRAP, BALE WCI 8000117 Contact Us For Availability
20
WCI 8001236 WCI 8001236 Contact Us For Availability
21
HINGE-LWR (2) WCI 8000059 Contact Us For Availability
21
WCI 8009714 WCI 8009714 Contact Us For Availability
21
WCI 8009624 WCI 8009624 Contact Us For Availability
21
LABEL-REF. L WCI 8009976 Contact Us For Availability
21
COVER-TERMINAL WCI 8000116 Contact Us For Availability
21
WCI 8001250 WCI 8001250 Contact Us For Availability
22
WCI 8009713 WCI 8009713 Contact Us For Availability
22
WCI 8009955 WCI 8009955 Contact Us For Availability
22
WCI 8009622 WCI 8009622 Contact Us For Availability
22
LIGHT SHIELD-FRZR WCI 8009615 Contact Us For Availability
22
WCI 8017226 WCI 8017226 Contact Us For Availability
22
SCREW 4-24 X 3/4 WCI 8001147 Contact Us For Availability
23
RACK-DOOR (3) WCI 8009666 Contact Us For Availability
23
WCI 8012827 WCI 8012827 Contact Us For Availability
23
BASKET WCI 8000802 Contact Us For Availability
23
WCI 8000777 WCI 8000777 Contact Us For Availability
23
WCI 8017555 WCI 8017555 Contact Us For Availability
23
ARM-LEVER WCI 8001237 Contact Us For Availability
24
SUPT - DR RH (3) WCI 8009808 Contact Us For Availability
24
TRIM-HNDL FRZR WCI 8010230 Contact Us For Availability
24
WCI 8000808 WCI 8000808 Contact Us For Availability
24
WCI 8950223 WCI 8950223 Contact Us For Availability
24
SWITCH-SHUT OFF WCI 8001245 Contact Us For Availability
25
WCI 8009585 WCI 8009585 Contact Us For Availability
25
SUPT - DR LH (3) WCI 8009806 Contact Us For Availability
25
WCI 8009956 WCI 8009956 Contact Us For Availability
25
WCI 8000809 WCI 8000809 Contact Us For Availability
25
WCI 8000815 WCI 8000815 Contact Us For Availability
25
GROMMET-COMP MTG (4) WCI 8008778 Contact Us For Availability
25
WCI 8014553 WCI 8014553 Contact Us For Availability
26
WCI 8000091 WCI 8000091 Contact Us For Availability
26
WCI 8009664 WCI 8009664 Contact Us For Availability
26
WCI 8012826 WCI 8012826 Contact Us For Availability
26
RING-FAN ORIFICE WCI 8000124 Contact Us For Availability
26
SLEEVE-COMP MTG (3) WCI 8002758 Contact Us For Availability
26
SPRING-SHUT OFF WCI 8001238 Contact Us For Availability
27
GRILLE-LWR FRNT WCI 8000270 Contact Us For Availability
27
PNL-INTERIOR WCI 8009969 Contact Us For Availability
27
SCREW 1/4-20 (3) WCI 8000029 Contact Us For Availability
27
WCI 8001235 WCI 8001235 Contact Us For Availability
28
WCI 8000086 WCI 8000086 Contact Us For Availability
28
PNL-EXT WHTE WCI 8009942 Contact Us For Availability
28
BUTTON-PLUG (4) WCI 8000087 Contact Us For Availability
28
FAN WCI 8000010 Contact Us For Availability
28
CAPACITOR-RUN WCI 8017230 Contact Us For Availability
28
ARM-SHUT OFF WCI 8000503 Contact Us For Availability
29
WCI 8012274 WCI 8012274 Contact Us For Availability
29
CHANEL-SHELF (2) WCI 8002744 Contact Us For Availability
29
MOTOR-BLOWER WCI 8000036 Contact Us For Availability
29
STRAP-CAPAC. MTG. WCI 8017231 Contact Us For Availability
29
WCI 8001253 WCI 8001253 Contact Us For Availability
30
SCREW 1/4 X 1 (4) WCI 8000005 Contact Us For Availability
30
WCI 8000118 WCI 8000118 Contact Us For Availability
30
BRACKT-CONNECTOR WCI 8000107 Contact Us For Availability
30
DRIER WCI 8000027 Contact Us For Availability
30
WCI 8000236 WCI 8000236 Contact Us For Availability
31
SCREW 5/16 (2) WCI 8000016 Contact Us For Availability
31
WCI 8009641 WCI 8009641 Contact Us For Availability
31
BRKT-MTR MTG R WCI 8000042 Contact Us For Availability
31
BEARING & INLET WCI 8001234 Contact Us For Availability
32
WCI 8009568 WCI 8009568 Contact Us For Availability
32
BUTTON-PLUG WCI 8016571 Contact Us For Availability
32
BRKT-MTR MTG F WCI 8000043 Contact Us For Availability
32
CLAMP (2) WCI 8000133 Contact Us For Availability
32
WCI 8001254 WCI 8001254 Contact Us For Availability
33
WCI 8000098 WCI 8000098 Contact Us For Availability
33
WCI 8012273 WCI 8012273 Contact Us For Availability
33
BUSHING-MTR MTG (2) WCI 8000032 Contact Us For Availability
33
WCI 8003645 WCI 8003645 Contact Us For Availability
34
WCI 8000001 WCI 8000001 Contact Us For Availability
34
HEATER WCI 8000846 Contact Us For Availability
34
CLAMP-CABLE (3) WCI 8002756 Contact Us For Availability
34
CONTAINER-ICE WCI 8000202 Contact Us For Availability
35
WCI 8000266 WCI 8000266 Contact Us For Availability
35
SCREW 8-18 X 3/8 WCI 8002794 Contact Us For Availability
35
CORD, SERVICE WCI 8000064 Contact Us For Availability
35
STRIPPER-ICE WCI 8001252 Contact Us For Availability
36
SWITCH WCI 9918810 Contact Us For Availability
36
WCI 8000265 WCI 8000265 Contact Us For Availability
36
WCI 8009616 WCI 8009616 Contact Us For Availability
36
EYELET (2) WCI 8000233 Contact Us For Availability
37
NUT-PUSH (2) WCI 8000067 Contact Us For Availability
37
WCI 8009732 WCI 8009732 Contact Us For Availability
37
WCI 8013644 WCI 8013644 Contact Us For Availability
37
WCI 8001243 WCI 8001243 Contact Us For Availability
38
WASHR-TOOTH LOCK (2) WCI 8009617 Contact Us For Availability
38
WCI 8000853 WCI 8000853 Contact Us For Availability
38
WCI 8002795 WCI 8002795 Contact Us For Availability
38
SCREW (2) WCI 8017022 Contact Us For Availability
39
NUT-SPEC. TWIN (4) WCI 8000011 Contact Us For Availability
39
STRAP-LIGHT MTG. WCI 8002793 Contact Us For Availability
39
WCI 8002786 WCI 8002786 Contact Us For Availability
39
HARNS-WIRE MAIN WCI 8017568 Contact Us For Availability
39
WCI 8001246 WCI 8001246 Contact Us For Availability
40
WCI 8000013 WCI 8000013 Contact Us For Availability
40
WCI 8000836 WCI 8000836 Contact Us For Availability
40
WCI 8014552 WCI 8014552 Contact Us For Availability
41
BRKT-CVR MTG. WCI 8000738 Contact Us For Availability
41
TRIM-MULLION WHTE WCI 8000829 Contact Us For Availability
41
ASSY-ADAPTER WCI 8000205 Contact Us For Availability
42
SUPT-COIL CVR (5) WCI 8000822 Contact Us For Availability
42
WCI 8002657 WCI 8002657 Contact Us For Availability
42
SCREW 8-32 X 1/2 (10) WCI 8000039 Contact Us For Availability
43
BRKT-CTR HNG. WCI 8000834 Contact Us For Availability
43
MULLION-WHTE WCI 8000826 Contact Us For Availability
43
SCREW 8-15 X 7/8 (4) WCI 8002728 Contact Us For Availability
44
SHIM-CTR HNGE. WCI 8002788 Contact Us For Availability
44
SCREW (2) WCI 8012258 Contact Us For Availability
44
CLAMP-HARN. MTG WCI 8000109 Contact Us For Availability
45
CLAMP-WIRE HARN. WCI 8008782 Contact Us For Availability
46
SUPT-COIL CVR (2) WCI 8000097 Contact Us For Availability
46
CLAMP-INLET TUBE WCI 8000221 Contact Us For Availability
47
SHIM-UPR HNG (2) WCI 8012829 Contact Us For Availability
47
CLAMP-STEEL WCI 8009561 Contact Us For Availability
48
FERRULE-INNER (2) WCI 8006970 Contact Us For Availability
48
CLAMP-TUBE TO PNL WCI 8000250 Contact Us For Availability
49
FERRULE-OUTER (2) WCI 8006971 Contact Us For Availability
49
CLIP-TUBE WCI 8000230 Contact Us For Availability
50
HINGE-UPR LH WCI 8012828 Contact Us For Availability
50
CLIP-FILLER TUBE WCI 8000201 Contact Us For Availability
51
WCI 8000004 WCI 8000004 Contact Us For Availability
51
NUT 7/16-20 NYLN WCI 8000200 Contact Us For Availability
52
BUSHING-COIL CVR WCI 8000240 Contact Us For Availability
53
PLUG-REAR PNL WCI 8000241 Contact Us For Availability
54
PLUG-ADAPTER WCI 8000220 Contact Us For Availability
55
TUBE-FILLER WCI 8000239 Contact Us For Availability
56
TUBE-INLET WCI 8010269 Contact Us For Availability
57
WCI 8000199 WCI 8000199 Contact Us For Availability
58
BRKT-WATER VALVE WCI 8000223 Contact Us For Availability
59
VALVE-WATER WCI 8000219 Contact Us For Availability
× ![]()
