Model Electrolux FPE19TPW0 REFRIGERATOR – Common Parts & Diagrams

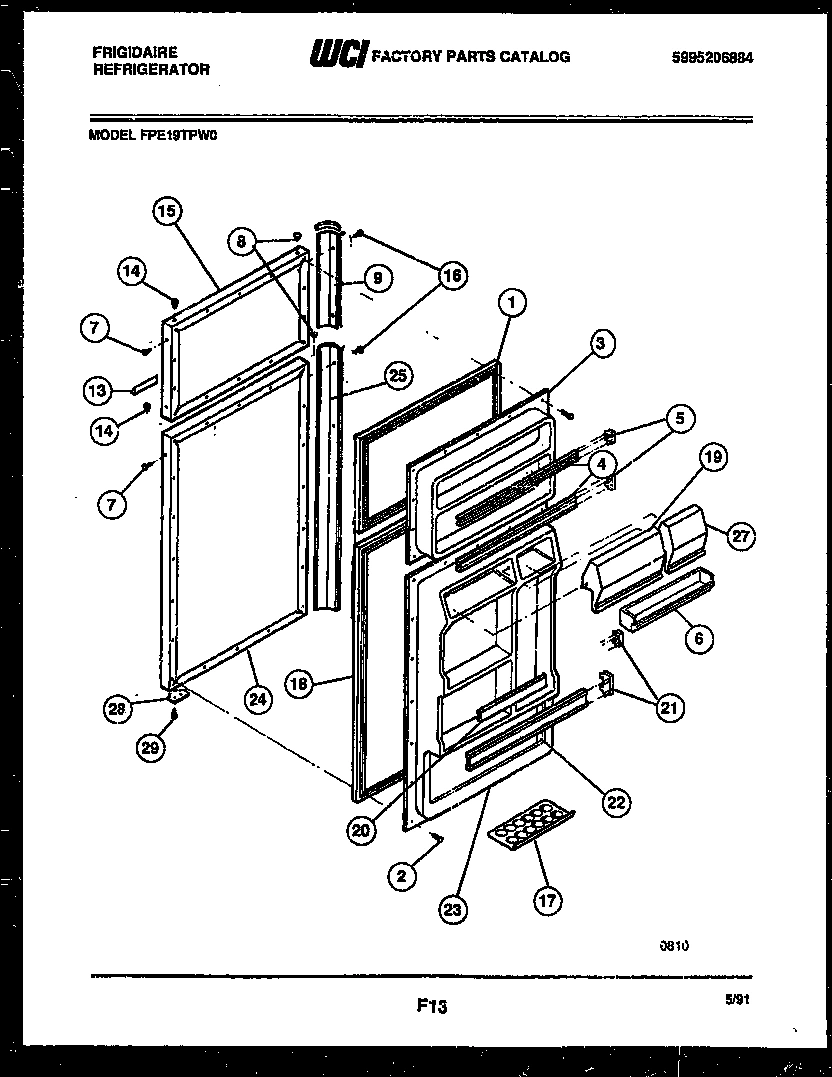

02 - DOOR PARTS

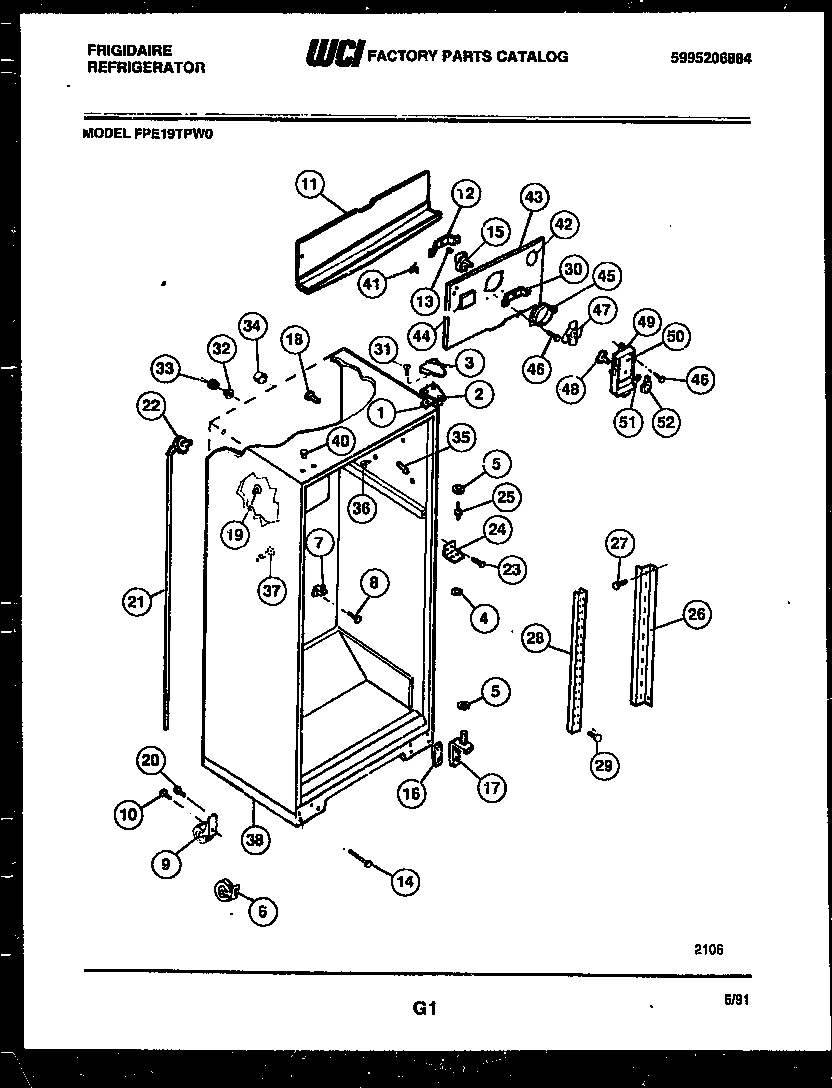

03 - CABINET PARTS

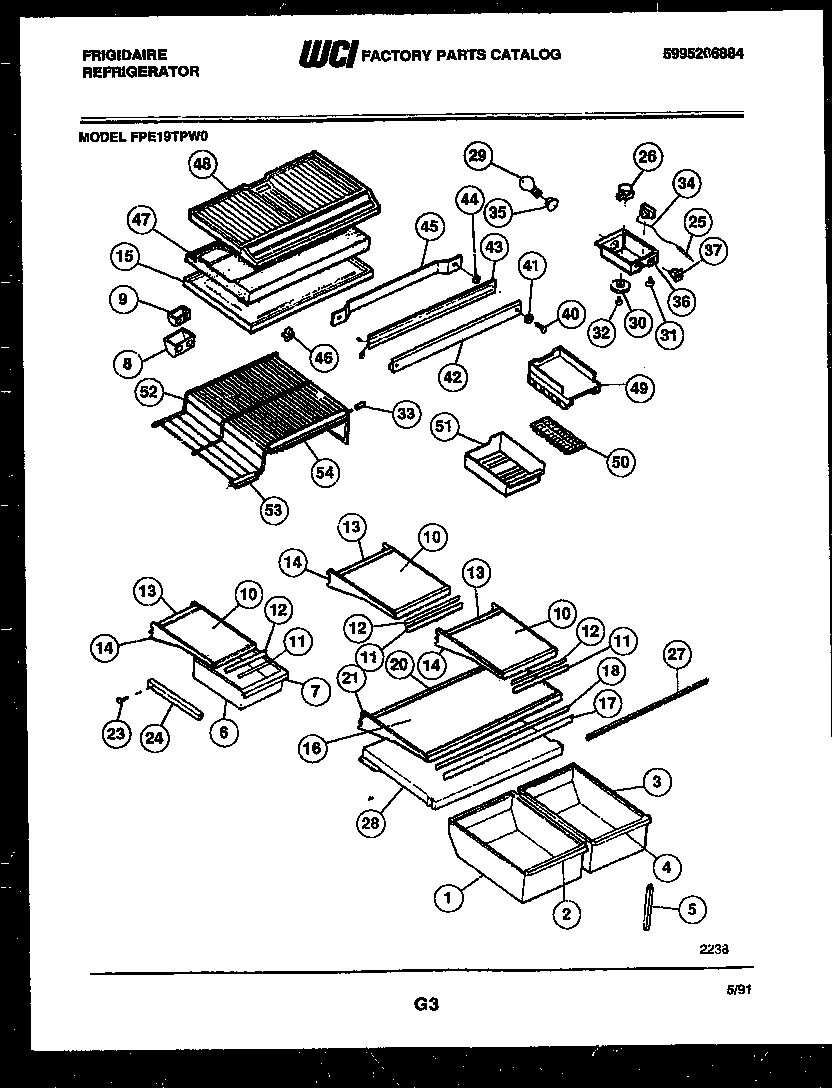

04 - SHELVES AND SUPPORTS

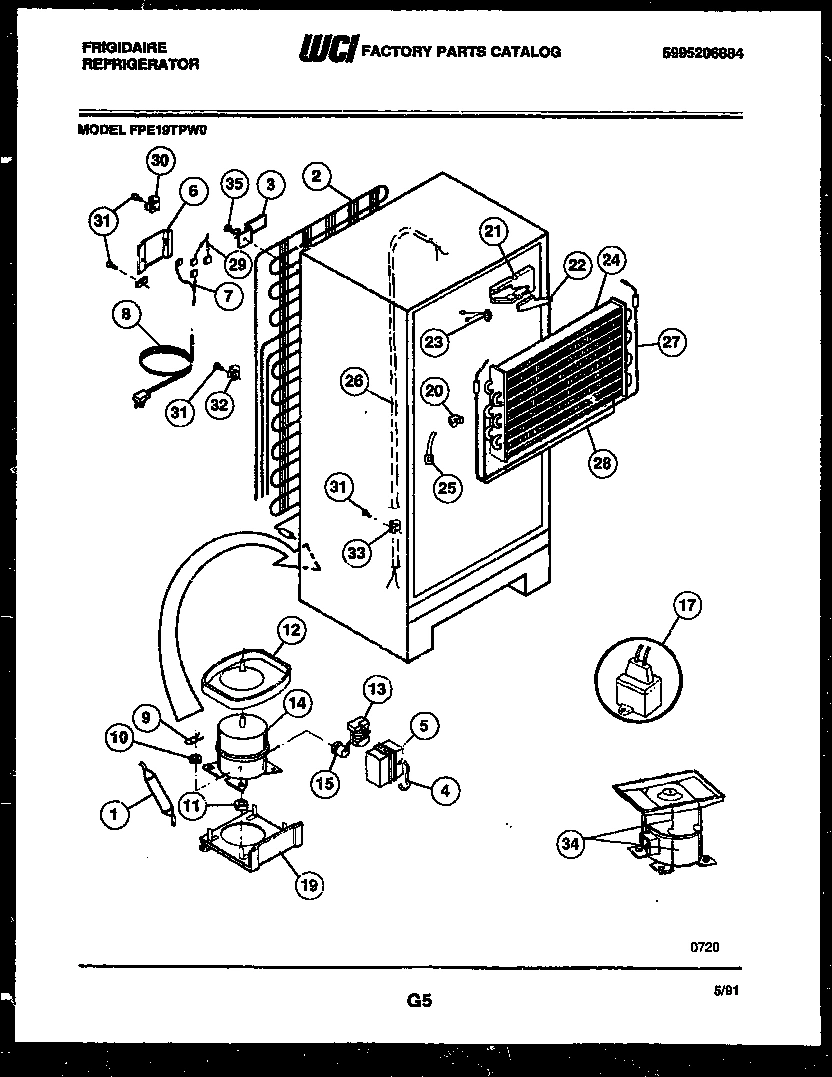

05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux FPE19TPW0 REFRIGERATOR
*94248
WCI 08009823 WCI 08009823 Contact Us For Availability
*94249
TAPPING-PLATE (2) WCI 5308012296 Contact Us For Availability
*94278
LABEL-IM WCI 08012329 Contact Us For Availability
*94300
HOT TUBE REPAIR KIT WCI 5300189383 Contact Us For Availability
*94300
WASHER EXT TOOTH LOCK (2) WCI 5308009617 Contact Us For Availability
1
WCI 5303001037 WCI 5303001037 Contact Us For Availability
1
WCI 3018873 WCI 3018873 Contact Us For Availability
2
HINGE-BRACKET UPPER WCI 5308012843 Contact Us For Availability
2
WCI 5303272523 WCI 5303272523 Contact Us For Availability
2
WCI 5300163133 WCI 5300163133 Contact Us For Availability
3
WCI 5308012820 WCI 5308012820 Contact Us For Availability
3
PAN-STORAGE RH WCI 3018982 Contact Us For Availability
3
BRACKET-MTG (4) WCI 5303001342 Contact Us For Availability
4
WASHER, NYLON WCI 5308000186 No Longer Available
4
WCI 5303272529 WCI 5303272529 Contact Us For Availability
5
WASHER, NYLON (2) WCI 5308000007 Contact Us For Availability
5
SUPPORT-COVER-ADJ WCI 5303206507 Contact Us For Availability
6
ROLLER-FRONT ASSY (2) WCI 5303212490 Contact Us For Availability
6
PAN, MEAT WCI 3018987 Contact Us For Availability
6
WCI 5303001197 WCI 5303001197 Contact Us For Availability
7
SPOUT DRAIN WCI 5308000056 Contact Us For Availability
7
WCI 5303272530 WCI 5303272530 Contact Us For Availability
7
WIRING HARNESS, COMPRESSOR, WCI 5303001347 Contact Us For Availability
8
BUTTON PLUG-WHITE WCI 5308000134 Contact Us For Availability
8
PIN, PUSH, (2) WCI 5303001361 Contact Us For Availability
8
WCI 5303001448 WCI 5303001448 Contact Us For Availability
8
WCI 5316254901 WCI 5316254901 Contact Us For Availability
9
WCI 5308009773 WCI 5308009773 Contact Us For Availability
9
AIR DEFLECTOR WCI 5308014667 Contact Us For Availability
9
CLIP (4) WCI 5308003596 Contact Us For Availability
9A
EXTENSION & INSULATION-AIR (NON-ILLUSTRATED) WCI 5303200590 Contact Us For Availability
10
BOLT, ROLLER MTG (2) WCI 5308009762 Contact Us For Availability
10
GLASS-SHELF (3) WCI 5303211967 Contact Us For Availability
10
WASHER (4) WCI 5308003633 Contact Us For Availability
11
DRAIN TROUGH WCI 5303001470 Contact Us For Availability
11
WCI 5303272543 WCI 5303272543 Contact Us For Availability
12
WCI 5303205119 WCI 5303205119 Contact Us For Availability
12
RETAINER (3) WCI 5303209263 Contact Us For Availability
12
DEFROST PAN WCI 5300184715 Contact Us For Availability
12A
LOCK NUT (NON-ILLUSTRATED) WCI 5303001348 Contact Us For Availability
13
WCI 5303007173 WCI 5303007173 Contact Us For Availability
13
WCI 5300157666 WCI 5300157666 Contact Us For Availability
13
RETAINER-REAR (3) WCI 5303211828 Contact Us For Availability
14
BOLT-ROLLER ADJ (2) WCI 5303271412 Contact Us For Availability
14
FRAME-1/2 SHELF (3) WCI 5303209869 Contact Us For Availability
14
COMPRESSOR WITH ELECTRICALS WCI 5303916004 Contact Us For Availability
15
TOP - REFRIGERATOR WCI 3018993 Contact Us For Availability
15
WCI 3201680 WCI 3201680 Contact Us For Availability
15A
WCI 5303001380 WCI 5303001380 Contact Us For Availability
16
SHIM, BOTTOM HINGE WCI 5303212488 Contact Us For Availability
16
WCI 5303211964 WCI 5303211964 Contact Us For Availability
17
BRACKET, BOTTOM HINGE WCI 5303212489 Contact Us For Availability
17
WCI 5303272550 WCI 5303272550 Contact Us For Availability
17
WCI 5303916391 WCI 5303916391 Contact Us For Availability
17A
GUSSET-TAPPING PLATE RH (NON-ILLUSTRATED) WCI 5303212597 Contact Us For Availability
17B
GUSSET-TAPPING PLATE (LH) (NON-ILLUSTRATED) WCI 5303212596 Contact Us For Availability
18
SUPPORT-COIL COVER WCI 5308000097 Contact Us For Availability
18
RETAINER WCI 5303209274 Contact Us For Availability
19
PLUG, FREEZER LINER (3) WCI 5308016571 Contact Us For Availability
19
PLATE, COMPRESSOR MOUNTING WCI 5308013663 Contact Us For Availability
20
RETAINER-REAR WCI 5303211962 Contact Us For Availability
20
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
21
DRAIN TUBE & SEAL RING ASSY WCI 5303210377 Contact Us For Availability
21
FRAME-FULL SHELF WCI 5303210022 Contact Us For Availability
21
INSULATION BLOCK, RH WCI 5308013648 Contact Us For Availability
22
RING SEAL, TUBE WCI 5303207353 Contact Us For Availability
22
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
23
SCREW (6) WCI 08014528 Contact Us For Availability
24
WCI 5303001369 WCI 5303001369 Contact Us For Availability
24
HANGER LH WCI 5303210016 Contact Us For Availability
24
EVAPORATOR WCI 5303271578 Contact Us For Availability
24A
HANGER RH (NON-ILLUSTRATED) WCI 5303210017 Contact Us For Availability
25
WCI 5308000184 WCI 5308000184 Contact Us For Availability
25
HOUSING, CAP TUBE WCI 3018891 Contact Us For Availability
26
CHANNEL, RH AND LH WCI 5308000302 Contact Us For Availability
26
HEAT EXCHANGER WCI 5308000728 Contact Us For Availability
27
WCI 3018974 WCI 3018974 Contact Us For Availability
27
GASKET, COVER WCI 5303200329 Contact Us For Availability
28
WCI 5316651102 WCI 5316651102 Contact Us For Availability
28
DOOR STOP-REFRIG WCI 5303212491 Contact Us For Availability
28
DOOR STOP-FREEZER WCI 5308000255 Contact Us For Availability
28
WCI 5303015409 WCI 5303015409 Contact Us For Availability
28
WCI 5303018983 WCI 5303018983 Contact Us For Availability
28A
WCI 3018984 WCI 3018984 Contact Us For Availability
28B
GLASS-CRISPER COVER (NON-ILLUSTRATED) WCI 5303211968 Contact Us For Availability
29
WCI 5308011745 WCI 5308011745 Contact Us For Availability
29
SCREW-MOUNTING (3) WCI 5308016568 Contact Us For Availability
29
WIRING HARNESS, DIVIDER WCI 3018900 Contact Us For Availability
30
BRACKET - FRONT WCI 5303205118 Contact Us For Availability
30
WCI 3018893 WCI 3018893 Contact Us For Availability
32
WCI 5303001286 WCI 5303001286 Contact Us For Availability
32
WCI 5303001260 WCI 5303001260 Contact Us For Availability
33
CAP PROTECTOR (2) WCI 3201150 No Longer Available
33
WCI 5303001287 WCI 5303001287 Contact Us For Availability
34
PAN RETAINER KIT WCI 5303916001 Contact Us For Availability
34
WCI 5303001198 WCI 5303001198 Contact Us For Availability
34
CONTROL, COLD WCI 5303018894 Contact Us For Availability
35
CORNER-TRIM (WHITE) WCI 5303202336 Contact Us For Availability
36
BOX, CONTROL WCI 3018895 Contact Us For Availability
37
WCI 5303018896 WCI 5303018896 Contact Us For Availability
38
WCI 5303212487 WCI 5303212487 Contact Us For Availability
40
WCI 5308012258 WCI 5308012258 Contact Us For Availability
40
PLUG, WHITE WCI 5303001388 Contact Us For Availability
41
WCI 5308000107 WCI 5308000107 Contact Us For Availability
41
WASHER-MULLION MTG (2) WCI 5303206754 Contact Us For Availability
42
WCI 5303200366 WCI 5303200366 Contact Us For Availability
43
COIL-COVER WCI 5308009771 Contact Us For Availability
43
MULLION HEATER WCI 5303210351 Contact Us For Availability
43A
NUT U, TYPE (2) (NON-ILLUSTRATED) WCI 5303209814 Contact Us For Availability
44
PLUG, DECORATIVE WCI 5308013636 Contact Us For Availability
44
SPACER, MULLION (2) WCI 5303200464 Contact Us For Availability
45
RING, ORIFICE WCI 5308000124 Contact Us For Availability
45
STRAP-MULLION WCI 5308010008 Contact Us For Availability
47
DIVIDER WCI 3018994 Contact Us For Availability
48
DAMPER-FAN COVER WCI 5303001331 Contact Us For Availability
48
BOTTOM - FREEZER WCI 5303211427 Contact Us For Availability
49
FAN COVER WCI 08009817 Contact Us For Availability
49
ICE TRAY COMPARTMENT WCI 08009824 Contact Us For Availability
50
WCI 01121808 WCI 01121808 Contact Us For Availability
50
WCI 08009924 WCI 08009924 Contact Us For Availability
51
WCI 5303001028 WCI 5303001028 Contact Us For Availability
52
DAMPER-KNOB WCI 5308009793 Contact Us For Availability
52
FREEZER SHELF-STEP WCI 3018979 Contact Us For Availability
53
TRIM-SHELF WCI 5303272521 Contact Us For Availability
54
TRIM SHELF WCI 5303272524 Contact Us For Availability
× ![]()
