Model Electrolux FPE19TFA1 REFRIGERATOR – Common Parts & Diagrams
02 - DOOR PARTS
03 - CABINET PARTS

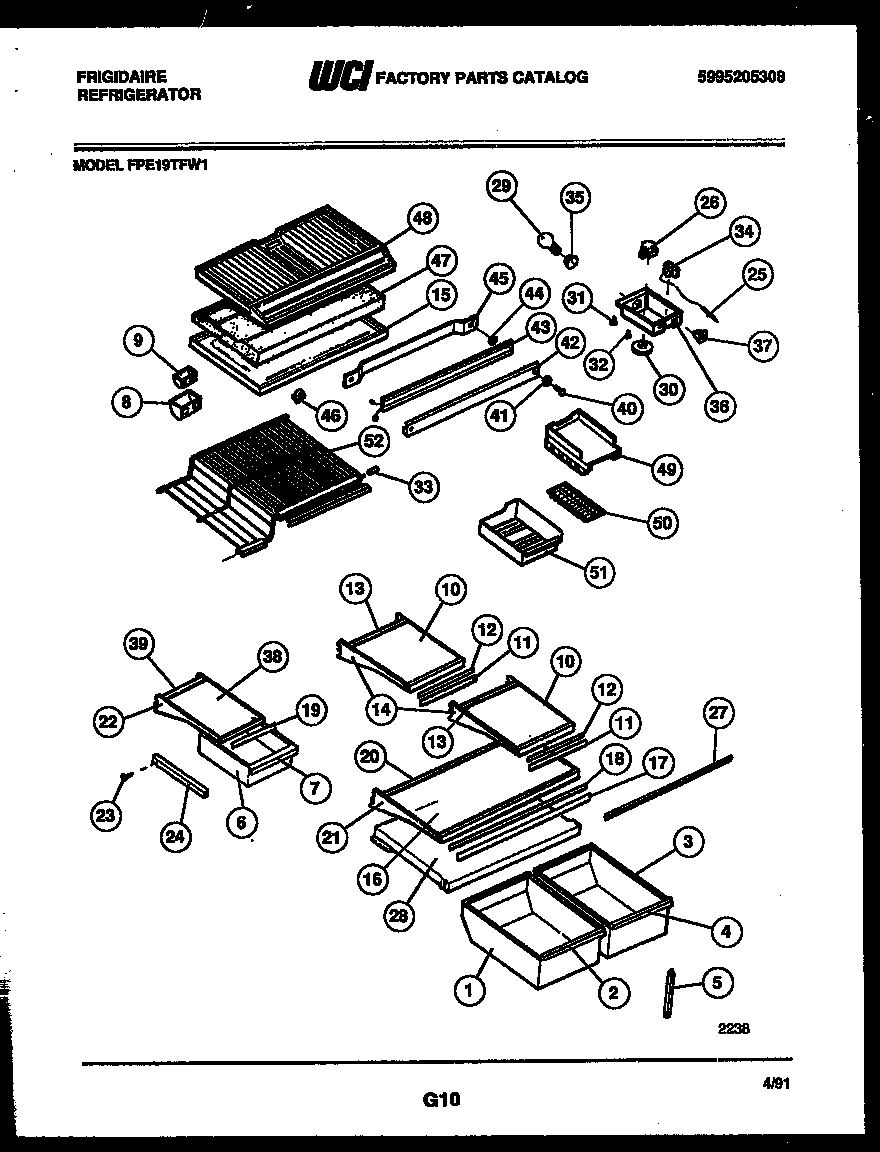

04 - SHELVES AND SUPPORTS

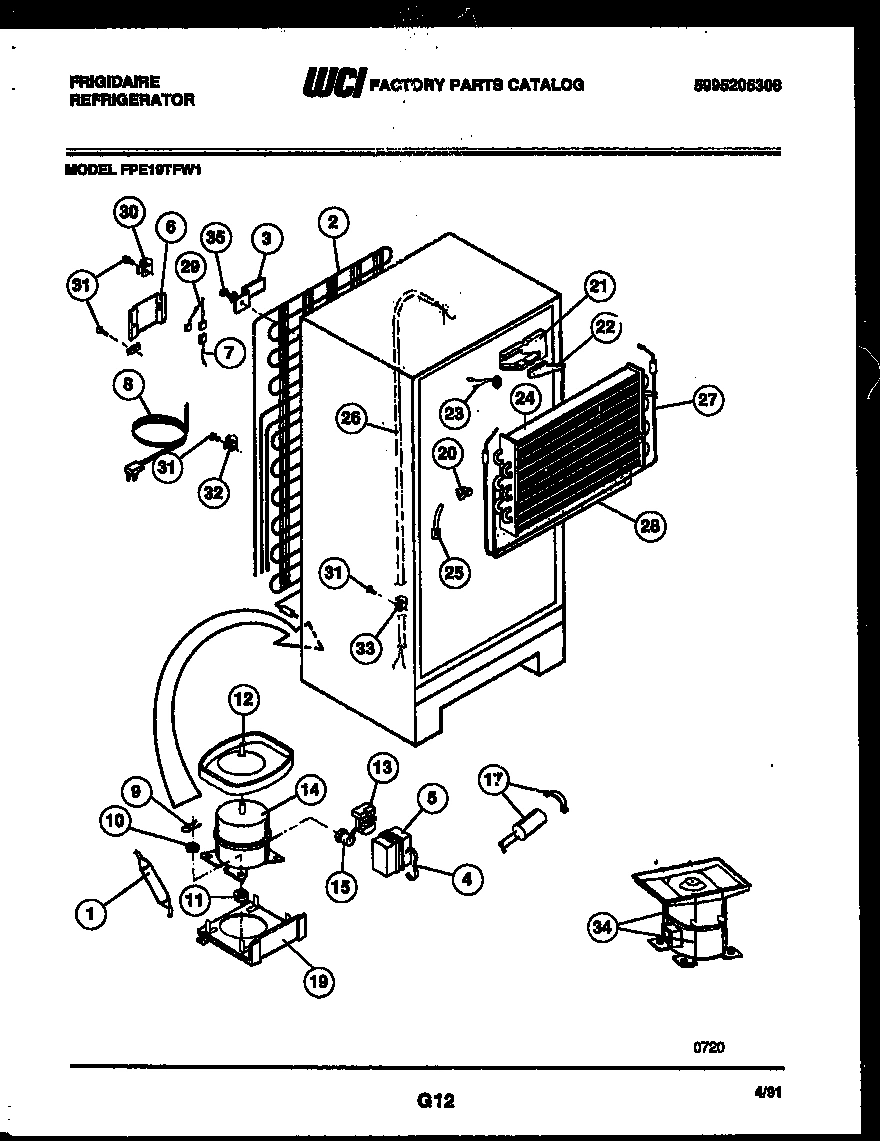

05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux FPE19TFA1 REFRIGERATOR
*45461
WCI 08009823 WCI 08009823 Contact Us For Availability
*45461
TAPPING-PLATE (2) WCI 5308012296 Contact Us For Availability
*45469
LABEL-IM WCI 08012329 Contact Us For Availability
*45469
WCI 3017427 WCI 3017427 Contact Us For Availability
*45469
WCI 3018978 WCI 3018978 Contact Us For Availability
*45475
HOT TUBE REPAIR KIT WCI 5300189383 Contact Us For Availability
1
WCI 5303001037 WCI 5303001037 Contact Us For Availability
1
WCI 3018873 WCI 3018873 Contact Us For Availability
2
WCI 5308012843 WCI 5308012843 Contact Us For Availability
2
WCI 3017423 WCI 3017423 Contact Us For Availability
2
WCI 5300163133 WCI 5300163133 Contact Us For Availability
3
HINGE COVER, AVOCADO WCI 5303001664 Contact Us For Availability
3
PAN-STORAGE RH WCI 3018982 Contact Us For Availability
3
BRACKET-MTG (4) WCI 5303001342 Contact Us For Availability
4
WASHER, NYLON WCI 5308000186 No Longer Available
4
WCI 3017422 WCI 3017422 Contact Us For Availability
5
WASHER, NYLON (2) WCI 5308000007 Contact Us For Availability
5
SUPPORT-COVER-ADJ WCI 5303206507 Contact Us For Availability
6
ROLLER, FRONT (2) WCI 5303212490 Contact Us For Availability
6
PAN, MEAT WCI 3018987 Contact Us For Availability
6
WCI 5303001197 WCI 5303001197 Contact Us For Availability
7
SPOUT DRAIN WCI 5308000056 Contact Us For Availability
7
WCI 3018986 WCI 3018986 Contact Us For Availability
7
WIRING HARNESS, COMPRESSOR, WCI 5303001347 Contact Us For Availability
8
PIN, PUSH, (2) WCI 5303001361 Contact Us For Availability
8
WCI 5303001448 WCI 5303001448 Contact Us For Availability
8
WCI 5316254901 WCI 5316254901 Contact Us For Availability
9
WCI 5308009773 WCI 5308009773 Contact Us For Availability
9
AIR DEFLECTOR WCI 5308014667 Contact Us For Availability
9
CLIP (4) WCI 5308003596 Contact Us For Availability
9A
EXTENSION & INSULATION AIR DEFLECTOR (NON-ILL WCI 5303200590 Contact Us For Availability
10
BOLT, ROLLER MTG (2) WCI 5308009762 Contact Us For Availability
10
WCI 3200315 WCI 3200315 Contact Us For Availability
10
WASHER (4) WCI 5308003633 Contact Us For Availability
11
DRAIN TROUGH WCI 5303001470 Contact Us For Availability
11
WCI 3018989 WCI 3018989 Contact Us For Availability
12
WCI 5303205119 WCI 5303205119 Contact Us For Availability
12
DEFROST PAN WCI 5300184715 Contact Us For Availability
12A
LOCK NUT (NON-ILLUSTRATED) WCI 5303001348 Contact Us For Availability
13
WCI 5303007173 WCI 5303007173 Contact Us For Availability
13
WCI 5300157666 WCI 5300157666 Contact Us For Availability
13
WCI 3200317 WCI 3200317 Contact Us For Availability
14
BOLT-ROLLER ADJ (2) WCI 5303271412 Contact Us For Availability
14
WCI 3200318 WCI 3200318 Contact Us For Availability
14
COMPRESSOR WITH ELECTRICALS WCI 5303916004 Contact Us For Availability
15
TOP - REFRIGERATOR WCI 3018993 Contact Us For Availability
15
WCI 5303272031 WCI 5303272031 Contact Us For Availability
16
SHIM, BOTTOM HINGE WCI 5303212488 Contact Us For Availability
16
WCI 5303200319 WCI 5303200319 Contact Us For Availability
16A
RAIL-GLASS SUPPORT-SIDE (NON-ILLUSTRATED) WCI 3200901 Contact Us For Availability
17
BRACKET, BOTTOM HINGE WCI 5303212489 Contact Us For Availability
17
GLASS-SHELF WCI 3018980 Contact Us For Availability
17
CAPACITOR WCI 5303916391 Contact Us For Availability
17A
GUSSET-TAPPING PLATE RH (NON-ILLUSTRATED) WCI 5303212597 Contact Us For Availability
17B
GUSSET-TAPPING PLATE (LH) (NON-ILLUSTRATED) WCI 5303212596 Contact Us For Availability
18
SUPPORT-COIL COVER WCI 5308000097 Contact Us For Availability
18
WCI 3200321 WCI 3200321 Contact Us For Availability
19
PLUG, FREEZER LINER (3) WCI 5308016571 Contact Us For Availability
19
RETAINER-MEAT SHELF WCI 3200316 Contact Us For Availability
19
PLATE, COMPRESSOR MOUNTING WCI 5308013663 Contact Us For Availability
19A
WCI 3200322 WCI 3200322 Contact Us For Availability
20
WCI 3200326 WCI 3200326 Contact Us For Availability
20
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
21
DRAIN TUBE WCI 5303210377 Contact Us For Availability
21
WCI 3200327 WCI 3200327 Contact Us For Availability
21
INSULATION BLOCK, RH WCI 5308013648 Contact Us For Availability
22
RING SEAL, TUBE WCI 5303207353 Contact Us For Availability
22
WCI 3200328 WCI 3200328 Contact Us For Availability
22
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
23
WCI 3200310 WCI 3200310 Contact Us For Availability
23
SCREW (6) WCI 08014528 Contact Us For Availability
24
WCI 08010019 WCI 08010019 Contact Us For Availability
24
WCI 5303001369 WCI 5303001369 Contact Us For Availability
24
HANGER LH WCI 5303210016 Contact Us For Availability
24
EVAPORATOR WCI 5303271578 Contact Us For Availability
24A
HANGER RH (NON-ILLUSTRATED) WCI 5303210017 Contact Us For Availability
25
WCI 5308000184 WCI 5308000184 Contact Us For Availability
25
WCI 5308017497 WCI 5308017497 Contact Us For Availability
25
HOUSING, CAP TUBE WCI 3018891 Contact Us For Availability
26
WCI 5308010229 WCI 5308010229 Contact Us For Availability
26
CHANNEL, RH AND LH WCI 5308000302 Contact Us For Availability
26
HEAT EXCHANGER WCI 5308000728 Contact Us For Availability
27
WCI 3018974 WCI 3018974 Contact Us For Availability
27
GASKET, COVER WCI 5303200329 Contact Us For Availability
28
INSULATOR WCI 5316651102 Contact Us For Availability
28
DOOR STOP-REFRIG WCI 5303212491 Contact Us For Availability
28
DOOR STOP-FREEZER WCI 5308000255 Contact Us For Availability
28
WCI 5303015409 WCI 5303015409 Contact Us For Availability
28
WCI 5303018983 WCI 5303018983 Contact Us For Availability
28A
WCI 3018984 WCI 3018984 Contact Us For Availability
28B
GLASS-PAN COVER (NON-ILLUSTRATED) WCI 3200389 Contact Us For Availability
29
WCI 5308011745 WCI 5308011745 Contact Us For Availability
29
SCREW-MOUNTING (3) WCI 5308016568 Contact Us For Availability
29
WIRING HARNESS, DIVIDER WCI 3018900 Contact Us For Availability
30
BRACKET - FRONT WCI 5303205118 Contact Us For Availability
30
WCI 3018893 WCI 3018893 Contact Us For Availability
32
WCI 5303001286 WCI 5303001286 Contact Us For Availability
32
WCI 5303001260 WCI 5303001260 Contact Us For Availability
33
CAP PROTECTOR (2) WCI 3201150 No Longer Available
33
WCI 5303001287 WCI 5303001287 Contact Us For Availability
34
PAN RETAINER KIT WCI 5303916001 Contact Us For Availability
34
WCI 5303001198 WCI 5303001198 Contact Us For Availability
34
CONTROL, COLD WCI 5303018894 Contact Us For Availability
35
CORNER TRIM - AVOCADO WCI 5303202337 Contact Us For Availability
36
BOX, CONTROL WCI 3018895 Contact Us For Availability
36
WASHER EXT TOOTH LOCK (2) WCI 5308009617 Contact Us For Availability
37
WCI 5303018896 WCI 5303018896 Contact Us For Availability
38
WCI 5303212487 WCI 5303212487 Contact Us For Availability
38
WCI 3200330 WCI 3200330 Contact Us For Availability
39
WCI 3200331 WCI 3200331 Contact Us For Availability
40
WCI 5308012258 WCI 5308012258 Contact Us For Availability
40
PLUG-AVOCADO WCI 5303001677 Contact Us For Availability
41
WCI 5308000107 WCI 5308000107 Contact Us For Availability
41
WASHER-MULLION MTG (2) WCI 5303206754 Contact Us For Availability
42
WCI 5303200367 WCI 5303200367 Contact Us For Availability
43
COIL-COVER WCI 5308009771 Contact Us For Availability
43
MULLION HEATER WCI 5303210351 Contact Us For Availability
43A
NUT U, TYPE (2) (NON-ILLUSTRATED) WCI 5303209814 Contact Us For Availability
44
PLUG, DECORATIVE WCI 5308013636 Contact Us For Availability
44
SPACER, MULLION (2) WCI 5303200464 Contact Us For Availability
45
RING, ORIFICE WCI 5308000124 Contact Us For Availability
45
STRAP-MULLION WCI 5308010008 Contact Us For Availability
47
DIVIDER WCI 3018994 Contact Us For Availability
47A
WCI 5303001380 WCI 5303001380 Contact Us For Availability
48
DAMPER-FAN COVER WCI 5303001331 Contact Us For Availability
48
BOTTOM - FREEZER WCI 5303211427 Contact Us For Availability
49
FAN COVER WCI 08009817 Contact Us For Availability
49
ICE TRAY COMPARTMENT WCI 08009824 Contact Us For Availability
50
WCI 01121808 WCI 01121808 Contact Us For Availability
50
WCI 08009924 WCI 08009924 Contact Us For Availability
51
WCI 5303001028 WCI 5303001028 Contact Us For Availability
52
DAMPER-KNOB WCI 5308009793 Contact Us For Availability
52
FREEZER RACK WCI 3018979 Contact Us For Availability
× ![]()
