Model Electrolux FPE18TCA0 REFRIGERATOR – Common Parts & Diagrams

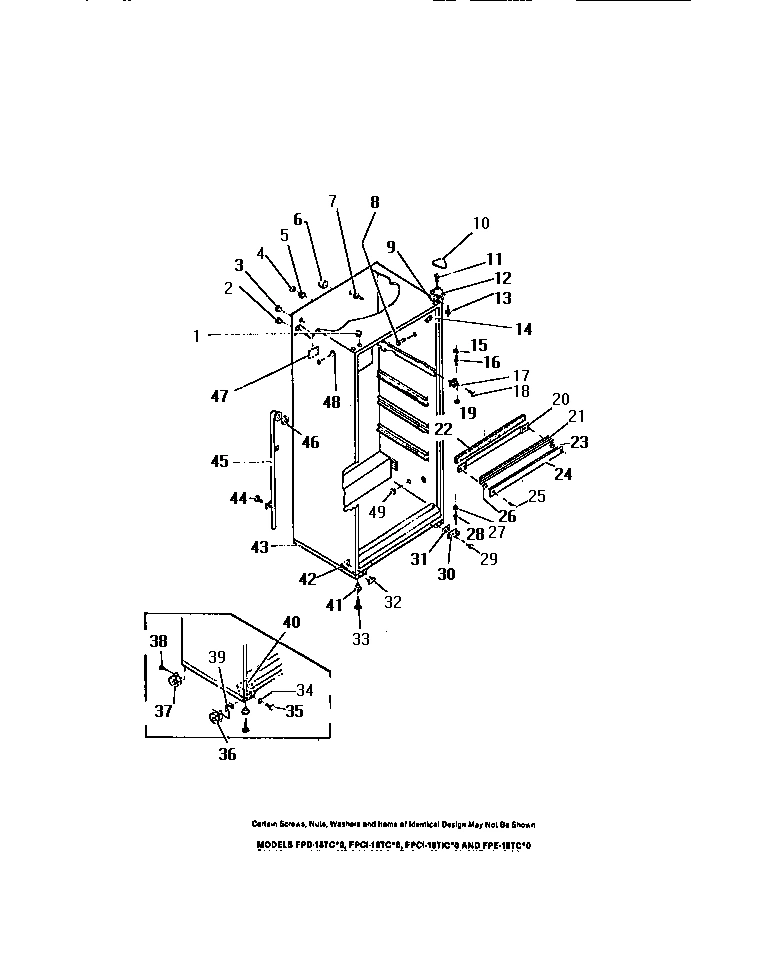

04 - CABINET

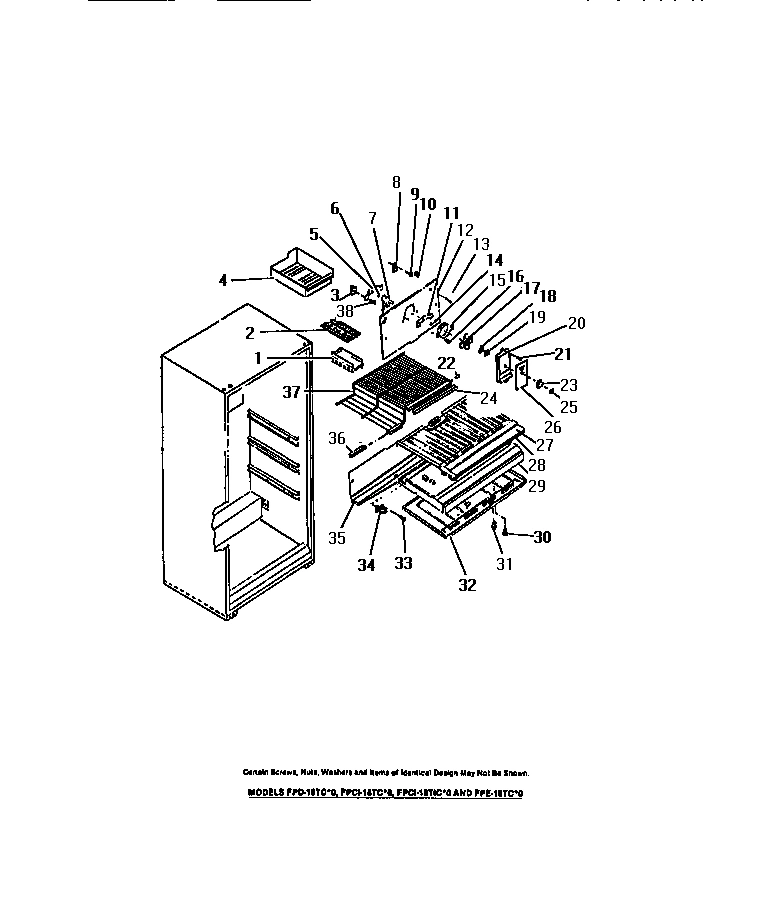

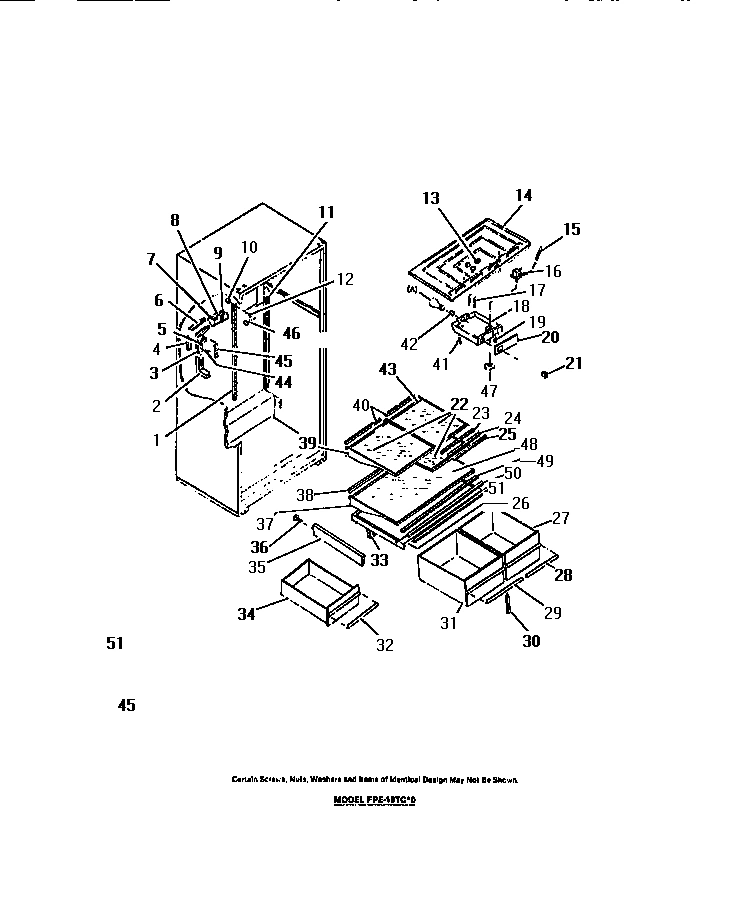

08 - INTERIOR FOOD COMPARTMENT
10 - INTERIOR FREEZER COMPARTMENT

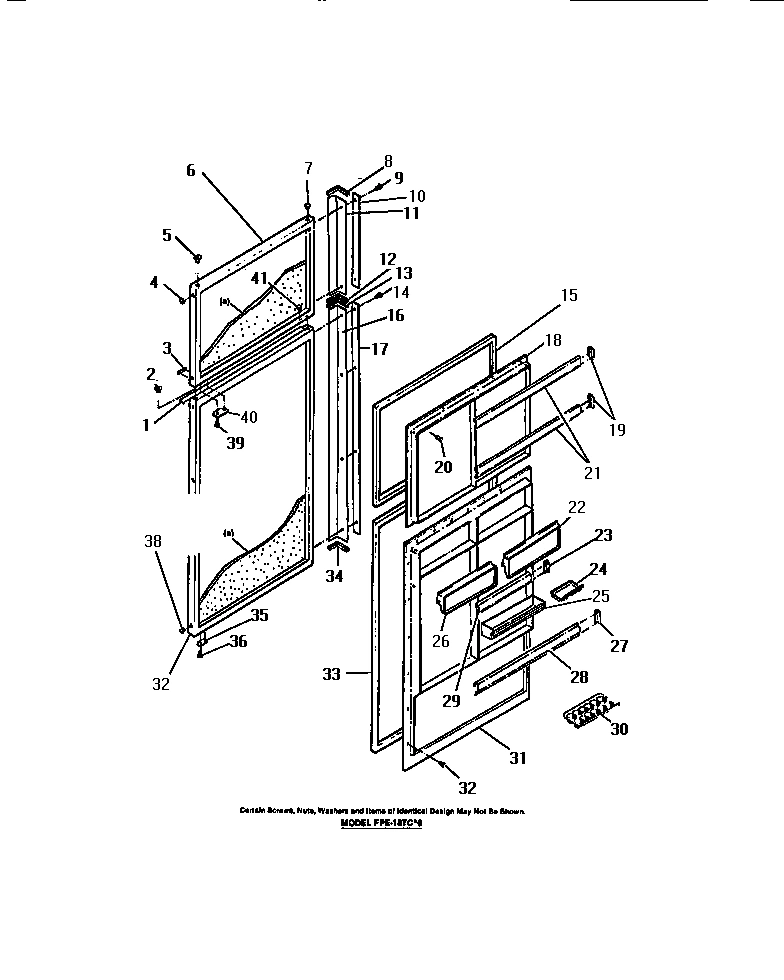

14 - FOOD AND FREEZER DOORS

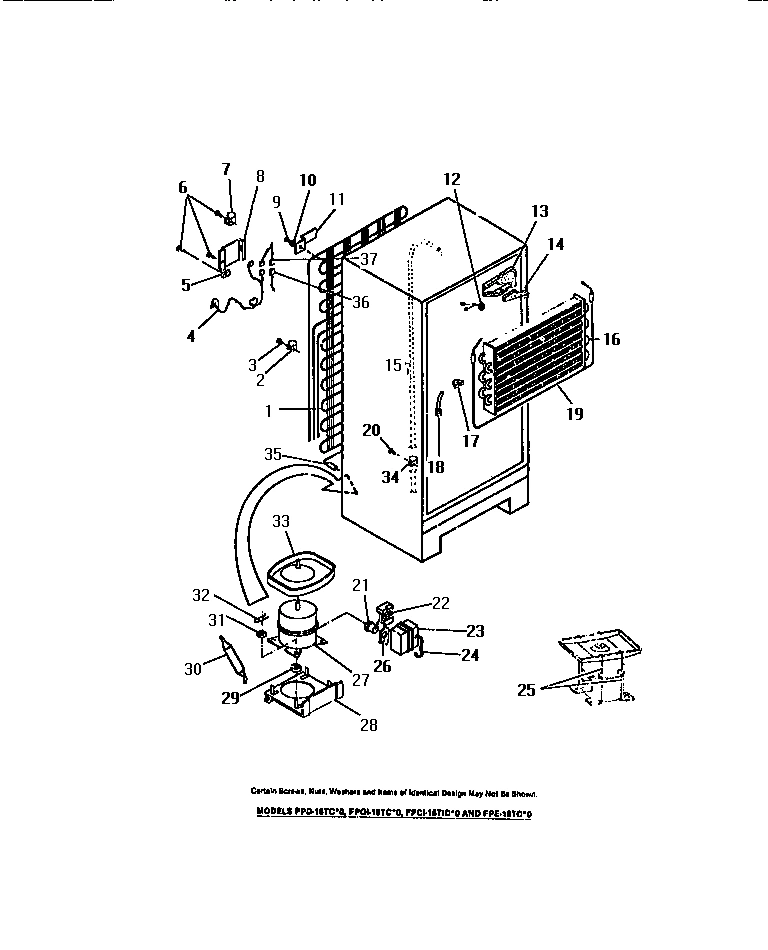

16 - COMPRESSOR, CONDENSER, EVAPORATOR

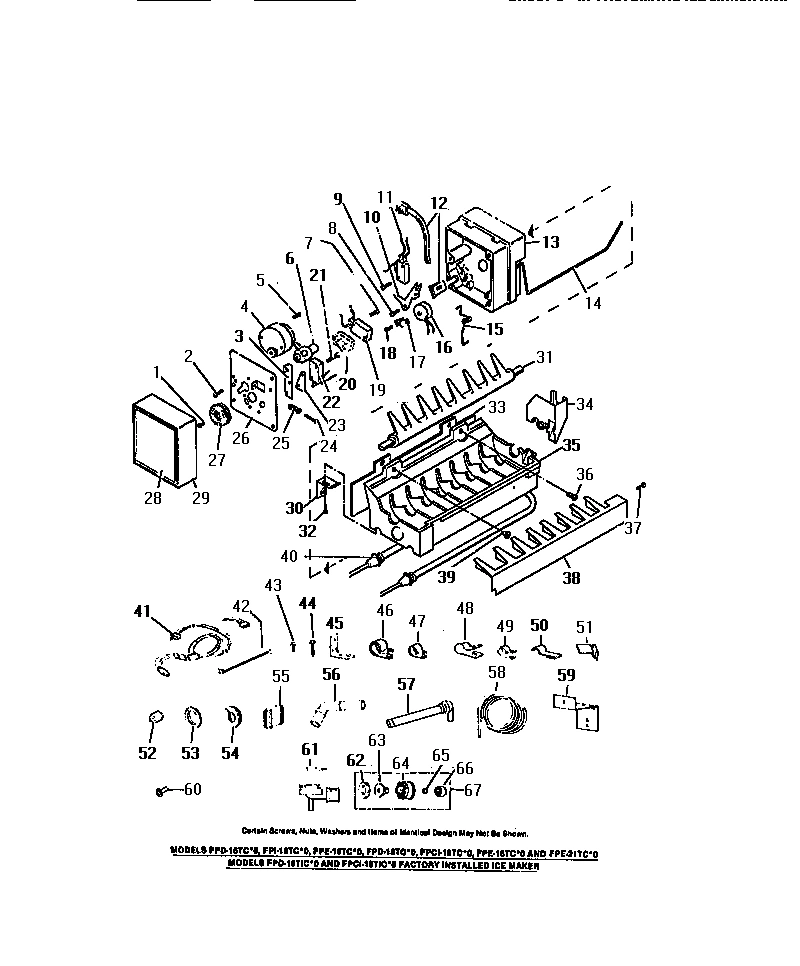

18 - IK-4 AUTOMATIC ICE MAKER
Common parts from model Electrolux FPE18TCA0 REFRIGERATOR
*00128
CONVERSION KITS, DOOR WCI 8009633 Contact Us For Availability
1
WCI 8007658 WCI 8007658 Contact Us For Availability
1
SHELF WCI 8009824 Contact Us For Availability
1
WCI 8009857 WCI 8009857 Contact Us For Availability
1
WCI 8008779 WCI 8008779 Contact Us For Availability
1
WCI 8001182 WCI 8001182 Contact Us For Availability
1C
PLUG, BUTTONS (2) WCI 8007126 Contact Us For Availability
2
PLUG, BUTTON WCI 8000014 Contact Us For Availability
2
DUCT, AIR WCI 8009768 Contact Us For Availability
2
TRAY, ICE (2) WCI 1121808 Contact Us For Availability
2
WCI 8001136 WCI 8001136 Contact Us For Availability
3
PLUG, BUTTON WCI 8000040 Contact Us For Availability
3
DUCT, AIR WCI 8009767 Contact Us For Availability
3
BRACKET WCI 8000107 Contact Us For Availability
3
WCI 8009926 WCI 8009926 Contact Us For Availability
3
WCI 8001242 WCI 8001242 Contact Us For Availability
4
WCI 8006971 WCI 8006971 Contact Us For Availability
4
WCI 8009764 WCI 8009764 Contact Us For Availability
4
WCI 8009795 WCI 8009795 Contact Us For Availability
4
CORD, ELECTRICAL SERVICE WCI 8000064 Contact Us For Availability
4
WCI 8001244 WCI 8001244 Contact Us For Availability
5
WCI 8006970 WCI 8006970 Contact Us For Availability
5
DAMPER, AIR WCI 8009766 Contact Us For Availability
5
WCI 8000042 WCI 8000042 Contact Us For Availability
5
WCI 8012007 WCI 8012007 Contact Us For Availability
5
CLAMP WCI 8000109 Contact Us For Availability
5
WCI 8001156 WCI 8001156 Contact Us For Availability
6
TUBE WCI 8000004 Contact Us For Availability
6
WCI 8009765 WCI 8009765 Contact Us For Availability
6
SCREWS WCI 8002748 Contact Us For Availability
6
WCI 8001247 WCI 8001247 Contact Us For Availability
6C
PANEL, EXTERIOR FREEZER DOOR WCI 8010021 Contact Us For Availability
7
SUPPORTS (2) WCI 8000097 Contact Us For Availability
7
MOTOR WCI 8004176 Contact Us For Availability
7
WCI 8000187 WCI 8000187 Contact Us For Availability
7
WCI 8001148 WCI 8001148 Contact Us For Availability
7B
PLUG, BUTTON WCI 8000177 Contact Us For Availability
7C
PLUG, BUTTON WCI 8000175 Contact Us For Availability
8
GROMMETS, SHELF, LH (2) WCI 8009759 Contact Us For Availability
8
SEAL (2) WCI 8009910 Contact Us For Availability
8
COVER WCI 8013644 Contact Us For Availability
8
WCI 8001255 WCI 8001255 Contact Us For Availability
8A
GROMMETS, SHELF, RH (2) WCI 8002747 Contact Us For Availability
9
SHIM WCI 8012829 Contact Us For Availability
9
COVER WCI 8950143 Contact Us For Availability
9
WCI 8001147 WCI 8001147 Contact Us For Availability
10
WCI 8003590 WCI 8003590 Contact Us For Availability
10
WCI 8000012 WCI 8000012 Contact Us For Availability
10
TRIM WCI 8010232 Contact Us For Availability
10
WCI 80009617 WCI 80009617 Contact Us For Availability
10
WCI 8001237 WCI 8001237 Contact Us For Availability
10C
COVER, HINGE WCI 8012930 Contact Us For Availability
11
SCREWS (2) WCI 8000123 Contact Us For Availability
11
BRACKET, CANTILEVER SHELVES (2) WCI 8000302 Contact Us For Availability
11
BRACKET WCI 8000043 Contact Us For Availability
11
HANDLE, FREEZER DOOR (INCLUDES TRIM & END CAP WCI 8009978 Contact Us For Availability
11
BRACKETS (4) WCI 8003600 Contact Us For Availability
12
HINGE, UPPER WCI 8012843 Contact Us For Availability
12
WCI 9013643 WCI 9013643 Contact Us For Availability
12
COVER WCI 8009771 Contact Us For Availability
12
THERMOSTAT, DEFROST LIMITER WCI 8000073 Contact Us For Availability
12
WCI 8014553 WCI 8014553 Contact Us For Availability
13
WCI 8000034 WCI 8000034 Contact Us For Availability
13
WCI 8012354 WCI 8012354 Contact Us For Availability
13
CAP WCI 8010239 Contact Us For Availability
13
INSULATION, RH BLOCK WCI 8013646 Contact Us For Availability
13
WCI 8001235 WCI 8001235 Contact Us For Availability
14
BUSHING WCI 8000032 Contact Us For Availability
14
SEAL, AIR, R.H. WCI 8013648 Contact Us For Availability
14
WCI 8000503 WCI 8000503 Contact Us For Availability
14C
TRIM, CORNER (4) WCI 8010015 Contact Us For Availability
14D
TRIM, CORNER (4) WCI 8010017 Contact Us For Availability
15
INSULATOR TUBE WCI 8003637 Contact Us For Availability
15
ORFICE WCI 8000124 Contact Us For Availability
15
SEAL, FREEZER DOOR WCI 8009734 Contact Us For Availability
15
SUCTION LINE & CAP TUBES WCI 8010274 Contact Us For Availability
15
WCI 8001238 WCI 8001238 Contact Us For Availability
16
PIN, HINGE WCI 8000184 Contact Us For Availability
16
WCI 8002726 WCI 8002726 Contact Us For Availability
16
HANDLE, FOOD DOOR (INCLUDES TRIM & END CAPS) WCI 8009979 Contact Us For Availability
16
EVAPORATOR WCI 8000062 Contact Us For Availability
16
WCI 8001250 WCI 8001250 Contact Us For Availability
17
HINGE, CENTER WCI 8000757 Contact Us For Availability
17
FAN WCI 8000010 Contact Us For Availability
17
TRIM WCI 8010233 Contact Us For Availability
17
SEAL, RH WCI 8003647 Contact Us For Availability
17
WCI 8001236 WCI 8001236 Contact Us For Availability
18
WCI 8009781 WCI 8009781 Contact Us For Availability
18
DAMPER WCI 8000066 Contact Us For Availability
18
WCI 8009835 WCI 8009835 Contact Us For Availability
18
WCI 800010 WCI 800010 Contact Us For Availability
19
WASHER WCI 8000100 Contact Us For Availability
19
SCREWS (2) WCI 8000009 Contact Us For Availability
19
NUT WCI 8000067 Contact Us For Availability
19
WCI 8009808 WCI 8009808 Contact Us For Availability
19
ELEMENT, DEFROST HEATER WCI 8000061 Contact Us For Availability
19A
WCI 8009806 WCI 8009806 Contact Us For Availability
20
CLAMP WCI 8010008 Contact Us For Availability
20
LABEL WCI 8009816 Contact Us For Availability
20
WCI 8009821 WCI 8009821 Contact Us For Availability
20
WCI 8001240 WCI 8001240 Contact Us For Availability
21
DRIER, CONDENSATE WCI 8000058 Contact Us For Availability
21
WCI 8012294 WCI 8012294 Contact Us For Availability
21
WCI 8013641 WCI 8013641 Contact Us For Availability
21
PROTECTOR, OVERLOAD WCI 8007659 Contact Us For Availability
21
WCI 8001149 WCI 8001149 Contact Us For Availability
22
WCI 8009638 WCI 8009638 Contact Us For Availability
22
WCI 8017529 WCI 8017529 Contact Us For Availability
22
CAPS (2) WCI 8013638 Contact Us For Availability
22
WCI 8009789 WCI 8009789 Contact Us For Availability
22
RELAY, COMPRESSOR START WCI 8012949 Contact Us For Availability
22
WCI 8001245 WCI 8001245 Contact Us For Availability
23
WASHERS (4) WCI 8003607 Contact Us For Availability
23
WCI 8009705 WCI 8009705 Contact Us For Availability
23
KNOB WCI 8009793 Contact Us For Availability
23
WCI 8000116 WCI 8000116 Contact Us For Availability
23
WCI 8001241 WCI 8001241 Contact Us For Availability
24
WCI 8009691 WCI 8009691 Contact Us For Availability
24
WCI 8009664 WCI 8009664 Contact Us For Availability
24
RETAINER WCI 8000117 Contact Us For Availability
24
WCI 8001150 WCI 8001150 Contact Us For Availability
24A
WCI 8009687 WCI 8009687 Contact Us For Availability
24C
PANEL, HORIZONTAL WCI 8010026 Contact Us For Availability
25
SCREWS (2) WCI 8012258 Contact Us For Availability
25
TRIM (3) WCI 8009671 Contact Us For Availability
25
LABEL, KNOB WCI 8009823 Contact Us For Availability
25
BIN (2) WCI 8009838 Contact Us For Availability
25
RETAINER, DRAIN PAN WCI 8950024 Contact Us For Availability
25
WCI 8001251 WCI 8001251 Contact Us For Availability
26
SPACERS (2) WCI 8010007 Contact Us For Availability
26
WCI 8010256 WCI 8010256 Contact Us For Availability
26
WCI 8009822 WCI 8009822 Contact Us For Availability
26
WCI 8009911 WCI 8009911 Contact Us For Availability
26
SPRING WCI 8000115 Contact Us For Availability
26
WCI 8001239 WCI 8001239 Contact Us For Availability
27
WASHERS WCI 8000007 Contact Us For Availability
27
WCI 8009827 WCI 8009827 Contact Us For Availability
27
BOTTOM WCI 8015543 Contact Us For Availability
27
INSERT, FRONT RH WCI 8009805 Contact Us For Availability
27
WCI 8950112 WCI 8950112 Contact Us For Availability
27
WCI 8001248 WCI 8001248 Contact Us For Availability
27A
INSERT, FRONT LH WCI 8009804 Contact Us For Availability
28
PIN, HINGE WCI 8003578 Contact Us For Availability
28
WCI 8009854 WCI 8009854 Contact Us For Availability
28
INSULATOR WCI 8009569 Contact Us For Availability
28
WCI 8013642 WCI 8013642 Contact Us For Availability
28
PLATE, COMPRESSOR MOUNTING WCI 9960000 Contact Us For Availability
28
WCI 8005251 WCI 8005251 Contact Us For Availability
29
SCREWS (2) WCI 8010252 Contact Us For Availability
29
WCI 8009851 WCI 8009851 Contact Us For Availability
29
DIVIDER WCI 8009751 Contact Us For Availability
29
WCI 8009704 WCI 8009704 Contact Us For Availability
29
GROMMETS (4) WCI 8008778 Contact Us For Availability
29
WCI 8000214 WCI 8000214 Contact Us For Availability
30
HINGE, LOWER WCI 8010251 Contact Us For Availability
30
WCI 8006995 WCI 8006995 Contact Us For Availability
30
SCREWS (3) WCI 8000070 Contact Us For Availability
30
TRAY, EGGS WCI 8000389 Contact Us For Availability
30
WCI 8000027 WCI 8000027 Contact Us For Availability
30
WCI 8001246 WCI 8001246 Contact Us For Availability
31
SHIM WCI 8000755 Contact Us For Availability
31
WCI 8009839 WCI 8009839 Contact Us For Availability
31
SWITCH, LIGHT WCI 9918806 Contact Us For Availability
31
WCI 8009923 WCI 8009923 Contact Us For Availability
31
WASHERS (4) WCI 8003597 Contact Us For Availability
31
WCI 8001253 WCI 8001253 Contact Us For Availability
32
PLUG BUTTON WCI 8003585 Contact Us For Availability
32
TOP WCI 8010001 Contact Us For Availability
32
WCI 8009852 WCI 8009852 Contact Us For Availability
32
CLIPS (4) WCI 8003596 Contact Us For Availability
32C
PANEL, EXTERIOR FOOD DOOR WCI 8010019 Contact Us For Availability
33
FOOT (2) WCI 8003583 Contact Us For Availability
33
WCI 8009647 WCI 8009647 Contact Us For Availability
33
PINS (2) WCI 8013647 Contact Us For Availability
33
WCI 8009735 WCI 8009735 Contact Us For Availability
33
PAN (INCLUDES NUT) WCI 8012951 Contact Us For Availability
33
WCI 8000236 WCI 8000236 Contact Us For Availability
34
WASHERS (2) WCI 8011326 Contact Us For Availability
34
MEAT TENDER WCI 8009858 Contact Us For Availability
34
CAP WCI 8010238 Contact Us For Availability
34
WCI 8003643 WCI 8003643 Contact Us For Availability
34
WCI 8001234 WCI 8001234 Contact Us For Availability
35
SCREWS (2) WCI 8009761 Contact Us For Availability
35
WCI 8008650 WCI 8008650 Contact Us For Availability
35
TROUGH, DRAIN WCI 8009772 Contact Us For Availability
35
SLEEVE, CONNECTOR WCI 8003645 Contact Us For Availability
35
WCI 8001254 WCI 8001254 Contact Us For Availability
35A
WCI 8008651 WCI 8008651 Contact Us For Availability
36
ROLLERS, FRONT (2) WCI 8009760 Contact Us For Availability
36
HARNESS WCI 8009628 Contact Us For Availability
36
WCI 8005288 WCI 8005288 Contact Us For Availability
36A
WCI 8009686 WCI 8009686 Contact Us For Availability
37
ROLLERS, REAR (2) WCI 8009773 Contact Us For Availability
37
WCI 8014793 WCI 8014793 Contact Us For Availability
37
WCI 8009860 WCI 8009860 Contact Us For Availability
37
HARNESS WCI 8006993 Contact Us For Availability
37
SCREW WCI 8001175 Contact Us For Availability
38
SCREWS (2) WCI 8009762 Contact Us For Availability
38
WCI 8009695 WCI 8009695 Contact Us For Availability
38
SCREWS WCI 8000098 Contact Us For Availability
38
WCI 8001252 WCI 8001252 Contact Us For Availability
38C
PLUG, BUTTONS (5) WCI 8000179 Contact Us For Availability
39
SPRINGS (2) WCI 8009790 Contact Us For Availability
39
WCI 8014794 WCI 8014794 Contact Us For Availability
39
SCREWS (2) WCI 8013645 Contact Us For Availability
39
WCI 8000233 WCI 8000233 Contact Us For Availability
40
SUPPORT (20 WCI 8013678 Contact Us For Availability
40
WCI 8009694 WCI 8009694 Contact Us For Availability
40
STOP, DOOR WCI 8000255 Contact Us For Availability
40
WCI 8001243 WCI 8001243 Contact Us For Availability
41
NUTS (2) WCI 8003584 Contact Us For Availability
41
SCREWS (2) WCI 8000008 Contact Us For Availability
41
PLUG WCI 8009601 Contact Us For Availability
41
HARNESS (INCLUDES 8014553 HARNESS) WCI 8950138 Contact Us For Availability
42
PLATE (2) WCI 8000033 Contact Us For Availability
42
RECEPTACLE WCI 8000129 Contact Us For Availability
42
WCI 5877995 WCI 5877995 Contact Us For Availability
43
BASE WCI 8010092 Contact Us For Availability
43
SCREWS (10) WCI 8000039 Contact Us For Availability
43
WCI 8014792 WCI 8014792 Contact Us For Availability
44
SCREW WCI 8013643 Contact Us For Availability
44
SCREWS (3) WCI 8002728 Contact Us For Availability
45
TUBE, DRAIN WCI 8010012 Contact Us For Availability
45
WCI 8009925 WCI 8009925 Contact Us For Availability
45
CLAMP (2) WCI 8002756 Contact Us For Availability
46
SEAL WCI 8009755 Contact Us For Availability
46
CLAMP WCI 8000133 Contact Us For Availability
47
PLUG, BUTTON DECORATOR WCI 8000082 Contact Us For Availability
47
KNOB WCI 8010011 Contact Us For Availability
47
CLAMP (3) WCI 8000221 Contact Us For Availability
48
PLUG, BUTTONS WCI 8000065 Contact Us For Availability
48
WCI 8014791 WCI 8014791 Contact Us For Availability
48
CLAMP WCI 8009561 Contact Us For Availability
49
PLUGS (2) WCI 8000087 Contact Us For Availability
49
WCI 8009706 WCI 8009706 Contact Us For Availability
49
CLAMP WCI 8000250 Contact Us For Availability
50
WCI 8009692 WCI 8009692 Contact Us For Availability
50
WCI 8000230 WCI 8000230 Contact Us For Availability
51
WCI 8009672 WCI 8009672 Contact Us For Availability
51
WCI 8000201 WCI 8000201 Contact Us For Availability
52
WCI 8000200 WCI 8000200 Contact Us For Availability
53
WCI 8000240 WCI 8000240 Contact Us For Availability
54
PLUG WCI 8000241 Contact Us For Availability
55
WCI 8000220 WCI 8000220 Contact Us For Availability
56
WCI 8000239 WCI 8000239 Contact Us For Availability
57
WCI 8010269 WCI 8010269 Contact Us For Availability
58
WCI 8010366 WCI 8010366 Contact Us For Availability
59
WCI 8000223 WCI 8000223 Contact Us For Availability
60
INSERT WCI 8010335 Contact Us For Availability
61
WCI 8000219 WCI 8000219 Contact Us For Availability
62
WCI 8001143 WCI 8001143 Contact Us For Availability
63
WCI 1121980 WCI 1121980 Contact Us For Availability
64
WCI 1121985 WCI 1121985 Contact Us For Availability
65
WCI 114628 WCI 114628 Contact Us For Availability
66
WCI 114627 WCI 114627 Contact Us For Availability
67
ADAPTER KIT WCI 8000205 Contact Us For Availability
× ![]()
