Model Electrolux FPE17TLL0 REFRIGERATOR – Common Parts & Diagrams

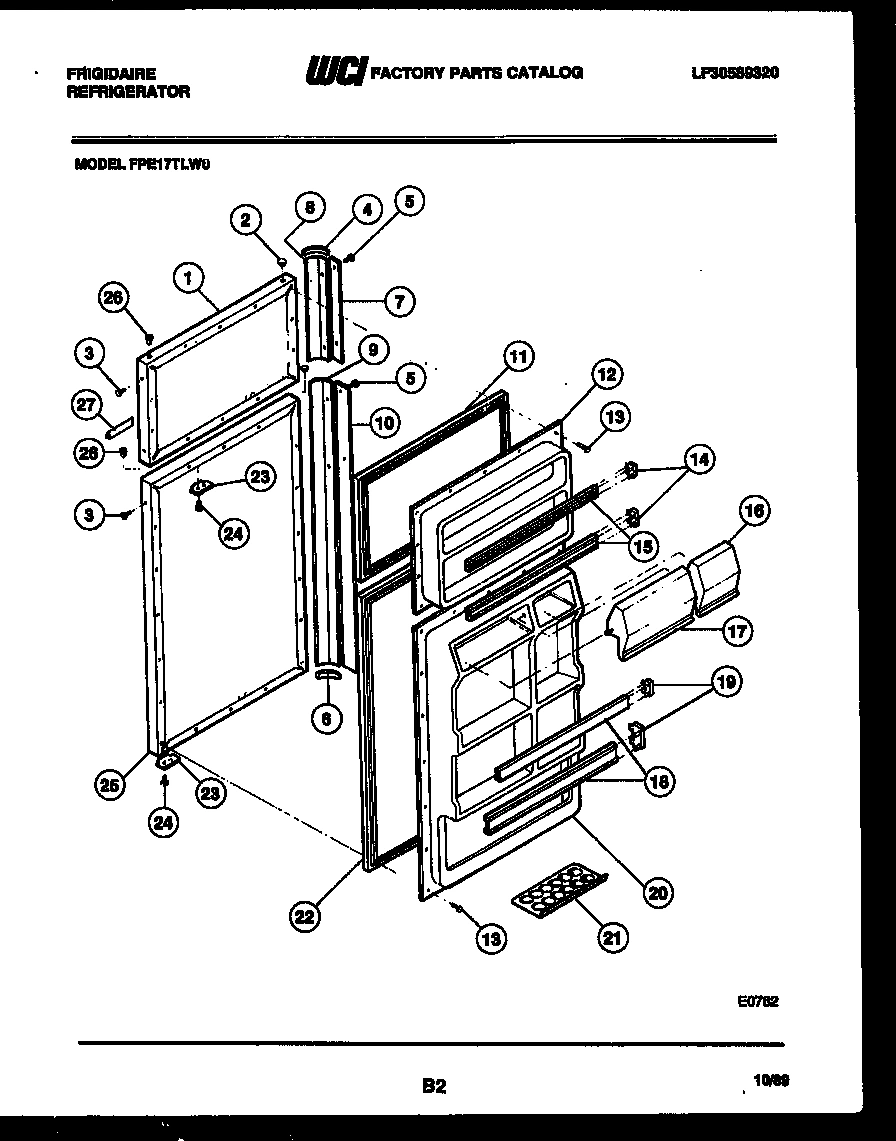

02 - DOOR PARTS

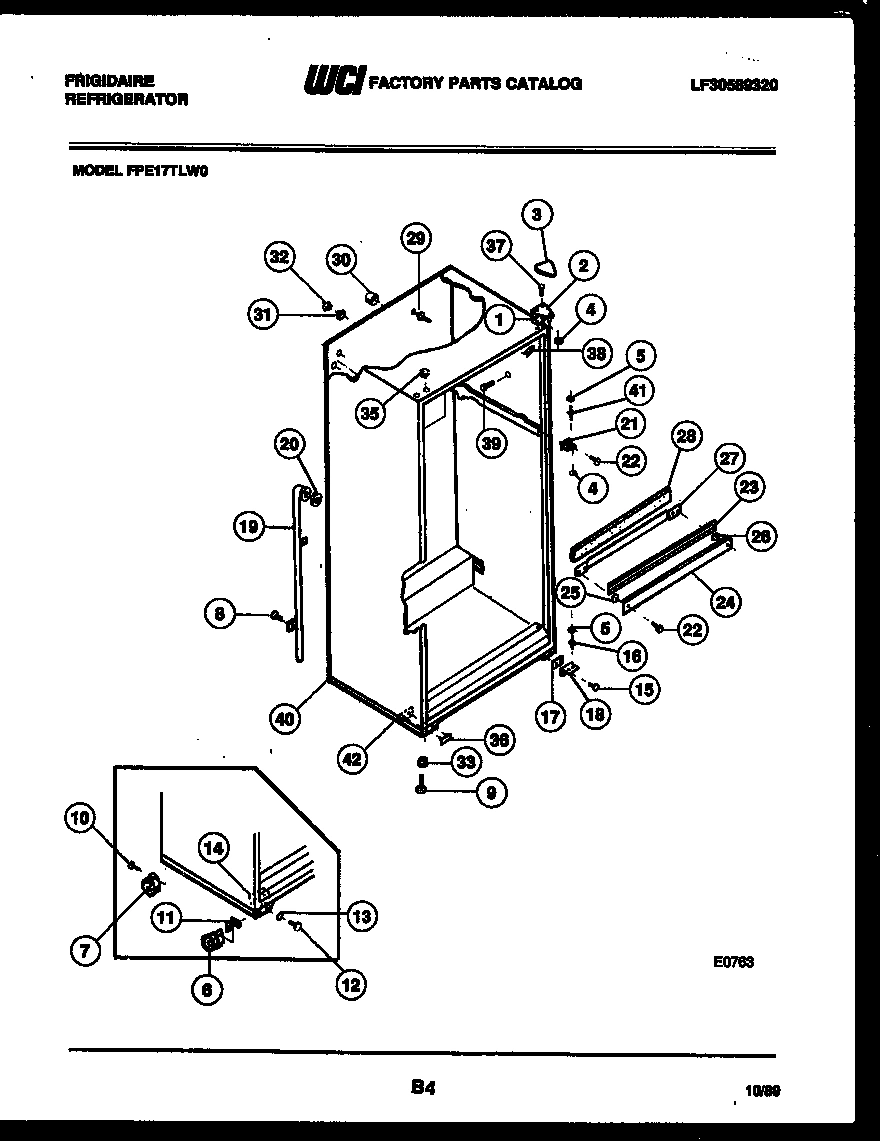

03 - CABINET PARTS

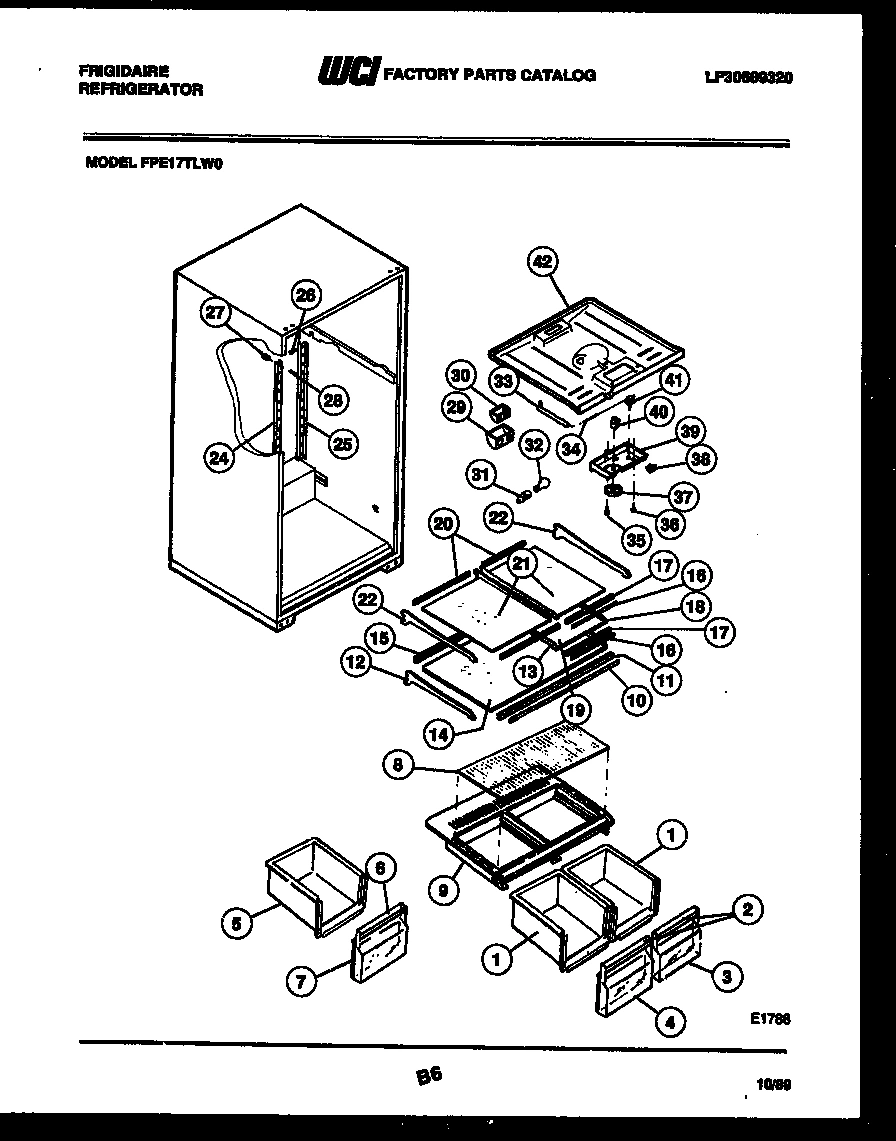

04 - SHELVES AND SUPPORTS

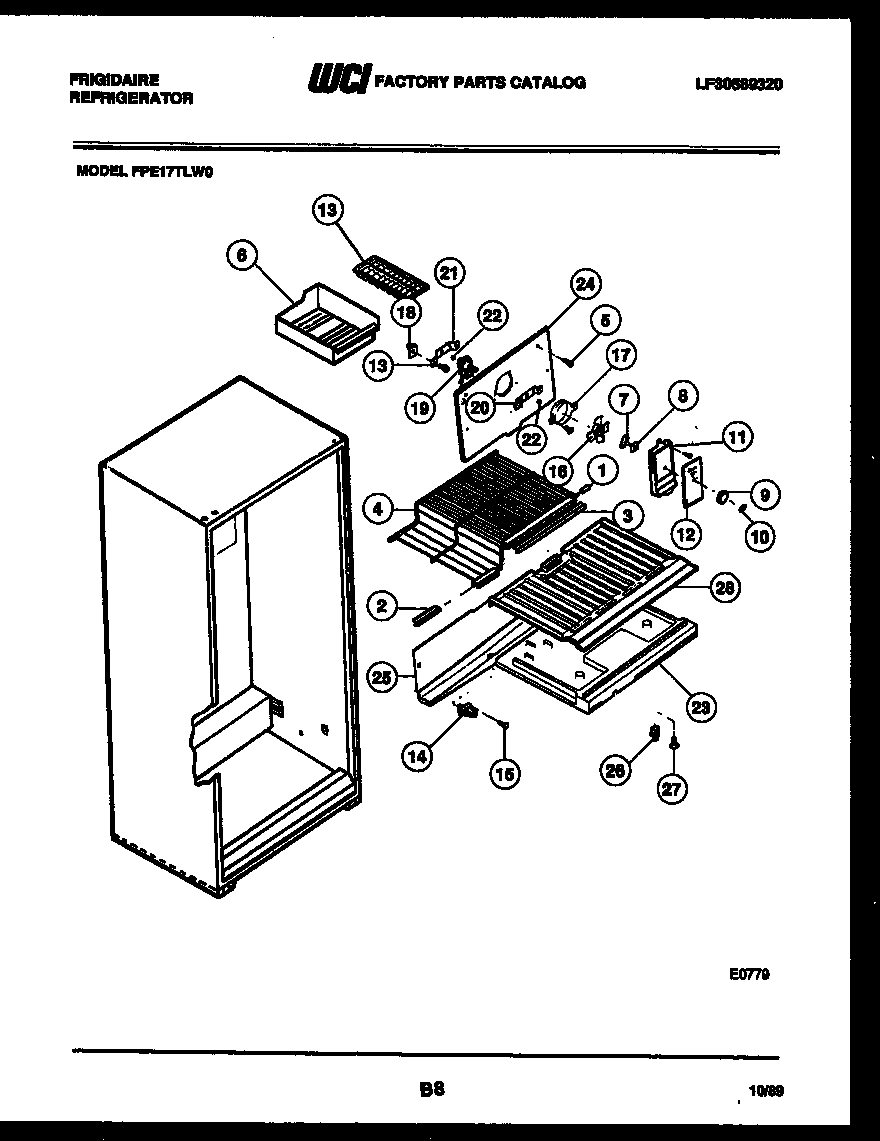

05 - SHELVES AND SUPPORTS

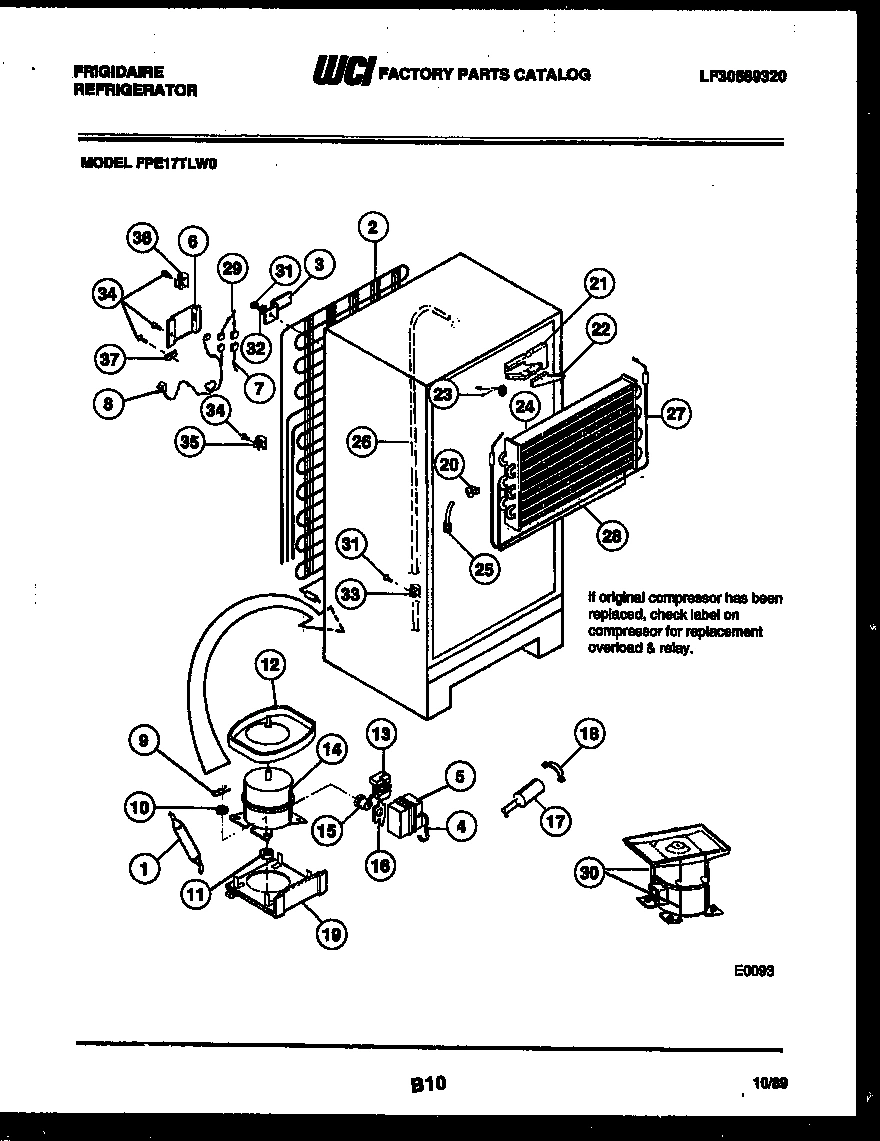

06 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux FPE17TLL0 REFRIGERATOR
*25619
COVER-LOWER HINGE WCI 3206135 Contact Us For Availability
*25625
WCI 09960001 WCI 09960001 Contact Us For Availability
1
PAN-CRISPER LH, RH WCI 3206180 No Longer Available
1
SHIM WCI 08012829 Contact Us For Availability
1
CAP-PROTECTOR (2) WCI 08013638 Contact Us For Availability
2
BRACKET-HINGE UPPER WCI 3206100 Contact Us For Availability
2
WCI 3206392 WCI 3206392 Contact Us For Availability
2
WCI 3017427 WCI 3017427 Contact Us For Availability
2
WCI 08009262 WCI 08009262 Contact Us For Availability
3
WCI 08000181 WCI 08000181 Contact Us For Availability
3
COVER-HINGE ALMOND WCI 3206105 Contact Us For Availability
3
WCI 3206393 WCI 3206393 Contact Us For Availability
3
WCI 3018897 WCI 3018897 Contact Us For Availability
3
BRACKET-CONDENSER (4) WCI 08003600 Contact Us For Availability
4
CAP-HANDLE END (2) WCI 08010239 Contact Us For Availability
4
WASHER-NYLON (3) WCI 08000007 Contact Us For Availability
4
WCI 3206394 WCI 3206394 Contact Us For Availability
4
WCI 3018898 WCI 3018898 Contact Us For Availability
5
SCREW (6) WCI 08013645 Contact Us For Availability
5
WASHER-NYLON WCI 08000100 Contact Us For Availability
5
WCI 3206351 WCI 3206351 Contact Us For Availability
6
CAP-HANDLE END (2) WCI 08010238 Contact Us For Availability
6
ROLLER ASSY-FRONT (2) WCI 08009760 Contact Us For Availability
6
WCI 3206395 WCI 3206395 Contact Us For Availability
6
WCI 08013644 WCI 08013644 Contact Us For Availability
7
WCI 0801229 WCI 0801229 Contact Us For Availability
7
WCI 3206237 WCI 3206237 Contact Us For Availability
7
WCI 3206396 WCI 3206396 Contact Us For Availability
7
DAMPER WCI 3206110 Contact Us For Availability
7
HARNESS-COMPRESSOR WCI 3206113 Contact Us For Availability
7A
BUTTON-PLUG (NON-ILLUSTRATED) WCI 08013636 Contact Us For Availability
8
HANDLE-FREEZER WCI 3017190 Contact Us For Availability
8
WCI 3206407 WCI 3206407 Contact Us For Availability
8
NUT-PUSH WCI 08000067 Contact Us For Availability
8
WCI 08000064 WCI 08000064 Contact Us For Availability
9
HANDLE-REFRIGERATOR WCI 08017497 Contact Us For Availability
9
WCI 08003583 WCI 08003583 Contact Us For Availability
9
WCI 3206412 WCI 3206412 Contact Us For Availability
9
KNOB-DAMPER WCI 3206388 Contact Us For Availability
9
CLIP-MOUNTING (4) WCI 08003596 Contact Us For Availability
10
WCI 08010229 WCI 08010229 Contact Us For Availability
10
SCREW (2) WCI 08009762 Contact Us For Availability
10
TRIM-FRONT WCI 3018883 Contact Us For Availability
10
LABEL, DAMPER WCI 08009823 Contact Us For Availability
10
WASHER-MTG (4) WCI 08003597 Contact Us For Availability
11
GASKET-FREEZER WCI 3001304 Contact Us For Availability
11
SPRING (2) WCI 08009790 Contact Us For Availability
11
WCI 3206375 WCI 3206375 Contact Us For Availability
11
WCI 3206387 WCI 3206387 Contact Us For Availability
12
PANEL-FREEZER INNER WCI 3206405 Contact Us For Availability
12
BOLT 1/4-20 (2) WCI 08009761 Contact Us For Availability
12
WCI 3203935 WCI 3203935 Contact Us For Availability
12
WCI 08009924 WCI 08009924 Contact Us For Availability
12
PAN DRAIN WCI 08012951 Contact Us For Availability
13
WCI 01121808 WCI 01121808 Contact Us For Availability
13
WASHER-NYLON (2) WCI 08011326 Contact Us For Availability
13
RAIL-GLASS SUPPORT WCI 3200901 Contact Us For Availability
13
WCI 3007173 WCI 3007173 Contact Us For Availability
14
SUPPORT (2) WCI 08013678 Contact Us For Availability
14
WCI 3018882 WCI 3018882 Contact Us For Availability
14
SPOUT WCI 08000056 Contact Us For Availability
14
WCI 3916004 WCI 3916004 Contact Us For Availability
15
RACK-DOOR (2) WCI 3018866 Contact Us For Availability
15
WCI 3018886 WCI 3018886 Contact Us For Availability
15
PIN-PUSH (2) WCI 08013647 Contact Us For Availability
15
WCI 3001713 WCI 3001713 Contact Us For Availability
16
WCI 3018867 WCI 3018867 Contact Us For Availability
16
TRIM-SHELF WCI 3018887 Contact Us For Availability
16
RETAINER OVERLOAD WCI 3007535 Contact Us For Availability
17
WCI 3018868 WCI 3018868 Contact Us For Availability
17
SHIM-HINGE WCI 08000755 Contact Us For Availability
17
RING-ORIFICE WCI 08000124 Contact Us For Availability
17
CAPACITOR-RUN WCI 3916391 Contact Us For Availability
18
HINGE-LOWER WCI 3206136 Contact Us For Availability
18
WCI 3206401 WCI 3206401 Contact Us For Availability
18
BRACKET-CONNECTOR WCI 08000107 Contact Us For Availability
18
STRAP-CAPACITOR WCI 08017231 Contact Us For Availability
19
TUBE-DRAIN WCI 3206115 Contact Us For Availability
19
PLATE-COMPRESSOR MOUNTING WCI 3206126 Contact Us For Availability
20
WCI 3206403 WCI 3206403 Contact Us For Availability
20
RING-SEAL WCI 08009755 Contact Us For Availability
20
WCI 3018879 WCI 3018879 Contact Us For Availability
20
WCI 08000043 WCI 08000043 Contact Us For Availability
20
BLOCK LH WCI 08017227 Contact Us For Availability
21
BRACKET-HINGE WCI 3001369 Contact Us For Availability
21
SHELF-GLASS (2) WCI 3018876 Contact Us For Availability
21
WCI 08000042 WCI 08000042 Contact Us For Availability
21
BLOCK RH WCI 08013648 Contact Us For Availability
22
WCI 08012258 WCI 08012258 Contact Us For Availability
22
WCI 3018880 WCI 3018880 Contact Us For Availability
22
PLUG - BLOCK WCI 08013646 Contact Us For Availability
23
STOP-DOOR (2) WCI 08000255 Contact Us For Availability
23
WCI 3206120 WCI 3206120 Contact Us For Availability
23
RETAINER (2) WCI 3206400 Contact Us For Availability
23
WCI 3206186 WCI 3206186 Contact Us For Availability
24
SCREW (2) WCI 08011745 Contact Us For Availability
24
WCI 3206125 WCI 3206125 Contact Us For Availability
24
CHANNEL-CENTER WCI 3016409 Contact Us For Availability
24
COVER-COIL WCI 3206119 Contact Us For Availability
24
EVAPORATOR WCI 08009756 Contact Us For Availability
25
WCI 3916594 WCI 3916594 Contact Us For Availability
25
WASHER (4) WCI 08003607 Contact Us For Availability
25
CHANNEL (2) WCI 3206202 Contact Us For Availability
25
WCI 3206146 WCI 3206146 Contact Us For Availability
26
WCI 08012007 WCI 08012007 Contact Us For Availability
26
SPACER (2) WCI 3200464 Contact Us For Availability
26
WCI 08010274 WCI 08010274 Contact Us For Availability
27
WCI 3201581 WCI 3201581 Contact Us For Availability
27
STRAP-MULLION WCI 08003604 Contact Us For Availability
27
WCI 08003590 WCI 08003590 Contact Us For Availability
27
WCI 08000070 WCI 08000070 Contact Us For Availability
27
WCI 08009754 WCI 08009754 Contact Us For Availability
28
INSULATOR-PLASTIC WCI 08009638 Contact Us For Availability
28
SCREW (3) WCI 08016568 Contact Us For Availability
28
BOTTOM-FREEZER WCI 3206187 Contact Us For Availability
29
WCI 3205650 WCI 3205650 Contact Us For Availability
29
SUPPORT (2) WCI 08000097 Contact Us For Availability
29
COVER-AIR DEFLECTOR WCI 08000055 Contact Us For Availability
29
HARNESS-DIVIDER WCI 3018900 Contact Us For Availability
29A
WCI 3205648 WCI 3205648 Contact Us For Availability
30
TUBE-RUBBER (2) WCI 08000004 Contact Us For Availability
30
WCI 3204206 WCI 3204206 Contact Us For Availability
30
RETAINER-DRAIN PAN WCI 08950024 Contact Us For Availability
31
WCI 08006970 WCI 08006970 Contact Us For Availability
32
WCI 08006971 WCI 08006971 Contact Us For Availability
32
WCI 08009617 WCI 08009617 Contact Us For Availability
33
NUT-ANCHOR (2) WCI 08003584 Contact Us For Availability
33
HOUSING, CAP TUBE WCI 3018891 Contact Us For Availability
33
WCI 08003643 WCI 08003643 Contact Us For Availability
35
WCI 08007129 WCI 08007129 Contact Us For Availability
36
BUTTON-PLUG WCI 08003585 Contact Us For Availability
36
WCI 08000009 WCI 08000009 Contact Us For Availability
36
WCI 08000187 WCI 08000187 Contact Us For Availability
37
KNOB-CONTROL WCI 3206391 Contact Us For Availability
38
TRIM-CORNER ALMOND WCI 3202340 Contact Us For Availability
38
WCI 3206389 WCI 3206389 Contact Us For Availability
39
WCI 3206390 WCI 3206390 Contact Us For Availability
40
BASE-CABINET WCI 08010091 Contact Us For Availability
41
WCI 08000184 WCI 08000184 Contact Us For Availability
41
WCI 3018894 WCI 3018894 Contact Us For Availability
42
TAPPING PLATE (2) WCI 08012296 Contact Us For Availability
42
TOP-REFRIGERATOR WCI 3206185 Contact Us For Availability
× ![]()
