Model Electrolux FPE17TFH0 REFRIGERATOR – Common Parts & Diagrams

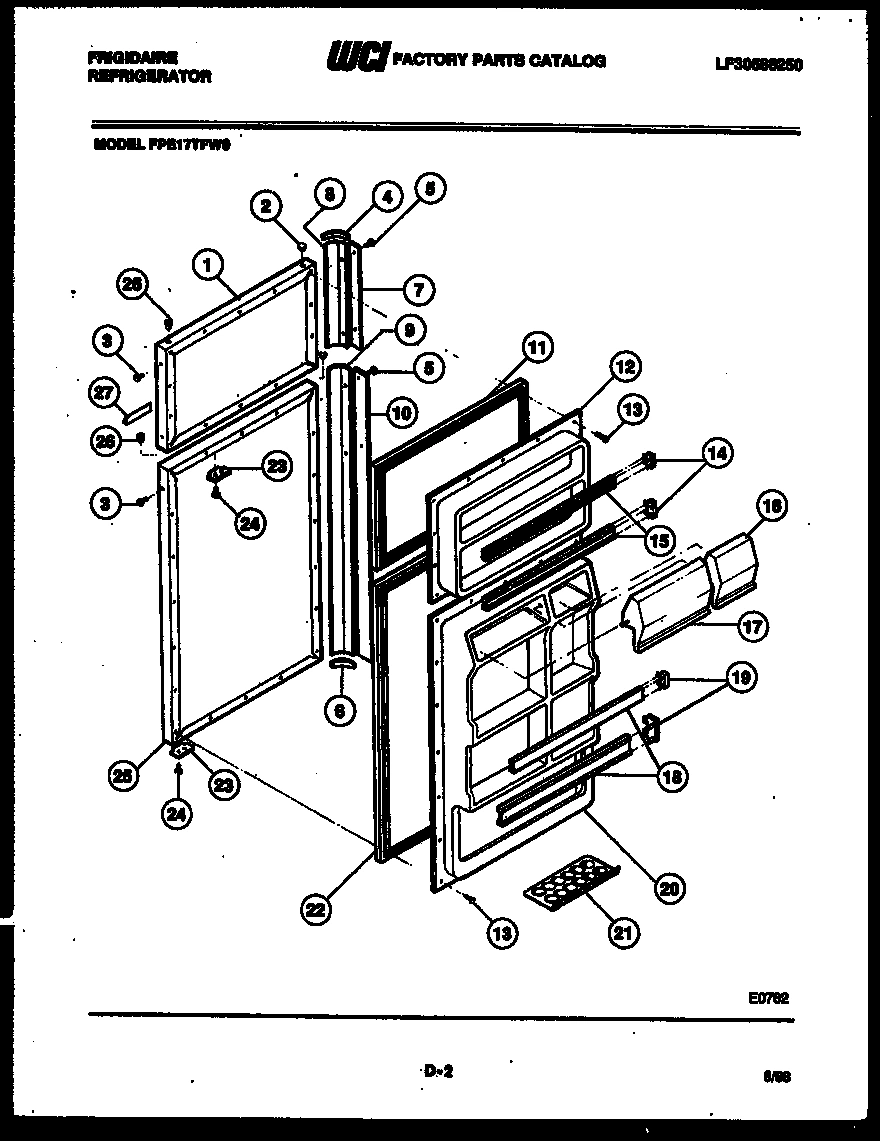

02 - DOOR PARTS

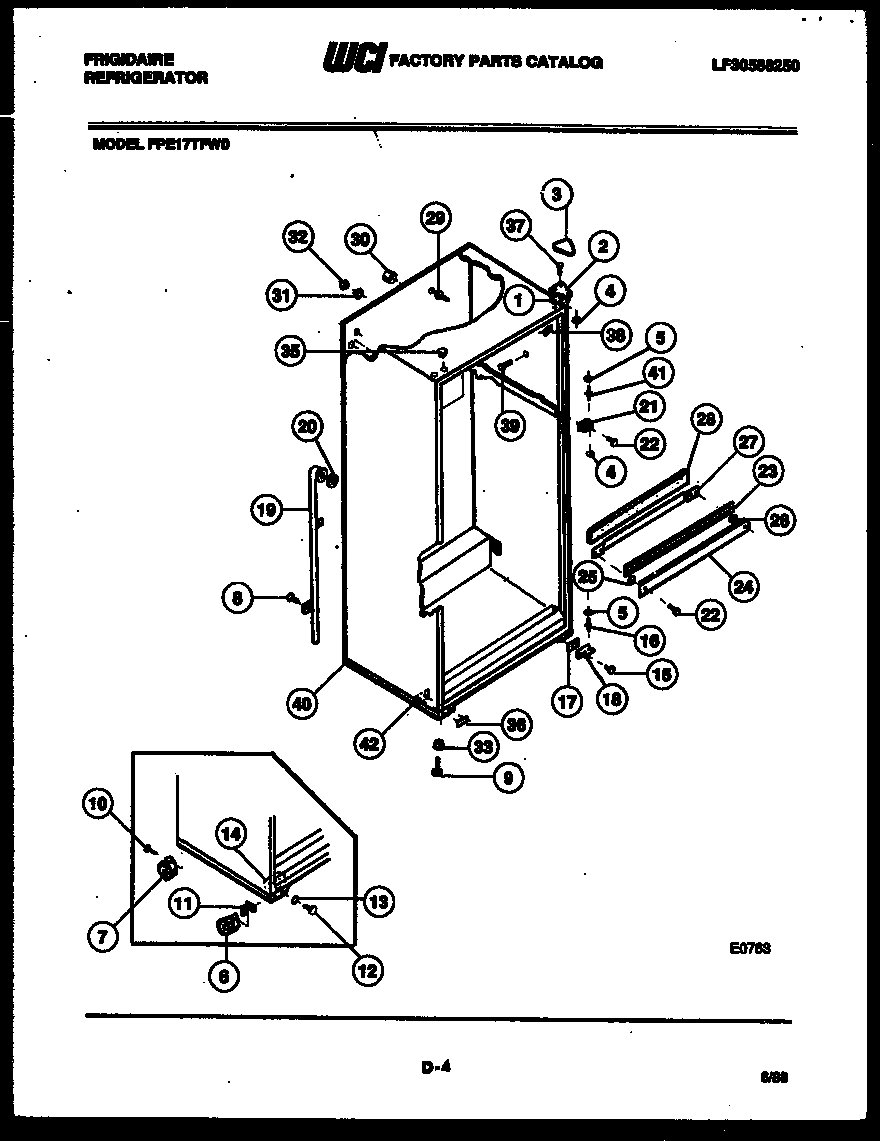

03 - CABINET PARTS

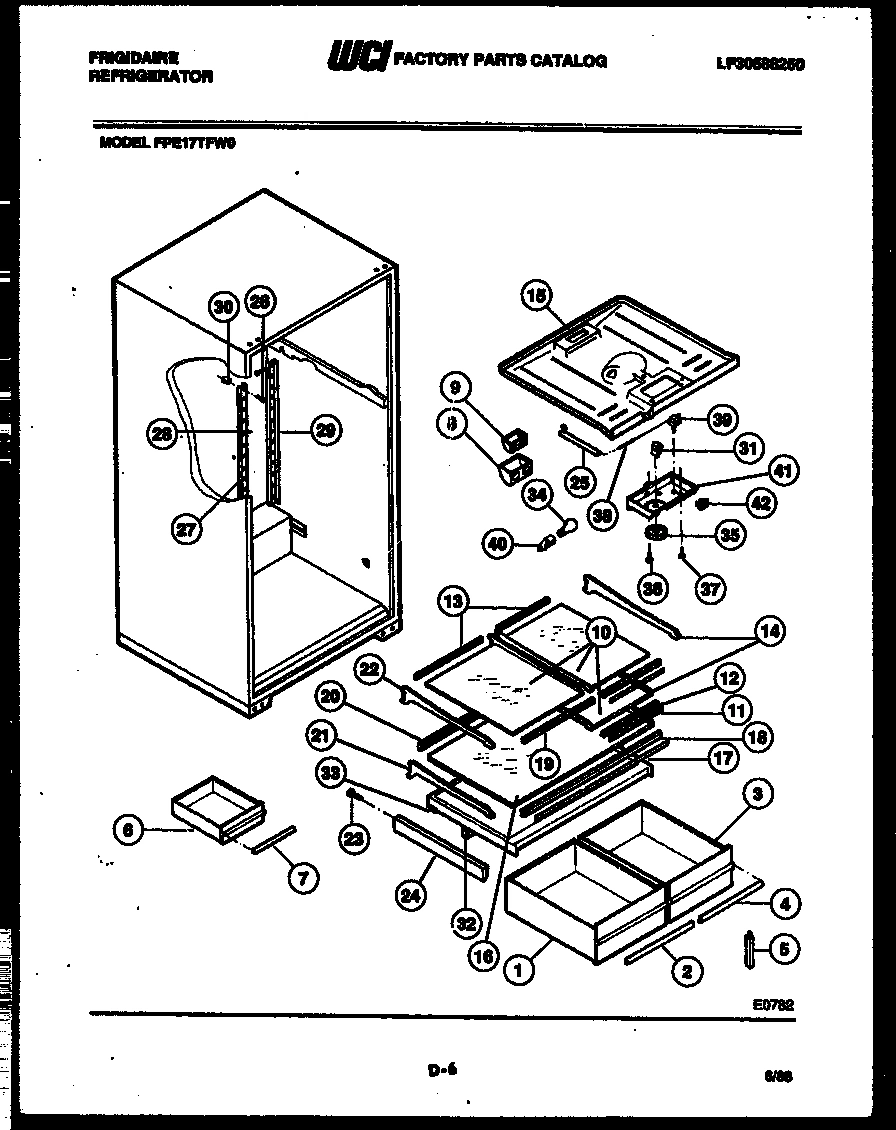

04 - SHELVES AND SUPPORTS

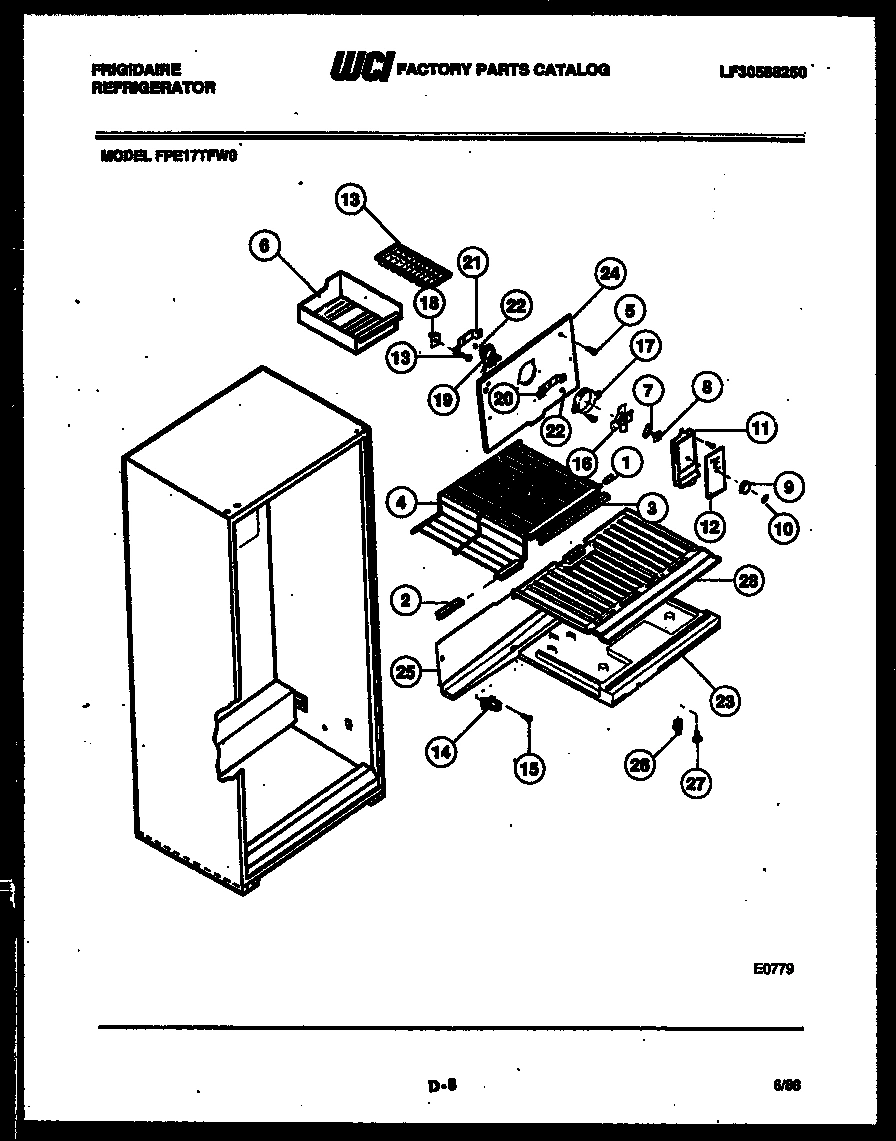

05 - SHELVES AND SUPPORTS

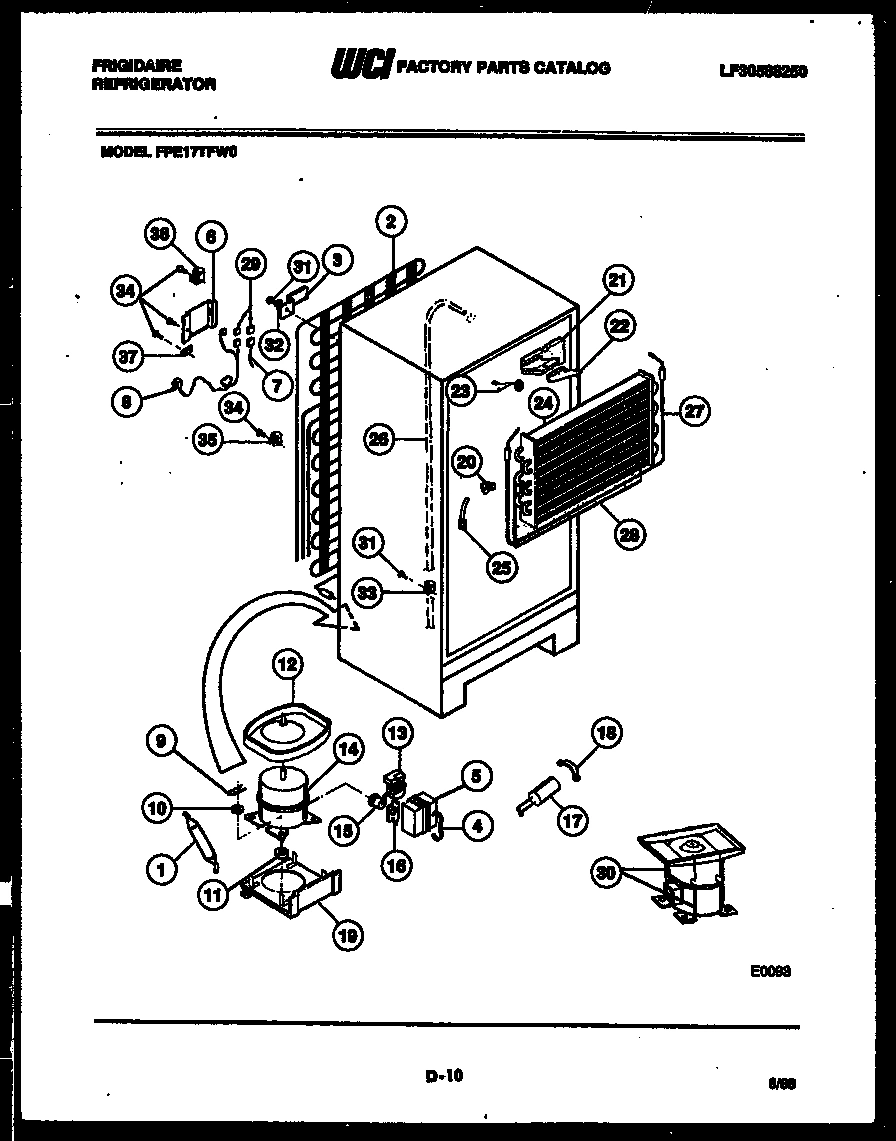

06 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux FPE17TFH0 REFRIGERATOR
*12598
WCI 9960001 WCI 9960001 Contact Us For Availability
1
PANEL-FREEZER WHEAT WCI 8009841 Contact Us For Availability
1
SHIM WCI 8012829 Contact Us For Availability
1
WCI 3018872 WCI 3018872 Contact Us For Availability
1
WCI 8013638 WCI 8013638 Contact Us For Availability
2
BUTTON-PLUG WHEAT WCI 8000176 Contact Us For Availability
2
BRACKET-HINGE UPPER WCI 8012843 Contact Us For Availability
2
WCI 3017427 WCI 3017427 Contact Us For Availability
2
WCI 8009262 WCI 8009262 Contact Us For Availability
3
BUTTON-PLUG WHEAT WCI 8000180 Contact Us For Availability
3
COVER, HINGE, WHEAT WCI 8012931 Contact Us For Availability
3
PAN-CRISPER RH WCI 3018873 Contact Us For Availability
3
WCI 3018897 WCI 3018897 Contact Us For Availability
3
BRACKET-CONDENSER (4) WCI 8003600 Contact Us For Availability
4
CAP-HANDLE END (2) WCI 8010239 Contact Us For Availability
4
WASHER-NYLON (3) WCI 8000007 Contact Us For Availability
4
TRIM-RH WCI 3017423 Contact Us For Availability
4
WCI 3018898 WCI 3018898 Contact Us For Availability
4
STRAP, BALE WCI 8000117 Contact Us For Availability
5
SCREW (6) WCI 8013645 Contact Us For Availability
5
WCI 8000100 WCI 8000100 Contact Us For Availability
5
SUPPORT-CRISPER WCI 3018874 Contact Us For Availability
5
SCREW (5) WCI 8012354 Contact Us For Availability
6
CAP-HANDLE END (2) WCI 8010238 Contact Us For Availability
6
ROLLER ASSY-FRONT (2) WCI 8009760 Contact Us For Availability
6
WCI 3018875 WCI 3018875 Contact Us For Availability
6
WCI 8013644 WCI 8013644 Contact Us For Availability
7
WCI 8010232 WCI 8010232 Contact Us For Availability
7
WCI 8009773 WCI 8009773 Contact Us For Availability
7
WCI 3017424 WCI 3017424 Contact Us For Availability
7
DAMPER WCI 8000066 Contact Us For Availability
7
HARNESS-COMPRESSOR WCI 8009628 Contact Us For Availability
7A
BUTTON-PLUG (NON-ILLUSTRATED) WCI 8013636 Contact Us For Availability
8
HANDLE-FREEZER WCI 3017190 Contact Us For Availability
8
COVER-AIR DEFLECTOR WCI 8000055 Contact Us For Availability
8
NUT, PUSH WCI 8000067 Contact Us For Availability
8
WCI 8000064 WCI 8000064 Contact Us For Availability
9
HANDLE-REFRIGERATOR WCI 8017497 Contact Us For Availability
9
SCREW-LEVELING (2) WCI 8003583 Contact Us For Availability
9
WCI 8000071 WCI 8000071 Contact Us For Availability
9
KNOB-DAMPER WCI 8009793 Contact Us For Availability
9
CLIP-MOUNTING (4) WCI 8003596 Contact Us For Availability
10
WCI 8010233 WCI 8010233 Contact Us For Availability
10
SCREW (2) WCI 8009762 Contact Us For Availability
10
WCI 3018876 WCI 3018876 Contact Us For Availability
10
LABEL-DAMPER WCI 8009823 Contact Us For Availability
10
WASHER-MTG (4) WCI 8003597 Contact Us For Availability
11
GASKET-FREEZER WCI 3001304 Contact Us For Availability
11
SPRING (2) WCI 8009790 Contact Us For Availability
11
WCI 3018877 WCI 3018877 Contact Us For Availability
11
WCI 8009821 WCI 8009821 Contact Us For Availability
11
GROMMET-MTG (4) WCI 8008778 Contact Us For Availability
12
PANEL-FREEZER INNER WCI 3018865 Contact Us For Availability
12
BOLT 1/4-20 (2) WCI 8009761 Contact Us For Availability
12
WCI 3018878 WCI 3018878 Contact Us For Availability
12
WCI 8009924 WCI 8009924 Contact Us For Availability
12
PAN-DRAIN WCI 8012951 Contact Us For Availability
13
WASHER-NYLON (2) WCI 8011326 Contact Us For Availability
13
WCI 3018879 WCI 3018879 Contact Us For Availability
13
WCI 1121808 WCI 1121808 Contact Us For Availability
13
WCI 8017226 WCI 8017226 Contact Us For Availability
14
SUPPORT (2) WCI 8013678 Contact Us For Availability
14
WCI 3018880 WCI 3018880 Contact Us For Availability
14
SPOUT WCI 8000056 Contact Us For Availability
14
COMPRESSOR WCI 8950233 Contact Us For Availability
15
RACK-DOOR (2) WCI 3018866 Contact Us For Availability
15
SCREW (2) WCI 8010252 Contact Us For Availability
15
TOP-REFRIGERATOR WCI 3018881 Contact Us For Availability
15
PIN, PUSH (2) WCI 8013647 Contact Us For Availability
15
WCI 8017572 WCI 8017572 Contact Us For Availability
16
WCI 3018867 WCI 3018867 Contact Us For Availability
16
PIN, HINGE WCI 8003578 Contact Us For Availability
16
WCI 3018882 WCI 3018882 Contact Us For Availability
16
FAN WCI 8000010 Contact Us For Availability
16
RETAINER OVERLOAD WCI 3007535 Contact Us For Availability
17
WCI 3018868 WCI 3018868 Contact Us For Availability
17
SHIM-HINGE WCI 8000755 Contact Us For Availability
17
WCI 3018883 WCI 3018883 Contact Us For Availability
17
RING, ORIFICE WCI 8000124 Contact Us For Availability
17
CAPACITOR-RUN WCI 8017230 Contact Us For Availability
18
HINGE-LOWER WCI 8017609 Contact Us For Availability
18
WCI 3018884 WCI 3018884 Contact Us For Availability
18
BRACKET-CONNECTOR WCI 8000107 Contact Us For Availability
18
STRAP-CAPACITOR WCI 8017231 Contact Us For Availability
19
TUBE, DRAIN WCI 8010012 Contact Us For Availability
19
WCI 3018885 WCI 3018885 Contact Us For Availability
19
WCI 8000036 WCI 8000036 Contact Us For Availability
19
WCI 8013663 WCI 8013663 Contact Us For Availability
20
PANEL-REFRIGERATOR INNER WCI 3018871 Contact Us For Availability
20
RING, SEAL WCI 8009755 Contact Us For Availability
20
WCI 3018886 WCI 3018886 Contact Us For Availability
20
WCI 8000043 WCI 8000043 Contact Us For Availability
20
BLOCK LH WCI 8017227 Contact Us For Availability
21
BRACKET-HINGE WCI 8000757 Contact Us For Availability
21
WCI 3018887 WCI 3018887 Contact Us For Availability
21
WCI 8000042 WCI 8000042 Contact Us For Availability
21
BLOCK RH WCI 8013648 Contact Us For Availability
22
SCREW (4) WCI 8012258 Contact Us For Availability
22
WCI 3018888 WCI 3018888 Contact Us For Availability
22
BUSHING-MOTOR (2) WCI 8000032 Contact Us For Availability
22
PLUG, BLOCK WCI 8013646 Contact Us For Availability
22A
RAIL-GLASS SUPPORT (NON-ILLUSTRATED) WCI 3200901 Contact Us For Availability
23
STOP-DOOR (2) WCI 8000255 Contact Us For Availability
23
WCI 8000744 WCI 8000744 Contact Us For Availability
23
SCREW (2) WCI 8014528 Contact Us For Availability
23
WCI 3018899 WCI 3018899 Contact Us For Availability
23
WCI 8000073 WCI 8000073 Contact Us For Availability
24
SCREW (2) WCI 8011745 Contact Us For Availability
24
MULLION, WHEAT WCI 8010031 Contact Us For Availability
24
WCI 3018889 WCI 3018889 Contact Us For Availability
24
COVER, COIL WCI 8009753 Contact Us For Availability
24
WCI 8009756 WCI 8009756 Contact Us For Availability
24A
WCI 3018890 WCI 3018890 Contact Us For Availability
25
PANEL-REFR WHEAT WCI 8012840 Contact Us For Availability
25
WASHER (4) WCI 8003607 Contact Us For Availability
25
HOUSING, CAP TUBE WCI 3018891 Contact Us For Availability
25
WCI 8010005 WCI 8010005 Contact Us For Availability
25
STRAP-ALUMINUM (2) WCI 8000110 Contact Us For Availability
26
BEARING-HINGE (8) WCI 8012007 Contact Us For Availability
26
SPACER (2) WCI 8010007 Contact Us For Availability
26
SCREW (3) WCI 8016568 Contact Us For Availability
26
SWITCH, LIGHT WCI 9918806 Contact Us For Availability
26
WCI 8010274 WCI 8010274 Contact Us For Availability
27
WCI 3018632 WCI 3018632 Contact Us For Availability
27
STRAP-MULLION WCI 8003604 Contact Us For Availability
27
CHANNEL-CENTER WCI 3015409 Contact Us For Availability
27
SCREW (3) WCI 8000070 Contact Us For Availability
27
HEATER-DEFROST WCI 8009754 Contact Us For Availability
28
INSULATOR-PLASTIC WCI 8009638 Contact Us For Availability
28
SCREW (6) WCI 8002728 Contact Us For Availability
28
BOTTOM-FREEZER WCI 8015543 Contact Us For Availability
29
SUPPORT (2) WCI 8000097 Contact Us For Availability
29
CHANNEL (2) WCI 8000302 Contact Us For Availability
29
HARNESS-DIVIDER WCI 3018900 Contact Us For Availability
30
TUBE-RUBBER (2) WCI 8000004 Contact Us For Availability
30
SPACER (2) WCI 8003590 Contact Us For Availability
30
RETAINER, DRAIN PAN WCI 8950024 Contact Us For Availability
31
SCREW WCI 8000039 Contact Us For Availability
31
WCI 8006970 WCI 8006970 Contact Us For Availability
32
WCI 8006971 WCI 8006971 Contact Us For Availability
32
GASKET WCI 8009647 Contact Us For Availability
32
WASHER WCI 8009617 Contact Us For Availability
33
NUT-ANCHOR (2) WCI 8003584 Contact Us For Availability
33
COVER-CRISPER WCI 3018892 Contact Us For Availability
33
WCI 8003643 WCI 8003643 Contact Us For Availability
34
SCREW WCI 8002748 Contact Us For Availability
34
BULB-LIGHT WCI 8002735 Contact Us For Availability
35
BUTTON-PLUG WHEAT WCI 8007127 Contact Us For Availability
35
KNOB-CONTROL WCI 3018893 Contact Us For Availability
35
CLAMP (3) WCI 8002756 Contact Us For Availability
36
BUTTON-PLUG WCI 8003585 Contact Us For Availability
36
SCREW (2) WCI 8000008 Contact Us For Availability
36
WCI 8000187 WCI 8000187 Contact Us For Availability
37
SCREW (2) WCI 8000123 Contact Us For Availability
37
SCREW (2) WCI 8000009 Contact Us For Availability
37
CLAMP WCI 8000109 Contact Us For Availability
38
TRIM-CORNER-WHEAT WCI 8010016 Contact Us For Availability
38
WCI 8003637 WCI 8003637 Contact Us For Availability
39
GROMMET, SHELF, L.H. (2) WCI 8009759 Contact Us For Availability
39
WCI 3018894 WCI 3018894 Contact Us For Availability
39A
GROMMET-SHELF RH (2) (NON-ILLUSTRATED) WCI 8002747 Contact Us For Availability
40
BASE, CABINET WCI 8010091 Contact Us For Availability
40
WCI 8000815 WCI 8000815 Contact Us For Availability
41
PIN, HINGE WCI 8000184 Contact Us For Availability
41
BOX, CONTROL WCI 3018895 Contact Us For Availability
42
WCI 8012296 WCI 8012296 Contact Us For Availability
42
WCI 3018896 WCI 3018896 Contact Us For Availability
× ![]()
