Model Electrolux FPE16TCL0 REFRIGERATOR – Common Parts & Diagrams

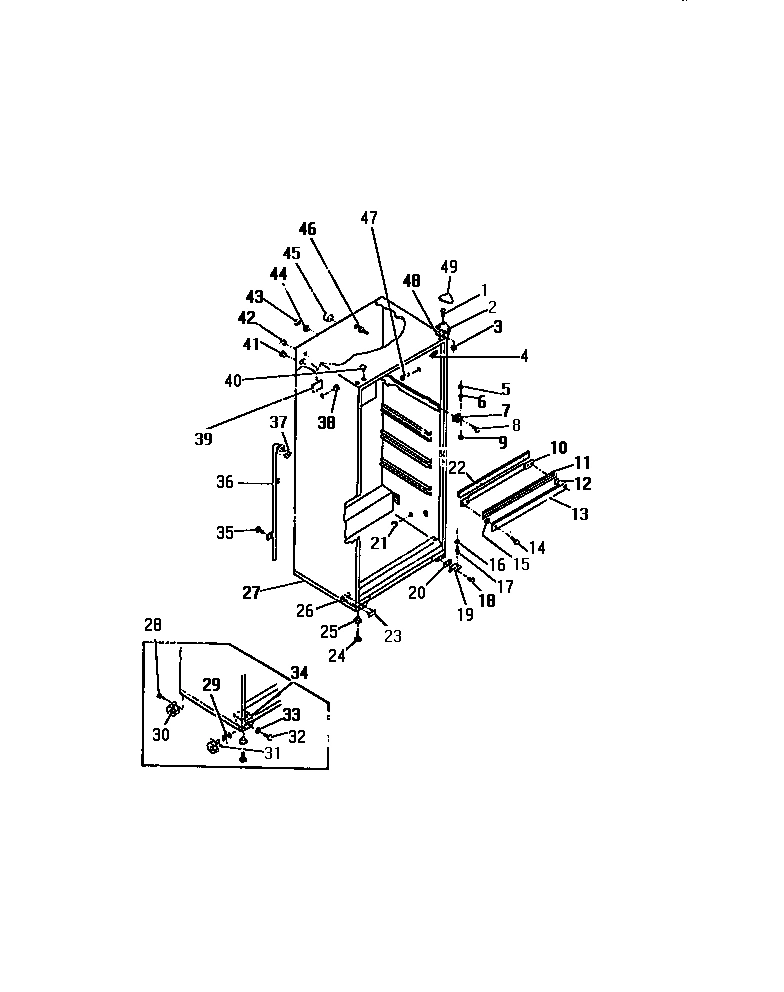

03 - CABINET

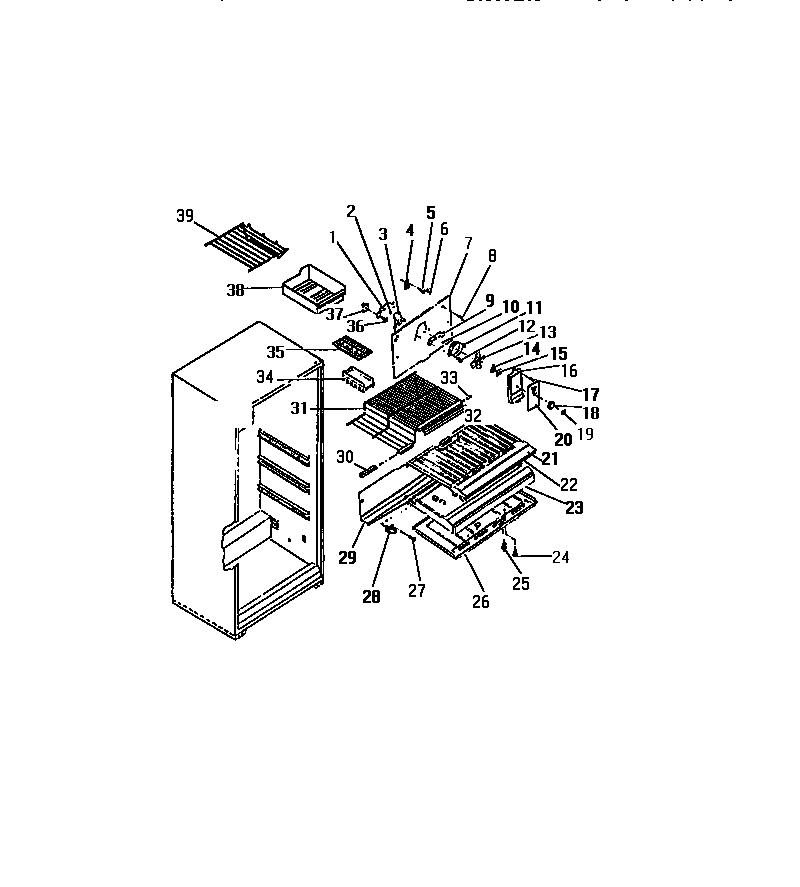

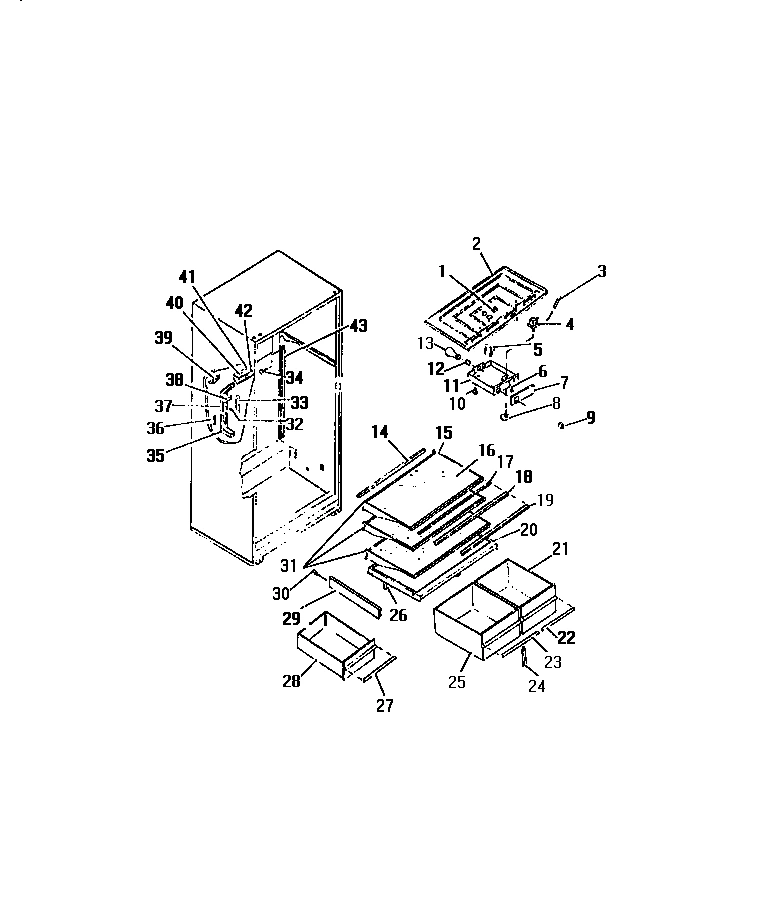

06 - INTERIOR FOOD COMPARTMENT
07 - INTERIOR FREEZER COMPARTMENT

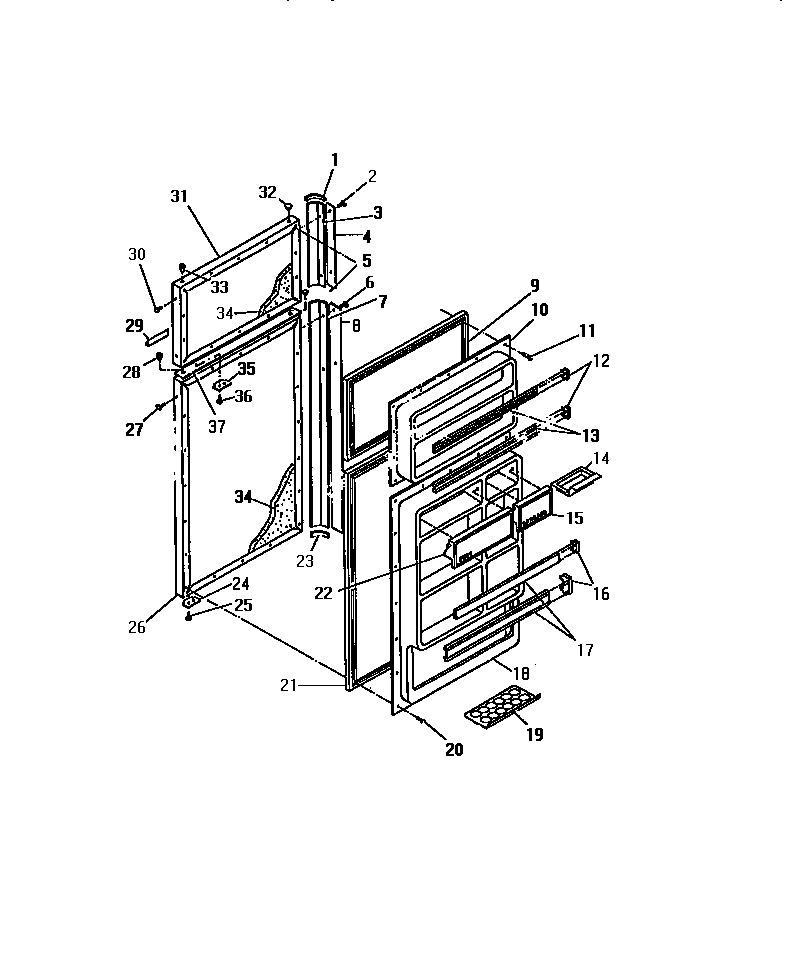

10 - FOOD AND FREEZER DOORS

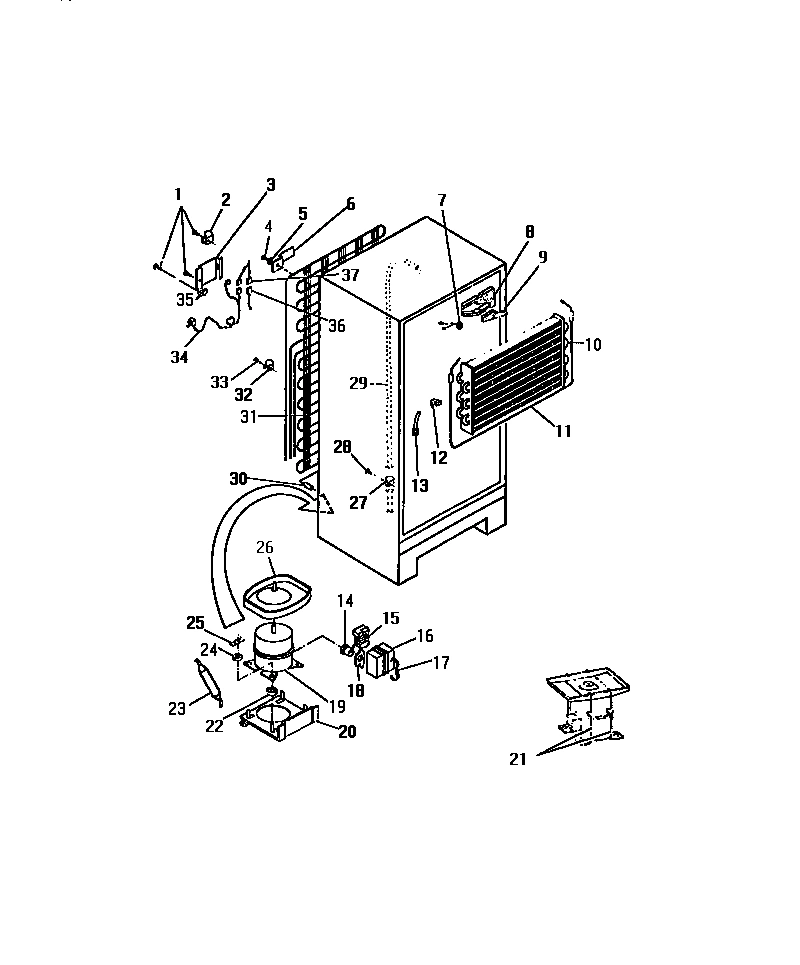

11 - COMPRESSOR, CONDENSER, EVAPORATOR

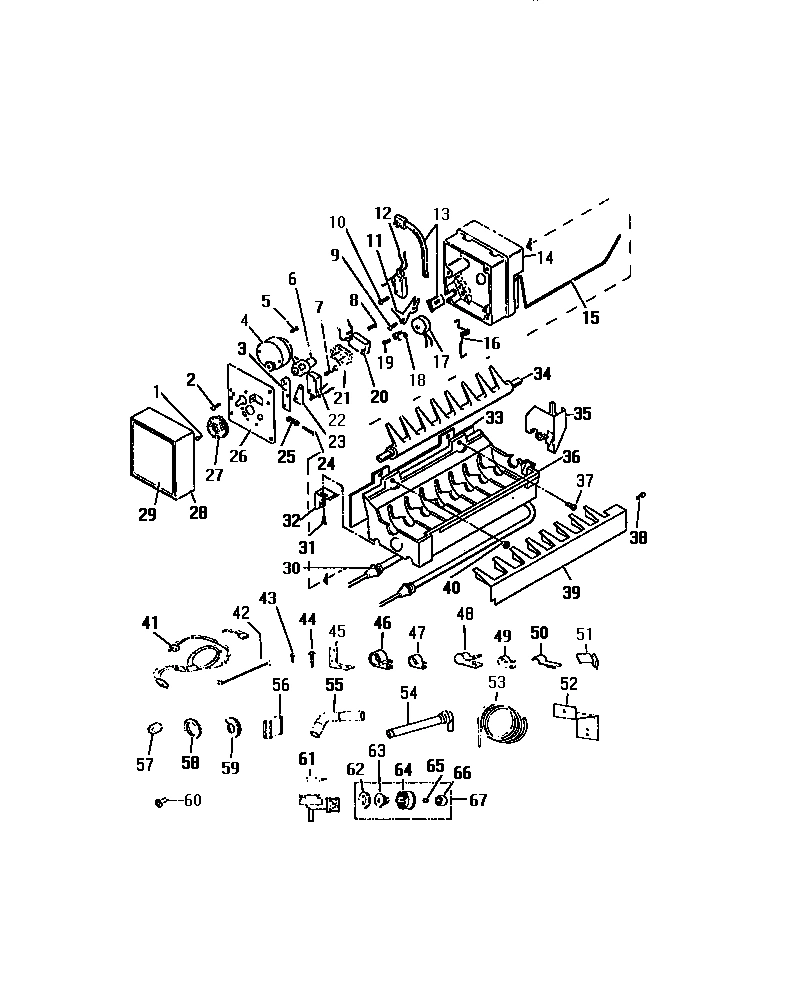

12 - IK-4 AUTOMATIC ICE MAKER
Common parts from model Electrolux FPE16TCL0 REFRIGERATOR
*73766
DOOR CONVERSION KIT, ALMOND WCI 8009636 Contact Us For Availability
1
SCREW (2) WCI 8000123 Contact Us For Availability
1
WCI 8000034 WCI 8000034 Contact Us For Availability
1
WCI 8000042 WCI 8000042 Contact Us For Availability
1
CAP, TRIM WCI 8010239 Contact Us For Availability
1
WCI 8001182 WCI 8001182 Contact Us For Availability
2
HINGE, UPPER WCI 8012843 Contact Us For Availability
2
WCI 8000187 WCI 8000187 Contact Us For Availability
2
SCREW (3) WCI 8001136 Contact Us For Availability
3
INSULATOR TUBE WCI 8003637 Contact Us For Availability
3
MOTOR WCI 8004176 Contact Us For Availability
3
WCI 8009978 WCI 8009978 Contact Us For Availability
3
COVER WCI 8013644 Contact Us For Availability
3
WCI 8001242 WCI 8001242 Contact Us For Availability
4
TRIM, CORNER, ALMOND (4) WCI 8010018 Contact Us For Availability
4
WCI 8002726 WCI 8002726 Contact Us For Availability
4
TRIM WCI 8010232 Contact Us For Availability
4
WCI 8001244 WCI 8001244 Contact Us For Availability
5
WCI 8009601 WCI 8009601 Contact Us For Availability
5
WASHER WCI 8009617 Contact Us For Availability
5
SCREW (2) WCI 8001156 Contact Us For Availability
6
PIN, HINGE WCI 8000184 Contact Us For Availability
6
SCREW (2) WCI 8000009 Contact Us For Availability
6
NUT WCI 8000012 Contact Us For Availability
6
BRACKET (4) WCI 8003600 Contact Us For Availability
6
WCI 8001247 WCI 8001247 Contact Us For Availability
7
HINGE, CENTER WCI 8000757 Contact Us For Availability
7
LABEL WCI 8009816 Contact Us For Availability
7
WCI 8009753 WCI 8009753 Contact Us For Availability
7
WCI 8009979 WCI 8009979 Contact Us For Availability
7
THERMOSTAT, DEFROST LIMITER WCI 8000073 Contact Us For Availability
7
SCREW (2) WCI 8001149 Contact Us For Availability
8
KNOB WCI 8010011 Contact Us For Availability
8
SCREW (4) WCI 8012354 Contact Us For Availability
8
TRIM WCI 8010233 Contact Us For Availability
8
INSULATION, BLOCK, RH WCI 8013646 Contact Us For Availability
8
WCI 8001148 WCI 8001148 Contact Us For Availability
9
WASHER WCI 8000100 Contact Us For Availability
9
WCI 8012294 WCI 8012294 Contact Us For Availability
9
BRACKET WCI 8000043 Contact Us For Availability
9
WCI 8010244 WCI 8010244 Contact Us For Availability
9
SEAL, AIR, R.H. WCI 8013648 Contact Us For Availability
9
WCI 8001255 WCI 8001255 Contact Us For Availability
10
CLAMP WCI 8003604 Contact Us For Availability
10
SCREW (2) WCI 8000008 Contact Us For Availability
10
BUSHING WCI 8000032 Contact Us For Availability
10
WCI 8009909 WCI 8009909 Contact Us For Availability
10
WCI 8009756 WCI 8009756 Contact Us For Availability
10
WCI 8001147 WCI 8001147 Contact Us For Availability
11
DRIER, CONDENSATE WCI 8000744 Contact Us For Availability
11
WCI 8009781 WCI 8009781 Contact Us For Availability
11
ORIFICE WCI 8000124 Contact Us For Availability
11
WCI 8009754 WCI 8009754 Contact Us For Availability
11
WCI 8001237 WCI 8001237 Contact Us For Availability
12
WASHER (4) WCI 8003607 Contact Us For Availability
12
RECEPTACLE WCI 8000129 Contact Us For Availability
12
WCI 8009606 WCI 8009606 Contact Us For Availability
12
SEAL, L.H. WCI 8003647 Contact Us For Availability
12A
INSERT, R.H. (2) WCI 8009808 Contact Us For Availability
13
WCI 8010032 WCI 8010032 Contact Us For Availability
13
FAN WCI 8000010 Contact Us For Availability
13
WCI 8009666 WCI 8009666 Contact Us For Availability
13
RETAINER (2) WCI 8000110 Contact Us For Availability
14
SCREW WCI 8012258 Contact Us For Availability
14
WCI 8012809 WCI 8012809 Contact Us For Availability
14
DAMPER WCI 8000066 Contact Us For Availability
14
WCI 8009664 WCI 8009664 Contact Us For Availability
14
PROTECTOR, OVERLOAD WCI 8007659 Contact Us For Availability
14
WCI 8001235 WCI 8001235 Contact Us For Availability
15
SPACER (2) WCI 8010007 Contact Us For Availability
15
WCI 8012813 WCI 8012813 Contact Us For Availability
15
NUT WCI 8000067 Contact Us For Availability
15
WCI 8009784 WCI 8009784 Contact Us For Availability
15
RELAY, COMPRESSOR START WCI 8012949 Contact Us For Availability
15
WCI 8000503 WCI 8000503 Contact Us For Availability
16
WASHER WCI 8000007 Contact Us For Availability
16
WCI 8012805 WCI 8012805 Contact Us For Availability
16
COVER WCI 8009817 Contact Us For Availability
16
INSERT, L.H. (2) WCI 8009804 Contact Us For Availability
16
WCI 8000116 WCI 8000116 Contact Us For Availability
16
WCI 8001238 WCI 8001238 Contact Us For Availability
16A
INSERT, R.H. (2) WCI 8009805 Contact Us For Availability
17
PIN, HINGE WCI 8003578 Contact Us For Availability
17
WCI 8000409 WCI 8000409 Contact Us For Availability
17
WCI 8009703 WCI 8009703 Contact Us For Availability
17
RETAINER WCI 8000117 Contact Us For Availability
17
WCI 8001250 WCI 8001250 Contact Us For Availability
18
SCREW (2) WCI 8010252 Contact Us For Availability
18
WCI 8012808 WCI 8012808 Contact Us For Availability
18
KNOB WCI 8009793 Contact Us For Availability
18
WCI 8012844 WCI 8012844 Contact Us For Availability
18
SPRING WCI 8000115 Contact Us For Availability
18
WCI 8001236 WCI 8001236 Contact Us For Availability
19
HINGE, LOWER WCI 8010251 Contact Us For Availability
19
WCI 8012807 WCI 8012807 Contact Us For Availability
19
LABEL, KNOB WCI 8009823 Contact Us For Availability
19
WCI 8009667 WCI 8009667 Contact Us For Availability
19
WCI 8950112 WCI 8950112 Contact Us For Availability
20
SHIM WCI 8000755 Contact Us For Availability
20
WCI 8009999 WCI 8009999 Contact Us For Availability
20
LABEL, COVER WCI 8009924 Contact Us For Availability
20
WCI 8013135 WCI 8013135 Contact Us For Availability
21
PLUG (2) WCI 8000087 Contact Us For Availability
21
WCI 8009839 WCI 8009839 Contact Us For Availability
21
WCI 8010002 WCI 8010002 Contact Us For Availability
21
WCI 8009733 WCI 8009733 Contact Us For Availability
21
RETAINER, DRAIN PAN WCI 8950024 Contact Us For Availability
21
WCI 8001240 WCI 8001240 Contact Us For Availability
22
WCI 8009638 WCI 8009638 Contact Us For Availability
22
WCI 8009911 WCI 8009911 Contact Us For Availability
22
WCI 8008778 WCI 8008778 Contact Us For Availability
22
WCI 8001245 WCI 8001245 Contact Us For Availability
23
PLUG BUTTON WCI 8003585 Contact Us For Availability
23
WCI 8009851 WCI 8009851 Contact Us For Availability
23
WCI 8009750 WCI 8009750 Contact Us For Availability
23
CAP WCI 8010238 Contact Us For Availability
23
WCI 8000027 WCI 8000027 Contact Us For Availability
23
WCI 8001241 WCI 8001241 Contact Us For Availability
24
FOOT (2) WCI 8003583 Contact Us For Availability
24
WCI 8006995 WCI 8006995 Contact Us For Availability
24
SCREW (3) WCI 8000070 Contact Us For Availability
24
WASHER (4) WCI 8003597 Contact Us For Availability
24
WCI 8001150 WCI 8001150 Contact Us For Availability
25
NUT (2) WCI 8003584 Contact Us For Availability
25
WCI 8009814 WCI 8009814 Contact Us For Availability
25
SWITCH, LIGHT WCI 9918806 Contact Us For Availability
25
CLIP (4) WCI 8003596 Contact Us For Availability
25
WCI 8001251 WCI 8001251 Contact Us For Availability
26
PLATE (2) WCI 8000033 Contact Us For Availability
26
WCI 8010000 WCI 8010000 Contact Us For Availability
26
WCI 8009647 WCI 8009647 Contact Us For Availability
26
WCI 8012842 WCI 8012842 Contact Us For Availability
26
PAN (INCL. NUT) WCI 8012951 Contact Us For Availability
26
WCI 8001239 WCI 8001239 Contact Us For Availability
27
WCI 8010091 WCI 8010091 Contact Us For Availability
27
WCI 8009852 WCI 8009852 Contact Us For Availability
27
PIN (2) WCI 8013647 Contact Us For Availability
27
WCI 8003643 WCI 8003643 Contact Us For Availability
27
WCI 8001248 WCI 8001248 Contact Us For Availability
28
SCREW (2) WCI 8009762 Contact Us For Availability
28
WCI 8009858 WCI 8009858 Contact Us For Availability
28
SPOUT, DRAIN WCI 8000056 Contact Us For Availability
28
WCI 8000214 WCI 8000214 Contact Us For Availability
29
SPRING (2) WCI 8009790 Contact Us For Availability
29
WCI 8009727 WCI 8009727 Contact Us For Availability
29
WCI 8010005 WCI 8010005 Contact Us For Availability
29
WCI 8009926 WCI 8009926 Contact Us For Availability
29
LINE, SUCTION AND CAP TUBE WCI 8010274 Contact Us For Availability
29
WCI 8005251 WCI 8005251 Contact Us For Availability
29A
WCI 8009728 WCI 8009728 Contact Us For Availability
30
ROLLER, REAR (2) WCI 8009773 Contact Us For Availability
30
WCI 8009868 WCI 8009868 Contact Us For Availability
30
TRIM WCI 8010651 Contact Us For Availability
30
PLUG, BUTTON, ALMOND (3) WCI 8000181 Contact Us For Availability
30
SLEEVE, CONNECTOR WCI 8003645 Contact Us For Availability
30
WCI 8001243 WCI 8001243 Contact Us For Availability
31
ROLLER (2) WCI 8009760 Contact Us For Availability
31
WCI 8012810 WCI 8012810 Contact Us For Availability
31
WCI 8009859 WCI 8009859 Contact Us For Availability
31
PANEL, EXTERIOR FREEZER DOOR, ALMOND WCI 8009842 Contact Us For Availability
31
WCI 8009262 WCI 8009262 Contact Us For Availability
32
SCREW (2) WCI 8009761 Contact Us For Availability
32
SCREW WCI 8013643 Contact Us For Availability
32
WCI 8009671 WCI 8009671 Contact Us For Availability
32
WCI 8009675 WCI 8009675 Contact Us For Availability
32
PLUG, BUTTON, ALMOND WCI 8000177 Contact Us For Availability
32
WCI 8001246 WCI 8001246 Contact Us For Availability
33
WCI 8011326 WCI 8011326 Contact Us For Availability
33
WCI 8009925 WCI 8009925 Contact Us For Availability
33
CAP (2) WCI 8013638 Contact Us For Availability
33
SCREW WCI 8002748 Contact Us For Availability
33
WCI 8012007 WCI 8012007 Contact Us For Availability
33
WCI 8000236 WCI 8000236 Contact Us For Availability
34
SUPPORT (2) WCI 8013678 Contact Us For Availability
34
SHELF WCI 8009824 Contact Us For Availability
34
CORD, ELECTRICAL SERVICE WCI 8000064 Contact Us For Availability
34
WCI 8001253 WCI 8001253 Contact Us For Availability
35
DUCT, AIR WCI 8009768 Contact Us For Availability
35
TRAY, ICE (2) WCI 1121808 Contact Us For Availability
35
STOP, DOOR WCI 8000255 Contact Us For Availability
35
CLAMP WCI 8000109 Contact Us For Availability
35
WCI 8001234 WCI 8001234 Contact Us For Availability
36
TUBE, DRAIN WCI 8010012 Contact Us For Availability
36
WCI 8009764 WCI 8009764 Contact Us For Availability
36
WCI 8000098 WCI 8000098 Contact Us For Availability
36
SCREW (2) WCI 8013645 Contact Us For Availability
36
HARNESS WCI 8009628 Contact Us For Availability
36
WCI 8001254 WCI 8001254 Contact Us For Availability
37
SEAL WCI 8009755 Contact Us For Availability
37
DUCT, AIR WCI 8009767 Contact Us For Availability
37
BRACKET WCI 8000107 Contact Us For Availability
37
WCI 8012817 WCI 8012817 Contact Us For Availability
37
HARNESS WCI 8006993 Contact Us For Availability
37
SCREW (2) WCI 8005288 Contact Us For Availability
38
PLUG, BUTTON WCI 8000065 Contact Us For Availability
38
DAMPER, AIR WCI 8009766 Contact Us For Availability
38
ICE, CONTAINER WCI 8009795 Contact Us For Availability
38
SCREW WCI 8001175 Contact Us For Availability
39
PLUG, BUTTON DECORATOR WCI 8000082 Contact Us For Availability
39
PLUG, BUTTON DECORATOR WCI 8013636 Contact Us For Availability
39
WCI 8009765 WCI 8009765 Contact Us For Availability
39
WCI 8001252 WCI 8001252 Contact Us For Availability
40
PLUG, BUTTON, ALMOND (2) WCI 8007129 Contact Us For Availability
40
EYELET (2) WCI 8000233 Contact Us For Availability
41
PLUG, BUTTON WCI 8000014 Contact Us For Availability
41
SEAL (2) WCI 8009910 Contact Us For Availability
41
HARNESS WCI 8950138 Contact Us For Availability
41A
HARNESS (INCL. WITH 41) WCI 8014553 Contact Us For Availability
42
PLUG, BUTTON WCI 8000040 Contact Us For Availability
42
COVER WCI 8950143 Contact Us For Availability
42
PERMAGUM BULK SEAL WCI 5877995 Contact Us For Availability
43
SCREW (10) WCI 8000039 Contact Us For Availability
43
WCI 8006971 WCI 8006971 Contact Us For Availability
43
BRACKET, CANTILEVER SHELF (2) WCI 8000302 Contact Us For Availability
44
WCI 8006970 WCI 8006970 Contact Us For Availability
44
SCREW (3) WCI 8002728 Contact Us For Availability
45
TUBE WCI 8000004 Contact Us For Availability
45
CLAMP (2) WCI 8002756 Contact Us For Availability
46
SUPPORT (2) WCI 8000097 Contact Us For Availability
46
CLAMP WCI 8000133 Contact Us For Availability
47
GROMMET, SHELF, R.H. (2) WCI 8002747 Contact Us For Availability
47
CLAMP (3) WCI 8000221 Contact Us For Availability
47A
GROMMET, SHELF, LH WCI 8009759 Contact Us For Availability
48
SHIM WCI 8012829 Contact Us For Availability
48
CLAMP WCI 8009561 Contact Us For Availability
49
COVER, HINGE, ALMOND WCI 8012933 Contact Us For Availability
49
CLAMP WCI 8000250 Contact Us For Availability
50
WCI 8000230 WCI 8000230 Contact Us For Availability
51
WCI 8000201 WCI 8000201 Contact Us For Availability
52
WCI 8000223 WCI 8000223 Contact Us For Availability
53
WCI 8010366 WCI 8010366 Contact Us For Availability
54
WCI 8010269 WCI 8010269 Contact Us For Availability
55
WCI 8000239 WCI 8000239 Contact Us For Availability
56
WCI 8000220 WCI 8000220 Contact Us For Availability
57
WCI 8000200 WCI 8000200 Contact Us For Availability
58
WCI 8000240 WCI 8000240 Contact Us For Availability
59
WCI 800241 WCI 800241 Contact Us For Availability
60
INSERT WCI 8010335 Contact Us For Availability
61
WCI 8000219 WCI 8000219 Contact Us For Availability
62
WCI 8001143 WCI 8001143 Contact Us For Availability
63
WCI 1121980 WCI 1121980 Contact Us For Availability
64
WCI 1121985 WCI 1121985 Contact Us For Availability
65
WCI 114628 WCI 114628 Contact Us For Availability
66
WCI 114627 WCI 114627 Contact Us For Availability
67
ADAPTER KIT WCI 8000205 Contact Us For Availability
× ![]()
