Model Electrolux FPDA18TPW0 REFRIGERATOR – Common Parts & Diagrams
02 - DOOR PARTS
03 - CABINET PARTS

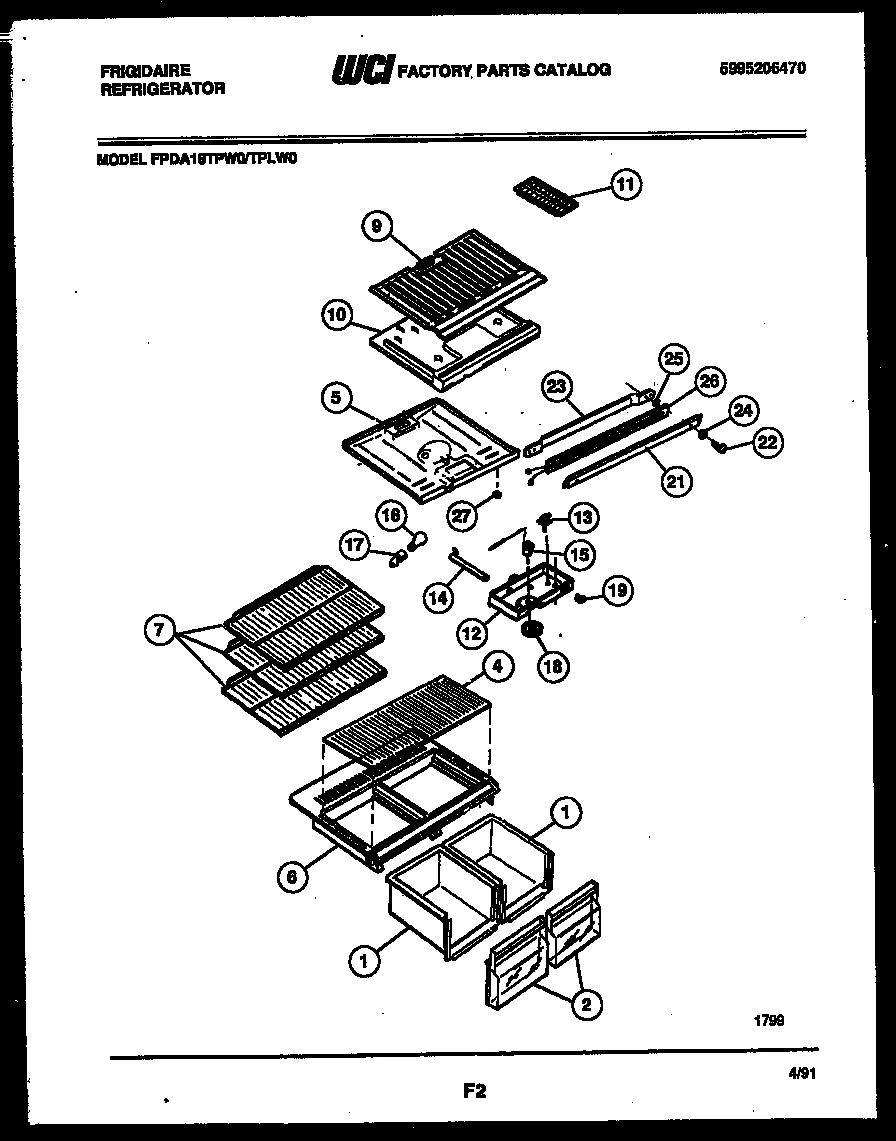

04 - SHELVES AND SUPPORTS

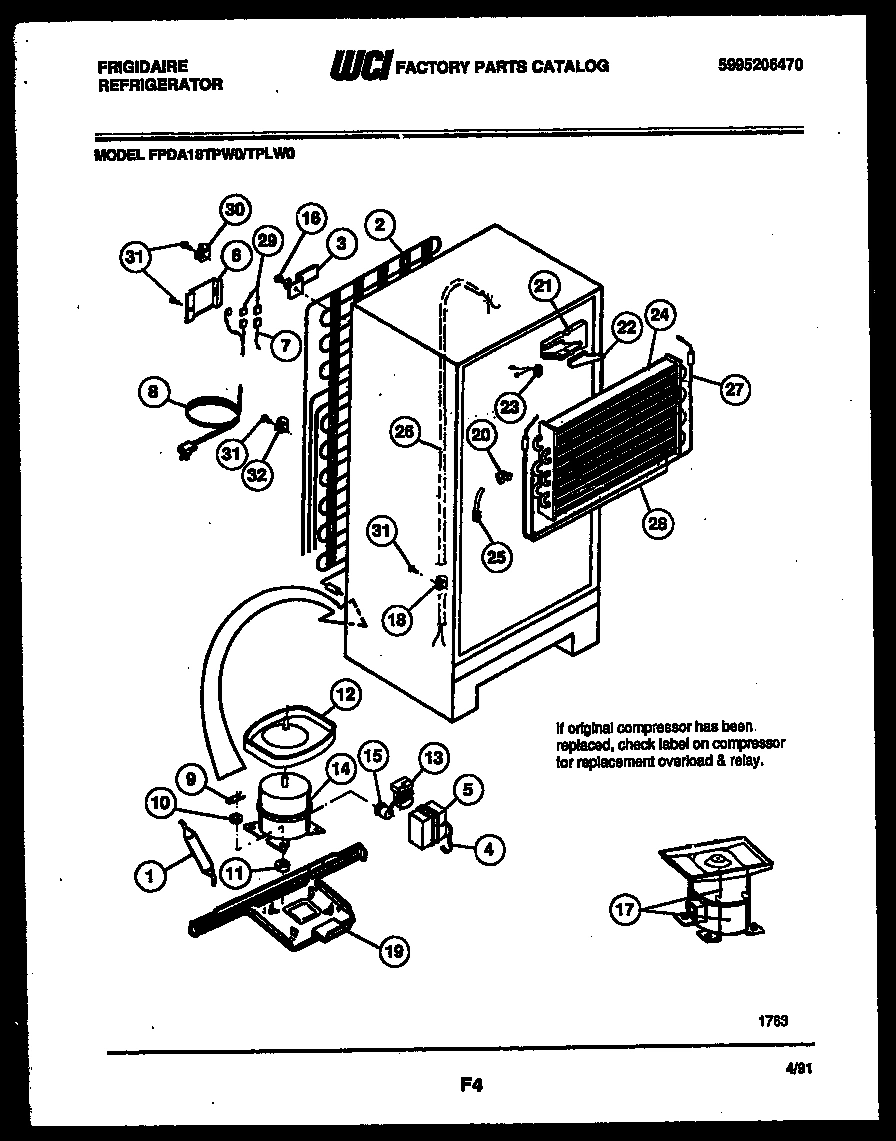

05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux FPDA18TPW0 REFRIGERATOR
*45993
BUTTON-PLUG (6) WCI 5308016571 Contact Us For Availability
*45993
PLATE-TAPPING (2) WCI 5308012296 Contact Us For Availability
*45997
CAPACITOR-RUN WCI 5303916391 Contact Us For Availability
*45998
HOT TUBE REPAIR KIT WCI 3916557 Contact Us For Availability
*45998
WCI 5308017231 WCI 5308017231 Contact Us For Availability
1
BRACKET-MOTOR REFR WCI 5303205119 Contact Us For Availability
2
WCI 5303273064 WCI 5303273064 Contact Us For Availability
2
WCI 5300163133 WCI 5300163133 Contact Us For Availability
2A
WCI 5303273065 WCI 5303273065 Contact Us For Availability
3
CONNECTOR BRACKET WCI 5308000107 Contact Us For Availability
3
BRACKET-MTG (4) WCI 5303001342 Contact Us For Availability
4
BRACKET - FRONT WCI 5303205118 Contact Us For Availability
4
WCI 3206442 WCI 3206442 Contact Us For Availability
5
WCI 5308000124 WCI 5308000124 Contact Us For Availability
5
TOP-REFRIGERATOR WCI 3206454 Contact Us For Availability
5A
WCI 5303001380 WCI 5303001380 Contact Us For Availability
6
WCI 3206443 WCI 3206443 Contact Us For Availability
6
WCI 5303001197 WCI 5303001197 Contact Us For Availability
7
WCI 5303206766 WCI 5303206766 Contact Us For Availability
7
WIRING HARNESS-COMPRESSOR WCI 3206113 Contact Us For Availability
8
PUSH NUT - DAMPER WCI 5303001028 Contact Us For Availability
8
WCI 5316254901 WCI 5316254901 Contact Us For Availability
9
BOTTOM-FREEZER WCI 3206455 Contact Us For Availability
9
CLIP (4) WCI 5308003596 Contact Us For Availability
10
WCI 3206387 WCI 3206387 Contact Us For Availability
10
DIVIDER-STYRO WCI 3206456 Contact Us For Availability
10
WASHER (4) WCI 5308003633 Contact Us For Availability
11
HINGE COVER-WHITE WCI 3206101 Contact Us For Availability
12
BUTTON PLUG-WHITE WCI 5308000134 Contact Us For Availability
12
HINGE, TOP WCI 3206100 Contact Us For Availability
12
WCI 3206390 WCI 3206390 Contact Us For Availability
12
DEFROST PAN WCI 5300184715 Contact Us For Availability
12B
LOCK NUT (NON-ILLUSTRATED) WCI 5303001348 Contact Us For Availability
13
WASHER-HINGE (3) WCI 5308000186 No Longer Available
13
WCI 5303007173 WCI 5303007173 Contact Us For Availability
13
WCI 5303018894 WCI 5303018894 Contact Us For Availability
13A
WCI 5303001260 WCI 5303001260 Contact Us For Availability
14
CORNER-TRIM (WHITE) WCI 5303202336 Contact Us For Availability
14
HOUSING, CAP TUBE WCI 3018891 Contact Us For Availability
14
COMPRESSOR W/ ELEC WCI 5303916004 Contact Us For Availability
15
WCI 5303272031 WCI 5303272031 Contact Us For Availability
16
WCI 5308000184 WCI 5308000184 Contact Us For Availability
16A
WASHER-EXT TOOTHLOCK (2) (NON-ILLUSTRATED) WCI 5308009617 Contact Us For Availability
17
PAN RETAINER KIT-SVC COMPR WCI 5303916001 Contact Us For Availability
17
WCI 5303001369 WCI 5303001369 Contact Us For Availability
18
WCI 3206391 WCI 3206391 Contact Us For Availability
19
SWITCH-ENERGY SAVER WCI 3206389 Contact Us For Availability
19
AIR DEFLECTOR WCI 5308014667 Contact Us For Availability
19
PLATE-COMPR MTG WCI 3206126 Contact Us For Availability
19A
EXTENSION & INSULATION AIR DEFLECTOR (NON-ILL WCI 5303200590 Contact Us For Availability
20
COVER-DEFLECTOR WCI 5303001448 Contact Us For Availability
20
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
21
PIN-BOTTOM BRACKET WCI 5303001321 Contact Us For Availability
21
WCI 3206446 WCI 3206446 Contact Us For Availability
21
INSULATION BLOCK, RH WCI 5308013648 Contact Us For Availability
22
SCREW (2) WCI 3206134 Contact Us For Availability
22
WCI 3203136 WCI 3203136 Contact Us For Availability
22
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
23
STRAP-MULLION WCI 5303206752 Contact Us For Availability
24
WCI 08003607 WCI 08003607 Contact Us For Availability
24
EVAPORATOR WCI 3206452 Contact Us For Availability
25
TUBE-DRAIN W/ SEAL WCI 5303269702 Contact Us For Availability
25
SPACER-MULLION (2) WCI 5303206753 Contact Us For Availability
25A
DRAIN SPOUT (NON-ILLUSTRATED) WCI 5308000056 Contact Us For Availability
25B
PUSH PIN (2) (NON-ILLUSTRATED) WCI 5303001361 Contact Us For Availability
26
PANEL-REFR-WHITE WCI 5303916902 Contact Us For Availability
26
WCI 3206445 WCI 3206445 Contact Us For Availability
26
HEAT EXCHANGER WCI 5308000728 Contact Us For Availability
27
PLUG - HINGE - WHITE WCI 5303001388 Contact Us For Availability
28
WCI 5303001198 WCI 5303001198 Contact Us For Availability
28
INSULATOR WCI 5303207493 Contact Us For Availability
29
SUPPORT-COIL CVR (2) WCI 5308000097 Contact Us For Availability
29
WIRING HARNESS, DIVIDER WCI 3018900 Contact Us For Availability
30
SHIM-TOP BRACKET WCI 5303001037 Contact Us For Availability
31
WCI 3206110 WCI 3206110 Contact Us For Availability
33
WCI 5300157666 WCI 5300157666 Contact Us For Availability
34
COVER-COIL WCI 3206451 Contact Us For Availability
34A
NUT-COIL COVER (2) (NON-ILLUSTRATED) WCI 5303209814 Contact Us For Availability
35
PLUG, DECORATIVE WCI 5308013636 Contact Us For Availability
36
TROUGH-DRAIN WCI 3206444 Contact Us For Availability
37
ROLLER (2) WCI 3206237 Contact Us For Availability
37A
ROLLER ASSY (2) (NON-ILLUSTRATED) WCI 5300188673 Contact Us For Availability
39
COVER-LOWER HINGE WCI 3206135 Contact Us For Availability
40
BUTTON PLUG (2) WCI 3206142 Contact Us For Availability
× ![]()
