Model Electrolux FPDA18TLL0 REFRIGERATOR – Common Parts & Diagrams

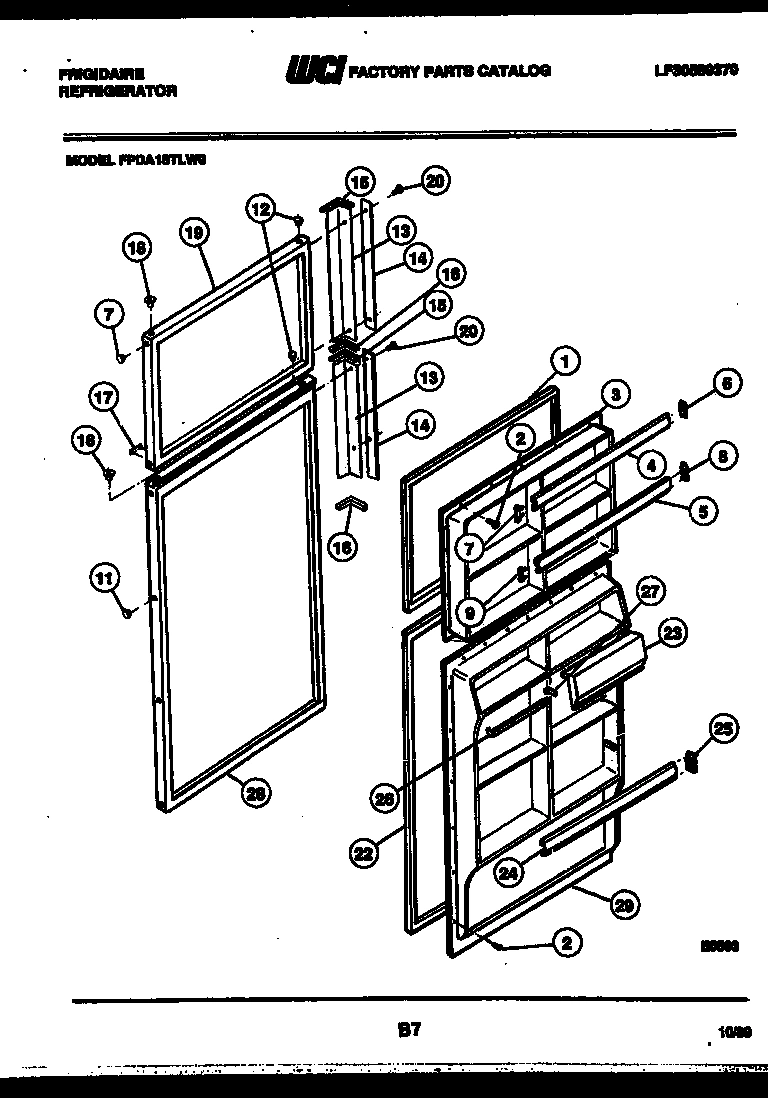

02 - DOOR PARTS

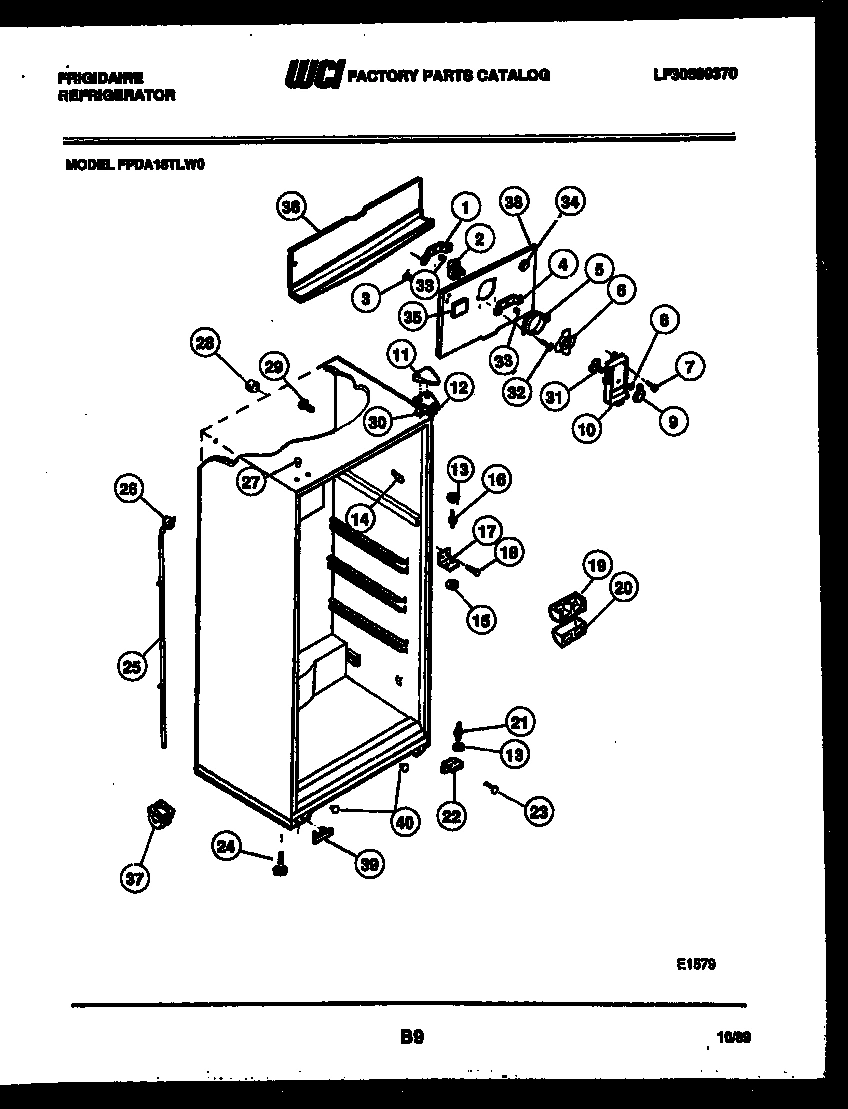

03 - CABINET PARTS

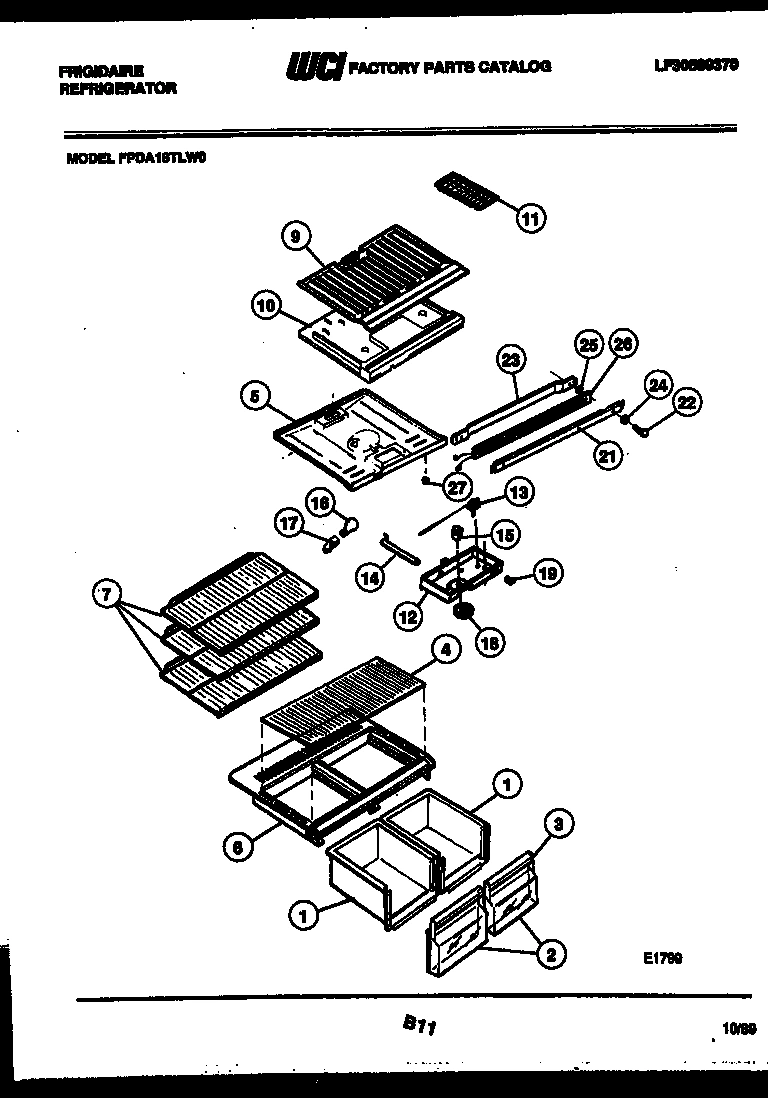

04 - SHELVES AND SUPPORTS

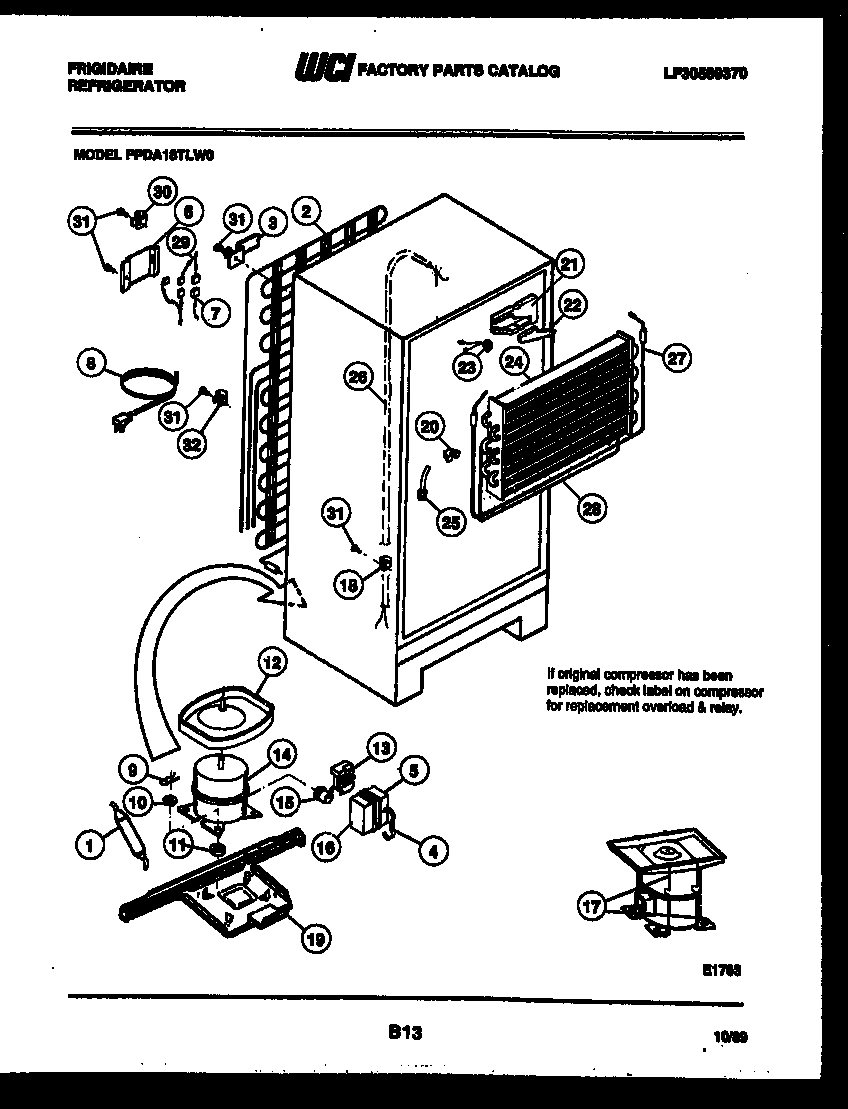

05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux FPDA18TLL0 REFRIGERATOR
*26954
HOT TUBE REPAIR KIT WCI 3916557 Contact Us For Availability
1
BRACKET-MOTOR REFR WCI 08000042 Contact Us For Availability
2
WCI 3206439 WCI 3206439 Contact Us For Availability
2
WCI G163133 WCI G163133 Contact Us For Availability
2A
WCI 3206441 WCI 3206441 Contact Us For Availability
3
CONNECTOR BRACKET WCI 08000107 Contact Us For Availability
3
WCI 3206440 WCI 3206440 Contact Us For Availability
3
BRACKET-MTG (4) WCI 08003600 Contact Us For Availability
4
WCI 5303206767 WCI 5303206767 Contact Us For Availability
4
WCI 08000043 WCI 08000043 Contact Us For Availability
4
WCI 3206442 WCI 3206442 Contact Us For Availability
5
WCI 08000124 WCI 08000124 Contact Us For Availability
5
TOP-REFRIGERATOR WCI 3206454 Contact Us For Availability
5A
WCI 08000070 WCI 08000070 Contact Us For Availability
6
WCI 3206443 WCI 3206443 Contact Us For Availability
6
WCI 08013644 WCI 08013644 Contact Us For Availability
7
WCI 5303206766 WCI 5303206766 Contact Us For Availability
7
WIRING HARNESS-COMPRESSOR WCI 3206113 Contact Us For Availability
8
SUPPORT-RH WCI 3205649 Contact Us For Availability
8
PUSH NUT-DAMPER WCI 08000067 Contact Us For Availability
8
WCI 08000064 WCI 08000064 Contact Us For Availability
9
SUPPORT-LH WCI 3204840 Contact Us For Availability
9
BOTTOM-FREEZER WCI 3206455 Contact Us For Availability
9
CLIP (4) WCI 08003596 Contact Us For Availability
10
WCI 3206387 WCI 3206387 Contact Us For Availability
10
DIVIDER-STYRO WCI 3206456 Contact Us For Availability
10
WCI 08003597 WCI 08003597 Contact Us For Availability
11
WCI 01121808 WCI 01121808 Contact Us For Availability
11
WCI 08000181 WCI 08000181 Contact Us For Availability
11
HINGE COVER-ALMD WCI 3206105 Contact Us For Availability
12
WCI 08000177 WCI 08000177 Contact Us For Availability
12
HINGE, TOP WCI 3206100 Contact Us For Availability
12
WCI 3206390 WCI 3206390 Contact Us For Availability
12
DEFROST PAN (SVC COMPR) WCI 08012951 Contact Us For Availability
12A
DEFROST PAN (ORIG COMPR) (NON-ILLUSTRATED) WCI 08003634 Contact Us For Availability
12C
LOCK NUT (NON-ILLUSTRATED) WCI 08003611 Contact Us For Availability
13
HANDLE-COMPLETE (2) WCI 3017190 Contact Us For Availability
13
WASHER-HINGE (3) WCI 08000007 Contact Us For Availability
13
CONTROL-TEMPERATURE WCI 3018894 Contact Us For Availability
14
TRIM (2) WCI 08010229 Contact Us For Availability
14
CORNER TRIM-ALMD WCI 3202340 Contact Us For Availability
14
HOUSING, CAP TUBE WCI 3018891 Contact Us For Availability
14
WCI 3916411 WCI 3916411 Contact Us For Availability
15
CAP-TOP (2) WCI 08010239 Contact Us For Availability
15
WASHER-HINGE WCI 3001038 Contact Us For Availability
16
CAP-BOTTOM (2) WCI 08010238 Contact Us For Availability
16
WCI 08000184 WCI 08000184 Contact Us For Availability
17
NAMEPLATE WCI 3201526 Contact Us For Availability
17
WCI 08000757 WCI 08000757 Contact Us For Availability
17
PAN RETAINER KIT (SVC COMPR) WCI 3916001 Contact Us For Availability
18
BEARING (8) WCI 3206153 Contact Us For Availability
18
WCI 08012258 WCI 08012258 Contact Us For Availability
18
WCI 3206391 WCI 3206391 Contact Us For Availability
19
WCI 3916610 WCI 3916610 Contact Us For Availability
19
SWITCH- WCI 3206389 Contact Us For Availability
19
WCI 3204206 WCI 3204206 Contact Us For Availability
19
PLATE-COMPR MTG WCI 3206126 Contact Us For Availability
20
SCREW (4) WCI 08013645 Contact Us For Availability
20
WCI 3001546 WCI 3001546 Contact Us For Availability
20
WCI 08017227 WCI 08017227 Contact Us For Availability
21
MULLION-ALMD WCI 3206450 Contact Us For Availability
21
WCI 08013648 WCI 08013648 Contact Us For Availability
22
BRACKET-BOTTOM HINGE WCI 3206136 Contact Us For Availability
22
SCREW (4) WCI 3206134 Contact Us For Availability
22
WCI 08013646 WCI 08013646 Contact Us For Availability
23
DOOR-DAIRY WCI 3018974 Contact Us For Availability
23
STRAP-MULLION WCI 5303206752 Contact Us For Availability
24
SCREW-LEVELING, (2) WCI 3206141 Contact Us For Availability
24
WCI 08003607 WCI 08003607 Contact Us For Availability
24
EVAPORATOR WCI 3206452 Contact Us For Availability
25
TUBE-DRAIN WCI 3206115 Contact Us For Availability
25
SPACER-MULLION (2) WCI 5303206753 Contact Us For Availability
25A
DRAIN SPOUT (NON-ILLUSTRATED) WCI 08000056 Contact Us For Availability
26
WCI 5303206771 WCI 5303206771 Contact Us For Availability
26
RING-SEAL WCI 08009755 Contact Us For Availability
26
WCI 3206445 WCI 3206445 Contact Us For Availability
26
WCI 08010274 WCI 08010274 Contact Us For Availability
27
WCI 08007129 WCI 08007129 Contact Us For Availability
28
WCI 3916615 WCI 3916615 Contact Us For Availability
28
TUBE-RUBBER (2) WCI 08000004 Contact Us For Availability
28
INSULATOR WCI 08009569 Contact Us For Availability
29
WCI 5303206770 WCI 5303206770 Contact Us For Availability
29
SUPPORT-COIL CVR (2) WCI 08000097 Contact Us For Availability
29
WIRING HARNESS, DIVIDER WCI 3018900 Contact Us For Availability
30
SHIM-TOP BRACKET WCI 08012829 Contact Us For Availability
31
WCI 3206110 WCI 3206110 Contact Us For Availability
34
COVER-COIL WCI 3206451 Contact Us For Availability
34A
NUT-COIL COVER (2) (NON-ILLUSTRATED) WCI 08000126 Contact Us For Availability
35
PLUG-DECORATIVE WCI 08013636 Contact Us For Availability
36
TROUGH-DRAIN WCI 3206444 Contact Us For Availability
37
ROLLER (4) WCI 3206237 Contact Us For Availability
38
WCI 3203044 WCI 3203044 Contact Us For Availability
39
COVER-LOWER HINGE WCI 3206135 Contact Us For Availability
40
BUTTON PLUG (2) WCI 3206142 Contact Us For Availability
× ![]()
