Model Electrolux FPDA14TML3 REFRIGERATOR – Common Parts & Diagrams

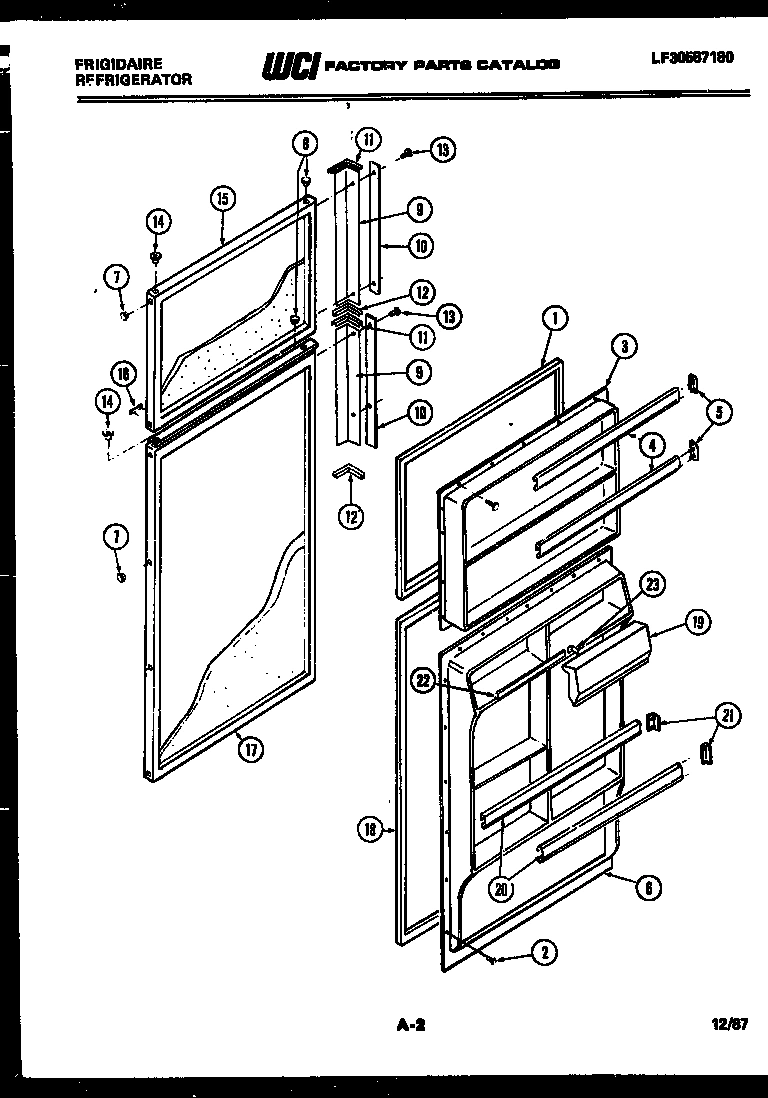

02 - DOOR PARTS

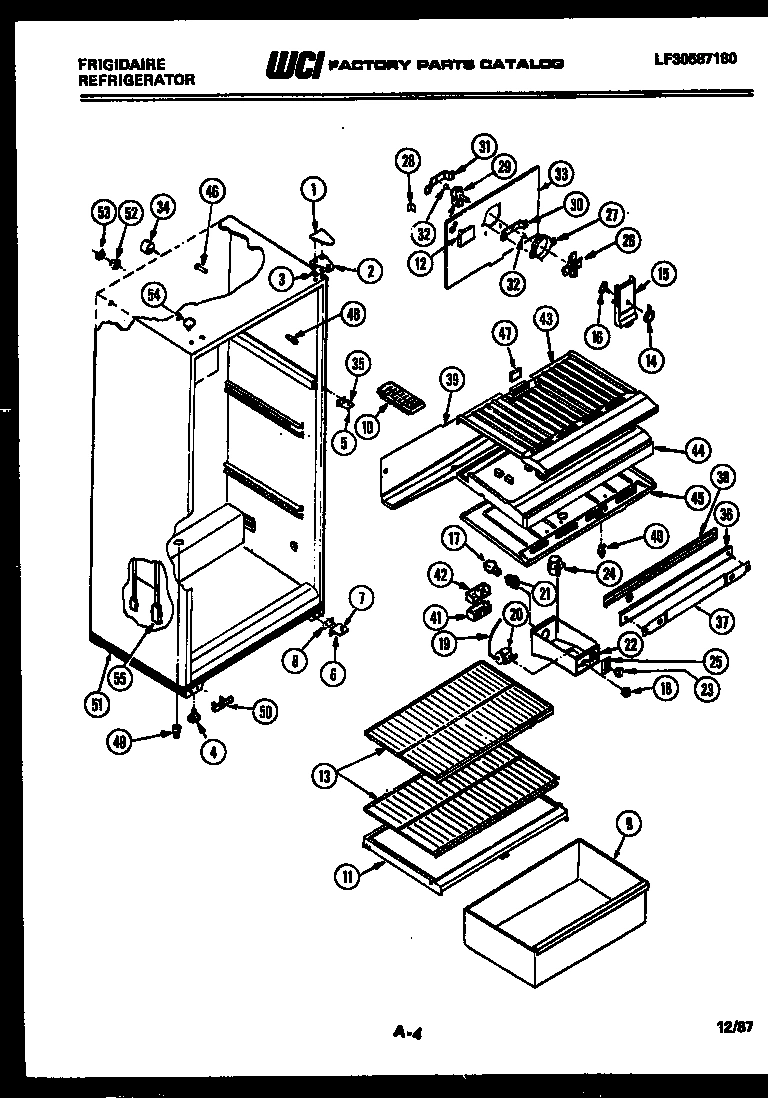

03 - CABINET PARTS
04 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux FPDA14TML3 REFRIGERATOR
1
WCI 8016626 WCI 8016626 Contact Us For Availability
1
COVER, HNG, ALMD WCI 8012933 Contact Us For Availability
1
DRIER WCI 8000027 Contact Us For Availability
2
WCI 8012843 WCI 8012843 Contact Us For Availability
2
WCI 8009262 WCI 8009262 Contact Us For Availability
2B
SCREW MTG (2) (NON-ILLUSTRATED) WCI 8000123 Contact Us For Availability
3
WCI 8009862 WCI 8009862 Contact Us For Availability
3
SHIM-TOP HNG WCI 8012829 Contact Us For Availability
3
BRACKET-COND (4) WCI 8003600 Contact Us For Availability
3A
TAPPING PLATE (2) (NON-ILLUSTRATED) WCI 8000033 Contact Us For Availability
4
LEVELING LEG (2) WCI 8003583 Contact Us For Availability
4
STRAP COVER WCI 8000117 Contact Us For Availability
4A
ANCHOR NUT (2) (NON-ILLUSTRATED) WCI 8003584 Contact Us For Availability
5
PIN-CTR HNG WCI 8000184 Contact Us For Availability
5
WCI 8006982 WCI 8006982 Contact Us For Availability
5A
WASHER CTR HNG (NON-ILLUSTRATED) WCI 8000100 Contact Us For Availability
6
WCI 8009864 WCI 8009864 Contact Us For Availability
6
HINGE BRKT BTM WCI 8010251 Contact Us For Availability
6
WCI 8000064 WCI 8000064 Contact Us For Availability
6A
SCREW MTG (2) (NON-ILLUSTRATED) WCI 8010252 Contact Us For Availability
7
PLUG-HDL-ALMD WCI 8000181 Contact Us For Availability
7
PIN-BTM HNG WCI 8003578 Contact Us For Availability
7
WCI 8013644 WCI 8013644 Contact Us For Availability
7A
WASHER-BTM HNG (NON-ILLUSTRATED) WCI 8000007 Contact Us For Availability
8
PLUG HNG-ALMD WCI 8000177 Contact Us For Availability
8
SHIM BTM HNG WCI 8000755 Contact Us For Availability
8
LOCK NUT WCI 8003611 Contact Us For Availability
8A
TAPPING PLATE (2) (NON-ILLUSTRATED) WCI 8012296 Contact Us For Availability
9
HANDLE ASSY (2) WCI 8009875 Contact Us For Availability
9
WCI 8000977 WCI 8000977 Contact Us For Availability
9
DEFROST PAN & NUT WCI 8012951 Contact Us For Availability
10
TRIM (2) WCI 8010236 Contact Us For Availability
10
WCI 8000153 WCI 8000153 Contact Us For Availability
10
WCI 8017226 WCI 8017226 Contact Us For Availability
11
END CAP-TOP (2) WCI 8010239 Contact Us For Availability
11
WCI 8000749 WCI 8000749 Contact Us For Availability
11
WCI 8017572 WCI 8017572 Contact Us For Availability
12
END CAP-BTM (2) WCI 8010238 Contact Us For Availability
12
PLUG-DECORATIVE WCI 8000082 Contact Us For Availability
12
COMPRESR W/ ELEC WCI 8950233 Contact Us For Availability
13
SCREW-MTG (4) WCI 8013645 Contact Us For Availability
13
WCI 8000857 WCI 8000857 Contact Us For Availability
13
CAPACITOR-RUN WCI 8017230 Contact Us For Availability
14
BEARING HNG (8) WCI 8012007 Contact Us For Availability
14
KNOB-DAMPER WCI 8009793 Contact Us For Availability
14
STRAP-CAPACITOR WCI 8017231 Contact Us For Availability
14A
LABEL, KNOB WCI 8009823 Contact Us For Availability
15
WCI 8009914 WCI 8009914 Contact Us For Availability
15
WCI 8009819 WCI 8009819 Contact Us For Availability
15
CLIP COMPR (3) WCI 8003596 Contact Us For Availability
16
WCI 8009843 WCI 8009843 Contact Us For Availability
16
DAMPER WCI 8000066 Contact Us For Availability
16
WASHER COMPR (3) WCI 8003597 Contact Us For Availability
16A
PUSH NUT (NON-ILLUSTRATED) WCI 8000067 Contact Us For Availability
17
WCI 8009917 WCI 8009917 Contact Us For Availability
17
LIGHT BULB WCI 8002735 Contact Us For Availability
17
GROMMET-COMPR (4) WCI 8008778 Contact Us For Availability
18
WCI 8016625 WCI 8016625 Contact Us For Availability
18
KNOB-CONTROL WCI 8006978 Contact Us For Availability
18
PLATE-COMPR MTG WCI 8009596 Contact Us For Availability
19
WCI 8009786 WCI 8009786 Contact Us For Availability
19
WCI 8003637 WCI 8003637 Contact Us For Availability
19
BLOCK INSUL LS WCI 8017227 Contact Us For Availability
20
WCI 8009663 WCI 8009663 Contact Us For Availability
20
CONTROL TEMP WCI 8015762 Contact Us For Availability
20
BLOCK INSUL RS WCI 8013648 Contact Us For Availability
20A
SCREW MTG (2) WCI 8000009 Contact Us For Availability
21
SUPPORT RS (2) WCI 8009896 Contact Us For Availability
21
WCI 8000129 WCI 8000129 Contact Us For Availability
21
PLUG INSUL RS WCI 8013646 Contact Us For Availability
21A
SUPPORT LS (2) (NON-ILLUSTRATED) WCI 8009898 Contact Us For Availability
22
DOOR RACK CUT TO SIZE WCI 8000147 Contact Us For Availability
22
WCI 8009730 WCI 8009730 Contact Us For Availability
22
WCI 8000745 WCI 8000745 Contact Us For Availability
22A
SCREW MTG (NON-ILLUSTRATED) WCI 8012354 Contact Us For Availability
23
SUPPORT RS WCI 8009809 Contact Us For Availability
23
SLIDE SWITCH WCI 8016615 Contact Us For Availability
23
THERMOSTAT DEFR WCI 8000073 Contact Us For Availability
23A
SUPPORT LS (NON-ILLUSTRATED) WCI 8009807 Contact Us For Availability
24
WCI 8003642 WCI 8003642 Contact Us For Availability
24A
SCREW-MTG (2) (NON-ILLUSTRATED) WCI 8000008 Contact Us For Availability
25
LABEL CONT BOX WCI 8006988 Contact Us For Availability
25
WCI 8000746 WCI 8000746 Contact Us For Availability
26
WCI 8000010 WCI 8000010 Contact Us For Availability
26
STRAP EVAP WCI 8000110 Contact Us For Availability
27
RING, ORIFICE WCI 8000124 Contact Us For Availability
27
WCI 8009637 WCI 8009637 Contact Us For Availability
27A
WIRING HARNS COMPR (NON-ILLUSTRATED) WCI 8009628 Contact Us For Availability
27B
HOT TUBE REPAIR KIT (NON-ILLUSTRATED) WCI 9960003 Contact Us For Availability
27C
DFR PN RETAINR KIT (NON-ILLUSTRATED) WCI 8950024 Contact Us For Availability
28
BRKT-CONNECTOR WCI 8000107 Contact Us For Availability
28A
SCREW-MTG (NON-ILLUSTRATED) WCI 8002748 Contact Us For Availability
29
WCI 8004176 WCI 8004176 Contact Us For Availability
30
WCI 8000043 WCI 8000043 Contact Us For Availability
31
WCI 8000042 WCI 8000042 Contact Us For Availability
32
BUSHING (2) WCI 8000032 Contact Us For Availability
33
WCI 8003636 WCI 8003636 Contact Us For Availability
33A
NUT U-TYPE (2) (NON-ILLUSTRATED) WCI 8000126 Contact Us For Availability
34
TUBE-RUBBER (2) WCI 8000004 Contact Us For Availability
35
HINGE BRKT CTR WCI 8000757 Contact Us For Availability
35A
SCREW MTG (4) (NON-ILLUSTRATED) WCI 8012258 Contact Us For Availability
35B
WASHER-STEEL (4) (NON-ILLUSTRATED) WCI 8003607 Contact Us For Availability
36A
SPACER MULLION (2) WCI 8003608 Contact Us For Availability
37
STRAP-MULLION WCI 8003604 Contact Us For Availability
38
WCI 8000744 WCI 8000744 Contact Us For Availability
39
WCI 8003638 WCI 8003638 Contact Us For Availability
40
WCI 8000069 WCI 8000069 Contact Us For Availability
41
WCI 8000055 WCI 8000055 Contact Us For Availability
42
DEFLECTOR - AIR WCI 8000071 Contact Us For Availability
43
WCI 8000748 WCI 8000748 Contact Us For Availability
44
WCI 8000759 WCI 8000759 Contact Us For Availability
45
WCI 8006986 WCI 8006986 Contact Us For Availability
45A
SCREW-MTG (3) (NON-ILLUSTRATED) WCI 8000070 Contact Us For Availability
46
SPRT COIL COVER WCI 8000097 Contact Us For Availability
47
WCI 8000185 WCI 8000185 Contact Us For Availability
48
CORNER TRIM-ALMD WCI 8003618 Contact Us For Availability
49
TUBE-DRAIN WCI 8003605 Contact Us For Availability
50
WCI 8003585 WCI 8003585 Contact Us For Availability
51
WCI 8010090 WCI 8010090 Contact Us For Availability
52
WCI 8006970 WCI 8006970 Contact Us For Availability
53
WCI 8006971 WCI 8006971 Contact Us For Availability
54
PLUG HNG ALMD WCI 8007129 Contact Us For Availability
55
WIRING HARNESS WCI 8006993 Contact Us For Availability
55A
PLUG REFR LINER (2) (NON-ILLUSTRATED) WCI 8000087 Contact Us For Availability
55B
PLUG FRZR LINER (8) (NON- WCI 8016571 Contact Us For Availability
× ![]()
