Model Electrolux FPD19VFA1 REFRIGERATOR – Common Parts & Diagrams

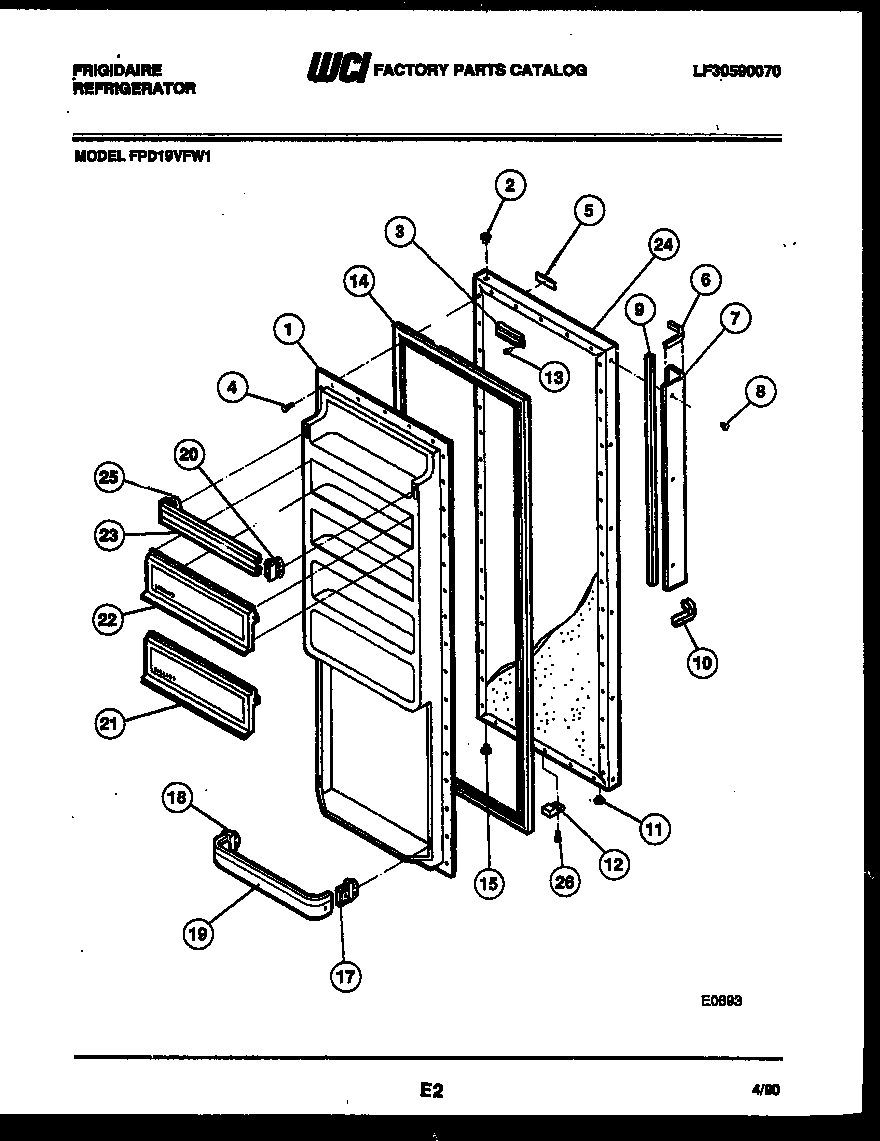

02 - REFRIGERATOR DOOR PARTS

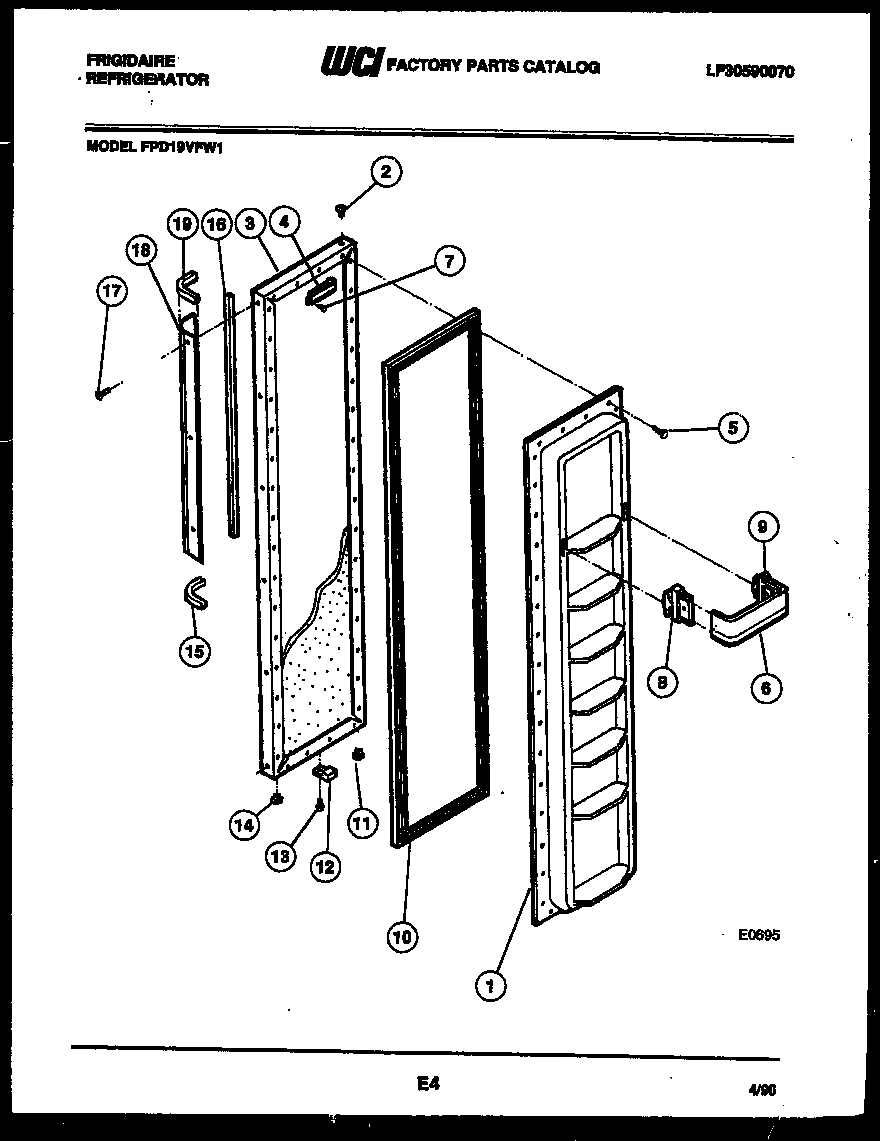

03 - FREEZER DOOR PARTS

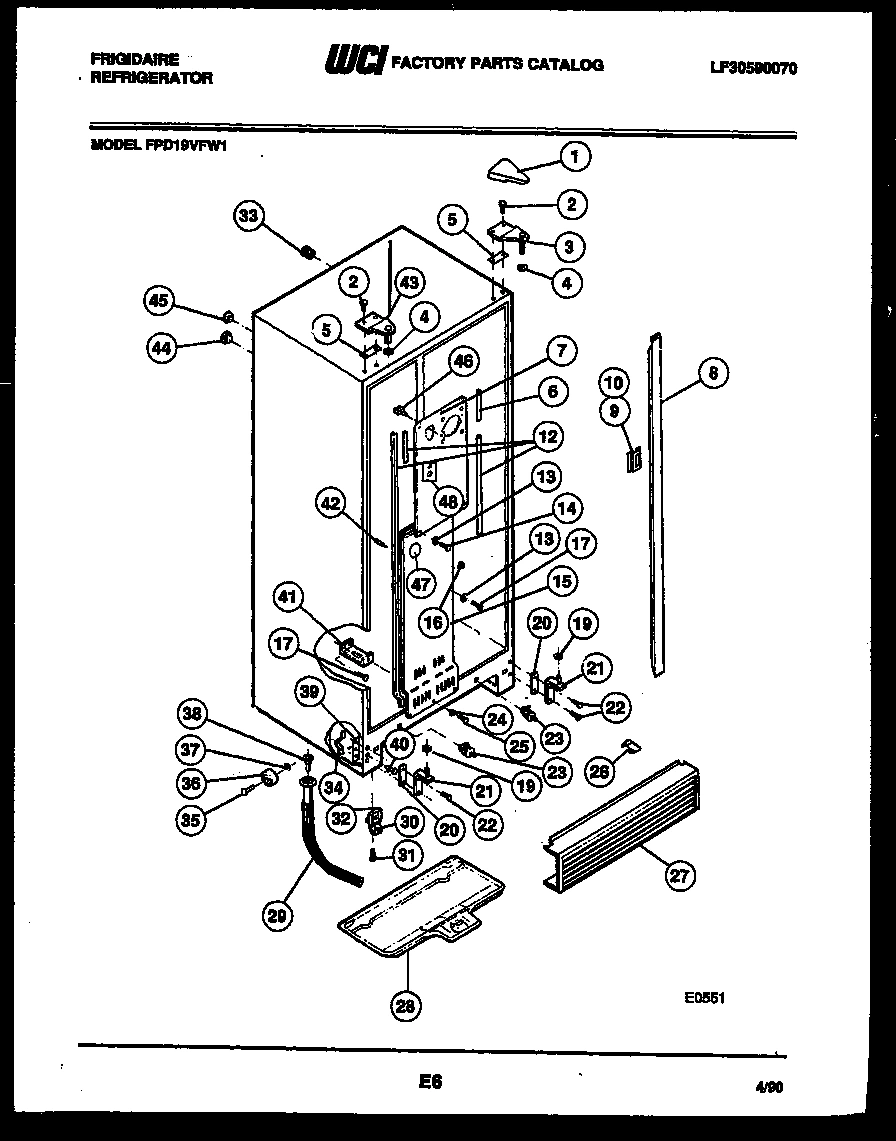

04 - CABINET PARTS

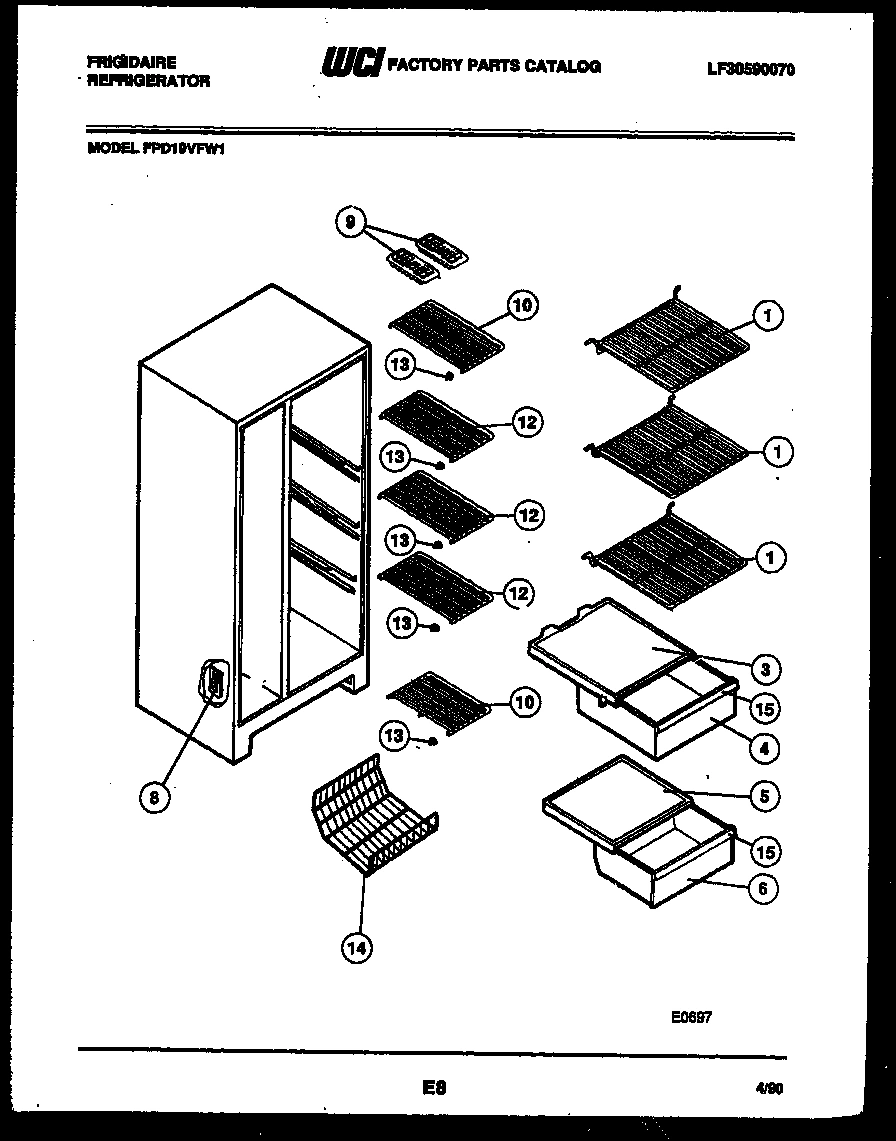

05 - SHELVES AND SUPPORTS

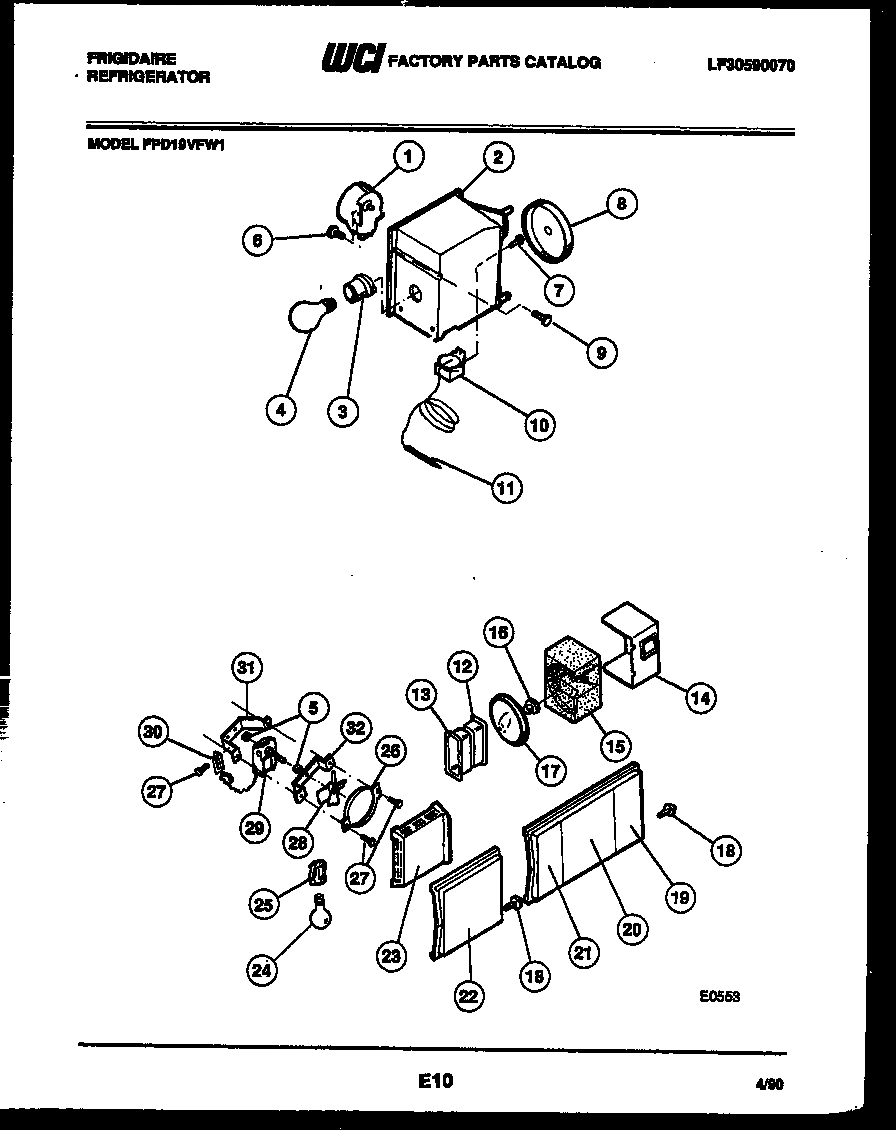

06 - REFRIGERATOR CONTROL ASSEMBLY, DAMP

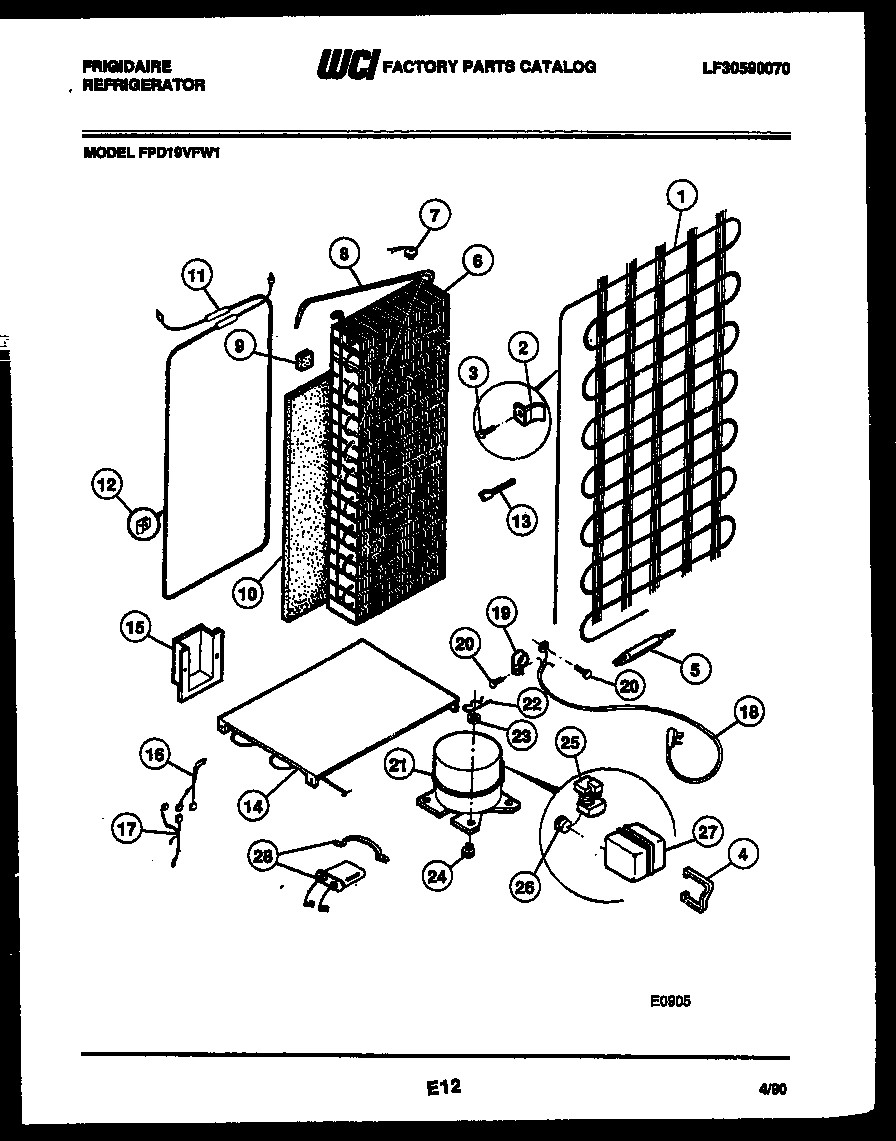

07 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux FPD19VFA1 REFRIGERATOR
*31125
INSULATION, BULK WCI 5303007739 Contact Us For Availability
*31128
PLUG, FREEZER LINER (3) WCI 5308016571 Contact Us For Availability
*31128
TAPPING-PLATE (2) WCI 5308012296 Contact Us For Availability
*31132
INSULATION-CONTROL BOX REAR WCI 3001269 Contact Us For Availability
*31134
HOT TUBE REPAIR KIT WCI 5300189379 Contact Us For Availability
*31134
INSULATOR-FRZR COIL-TOP WCI 5308009619 Contact Us For Availability
1
WCI 3018764 WCI 3018764 Contact Us For Availability
1
COVER-TOP HINGE-AVOC (2) WCI 5303001664 Contact Us For Availability
1
WCI 3018778 WCI 3018778 Contact Us For Availability
1
WCI 5308017228 WCI 5308017228 Contact Us For Availability
2
BEARING-HINGE UPPER WCI 5303001022 Contact Us For Availability
2
WCI 5308017561 WCI 5308017561 Contact Us For Availability
2
BRACKET, COND MTG (4) WCI 5303001342 Contact Us For Availability
3
SOCKET-LIGHT WCI 5308000129 Contact Us For Availability
3
WCI 3916068 WCI 3916068 Contact Us For Availability
3
HINGE-UPPER-RH WCI 5308012934 Contact Us For Availability
3
WCI 3018647 WCI 3018647 Contact Us For Availability
3A
WASHER, NO. 10 EXT TOOTH LOCK (NON-ILLUSTRAT WCI 5308009617 Contact Us For Availability
4
WASHER-NYLON (2) WCI 5308000186 No Longer Available
4
CLOSER-DOOR WCI 5303200272 Contact Us For Availability
4
WCI 3018780 WCI 3018780 Contact Us For Availability
5
SHIM-UPPER HINGE (2) WCI 5303001037 Contact Us For Availability
5
WCI 3018649 WCI 3018649 Contact Us For Availability
5
WCI 5300157666 WCI 5300157666 Contact Us For Availability
5A
SCREW-8- 15 (A) X 5/8 (20) WCI 5303209636 Contact Us For Availability
6
WCI 3206367 WCI 3206367 Contact Us For Availability
6
GASKET-COIL COVER (2) WCI 5303001219 Contact Us For Availability
6
WCI 3018781 WCI 3018781 Contact Us For Availability
6
WCI 5303916605 WCI 5303916605 Contact Us For Availability
7
WCI 08000825 WCI 08000825 Contact Us For Availability
7
SCREW-CLOSER MTG WCI 5306588927 Contact Us For Availability
7
WCI 5303001260 WCI 5303001260 Contact Us For Availability
7A
NUT U-TYPE (2) WCI 5303209814 Contact Us For Availability
8
SUPPORT-RACK LH (6) WCI 5303206605 Contact Us For Availability
8
WCI 3916445 WCI 3916445 Contact Us For Availability
8
WCI 5308000809 WCI 5308000809 Contact Us For Availability
8
KNOB-COLD CONTROL WCI 5308010380 Contact Us For Availability
8
WCI 5308017565 WCI 5308017565 Contact Us For Availability
8A
FERRULE-INNER (NON-ILLUSTRATED) WCI 5308000808 Contact Us For Availability
9
WCI 01121808 WCI 01121808 Contact Us For Availability
9
SUPPORT-RACK RH (6) WCI 5303206719 Contact Us For Availability
9
CLIP-MULLION (3) WCI 5300169100 Contact Us For Availability
9
INSUL-BLOCK-EVAP (4) WCI 5308000828 Contact Us For Availability
10
CONTROL-COLD WCI 5308000068 Contact Us For Availability
10
CLIP-MULLION (3) WCI 5303001281 Contact Us For Availability
10
GASKET-MAGNETIC WCI 5303200733 Contact Us For Availability
10
WCI 08000905 WCI 08000905 Contact Us For Availability
10
WCI 5303001235 WCI 5303001235 Contact Us For Availability
11
WCI 5303007568 WCI 5303007568 Contact Us For Availability
11
BEARING-HINGE WCI 5308012007 Contact Us For Availability
12
WCI 5308000790 WCI 5308000790 Contact Us For Availability
12
GASKET KIT WCI 5303001233 Contact Us For Availability
12
WCI 08000906 WCI 08000906 Contact Us For Availability
12
WCI 5303001276 WCI 5303001276 Contact Us For Availability
12
WCI 5308002777 WCI 5308002777 Contact Us For Availability
13
WASHER-NYLON (8) WCI 5303001216 Contact Us For Availability
13
WCI 5303001277 WCI 5303001277 Contact Us For Availability
13A
WCI 5303001280 WCI 5303001280 Contact Us For Availability
14
BUTTON-PLUG WCI 5315230801 Contact Us For Availability
14
WCI 3006453 WCI 3006453 Contact Us For Availability
14
WCI 5303001252 WCI 5303001252 Contact Us For Availability
14
DEFROST PLATE & TUBE ASSY WCI 5300188724 Contact Us For Availability
14A
PROTECTOR-CAP (4) WCI 5303207490 Contact Us For Availability
14B
WCI 08000099 WCI 08000099 Contact Us For Availability
15
END CAP-LOWER WCI 5308010239 Contact Us For Availability
15
COVER-LOWER COIL WCI 5308017223 Contact Us For Availability
15
WCI 3018782 WCI 3018782 Contact Us For Availability
15
DEFLECTOR-AIR WCI 5308000771 Contact Us For Availability
15
WCI 5303001197 WCI 5303001197 Contact Us For Availability
16
WCI 5308010229 WCI 5308010229 Contact Us For Availability
16
CLIP-GROUNDING WCI 5303001231 Contact Us For Availability
16
WIRING HARNESS-CONTROL WCI 5303015098 Contact Us For Availability
16
WCI 5308013429 WCI 5308013429 Contact Us For Availability
17
SCREW WCI 5308013645 Contact Us For Availability
17
WCI 5308010379 WCI 5308010379 Contact Us For Availability
17
WIRING HARNESS-COMPR & LIGHT SWITCHES WCI 5308009616 Contact Us For Availability
18
HANDLE-DOOR-W/TRIM & END CAPS WCI 3018744 Contact Us For Availability
18
SUPPORT-SPECIAL BARREL (6) WCI 5303001213 Contact Us For Availability
18
WCI 5316254901 WCI 5316254901 Contact Us For Availability
19
WCI 5303206715 WCI 5303206715 Contact Us For Availability
19
END CAP-UPPER WCI 5308010238 Contact Us For Availability
19
WASHER-NYLON (2) WCI 5303001038 Contact Us For Availability
19
LABEL-REFRIGERATOR SHIELD-RH WCI 08009977 Contact Us For Availability
20
SHIM-LOWER HINGE (2) WCI 5303001272 Contact Us For Availability
20
WCI 08009992 WCI 08009992 Contact Us For Availability
21
WCI 3018776 WCI 3018776 Contact Us For Availability
21
HINGE-LOWER (2) WCI 5303001271 Contact Us For Availability
21
WCI 5308009976 WCI 5308009976 Contact Us For Availability
21
COMPRESSOR W/ ELECTRICALS WCI 5308950223 Contact Us For Availability
22
WCI 3018777 WCI 3018777 Contact Us For Availability
22
SCREW (4) WCI 5303001041 Contact Us For Availability
22
WCI 08009614 WCI 08009614 Contact Us For Availability
22
CLIP-COMP (4) WCI 5308003596 Contact Us For Availability
23
WCI 3018638 WCI 3018638 Contact Us For Availability
23
WCI 5316465401 WCI 5316465401 Contact Us For Availability
23
WASHER-COMP (4) WCI 5308003633 Contact Us For Availability
23A
CLIP-LIGHT SWITCH CABLE (2) (NON-ILLUSTRATED) WCI 08009775 Contact Us For Availability
24
PANEL-REFRIGERATOR-AVOC WCI 3916063 Contact Us For Availability
25
WCI 5303007173 WCI 5303007173 Contact Us For Availability
25
SCREW WCI 5303001230 Contact Us For Availability
26
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
26
WCI 5308000091 WCI 5308000091 Contact Us For Availability
27
GRILLE-LOWER FRONT WCI 5303016726 Contact Us For Availability
28
PAN-DEFROST WCI 5308000086 Contact Us For Availability
28
CAPACITOR-RUN WCI 5303916391 Contact Us For Availability
29
WCI 5303209723 WCI 5303209723 Contact Us For Availability
30
WCI 5308000107 WCI 5308000107 Contact Us For Availability
30
ROLLER ASSY-FRONT (2) WCI 5308000118 Contact Us For Availability
31
SCREW-ROLLER MTG (2) WCI 5308017044 Contact Us For Availability
31
BRACKET, MOTOR MOUNTING, REAR WCI 5303205119 Contact Us For Availability
32
SCREW-ROLLER ADJ (2) WCI 5308009568 Contact Us For Availability
32
BRACKET-MOTOR MOUNTING-FRONT WCI 5303001226 Contact Us For Availability
33
TUBE-RUBBER (4) WCI 5303001198 Contact Us For Availability
34
NUT-STUD SPEED (2) WCI 5300077210 Contact Us For Availability
35
PIN (2) WCI 5308000266 Contact Us For Availability
36
WCI 5308000265 WCI 5308000265 Contact Us For Availability
37
NUT-PUSH (2) WCI 5303001028 Contact Us For Availability
38
CONDUCTOR-HEAT WCI 5308000853 Contact Us For Availability
39
NUT-SPECIAL TWIN (4) WCI 5303001273 Contact Us For Availability
40
PIN-SHOULDER (2) WCI 5308000013 Contact Us For Availability
41
WCI 5308000738 WCI 5308000738 Contact Us For Availability
42
SUPPORT-COIL COVER (5) WCI 5303001250 Contact Us For Availability
43
HINGE-UPPER-LH WCI 3001062 Contact Us For Availability
44
FERRULE-INNER (2) WCI 5303001286 Contact Us For Availability
45
FERRULE-OUTER (2) WCI 5303001287 Contact Us For Availability
46
SUPPORT, COIL COVER (2) WCI 5308000097 Contact Us For Availability
48
DECORATIVE PLUG WCI 08012270 Contact Us For Availability
× ![]()
