Model Electrolux FPD19TPL1 REFRIGERATOR – Common Parts & Diagrams

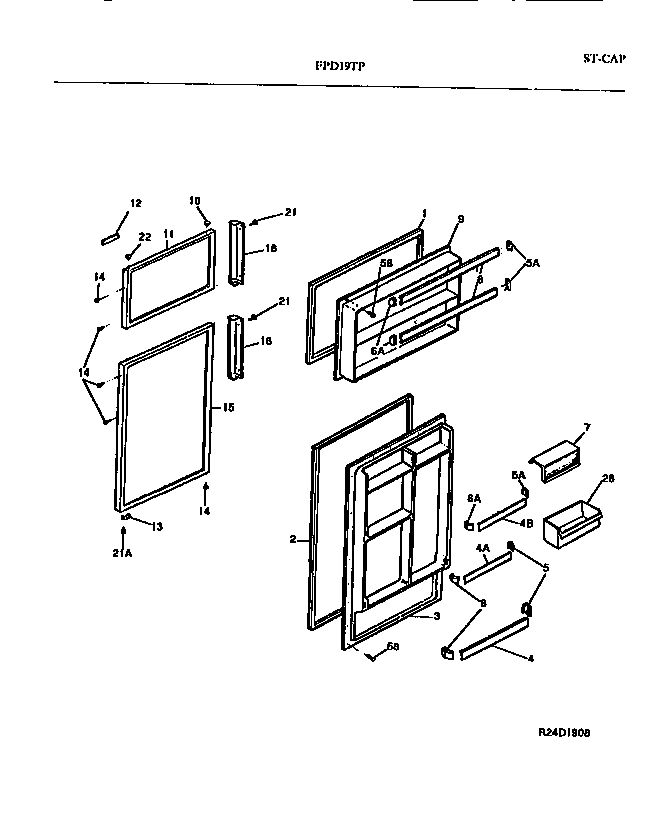

02 - DOOR

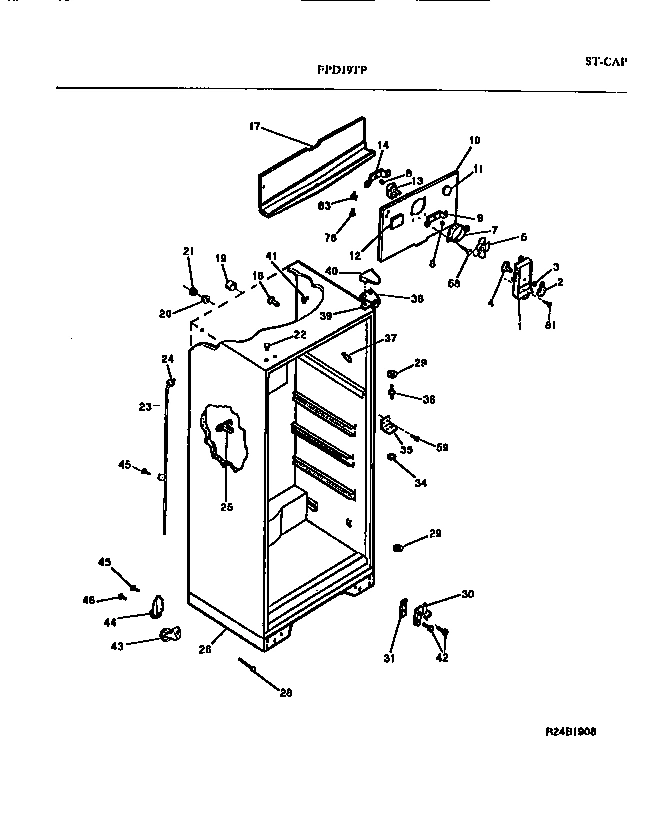

03 - CABINET W/FAN ASSEMBLY

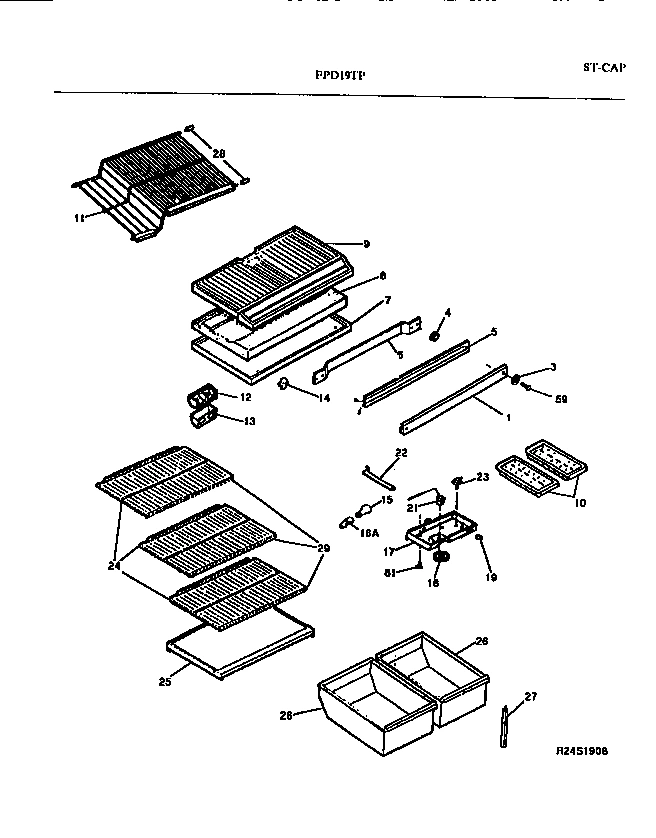

04 - SHELVES, CONTROLS, DIVIDER, MULLION

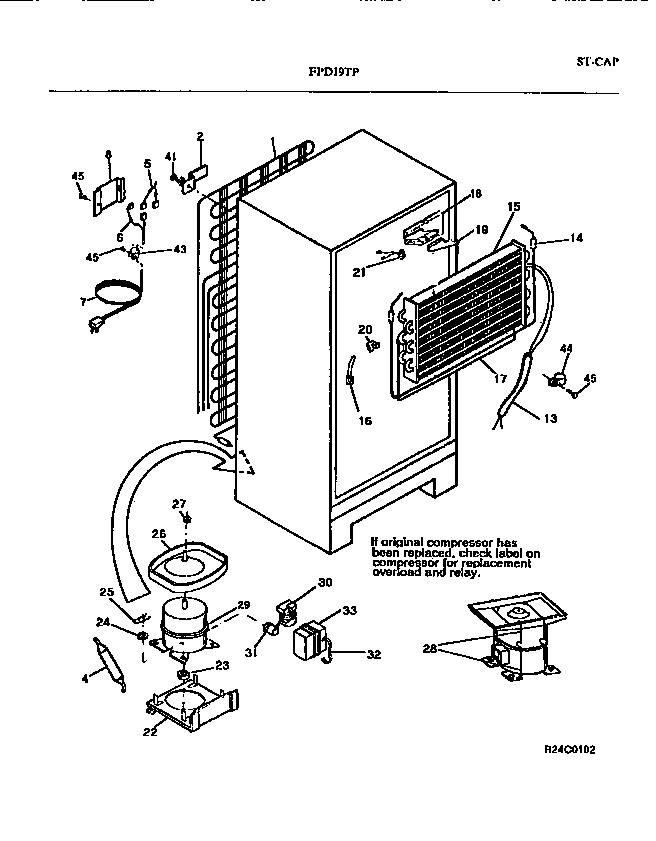

05 - COOLING SYSTEM
Common parts from model Electrolux FPD19TPL1 REFRIGERATOR
*03441
PLUG-BUTTON, LINER WCI 5308016571 Contact Us For Availability
*03442
HOT TUBE REPAIR KIT-SERVICE WCI 5300189383 Contact Us For Availability
1
WCI 5303200370 WCI 5303200370 Contact Us For Availability
1
WCI 5300163133 WCI 5300163133 Contact Us For Availability
2
WCI 5308009793 WCI 5308009793 Contact Us For Availability
2
BRACKET-CONDENSER MOUNTING WCI 5303001342 Contact Us For Availability
2A
LABEL, DAMPER KNOB (NOT ILLUSTRATED) WCI 08009823 Contact Us For Availability
2A
WASHER, EXTENSION TOOTH LOCK, NO. 10 (NOT ILL WCI 5308009617 Contact Us For Availability
3
NUT, PUSH WCI 5303001028 Contact Us For Availability
3
WCI 5303206754 WCI 5303206754 Contact Us For Availability
4
DAMPER-FAN COVER WCI 5303001331 Contact Us For Availability
4
SPACER, MULLION MOUNTING (2) WCI 5303200464 Contact Us For Availability
5
WCI 5303210351 WCI 5303210351 Contact Us For Availability
5
WCI 3018900 WCI 3018900 Contact Us For Availability
6
STRAP, MULLION MOUNTING WCI 5308010008 Contact Us For Availability
6
HARNESS, WIRING, COMPRESSOR WCI 5303001347 Contact Us For Availability
7
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
7
TOP PANEL, REFRIGERATOR WCI 3018993 Contact Us For Availability
7
CORD, ELECTRIC SERVICE WCI 5316254901 Contact Us For Availability
7A
WCI 5303001380 WCI 5303001380 Contact Us For Availability
8
WCI 5300157666 WCI 5300157666 Contact Us For Availability
8
WCI 3018994 WCI 3018994 Contact Us For Availability
8
WCI 5303001197 WCI 5303001197 Contact Us For Availability
9
BRACKET, MOTOR MOUNTING, FRONT WCI 5303205118 Contact Us For Availability
9
BOTTOM PANEL, FREEZER WCI 5303211427 Contact Us For Availability
10
WCI 01121808 WCI 01121808 Contact Us For Availability
10
PLUG, BUTTON, HINGE BEARING HOLE, ALMOND WCI 5303001308 Contact Us For Availability
10
COVER, EVAPORATOR COIL WCI 5308009771 Contact Us For Availability
10B
NUT, ``U`` TYPE, NO. 8(A), COIL COVER (2) (NO WCI 5303209814 Contact Us For Availability
11
SHELF, FREEZER, STEP WCI 08009860 Contact Us For Availability
12
WCI 5308013636 WCI 5308013636 Contact Us For Availability
12
WCI 5308014667 WCI 5308014667 Contact Us For Availability
13
WCI 5303001448 WCI 5303001448 Contact Us For Availability
13
WCI 5308000728 WCI 5308000728 Contact Us For Availability
13A
EXTENSION, AIR DEFLECTOR, WITH INSULATION (NO WCI 5303200590 Contact Us For Availability
14
BRACKET, MOTOR MOUNTING, REAR WCI 5303205119 Contact Us For Availability
15
WCI 5303271578 WCI 5303271578 Contact Us For Availability
17
INSULATOR, EVAPORATOR, PLASTIC WCI 5316651102 Contact Us For Availability
17
WCI 5303001470 WCI 5303001470 Contact Us For Availability
17
BOX, CONTROL WCI 3018895 Contact Us For Availability
18
SUPPORT, EVAPORATOR COVER (2) WCI 5308000097 Contact Us For Availability
18
KNOB, TEMPERATURE CONTROL WCI 3018893 Contact Us For Availability
18
INSULATION BLOCK, RIGHT HAND WCI 5308013648 Contact Us For Availability
19
TUBE-RUBBER WCI 5303001198 Contact Us For Availability
19
SWITCH, ENERGY SAVER WCI 5303018896 Contact Us For Availability
19
INSULATION PLUG, RIGHT HAND WCI 5303007287 Contact Us For Availability
20
WCI 5303001286 WCI 5303001286 Contact Us For Availability
20
INSULATION BLOCK, LEFT HAND WCI 5308017227 Contact Us For Availability
21
WCI 5303001287 WCI 5303001287 Contact Us For Availability
21
WCI 5303018894 WCI 5303018894 Contact Us For Availability
21A
WCI 5303001260 WCI 5303001260 Contact Us For Availability
22
PLUG, BUTTON, UPPER HINGE HOLE, ALMOND WCI 5303001389 Contact Us For Availability
22
HOUSING - CONTROL CAP TUBE WCI 3018891 Contact Us For Availability
22
PLATE, COMPRESSOR MOUNTING WCI 5308013663 Contact Us For Availability
23
TUBE, DRAIN WITH SEAL RING WCI 5303210377 Contact Us For Availability
24
WCI 5303207353 WCI 5303207353 Contact Us For Availability
24
SHELF, SLIDING, REFRIGERATOR (3) WCI 3200471 Contact Us For Availability
24
WASHER, COMPRESSOR MOUNTING WCI 5308003633 Contact Us For Availability
25
WCI 5308000056 WCI 5308000056 Contact Us For Availability
25
COVER, CRISPER PAN WCI 3200470 Contact Us For Availability
25
CLIP, COMPRESSOR MOUNTING WCI 5308003596 Contact Us For Availability
25A
PIN, PUSH, DRAIN SPOUT (2) (NOT ILLUSTRATED) WCI 5303001361 Contact Us For Availability
26
WCI 5303212487 WCI 5303212487 Contact Us For Availability
26
PAN, CRISPER, RIGHT HAND WCI 3200468 Contact Us For Availability
26
PAN, DEFROST DRAIN, ORIGINAL/SERVICE COMPRESS WCI 5300184715 Contact Us For Availability
26A
PAN, CRISPER, LEFT HAND WCI 3200469 Contact Us For Availability
27
SUPPORT, CRISPER COVER, ADJUSTABLE WCI 5303206508 Contact Us For Availability
27
NUT, LOCK, 1/4-20, DRAIN PAN MOUNTING WCI 5303001348 Contact Us For Availability
28
WCI 3201150 No Longer Available
28
PAN RETAINER KIT, SERVICE WCI 5303916001 Contact Us For Availability
28
BOLT, ROLLER ADJUSTING, INDT HEX HEAD SEMS, 1 WCI 5303271412 Contact Us For Availability
29
WASHER, .34 X .62 X .05, NYLON WCI 5308000007 Contact Us For Availability
29
TRIM, REFRIGERATOR SHELF, SNAP-ON, FRONT (3) WCI 08013639 Contact Us For Availability
29
COMPRESSOR WITH ELECTRIC SERVICE WCI 5303916004 Contact Us For Availability
29A
CAPACITOR, RUN (NOT ILLUSTRATED) WCI 5303916391 Contact Us For Availability
30
WCI 5303007173 WCI 5303007173 Contact Us For Availability
30
BRACKET, LOWER HINGE, WITH HINGE PIN WCI 5303212489 Contact Us For Availability
30A
TAPPING PLATE/GUSSET, LEFT HAND (NOT ILLUSTRA WCI 5303212596 Contact Us For Availability
30B
TAPPING PLATE/GUSSET, RIGHT HAND (NOT ILLUSTR WCI 5303212597 Contact Us For Availability
31
WCI 5303276514 WCI 5303276514 Contact Us For Availability
31
WCI 5303212488 WCI 5303212488 Contact Us For Availability
34
WCI 5308000186 No Longer Available
35
WCI 5303001369 WCI 5303001369 Contact Us For Availability
36
WCI 5308000184 WCI 5308000184 Contact Us For Availability
37
WCI 5303202340 WCI 5303202340 Contact Us For Availability
38
BRACKET-UPPER HINGE WCI 5308012843 Contact Us For Availability
38B
TAPPING PLATE, UPPER HINGE (2) (NOT ILLUSTRAT WCI 5308012296 Contact Us For Availability
39
SHIM - UPPER HINGE WCI 5303001037 Contact Us For Availability
40
COVER-UPPER HINGE, ALMOND WCI 5308012933 Contact Us For Availability
43
ROLLER ASSEMBLY, FRONT (2) WCI 5303212490 Contact Us For Availability
44
ROLLER ASSEMBLY, REAR (2) WCI 5308009773 Contact Us For Availability
46
BOLT, ROLLER MOUNTING, WCI 5308009762 Contact Us For Availability
59
WCI 5308012258 WCI 5308012258 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
× ![]()
