Model Electrolux FPD19TFF0 REFRIGERATOR – Common Parts & Diagrams

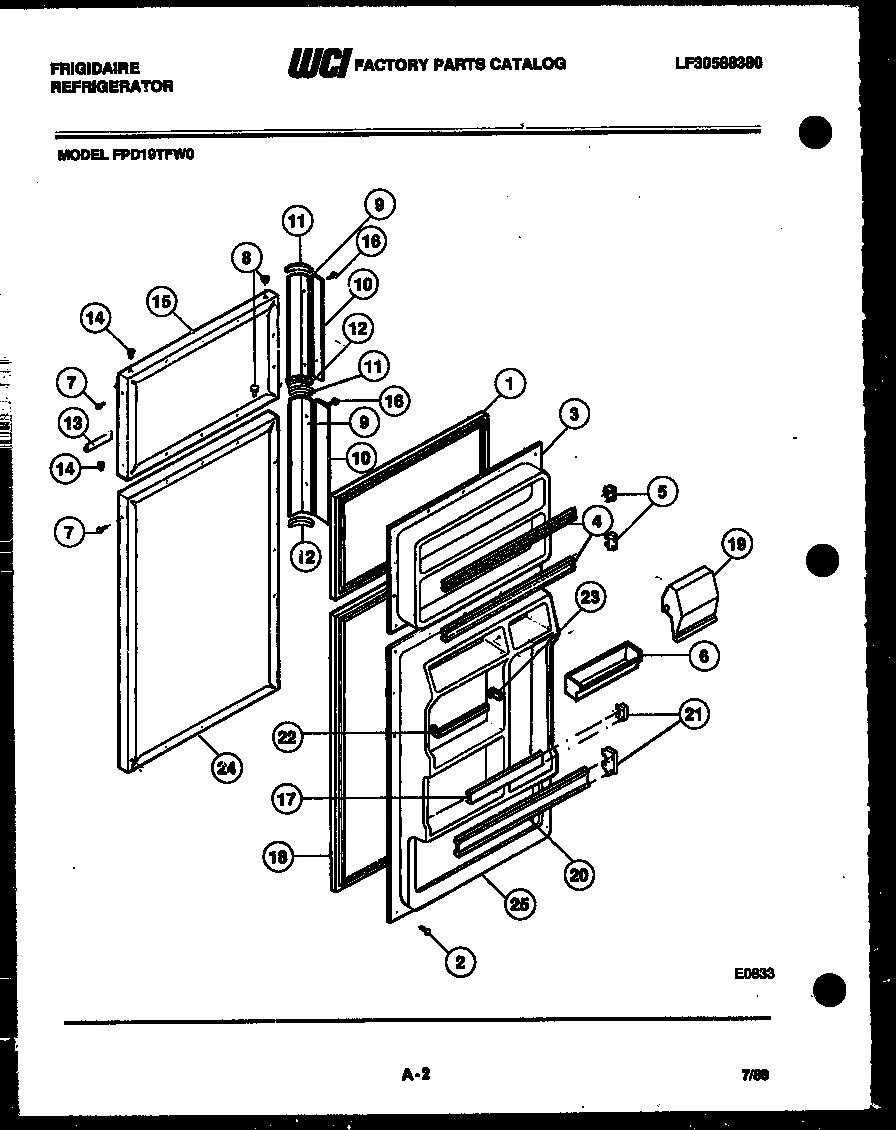

02 - DOOR PARTS

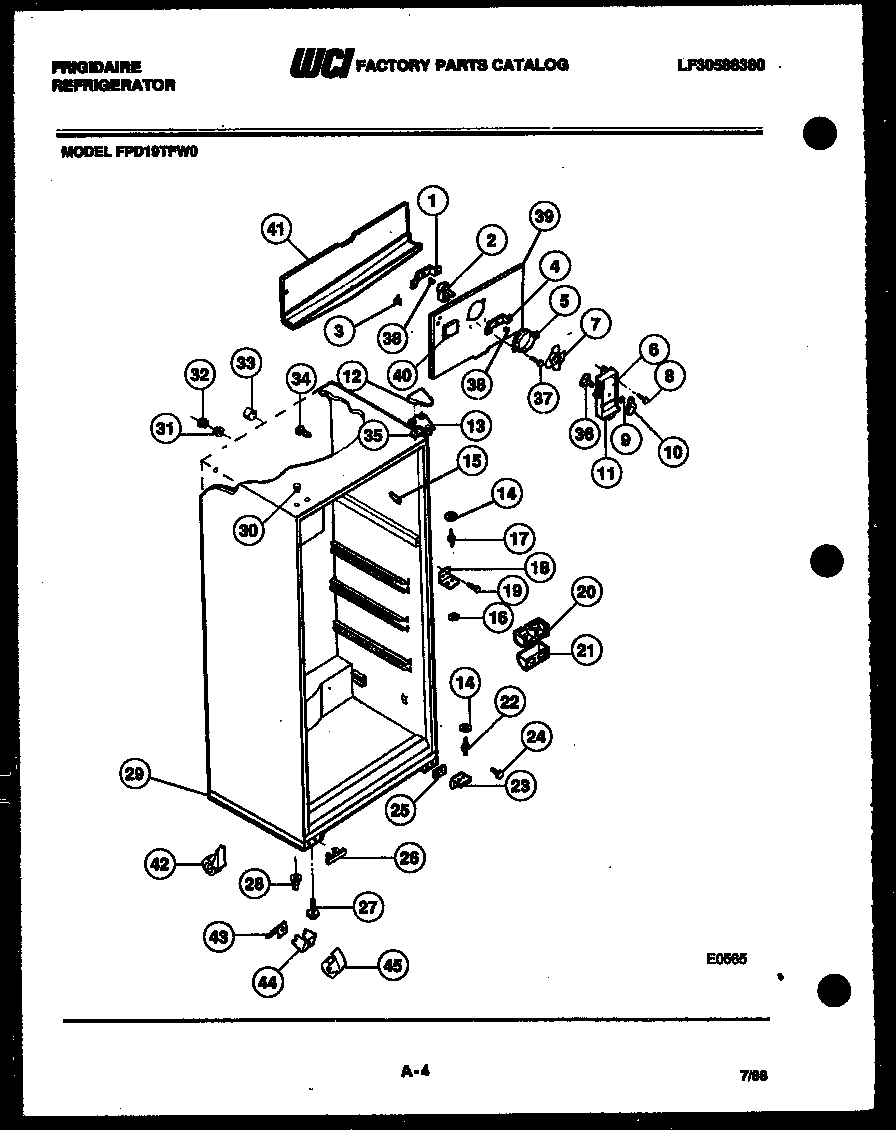

03 - CABINET PARTS

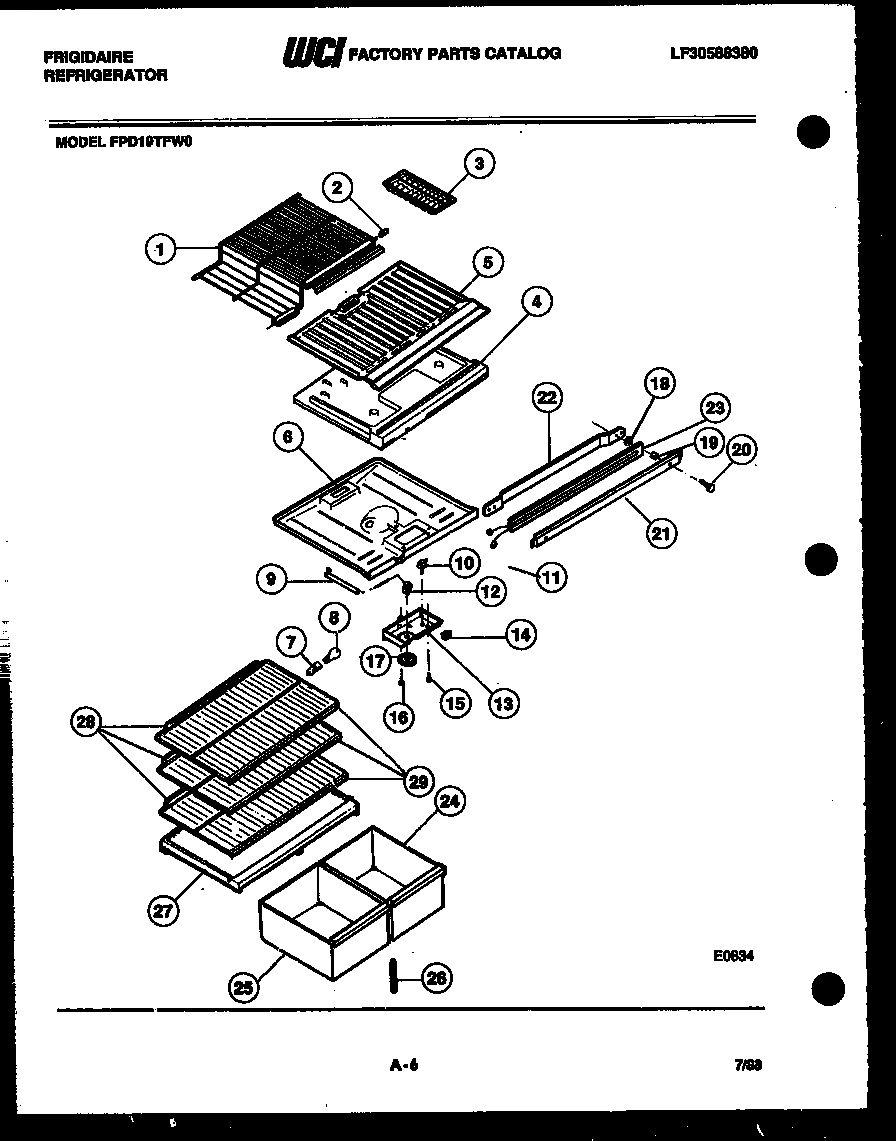

04 - SHELVES AND SUPPORTS

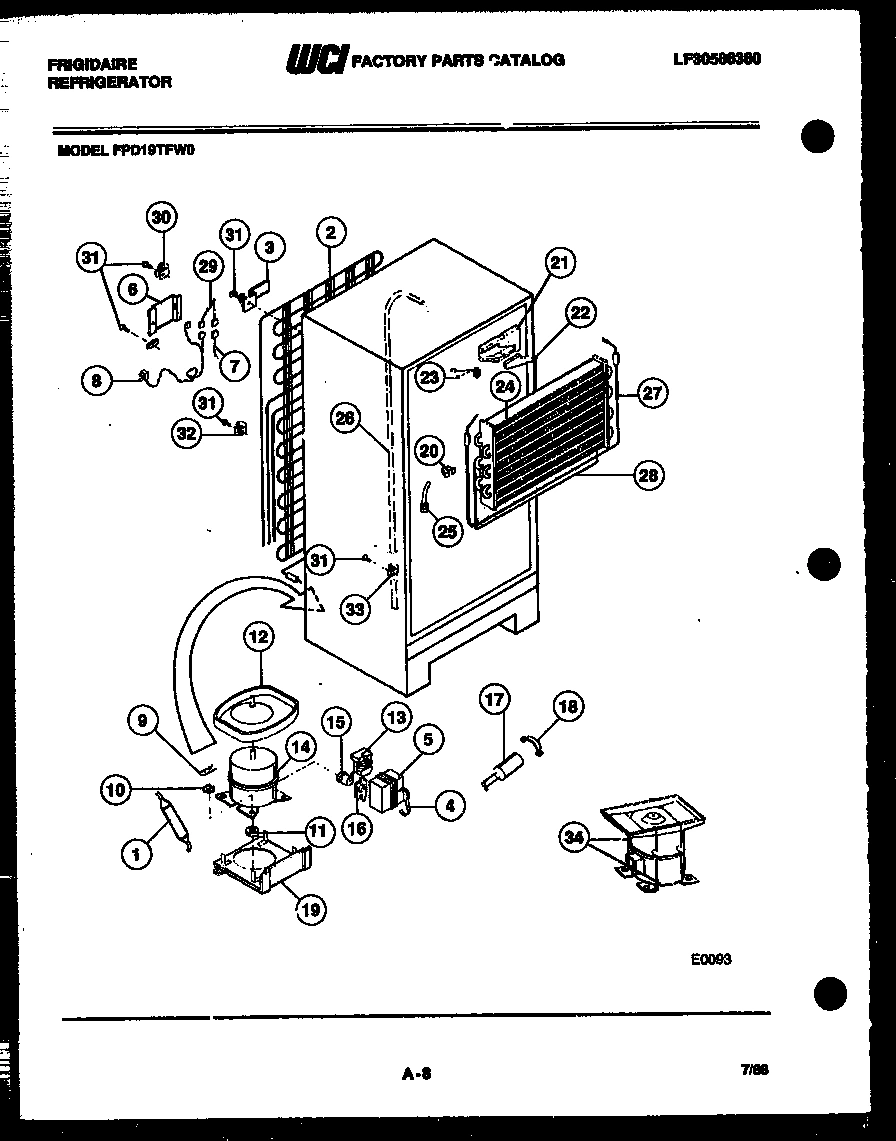

05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux FPD19TFF0 REFRIGERATOR
*18043
INSULATION-BULK WCI 3007739 Contact Us For Availability
*18049
BOLT-ROLLER (2) WCI 8009761 Contact Us For Availability
*18054
SOUND TAPE WCI 8017610 Contact Us For Availability
*18054
WCI 9960001 WCI 9960001 Contact Us For Availability
1
WCI 3017189 WCI 3017189 Contact Us For Availability
1
BRACKET-MOTOR REAR WCI 8000042 Contact Us For Availability
1
SHELF-FREEZER WCI 8009860 Contact Us For Availability
2
WCI 8000036 WCI 8000036 Contact Us For Availability
2
WCI 8013638 WCI 8013638 Contact Us For Availability
2
WCI 8008779 WCI 8008779 Contact Us For Availability
3
WCI 3018971 WCI 3018971 Contact Us For Availability
3
BRACKET-CONNECTOR WCI 8000107 Contact Us For Availability
3
TRAY, ICE (2) WCI 1121808 Contact Us For Availability
3
BRACKET-MOUNTING (4) WCI 8003600 Contact Us For Availability
3A
SCREW MOUNTING (NON-ILLUSTRATED) WCI 8002748 Contact Us For Availability
4
WCI 3018972 WCI 3018972 Contact Us For Availability
4
BRACKET-MOTOR FRONT WCI 8000043 Contact Us For Availability
4
WCI 3018994 WCI 3018994 Contact Us For Availability
4
WCI 8000117 WCI 8000117 Contact Us For Availability
5
RING, ORIFICE WCI 8000124 Contact Us For Availability
5
BOTTOM-FREEZER WCI 8015543 Contact Us For Availability
5
WCI 8006982 WCI 8006982 Contact Us For Availability
6
WCI 3200466 WCI 3200466 Contact Us For Availability
6
LABEL-FAN COVER WCI 8009822 Contact Us For Availability
6
TOP - REFRIGERATOR WCI 3018993 Contact Us For Availability
6
WCI 8013644 WCI 8013644 Contact Us For Availability
7
BUTTON-PLUG COFFEE WCI 8000178 Contact Us For Availability
7
WCI 8000010 WCI 8000010 Contact Us For Availability
7
WCI 8000815 WCI 8000815 Contact Us For Availability
7
WCI 8009628 WCI 8009628 Contact Us For Availability
8
BUTTON-PLUG COFFEE WCI 8000174 Contact Us For Availability
8
SCREW-COVER (3) WCI 8016566 Contact Us For Availability
8
BULB-LIGHT WCI 8002735 Contact Us For Availability
8
WCI 8000064 WCI 8000064 Contact Us For Availability
9
HANDLE-COMPLETE (2) WCI 3017190 Contact Us For Availability
9
WCI 8000067 WCI 8000067 Contact Us For Availability
9
HOUSING - CONTROL CAP TUBE WCI 3018891 Contact Us For Availability
9
CLIP (4) WCI 8003596 Contact Us For Availability
10
TRIM (2) WCI 8010232 Contact Us For Availability
10
WCI 8009793 WCI 8009793 Contact Us For Availability
10
WASHER (4) WCI 8003597 Contact Us For Availability
11
CAP-TOP (2) WCI 8010239 Contact Us For Availability
11
WCI 8009817 WCI 8009817 Contact Us For Availability
11
SWITCH, LIGHT WCI 8000069 Contact Us For Availability
11
WCI 8008778 WCI 8008778 Contact Us For Availability
12
CAP-BOTTOM (2) WCI 8010238 Contact Us For Availability
12
COVER, HINGE, COFFEE WCI 8012932 Contact Us For Availability
12
WCI 3018894 WCI 3018894 Contact Us For Availability
12
WCI 8012951 WCI 8012951 Contact Us For Availability
12A
LOCK NUT (NON-ILLUSTRATED) WCI 8003611 Contact Us For Availability
13
WCI 3018385 WCI 3018385 Contact Us For Availability
13
BRACKET-TOP HINGE WCI 8012843 Contact Us For Availability
13
BOX, CONTROL WCI 3018895 Contact Us For Availability
13
WCI 8017226 WCI 8017226 Contact Us For Availability
13A
SCREW-MOUNTING (NON-ILLUSTRATED) WCI 8000123 Contact Us For Availability
13B
PLATE-TAPPING (2) (NON-ILLUSTRATED) WCI 8012296 Contact Us For Availability
14
BEARING (8) WCI 8012007 Contact Us For Availability
14
WASHER-NYLON (3) WCI 8000007 Contact Us For Availability
14
WCI 3018896 WCI 3018896 Contact Us For Availability
14
WCI 8950233 WCI 8950233 Contact Us For Availability
15
WCI 8010022 WCI 8010022 Contact Us For Availability
15
TRIM-CORNER-COFFEE WCI 8010017 Contact Us For Availability
15
SCREW WCI 8000009 Contact Us For Availability
15
WCI 8017572 WCI 8017572 Contact Us For Availability
16
SCREW (4) WCI 8013645 Contact Us For Availability
16
WCI 8000100 WCI 8000100 Contact Us For Availability
16
SCREW WCI 8000008 Contact Us For Availability
16
CLIP-OVERLOAD WCI 8017232 Contact Us For Availability
17
WCI 8000184 WCI 8000184 Contact Us For Availability
17
WCI 3018893 WCI 3018893 Contact Us For Availability
17
WCI 8017230 WCI 8017230 Contact Us For Availability
18
WCI 3018238 WCI 3018238 Contact Us For Availability
18
WCI 8000757 WCI 8000757 Contact Us For Availability
18
WCI 8010007 WCI 8010007 Contact Us For Availability
18
WCI 8017231 WCI 8017231 Contact Us For Availability
19
WCI 3200467 WCI 3200467 Contact Us For Availability
19
WASHER-STEEL (4) WCI 8003607 Contact Us For Availability
19
WCI 8013663 WCI 8013663 Contact Us For Availability
20
SCREW-MULLION (4) WCI 8012258 Contact Us For Availability
20
WCI 8000071 WCI 8000071 Contact Us For Availability
20
WCI 8017227 WCI 8017227 Contact Us For Availability
21
COVER-AIR DEFLECTOR WCI 8000055 Contact Us For Availability
21
WCI 8010028 WCI 8010028 Contact Us For Availability
21
WCI 8013648 WCI 8013648 Contact Us For Availability
22
RACK-REFR DOOR WCI 3018423 Contact Us For Availability
22
PIN-BOTTOM BRACKET WCI 8003578 Contact Us For Availability
22
STRAP-MULLION MTG WCI 8010008 Contact Us For Availability
22
WCI 8013646 WCI 8013646 Contact Us For Availability
23
BRACKET-BOTTOM HINGE WCI 8017609 Contact Us For Availability
23
WCI 3018916 WCI 3018916 Contact Us For Availability
23
WCI 8000073 WCI 8000073 Contact Us For Availability
24
WCI 3916035 WCI 3916035 Contact Us For Availability
24
SCREW-MOUNTING (2) WCI 8010252 Contact Us For Availability
24
WCI 3200468 WCI 3200468 Contact Us For Availability
24
EVAPORATOR WCI 8000062 Contact Us For Availability
25
WCI 3018976 WCI 3018976 Contact Us For Availability
25
SHIM-BOTTOM BRACKET WCI 8000755 Contact Us For Availability
25
PAN-CRISPER LH WCI 3200469 Contact Us For Availability
25
STRAP-EVAPORATOR (2) WCI 8000110 Contact Us For Availability
26
PLUG BUTTON WCI 8003585 Contact Us For Availability
26
SUPPORT-CRISPER COVER WCI 3018874 Contact Us For Availability
26
WCI 8000728 WCI 8000728 Contact Us For Availability
27
SCREW-LEVELING (2) WCI 8003583 Contact Us For Availability
27
WCI 3200470 WCI 3200470 Contact Us For Availability
27
WCI 8000061 WCI 8000061 Contact Us For Availability
27A
ANCHOR NUT (2) (NON-ILLUSTRATED) WCI 8003584 Contact Us For Availability
28
TUBE, DRAIN WCI 8010012 Contact Us For Availability
28
WCI 3200471 WCI 3200471 Contact Us For Availability
28
INSULATOR WCI 8009569 Contact Us For Availability
28A
SPOUT-DRAIN (NON-ILLUSTRATED) WCI 8000056 Contact Us For Availability
28B
RING SEAL (NON-ILLUSTRATED) WCI 8009755 Contact Us For Availability
29
BASE-CABINET WCI 8010092 Contact Us For Availability
29
WCI 8013639 WCI 8013639 Contact Us For Availability
29
WIRING HARNESS, DIVIDER WCI 3018900 Contact Us For Availability
30
PLUG BUTTON-COFFEE WCI 8007128 Contact Us For Availability
30
CLAMP-CABLE WCI 8000187 Contact Us For Availability
31
WCI 8006970 WCI 8006970 Contact Us For Availability
31
SCREW-CLAMP MTG WCI 8016629 Contact Us For Availability
32
WCI 8006971 WCI 8006971 Contact Us For Availability
32
CLAMP-CABLE (3) WCI 8002756 Contact Us For Availability
33
TUBE-RUBBER (2) WCI 8000004 Contact Us For Availability
33
WCI 8000133 WCI 8000133 Contact Us For Availability
34
WCI 8000097 WCI 8000097 Contact Us For Availability
34
WCI 8950024 WCI 8950024 Contact Us For Availability
35
SHIM-TOP BRACKET WCI 8012829 Contact Us For Availability
36
WCI 8000066 WCI 8000066 Contact Us For Availability
37
SCREW-MOUNTING WCI 8000015 Contact Us For Availability
38
BUSHING-MOTOR (2) WCI 8000032 Contact Us For Availability
39
COVER-COIL WCI 8009771 Contact Us For Availability
40
PLUG-DECORATIVE WCI 8013636 Contact Us For Availability
41
TROUGH, DRAIN WCI 8009772 Contact Us For Availability
41A
PLUG-ICE MAKER (NON-ILLUSTRATED) WCI 8016571 Contact Us For Availability
42
ROLLER, REAR (2) WCI 8009773 Contact Us For Availability
42A
BOLT-ROLLER (2) (NON-ILLUSTRATED) WCI 8009762 Contact Us For Availability
43
SPRING-ADJ ROLLER (2) WCI 8009790 Contact Us For Availability
44
SUPPORT-BASE CAB (2) WCI 8013678 Contact Us For Availability
45
ROLLER-ADJ FRONT (2) WCI 8009760 Contact Us For Availability
× ![]()
