Model Electrolux FPD18TLF0 REFRIGERATOR – Common Parts & Diagrams

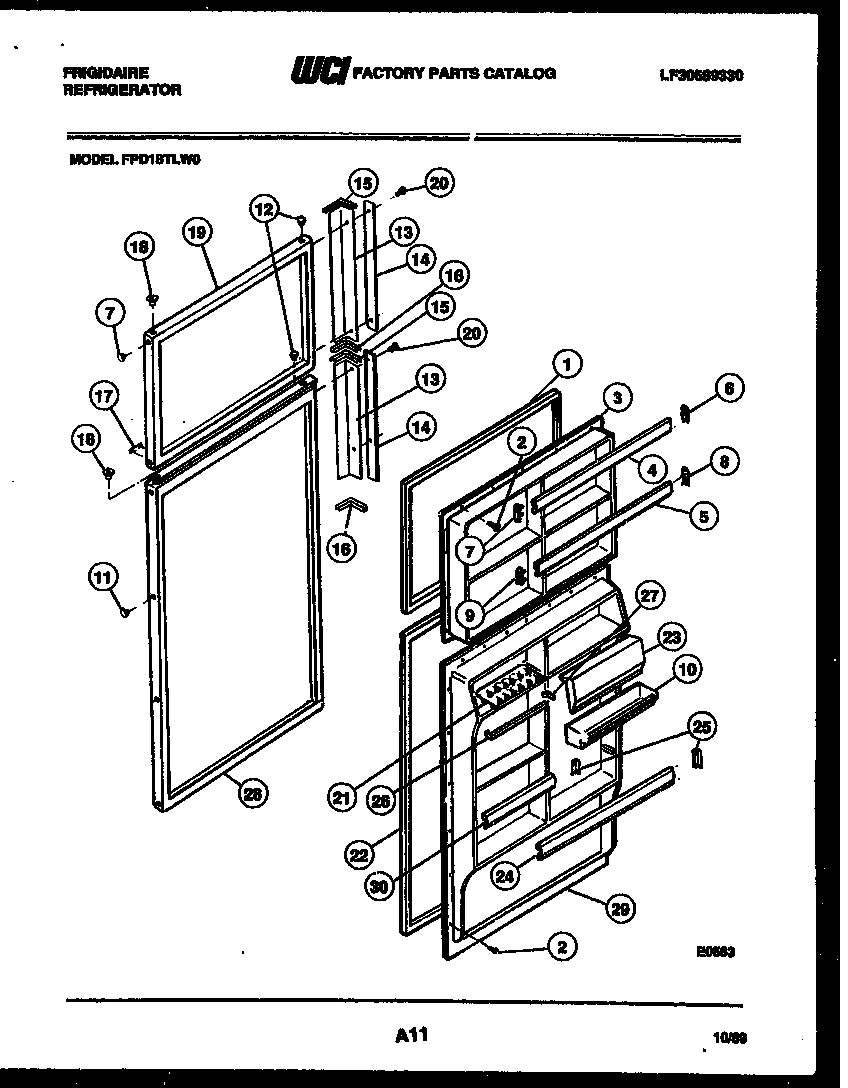

02 - DOOR PARTS

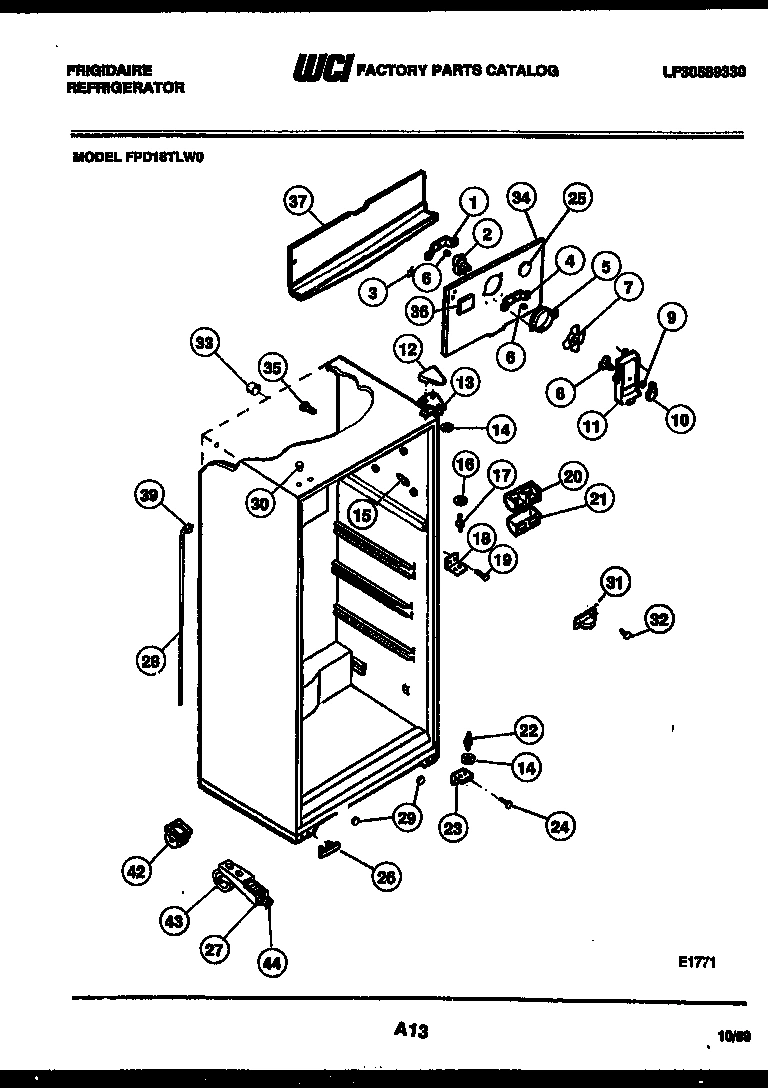

03 - CABINET PARTS

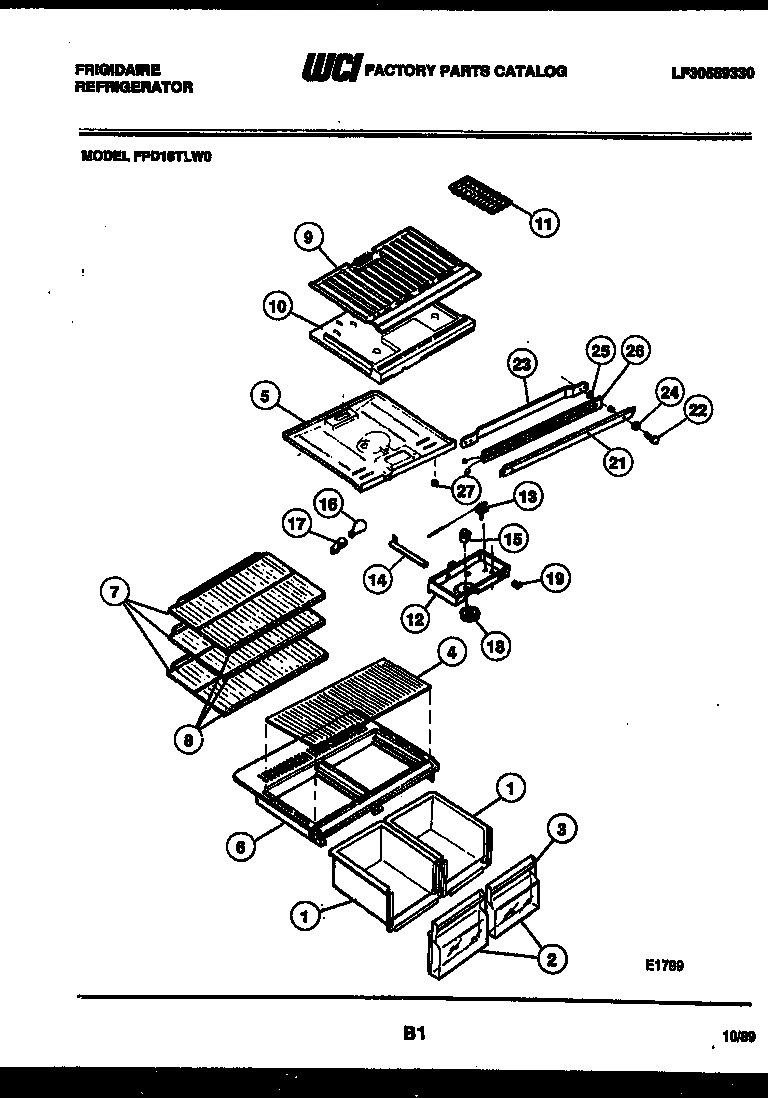

04 - SHELVES AND SUPPORTS

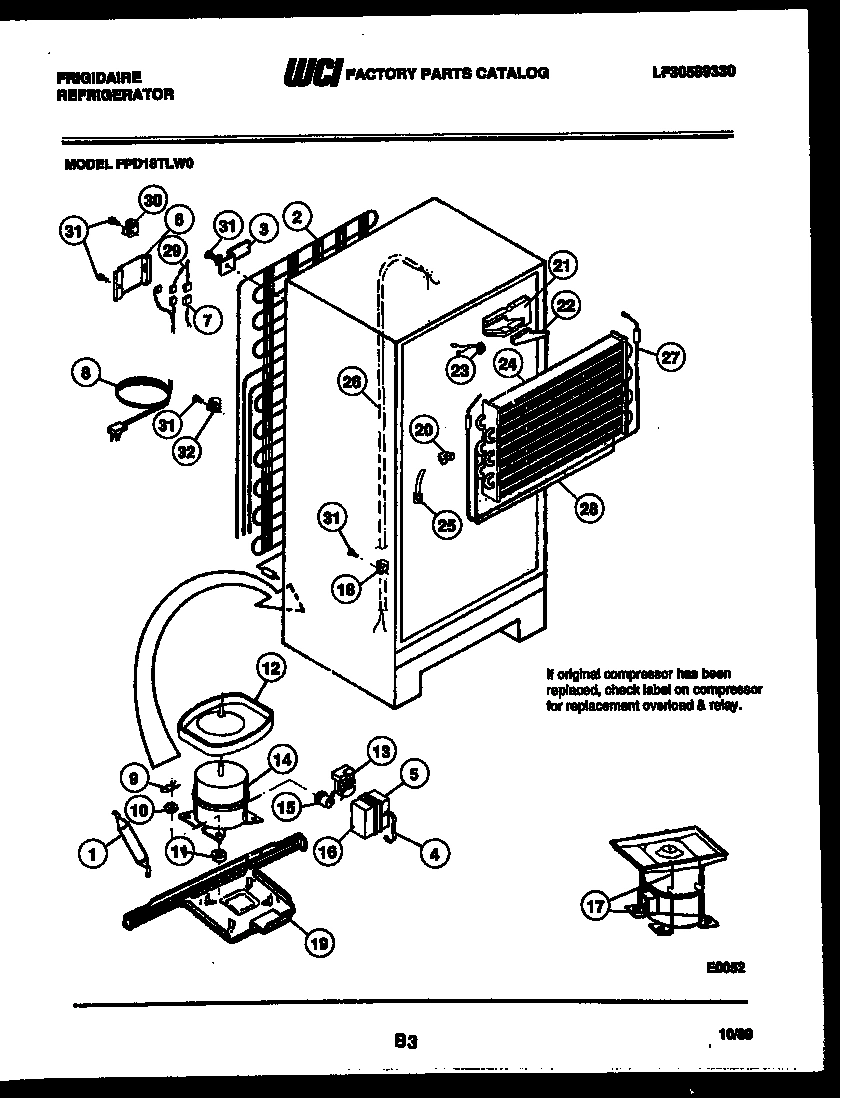

05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux FPD18TLF0 REFRIGERATOR
*26888
PLUG-FREEZER LINER (3) WCI G187599 Contact Us For Availability
*26891
END CAP (2) WCI 3201150 No Longer Available
*26891
WCI 3206435 WCI 3206435 Contact Us For Availability
*26894
HOT TUBE REPAIR KIT WCI 3916557 Contact Us For Availability
1
WCI G185303 WCI G185303 Contact Us For Availability
2
WCI 3206439 WCI 3206439 Contact Us For Availability
2
CONDENSER WCI 08008779 Contact Us For Availability
2A
WCI 3206441 WCI 3206441 Contact Us For Availability
3
CONNECTOR BRACKET WCI G164571 Contact Us For Availability
3
WCI 3206440 WCI 3206440 Contact Us For Availability
3
BRACKET-MTG (4) WCI 08003600 Contact Us For Availability
4
WCI 3206464 WCI 3206464 Contact Us For Availability
4
WCI G185302 WCI G185302 Contact Us For Availability
4
WCI 3206442 WCI 3206442 Contact Us For Availability
5
WCI G167217 WCI G167217 Contact Us For Availability
5
TOP-REFRIGERATOR WCI 3206454 Contact Us For Availability
5A
WCI 08000070 WCI 08000070 Contact Us For Availability
6
WCI 3206443 WCI 3206443 Contact Us For Availability
6
WCI 08013644 WCI 08013644 Contact Us For Availability
7
WCI 3206437 WCI 3206437 Contact Us For Availability
7
WIRING HARNESS-COMPRESSOR WCI 3206113 Contact Us For Availability
8
WCI 3205650 WCI 3205650 Contact Us For Availability
8
DAMPER WCI 3206110 Contact Us For Availability
8
WCI 3206436 WCI 3206436 Contact Us For Availability
8
WCI 08000064 WCI 08000064 Contact Us For Availability
9
WCI 3205648 WCI 3205648 Contact Us For Availability
9
PUSH NUT-DAMPER WCI G162662 Contact Us For Availability
9
BOTTOM-FREEZER WCI 3206455 Contact Us For Availability
9
CLIP (4) WCI 08003596 Contact Us For Availability
10
WCI 08009837 WCI 08009837 Contact Us For Availability
10
WCI 3206388 WCI 3206388 Contact Us For Availability
10
DIVIDER-STYRO WCI 3206456 Contact Us For Availability
10
WCI 08003597 WCI 08003597 Contact Us For Availability
11
WCI 01121808 WCI 01121808 Contact Us For Availability
11
WCI 08000178 WCI 08000178 Contact Us For Availability
11
WCI 3206387 WCI 3206387 Contact Us For Availability
12
WCI 08000174 WCI 08000174 Contact Us For Availability
12
WCI 3206104 WCI 3206104 Contact Us For Availability
12
WCI 3206390 WCI 3206390 Contact Us For Availability
12
DEFROST PAN WCI 08012951 Contact Us For Availability
12B
LOCK NUT (NON-ILLUSTRATED) WCI 08003611 Contact Us For Availability
13
HANDLE-COMPLETE (2) WCI 3017190 Contact Us For Availability
13
HINGE, TOP WCI 3206100 Contact Us For Availability
13
CONTROL-TEMPERATURE WCI 3018894 Contact Us For Availability
14
WCI G103903 No Longer Available
14
TRIM (2) WCI 08010232 Contact Us For Availability
14
HOUSING, CAP TUBE WCI 3018891 Contact Us For Availability
14
WCI 3916411 WCI 3916411 Contact Us For Availability
15
CAP-TOP (2) WCI 08010239 Contact Us For Availability
15
WCI 3202339 WCI 3202339 Contact Us For Availability
16
CAP-BOTTOM (2) WCI 08010238 Contact Us For Availability
16
WASHER-HINGE WCI 08000186 Contact Us For Availability
17
NAMEPLATE WCI 3201526 Contact Us For Availability
17
WCI G142220 WCI G142220 Contact Us For Availability
17
PAN RETAINER KIT (SVC COMP) WCI 3916001 Contact Us For Availability
18
BEARING (8) WCI 3206153 Contact Us For Availability
18
WCI G163207 WCI G163207 Contact Us For Availability
18
WCI 3206391 WCI 3206391 Contact Us For Availability
19
WCI 3916609 WCI 3916609 Contact Us For Availability
19
SWITCH-ENERGY SAVER WCI 3206389 Contact Us For Availability
19
PLATE-COMPR MTG WCI 3206126 Contact Us For Availability
20
SCREW (4) WCI 08013645 Contact Us For Availability
20
WCI 3204206 WCI 3204206 Contact Us For Availability
20
WCI 08017227 WCI 08017227 Contact Us For Availability
21
WCI G162178 WCI G162178 Contact Us For Availability
21
WCI 3206449 WCI 3206449 Contact Us For Availability
21
WCI 08013648 WCI 08013648 Contact Us For Availability
22
SCREW (4) WCI 3206134 Contact Us For Availability
22
WCI 08013646 WCI 08013646 Contact Us For Availability
23
DOOR-DAIRY WCI 3018974 Contact Us For Availability
23
BRACKET-BOTTOM HINGE WCI 3206136 Contact Us For Availability
23
STRAP-MULLION WCI 5303206752 Contact Us For Availability
24
WCI 08003607 WCI 08003607 Contact Us For Availability
24
EVAPORATOR WCI 3206452 Contact Us For Availability
25
WCI 3203044 WCI 3203044 Contact Us For Availability
25
SPACER-MULLION (2) WCI 5303206753 Contact Us For Availability
26
WCI 3206470 WCI 3206470 Contact Us For Availability
26
COVER-HINGE SCREW WCI 3206135 Contact Us For Availability
26
WCI 3206445 WCI 3206445 Contact Us For Availability
26
WCI 08010274 WCI 08010274 Contact Us For Availability
27
WASHER-NYLON (2) WCI 08011326 Contact Us For Availability
28
WCI 3916614 WCI 3916614 Contact Us For Availability
28
WCI 3206115 WCI 3206115 Contact Us For Availability
28
INSULATOR WCI 08009569 Contact Us For Availability
29
WCI 3206467 WCI 3206467 Contact Us For Availability
29
PLUG-CABINET WCI 3206142 Contact Us For Availability
29
WIRING HARNESS, DIVIDER WCI 3018900 Contact Us For Availability
30
WCI G174747-10 WCI G174747-10 Contact Us For Availability
31
WCI 08000056 WCI 08000056 Contact Us For Availability
32
PUSH PIN-DRAIN SPOUT WCI 3001361 Contact Us For Availability
33
TUBE, RUBBER WCI G85642 Contact Us For Availability
34
COVER-EVAPORATOR COIL WCI 3206451 Contact Us For Availability
34A
NUT-U TYPE (2) (NON-ILLUSTRATED) WCI G167542 Contact Us For Availability
35
SUPPORT, COVER (2) WCI G163669 Contact Us For Availability
36
WCI 08000082 WCI 08000082 Contact Us For Availability
37
WCI 3206444 WCI 3206444 Contact Us For Availability
38
WCI G183861 WCI G183861 Contact Us For Availability
39
RING, SEAL WCI G176853 Contact Us For Availability
39A
NUT-COIL COVER (2) (NON-ILLUSTRATED) WCI 08000126 Contact Us For Availability
42
WCI 3206237 WCI 3206237 Contact Us For Availability
43
WCI G188673 WCI G188673 Contact Us For Availability
43B
ROLLER (2) (NON-ILLUSTRATED) WCI 08009760 Contact Us For Availability
43C
SPRING-ADJ (2) (NON-ILLUSTRATED) WCI 08009790 Contact Us For Availability
44
BOLT-ADJ (2) WCI 08009764 Contact Us For Availability
× ![]()
