Model Electrolux FPD18TFW0 REFRIGERATOR – Common Parts & Diagrams

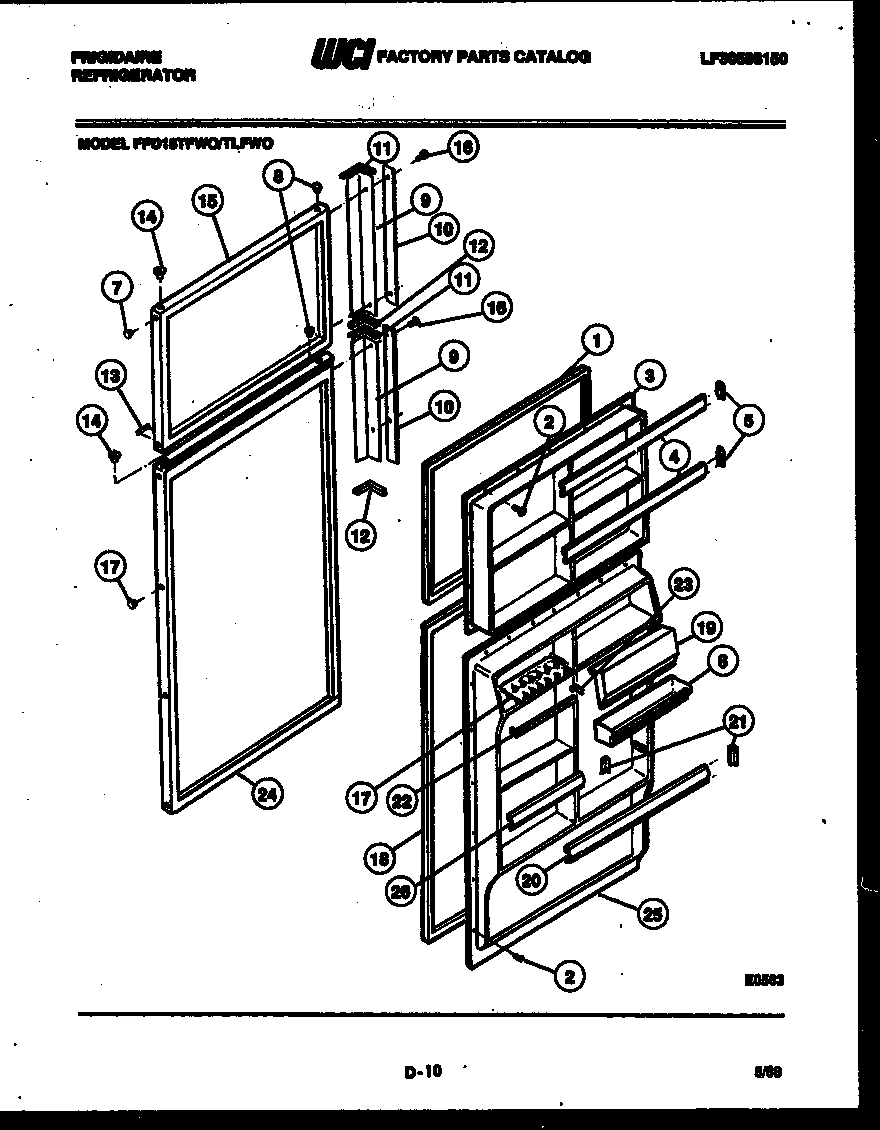

02 - DOOR PARTS

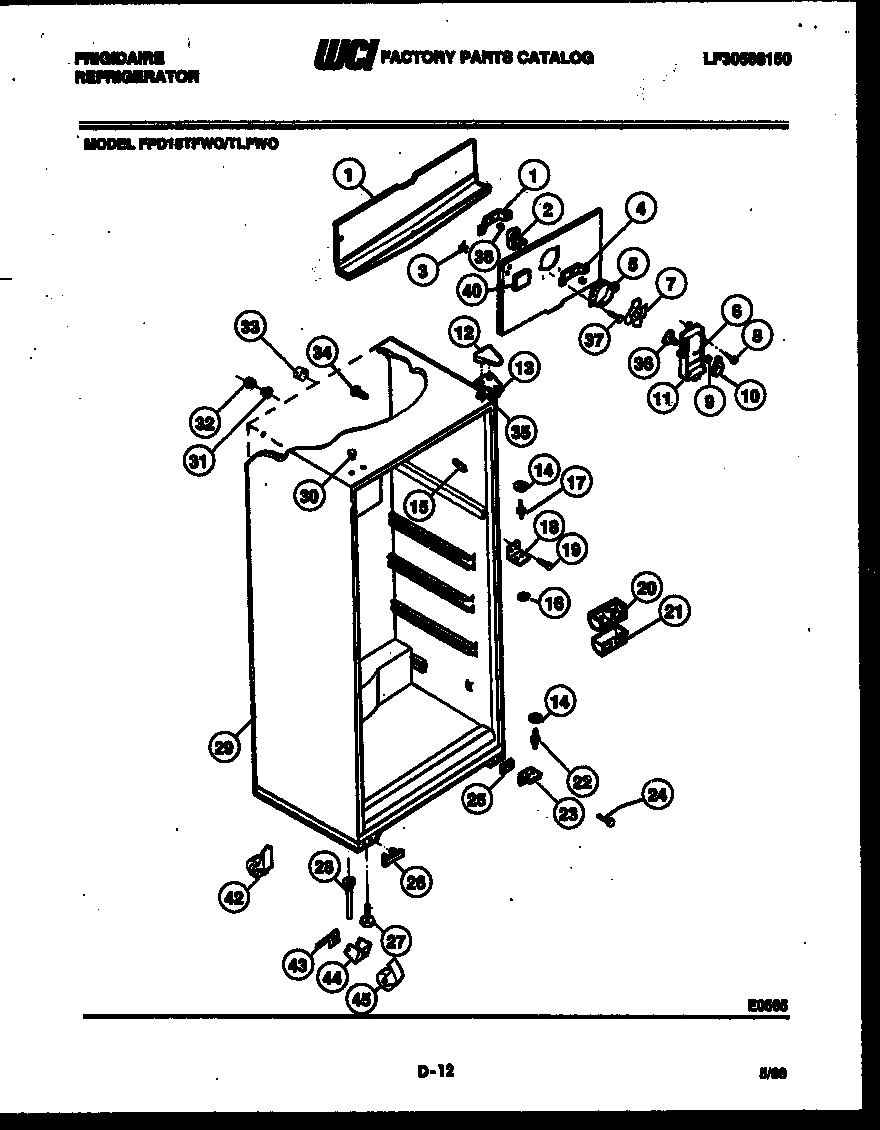

03 - CABINET PARTS

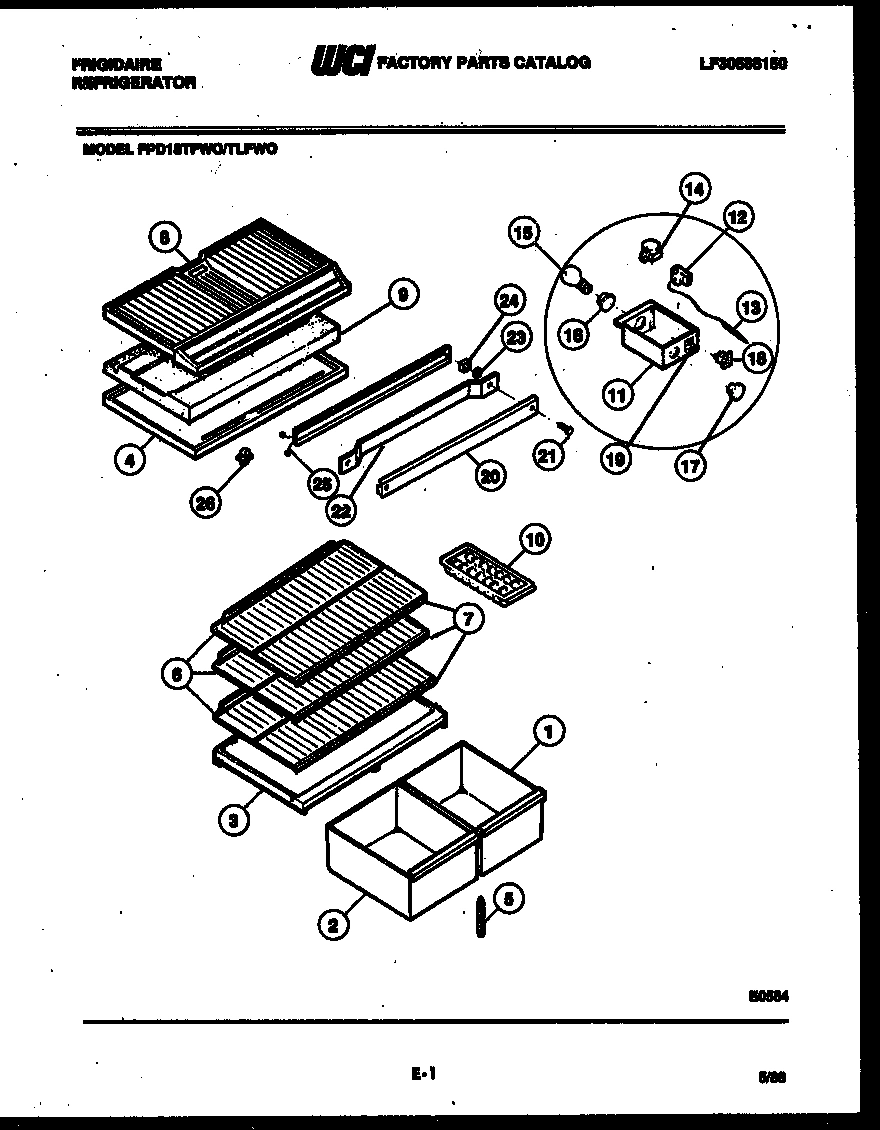

04 - SHELVES AND SUPPORTS

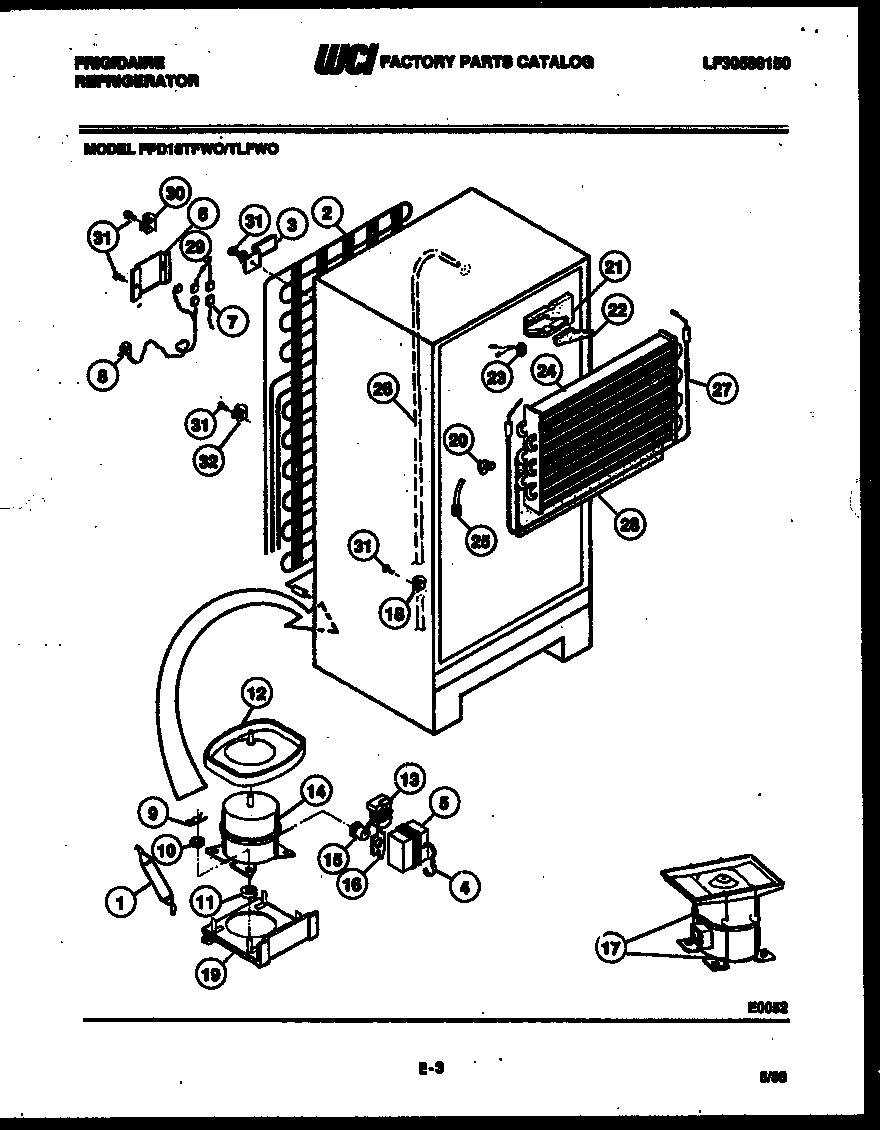

05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux FPD18TFW0 REFRIGERATOR
*23358
INSUL 1`` X 24`` X 48`` WCI 5418397 Contact Us For Availability
*23359
INSUL 4`` X 21 3/4`` X 34 5/8`` WCI 5401984 Contact Us For Availability
*23359
INSUL 2 1/2`` X 30`` X 42`` WCI 5401987 Contact Us For Availability
*23359
INSUL 3`` X 27 1/4`` X 39 5/8`` WCI 5401988 Contact Us For Availability
*23367
BOLT-ROLLER (2) WCI 8009761 Contact Us For Availability
*23372
SOUND TAPE WCI 8017610 Contact Us For Availability
*23372
WCI 9960001 WCI 9960001 Contact Us For Availability
1
GASKET-FREEZER WCI 8009734 Contact Us For Availability
1
BRACKET-MOTOR REFR WCI 8000042 Contact Us For Availability
1
PAN-CRISPER RH WCI 8009812 Contact Us For Availability
1
DRIER WCI 8000027 Contact Us For Availability
2
WCI 8004176 WCI 8004176 Contact Us For Availability
2
PAN-CRISPER LH WCI 8009826 Contact Us For Availability
2
WCI 8008779 WCI 8008779 Contact Us For Availability
3
PANEL-INNER FREEZER WCI 8009835 Contact Us For Availability
3
BRACKET-CONNECTOR WCI 8000107 Contact Us For Availability
3
WCI 8013650 WCI 8013650 Contact Us For Availability
3
BRACKET-MTG (4) WCI 8003600 Contact Us For Availability
3A
SCREW-MTG (NON-ILLUSTRATED) WCI 8002748 Contact Us For Availability
4
BRACKET-MOTOR FRONT WCI 8000043 Contact Us For Availability
4
TOP-REFRIGERATOR WCI 3016367 Contact Us For Availability
4
STRAP-TERM COVER WCI 8000117 Contact Us For Availability
4A
SCREW-MTG (3) (NON-ILLUSTRATED) WCI 8000070 Contact Us For Availability
5
RING, ORIFICE WCI 8000124 Contact Us For Availability
5
SUPPORT-CRISPER CVR WCI 8013637 Contact Us For Availability
5
COVER-TERMINAL WCI 8000116 Contact Us For Availability
6
WCI 8009837 WCI 8009837 Contact Us For Availability
6
LABEL-FAN COVER WCI 8009822 Contact Us For Availability
6
SHELF-SLIDING (3) WCI 8014797 Contact Us For Availability
6
WCI 8013644 WCI 8013644 Contact Us For Availability
7
BUTTON-PLUG WHITE WCI 8000090 Contact Us For Availability
7
WCI 8000010 WCI 8000010 Contact Us For Availability
7
WCI 8010286 WCI 8010286 Contact Us For Availability
7
WCI 8009628 WCI 8009628 Contact Us For Availability
8
BUTTON-PLUG WHITE WCI 8000134 Contact Us For Availability
8
SCREW-COVER (3) WCI 8016566 Contact Us For Availability
8
BOTTOM-FREEZER WCI 8015543 Contact Us For Availability
8
WCI 8000064 WCI 8000064 Contact Us For Availability
9
HANDLE-COMPLETE (2) WCI 8009803 Contact Us For Availability
9
WCI 8000067 WCI 8000067 Contact Us For Availability
9
DIVIDER-STYRO WCI 8009751 Contact Us For Availability
9
CLIP (4) WCI 8003596 Contact Us For Availability
10
TRIM (2) WCI 8010232 Contact Us For Availability
10
WCI 8009793 WCI 8009793 Contact Us For Availability
10
WCI 1121808 WCI 1121808 Contact Us For Availability
10
WASHER (4) WCI 8003597 Contact Us For Availability
11
CAP-TOP (2) WCI 8010239 Contact Us For Availability
11
WCI 8009821 WCI 8009821 Contact Us For Availability
11
WCI 8009781 WCI 8009781 Contact Us For Availability
11
WCI 8008778 WCI 8008778 Contact Us For Availability
12
CAP-BOTTOM (2) WCI 8010238 Contact Us For Availability
12
COVER, HINGE, WHITE WCI 8012820 Contact Us For Availability
12
WCI 8017218 WCI 8017218 Contact Us For Availability
12
WCI 8012951 WCI 8012951 Contact Us For Availability
12A
LOCK NUT (NON-ILLUSTRATED) WCI 8003611 Contact Us For Availability
13
WCI 8009843 WCI 8009843 Contact Us For Availability
13
BRACKET-TOP HINGE WCI 8012843 Contact Us For Availability
13
WCI 8012949 WCI 8012949 Contact Us For Availability
13A
SCREW-MTG (NON-ILLUSTRATED) WCI 8000123 Contact Us For Availability
13B
PLATE-TAPPING (NON-ILLUSTRATED) WCI 8012296 Contact Us For Availability
14
BEARING (8) WCI 8012007 Contact Us For Availability
14
WASHER-NYLON (3) WCI 8000007 Contact Us For Availability
14
COMPRESSOR W/ ELEC WCI 8950112 Contact Us For Availability
14A
SCREW-MTG (2) (NON-ILLUSTRATED) WCI 8000008 Contact Us For Availability
15
WCI 8009931 WCI 8009931 Contact Us For Availability
15
TRIM-CORNER-WHITE WCI 8010014 Contact Us For Availability
15
WCI 8000801 WCI 8000801 Contact Us For Availability
15
WCI 8016572 WCI 8016572 Contact Us For Availability
16
SCREW (4) WCI 8013645 Contact Us For Availability
16
WCI 8000100 WCI 8000100 Contact Us For Availability
16
WCI 8000129 WCI 8000129 Contact Us For Availability
16
CLIP-OVERLOAD WCI 8017232 Contact Us For Availability
17
WCI 8010383 WCI 8010383 Contact Us For Availability
17
WCI 8000184 WCI 8000184 Contact Us For Availability
17
KNOB-COLD CONTROL WCI 8010011 Contact Us For Availability
17
WCI 8950024 WCI 8950024 Contact Us For Availability
18
GASKET-REFR WCI 8015544 Contact Us For Availability
18
WCI 8000757 WCI 8000757 Contact Us For Availability
18
WCI 8016615 WCI 8016615 Contact Us For Availability
18
WCI 8000133 WCI 8000133 Contact Us For Availability
19
DOOR-DAIRY WCI 8009788 Contact Us For Availability
19
LABEL-CONTROL BOX WCI 8009816 Contact Us For Availability
19
PLATE-COMPR MTG WCI 8013663 Contact Us For Availability
20
RACK-REFR DOOR WCI 8009701 Contact Us For Availability
20
WCI 8000071 WCI 8000071 Contact Us For Availability
20
WCI 8010025 WCI 8010025 Contact Us For Availability
20
WCI 8017227 WCI 8017227 Contact Us For Availability
21
SUPPORT RH (2) WCI 8009805 Contact Us For Availability
21
SCREW (4) WCI 8012258 Contact Us For Availability
21
COVER-AIR DEFLECTOR WCI 8000055 Contact Us For Availability
21
WCI 8013648 WCI 8013648 Contact Us For Availability
21A
SUPPORT LH (2) (NON-ILLUSTRATED) WCI 8009804 Contact Us For Availability
22
RACK-REFR DOOR WCI 8013640 Contact Us For Availability
22
PIN-BOTTOM BRACKET WCI 8003578 Contact Us For Availability
22
STRAP-MULLION WCI 8010008 Contact Us For Availability
22
WCI 8013646 WCI 8013646 Contact Us For Availability
23
WASHER-STEEL (4) WCI 8003607 Contact Us For Availability
23
BRACKET-BOTTOM HINGE WCI 8017609 Contact Us For Availability
23
WCI 8000073 WCI 8000073 Contact Us For Availability
24
PANEL-REFR-WHITE WCI 3916032 Contact Us For Availability
24
SCREW-MTG (2) WCI 8010252 Contact Us For Availability
24
WCI 8010007 WCI 8010007 Contact Us For Availability
24
EVAPORATOR WCI 8000062 Contact Us For Availability
25
PANEL-INNER REFR WCI 8009796 Contact Us For Availability
25
SHIM-BOTTOM BRACKET WCI 8000755 Contact Us For Availability
25
HEATER-MULLION WCI 8000058 Contact Us For Availability
25
STRAP-EVAPORATOR (2) WCI 8000110 Contact Us For Availability
26
RACK-REFR DOOR WCI 8009702 Contact Us For Availability
26
PLUG BUTTON WCI 8003585 Contact Us For Availability
26
SWITCH, LIGHT WCI 8000069 Contact Us For Availability
26
WCI 8010274 WCI 8010274 Contact Us For Availability
27
SCREW-LEVELING (2) WCI 8003583 Contact Us For Availability
27
WCI 8000061 WCI 8000061 Contact Us For Availability
27A
ANCHOR NUT (2) (NON-ILLUSTRATED) WCI 8003584 Contact Us For Availability
28
TUBE, DRAIN WCI 8010012 Contact Us For Availability
28
INSULATOR WCI 8009569 Contact Us For Availability
28A
WCI 800056 WCI 800056 Contact Us For Availability
28B
RING SEAL (NON-ILLUSTRATED) WCI 8009755 Contact Us For Availability
29
BASE-CABINET WCI 8010092 Contact Us For Availability
29
WIRING HARNESS-DIVIDER WCI 8006993 Contact Us For Availability
30
PLUG BUTTON-WHITE WCI 8007099 Contact Us For Availability
30
CLAMP-CABLE WCI 8000187 Contact Us For Availability
31
WCI 8006970 WCI 8006970 Contact Us For Availability
31
SCREW-CLAMP MTG WCI 8016629 Contact Us For Availability
32
WCI 8006971 WCI 8006971 Contact Us For Availability
32
CLAMP-CABLE (3) WCI 8002756 Contact Us For Availability
33
TUBE-RUBBER (2) WCI 8000004 Contact Us For Availability
34
SUPPORT-COIL CVR (2) WCI 8000097 Contact Us For Availability
35
SHIM-TOP BRACKET WCI 8012829 Contact Us For Availability
36
WCI 8000066 WCI 8000066 Contact Us For Availability
37
SCREW-MTG WCI 8000015 Contact Us For Availability
38
BUSHING-MOTOR (2) WCI 8000032 Contact Us For Availability
39
COVER-COIL WCI 8009771 Contact Us For Availability
40
PLUG-DECORATIVE WCI 8000082 Contact Us For Availability
41
TROUGH, DRAIN WCI 8009772 Contact Us For Availability
41A
PLUG-LINER (NON-ILLUSTRATED) WCI 8000087 Contact Us For Availability
41B
PLUG-ICE MAKER (NON-ILLUSTRATED) WCI 8016571 Contact Us For Availability
42
ROLLER, REAR (2) WCI 8009773 Contact Us For Availability
42A
BOLT-ROLLER (2) (NON-ILLUSTRATED) WCI 8009762 Contact Us For Availability
43
SPRING-ADJ ROLLER (2) WCI 8009790 Contact Us For Availability
44
SUPPORT-BASE CAB WCI 8013678 Contact Us For Availability
45
ROLLER-ADJUST FRONT (2) WCI 8009760 Contact Us For Availability
× ![]()
