Model LG FPD1800 – Common Parts & Diagrams

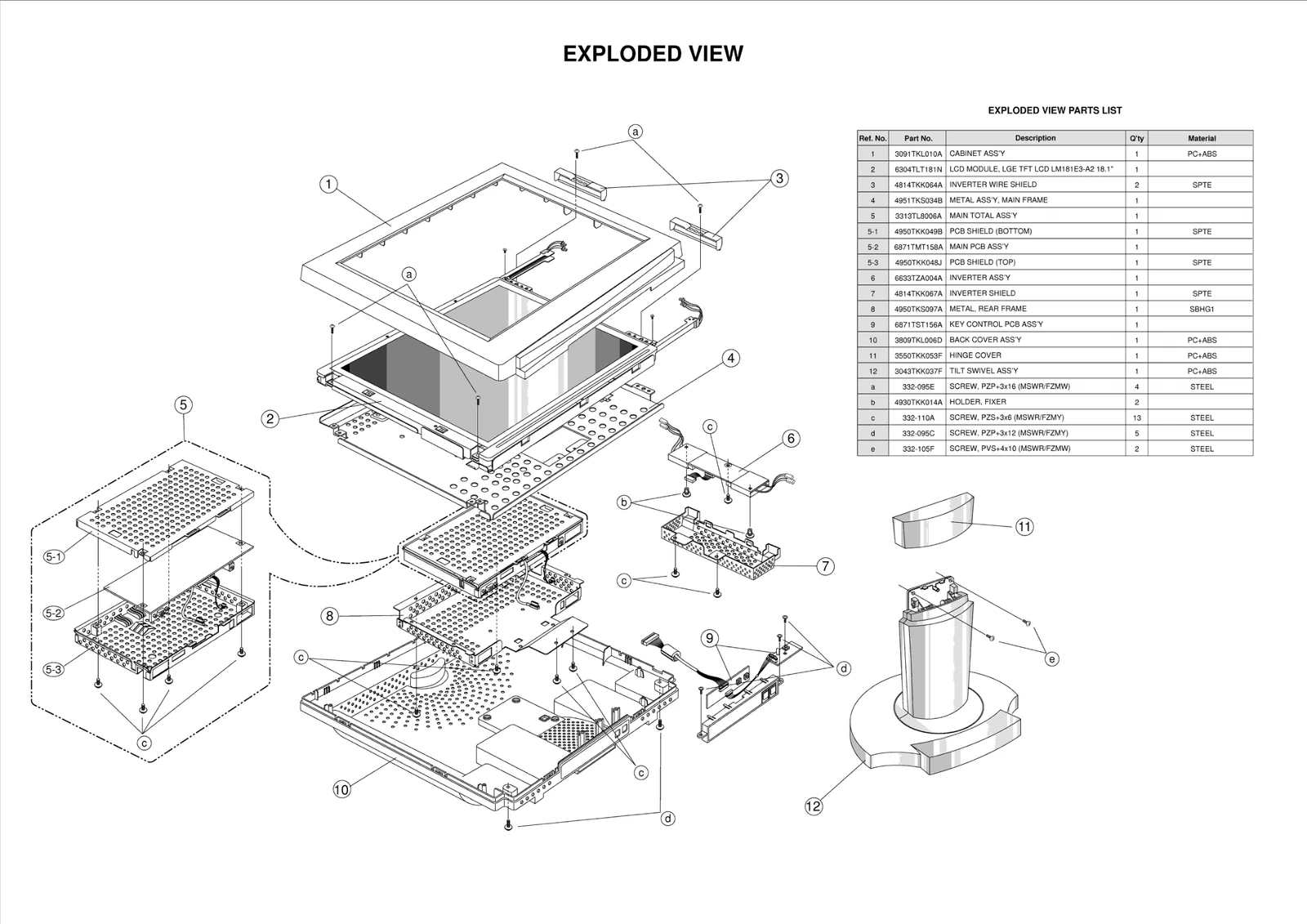

Diagram 0
Common parts from model LG FPD1800
C3
CAPACITOR CHIP[CERAMIC LD-LESS LGE 0CH6102K406 Contact Us For Availability
C7
Capacitor,AL,Chip LGE 0CH8107J611 Contact Us For Availability
C30
Capacitor,TA,Niobium LGE 0CH7476F661 Contact Us For Availability
C34
Capacitor,TA,Niobium LGE 0CH7227D661 Contact Us For Availability
C47
LGE 0CH6560K416 LGE 0CH6560K416 Contact Us For Availability
C64
LGE 0CH6120K416 LGE 0CH6120K416 Contact Us For Availability
C65
Capacitor,Ceramic,Chip LGE 0CH6271K416 Contact Us For Availability
C69
CAPACITOR CHIP[CERAMIC LD-LESS LGE 0CH3103K516 Contact Us For Availability
C84
LGE 0CE4776F618 LGE 0CE4776F618 Contact Us For Availability
C103
Capacitor,TA,Niobium LGE 0CH7106F621 Contact Us For Availability
D4
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
D6
Diode,Schottky LGE 0DS301109AA Contact Us For Availability
J2
LGE 6631T25005C LGE 6631T25005C Contact Us For Availability
J7
Jack,DC Power LGE 6612TAH002A Contact Us For Availability
L201
LGE 6200TEZ007A LGE 6200TEZ007A Contact Us For Availability
LED1
LGE 0DL571300AA LGE 0DL571300AA Contact Us For Availability
Q3
TR,Bipolar LGE 0TR162309CA Contact Us For Availability
R1
Resistor,Carbon Film LGE 0RD1001Q609 Contact Us For Availability
R2
Resistor,Chip LGE 0RH2702D622 Contact Us For Availability
R3
Resistor,Carbon Film LGE 0RD1800Q609 Contact Us For Availability
R6
Resistor,Chip LGE 0RH5100D622 Contact Us For Availability
R7
RESISTOR CHIP 1.0M 1/10W 5 D. LGE 0RH1004D622 Contact Us For Availability
R17
RESISTOR CHIP 22 1/10W 5 D.R/ LGE 0RH0222D622 Contact Us For Availability
R27
RESISTOR CHIP 47K 1/10W 5 D.R LGE 0RH4702D622 Contact Us For Availability
R28
Resistor,Chip LGE 0RH3302D622 Contact Us For Availability
R63
RESISTOR CHIP 1.2K 1/10W 5 D. LGE 0RH1201D622 Contact Us For Availability
R77
RESISTOR CHIP 470 1/10W 5 D.R LGE 0RH4700D622 Contact Us For Availability
R79
Resistor,Chip LGE 0RH6800D622 Contact Us For Availability
R89
RESISTOR CHIP 4.7K 1/10W 5 D. LGE 0RH4701D622 Contact Us For Availability
SW5
SWITCH LGE 140-058E Contact Us For Availability
U1
LGE 0IS5161000A LGE 0IS5161000A Contact Us For Availability
U2
LGE 0ITI758300A LGE 0ITI758300A Contact Us For Availability
U4
IC,Voltage Regulator LGE 0INS259650A Contact Us For Availability
U5
IC,SAMSUNG ELECTRONICS LGE 0ISS780500H Contact Us For Availability
U6
IC,ROHM LGE 0IRH033200A Contact Us For Availability
U8
LGE 0INS267450A LGE 0INS267450A Contact Us For Availability
U9
IC,SAMSUNG ELECTRONICS LGE 0ISS240210A Contact Us For Availability
U10
LGE 0ITI748600L LGE 0ITI748600L Contact Us For Availability
U11
LGE 0IZZTSZ069A LGE 0IZZTSZ069A Contact Us For Availability
ZD1
DIODE,ZENER LGE 0DZ560009CE Contact Us For Availability
ZD5
DIODE,RECTIFIER LGE 0DR340009AA Contact Us For Availability
ZD6
DIODE,RECTIFIER LGE 0DR190309AA Contact Us For Availability
__________
LGE 332-102K LGE 332-102K Contact Us For Availability
__________
LGE 6631T11007C LGE 6631T11007C Contact Us For Availability
__________
LGE 332-095E LGE 332-095E Contact Us For Availability
__________
CABINET ASSY LGE 3091TKL010A Contact Us For Availability
__________
SCREW LGE 332-095C Contact Us For Availability
__________
LGE 6631T15001F LGE 6631T15001F Contact Us For Availability
__________
LGE 6871TMT158A LGE 6871TMT158A Contact Us For Availability
__________
INVERTER ASSY LGE 6633TZA004A Contact Us For Availability
__________
ADAPTER,AC-DC LGE 6634TBZ006H Contact Us For Availability
__________
LGE 6866TDV004A LGE 6866TDV004A Contact Us For Availability
__________
LGE 6631T10001B LGE 6631T10001B Contact Us For Availability
__________
LGE 332-110A LGE 332-110A Contact Us For Availability
__________
LGE 3809TKL006D LGE 3809TKL006D Contact Us For Availability
__________
LGE 4814TKK067A LGE 4814TKK067A Contact Us For Availability
__________
LGE 6631T20005F LGE 6631T20005F Contact Us For Availability
__________
LGE 3043TKK037F LGE 3043TKK037F Contact Us For Availability
__________
LGE 6631T20002Y LGE 6631T20002Y Contact Us For Availability
__________
LGE 6304TLT181N LGE 6304TLT181N Contact Us For Availability
__________
SCREW LGE 332-105C Contact Us For Availability
__________
LGE 6631T11006B LGE 6631T11006B Contact Us For Availability
__________
LGE 4814TKK064A LGE 4814TKK064A Contact Us For Availability
__________
METAL LGE 4950TKS097A Contact Us For Availability
__________
LGE 4951TKS034B LGE 4951TKS034B Contact Us For Availability
__________
LGE 174-206F LGE 174-206F Contact Us For Availability
__________
LGE 332-105F LGE 332-105F Contact Us For Availability
__________
LGE 3313TL8006A LGE 3313TL8006A Contact Us For Availability
__________
LGE 6871TST156A LGE 6871TST156A Contact Us For Availability
× ![]()
