Model Electrolux FPD17TIFL1 REFRIGERATOR – Common Parts & Diagrams

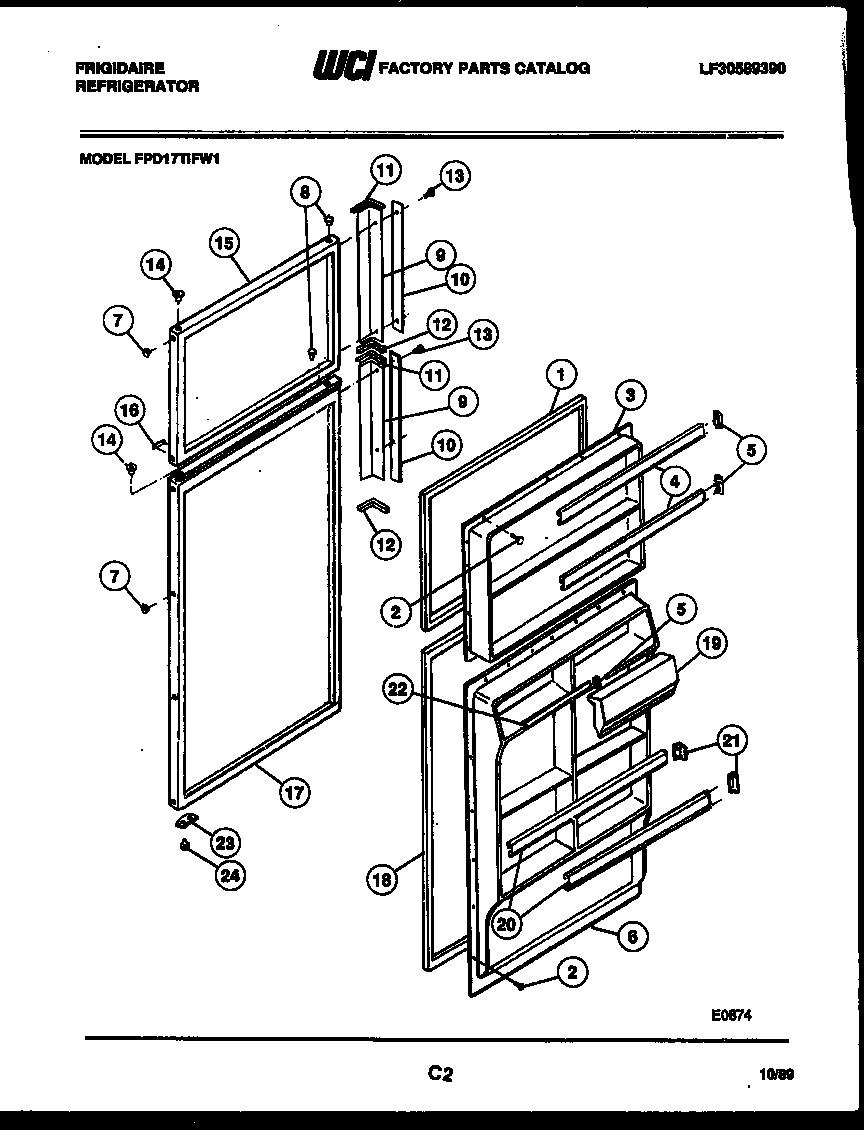

02 - DOOR PARTS

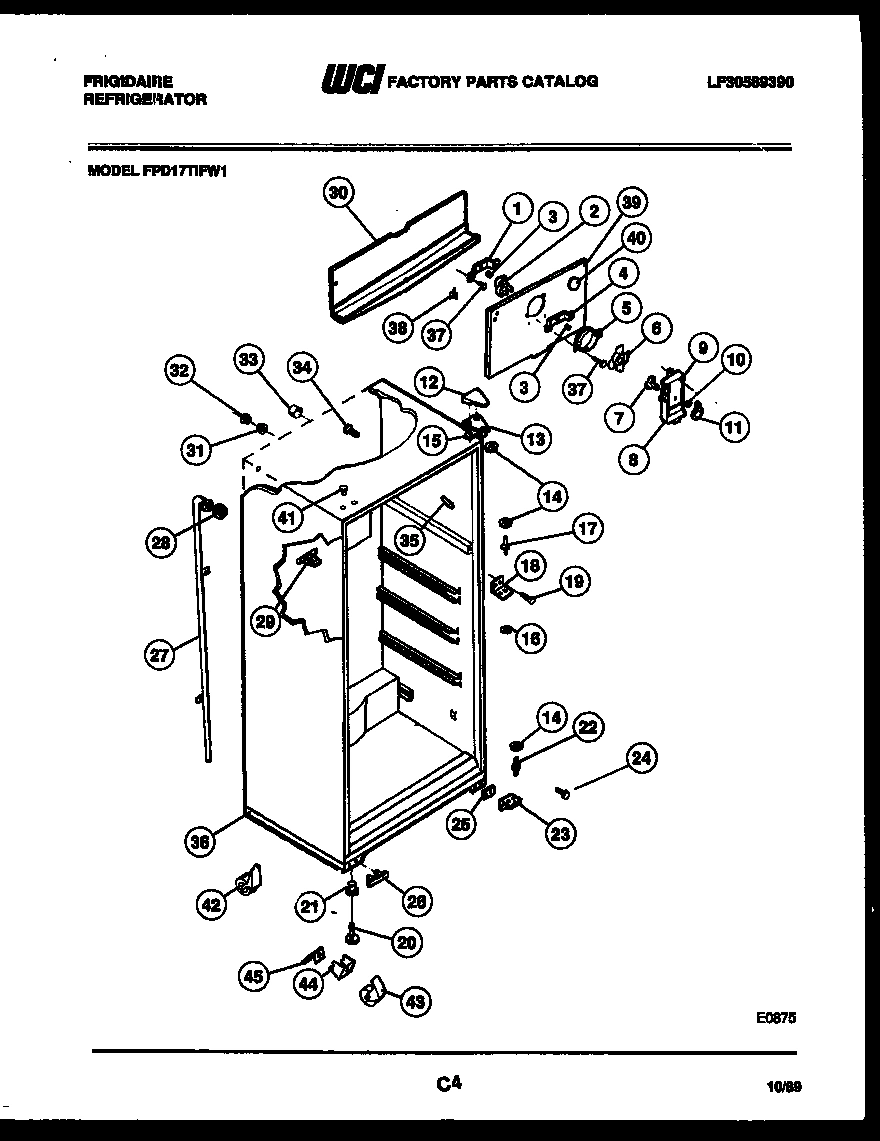

03 - CABINET PARTS
04 - SHELVES AND SUPPORTS
05 - SYSTEM AND AUTOMATIC DEFROST PARTS
06 - ICE MAKER PARTS
07 - ICE MAKER INSTALLATION PARTS
Common parts from model Electrolux FPD17TIFL1 REFRIGERATOR
*27604
WCI 08009761 WCI 08009761 Contact Us For Availability
*27604
WASHER-NYLON (2) WCI 08011326 Contact Us For Availability
*27605
WCI 08000087 WCI 08000087 Contact Us For Availability
*27609
WCI 09960001 WCI 09960001 Contact Us For Availability
1
WCI 3206349 WCI 3206349 Contact Us For Availability
1
MOTOR BRACKET-REAR WCI 08000042 Contact Us For Availability
1
WCI 3204206 WCI 3204206 Contact Us For Availability
1
WCI 08009262 WCI 08009262 Contact Us For Availability
1
WCI 3206358 WCI 3206358 Contact Us For Availability
2
WCI 08000055 WCI 08000055 Contact Us For Availability
2
BRACKET-COND MTG (4) WCI 08003600 Contact Us For Availability
3
REFRIGERATOR TOP WCI 3016378 Contact Us For Availability
3
WCI 3206299 WCI 3206299 Contact Us For Availability
3A
WCI 08000070 WCI 08000070 Contact Us For Availability
4
WCI 08000043 WCI 08000043 Contact Us For Availability
4
WCI 3018899 WCI 3018899 Contact Us For Availability
4
WIRING HARNESS, DIVIDER WCI 3018900 Contact Us For Availability
5
WCI 08000124 WCI 08000124 Contact Us For Availability
5
WCI G490022-01 WCI G490022-01 Contact Us For Availability
5
WCI 08009628 WCI 08009628 Contact Us For Availability
5
PLATE-MOUNTING FINISHED WCI 3206303 Contact Us For Availability
6
WCI 3200478 WCI 3200478 Contact Us For Availability
6
WCI 08000064 WCI 08000064 Contact Us For Availability
7
WCI 08000181 WCI 08000181 Contact Us For Availability
7
DAMPER-FAN WCI 08000066 Contact Us For Availability
7
WCI 08013644 WCI 08013644 Contact Us For Availability
8
WCI 08009817 WCI 08009817 Contact Us For Availability
8
WCI 3206312 WCI 3206312 Contact Us For Availability
9
HANDLE ASSY W/ CAP & TRIM (2) WCI 3017190 Contact Us For Availability
9
WCI 08009822 WCI 08009822 Contact Us For Availability
9
HOUSING - CONTROL CAP TUBE WCI 3018891 Contact Us For Availability
9
WCI 3206313 WCI 3206313 Contact Us For Availability
10
WCI 3206360 WCI 3206360 Contact Us For Availability
10
TRIM-HANDLE (2) WCI 08010232 Contact Us For Availability
10
WCI 08000067 WCI 08000067 Contact Us For Availability
10
CLAMP-COMPR HARNESS WCI 08000187 Contact Us For Availability
10
WCI 3206315 WCI 3206315 Contact Us For Availability
11
WCI 08010239 WCI 08010239 Contact Us For Availability
11
WCI 08009793 WCI 08009793 Contact Us For Availability
11
PAN-DEFROST WCI 08012951 Contact Us For Availability
11
WCI 08000200 WCI 08000200 Contact Us For Availability
11A
LABEL-DAMPER KNOB (NON-ILLUSTRATED) WCI 08009823 Contact Us For Availability
12
WCI 3206321 WCI 3206321 Contact Us For Availability
12
WCI 08010238 WCI 08010238 Contact Us For Availability
12
CONTROL-TEMPERATURE WCI 3018894 Contact Us For Availability
12
LOCK NUT-PAN MTG WCI 08003611 Contact Us For Availability
13
WCI 3206322 WCI 3206322 Contact Us For Availability
13
SCREW-HANDLE MTG (4) WCI 08013645 Contact Us For Availability
13
WCI 08012843 WCI 08012843 Contact Us For Availability
13
CONTROL BOX WCI 3018895 Contact Us For Availability
13
CLIP (4) WCI 08003596 Contact Us For Availability
13
WCI 3001557 WCI 3001557 Contact Us For Availability
14
WCI 08012007 WCI 08012007 Contact Us For Availability
14
WCI 08000007 WCI 08000007 Contact Us For Availability
14
WCI 3018896 WCI 3018896 Contact Us For Availability
14
WCI 08003597 WCI 08003597 Contact Us For Availability
14
WCI 3206323 WCI 3206323 Contact Us For Availability
14
WCI 3001564 WCI 3001564 Contact Us For Availability
15
WCI 08009842 WCI 08009842 Contact Us For Availability
15
WCI 08012829 WCI 08012829 Contact Us For Availability
16
WCI 3018385 WCI 3018385 Contact Us For Availability
16
WCI 08000100 WCI 08000100 Contact Us For Availability
16
WCI 08000009 WCI 08000009 Contact Us For Availability
16
PLATE-COMPR MTG WCI 08013663 Contact Us For Availability
16
WCI 3206326 WCI 3206326 Contact Us For Availability
17
WCI 08009846 WCI 08009846 Contact Us For Availability
17
WCI 08000184 WCI 08000184 Contact Us For Availability
17
KNOB, TEMP CONTROL WCI 3018893 Contact Us For Availability
17
COMPRESSOR WITH ELECTRICALS WCI 3916004 Contact Us For Availability
18
WCI 08000757 WCI 08000757 Contact Us For Availability
18
WCI 3200464 WCI 3200464 Contact Us For Availability
18
WCI 3206328 WCI 3206328 Contact Us For Availability
18
WCI 3206356 WCI 3206356 Contact Us For Availability
19
WCI 3200582 WCI 3200582 Contact Us For Availability
19
WASHER-STEEL (4) WCI 08003607 Contact Us For Availability
19
WCI 08017226 WCI 08017226 Contact Us For Availability
19
WCI 3206330 WCI 3206330 Contact Us For Availability
20
WCI 08012258 WCI 08012258 Contact Us For Availability
20
WCI 08003583 WCI 08003583 Contact Us For Availability
20
WCI 08017572 WCI 08017572 Contact Us For Availability
20
WCI 3206331 WCI 3206331 Contact Us For Availability
21
WCI 08003584 WCI 08003584 Contact Us For Availability
21
WCI 3916134 WCI 3916134 Contact Us For Availability
21
WCI 08006982 WCI 08006982 Contact Us For Availability
21
WCI 3206332 WCI 3206332 Contact Us For Availability
22
RACK-TOP WCI 3018423 Contact Us For Availability
22
WCI 08003604 WCI 08003604 Contact Us For Availability
22
WCI 3206333 WCI 3206333 Contact Us For Availability
23
DOOR STOP (2) WCI 08000255 Contact Us For Availability
23
BRACKET-BOTTOM HINGE WCI 08017609 Contact Us For Availability
23
WCI 08000744 WCI 08000744 Contact Us For Availability
23
WCI 08017535 WCI 08017535 Contact Us For Availability
23
WCI 3206334 WCI 3206334 Contact Us For Availability
24
SCREW (2) WCI 08011745 Contact Us For Availability
24
WCI 3200650 WCI 3200650 Contact Us For Availability
24
STRAP-CAP MTG WCI 08017231 Contact Us For Availability
25
SHIM-BOTTOM HINGE WCI 08000755 Contact Us For Availability
25
WCI 3200469 WCI 3200469 Contact Us For Availability
25
WCI 08010274 WCI 08010274 Contact Us For Availability
25
WCI 3206336 WCI 3206336 Contact Us For Availability
25A
WCI 08012296 WCI 08012296 Contact Us For Availability
26
WCI 08003585 WCI 08003585 Contact Us For Availability
26
SUPPORT-PAN COVER WCI 5303206508 Contact Us For Availability
26
WCI 3206337 WCI 3206337 Contact Us For Availability
27
DRAIN TUBE WCI 08010012 Contact Us For Availability
27
WCI 3018892 WCI 3018892 Contact Us For Availability
27
WCI 08009754 WCI 08009754 Contact Us For Availability
27
WCI 3206338 WCI 3206338 Contact Us For Availability
28
SEAL RING WCI 08009755 Contact Us For Availability
28
WCI 3200651 WCI 3200651 Contact Us For Availability
28
WCI 08009756 WCI 08009756 Contact Us For Availability
28
WCI 3206339 WCI 3206339 Contact Us For Availability
29
DRAIN SPOUT WCI 08000056 Contact Us For Availability
29
WCI 08010287 WCI 08010287 Contact Us For Availability
29
SCREW-4-40 X 3/4 MOTOR SWITCH TO PLATE (4) WCI 3206340 Contact Us For Availability
29A
PUSH PIN-SPOUT (2) (NON-ILLUSTRATED) WCI 08013647 Contact Us For Availability
30
WCI 08010005 WCI 08010005 Contact Us For Availability
30
WCI 08009638 WCI 08009638 Contact Us For Availability
30
SCREW - 8-32 X 1 TIMING SCREW WCI 3206341 Contact Us For Availability
31
WCI 08006970 WCI 08006970 Contact Us For Availability
31
WCI 08013648 WCI 08013648 Contact Us For Availability
31
WCI 3206342 WCI 3206342 Contact Us For Availability
32
WCI 08006971 WCI 08006971 Contact Us For Availability
32
WCI 08013646 WCI 08013646 Contact Us For Availability
32
WCI 3206343 WCI 3206343 Contact Us For Availability
33
TUBE-RUBBER (2) WCI 08000004 Contact Us For Availability
33
WCI 08017227 WCI 08017227 Contact Us For Availability
33
WCI 3206344 WCI 3206344 Contact Us For Availability
34
WCI 08000097 WCI 08000097 Contact Us For Availability
34
WCI 3206345 WCI 3206345 Contact Us For Availability
35
WCI 08010018 WCI 08010018 Contact Us For Availability
35
PAN RETAINER KIT WCI 08950024 Contact Us For Availability
35
WCI 3206346 WCI 3206346 Contact Us For Availability
36
WCI 08010091 WCI 08010091 Contact Us For Availability
36
WCI 3206347 WCI 3206347 Contact Us For Availability
36A
DATA SHEET-ICE MAKER (NON-ILLUSTRATED) WCI 5303207442 Contact Us For Availability
36B
ENVELOPE-DATA SHEET (NON-ILLUSTRATED) WCI 5303207445 Contact Us For Availability
37
WCI 3206348 WCI 3206348 Contact Us For Availability
37A
NUT-U TYPE (2) (NON-ILLUSTRATED) WCI 08000126 Contact Us For Availability
38
CONNECTOR BRACKET WCI 08000107 Contact Us For Availability
39
WCI 08009753 WCI 08009753 Contact Us For Availability
40
WCI 3018768 WCI 3018768 Contact Us For Availability
41
WCI 08007129 WCI 08007129 Contact Us For Availability
42
ROLLER-REAR (2) WCI 08009773 Contact Us For Availability
42A
BOLT-ROLLER MTG (2) (NON-ILLUSTRATED) WCI 08009762 Contact Us For Availability
43
WCI 08009760 WCI 08009760 Contact Us For Availability
44
SUPPORT-BASE CAB (2) WCI 08013678 Contact Us For Availability
45
WCI 08009790 WCI 08009790 Contact Us For Availability
× ![]()
