Model Electrolux FPD17TIFA0 REFRIGERATOR – Common Parts & Diagrams

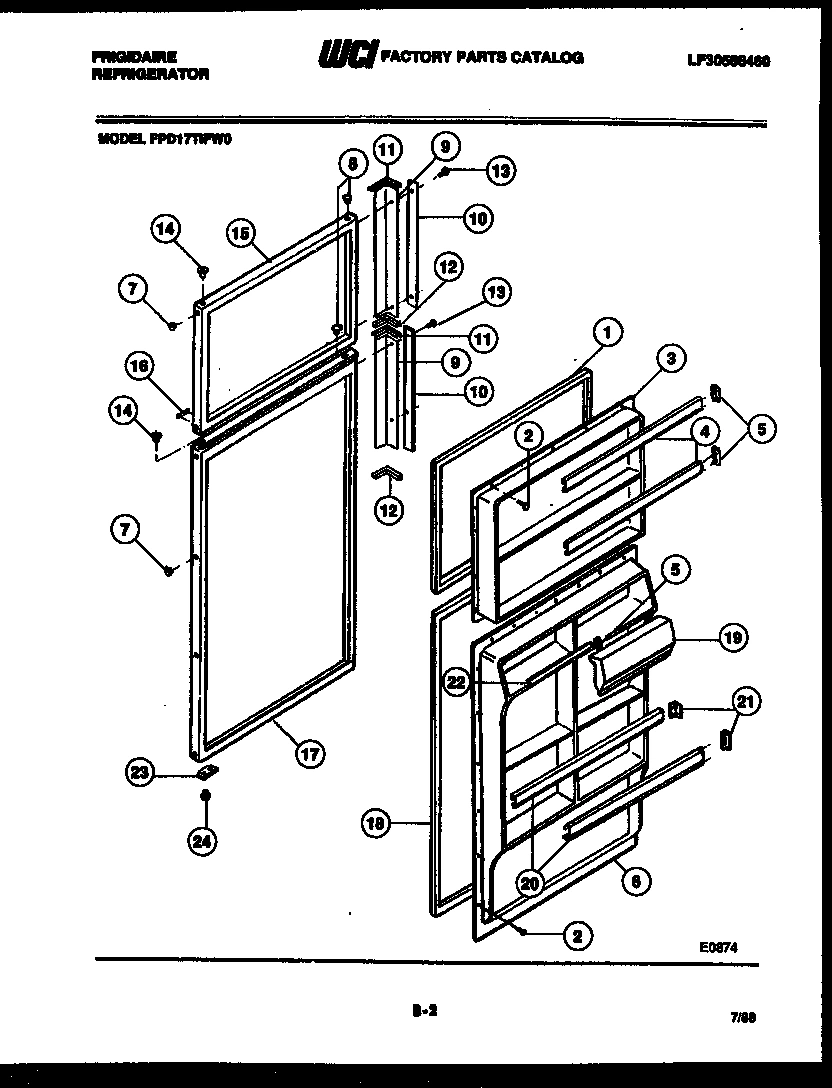

02 - DOOR PARTS

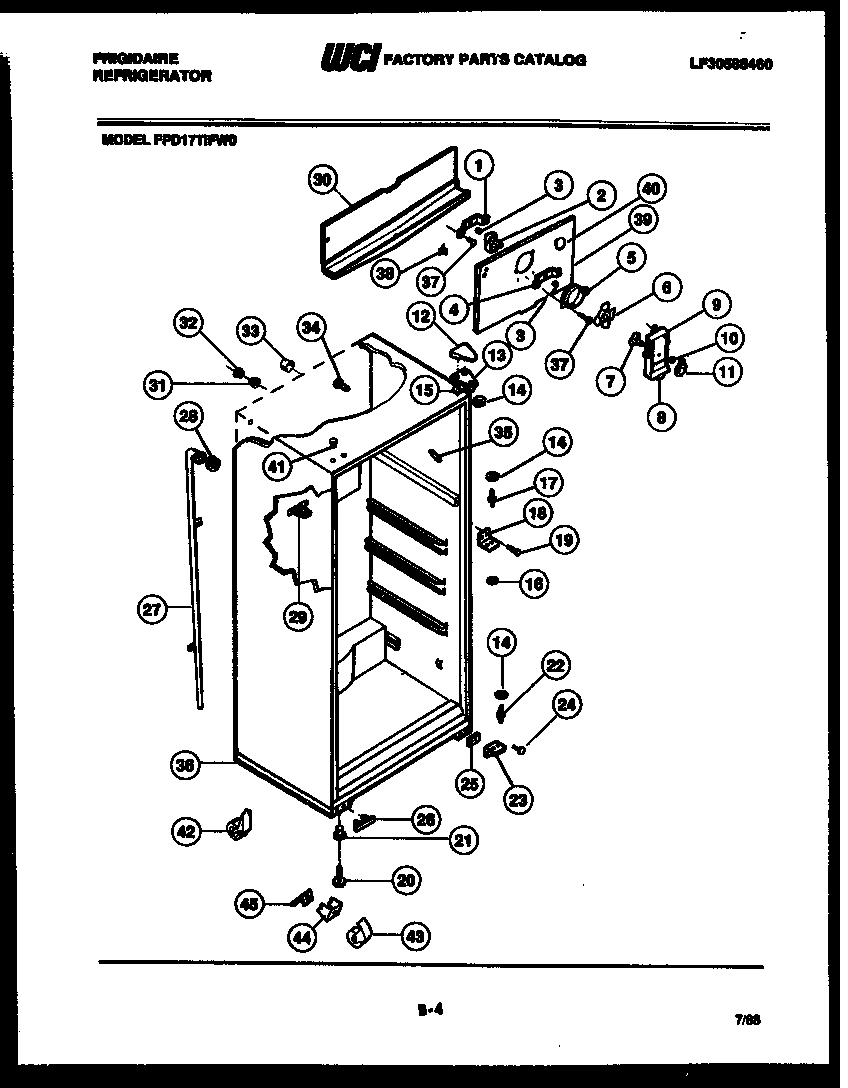

03 - CABINET PARTS

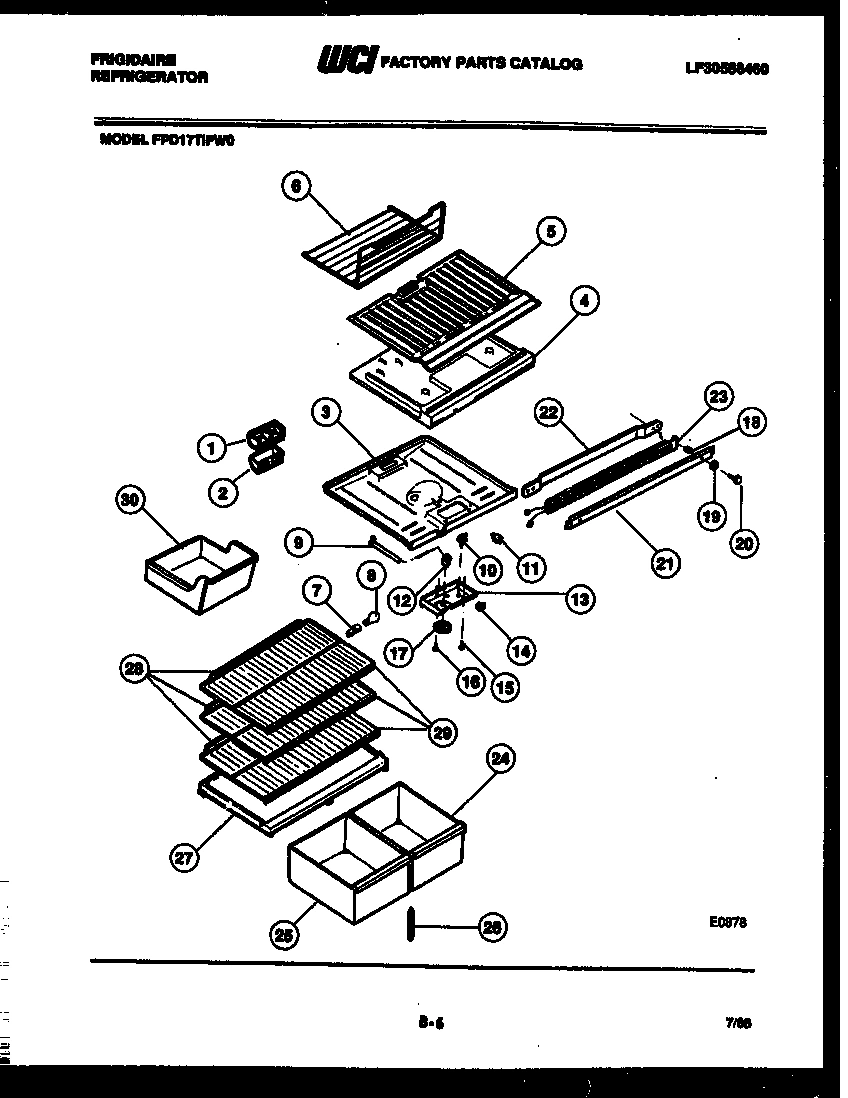

04 - SHELVES AND SUPPORTS

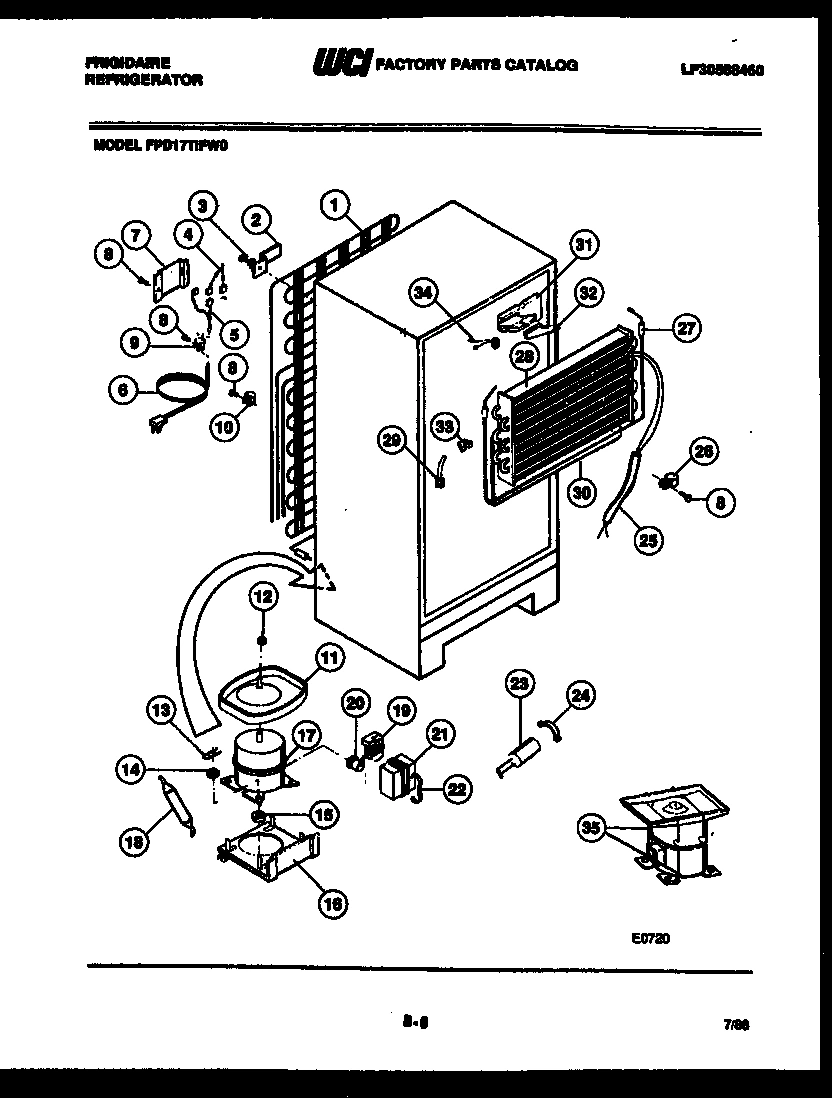

05 - SYSTEM AND AUTOMATIC DEFROST PARTS

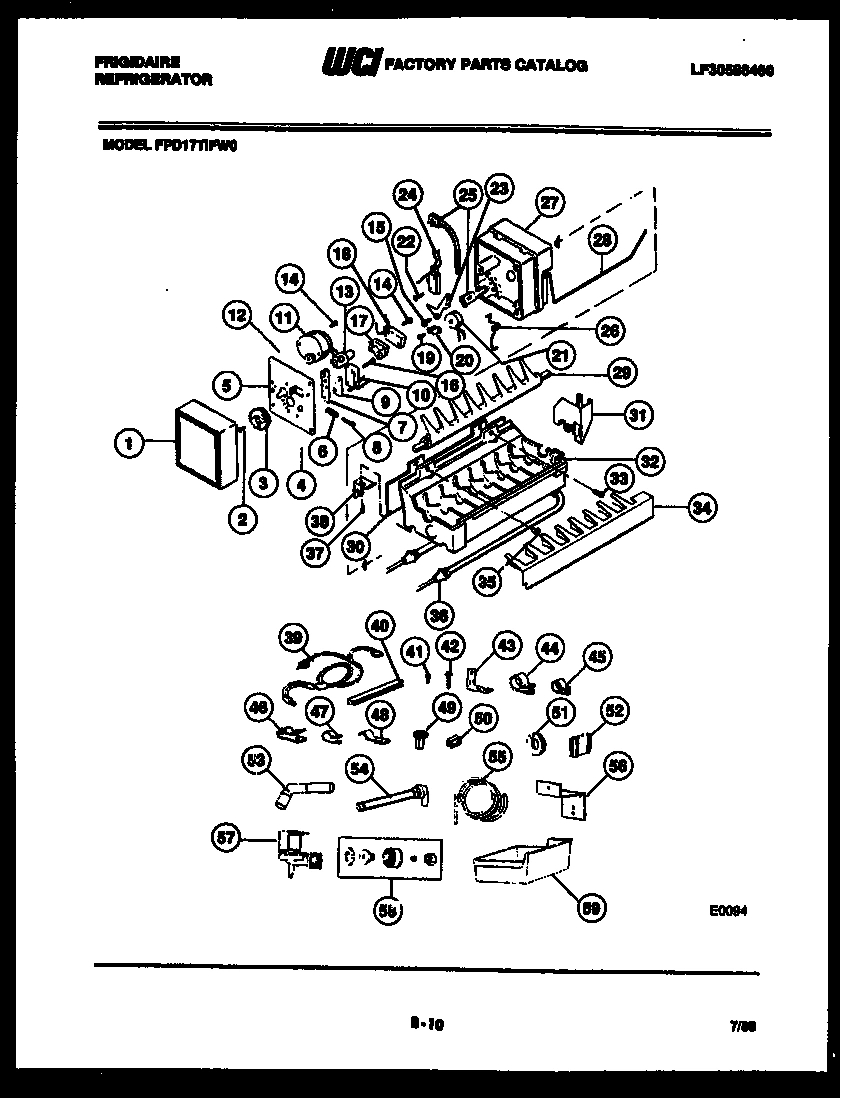

06 - ICE MAKER AND INSTALLATION PARTS
Common parts from model Electrolux FPD17TIFA0 REFRIGERATOR
*16303
PLUG-REFR LINER (2) WCI 8000087 Contact Us For Availability
*16303
WCI 8009761 WCI 8009761 Contact Us For Availability
*16303
WASHER-NYLON (2) WCI 8011326 Contact Us For Availability
*16307
WCI 9960001 WCI 9960001 Contact Us For Availability
1
GASKET-FREEZER DOOR WCI 3001304 Contact Us For Availability
1
MOTOR BRACKET-REAR WCI 8000042 Contact Us For Availability
1
WCI 8000071 WCI 8000071 Contact Us For Availability
1
WCI 8009262 WCI 8009262 Contact Us For Availability
1
COVER-ICE MAKER WCI 8000214 Contact Us For Availability
1A
LABEL-COVER (NON-ILLUSTRATED) WCI 8005251 Contact Us For Availability
2
WCI 8004176 WCI 8004176 Contact Us For Availability
2
WCI 8000055 WCI 8000055 Contact Us For Availability
2
BRACKET-CONDENSER MOUNTING (4) WCI 8003600 Contact Us For Availability
2
SCREW-GEAR WCI 8001182 Contact Us For Availability
3
INNER PANEL-FREEZER WCI 3018865 Contact Us For Availability
3
BUSHING-MOTOR (2) WCI 8000032 Contact Us For Availability
3
WCI 3018881 WCI 3018881 Contact Us For Availability
3
WCI 8001248 WCI 8001248 Contact Us For Availability
3A
SCREW-TOP MTG (3) (NON-ILLUSTRATED) WCI 8000070 Contact Us For Availability
4
RACK-FREEZER DOOR (2) WCI 3018866 Contact Us For Availability
4
MOTOR BRACKET-FRONT WCI 8000043 Contact Us For Availability
4
WCI 3018899 WCI 3018899 Contact Us For Availability
4
WIRING HARNESS, DIVIDER WCI 3018900 Contact Us For Availability
4
SCREW (3) WCI 8001136 Contact Us For Availability
5
WCI 8000124 WCI 8000124 Contact Us For Availability
5
WCI 8015543 WCI 8015543 Contact Us For Availability
5
WCI 8009628 WCI 8009628 Contact Us For Availability
5
MOUNTING PLATE WCI 8017559 Contact Us For Availability
6
WCI 3200478 WCI 3200478 Contact Us For Availability
6
SHELF-FREEZER WCI 8012814 Contact Us For Availability
6
WCI 8000064 WCI 8000064 Contact Us For Availability
6
WCI 8001251 WCI 8001251 Contact Us For Availability
6A
GROMMET-SHELF MOUNTING (2) (NON-ILLUSTRATED) WCI 8009759 Contact Us For Availability
7
PLUG-BUTTON-AVOC (3) WCI 8000179 Contact Us For Availability
7
DAMPER-FAN WCI 8000066 Contact Us For Availability
7
LIGHT SOCKET WCI 8000815 Contact Us For Availability
7
WCI 8013644 WCI 8013644 Contact Us For Availability
7
PLATE-VALVE SWITCH WCI 8001242 Contact Us For Availability
8
PLUG, BUTTON, AVOCADO WCI 8000175 Contact Us For Availability
8
WCI 8009817 WCI 8009817 Contact Us For Availability
8
SCREW 8-15 X 1/2 WCI 8016629 Contact Us For Availability
8
SCREW 8-32 X 1 WCI 8001150 Contact Us For Availability
8A
SCREW-COVER MTG (2) (NON-ILLUSTRATED) WCI 8016566 Contact Us For Availability
9
HANDLE ASSY WITH CAP AND TRIM (2) WCI 3017190 Contact Us For Availability
9
LABEL-FAN COVER WCI 8009822 Contact Us For Availability
9
HOUSING - CONTROL CAP TUBE WCI 3018891 Contact Us For Availability
9
CLAMP-HARNESS (2) WCI 8002756 Contact Us For Availability
9
INSULATOR-SWITCH WCI 8001241 Contact Us For Availability
10
TRIM-HANDLE (2) WCI 8010232 Contact Us For Availability
10
WCI 8000067 WCI 8000067 Contact Us For Availability
10
CLAMP-COMPRESSOR HARNESS WCI 8000187 Contact Us For Availability
11
END CAP-TOP (2) WCI 8010239 Contact Us For Availability
11
WCI 8009793 WCI 8009793 Contact Us For Availability
11
SWITCH, LIGHT WCI 8000069 Contact Us For Availability
11
PAN-DEFROST WCI 8012951 Contact Us For Availability
11
WCI 8001244 WCI 8001244 Contact Us For Availability
11A
LABEL-DAMPER KNOB (NON-ILLUSTRATED) WCI 8009823 Contact Us For Availability
12
END CAP-BOTTOM (2) WCI 8010238 Contact Us For Availability
12
WCI 8012930 WCI 8012930 Contact Us For Availability
12
CONTROL-TEMPERATURE WCI 3018894 Contact Us For Availability
12
WCI 8003611 WCI 8003611 Contact Us For Availability
12
SCREW-GROUND WCI 8001156 Contact Us For Availability
13
SCREW-HANDLE MTG (4) WCI 8013645 Contact Us For Availability
13
WCI 8012843 WCI 8012843 Contact Us For Availability
13
CONTROL BOX WCI 3018895 Contact Us For Availability
13
CLIP (4) WCI 8003596 Contact Us For Availability
13
WCI 8001247 WCI 8001247 Contact Us For Availability
13A
SCREW-HINGE MTG (2) (NON-ILLUSTRATED) WCI 8000123 Contact Us For Availability
14
HINGE BEARING (8) WCI 8012007 Contact Us For Availability
14
WASHER-1/4 NYLON (3) WCI 8000007 Contact Us For Availability
14
WCI 3018896 WCI 3018896 Contact Us For Availability
14
WASHER (4) WCI 8003597 Contact Us For Availability
14
SCREW 4-40 X 1 (2) WCI 8001148 Contact Us For Availability
15
WCI 8012836 WCI 8012836 Contact Us For Availability
15
WCI 8012829 WCI 8012829 Contact Us For Availability
15
SCREW-TIMER MTG (2) WCI 8000008 Contact Us For Availability
15
WCI 8008778 WCI 8008778 Contact Us For Availability
15
SHOULDER SCREW WCI 8001255 Contact Us For Availability
16
WCI 3018385 WCI 3018385 Contact Us For Availability
16
WASHER-5/16 NYLON WCI 8000100 Contact Us For Availability
16
SCREW-CONTROL MOUNTING (2) WCI 8000009 Contact Us For Availability
16
WCI 8013663 WCI 8013663 Contact Us For Availability
16
SCREW 4-4- X 3/4 (2) WCI 8001149 Contact Us For Availability
17
REFR DOOR-AVOCADO WCI 8017601 Contact Us For Availability
17
WCI 8000184 WCI 8000184 Contact Us For Availability
17
KNOB, TEMP CONTROL WCI 3018893 Contact Us For Availability
17
COMPRESSOR WITH ELECTRICALS WCI 3916004 Contact Us For Availability
17
SPACER-HOLD SWITCH WCI 8001240 Contact Us For Availability
18
WCI 8000757 WCI 8000757 Contact Us For Availability
18
WCI 8010007 WCI 8010007 Contact Us For Availability
18
DRIER-FILTER WCI 8000027 Contact Us For Availability
19
WCI 3200582 WCI 3200582 Contact Us For Availability
19
WASHER-STEEL (4) WCI 8003607 Contact Us For Availability
19
WCI 8017226 WCI 8017226 Contact Us For Availability
19
WCI 8000191 WCI 8000191 Contact Us For Availability
20
SCREW-MULLION MOUNTING (4) WCI 8012258 Contact Us For Availability
20
WCI 8003583 WCI 8003583 Contact Us For Availability
20
WCI 8017572 WCI 8017572 Contact Us For Availability
20
WCI 8001236 WCI 8001236 Contact Us For Availability
21
WCI 8003584 WCI 8003584 Contact Us For Availability
21
WCI 3916135 WCI 3916135 Contact Us For Availability
21
WCI 8006982 WCI 8006982 Contact Us For Availability
21
WCI 8001250 WCI 8001250 Contact Us For Availability
22
RACK-TOP WCI 3018423 Contact Us For Availability
22
WCI 8003578 WCI 8003578 Contact Us For Availability
22
WCI 8003604 WCI 8003604 Contact Us For Availability
22
WCI 8000117 WCI 8000117 Contact Us For Availability
22
SCREW 4-24 X 3/4 WCI 8001147 Contact Us For Availability
23
DOOR STOP (2) WCI 8000255 Contact Us For Availability
23
BRACKET-BOTTOM HINGE WCI 8017609 Contact Us For Availability
23
WCI 8000744 WCI 8000744 Contact Us For Availability
23
CAPACITOR-COMPR RUN WCI 8017535 Contact Us For Availability
23
LEVER ARM WCI 8001237 Contact Us For Availability
24
SCREW (2) WCI 8011745 Contact Us For Availability
24
SCREW-HINGE MTG (2) WCI 8010252 Contact Us For Availability
24
WCI 3200650 WCI 3200650 Contact Us For Availability
24
STRAP-CAP MOUNTING WCI 8017231 Contact Us For Availability
24
SWITCH-SHUT OFF WCI 8001245 Contact Us For Availability
25
WCI 8000755 WCI 8000755 Contact Us For Availability
25
WCI 3200469 WCI 3200469 Contact Us For Availability
25
WCI 8010274 WCI 8010274 Contact Us For Availability
25
WIRING HARNESS-INTERNAL WCI 8014553 Contact Us For Availability
25A
TAPPING PLATE (2) (NON-ILLUSTRATED) WCI 8012296 Contact Us For Availability
26
WCI 8003585 WCI 8003585 Contact Us For Availability
26
SUPPORT-PAN COVER WCI 8013637 Contact Us For Availability
26
SPRING-SHUT OFF ARM WCI 8001238 Contact Us For Availability
27
DRAIN TUBE WCI 8010012 Contact Us For Availability
27
WCI 3018892 WCI 3018892 Contact Us For Availability
27
HEATER-DEFROST WCI 8009754 Contact Us For Availability
27
SUPPORT-HOUSING WCI 8001235 Contact Us For Availability
28
WCI 8009755 WCI 8009755 Contact Us For Availability
28
WCI 3200651 WCI 3200651 Contact Us For Availability
28
EVAPORATOR COIL WCI 8009756 Contact Us For Availability
28
SHUT-OFF ARM WCI 8000503 Contact Us For Availability
29
DRAIN SPOUT WCI 8000056 Contact Us For Availability
29
WCI 8010287 WCI 8010287 Contact Us For Availability
29
WCI 8000110 WCI 8000110 Contact Us For Availability
29
WCI 8001253 WCI 8001253 Contact Us For Availability
29A
PUSH PIN-SPOUT (2) (NON-ILLUSTRATED) WCI 8013647 Contact Us For Availability
30
DRAIN TROUGH WCI 8010005 Contact Us For Availability
30
INSULATOR-EVAPORATOR WCI 8009638 Contact Us For Availability
30
HEAT SHIELD WCI 8000236 Contact Us For Availability
31
WCI 8006970 WCI 8006970 Contact Us For Availability
31
WCI 8013648 WCI 8013648 Contact Us For Availability
31
BEARING AND INLET WCI 8001234 Contact Us For Availability
32
WCI 8006971 WCI 8006971 Contact Us For Availability
32
WCI 8013646 WCI 8013646 Contact Us For Availability
32
MOLD AND HEATER ASSY-INCL. ITEM 36 WCI 8001254 Contact Us For Availability
33
TUBE-RUBBER (2) WCI 8000004 Contact Us For Availability
33
WCI 8017227 WCI 8017227 Contact Us For Availability
33
SCREW 8-16 X 3/8 (2) WCI 8005288 Contact Us For Availability
34
WCI 8000097 WCI 8000097 Contact Us For Availability
34
WCI 8000073 WCI 8000073 Contact Us For Availability
34
ICE STRIPPER WCI 8001252 Contact Us For Availability
35
WCI 8010015 WCI 8010015 Contact Us For Availability
35
WCI 8950024 WCI 8950024 Contact Us For Availability
35
EYELET (2) WCI 8000233 Contact Us For Availability
36
CABINET BASE WCI 8010091 Contact Us For Availability
36
HEATER ELEMENT WCI 8001243 Contact Us For Availability
37
SCREW-FAN ASSY (3) WCI 8002748 Contact Us For Availability
37
SCREW 8-16 X 3/8 (2) WCI 8001175 Contact Us For Availability
37A
NUT U-TYPE (2) (NON-ILLUSTRATED) WCI 8000126 Contact Us For Availability
38
CONNECTOR-BRACKET WCI 8000107 Contact Us For Availability
38
WCI 8001246 WCI 8001246 Contact Us For Availability
39
COVER-EVAPORATOR WCI 8009753 Contact Us For Availability
39
WIRING HARNESS-EXTERNAL WCI 3001567 Contact Us For Availability
39A
HARNESS KIT-INCLUDES ITEMS 25 AND 39 (NON-ILL WCI 8950138 Contact Us For Availability
40
WCI 3018768 WCI 3018768 Contact Us For Availability
40
SEAL STRIP-BULK WCI 5877995 Contact Us For Availability
41
PLUG BUTTON-AVOCADO WCI 8007126 Contact Us For Availability
41
SCREW-CLAMP MOUNTING (10) WCI 8000039 Contact Us For Availability
42
ROLLER, REAR (2) WCI 8009773 Contact Us For Availability
42
SCREW-IM MOUNTING (3) WCI 8010253 Contact Us For Availability
42A
BOLT-ROLLER MTG (2) (NON-ILLUSTRATED) WCI 8009762 Contact Us For Availability
43
WCI 8009760 WCI 8009760 Contact Us For Availability
43
CLAMP-HARNESS MTG WCI 8000109 Contact Us For Availability
44
SUPPORT-BASE CAB (2) WCI 8013678 Contact Us For Availability
44
CLAMP-WIRE HARNESS WCI 8008782 Contact Us For Availability
45
WCI 8009790 WCI 8009790 Contact Us For Availability
45
CLAMP-INLET TUBE WCI 8000221 Contact Us For Availability
46
CLAMP-STEEL TUBE WCI 8009561 Contact Us For Availability
47
CLAMP-TUBE TO PANEL WCI 8000250 Contact Us For Availability
48
CLIP-HARNESS WCI 8000230 Contact Us For Availability
49
WCI 8010335 WCI 8010335 Contact Us For Availability
50
NUT-INLET TO VALVE WCI 8000200 Contact Us For Availability
51
BUSHING-COIL COVER AND REAR CAB (2) WCI 8000241 Contact Us For Availability
52
PLUG-ADAPTER WCI 8000220 Contact Us For Availability
53
TUBE-FILLER WCI 8000239 Contact Us For Availability
54
TUBE-WATER INLET WCI 8010269 Contact Us For Availability
55
TUBE-VALVE TO INLET WCI 8000199 Contact Us For Availability
56
BRACKET-WATER VALVE WCI 8000223 Contact Us For Availability
57
WCI 3001569 WCI 3001569 Contact Us For Availability
58
WATER SUPPLY ADAPTER WCI 8000205 Contact Us For Availability
× ![]()
