Model Electrolux FPD17TFH0 REFRIGERATOR – Common Parts & Diagrams

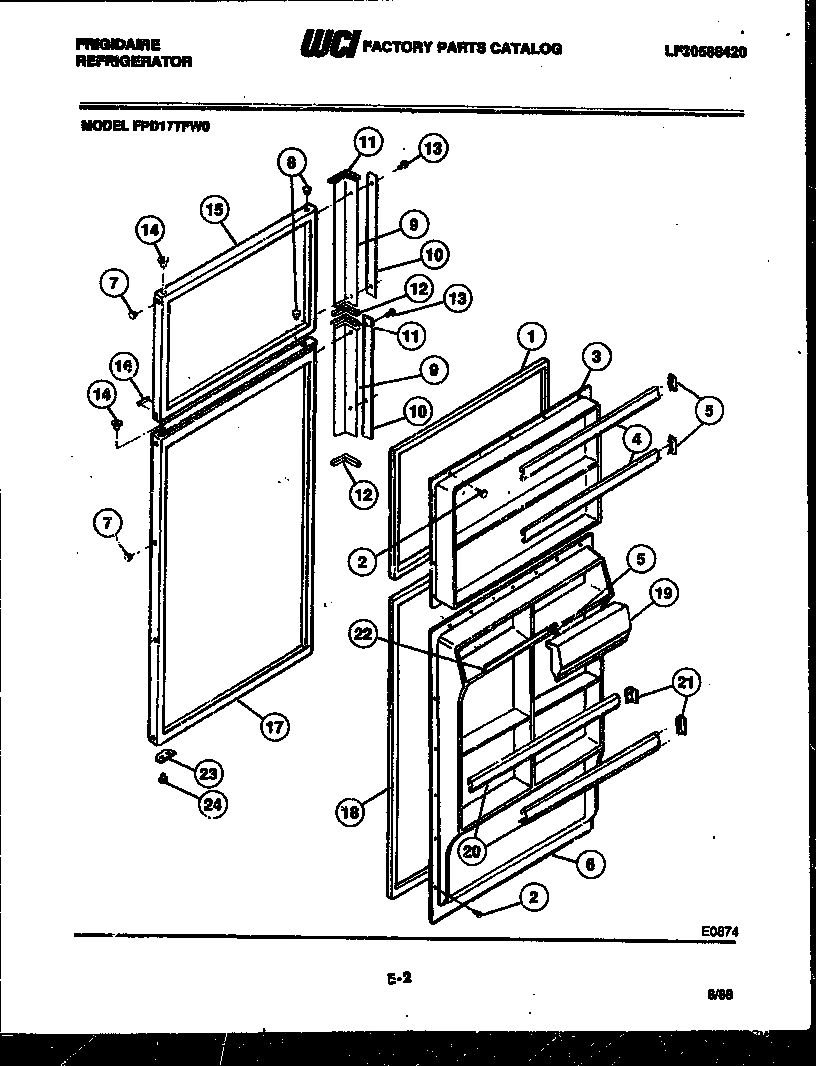

02 - DOOR PARTS

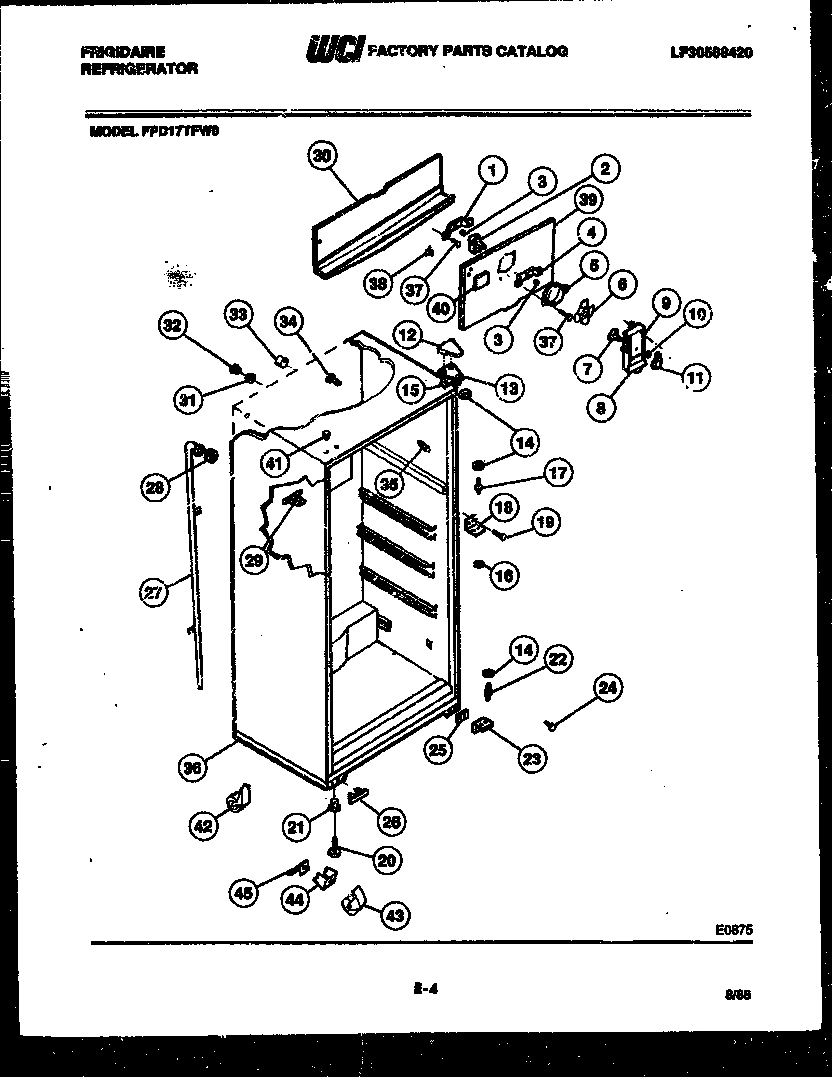

03 - CABINET PARTS
04 - SHELVES AND SUPPORTS
05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux FPD17TFH0 REFRIGERATOR
*16035
WCI 8009761 WCI 8009761 Contact Us For Availability
*16035
WASHER-NYLON (2) WCI 8011326 Contact Us For Availability
*16035
PLUG-FRZR LINER (6) WCI 8016571 Contact Us For Availability
*16039
WCI 9960001 WCI 9960001 Contact Us For Availability
1
GASKET-FRZR DOOR WCI 3001304 Contact Us For Availability
1
MOTOR BRACKET-REAR WCI 8000042 Contact Us For Availability
1
WCI 8000071 WCI 8000071 Contact Us For Availability
1
WCI 8009262 WCI 8009262 Contact Us For Availability
2
WCI 8004176 WCI 8004176 Contact Us For Availability
2
WCI 8000055 WCI 8000055 Contact Us For Availability
2
WCI 8003600 WCI 8003600 Contact Us For Availability
3
WCI 3018865 WCI 3018865 Contact Us For Availability
3
BUSHING-MOTOR (2) WCI 8000032 Contact Us For Availability
3
WCI 3018881 WCI 3018881 Contact Us For Availability
3
SCREW-BRKT MTG (4) WCI 8000039 Contact Us For Availability
3A
SCREW-TOP MTG (3) (NON-ILLUSTRATED) WCI 8000070 Contact Us For Availability
4
WCI 3018866 WCI 3018866 Contact Us For Availability
4
MOTOR BRACKET-FRONT WCI 8000043 Contact Us For Availability
4
WCI 3018899 WCI 3018899 Contact Us For Availability
4
WIRING HARNESS, DIVIDER WCI 3018900 Contact Us For Availability
5
WCI 8000124 WCI 8000124 Contact Us For Availability
5
WCI 8015543 WCI 8015543 Contact Us For Availability
5
WCI 8009628 WCI 8009628 Contact Us For Availability
6
WCI 3200478 WCI 3200478 Contact Us For Availability
6
WCI 8000153 WCI 8000153 Contact Us For Availability
6
WCI 8000064 WCI 8000064 Contact Us For Availability
7
PLUG-WHEAT WCI 8000180 Contact Us For Availability
7
DAMPER-FAN WCI 8000066 Contact Us For Availability
7
LIGHT SOCKET WCI 8000815 Contact Us For Availability
7
WCI 8013644 WCI 8013644 Contact Us For Availability
8
PLUG, WHEAT WCI 8000176 Contact Us For Availability
8
WCI 8009817 WCI 8009817 Contact Us For Availability
8
SCREW 8-15 X 1/2 WCI 8016629 Contact Us For Availability
8A
SCREW-COVER MTG (2) (NON-ILLUSTRATED) WCI 8016566 Contact Us For Availability
9
HANDLE ASSY W/ CAP & TRIM (2) WCI 3017190 Contact Us For Availability
9
LABEL-FAN COVER WCI 8009822 Contact Us For Availability
9
HOUSING - CONTROL CAP TUBE WCI 3018891 Contact Us For Availability
9
CLAMP-HARNESS (2) WCI 8002756 Contact Us For Availability
10
TRIM-HANDLE (2) WCI 8010232 Contact Us For Availability
10
WCI 8000067 WCI 8000067 Contact Us For Availability
10
CLAMP-COMPR HARNESS WCI 8000187 Contact Us For Availability
11
END CAP-TOP (2) WCI 8010239 Contact Us For Availability
11
WCI 8009793 WCI 8009793 Contact Us For Availability
11
SWITCH, LIGHT WCI 8000069 Contact Us For Availability
11
PAN-DEFROST WCI 8012951 Contact Us For Availability
11A
LABEL-DAMPER KNOB (NON-ILLUSTRATED) WCI 8009823 Contact Us For Availability
12
END CAP-BOTTOM (2) WCI 8010238 Contact Us For Availability
12
WCI 8012931 WCI 8012931 Contact Us For Availability
12
CONTROL-TEMPERATURE WCI 3018894 Contact Us For Availability
12
WCI 8003611 WCI 8003611 Contact Us For Availability
13
SCREW-HANDLE MTG (4) WCI 8013645 Contact Us For Availability
13
WCI 8012843 WCI 8012843 Contact Us For Availability
13
CONTROL BOX WCI 3018895 Contact Us For Availability
13
CLIP (4) WCI 8003596 Contact Us For Availability
13A
SCREW-HINGE MTG (2) (NON-ILLUSTRATED) WCI 8000123 Contact Us For Availability
14
HINGE BEARING (8) WCI 8012007 Contact Us For Availability
14
WASHER-1/4 NYLON (3) WCI 8000007 Contact Us For Availability
14
WCI 3018896 WCI 3018896 Contact Us For Availability
14
WASHER (4) WCI 8003597 Contact Us For Availability
15
WCI 8009841 WCI 8009841 Contact Us For Availability
15
WCI 8012829 WCI 8012829 Contact Us For Availability
15
SCREW-TIMER MTG (2) WCI 8000008 Contact Us For Availability
15
WCI 8008778 WCI 8008778 Contact Us For Availability
16
WCI 3018385 WCI 3018385 Contact Us For Availability
16
WASHER-5/16 NYLON WCI 8000100 Contact Us For Availability
16
SCREW-CONT MTG (2) WCI 8000009 Contact Us For Availability
16
PLATE-COMPR MTG WCI 8013663 Contact Us For Availability
17
WCI 8009845 WCI 8009845 Contact Us For Availability
17
WCI 8000184 WCI 8000184 Contact Us For Availability
17
KNOB, TEMP CONTROL WCI 3018893 Contact Us For Availability
17
COMPRESSOR WITH ELECTRICALS WCI 3916004 Contact Us For Availability
18
WCI 8000757 WCI 8000757 Contact Us For Availability
18
WCI 8010007 WCI 8010007 Contact Us For Availability
18
DRIER-FILTER WCI 8000027 Contact Us For Availability
19
WCI 3200582 WCI 3200582 Contact Us For Availability
19
WASHER-STEEL (4) WCI 8003607 Contact Us For Availability
19
WCI 8017226 WCI 8017226 Contact Us For Availability
20
SCREW-MULLION MTG (4) WCI 8012258 Contact Us For Availability
20
WCI 8003583 WCI 8003583 Contact Us For Availability
20
WCI 8017572 WCI 8017572 Contact Us For Availability
21
WCI 8003584 WCI 8003584 Contact Us For Availability
21
WCI 3916132 WCI 3916132 Contact Us For Availability
21
WCI 8006982 WCI 8006982 Contact Us For Availability
22
RACK-TOP WCI 3018423 Contact Us For Availability
22
WCI 8003578 WCI 8003578 Contact Us For Availability
22
WCI 8003604 WCI 8003604 Contact Us For Availability
22
STRAP-TERM COVER WCI 8000117 Contact Us For Availability
23
DOOR STOP (2) WCI 8000255 Contact Us For Availability
23
BRACKET-BOTTOM HINGE WCI 8017609 Contact Us For Availability
23
WCI 8000744 WCI 8000744 Contact Us For Availability
23
CAPACITOR-COMPR RUN WCI 8017535 Contact Us For Availability
24
SCREW (2) WCI 8011745 Contact Us For Availability
24
SCREW-HINGE MTG (2) WCI 8010252 Contact Us For Availability
24
WCI 3200650 WCI 3200650 Contact Us For Availability
24
STRAP-CAP MTG WCI 8017231 Contact Us For Availability
25
WCI 8000755 WCI 8000755 Contact Us For Availability
25
WCI 3200469 WCI 3200469 Contact Us For Availability
25
WCI 8010274 WCI 8010274 Contact Us For Availability
25A
TAPPING PLATE (2) (NON-ILLUSTRATED) WCI 8012296 Contact Us For Availability
26
WCI 8003585 WCI 8003585 Contact Us For Availability
26
WCI 3018874 WCI 3018874 Contact Us For Availability
26
CLAMP-EXCHANGER WCI 8008782 Contact Us For Availability
27
DRAIN TUBE WCI 8010012 Contact Us For Availability
27
WCI 3018892 WCI 3018892 Contact Us For Availability
27
HEATER-DEFROST WCI 8009754 Contact Us For Availability
28
WCI 8009755 WCI 8009755 Contact Us For Availability
28
WCI 3200651 WCI 3200651 Contact Us For Availability
28
EVAPORATOR COIL WCI 8009756 Contact Us For Availability
29
DRAIN SPOUT WCI 8000056 Contact Us For Availability
29
WCI 8010287 WCI 8010287 Contact Us For Availability
29
STRAP-EVAP/HTR (2) WCI 8000110 Contact Us For Availability
29A
WCI 8013847 WCI 8013847 Contact Us For Availability
30
DRAIN TROUGH WCI 8010005 Contact Us For Availability
30
INSULATOR-EVAP WCI 8009638 Contact Us For Availability
31
WCI 8013648 WCI 8013648 Contact Us For Availability
32
WCI 8006970 WCI 8006970 Contact Us For Availability
32
WCI 8006971 WCI 8006971 Contact Us For Availability
32
WCI 8013646 WCI 8013646 Contact Us For Availability
33
TUBE-RUBBER (2) WCI 8000004 Contact Us For Availability
33
WCI 8017227 WCI 8017227 Contact Us For Availability
34
WCI 8000097 WCI 8000097 Contact Us For Availability
34
WCI 8000073 WCI 8000073 Contact Us For Availability
35
WCI 8010016 WCI 8010016 Contact Us For Availability
35
WCI 8950024 WCI 8950024 Contact Us For Availability
36
CABINET BASE WCI 8010091 Contact Us For Availability
37
SCREW-FAN ASSY (3) WCI 8002748 Contact Us For Availability
37A
NUT U-TYPE (2) (NON-ILLUSTRATED) WCI 8000126 Contact Us For Availability
38
CONNECTOR-BRACKET WCI 8000107 Contact Us For Availability
39
COVER-EVAPORATOR WCI 8009753 Contact Us For Availability
39A
PLUG-SHORT TEST HOLE (NON-ILLUSTRATED) WCI 3018768 Contact Us For Availability
40
PLUG-DECORATIVE WCI 8013636 Contact Us For Availability
41
PLUG-WHEAT WCI 8007127 Contact Us For Availability
42
ROLLER, REAR (2) WCI 8009773 Contact Us For Availability
42A
BOLT-ROLLER MTG (2) (NON-ILLUSTRATED) WCI 8009762 Contact Us For Availability
43
WCI 8009760 WCI 8009760 Contact Us For Availability
44
SUPPORT-BASE CAB (2) WCI 8013678 Contact Us For Availability
45
WCI 8009790 WCI 8009790 Contact Us For Availability
× ![]()
