Model LG FPD1565 – Common Parts & Diagrams

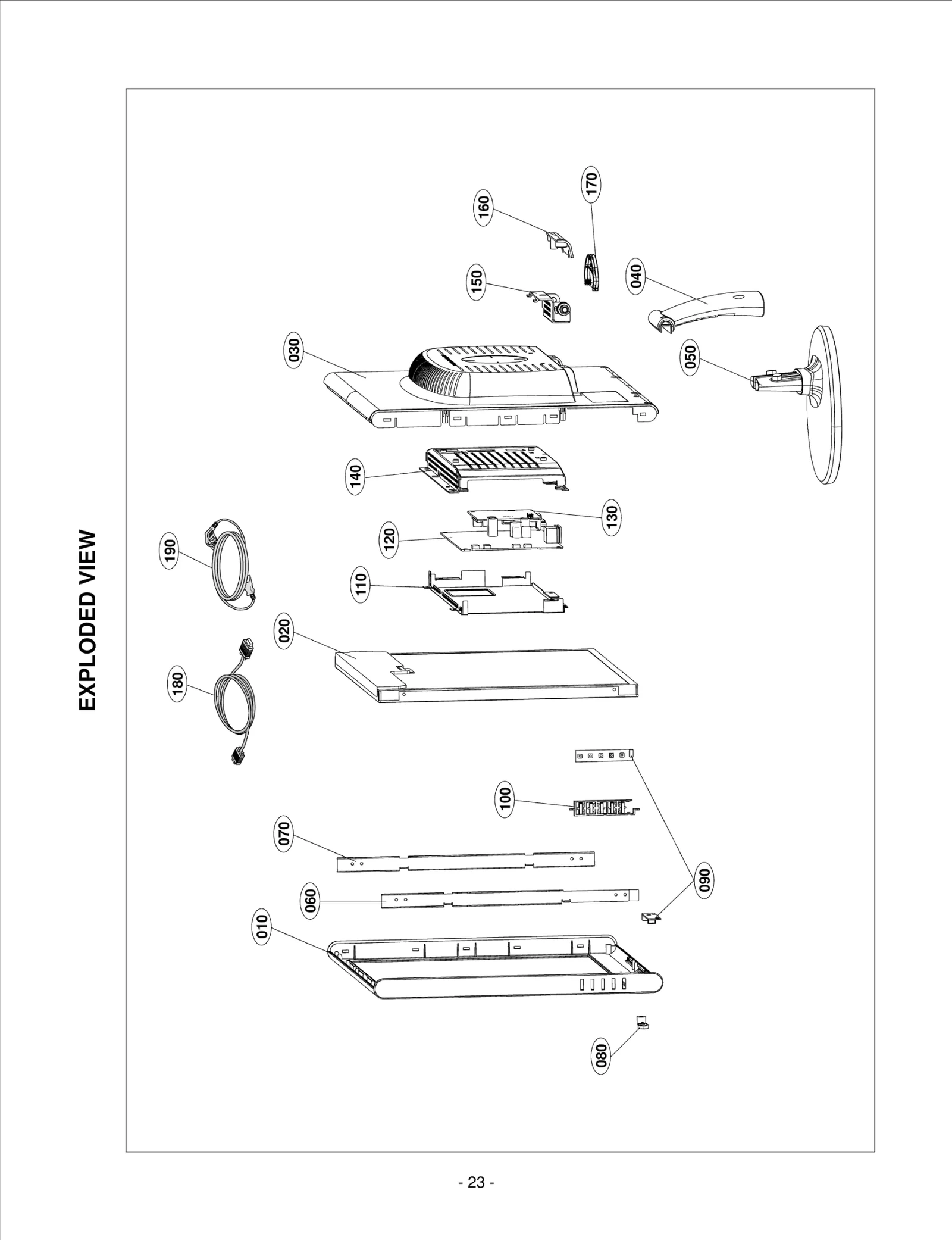

Diagram 0
Common parts from model LG FPD1565
0
SCREW, LGE 1SZZTPP001C Contact Us For Availability
0
COVER ASSEMBLY LGE 3551TKK604A Contact Us For Availability
0
POWER CORD LGE 6410VUH007A Contact Us For Availability
0
PWB(PCB) ASSEMBLY,SU LGE 6871TSTA68A Contact Us For Availability
0
MAIN TOTAL ASSEMBLY LGE 3313T15108B Contact Us For Availability
0
SCREW, LGE 332-113D Contact Us For Availability
0
COVER ASSEMBLY LGE 3551TKK603B Contact Us For Availability
0
BACK COVER ASSEMBLY LGE 3809TKL119A Contact Us For Availability
0
METAL LGE 4950TKA245B Contact Us For Availability
0
CONNECTOR ASSEMBLY LGE 6631T20033T Contact Us For Availability
0
SCREW,DRAWING LGE 1SZZVMB005J Contact Us For Availability
0
CABINET ASSEMBLY LGE 3091TKL169B Contact Us For Availability
0
SCREW,DRAWING LGE 332-068V Contact Us For Availability
0
BOX LGE 3890TSEA22B Contact Us For Availability
0
KNOB LGE 4940TKT253A Contact Us For Availability
0
SCREW,DRAWING LGE 1SZZTMF008B Contact Us For Availability
0
SCREW, LGE 332-105G Contact Us For Availability
0
BAG,VINYL LGE 3880TKZ029C Contact Us For Availability
0
SHIELD LGE 4814TKK335A Contact Us For Availability
0
HOLDER LGE 4930TKK069A Contact Us For Availability
0
METAL ASSEMBLY LGE 4951TKK242A Contact Us For Availability
0
LCD(LIQUID CRYSTAL D LGE 6304FLP156B Contact Us For Availability
0
CONNECTOR ASSEMBLY LGE 6631T12006M Contact Us For Availability
0
LGE 6631T20015A LGE 6631T20015A Contact Us For Availability
0
TILT SWIVEL ASSEMBLY LGE 3043TKK249A Contact Us For Availability
0
LGE 339-006B LGE 339-006B Contact Us For Availability
0
PRINTING PART ASSEMB LGE 3871TZL232X Contact Us For Availability
0
PACKING LGE 3920TKE373A Contact Us For Availability
0
METAL LGE 4950TKA245A Contact Us For Availability
0
METAL ASSEMBLY LGE 4951TKK260A Contact Us For Availability
0
CABLE,D-SUB LGE 6850TD9007D Contact Us For Availability
0
SCREW,DRAWING LGE 332-068U Contact Us For Availability
0
LGE 332-110A LGE 332-110A Contact Us For Availability
0
LGE 332-113E LGE 332-113E Contact Us For Availability
0
COVER LGE 3550TKK845A Contact Us For Availability
0
CONNECTOR ASSEMBLY LGE 6631T11012R Contact Us For Availability
0
PWB(PCB) ASSEMBLY,PO LGE 6871TPT321A Contact Us For Availability
C207
CAPACITOR,FIXED CERA LGE 0CC221CK41A Contact Us For Availability
C234
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C606
Capacitor,AL,Radial LGE 0CE227EF610 Contact Us For Availability
C614
Capacitor,AL,Radial LGE 0CE107EF628 Contact Us For Availability
C623
CAPACITOR,FIXED CERA LGE 0CK102CK56A Contact Us For Availability
C710
CAPACITOR,FIXED CERA LGE 0CK103CK51A Contact Us For Availability
C711
CAPACITOR,FIXED CERA LGE 0CC680CK41A Contact Us For Availability
C781
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
D708
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
LED1
LED LGE 0DLBE0048AA Contact Us For Availability
Q702
TRANSISTOR LGE 0TR390409AE Contact Us For Availability
Q710
TRANSISTOR LGE 0TR390609FA Contact Us For Availability
R3
RESISTOR,METAL GLAZE LGE 0RJ1501D677 Contact Us For Availability
R202
Resistor,Chip LGE 0RJ2201D677 Contact Us For Availability
R222
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R601
LGE 0RX0471J668 LGE 0RX0471J668 Contact Us For Availability
R602
LGE 0RX0220J609 LGE 0RX0220J609 Contact Us For Availability
R704
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R717
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R719
RESISTOR,METAL GLAZE LGE 0RJ0682D677 Contact Us For Availability
R733
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R738
RESISTOR,METAL GLAZE LGE 0RJ0102D677 Contact Us For Availability
R741
RESISTOR,METAL GLAZE LGE 0RJ0222D677 Contact Us For Availability
R758
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
SW4
SWITCH,TACT LGE 6600R00004C Contact Us For Availability
SW6
SWITCH,TACT LGE 6600R00004A Contact Us For Availability
U200
IC,PERIPHERALS LGE 0IPRP00520A Contact Us For Availability
U201
IC,DRAWING LGE 0IZZTSZ720B Contact Us For Availability
U202
IC,MEMORIES LGE 0ISG240860B Contact Us For Availability
U602
TRANSISTOR,FETS LGE 0TFFC80009A Contact Us For Availability
U612
IC,POWER MANAGEMENT LGE 0IPMGSG019A Contact Us For Availability
U613
IC,POWER MANAGEMENT LGE 0IPMGKE011A Contact Us For Availability
U702
IC,MEMORIES LGE 0IMMRSG036A Contact Us For Availability
X202
RESONATOR,CRYSTAL LGE 6212AA2004F Contact Us For Availability
× ![]()
