Model LG FPD1530 – Common Parts & Diagrams

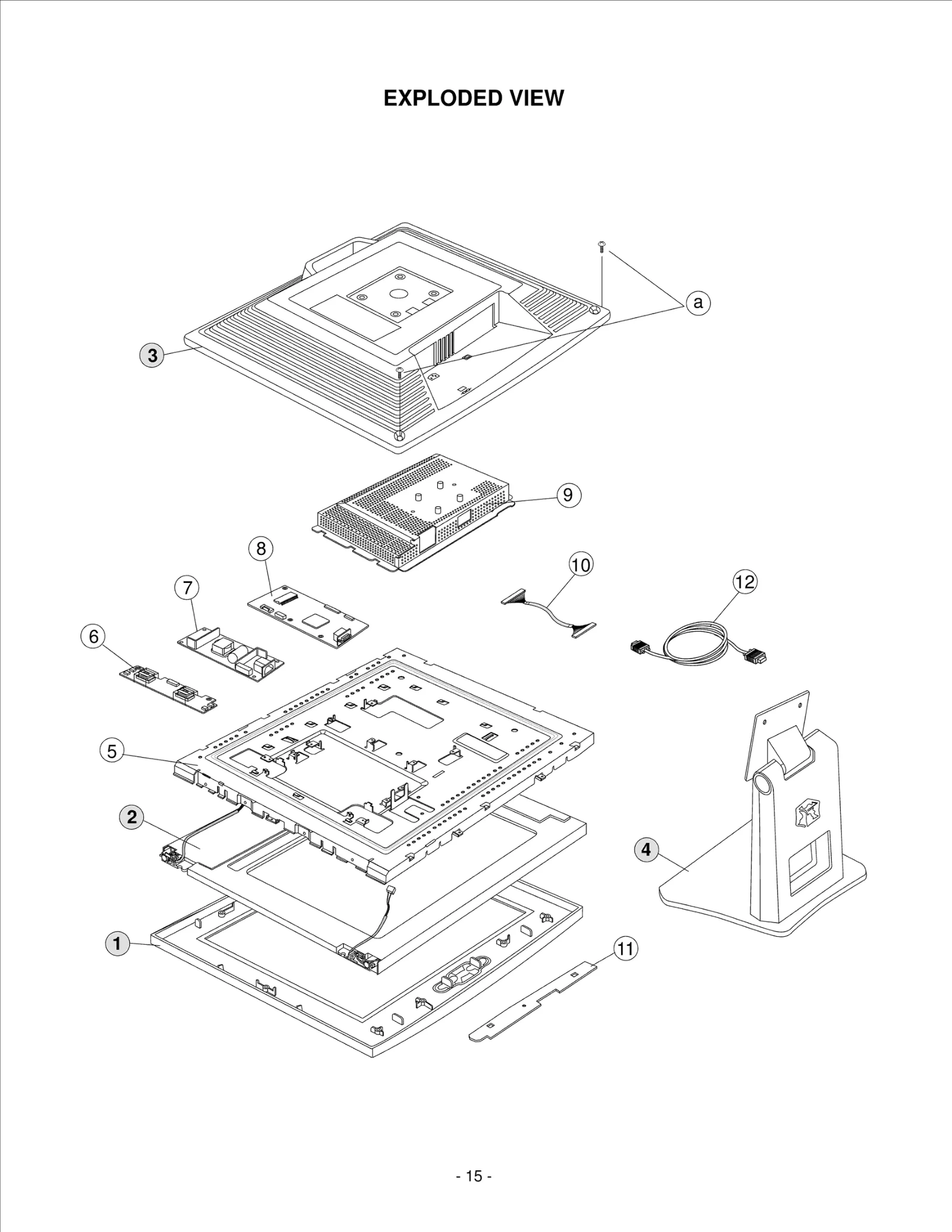

Diagram 0
Common parts from model LG FPD1530
0
POWER CORD LGE 174-206M Contact Us For Availability
0
SCREW, LGE 1SZZTER001A Contact Us For Availability
0
LGE 3091TKL041E LGE 3091TKL041E Contact Us For Availability
0
LGE 3550TKK187B LGE 3550TKK187B Contact Us For Availability
0
LGE 4950TKK310B LGE 4950TKK310B Contact Us For Availability
0
PWB(PCB) ASSEMBLY,SU LGE 6871TST245E Contact Us For Availability
0
SCREW, LGE 1SZZTPP001B Contact Us For Availability
0
SCREW, LGE 332-113D Contact Us For Availability
0
LGE 3920TKE184A LGE 3920TKE184A Contact Us For Availability
0
LGE 4950TKS195A LGE 4950TKS195A Contact Us For Availability
0
SCREW MACHINE,BINDIN LGE 1MBC0251723 Contact Us For Availability
0
LGE 3313TL5047A LGE 3313TL5047A Contact Us For Availability
0
SCREW,DRAWING LGE 332-068U Contact Us For Availability
0
LGE 3550TKK188B LGE 3550TKK188B Contact Us For Availability
0
LGE 3550TKK190D LGE 3550TKK190D Contact Us For Availability
0
LGE 6631T20015K LGE 6631T20015K Contact Us For Availability
0
PWB(PCB) ASSEMBLY,PO LGE 6871TPT223C Contact Us For Availability
0
Bag LGE 3880TAZ001D Contact Us For Availability
0
LGE 3880TKZ009A LGE 3880TKZ009A Contact Us For Availability
0
LGE 3890TSE058F LGE 3890TSE058F Contact Us For Availability
0
LGE 4950TKK424D LGE 4950TKK424D Contact Us For Availability
0
LGE 4951TKK056G LGE 4951TKK056G Contact Us For Availability
0
PWB(PCB) ASSEMBLY,MA LGE 6871TMT314A Contact Us For Availability
0
LGE 1SZZTPC001B LGE 1SZZTPC001B Contact Us For Availability
0
SCREW, LGE 1SZZTPC002C Contact Us For Availability
0
LGE 3043TKK078M LGE 3043TKK078M Contact Us For Availability
0
BACK COVER ASSEMBLY LGE 3809TKL027E Contact Us For Availability
0
LGE 3828TUO197D LGE 3828TUO197D Contact Us For Availability
0
LGE 3846TKK053A LGE 3846TKK053A Contact Us For Availability
0
LGE 6304FLP024A LGE 6304FLP024A Contact Us For Availability
0
INVERTER ASSEMBLY LGE 6633TZA003H Contact Us For Availability
0
SCREW, LGE 1SZZTPC002A Contact Us For Availability
0
SCREW, LGE 332-105G Contact Us For Availability
0
LGE 3550TKK189B LGE 3550TKK189B Contact Us For Availability
0
LGE 372-S74U LGE 372-S74U Contact Us For Availability
0
LGE 3880TVZ002B LGE 3880TVZ002B Contact Us For Availability
0
LGE 3911TKK355F LGE 3911TKK355F Contact Us For Availability
0
LGE 4950TKK311B LGE 4950TKK311B Contact Us For Availability
0
LGE 3871TZL209D LGE 3871TZL209D Contact Us For Availability
0
LGE 4951TKS085G LGE 4951TKS085G Contact Us For Availability
0
CONNECTOR ASSEMBLY LGE 6631T11012R Contact Us For Availability
0
LGE 6631T20015P LGE 6631T20015P Contact Us For Availability
0
LGE 332-105F LGE 332-105F Contact Us For Availability
0
SCREW,DRAWING LGE 332-112F Contact Us For Availability
0
LGE 332-113E LGE 332-113E Contact Us For Availability
0
LGE 3890TSE123S LGE 3890TSE123S Contact Us For Availability
BD901
LGE 0DD260000BE LGE 0DD260000BE Contact Us For Availability
C2
Capacitor,Ceramic,Axial LGE 0CN1040K949 Contact Us For Availability
C226
CAPACITOR,FIXED CERA LGE 0CC680CK41A Contact Us For Availability
C257
CAPACITOR,FIXED CERA LGE 0CK103CK51A Contact Us For Availability
C514
CAPACITOR,CHIP[AL. E LGE 0CH8106F611 Contact Us For Availability
C715
Capacitor,AL,Chip LGE 0CH8106J611 Contact Us For Availability
C716
Capacitor,AL,Radial LGE 0CE107CH610 Contact Us For Availability
C817
Capacitor,AL,Radial LGE 0CE107CF610 Contact Us For Availability
C826
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C832
CAPACITOR,CHIP[AL. ELECTROLYTI LGE 0CH8107F611 Contact Us For Availability
C901
LGE 0CBZTBU002D LGE 0CBZTBU002D Contact Us For Availability
C903
CAPACITOR,CERAMIC (H LGE 0CKZTBU003D Contact Us For Availability
C905
LGE 0CZZTAB004B LGE 0CZZTAB004B Contact Us For Availability
C906
CAPACITOR CERAMIC (HIGH DIELE LGE 0CK10201515 Contact Us For Availability
C907
LGE 0CE105EK638 LGE 0CE105EK638 Contact Us For Availability
C908
CAPACITOR,AL.ELECTROLYTIC LGE 0CE476EH638 Contact Us For Availability
C914
LGE 0CE335EK638 LGE 0CE335EK638 Contact Us For Availability
C916
Capacitor,Film,DIP LGE 181-288L Contact Us For Availability
C918
CAPACITOR,AL.ELECTROLYTIC LGE 0CE108EF630 Contact Us For Availability
C920
LGE 0CKZTBU003C LGE 0CKZTBU003C Contact Us For Availability
D1
Diode,Schottky LGE 0DS301109AA Contact Us For Availability
D705
DIODE,SWITCHING LGE 0DS226009AA Contact Us For Availability
D801
DIODE,SWITCHING LGE 0DS181009AA Contact Us For Availability
D901
Diode,Rectifier LGE 0DD400709CB Contact Us For Availability
D903
LGE 0DRGS00281A LGE 0DRGS00281A Contact Us For Availability
D904
DIODE,RECTIFIER LGE 0DR400409AB Contact Us For Availability
D906
Diode,Schottky LGE 0DR206000AA Contact Us For Availability
D908
LGE 0DZ620009AP LGE 0DZ620009AP Contact Us For Availability
IC901
LGE 0IPMGPF004A LGE 0IPMGPF004A Contact Us For Availability
IC904
IC,Voltage Regulator LGE 0ISS431000A Contact Us For Availability
J702
Connector,Wafer LGE 6630VF00520 Contact Us For Availability
J703
Connector,DSUB LGE 6630TGA004B Contact Us For Availability
L202
Filter,Bead LGE 6210TCE001P Contact Us For Availability
L708
FILTER(CIRC),EMC LGE 6210TCE001S Contact Us For Availability
LED1
LGE 0DL305029BA LGE 0DL305029BA Contact Us For Availability
LF901
FILTER(CIRC),DRAWING LGE 6200TZZ001B Contact Us For Availability
P901
LGE 6620TKB002C LGE 6620TKB002C Contact Us For Availability
P902
CONNECTOR ASSY LGE 6631T20008G Contact Us For Availability
PC901
IC,LITEON LGE 0ILI817000E Contact Us For Availability
Q502
TRANSISTOR LGE 0TR390409AE Contact Us For Availability
Q506
TR,Bipolar LGE 0TR162309CA Contact Us For Availability
R1
LGE 0RD4701Q509 LGE 0RD4701Q509 Contact Us For Availability
R4
LGE 0RD1501Q509 LGE 0RD1501Q509 Contact Us For Availability
R6
RESISTOR,FIXED CARBON FILM LGE 0RD3301Q509 Contact Us For Availability
R7
LGE 0RD9101Q609 LGE 0RD9101Q609 Contact Us For Availability
R206
RESISTOR,METAL GLAZE LGE 0RJ2701D677 Contact Us For Availability
R403
RESISTOR,METAL GLAZE LGE 0RJ1001D677 Contact Us For Availability
R513
RESISTOR,METAL GLAZE LGE 0RJ1002D677 Contact Us For Availability
R538
RESISTOR,METAL GLAZE LGE 0RJ2202D677 Contact Us For Availability
R701
RESISTOR,METAL GLAZE LGE 0RJ0752D677 Contact Us For Availability
R717
RESISTOR,METAL GLAZE LGE 0RJ4701D677 Contact Us For Availability
R733
RESISTOR,METAL GLAZE LGE 0RJ1501D677 Contact Us For Availability
R807
RESISTOR,METAL GLAZE LGE 0RJ1003D677 Contact Us For Availability
R811
Resistor,Chip LGE 0RJ0221D677 Contact Us For Availability
R901
Resistor,Carbon Film LGE 0RD6803A609 Contact Us For Availability
R903
LGE 0RD1004Q609 LGE 0RD1004Q609 Contact Us For Availability
R905
LGE 0RD4704Q609 LGE 0RD4704Q609 Contact Us For Availability
R906
LGE 0RX4702J609 LGE 0RX4702J609 Contact Us For Availability
R908
LGE 0RD0681Q609 LGE 0RD0681Q609 Contact Us For Availability
R909
Resistor,Carbon Film LGE 0RD1001Q609 Contact Us For Availability
R918
RESISTOR,FIXED CARBON FILM LGE 0RD1000Q609 Contact Us For Availability
R920
Resistor,Metal Film LGE 0RN1302F409 Contact Us For Availability
R921
Resistor,Metal Film LGE 0RN2701F409 Contact Us For Availability
R923
RESISTOR,FIXED CARBON FILM LGE 0RD1202Q609 Contact Us For Availability
RA501
Resistor,Array LGE 0RHZTCZ001A Contact Us For Availability
SW1
LGE 140-058D LGE 140-058D Contact Us For Availability
SW7
SWITCH LGE 140-058E Contact Us For Availability
T901
LGE 6170TMZ133A LGE 6170TMZ133A Contact Us For Availability
TH901
LGE 6322A00002B LGE 6322A00002B Contact Us For Availability
U201
IC,Video Processors LGE 0IPRPGA002A Contact Us For Availability
U401
IC,PERIPHERALS LGE 0ITH638300B Contact Us For Availability
U501
LGE 0IZZTSZ185A LGE 0IZZTSZ185A Contact Us For Availability
U502
IC,MEMORIES LGE 0ISG240860B Contact Us For Availability
U701
IC,Inverter LGE 0IMO741420B Contact Us For Availability
U802
IC,POWER MANAGEMENT LGE 0IPMGKE011A Contact Us For Availability
U803
IC,SAMSUNG ELECTRONICS LGE 0ISS780500H Contact Us For Availability
U805
IC,ROHM LGE 0IRH033000A Contact Us For Availability
U806
IC,LDO Voltage Regulator LGE 0IPMGON007A Contact Us For Availability
X501
Crystal LGE 6202TST003D Contact Us For Availability
ZD1
DIODE,ZENER LGE 0DZ560009CE Contact Us For Availability
ZD501
Diode,Zener LGE 0DZ910009FE Contact Us For Availability
ZD901
DIODE,ZENER LGE 0DZ750009AG Contact Us For Availability
× ![]()
